GRAPHICS: animation library, loading structures and blit funcs

Data Structures
struct	ANIM_DATA
	animation properties More...
struct	ANIM_FRAME
	struct of the properties of a frame in an animation More...
struct	ANIM_GFX
	struct of an animation More...
struct	ANIM_LIB
	structure of a library of gfxs More...

Functions
int	add_bmp_to_lib (ANIM_LIB *lib, unsigned int pos, char *file, char *resfile)
	add a bitmap to a ANIM_LIB *lib
ANIM_LIB *	create_anim_library (char *name, unsigned int size)
	Allocate an animation library.
int	delete_bmp_from_lib (ANIM_LIB *lib, unsigned int id)
	Delete the frame at 'id' from 'lib'.
int	destroy_anim_lib (ANIM_LIB **lib)
	Destroy an animation library.
int	draw_anim (ANIM_DATA *data, int x, int y)
	blit an ANIM_DATA at position x,y ( current selected video buffer is used )
int	update_anim (ANIM_DATA *data, unsigned int delta_t)
	compute and update an ANIM_DATA context based on elapsed delta_t time in usecs

Detailed Description

---

Data Structure Documentation

ANIM_DATA

struct ANIM_DATA

animation properties

Definition at line 63 of file n_anim.h.

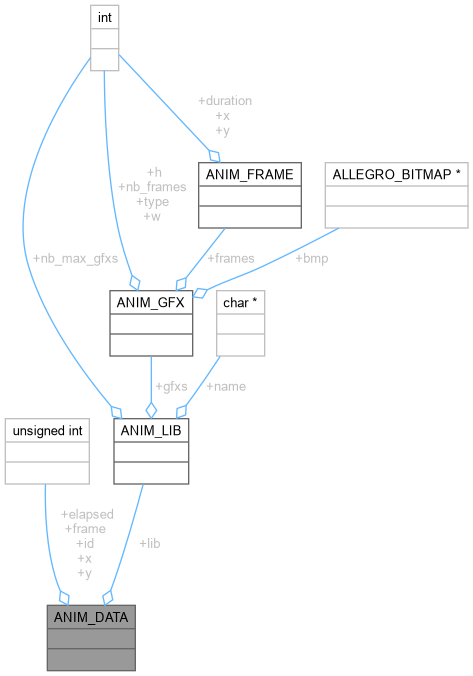

Collaboration diagram for ANIM_DATA:

Data Fields
unsigned int	elapsed	elapsed time since last frame change
unsigned int	frame	id of the current frame
unsigned int	id
ANIM_LIB *	lib	pointer to an anim gfx library
unsigned int	x	x coordinate of the animation
unsigned int	y	y coordinate of the animation

ANIM_FRAME

struct ANIM_FRAME

struct of the properties of a frame in an animation

Definition at line 27 of file n_anim.h.

Collaboration diagram for ANIM_FRAME:

Data Fields
unsigned int	duration
int	x
int	y

ANIM_GFX

struct ANIM_GFX

struct of an animation

Definition at line 34 of file n_anim.h.

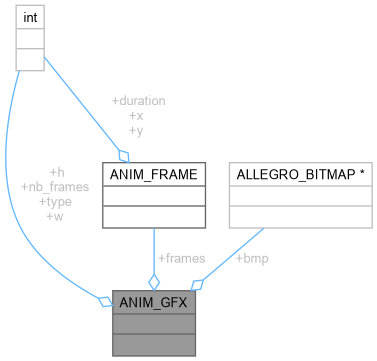

Collaboration diagram for ANIM_GFX:

Data Fields
ALLEGRO_BITMAP *	bmp	bitmap with a list of lil' bitmap inside
ANIM_FRAME *	frames	each frame properties
unsigned int	h	height of a frame
unsigned int	nb_frames	nb frames in anim
unsigned int	type	blit type: masked with color, blended, brut
unsigned int	w	width of a frame

ANIM_LIB

struct ANIM_LIB

structure of a library of gfxs

Definition at line 51 of file n_anim.h.

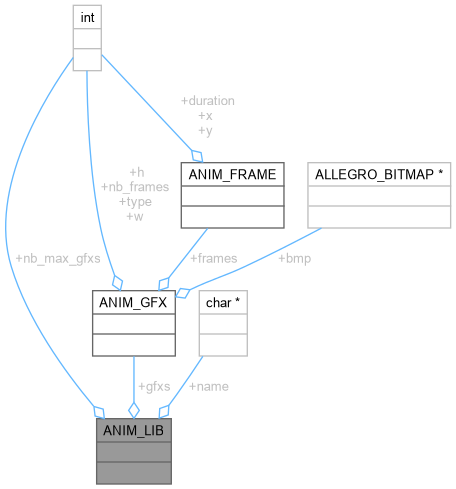

Collaboration diagram for ANIM_LIB:

Data Fields
ANIM_GFX **	gfxs	Stack of gfxs.
char *	name	name of the anim library
unsigned int	nb_max_gfxs	size of the stack

Function Documentation

add_bmp_to_lib()

int add_bmp_to_lib	(	ANIM_LIB *	lib,
		unsigned int	pos,
		char *	file,
		char *	resfile
	)

add a bitmap to a ANIM_LIB *lib

Parameters

lib	targetted library
pos	position in the animation library
file	input bitmap file
resfile	associated input bitmap text file

Returns

TRUE or FALSE

Definition at line 83 of file n_anim.c.

References __n_assert, ANIM_GFX::bmp, ANIM_FRAME::duration, ANIM_GFX::frames, Free, gfxs, ANIM_GFX::h, LOG_ERR, Malloc, n_log, name, ANIM_GFX::nb_frames, nb_max_gfxs, ANIM_GFX::w, ANIM_FRAME::x, and ANIM_FRAME::y.

create_anim_library()

ANIM_LIB * create_anim_library	(	char *	name,
		unsigned int	size
	)

Allocate an animation library.

Parameters

name	Name for the library or NULL (in which case 'generic_name' will be assigned)
size	Number of animations

Returns

An allocated ANIM_LIB *object or NULL

Definition at line 19 of file n_anim.c.

References __n_assert, gfxs, LOG_ERR, Malloc, n_log, name, and nb_max_gfxs.

delete_bmp_from_lib()

int delete_bmp_from_lib	(	ANIM_LIB *	lib,
		unsigned int	id
	)

Delete the frame at 'id' from 'lib'.

Parameters

lib	Target animation stream
id	Id of the frame to delete

Returns

TRUE or FALSE

Definition at line 67 of file n_anim.c.

References __n_assert, and gfxs.

destroy_anim_lib()

int destroy_anim_lib

(

ANIM_LIB **

lib

)

Destroy an animation library.

Parameters

lib	animation library to destroy

Returns

TRUE or FALSE

Definition at line 51 of file n_anim.c.

References __n_assert, Free, and FreeNoLog.

draw_anim()

int draw_anim	(	ANIM_DATA *	data,
		int	x,
		int	y
	)

blit an ANIM_DATA at position x,y ( current selected video buffer is used )

Parameters

data	ANIM_DATA *source to use
x	x position on screen
y	y position on screen

Returns

TRUE or FALSE

Definition at line 188 of file n_anim.c.

References ANIM_GFX::bmp, ANIM_DATA::frame, ANIM_GFX::frames, gfxs, ANIM_GFX::h, ANIM_DATA::id, ANIM_DATA::lib, ANIM_GFX::w, ANIM_FRAME::x, and ANIM_FRAME::y.

update_anim()

int update_anim	(	ANIM_DATA *	data,
		unsigned int	delta_t
	)

compute and update an ANIM_DATA context based on elapsed delta_t time in usecs

Parameters

data	targetted ANIM_DATA
delta_t	elapsed time to apply (usecs)

Returns

TRUE or FALSE

Definition at line 168 of file n_anim.c.

References __n_assert, ANIM_FRAME::duration, ANIM_DATA::elapsed, ANIM_DATA::frame, ANIM_GFX::frames, gfxs, ANIM_DATA::id, ANIM_DATA::lib, and ANIM_GFX::nb_frames.
