Data Structures
struct	N_FLUID
	structure of a fluid More...

struct	N_FLUID_THREAD_PARAMS
	structure passed to a threaded fluid process More...

Macros
#define	_z(__fluid, __component) ((__fluid->__component) > (__fluid->negative_float_tolerance) && (__fluid->__component) < (__fluid->positive_float_tolerance))
	test if component is near zero, according to fluid's precision

#define	_zd(__fluid, __value) ((__value) > (__fluid->negative_float_tolerance) && (__value) < (__fluid->positive_float_tolerance))
	test if value is near zero, according to fluid's precision

Functions
int	destroy_n_fluid (N_FLUID **fluid)
	ddestroy a fluid structure

int	n_fluid_advectSmoke (N_FLUID *fluid)
	non threaded version of add smoke function

int	n_fluid_advectVel (N_FLUID *fluid)
	non threaded version of add velocities function

double	n_fluid_avgU (N_FLUID *fluid, size_t i, size_t j)
	compute the average U value at a fluid position using it's surrounding

double	n_fluid_avgV (N_FLUID *fluid, size_t i, size_t j)
	compute the average V value at a fluid position using it's surrounding

int	n_fluid_draw (N_FLUID *fluid)
	draw a N_FLUID on screen / targert bitmap

int	n_fluid_extrapolate (N_FLUID *fluid)
	non threaded extrapolation function

ALLEGRO_COLOR	n_fluid_getSciColor (N_FLUID *fluid, double val, double minVal, double maxVal)
	get fonky colors for the fluid

int	n_fluid_integrate (N_FLUID *fluid)
	non threaded version of integration function

int	n_fluid_resetObstacles (N_FLUID *fluid)
	reset the obstacles set in a N_FLUID

double	n_fluid_sampleField (N_FLUID *fluid, double x, double y, uint32_t field)
	compute a sample value at a field position

int	n_fluid_setObstacle (N_FLUID *fluid, double x, double y, double vx, double vy, double r)
	set an obstacle in the fluid grid

int	n_fluid_simulate (N_FLUID *fluid)
	non threaded version of N_FLUID global processing function

int	n_fluid_simulate_threaded (N_FLUID fluid, THREAD_POOL thread_pool)
	a threaded version of N_FLUID global processing function

int	n_fluid_solveIncompressibility (N_FLUID *fluid)
	non threaded version of incompressibility solving function

N_FLUID *	new_n_fluid (double density, double gravity, size_t numIters, double dt, double overRelaxation, size_t sx, size_t sy)
	return a newly allocated fluid

Detailed Description

Data Structure Documentation

◆ N_FLUID

struct N_FLUID

structure of a fluid

Examples: ex_fluid.c, ex_fluid_config.c, and ex_fluid_config.h.

Definition at line 51 of file n_fluids.h.

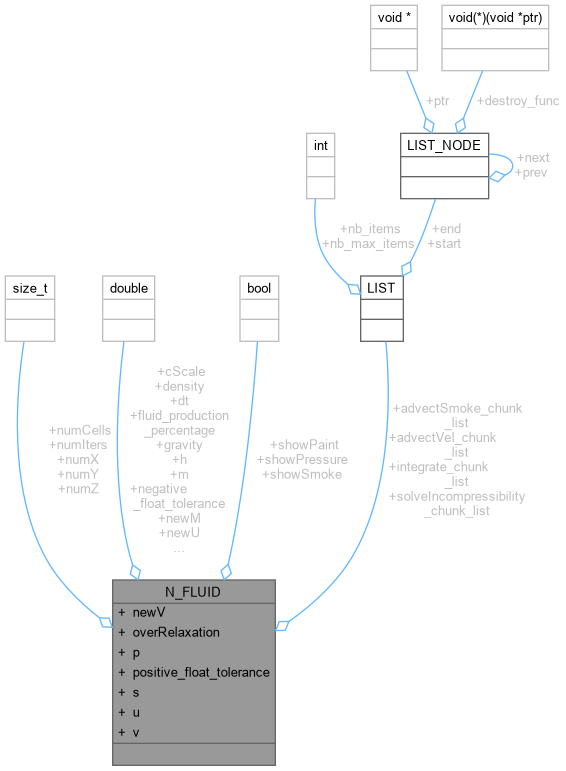

Collaboration diagram for N_FLUID:

Data Fields
LIST *	advectSmoke_chunk_list	preprocessed list of threaded procs parameters, for n_fluid_advectSmoke
LIST *	advectVel_chunk_list	preprocessed list of threaded procs parameters, for n_fluid_advectVel
double	cScale	scale used to deduce cellX and cellY from screen/window width and height
double	density	density of the fluid (not working ?)
double	dt	time between frames
double	fluid_production_percentage	size of the produced fluid
double	gravity	gravity on Y
double	h
LIST *	integrate_chunk_list	preprocessed list of threaded procs parameters, for n_fluid_integrate
double *	m	holder for m arrays
double	negative_float_tolerance	fluid double negative precision setting
double *	newM	holder for newM arrays
double *	newU	holder for newU arrays
double *	newV	holder for newV arrays
size_t	numCells	total number of cells
size_t	numIters	number of fluid processing iterations for each frame
size_t	numX	number of cells in X
size_t	numY	number of cells in Y
size_t	numZ	number of cells in Z
double	overRelaxation	over relaxation
double *	p	holder for p arrays
double	positive_float_tolerance	fluid double positive precision setting
double *	s	holder for s arrays
bool	showPaint	activate a fonky palette, override smoke and pressure display
bool	showPressure	display fluids pressures as color variations, can be combined with showSmoke
bool	showSmoke	display fluid as a colored cloud instead of black and white, can be combined with showPressure
LIST *	solveIncompressibility_chunk_list	preprocessed list of threaded procs parameters, for n_fluid_solveIncompressibility
double *	u	holder for u arrays
double *	v	holder for v arrays

◆ N_FLUID_THREAD_PARAMS

struct N_FLUID_THREAD_PARAMS

structure passed to a threaded fluid process

Definition at line 37 of file n_fluids.h.

Collaboration diagram for N_FLUID_THREAD_PARAMS:

Data Fields
void *	ptr	pointer to data which will be used in the proc
size_t	x_end	x end point
size_t	x_start	x start point
size_t	y_end	y end point
size_t	y_start	y start point

Macro Definition Documentation

◆ _z

#define _z	(	__fluid,
		__component
	)	((__fluid->__component) > (__fluid->negative_float_tolerance) && (__fluid->__component) < (__fluid->positive_float_tolerance))

test if component is near zero, according to fluid's precision

Definition at line 28 of file n_fluids.h.

◆ _zd

#define _zd	(	__fluid,
		__value
	)	((__value) > (__fluid->negative_float_tolerance) && (__value) < (__fluid->positive_float_tolerance))

test if value is near zero, according to fluid's precision

Definition at line 33 of file n_fluids.h.

Function Documentation

◆ destroy_n_fluid()

int destroy_n_fluid ( N_FLUID ** fluid )

ddestroy a fluid structure

Parameters

fluid pointer to the structure to destroy

Returns: TRUE or FALSE

Definition at line 45 of file n_fluids.c.

References __n_assert, and FreeNoLog.

◆ n_fluid_advectSmoke()

int n_fluid_advectSmoke ( N_FLUID * fluid )

non threaded version of add smoke function

Parameters

fluid a N_FLUID ptr

Returns: TRUE or FALSE

Definition at line 530 of file n_fluids.c.

References __n_assert, _z, N_FLUID::dt, N_FLUID::h, N_FLUID::m, N_FLUID_S_FIELD, n_fluid_sampleField(), N_FLUID::newM, N_FLUID::numCells, N_FLUID::numX, N_FLUID::numY, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_simulate().

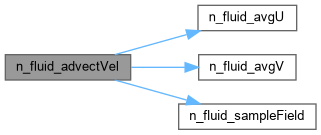

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_advectVel()

int n_fluid_advectVel ( N_FLUID * fluid )

non threaded version of add velocities function

Parameters

fluid a N_FLUID ptr

Returns: TRUE or FALSE

Definition at line 450 of file n_fluids.c.

References __n_assert, _z, N_FLUID::dt, N_FLUID::h, n_fluid_avgU(), n_fluid_avgV(), n_fluid_sampleField(), N_FLUID_U_FIELD, N_FLUID_V_FIELD, N_FLUID::newU, N_FLUID::newV, N_FLUID::numCells, N_FLUID::numX, N_FLUID::numY, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_simulate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_avgU()

double n_fluid_avgU	(	N_FLUID *	fluid,
		size_t	i,
		size_t	j
	)

compute the average U value at a fluid position using it's surrounding

Parameters

fluid	targeted N_FLUID
i	X position in the fluid grid
j	Y position in the fluid grid

Returns: the average computed value

Definition at line 376 of file n_fluids.c.

References __n_assert, N_FLUID::numY, and N_FLUID::u.

Referenced by n_fluid_advectVel(), and n_fluid_advectVel_proc().

Here is the caller graph for this function:

◆ n_fluid_avgV()

double n_fluid_avgV	(	N_FLUID *	fluid,
		size_t	i,
		size_t	j
	)

compute the average V value at a fluid position using it's surrounding

Parameters

fluid	targeted N_FLUID
i	X position in the fluid grid
j	Y position in the fluid grid

Returns: the average computed value

Definition at line 393 of file n_fluids.c.

References __n_assert, N_FLUID::numY, and N_FLUID::v.

Referenced by n_fluid_advectVel(), and n_fluid_advectVel_proc().

Here is the caller graph for this function:

◆ n_fluid_draw()

int n_fluid_draw ( N_FLUID * fluid )

draw a N_FLUID on screen / targert bitmap

Parameters

fluid the N_FLUID to draw

Returns: TRUE or FALSE

Definition at line 782 of file n_fluids.c.

References __n_assert, N_FLUID::cScale, N_FLUID::m, n_fluid_getSciColor(), N_FLUID::numCells, N_FLUID::numX, N_FLUID::numY, N_FLUID::p, N_FLUID::showPaint, N_FLUID::showPressure, and N_FLUID::showSmoke.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_extrapolate()

int n_fluid_extrapolate ( N_FLUID * fluid )

non threaded extrapolation function

Parameters

fluid a N_FLUID to extrapolate

Returns: TRUE or FALSE

Definition at line 299 of file n_fluids.c.

References __n_assert, N_FLUID::numX, N_FLUID::numY, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_simulate(), and n_fluid_simulate_threaded().

Here is the caller graph for this function:

◆ n_fluid_getSciColor()

ALLEGRO_COLOR n_fluid_getSciColor	(	N_FLUID *	fluid,
		double	val,
		double	minVal,
		double	maxVal
	)

get fonky colors for the fluid

Parameters

fluid	targeted N_FLUID
val	value mixer
minVal	minimum output value
maxVal	maximum output value

Returns: the generated ALLEGRO_COLOR

Definition at line 739 of file n_fluids.c.

References _zd.

Referenced by n_fluid_draw().

Here is the caller graph for this function:

◆ n_fluid_integrate()

int n_fluid_integrate ( N_FLUID * fluid )

non threaded version of integration function

Parameters

fluid a N_FLUID to integrate_chunk_list

Returns: TRUE or FALSE

Definition at line 206 of file n_fluids.c.

References __n_assert, _z, N_FLUID::dt, N_FLUID::gravity, N_FLUID::numX, N_FLUID::numY, and N_FLUID::v.

Referenced by n_fluid_simulate().

Here is the caller graph for this function:

◆ n_fluid_resetObstacles()

int n_fluid_resetObstacles ( N_FLUID * fluid )

reset the obstacles set in a N_FLUID

Parameters

fluid the targeted N_FLUID

Returns: TRUE or FALSE

Definition at line 679 of file n_fluids.c.

References __n_assert, N_FLUID::numX, N_FLUID::numY, and N_FLUID::s.

Referenced by main().

Here is the caller graph for this function:

◆ n_fluid_sampleField()

double n_fluid_sampleField	(	N_FLUID *	fluid,
		double	x,
		double	y,
		uint32_t	field
	)

compute a sample value at a field position

Parameters

fluid	target N_FLUID
x	X position in the fluid grid
y	Y position in the fluid grid
field	type of field wanted, one of N_FLUID_U_FIELD, N_FLUID_V_FIELD, N_FLUID_S_FIELD

Returns: the computed value

Definition at line 321 of file n_fluids.c.

References __n_assert, N_FLUID::h, N_FLUID::m, N_FLUID_S_FIELD, N_FLUID_U_FIELD, N_FLUID_V_FIELD, N_FLUID::numX, N_FLUID::numY, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_advectSmoke(), n_fluid_advectSmoke_proc(), n_fluid_advectVel(), and n_fluid_advectVel_proc().

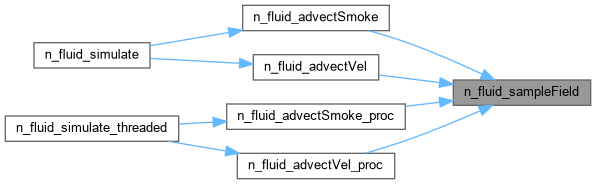

Here is the caller graph for this function:

◆ n_fluid_setObstacle()

int n_fluid_setObstacle	(	N_FLUID *	fluid,
		double	x,
		double	y,
		double	vx,
		double	vy,
		double	r
	)

set an obstacle in the fluid grid

Parameters

fluid	targeted N_FLUID
x	X position in fluid grid
y	y position in fluid grid
vx	X velocity for the point
vy	Y velocity for the point
r	radius

Returns: TRUE or FALSE

Definition at line 652 of file n_fluids.c.

References __n_assert, N_FLUID::m, N_FLUID::numX, N_FLUID::numY, N_FLUID::s, N_FLUID::u, and N_FLUID::v.

Referenced by main().

Here is the caller graph for this function:

◆ n_fluid_simulate()

int n_fluid_simulate ( N_FLUID * fluid )

non threaded version of N_FLUID global processing function

Parameters

fluid a N_FLUID ptr

Returns: TRUE or FALSE

Definition at line 563 of file n_fluids.c.

References __n_assert, n_fluid_advectSmoke(), n_fluid_advectVel(), n_fluid_extrapolate(), n_fluid_integrate(), n_fluid_solveIncompressibility(), N_FLUID::numCells, and N_FLUID::p.

Referenced by main().

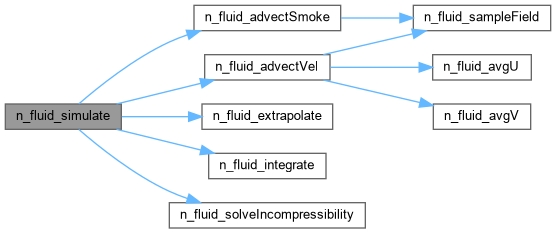

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_simulate_threaded()

int n_fluid_simulate_threaded	(	N_FLUID *	fluid,
		THREAD_POOL *	thread_pool
	)

a threaded version of N_FLUID global processing function

Parameters

fluid	a N_FLUID ptr
thread_pool	a THREAD_POOL pool to use

Returns: TRUE or FALSE

Definition at line 580 of file n_fluids.c.

References __n_assert, add_threaded_process(), N_FLUID::advectSmoke_chunk_list, N_FLUID::advectVel_chunk_list, N_FLUID::integrate_chunk_list, list_foreach, N_FLUID::m, n_fluid_advectSmoke_proc(), n_fluid_advectVel_proc(), n_fluid_extrapolate(), n_fluid_integrate_proc(), n_fluid_solveIncompressibility_proc(), N_FLUID::newM, N_FLUID::newU, N_FLUID::newV, N_FLUID::numCells, N_FLUID::numIters, N_FLUID::p, refresh_thread_pool(), N_FLUID::solveIncompressibility_chunk_list, start_threaded_pool(), SYNCED_PROC, thread_pool, N_FLUID::u, N_FLUID::v, and wait_for_synced_threaded_pool().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_solveIncompressibility()

int n_fluid_solveIncompressibility ( N_FLUID * fluid )

non threaded version of incompressibility solving function

Parameters

fluid N_FLUID to solve

Returns: TRUE or FALSE

Definition at line 261 of file n_fluids.c.

References __n_assert, _z, _zd, N_FLUID::density, N_FLUID::dt, N_FLUID::h, N_FLUID::numIters, N_FLUID::numX, N_FLUID::numY, N_FLUID::overRelaxation, N_FLUID::p, N_FLUID::s, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_simulate().

Here is the caller graph for this function:

◆ new_n_fluid()

N_FLUID * new_n_fluid	(	double	density,
		double	gravity,
		size_t	numIters,
		double	dt,
		double	overRelaxation,
		size_t	sx,
		size_t	sy
	)

return a newly allocated fluid

Parameters

density	density of the fluid
gravity	gravity applied (Y axe)
numIters	predefined number of iterations for each frames
dt	preconfigured delta time
overRelaxation	over predefined over relaxation value
sx	number of cells on x axis
sy	number of cells on y axis

Returns: a newly allocated N_FLUID structure

Definition at line 72 of file n_fluids.c.

References __n_assert, N_FLUID::advectSmoke_chunk_list, N_FLUID::advectVel_chunk_list, N_FLUID::cScale, N_FLUID::density, N_FLUID::dt, LIST::end, N_FLUID::fluid_production_percentage, get_nb_cpu_cores(), N_FLUID::gravity, N_FLUID::h, N_FLUID::integrate_chunk_list, list_push(), N_FLUID::m, Malloc, MAX_LIST_ITEMS, n_memset(), N_FLUID::negative_float_tolerance, new_generic_list(), N_FLUID::newM, N_FLUID::newU, N_FLUID::newV, N_FLUID::numCells, N_FLUID::numIters, N_FLUID::numX, N_FLUID::numY, N_FLUID::numZ, N_FLUID::overRelaxation, N_FLUID::p, N_FLUID::positive_float_tolerance, N_FLUID_THREAD_PARAMS::ptr, LIST_NODE::ptr, N_FLUID::s, N_FLUID::showPaint, N_FLUID::showPressure, N_FLUID::showSmoke, N_FLUID::solveIncompressibility_chunk_list, N_FLUID::u, N_FLUID::v, N_FLUID_THREAD_PARAMS::x_end, N_FLUID_THREAD_PARAMS::x_start, N_FLUID_THREAD_PARAMS::y_end, and N_FLUID_THREAD_PARAMS::y_start.

Referenced by main().

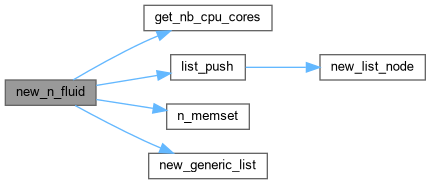

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Macros

Functions

Detailed Description

Data Structure Documentation

◆ N_FLUID

◆ N_FLUID_THREAD_PARAMS

Macro Definition Documentation

◆ _z

◆ _zd

Function Documentation

◆ destroy_n_fluid()

◆ n_fluid_advectSmoke()

◆ n_fluid_advectVel()

◆ n_fluid_avgU()

◆ n_fluid_avgV()

◆ n_fluid_draw()

◆ n_fluid_extrapolate()

◆ n_fluid_getSciColor()

◆ n_fluid_integrate()

◆ n_fluid_resetObstacles()

◆ n_fluid_sampleField()

◆ n_fluid_setObstacle()

◆ n_fluid_simulate()

◆ n_fluid_simulate_threaded()

◆ n_fluid_solveIncompressibility()

◆ new_n_fluid()
