Macros
#define	N_GUI_POPUP_ROOT 0
	the top level, as a parent for n_gui_popup_add_item() and the others

Typedefs
typedef void(*	N_GUI_POPUP_FN) (N_GUI_POPUP popup, int tag, void user_data)
	called when an item is picked, after the popup has closed.

Functions
int	n_gui_popup_add_item (N_GUI_POPUP popup, int parent, const char text, int tag, const char *tip)
	Add an item at the end of a level.
int	n_gui_popup_add_separator (N_GUI_POPUP *popup, int parent)
	Add a separator at the end of a level.
int	n_gui_popup_add_submenu (N_GUI_POPUP popup, int parent, const char text, const char *tip)
	Add a submenu at the end of a level.
void	n_gui_popup_close (N_GUI_POPUP *popup)
	Close every level without picking anything.
void	n_gui_popup_free (N_GUI_POPUP **popup)
	Close the popup and release the handle.
int	n_gui_popup_hit (const N_GUI_POPUP *popup, float x, float y)
	Is a point on any of its open levels.
int	n_gui_popup_is_open (const N_GUI_POPUP *popup)
	Is its top level on screen.
N_GUI_POPUP *	n_gui_popup_new (N_GUI_CTX ctx, float scale, N_GUI_POPUP_FN on_pick, void user_data)
	Make an empty popup menu in `ctx`, closed.
int	n_gui_popup_open (N_GUI_POPUP *popup, float x, float y)
	Open the top level with its corner at a point.
int	n_gui_popup_press (N_GUI_POPUP *popup, int entry)
	Press the row of an entry, as a click on it would.
void	n_gui_popup_set_enabled (N_GUI_POPUP *popup, int entry, int enabled)
	Enable or grey out an entry.
void	n_gui_popup_set_shown (N_GUI_POPUP *popup, int entry, int shown)
	Show or hide an entry.
void	n_gui_popup_set_title (N_GUI_POPUP popup, const char text)
	Set the heading line over the top level.
int	n_gui_popup_window (const N_GUI_POPUP *popup, int level)
	The window of a level, for an application that wants to test it.

Detailed Description

Macro Definition Documentation

◆ N_GUI_POPUP_ROOT

#define N_GUI_POPUP_ROOT 0

the top level, as a parent for n_gui_popup_add_item() and the others

Examples: ex_gui_popup.c.

Definition at line 68 of file n_gui_popup.h.

Referenced by _popup_draw(), _popup_layout(), main(), n_gui_popup_close(), n_gui_popup_hit(), n_gui_popup_is_open(), n_gui_popup_new(), n_gui_popup_open(), n_gui_popup_press(), n_gui_popup_set_enabled(), n_gui_popup_set_shown(), and n_gui_popup_set_title().

Typedef Documentation

◆ N_GUI_POPUP_FN

typedef void(* N_GUI_POPUP_FN) (N_GUI_POPUP *popup, int tag, void *user_data)

called when an item is picked, after the popup has closed.

Parameters

popup	the popup
tag	the tag the item was added with
user_data	what was handed to n_gui_popup_new()

Definition at line 78 of file n_gui_popup.h.

Function Documentation

◆ n_gui_popup_add_item()

int n_gui_popup_add_item	(	N_GUI_POPUP *	popup,
		int	parent,
		const char *	text,
		int	tag,
		const char *	tip )

Add an item at the end of a level.

Parameters

popup	the popup
parent	N_GUI_POPUP_ROOT, or an id from n_gui_popup_add_submenu()
text	what the row says. Copied.
tag	handed to on_pick when it is picked
tip	tooltip for the row, or NULL. Copied.

Returns: the entry's id, or -1 on failure (no memory, a parent that is not a level).

Definition at line 522 of file n_gui_popup.c.

References _popup_append(), _popup_is_level(), and _POPUP_KIND_ITEM.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_popup_add_separator()

int n_gui_popup_add_separator	(	N_GUI_POPUP *	popup,
		int	parent )

Add a separator at the end of a level.

Parameters

popup	the popup
parent	N_GUI_POPUP_ROOT or a submenu's id

Returns: the separator's id, or -1 on failure.

Definition at line 532 of file n_gui_popup.c.

References _popup_append(), _popup_is_level(), and _POPUP_KIND_SEP.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_popup_add_submenu()

int n_gui_popup_add_submenu	(	N_GUI_POPUP *	popup,
		int	parent,
		const char *	text,
		const char *	tip )

Add a submenu at the end of a level.

Parameters

popup	the popup
parent	N_GUI_POPUP_ROOT, or another submenu's id
text	what its row says; the arrow is drawn, not written. Copied.
tip	tooltip for the row, or NULL. Copied.

Returns: the submenu's id, a parent for its own entries, or -1 on failure.

Definition at line 527 of file n_gui_popup.c.

References _popup_append(), _popup_is_level(), and _POPUP_KIND_SUB.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_popup_close()

void n_gui_popup_close ( N_GUI_POPUP * popup )

Close every level without picking anything.

Parameters

popup the popup. NULL is a no-op.

Definition at line 563 of file n_gui_popup.c.

References _popup_close_level(), N_GUI_POPUP::ctx, N_GUI_POPUP::entries, n_gui_mark_dirty(), and N_GUI_POPUP_ROOT.

Referenced by _popup_activate(), main(), n_gui_popup_free(), and n_gui_popup_open().

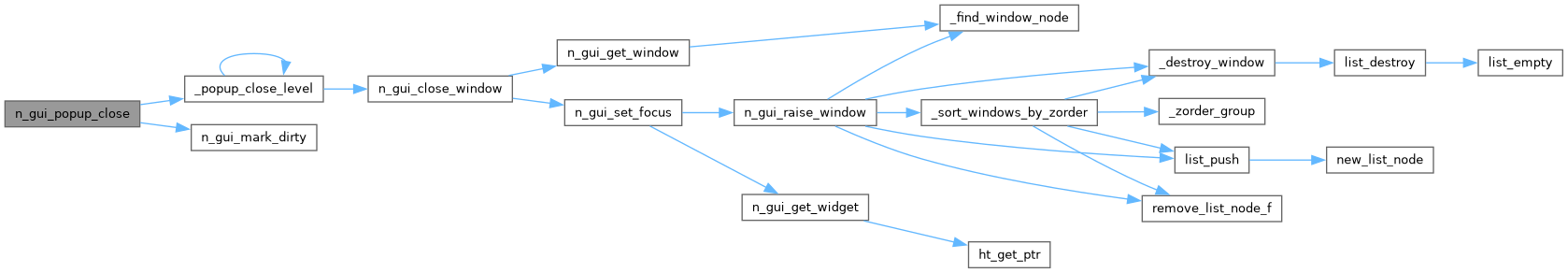

Here is the call graph for this function:

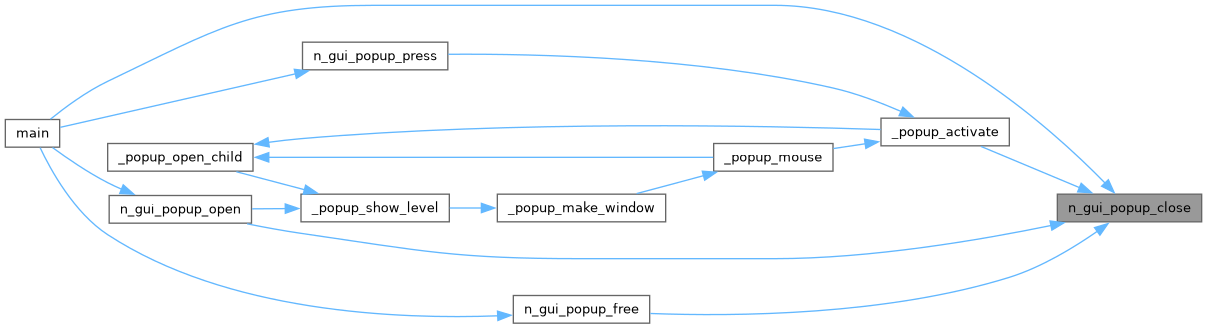

Here is the caller graph for this function:

◆ n_gui_popup_free()

void n_gui_popup_free ( N_GUI_POPUP ** popup )

Close the popup and release the handle.

Its windows stay in the context, closed, and their widgets no longer call into the freed handle.

Parameters

popup the popup; set to NULL. NULL or *NULL is a no-op.

Definition at line 607 of file n_gui_popup.c.

References FreeNoLog, _N_GUI_POPUP_ENTRY::hook, n_gui_custom_set_mouse(), n_gui_popup_close(), n_gui_set_widget_visible(), _N_GUI_POPUP_ENTRY::row_y, _N_GUI_POPUP_ENTRY::rows, _N_GUI_POPUP_ENTRY::text, _N_GUI_POPUP_ENTRY::tip, and _N_GUI_POPUP_ENTRY::widget.

Referenced by main().

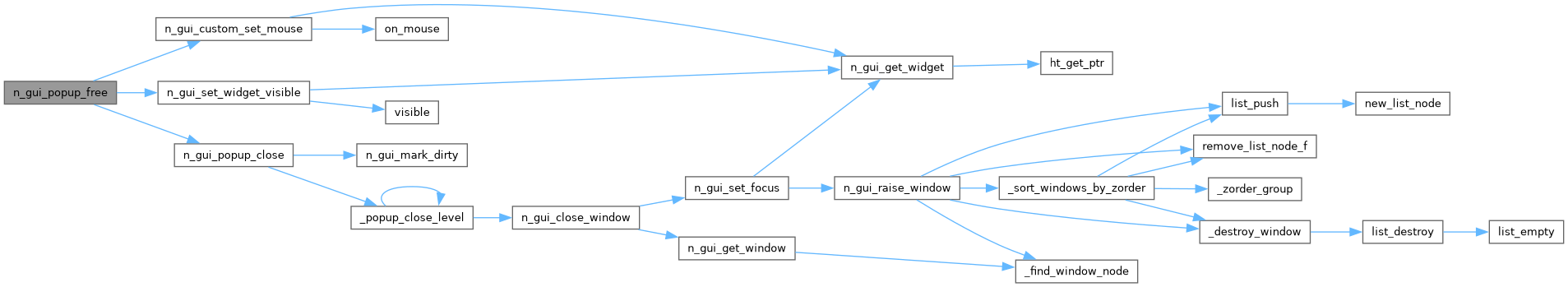

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_popup_hit()

int n_gui_popup_hit	(	const N_GUI_POPUP *	popup,
		float	x,
		float	y )

Is a point on any of its open levels.

Parameters

popup	the popup
x	screen x
y	screen y

Returns: 1 when the point is inside an open level, 0 otherwise.

Definition at line 574 of file n_gui_popup.c.

References _N_GUI_POPUP_ENTRY::child, N_GUI_POPUP::entries, _N_GUI_POPUP_ENTRY::h, n_gui_popup_is_open(), N_GUI_POPUP_ROOT, _N_GUI_POPUP_ENTRY::w, _N_GUI_POPUP_ENTRY::x, and _N_GUI_POPUP_ENTRY::y.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_popup_is_open()

int n_gui_popup_is_open ( const N_GUI_POPUP * popup )

Is its top level on screen.

Parameters

popup the popup

Returns: 1 when it is open.

Definition at line 569 of file n_gui_popup.c.

References N_GUI_POPUP::ctx, N_GUI_POPUP::entries, N_GUI_POPUP_ROOT, n_gui_window_is_open(), and _N_GUI_POPUP_ENTRY::window.

Referenced by main(), n_gui_popup_hit(), and on_pick().

Here is the call graph for this function:

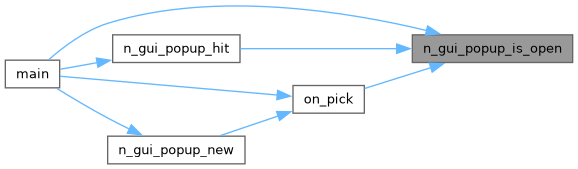

Here is the caller graph for this function:

◆ n_gui_popup_new()

N_GUI_POPUP * n_gui_popup_new	(	N_GUI_CTX *	ctx,
		float	scale,
		N_GUI_POPUP_FN	on_pick,
		void *	user_data )

Make an empty popup menu in ctx, closed.

No window is made until a level is first opened. The windows belong to ctx like any others and outlive the handle, closed and inert.

Parameters

ctx	the GUI context
scale	interface scale, for padding and the arrow; 1.0 at 96 dpi
on_pick	called with an item's tag when it is picked. Required.
user_data	handed back to on_pick

Returns: the popup, or NULL on failure. Release it with n_gui_popup_free().

Definition at line 503 of file n_gui_popup.c.

References __n_assert, _popup_append(), _POPUP_KIND_ROOT, N_GUI_POPUP::ctx, N_GUI_POPUP::entries, N_GUI_POPUP_ROOT, N_GUI_POPUP::on_pick, on_pick(), N_GUI_POPUP::scale, and N_GUI_POPUP::user_data.

Referenced by main().

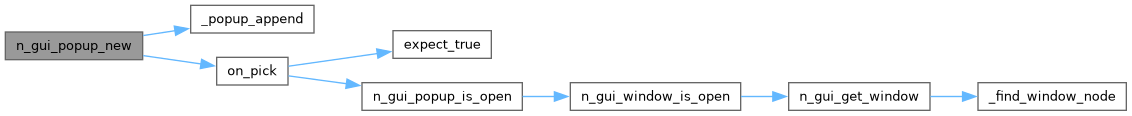

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_popup_open()

int n_gui_popup_open	(	N_GUI_POPUP *	popup,
		float	x,
		float	y )

Open the top level with its corner at a point.

Below and to the right of the point, pulled back inside the display rather than flipped. Any level already open is closed first.

Parameters

popup	the popup
x	screen x, usually where the click was
y	screen y

Returns: 0, or -1 when a window could not be made or nothing is shown.

Definition at line 557 of file n_gui_popup.c.

References _popup_show_level(), n_gui_popup_close(), and N_GUI_POPUP_ROOT.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_popup_press()

int n_gui_popup_press	(	N_GUI_POPUP *	popup,
		int	entry )

Press the row of an entry, as a click on it would.

For tests and for keyboard front ends: an item is picked (the popup closes, then on_pick is called), a submenu opens beside its row. The entry's level must be open and the entry shown and enabled.

Parameters
