A popup menu with submenus for N_GUI, the kind a right click opens. More...

#include <stdlib.h>
#include <string.h>
#include <allegro5/allegro_primitives.h>
#include "nilorea/n_common.h"
#include "nilorea/n_log.h"
#include "nilorea/n_gui_popup.h"

Include dependency graph for n_gui_popup.c:

Data Structures
struct	_N_GUI_POPUP_ENTRY
	one entry. More...
struct	_N_GUI_POPUP_LEVEL
	what a level's widget is handed: stable while the entries array moves More...
struct	N_GUI_POPUP
	the popup More...

Macros
#define	_POPUP_KIND_ITEM 1
	an item, picked with a tag
#define	_POPUP_KIND_ROOT 0
	the top level
#define	_POPUP_KIND_SEP 3
	a separator
#define	_POPUP_KIND_SUB 2
	a submenu, which is also a level
#define	N_GUI_POPUP_ARROW_W 16.0f
	room kept at the right of a level for the submenu arrow, at scale 1
#define	N_GUI_POPUP_MIN_W 120.0f
	narrowest a level is, at scale 1
#define	N_GUI_POPUP_OVERLAP 2.0f
	how far a submenu overlaps its parent, at scale 1, so the pointer does not cross a gap on its way in
#define	N_GUI_POPUP_PAD_X 10.0f
	padding left and right of a row's text, at scale 1
#define	N_GUI_POPUP_PAD_Y 4.0f
	padding above and below a row's text, at scale 1
#define	N_GUI_POPUP_SEP_H 7.0f
	height of a separator row, at scale 1

Functions
static int	_popup_activate (N_GUI_POPUP *popup, int level, int row)
	helper: act on a row: pick an item, open a submenu.
static int	_popup_append (N_GUI_POPUP popup, int kind, int parent, const char text, const char *tip, int tag)
	helper: append an entry, returning its id or -1
static void	_popup_close_level (N_GUI_POPUP *popup, int level)
	helper: close a level and everything open beside it
static void	_popup_draw (N_GUI_WIDGET widget, float x, float y, ALLEGRO_FONT font, void *user_data)
	custom draw callback: the rows of one level
static ALLEGRO_FONT *	_popup_font (const N_GUI_POPUP *popup)
	helper: the font rows are measured with
static int	_popup_has_rows (const N_GUI_POPUP *popup, int level)
	helper: does a level have at least one row that would be shown.
static int	_popup_is_level (const N_GUI_POPUP *popup, int id)
	helper: is this id a level (the root or a submenu)

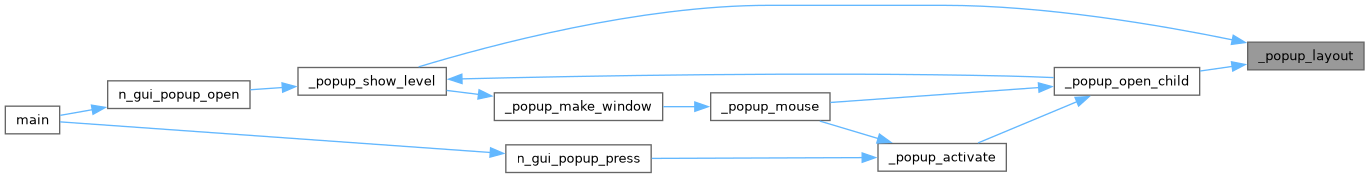

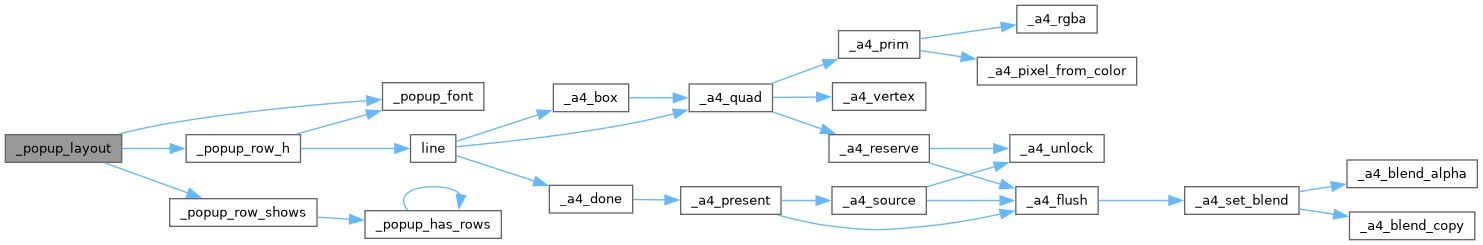

static int	_popup_layout (N_GUI_POPUP *popup, int level)
	helper: the rows of a level, and its size.
static int	_popup_make_window (N_GUI_POPUP *popup, int level)
	helper: make a level's window the first time it opens
static int	_popup_mouse (int widget_id, const N_GUI_MOUSE_EVENT ev, void user_data)
	custom mouse callback: hover opens submenus, a press acts
static void	_popup_open_child (N_GUI_POPUP *popup, int level, int row)
	helper: open a submenu beside its row.

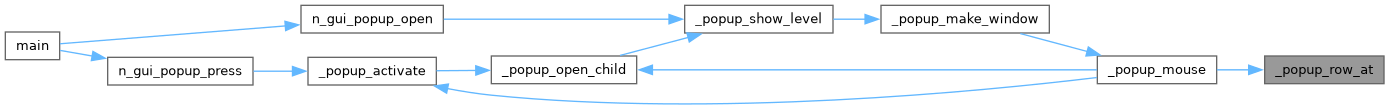

static int	_popup_row_at (const N_GUI_POPUP *popup, int level, float ly)
	helper: the row index at a level-local y, or -1

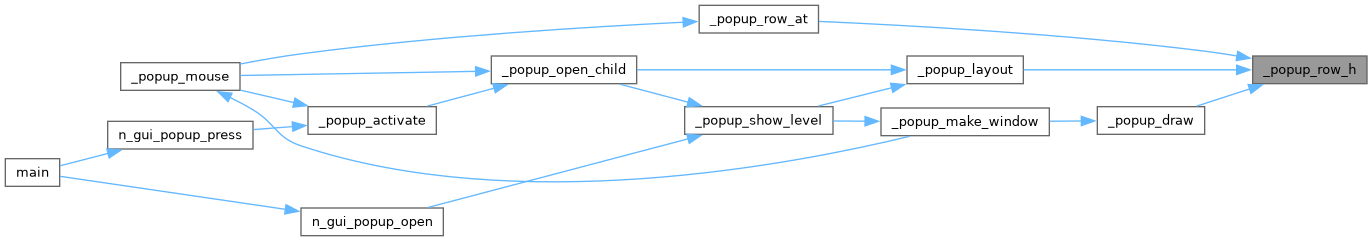

static float	_popup_row_h (const N_GUI_POPUP *popup)
	helper: height of an item row

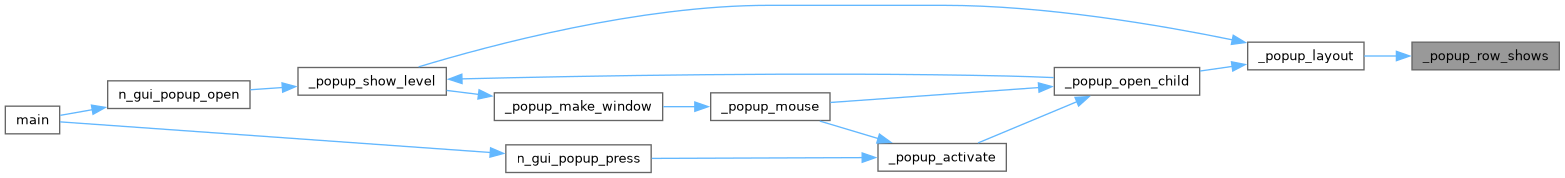

static int	_popup_row_shows (const N_GUI_POPUP *popup, int id)
	helper: is an entry a row that shows, separators aside
static int	_popup_show_level (N_GUI_POPUP *popup, int level, float x, float y)
	helper: lay a level out, place it with its corner at a point pulled back inside the display, and open it on top
static int	_popup_valid (const N_GUI_POPUP *popup, int id)
	helper: is this id an entry
int	n_gui_popup_add_item (N_GUI_POPUP popup, int parent, const char text, int tag, const char *tip)
	Add an item at the end of a level.
int	n_gui_popup_add_separator (N_GUI_POPUP *popup, int parent)
	Add a separator at the end of a level.
int	n_gui_popup_add_submenu (N_GUI_POPUP popup, int parent, const char text, const char *tip)
	Add a submenu at the end of a level.
void	n_gui_popup_close (N_GUI_POPUP *popup)
	Close every level without picking anything.
void	n_gui_popup_free (N_GUI_POPUP **popup)
	Close the popup and release the handle.
int	n_gui_popup_hit (const N_GUI_POPUP *popup, float x, float y)
	Is a point on any of its open levels.
int	n_gui_popup_is_open (const N_GUI_POPUP *popup)
	Is its top level on screen.
N_GUI_POPUP *	n_gui_popup_new (N_GUI_CTX ctx, float scale, N_GUI_POPUP_FN on_pick, void user_data)
	Make an empty popup menu in `ctx`, closed.
int	n_gui_popup_open (N_GUI_POPUP *popup, float x, float y)
	Open the top level with its corner at a point.
int	n_gui_popup_press (N_GUI_POPUP *popup, int entry)
	Press the row of an entry, as a click on it would.
void	n_gui_popup_set_enabled (N_GUI_POPUP *popup, int entry, int enabled)
	Enable or grey out an entry.
void	n_gui_popup_set_shown (N_GUI_POPUP *popup, int entry, int shown)
	Show or hide an entry.
void	n_gui_popup_set_title (N_GUI_POPUP popup, const char text)
	Set the heading line over the top level.
int	n_gui_popup_window (const N_GUI_POPUP *popup, int level)
	The window of a level, for an application that wants to test it.

Detailed Description

A popup menu with submenus for N_GUI, the kind a right click opens.

Author: Castagnier Mickael

Version: 1.0

Date: 29/09/2026

Definition in file n_gui_popup.c.

Data Structure Documentation

◆ _N_GUI_POPUP_ENTRY

struct _N_GUI_POPUP_ENTRY

one entry.

A root or a submenu is also a level and uses the fields after enabled.

Definition at line 72 of file n_gui_popup.c.

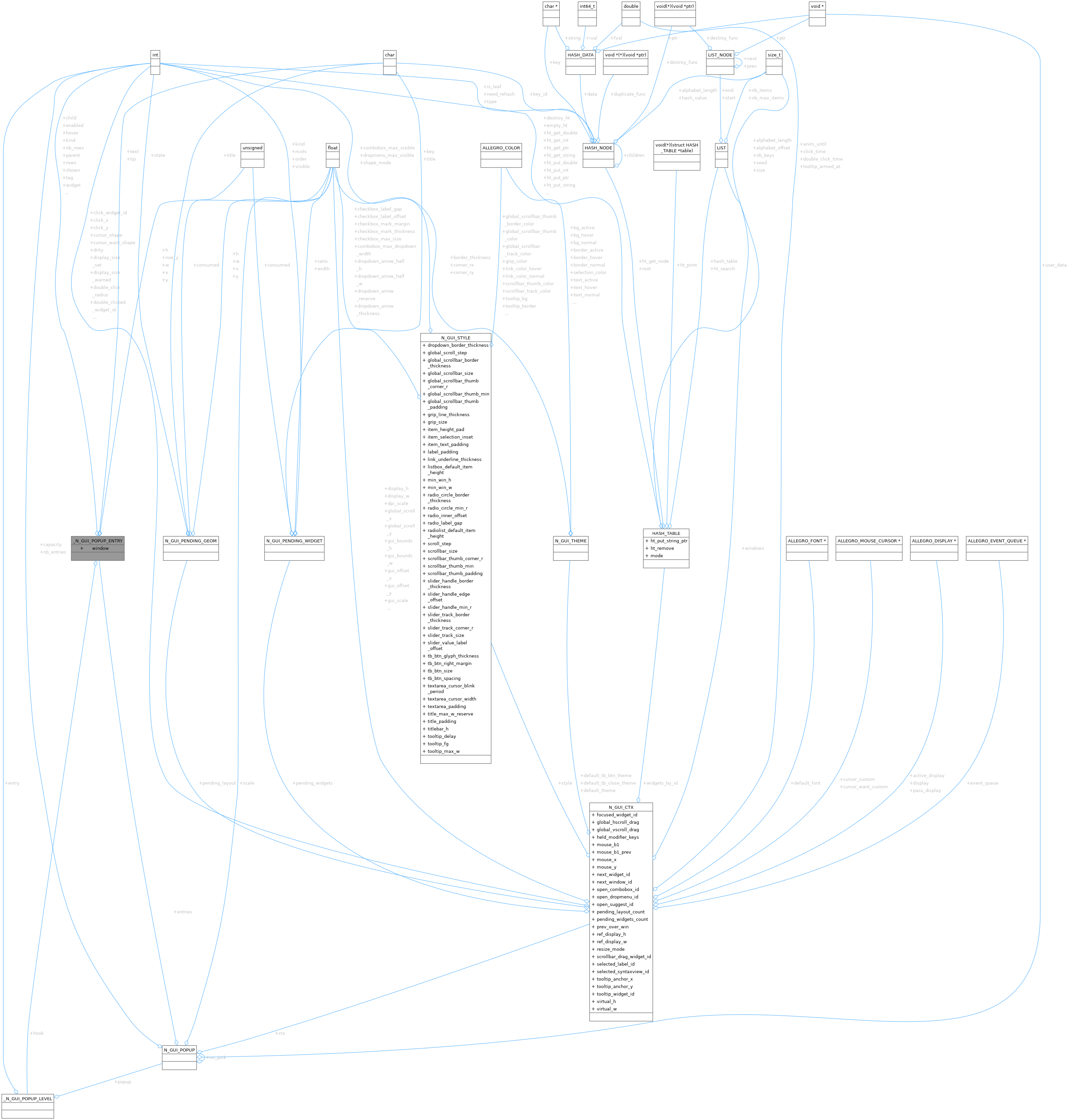

Collaboration diagram for _N_GUI_POPUP_ENTRY:

Data Fields
int	child	the submenu open beside it, an entry id, or -1
int	enabled	enabled when non-zero
float	h
_N_GUI_POPUP_LEVEL *	hook	what the widget is handed; owned
int	hover	the row under the pointer, an index into rows, or -1
int	kind	POPUP_KIND*
int	nb_rows	how many rows
int	parent	the level it is in; -1 for the root
float *	row_y	top of each row from the level's top; owned, nb_rows long
int *	rows	entry ids of the rows as laid out at its last opening; owned
int	shown	shown when non-zero
int	tag	handed to on_pick
char *	text	row text, or the heading for the root; owned, may be NULL
char *	tip	tooltip; owned, may be NULL
float	w	the level's size when last laid out
int	widget	the level's custom widget
int	window	the level's window, or -1 until first opened
float	x	the level's position when last opened
float	y

◆ _N_GUI_POPUP_LEVEL

struct _N_GUI_POPUP_LEVEL

what a level's widget is handed: stable while the entries array moves

Definition at line 63 of file n_gui_popup.c.

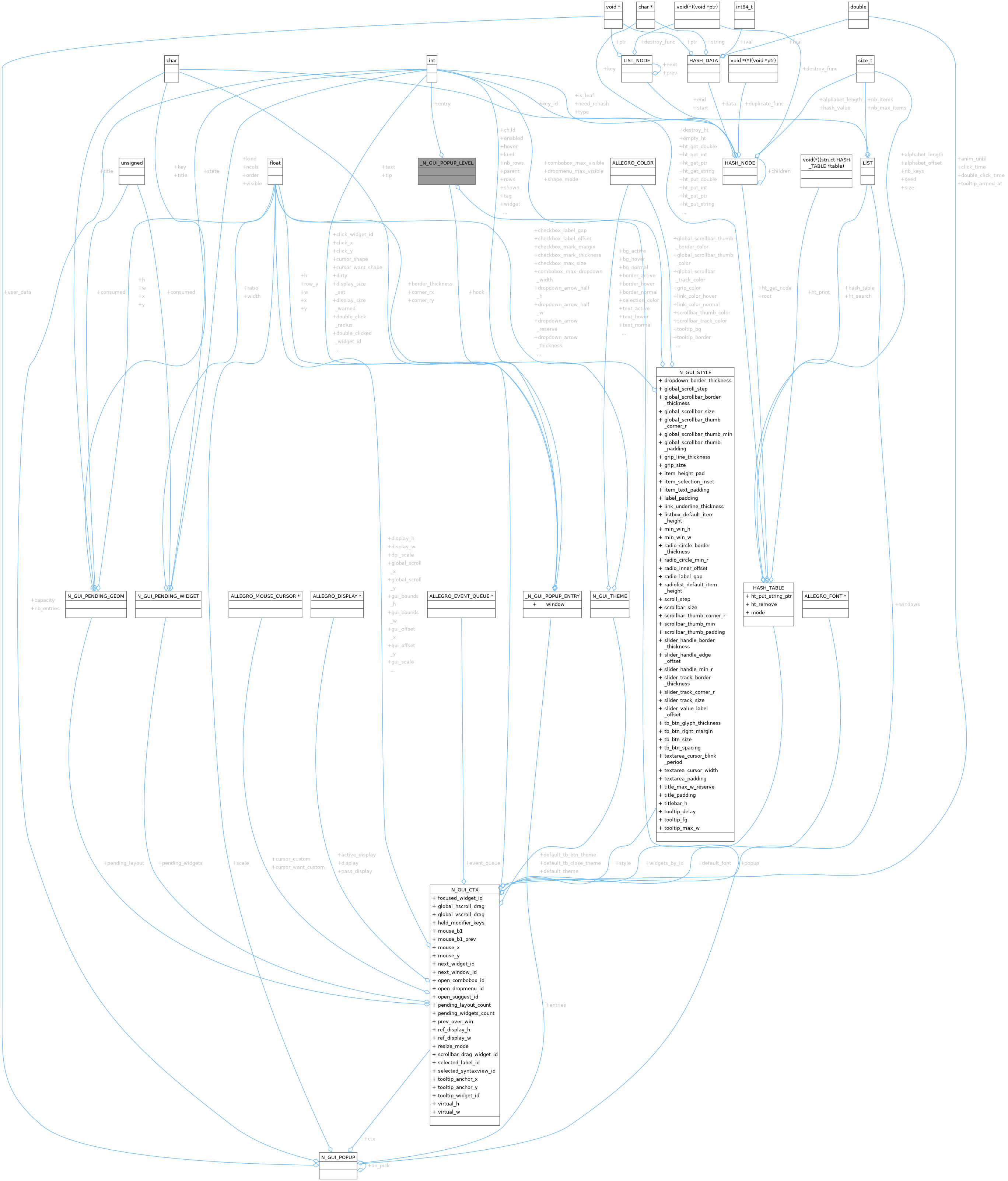

Collaboration diagram for _N_GUI_POPUP_LEVEL:

Data Fields
int	entry	the entry that is this level
N_GUI_POPUP *	popup	the popup

◆ N_GUI_POPUP

struct N_GUI_POPUP

the popup

a popup menu.

Opaque: make it with n_gui_popup_new(), release it with n_gui_popup_free().

Examples: ex_gui_popup.c.

Definition at line 110 of file n_gui_popup.c.

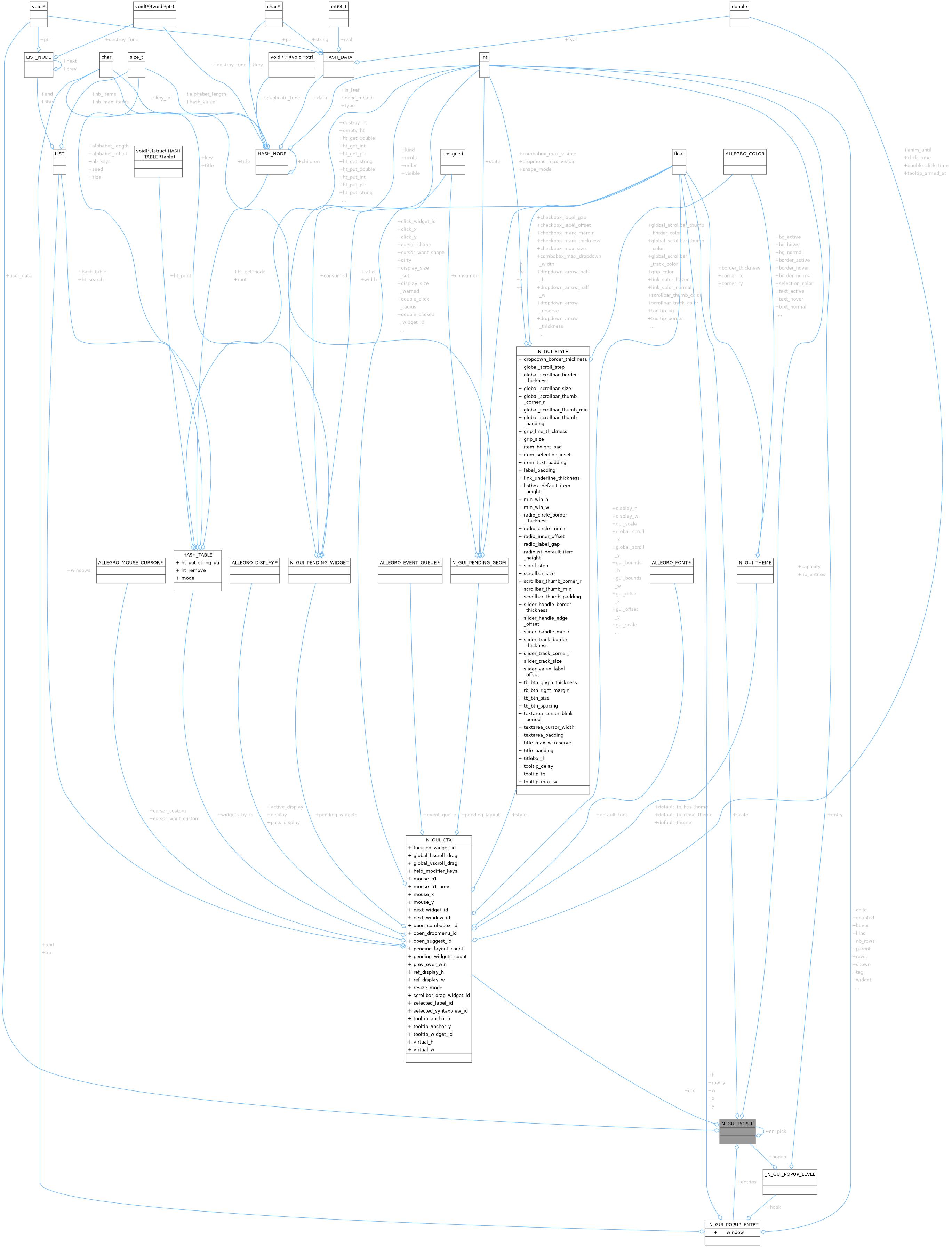

Collaboration diagram for N_GUI_POPUP:

Data Fields
int	capacity	allocated
N_GUI_CTX *	ctx	the context
_N_GUI_POPUP_ENTRY *	entries	the entries; 0 is the root. Appended to only while the tree is built, so pointers into it hold while a level is open.
int	nb_entries	how many
N_GUI_POPUP_FN	on_pick	called on a pick
float	scale	interface scale
void *	user_data	handed to on_pick

Macro Definition Documentation

◆ _POPUP_KIND_ITEM

#define _POPUP_KIND_ITEM 1

an item, picked with a tag

Definition at line 56 of file n_gui_popup.c.

Referenced by _popup_activate(), and n_gui_popup_add_item().

◆ _POPUP_KIND_ROOT

#define _POPUP_KIND_ROOT 0

the top level

Definition at line 54 of file n_gui_popup.c.

Referenced by _popup_is_level(), and n_gui_popup_new().

◆ _POPUP_KIND_SEP

#define _POPUP_KIND_SEP 3

a separator

Definition at line 60 of file n_gui_popup.c.

Referenced by _popup_draw(), _popup_has_rows(), _popup_layout(), _popup_mouse(), _popup_row_at(), and n_gui_popup_add_separator().

◆ _POPUP_KIND_SUB

#define _POPUP_KIND_SUB 2

a submenu, which is also a level

Definition at line 58 of file n_gui_popup.c.

Referenced by _popup_activate(), _popup_draw(), _popup_has_rows(), _popup_is_level(), _popup_layout(), _popup_mouse(), _popup_row_shows(), and n_gui_popup_add_submenu().

◆ N_GUI_POPUP_ARROW_W

#define N_GUI_POPUP_ARROW_W 16.0f

room kept at the right of a level for the submenu arrow, at scale 1

Definition at line 46 of file n_gui_popup.c.

Referenced by _popup_layout().

◆ N_GUI_POPUP_MIN_W

#define N_GUI_POPUP_MIN_W 120.0f

narrowest a level is, at scale 1

Definition at line 48 of file n_gui_popup.c.

Referenced by _popup_layout().

◆ N_GUI_POPUP_OVERLAP

#define N_GUI_POPUP_OVERLAP 2.0f

how far a submenu overlaps its parent, at scale 1, so the pointer does not cross a gap on its way in

Definition at line 51 of file n_gui_popup.c.

Referenced by _popup_open_child().

◆ N_GUI_POPUP_PAD_X

#define N_GUI_POPUP_PAD_X 10.0f

padding left and right of a row's text, at scale 1

Definition at line 40 of file n_gui_popup.c.

Referenced by _popup_draw(), and _popup_layout().

◆ N_GUI_POPUP_PAD_Y

#define N_GUI_POPUP_PAD_Y 4.0f

padding above and below a row's text, at scale 1

Definition at line 42 of file n_gui_popup.c.

Referenced by _popup_draw(), _popup_layout(), and _popup_row_h().

◆ N_GUI_POPUP_SEP_H

#define N_GUI_POPUP_SEP_H 7.0f

height of a separator row, at scale 1

Definition at line 44 of file n_gui_popup.c.

Referenced by _popup_draw(), _popup_layout(), and _popup_row_at().

Function Documentation

◆ _popup_activate()

int _popup_activate	(	N_GUI_POPUP *	popup,
		int	level,
		int	row )

static

helper: act on a row: pick an item, open a submenu.

1 when it did.

Definition at line 375 of file n_gui_popup.c.

References _POPUP_KIND_ITEM, _POPUP_KIND_SUB, _popup_open_child(), _N_GUI_POPUP_ENTRY::enabled, N_GUI_POPUP::entries, _N_GUI_POPUP_ENTRY::kind, n_gui_popup_close(), _N_GUI_POPUP_ENTRY::nb_rows, N_GUI_POPUP::on_pick, row(), _N_GUI_POPUP_ENTRY::rows, _N_GUI_POPUP_ENTRY::tag, and N_GUI_POPUP::user_data.

Referenced by _popup_mouse(), and n_gui_popup_press().

Here is the call graph for this function:

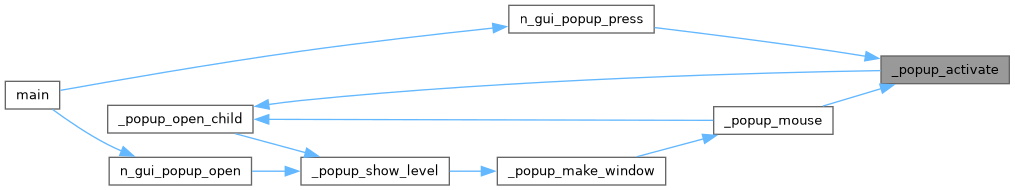

Here is the caller graph for this function:

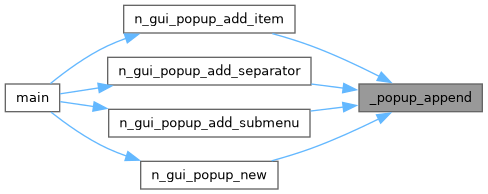

◆ _popup_append()

int _popup_append	(	N_GUI_POPUP *	popup,
		int	kind,
		int	parent,
		const char *	text,
		const char *	tip,
		int	tag )

static

helper: append an entry, returning its id or -1

Definition at line 152 of file n_gui_popup.c.

References N_GUI_POPUP::capacity, _N_GUI_POPUP_ENTRY::child, _N_GUI_POPUP_ENTRY::enabled, N_GUI_POPUP::entries, FreeNoLog, _N_GUI_POPUP_ENTRY::hover, _N_GUI_POPUP_ENTRY::kind, LOG_ERR, n_log, N_GUI_POPUP::nb_entries, _N_GUI_POPUP_ENTRY::parent, _N_GUI_POPUP_ENTRY::shown, _N_GUI_POPUP_ENTRY::tag, _N_GUI_POPUP_ENTRY::text, _N_GUI_POPUP_ENTRY::tip, _N_GUI_POPUP_ENTRY::widget, and _N_GUI_POPUP_ENTRY::window.

Referenced by n_gui_popup_add_item(), n_gui_popup_add_separator(), n_gui_popup_add_submenu(), and n_gui_popup_new().

Here is the caller graph for this function:

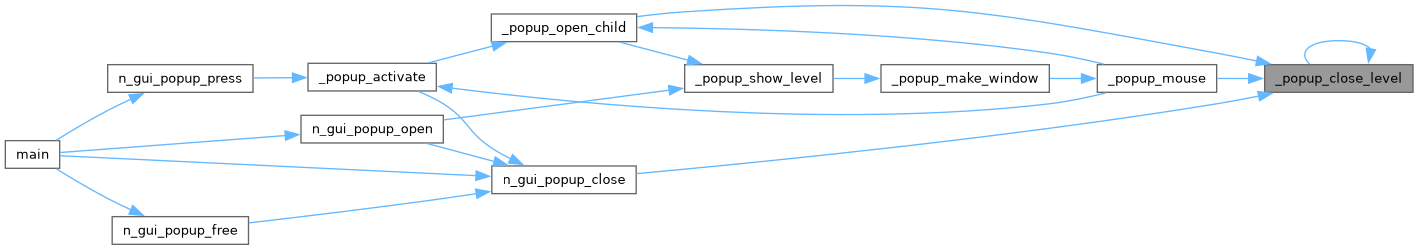

◆ _popup_close_level()

void _popup_close_level	(	N_GUI_POPUP *	popup,
		int	level )

static

helper: close a level and everything open beside it

Definition at line 290 of file n_gui_popup.c.

References _popup_close_level(), _N_GUI_POPUP_ENTRY::child, N_GUI_POPUP::ctx, N_GUI_POPUP::entries, _N_GUI_POPUP_ENTRY::hover, n_gui_close_window(), and _N_GUI_POPUP_ENTRY::window.

Referenced by _popup_close_level(), _popup_mouse(), _popup_open_child(), and n_gui_popup_close().

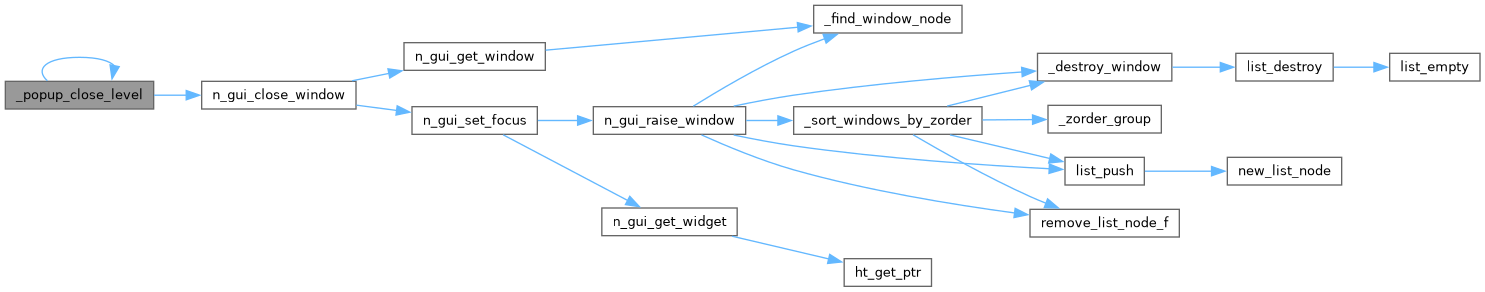

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _popup_draw()

void _popup_draw	(	N_GUI_WIDGET *	widget,
		float	x,
		float	y,
		ALLEGRO_FONT *	font,
		void *	user_data )

static

custom draw callback: the rows of one level

Definition at line 400 of file n_gui_popup.c.

References _POPUP_KIND_SEP, _POPUP_KIND_SUB, _popup_row_h(), N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_normal, _N_GUI_POPUP_ENTRY::child, _N_GUI_POPUP_ENTRY::enabled, N_GUI_POPUP::entries, _N_GUI_POPUP_LEVEL::entry, font, N_GUI_WIDGET::h, _N_GUI_POPUP_ENTRY::hover, ink(), _N_GUI_POPUP_ENTRY::kind, N_GUI_POPUP_PAD_X, N_GUI_POPUP_PAD_Y, N_GUI_POPUP_ROOT, N_GUI_POPUP_SEP_H, _N_GUI_POPUP_ENTRY::nb_rows, _N_GUI_POPUP_LEVEL::popup, _N_GUI_POPUP_ENTRY::row_y, _N_GUI_POPUP_ENTRY::rows, N_GUI_POPUP::scale, _N_GUI_POPUP_ENTRY::text, N_GUI_THEME::text_hover, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, and N_GUI_WIDGET::w.

Referenced by _popup_make_window().

Here is the call graph for this function:

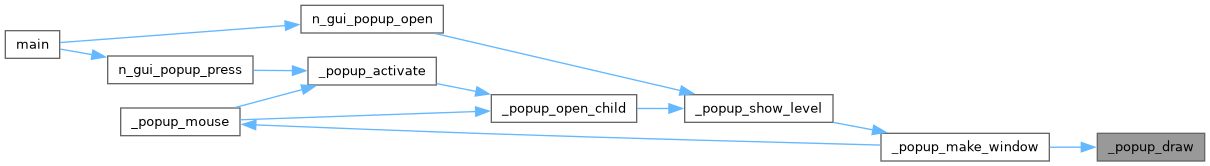

Here is the caller graph for this function:

◆ _popup_font()

ALLEGRO_FONT * _popup_font ( const N_GUI_POPUP * popup )

static

helper: the font rows are measured with

Definition at line 139 of file n_gui_popup.c.

References N_GUI_POPUP::ctx, and N_GUI_CTX::default_font.

Referenced by _popup_layout(), and _popup_row_h().

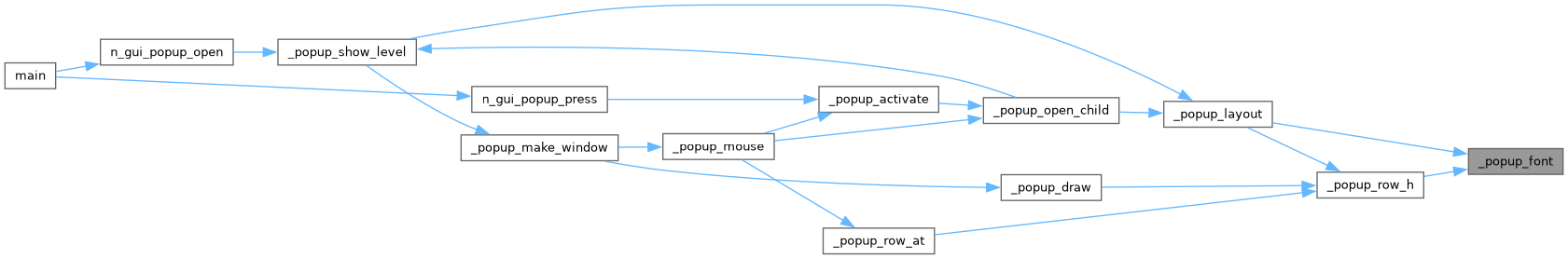

Here is the caller graph for this function:

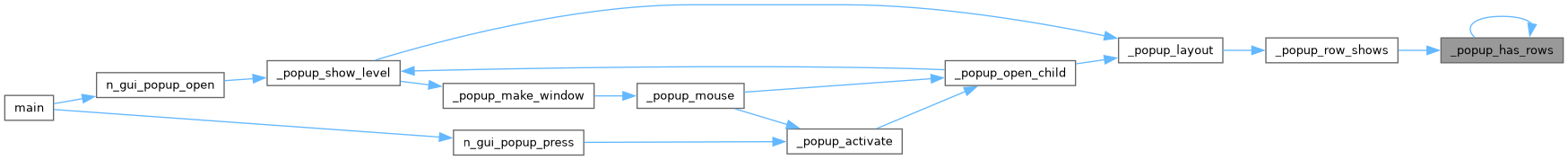

◆ _popup_has_rows()

int _popup_has_rows	(	const N_GUI_POPUP *	popup,
		int	level )

static

helper: does a level have at least one row that would be shown.

A submenu without one is not shown either: an arrow to an empty panel is a row that does nothing.

Definition at line 194 of file n_gui_popup.c.

References _popup_has_rows(), _POPUP_KIND_SEP, _POPUP_KIND_SUB, N_GUI_POPUP::entries, _N_GUI_POPUP_ENTRY::kind, N_GUI_POPUP::nb_entries, _N_GUI_POPUP_ENTRY::parent, and _N_GUI_POPUP_ENTRY::shown.

Referenced by _popup_has_rows(), and _popup_row_shows().

Here is the call graph for this function:

Here is the caller graph for this function:

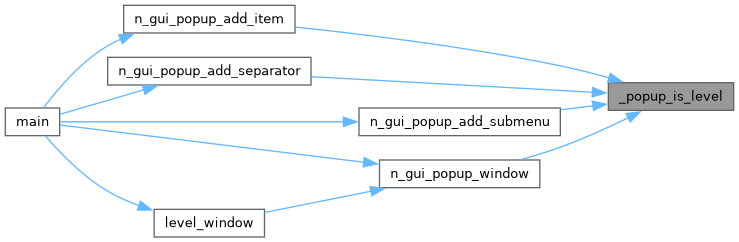

◆ _popup_is_level()

int _popup_is_level	(	const N_GUI_POPUP *	popup,
		int	id )

static

helper: is this id a level (the root or a submenu)

Definition at line 134 of file n_gui_popup.c.

References _POPUP_KIND_ROOT, _POPUP_KIND_SUB, _popup_valid(), N_GUI_POPUP::entries, and _N_GUI_POPUP_ENTRY::kind.

Referenced by n_gui_popup_add_item(), n_gui_popup_add_separator(), n_gui_popup_add_submenu(), and n_gui_popup_window().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _popup_layout()

int _popup_layout	(	N_GUI_POPUP *	popup,
		int	level )

static

helper: the rows of a level, and its size.

Separators are kept only between two shown rows, once, so that hiding entries never leaves a line at an end or two lines together.

Definition at line 219 of file n_gui_popup.c.

Referenced by _popup_open_child(), and _popup_show_level().

Here is the call graph for this function:

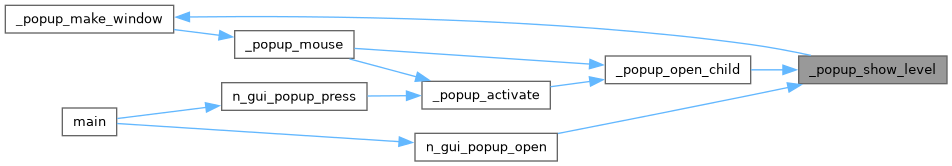

Here is the caller graph for this function:

◆ _popup_make_window()

int _popup_make_window	(	N_GUI_POPUP *	popup,
		int	level )

static

helper: make a level's window the first time it opens

Definition at line 303 of file n_gui_popup.c.

References _popup_draw(), _popup_mouse(), N_GUI_POPUP::ctx, N_GUI_POPUP::entries, _N_GUI_POPUP_LEVEL::entry, _N_GUI_POPUP_ENTRY::h, _N_GUI_POPUP_ENTRY::hook, n_gui_add_custom(), n_gui_add_window(), n_gui_close_window(), n_gui_custom_set_mouse(), N_GUI_WIN_FIXED_POSITION, N_GUI_WIN_FRAMELESS, n_gui_window_set_flags(), n_gui_window_set_zorder(), N_GUI_ZORDER_POPUP, _N_GUI_POPUP_LEVEL::popup, _N_GUI_POPUP_ENTRY::w, _N_GUI_POPUP_ENTRY::widget, and _N_GUI_POPUP_ENTRY::window.

Referenced by _popup_show_level().

Here is the call graph for this function:

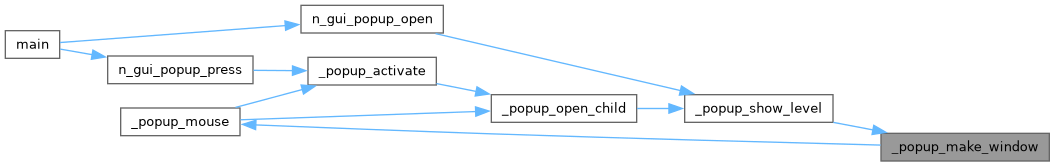

Here is the caller graph for this function:

◆ _popup_mouse()

int _popup_mouse	(	int	widget_id,
		const N_GUI_MOUSE_EVENT *	ev,
		void *	user_data )

static

custom mouse callback: hover opens submenus, a press acts

Definition at line 462 of file n_gui_popup.c.

References _popup_activate(), _popup_close_level(), _POPUP_KIND_SEP, _POPUP_KIND_SUB, _popup_open_child(), _popup_row_at(), _N_GUI_POPUP_ENTRY::child, N_GUI_POPUP::ctx, _N_GUI_POPUP_ENTRY::enabled, N_GUI_POPUP::entries, _N_GUI_POPUP_LEVEL::entry, _N_GUI_POPUP_ENTRY::hover, _N_GUI_POPUP_ENTRY::kind, n_gui_mark_dirty(), N_GUI_MOUSE_DOWN, N_GUI_MOUSE_MOVE, N_GUI_MOUSE_UP, n_gui_set_widget_tooltip(), _N_GUI_POPUP_LEVEL::popup, row(), _N_GUI_POPUP_ENTRY::rows, _N_GUI_POPUP_ENTRY::tip, N_GUI_MOUSE_EVENT::type, and N_GUI_MOUSE_EVENT::y.

Referenced by _popup_make_window().

Here is the call graph for this function:

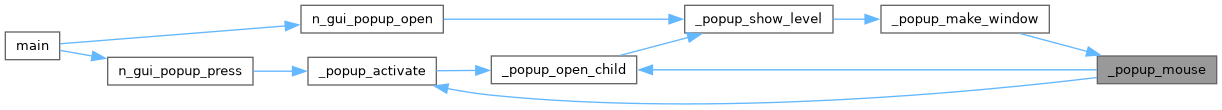

Here is the caller graph for this function:

◆ _popup_open_child()

void _popup_open_child	(	N_GUI_POPUP *	popup,
		int	level,
		int	row )

static

helper: open a submenu beside its row.

To the right of the parent, unless it would leave the display there, then to the left: a submenu pulled back over its parent would hide the row it came from.

Definition at line 358 of file n_gui_popup.c.

References _popup_close_level(), _popup_layout(), _popup_show_level(), _N_GUI_POPUP_ENTRY::child, N_GUI_POPUP::ctx, N_GUI_CTX::display_w, N_GUI_POPUP::entries, N_GUI_POPUP_OVERLAP, row(), _N_GUI_POPUP_ENTRY::row_y, _N_GUI_POPUP_ENTRY::rows, N_GUI_POPUP::scale, _N_GUI_POPUP_ENTRY::w, _N_GUI_POPUP_ENTRY::x, and _N_GUI_POPUP_ENTRY::y.
