Allegro 4 compatibility layer on top of Allegro 5. More...

#include <stdarg.h>
#include <stddef.h>
#include <stdlib.h>
#include <string.h>
#include <strings.h>
#include <math.h>
#include <allegro5/allegro.h>
#include <allegro5/allegro_primitives.h>
#include <allegro5/allegro_image.h>
#include <allegro5/allegro_font.h>
#include <allegro5/allegro_ttf.h>
#include <allegro5/allegro_audio.h>
#include <allegro5/allegro_acodec.h>
#include "nilorea/n_common.h"
#include "nilorea/n_log.h"
#include "nilorea/n_module.h"
#include "nilorea/n_allegro_4.h"
#include <dirent.h>
#include <unistd.h>

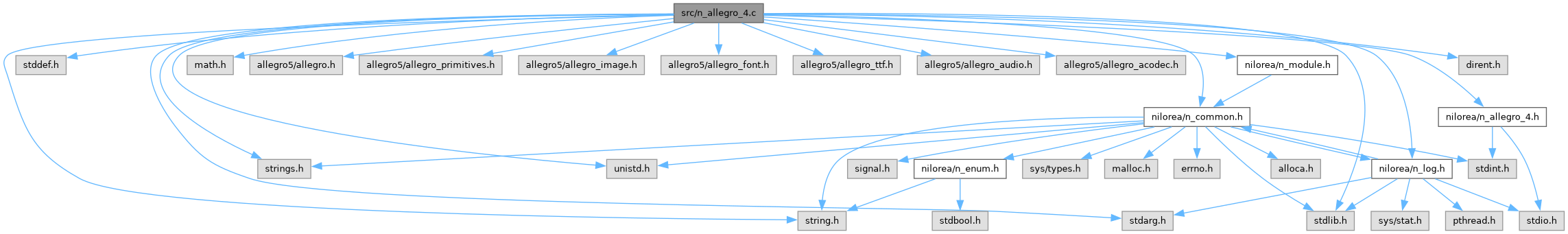

Include dependency graph for n_allegro_4.c:

Data Structures

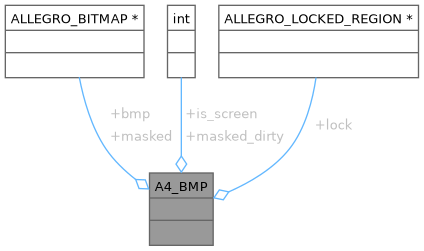

struct	A4_BMP
struct	A4_TIMER
struct	FONT
	a font: the built in one, or a TTF font loaded with load_ttf_font() More...

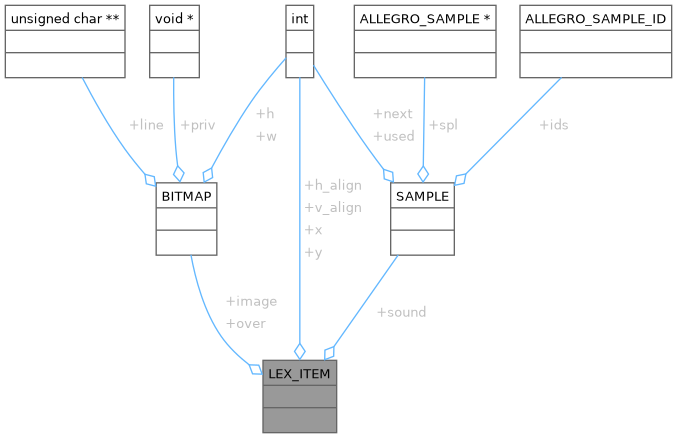

struct	LEX_ITEM

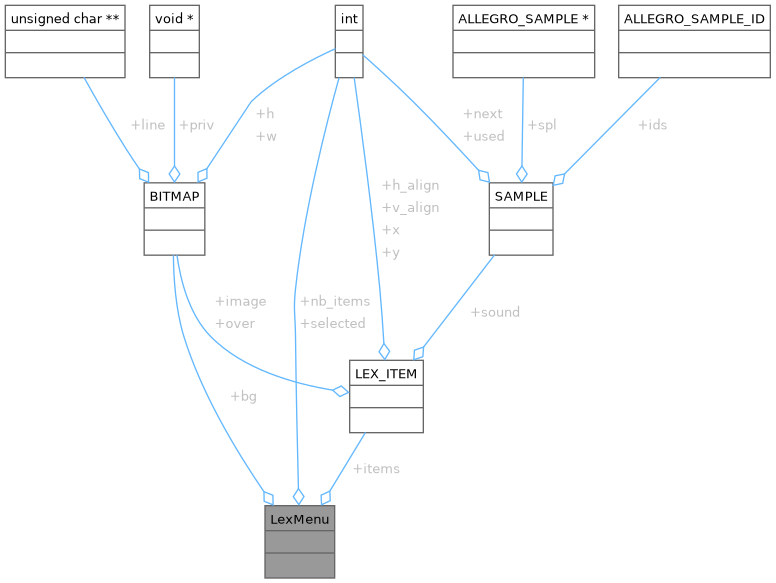

struct	LexMenu
	an INI driven menu More...
struct	MIDI
	a MIDI song More...

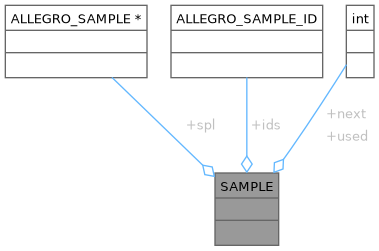

struct	SAMPLE
	a sound sample More...

Macros
#define	A4_BATCH_MAX 6144
#define	A4_BLEND_ALPHA 1
#define	A4_BLEND_COPY 0
#define	A4_BLEND_FADE 2
#define	A4_KEYBUF_SIZE 64
#define	A4_MASK_COLOR 0x00FF00FF
#define	A4_MAX_TIMERS 16
#define	A4_MIDI_FRAG 1024
#define	A4_MIDI_RATE 44100
#define	A4_SAMPLE_IDS 16
#define	A4_SYM(field, name)
#define	A4_TEXTPRINTF(align)
#define	A4P(b)
#define	ALLEGRO_UNSTABLE

Typedefs
typedef void(*	fs_delete_f) (void *)
typedef void (	fs_new_player_f) (void *)
typedef void (	fs_new_settings_f) (void)
typedef void (	fs_new_synth_f) (void *)
typedef int(*	fs_player_add_f) (void , const char )
typedef int(*	fs_player_int_f) (void *)
typedef int(*	fs_player_set_loop_f) (void *, int)
typedef void (	fs_set_log_function_f) (int, void , void )
typedef int(*	fs_settings_setnum_f) (void , const char , double)
typedef int(*	fs_settings_setstr_f) (void , const char , const char *)
typedef int(*	fs_sfload_f) (void , const char , int)
typedef int(*	fs_write_float_f) (void , int, void , int, int, void *, int, int)

Functions
static int	_a4_align (const char *v, int is_h)
static void	_a4_blend_alpha (void)
static void	_a4_blend_copy (void)

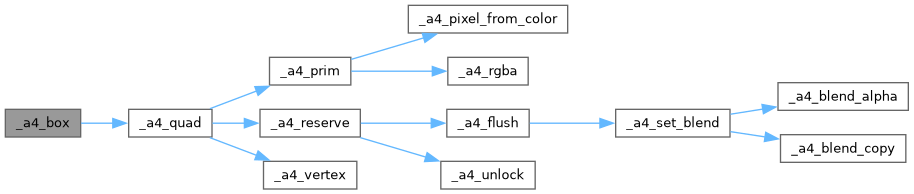

static void	_a4_box (BITMAP *b, float l, float t, float r, float bt, int color)
static int	_a4_color_from_pixel (uint32_t p)
static void	_a4_compute_scale (void)

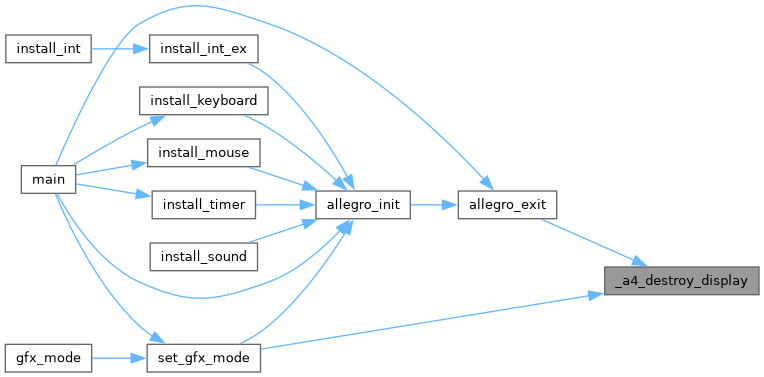

static void	_a4_destroy_display (void)

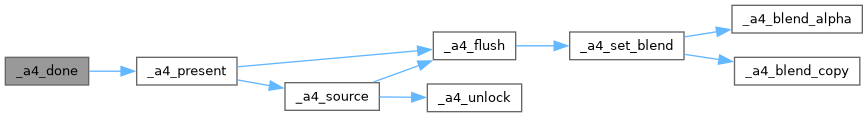

static void	_a4_done (const BITMAP *b)

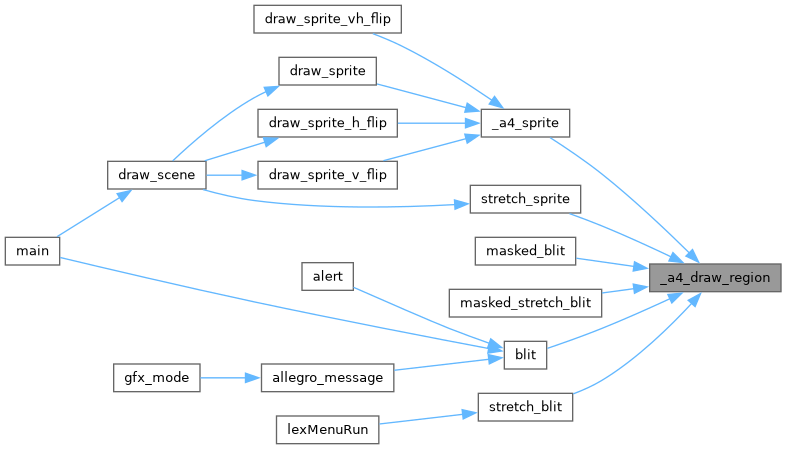

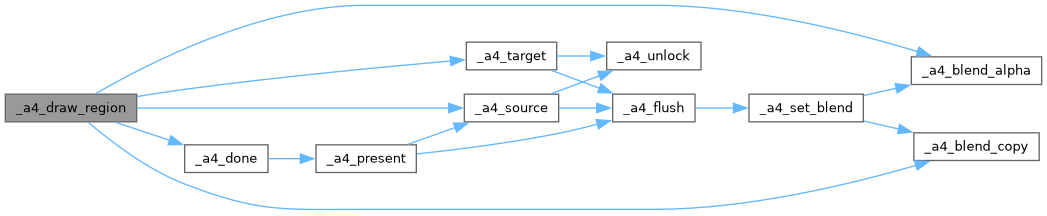

static void	_a4_draw_region (BITMAP source, BITMAP dest, int masked, float sx, float sy, float sw, float sh, float dx, float dy, float dw, float dh, int flags)
static N_MODULE *	_a4_fluidsynth_open (void)
static int	_a4_fluidsynth_sym (N_MODULE lib, const char name, void *fptr, size_t fsize)
static void	_a4_flush (void)

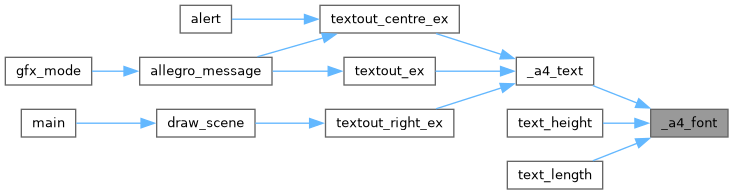

static ALLEGRO_FONT *	_a4_font (const FONT *f)
static float	_a4_gain (int vol)

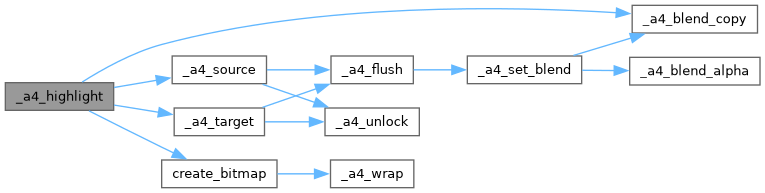

static BITMAP *	_a4_highlight (BITMAP *src)

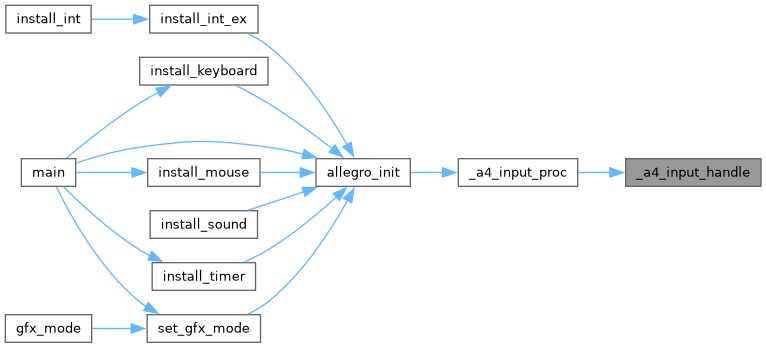

static void	_a4_input_handle (const ALLEGRO_EVENT *ev)

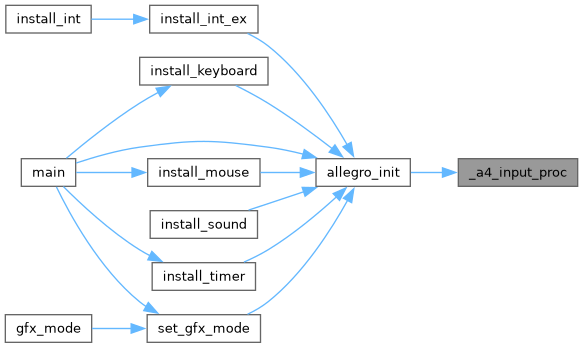

static void *	_a4_input_proc (ALLEGRO_THREAD thr, void arg)
static int	_a4_item_at (const LexMenu menu, const BITMAP buf, int mx, int my)
static void	_a4_item_rect (const LexMenu menu, const BITMAP buf, int i, float x, float y, float w, float h)

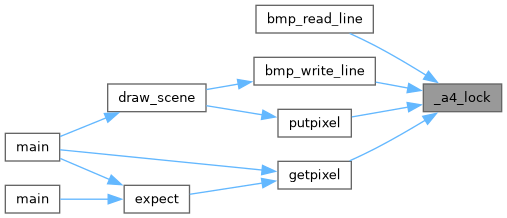

static ALLEGRO_LOCKED_REGION *	_a4_lock (BITMAP *b)

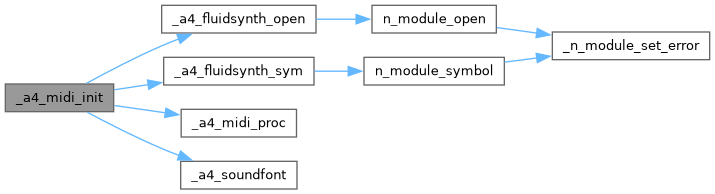

static int	_a4_midi_init (void)
static void *	_a4_midi_proc (ALLEGRO_THREAD thr, void arg)

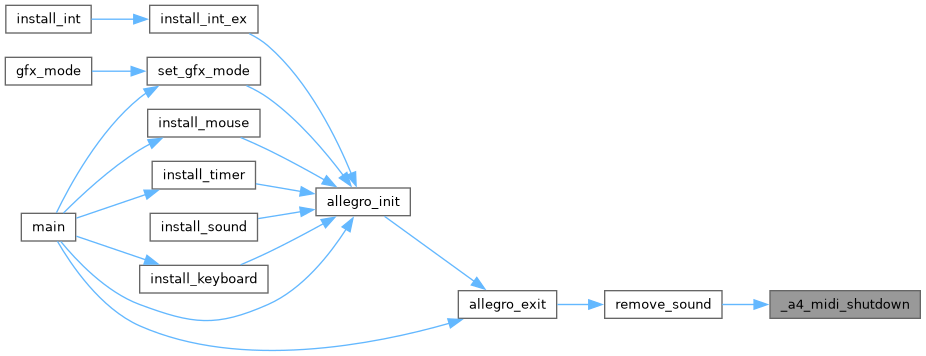

static void	_a4_midi_shutdown (void)

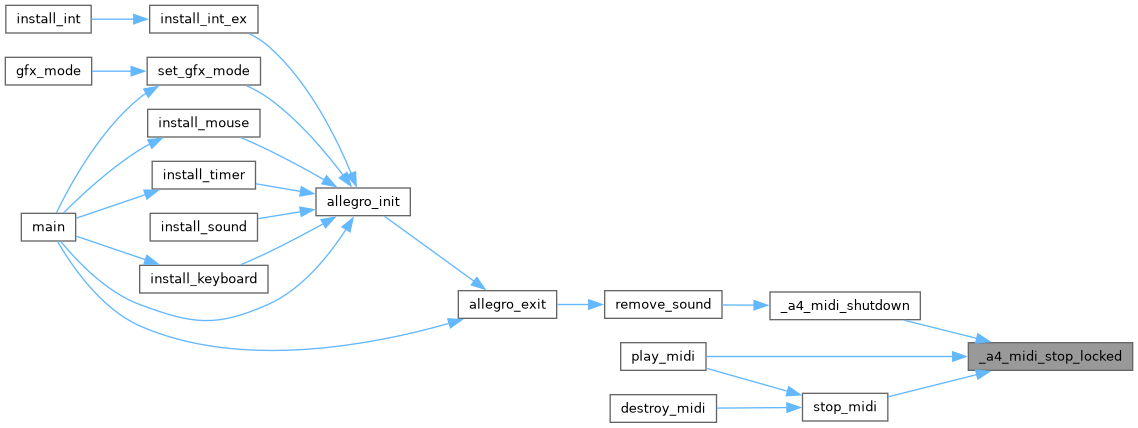

static void	_a4_midi_stop_locked (void)
static float	_a4_pan (int pan)
uint32_t	_a4_pixel_from_color (int color)
	store a colour as it is kept in a bitmap (opaque when its alpha byte is 0)

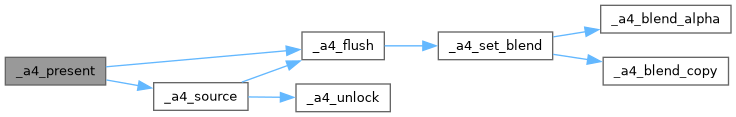

static void	_a4_present (void)
static ALLEGRO_COLOR	_a4_prim (int color, int *blend)

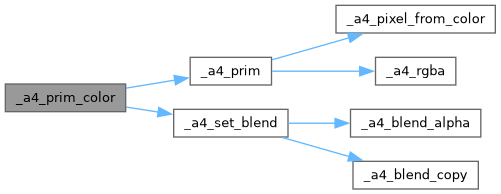

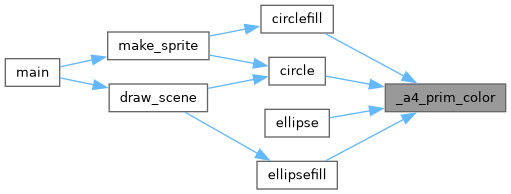

static ALLEGRO_COLOR	_a4_prim_color (int color)

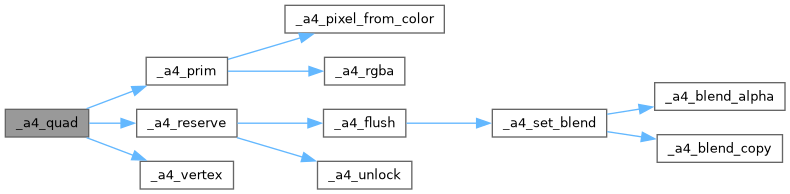

static void	_a4_quad (BITMAP *b, float x1, float y1, float x2, float y2, float x3, float y3, float x4, float y4, int color)

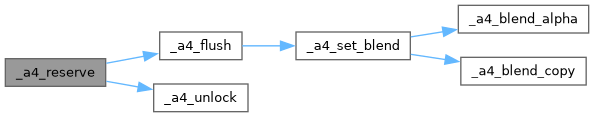

static ALLEGRO_VERTEX *	_a4_reserve (BITMAP *b, int blend, int n)

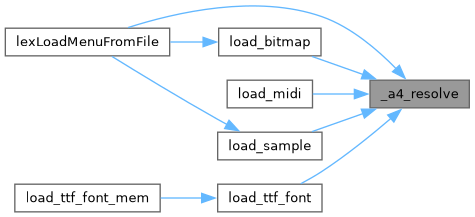

static char *	_a4_resolve (const char *path)
static ALLEGRO_COLOR	_a4_rgba (int color, int alpha)

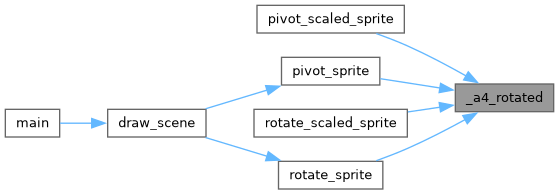

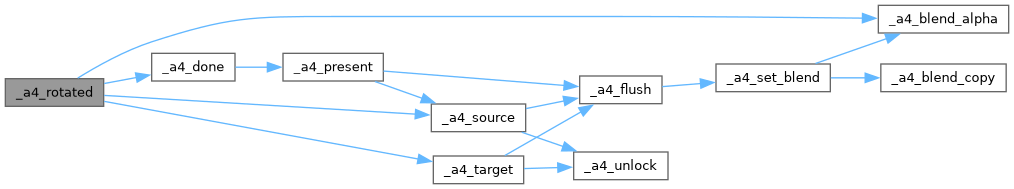

static void	_a4_rotated (BITMAP bmp, BITMAP sprite, float x, float y, float cx, float cy, fixed angle, fixed scale)
static void	_a4_set_blend (int blend)
static const char *	_a4_soundfont (void)

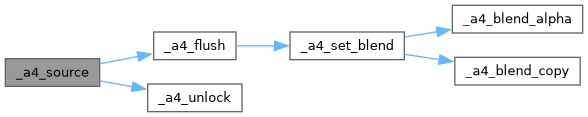

static ALLEGRO_BITMAP *	_a4_source (BITMAP *b, int masked)

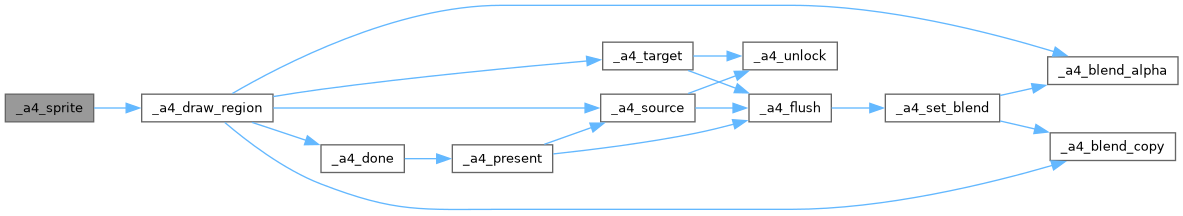

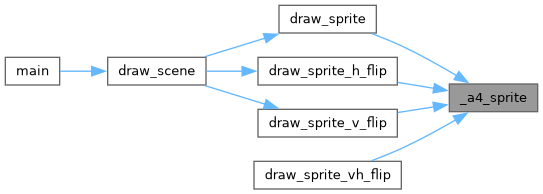

static void	_a4_sprite (BITMAP bmp, BITMAP sprite, int x, int y, int flags)
static char *	_a4_strndup (const char *s, size_t n)

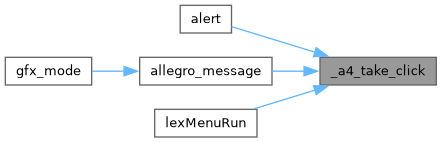

static int	_a4_take_click (int x, int y)
static int	_a4_target (BITMAP *b)

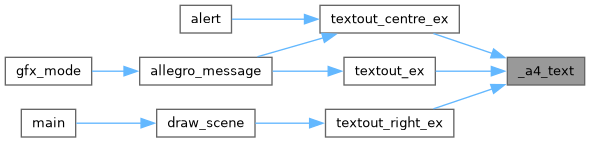

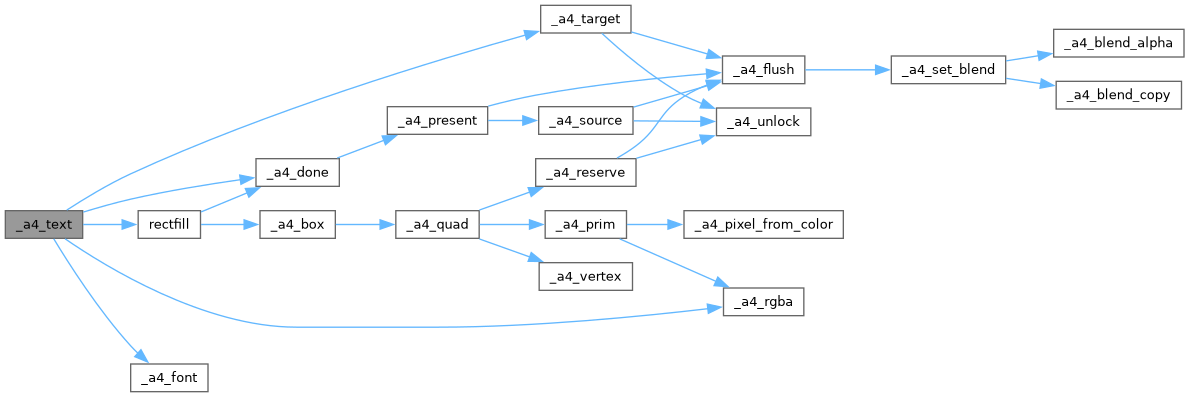

static void	_a4_text (BITMAP bmp, const FONT f, const char *s, int x, int y, int color, int bg, int align)

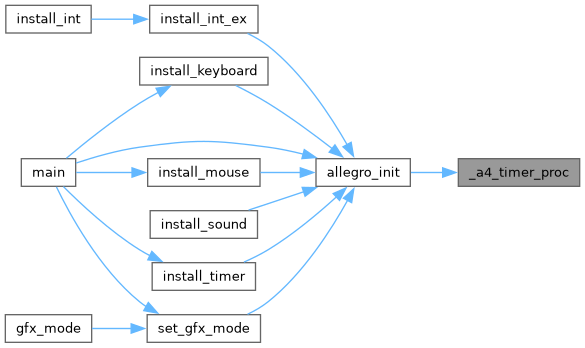

static void *	_a4_timer_proc (ALLEGRO_THREAD thr, void arg)
static void	_a4_unlock (BITMAP *b)
static void	_a4_vertex (ALLEGRO_VERTEX *v, float x, float y, ALLEGRO_COLOR c)

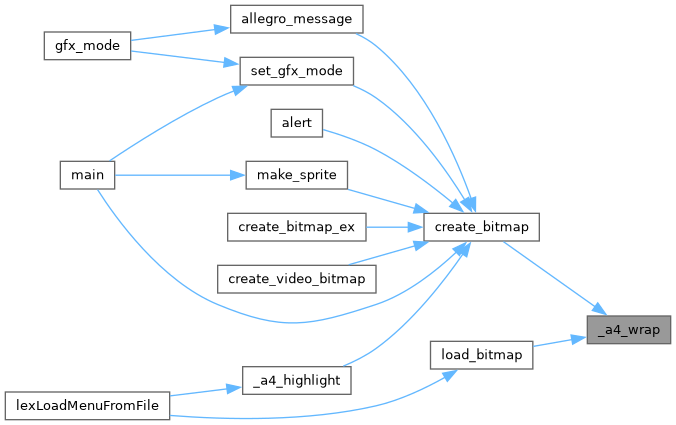

static BITMAP *	_a4_wrap (ALLEGRO_BITMAP *abmp)
int	a4_get_keyboard (char keybuf, int cur, int flags, int max)
	read the typed keys into keybuf at *cur (printable ASCII, backspace erases), keeping it nul terminated within max bytes; flags is ignored.
void	adjust_sample (const SAMPLE *spl, int vol, int pan, int freq, int loop)
	change the settings of the playing instances of a sample
int	alert (const char s1, const char s2, const char s3, const char b1, const char *b2, int c1, int c2)
	a box with up to three lines and one or two buttons (b2 may be NULL), chosen with the mouse, the c1 / c2 shortcut keys, Enter (first) or Escape (second): 1 or 2
void	allegro_exit (void)
	shut everything down
void	allegro_gl_flip (void)
	show the screen bitmap
void	allegro_gl_set_allegro_mode (void)
	no-op
void	allegro_gl_unset_allegro_mode (void)
	no-op
int	allegro_init (void)
	init the layer and Allegro 5
void	allegro_message (const char *format,...)
	show a message: a box over the screen, or stderr without a display
int	bitmap_color_depth (BITMAP *bmp)
	always 32
int	bitmap_mask_color (BITMAP *bmp)
	the mask colour, magenta
void	blit (BITMAP source, BITMAP dest, int source_x, int source_y, int dest_x, int dest_y, int width, int height)
	copy a rectangle
uintptr_t	bmp_read_line (BITMAP *bmp, int y)
	lock the bitmap and return the address of line y, 32 bit ARGB pixels
void	bmp_select (BITMAP *bmp)
	no-op
void	bmp_unwrite_line (BITMAP *bmp)
	no-op, the bitmap is unlocked when next drawn with the GPU
uintptr_t	bmp_write_line (BITMAP *bmp, int y)
	lock the bitmap and return the address of line y, 32 bit ARGB pixels
void	circle (BITMAP *bmp, int x, int y, int radius, int color)
	draw a circle outline
void	circlefill (BITMAP *bmp, int x, int y, int radius, int color)
	draw a filled circle
void	clear (BITMAP *bmp)
	clear to black
void	clear_bitmap (BITMAP *bmp)
	clear to black
void	clear_keybuf (void)
	empty the readkey() buffer
void	clear_to_color (BITMAP *bmp, int color)
	clear to a colour
BITMAP *	create_bitmap (int width, int height)
	create a w x h bitmap
BITMAP *	create_bitmap_ex (int depth, int width, int height)
	same as create_bitmap(), depth is ignored
BITMAP *	create_video_bitmap (int width, int height)
	same as create_bitmap()
void	destroy_bitmap (BITMAP *bmp)
	free a bitmap
void	destroy_font (FONT *f)
	free a font loaded with load_ttf_font()
void	destroy_midi (MIDI *midi)
	free a MIDI song, stopping it if it plays
void	destroy_sample (SAMPLE *spl)
	free a sample, stopping it
void	draw_sprite (BITMAP bmp, BITMAP sprite, int x, int y)
	draw a sprite
void	draw_sprite_h_flip (BITMAP bmp, BITMAP sprite, int x, int y)
	draw a sprite mirrored horizontally
void	draw_sprite_v_flip (BITMAP bmp, BITMAP sprite, int x, int y)
	draw a sprite mirrored vertically
void	draw_sprite_vh_flip (BITMAP bmp, BITMAP sprite, int x, int y)
	draw a sprite mirrored both ways
void	draw_trans_sprite (BITMAP bmp, BITMAP sprite, int x, int y)
	draw a sprite with the current blender (set_alpha_blender / set_trans_blender)
void	drawing_mode (int mode, BITMAP *pattern, int x_anchor, int y_anchor)
	set the drawing mode of primitives, pattern arguments are ignored
void	ellipse (BITMAP *bmp, int x, int y, int rx, int ry, int color)
	draw an ellipse outline
void	ellipsefill (BITMAP *bmp, int x, int y, int rx, int ry, int color)
	draw a filled ellipse
void	fill_str (char *str, int c, size_t len)
	fill len bytes of str with c
int	get_color_depth (void)
	return the color depth (always 32)
void	get_mouse_mickeys (int mickeyx, int mickeyy)
	movement since the last call
int	geta (int c)
	alpha component, 255 for an opaque colour
int	getb (int c)
	blue component
int	getg (int c)
	green component
int	getpixel (BITMAP *bmp, int x, int y)
	read a pixel, -1 outside the bitmap
int	getr (int c)
	red component
int	gfx_mode (int mode, int w, int h, int v_w, int v_h, int depth, double r, double g, double b, double a)
	set the color depth and the graphics mode in one go, clearing the screen to (r,g,b), components in 0-1 or 0-255; TRUE or FALSE
int	gfx_status (int action, int value)
	with GET, MODE_OGL when the current mode is an AllegroGL one, else MODE_STD
void	hline (BITMAP *bmp, int x1, int y, int x2, int color)
	draw a horizontal line
int	install_allegro_gl (void)
	no-op, the layer always uses Allegro 5's own driver
int	install_int (void(*proc)(void), int speed)
	call proc every speed milliseconds, from the timer thread
int	install_int_ex (void(*proc)(void), long speed)
	call proc every speed timer ticks, from the timer thread
int	install_keyboard (void)
	start the input thread for the keyboard
int	install_mouse (void)
	start the input thread for the mouse
int	install_sound (int digi, int midi, const char *cfg_path)
	start the audio, cfg_path is ignored
int	install_timer (void)
	no-op, timers are always available
int	is_memory_bitmap (BITMAP *bmp)
	always FALSE: pixels are reached through bmp_write_line()
int	keypressed (void)
	TRUE if a key is waiting in the readkey() buffer.
LexMenu *	lexLoadMenuFromFile (const char file, const char section)
	load menu section from INI file file, NULL on error
LexMenu *	lexMenuDestroy (LexMenu *menu)
	free a menu, returns NULL
BITMAP *	lexMenuGetBitmap (LexMenu *menu, int item, int state)
	the image of item item in state state, NULL if there is none
int	lexMenuRun (LexMenu menu, BITMAP buf)
	run the menu, drawing into buf: the chosen item index, -1 on escape
void	line (BITMAP *bmp, int x1, int y1, int x2, int y2, int color)
	draw a line
BITMAP *	load_bitmap (const char filename, RGB pal)
	load a BMP, PCX, TGA, PNG or JPG file, pal is ignored
MIDI *	load_midi (const char *filename)
	load a MIDI file
SAMPLE *	load_sample (const char *filename)
	load a WAV, OGG, FLAC or VOC file
FONT *	load_ttf_font (const char *filename, int points, int smooth)
	load a TrueType font at the given pixel size
FONT *	load_ttf_font_mem (const char *filename, int points, int smooth)
	same as load_ttf_font()
int	makeacol (int r, int g, int b, int a)
	make a colour with alpha
int	makeacol32 (int r, int g, int b, int a)
	make a colour with alpha
int	makecol (int r, int g, int b)
	make an opaque colour
int	makecol32 (int r, int g, int b)
	make an opaque colour
void	masked_blit (BITMAP source, BITMAP dest, int source_x, int source_y, int dest_x, int dest_y, int width, int height)
	copy a rectangle, skipping mask colour pixels
void	masked_stretch_blit (BITMAP source, BITMAP dest, int source_x, int source_y, int source_w, int source_h, int dest_x, int dest_y, int dest_w, int dest_h)
	copy and scale a rectangle, skipping mask colour pixels
void	midi_pause (void)
	pause the MIDI song
void	midi_resume (void)
	resume the MIDI song
void	pivot_scaled_sprite (BITMAP bmp, BITMAP sprite, int x, int y, int cx, int cy, fixed angle, fixed scale)
	rotate and scale a sprite around (cx,cy) in the sprite, drawn at (x,y)
void	pivot_sprite (BITMAP bmp, BITMAP sprite, int x, int y, int cx, int cy, fixed angle)
	rotate a sprite around (cx,cy) in the sprite, drawn at (x,y)
int	play_midi (MIDI *midi, int loop)
	play a MIDI song, replacing the current one, NULL stops
int	play_sample (const SAMPLE *spl, int vol, int pan, int freq, int loop)
	play a sample: vol and pan 0-255, freq 1000 = normal speed
int	poll_keyboard (void)
	no-op, input is updated by a thread
int	poll_mouse (void)
	no-op, input is updated by a thread
void	position_mouse (int x, int y)
	move the mouse pointer
void	putpixel (BITMAP *bmp, int x, int y, int color)
	write a pixel
int	readkey (void)
	wait for a key: (scancode << 8) \| ascii
void	rect (BITMAP *bmp, int x1, int y1, int x2, int y2, int color)
	draw a rectangle outline
void	rectfill (BITMAP *bmp, int x1, int y1, int x2, int y2, int color)
	draw a filled rectangle
void	remove_int (void(*proc)(void))
	stop calling proc
void	remove_sound (void)
	stop the audio
void	rest (unsigned int ms)
	sleep ms milliseconds
void	rotate_scaled_sprite (BITMAP bmp, BITMAP sprite, int x, int y, fixed angle, fixed scale)
	rotate and scale a sprite around its centre
void	rotate_sprite (BITMAP bmp, BITMAP sprite, int x, int y, fixed angle)
	rotate a sprite around its centre, angle in 256ths of a turn, clockwise
int	save_bitmap (const char filename, BITMAP bmp, const RGB *pal)
	save a bitmap
void	set_alpha_blender (void)
	blend with the alpha channel of the source colour or sprite
int	set_close_button_callback (void(*proc)(void))
	call proc when the window close button is pressed
void	set_color_depth (int depth)
	set the color depth, only 32 is honoured
int	set_gfx_mode (int card, int w, int h, int v_w, int v_h)
	open a display of w x h pixels, or close it with GFX_TEXT
void	set_trans_blender (int r, int g, int b, int a)
	blend with a constant opacity a (0-255), r, g and b are ignored
void	set_uformat (int type)
	no-op, kept for source compatibility
void	set_volume (int digi_volume, int midi_volume)
	set the volumes (0-255), a negative value leaves one unchanged
void	set_window_title (const char *name)
	set the window title
void	show_mouse (BITMAP *bmp)
	show the system cursor (bmp != NULL) or hide it (NULL)
void	solid_mode (void)
	same as drawing_mode(DRAW_MODE_SOLID, ...)
void	stop_midi (void)
	stop the MIDI song
void	stop_sample (const SAMPLE *spl)
	stop every playing instance of a sample
void	stretch_blit (BITMAP source, BITMAP dest, int source_x, int source_y, int source_width, int source_height, int dest_x, int dest_y, int dest_width, int dest_height)
	copy and scale a rectangle
void	stretch_sprite (BITMAP bmp, BITMAP sprite, int x, int y, int w, int h)
	draw a sprite scaled to w x h
int	text_height (const FONT *f)
	height of the font in pixels
int	text_length (const FONT f, const char str)
	width of str in pixels
void	textout_centre_ex (BITMAP bmp, const FONT f, const char *s, int x, int y, int color, int bg)
	draw a string centred on x
void	textout_ex (BITMAP bmp, const FONT f, const char *s, int x, int y, int color, int bg)
	draw a string
void	textout_right_ex (BITMAP bmp, const FONT f, const char *s, int x, int y, int color, int bg)
	draw a string ending at x
void	textprintf_centre_ex (BITMAP bmp, const FONT f, int x, int y, int color, int bg, const char *format,...)
	draw a formatted string centred on x
void	textprintf_ex (BITMAP bmp, const FONT f, int x, int y, int color, int bg, const char *format,...)
	draw a formatted string
void	textprintf_right_ex (BITMAP bmp, const FONT f, int x, int y, int color, int bg, const char *format,...)
	draw a formatted string ending at x
void	triangle (BITMAP *bmp, int x1, int y1, int x2, int y2, int x3, int y3, int color)
	draw a filled triangle
int	ustricmp (const char s1, const char s2)
	case insensitive string compare
void	vline (BITMAP *bmp, int x, int y1, int y2, int color)
	draw a vertical line

Variables
static int	a4_alpha_blender = 0
static ALLEGRO_VERTEX	a4_batch [6144]
static int	a4_batch_blend = 0
static int	a4_batch_n = 0
static BITMAP *	a4_batch_target = NULL
static int	a4_click_pending = 0
static int	a4_click_x = 0
static int	a4_click_y = 0
static void(*	a4_close_cb )(void) = NULL
static volatile int	a4_close_requested = 0
static int	a4_cursor_shown = 0
static int	a4_digi_volume = 255
static ALLEGRO_DISPLAY *	a4_display = NULL
static int	a4_draw_mode = 0
struct {
MIDI *	current
fs_delete_f	delete_player
fs_delete_f	delete_settings
fs_delete_f	delete_synth
N_MODULE *	lib
ALLEGRO_MUTEX *	mutex
fs_new_player_f	new_player
fs_new_settings_f	new_settings
fs_new_synth_f	new_synth
int	ok
int	paused
void *	player
fs_player_add_f	player_add
fs_player_int_f	player_play
fs_player_set_loop_f	player_set_loop
fs_player_int_f	player_stop
ALLEGRO_EVENT_QUEUE *	queue
fs_set_log_function_f	set_log_function
fs_settings_setnum_f	setnum
fs_settings_setstr_f	setstr
void *	settings
fs_sfload_f	sfload
ALLEGRO_AUDIO_STREAM *	stream
void *	synth
fs_player_int_f	system_reset
ALLEGRO_THREAD *	thread
int	tried
fs_write_float_f	write_float
}	a4_fs
static int	a4_gl_mode = 0
static int	a4_inited = 0
static ALLEGRO_MUTEX *	a4_input_mutex = NULL
static ALLEGRO_EVENT_QUEUE *	a4_input_queue = NULL
static ALLEGRO_THREAD *	a4_input_thread = NULL
static int	a4_keybuf [64]
static int	a4_keybuf_count = 0
static int	a4_keybuf_start = 0
static int	a4_mickey_x = 0
static int	a4_mickey_y = 0
static int	a4_midi_volume = 255
static float	a4_off_x = 0.0f
static float	a4_off_y = 0.0f
static float	a4_scale = 1.0f
static int	a4_screen_dirty = 0
static int	a4_sound_ok = 0
static ALLEGRO_MUTEX *	a4_timer_mutex = NULL
static ALLEGRO_THREAD *	a4_timer_thread = NULL
static A4_TIMER	a4_timers [16]
static int	a4_trans_alpha = 255
char	allegro_error [256] = ""
	last error message, as in Allegro 4
FONT *	font = NULL
	the default 8x8 font, valid after allegro_init()
volatile char	key [227]
	TRUE while the key is held.
volatile int	key_shifts = 0
	modifier flags, unused
volatile int	mouse_b = 0
	button flags: 1 left, 2 right, 4 middle
volatile int	mouse_x = 0
	mouse x in screen coordinates
volatile int	mouse_y = 0
	mouse y in screen coordinates
volatile int	mouse_z = 0
	mouse wheel position
BITMAP *	screen = NULL
	the screen, valid after set_gfx_mode()

Detailed Description

Allegro 4 compatibility layer on top of Allegro 5.

Author: Castagnier Mickael

Version: 1.0

Date: 08/10/2026

Definition in file n_allegro_4.c.

Data Structure Documentation

◆ A4_BMP

struct A4_BMP

Definition at line 84 of file n_allegro_4.c.

Collaboration diagram for A4_BMP:

Data Fields
ALLEGRO_BITMAP *	bmp
int	is_screen
ALLEGRO_LOCKED_REGION *	lock
ALLEGRO_BITMAP *	masked
int	masked_dirty

◆ A4_TIMER

struct A4_TIMER

Definition at line 162 of file n_allegro_4.c.

Collaboration diagram for A4_TIMER:

Data Fields
double	next
double	period
void(*)(void)	proc

◆ FONT

struct FONT

a font: the built in one, or a TTF font loaded with load_ttf_font()

Definition at line 98 of file n_allegro_4.c.

Collaboration diagram for FONT:

Data Fields
ALLEGRO_FONT *	f

◆ LEX_ITEM

struct LEX_ITEM

Definition at line 2054 of file n_allegro_4.c.

Collaboration diagram for LEX_ITEM:

Data Fields
int	h_align
BITMAP *	image
BITMAP *	over
SAMPLE *	sound
int	v_align
int	x
int	y

◆ LexMenu

struct LexMenu

an INI driven menu

Definition at line 2064 of file n_allegro_4.c.

Collaboration diagram for LexMenu:

Data Fields
BITMAP *	bg
LEX_ITEM *	items
int	nb_items
int	selected

◆ MIDI

struct MIDI

a MIDI song

Definition at line 112 of file n_allegro_4.c.

Collaboration diagram for MIDI:

Data Fields
char *	path

◆ SAMPLE

struct SAMPLE

a sound sample

Examples: ex_gui_md.c.

Definition at line 104 of file n_allegro_4.c.

Collaboration diagram for SAMPLE:

Data Fields
ALLEGRO_SAMPLE_ID	ids[16]
int	next
ALLEGRO_SAMPLE *	spl
int	used[16]

Macro Definition Documentation

◆ A4_BATCH_MAX

#define A4_BATCH_MAX 6144

Definition at line 459 of file n_allegro_4.c.

Referenced by _a4_reserve().

◆ A4_BLEND_ALPHA

#define A4_BLEND_ALPHA 1

Definition at line 277 of file n_allegro_4.c.

Referenced by _a4_prim(), and _a4_set_blend().

◆ A4_BLEND_COPY

#define A4_BLEND_COPY 0

Definition at line 276 of file n_allegro_4.c.

Referenced by _a4_prim(), _a4_prim_color(), _a4_quad(), and triangle().

◆ A4_BLEND_FADE

#define A4_BLEND_FADE 2

Definition at line 278 of file n_allegro_4.c.

Referenced by _a4_prim(), and _a4_set_blend().

◆ A4_KEYBUF_SIZE

#define A4_KEYBUF_SIZE 64

Definition at line 147 of file n_allegro_4.c.

Referenced by _a4_input_handle(), and readkey().

◆ A4_MASK_COLOR

#define A4_MASK_COLOR 0x00FF00FF

Definition at line 81 of file n_allegro_4.c.

Referenced by bitmap_mask_color().

◆ A4_MAX_TIMERS

#define A4_MAX_TIMERS 16

Definition at line 161 of file n_allegro_4.c.

Referenced by _a4_timer_proc(), install_int_ex(), and remove_int().

◆ A4_MIDI_FRAG

#define A4_MIDI_FRAG 1024

Definition at line 1757 of file n_allegro_4.c.

Referenced by _a4_midi_init(), and _a4_midi_proc().

◆ A4_MIDI_RATE

#define A4_MIDI_RATE 44100

Definition at line 1756 of file n_allegro_4.c.

Referenced by _a4_midi_init().

◆ A4_SAMPLE_IDS

#define A4_SAMPLE_IDS 16

Definition at line 103 of file n_allegro_4.c.

Referenced by adjust_sample(), play_sample(), and stop_sample().

◆ A4_SYM

#define A4_SYM	(		field,
			name )

Value:

ok = ok && _a4_fluidsynth_sym(a4_fs.lib, name, &a4_fs.field, sizeof(a4_fs.field))

a4_fs

static struct @346262156126311217342151060122117020361320217156 a4_fs

_a4_fluidsynth_sym

static int _a4_fluidsynth_sym(N_MODULE *lib, const char *name, void *fptr, size_t fsize)

Definition n_allegro_4.c:1777

Definition at line 1784 of file n_allegro_4.c.

Referenced by _a4_midi_init().

◆ A4_TEXTPRINTF

#define A4_TEXTPRINTF ( align )

Value:

    char buf[1024];                          \
    va_list ap;                              \
    va_start(ap, format);                    \
    vsnprintf(buf, sizeof(buf), format, ap); \
    va_end(ap);                              \
    _a4_text(bmp, f, buf, x, y, color, bg, align);

Definition at line 1366 of file n_allegro_4.c.

Referenced by textprintf_centre_ex(), textprintf_ex(), and textprintf_right_ex().

◆ A4P

#define A4P ( b )

Value:

((A4_BMP*)((b)->priv))

A4_BMP

Definition n_allegro_4.c:84

Definition at line 116 of file n_allegro_4.c.

Referenced by _a4_done(), _a4_flush(), _a4_lock(), _a4_reserve(), _a4_source(), _a4_target(), _a4_unlock(), bmp_write_line(), destroy_bitmap(), putpixel(), save_bitmap(), and set_gfx_mode().

◆ ALLEGRO_UNSTABLE

#define ALLEGRO_UNSTABLE

Definition at line 28 of file n_allegro_4.c.

Typedef Documentation

◆ fs_delete_f

typedef void(* fs_delete_f) (void *)

Definition at line 1722 of file n_allegro_4.c.

◆ fs_new_player_f

typedef void *(* fs_new_player_f) (void *)

Definition at line 1717 of file n_allegro_4.c.

◆ fs_new_settings_f

typedef void *(* fs_new_settings_f) (void)

Definition at line 1712 of file n_allegro_4.c.

◆ fs_new_synth_f

typedef void *(* fs_new_synth_f) (void *)

Definition at line 1715 of file n_allegro_4.c.

◆ fs_player_add_f

typedef int(* fs_player_add_f) (void *, const char *)

Definition at line 1718 of file n_allegro_4.c.

◆ fs_player_int_f

typedef int(* fs_player_int_f) (void *)

Definition at line 1719 of file n_allegro_4.c.

◆ fs_player_set_loop_f

typedef int(* fs_player_set_loop_f) (void *, int)

Definition at line 1720 of file n_allegro_4.c.

◆ fs_set_log_function_f

typedef void *(* fs_set_log_function_f) (int, void *, void *)

Definition at line 1723 of file n_allegro_4.c.

◆ fs_settings_setnum_f

typedef int(* fs_settings_setnum_f) (void *, const char *, double)

Definition at line 1713 of file n_allegro_4.c.

◆ fs_settings_setstr_f

typedef int(* fs_settings_setstr_f) (void *, const char *, const char *)

Definition at line 1714 of file n_allegro_4.c.

◆ fs_sfload_f

typedef int(* fs_sfload_f) (void *, const char *, int)

Definition at line 1716 of file n_allegro_4.c.

◆ fs_write_float_f

typedef int(* fs_write_float_f) (void *, int, void *, int, int, void *, int, int)

Definition at line 1721 of file n_allegro_4.c.

Function Documentation

◆ _a4_align()

int _a4_align	(	const char *	v,
		int	is_h )

static

Definition at line 2071 of file n_allegro_4.c.

Referenced by lexLoadMenuFromFile().

Here is the caller graph for this function:

◆ _a4_blend_alpha()

void _a4_blend_alpha ( void )

static

Definition at line 425 of file n_allegro_4.c.

Referenced by _a4_draw_region(), _a4_rotated(), _a4_set_blend(), draw_trans_sprite(), and lexMenuRun().

Here is the caller graph for this function:

◆ _a4_blend_copy()

void _a4_blend_copy ( void )

static

Definition at line 430 of file n_allegro_4.c.

Referenced by _a4_draw_region(), _a4_highlight(), and _a4_set_blend().

Here is the caller graph for this function:

◆ _a4_box()

void _a4_box	(	BITMAP *	b,
		float	l,
		float	t,
		float	r,
		float	bt,
		int	color )

static

Definition at line 515 of file n_allegro_4.c.

References _a4_quad().

Referenced by line(), putpixel(), rect(), and rectfill().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_color_from_pixel()

int _a4_color_from_pixel ( uint32_t p )

static

Definition at line 265 of file n_allegro_4.c.

Referenced by getpixel().

Here is the caller graph for this function:

◆ _a4_compute_scale()

void _a4_compute_scale ( void )

static

Definition at line 705 of file n_allegro_4.c.

References a4_display, a4_off_x, a4_off_y, a4_scale, and screen.

Referenced by set_gfx_mode().

Here is the caller graph for this function:

◆ _a4_destroy_display()

void _a4_destroy_display ( void )

static

Definition at line 645 of file n_allegro_4.c.

References a4_display, a4_input_queue, destroy_bitmap(), and screen.

Referenced by allegro_exit(), and set_gfx_mode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_done()

void _a4_done ( const BITMAP * b )

static

Definition at line 375 of file n_allegro_4.c.

References _a4_present(), a4_gl_mode, A4P, and BITMAP::priv.

Referenced by _a4_draw_region(), _a4_rotated(), _a4_text(), circle(), circlefill(), clear_to_color(), draw_trans_sprite(), ellipse(), ellipsefill(), line(), putpixel(), rect(), rectfill(), and triangle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_draw_region()

void _a4_draw_region	(	BITMAP *	source,
		BITMAP *	dest,
		int	masked,
		float	sx,
		float	sy,
		float	sw,
		float	sh,
		float	dx,
		float	dy,
		float	dw,
		float	dh,
		int	flags )

static

Definition at line 1029 of file n_allegro_4.c.

References _a4_blend_alpha(), _a4_blend_copy(), _a4_done(), _a4_source(), and _a4_target().

Referenced by _a4_sprite(), blit(), masked_blit(), masked_stretch_blit(), stretch_blit(), and stretch_sprite().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_fluidsynth_open()

N_MODULE * _a4_fluidsynth_open ( void )

static

Definition at line 1759 of file n_allegro_4.c.

References n_module_open().

Referenced by _a4_midi_init().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_fluidsynth_sym()

int _a4_fluidsynth_sym	(	N_MODULE *	lib,
		const char *	name,
		void *	fptr,
		size_t	fsize )

static

Definition at line 1777 of file n_allegro_4.c.

References n_module_symbol().

Referenced by _a4_midi_init().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_flush()

void _a4_flush ( void )

static

Definition at line 465 of file n_allegro_4.c.

References _a4_set_blend(), a4_batch, a4_batch_blend, a4_batch_n, a4_batch_target, and A4P.

Referenced by _a4_lock(), _a4_present(), _a4_reserve(), _a4_source(), and _a4_target().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_font()

ALLEGRO_FONT * _a4_font ( const FONT * f )

static

Definition at line 1318 of file n_allegro_4.c.

References FONT::f, and font.

Referenced by _a4_text(), text_height(), and text_length().

Here is the caller graph for this function:

◆ _a4_gain()

float _a4_gain ( int vol )

static

Definition at line 1673 of file n_allegro_4.c.

References a4_digi_volume.

Referenced by adjust_sample(), and play_sample().

Here is the caller graph for this function:

◆ _a4_highlight()

BITMAP * _a4_highlight ( BITMAP * src )

static

Definition at line 2080 of file n_allegro_4.c.

References _a4_blend_copy(), _a4_source(), _a4_target(), create_bitmap(), BITMAP::h, and BITMAP::w.

Referenced by lexLoadMenuFromFile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_input_handle()

void _a4_input_handle ( const ALLEGRO_EVENT * ev )

static

Definition at line 521 of file n_allegro_4.c.

References a4_click_pending, a4_click_x, a4_click_y, a4_close_cb, a4_close_requested, a4_input_mutex, a4_keybuf, a4_keybuf_count, A4_KEYBUF_SIZE, a4_keybuf_start, a4_mickey_x, a4_mickey_y, a4_off_x, a4_off_y, a4_scale, key, KEY_MAX, mouse_b, mouse_x, mouse_y, and mouse_z.

Referenced by _a4_input_proc().

Here is the caller graph for this function:

◆ _a4_input_proc()

void * _a4_input_proc	(	ALLEGRO_THREAD *	thr,
		void *	arg )

static

Definition at line 576 of file n_allegro_4.c.

References _a4_input_handle(), and a4_input_queue.

Referenced by allegro_init().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_item_at()

int _a4_item_at	(	const LexMenu *	menu,
		const BITMAP *	buf,
		int	mx,
		int	my )

static

Definition at line 2175 of file n_allegro_4.c.

References _a4_item_rect(), and LexMenu::nb_items.

Referenced by lexMenuRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_item_rect()

void _a4_item_rect	(	const LexMenu *	menu,
		const BITMAP *	buf,
		int	i,
		float *	x,
		float *	y,
		float *	w,
		float *	h )

static

Definition at line 2152 of file n_allegro_4.c.

References LexMenu::bg, BITMAP::h, LEX_ITEM::h_align, LEX_ITEM::image, LexMenu::items, LEX_ITEM::v_align, BITMAP::w, LEX_ITEM::x, and LEX_ITEM::y.

Referenced by _a4_item_at(), and lexMenuRun().

Here is the caller graph for this function:

◆ _a4_lock()

ALLEGRO_LOCKED_REGION * _a4_lock ( BITMAP * b )

static

Definition at line 353 of file n_allegro_4.c.

References _a4_flush(), A4P, A4_BMP::bmp, and A4_BMP::lock.

Referenced by bmp_read_line(), bmp_write_line(), getpixel(), and putpixel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_midi_init()

int _a4_midi_init ( void )

static

Definition at line 1827 of file n_allegro_4.c.

References _a4_fluidsynth_open(), _a4_fluidsynth_sym(), _a4_midi_proc(), _a4_soundfont(), a4_fs, A4_MIDI_FRAG, A4_MIDI_RATE, a4_midi_volume, a4_sound_ok, A4_SYM, LOG_DEBUG, LOG_NOTICE, and n_log.

Referenced by play_midi().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_midi_proc()

void * _a4_midi_proc	(	ALLEGRO_THREAD *	thr,
		void *	arg )

static

Definition at line 1807 of file n_allegro_4.c.

References a4_fs, and A4_MIDI_FRAG.

Referenced by _a4_midi_init().

Here is the caller graph for this function:

◆ _a4_midi_shutdown()

void _a4_midi_shutdown ( void )

static

Definition at line 1904 of file n_allegro_4.c.

References _a4_midi_stop_locked(), a4_fs, and n_module_close().

Referenced by remove_sound().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_midi_stop_locked()

void _a4_midi_stop_locked ( void )

static

Definition at line 1893 of file n_allegro_4.c.

References a4_fs.

Referenced by _a4_midi_shutdown(), play_midi(), and stop_midi().

Here is the caller graph for this function:

◆ _a4_pan()

float _a4_pan ( int pan )

static

Definition at line 1677 of file n_allegro_4.c.

Referenced by adjust_sample(), and play_sample().

Here is the caller graph for this function:

◆ _a4_present()

void _a4_present ( void )

static

Definition at line 761 of file n_allegro_4.c.

References _a4_flush(), _a4_source(), a4_display, a4_off_x, a4_off_y, a4_scale, a4_screen_dirty, and screen.

Referenced by _a4_done(), alert(), allegro_gl_flip(), allegro_message(), gfx_mode(), lexMenuRun(), and set_gfx_mode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_prim()

ALLEGRO_COLOR _a4_prim	(	int	color,
		int *	blend )

static

Definition at line 292 of file n_allegro_4.c.

References _a4_pixel_from_color(), _a4_rgba(), a4_alpha_blender, A4_BLEND_ALPHA, A4_BLEND_COPY, A4_BLEND_FADE, a4_draw_mode, a4_trans_alpha, and DRAW_MODE_TRANS.

Referenced by _a4_prim_color(), _a4_quad(), and triangle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_prim_color()

ALLEGRO_COLOR _a4_prim_color ( int color )

static

Definition at line 445 of file n_allegro_4.c.

References _a4_prim(), _a4_set_blend(), and A4_BLEND_COPY.

Referenced by circle(), circlefill(), ellipse(), and ellipsefill().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_quad()

void _a4_quad	(	BITMAP *	b,
		float	x1,
		float	y1,
		float	x2,
		float	y2,
		float	x3,
		float	y3,
		float	x4,
		float	y4,
		int	color )

static

Definition at line 502 of file n_allegro_4.c.

References _a4_prim(), _a4_reserve(), _a4_vertex(), and A4_BLEND_COPY.

Referenced by _a4_box(), and line().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_reserve()

ALLEGRO_VERTEX * _a4_reserve	(	BITMAP *	b,
		int	blend,
		int	n )

static

Definition at line 477 of file n_allegro_4.c.

References _a4_flush(), _a4_unlock(), a4_batch, a4_batch_blend, A4_BATCH_MAX, a4_batch_n, a4_batch_target, a4_screen_dirty, A4P, A4_BMP::is_screen, and A4_BMP::masked_dirty.

Referenced by _a4_quad(), and triangle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_resolve()

char * _a4_resolve ( const char * path )

static

Definition at line 186 of file n_allegro_4.c.

Referenced by lexLoadMenuFromFile(), load_bitmap(), load_midi(), load_sample(), and load_ttf_font().

Here is the caller graph for this function:

◆ _a4_rgba()

ALLEGRO_COLOR _a4_rgba	(	int	color,
		int	alpha )

static

Definition at line 270 of file n_allegro_4.c.

Referenced by _a4_prim(), _a4_text(), and clear_to_color().

Here is the caller graph for this function:

◆ _a4_rotated()

void _a4_rotated	(	BITMAP *	bmp,
		BITMAP *	sprite,
		float	x,
		float	y,
		float	cx,
		float	cy,
		fixed	angle,
		fixed	scale )

static

Definition at line 1110 of file n_allegro_4.c.

References _a4_blend_alpha(), _a4_done(), _a4_source(), _a4_target(), and fixtof.

Referenced by pivot_scaled_sprite(), pivot_sprite(), rotate_scaled_sprite(), and rotate_sprite().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_set_blend()

void _a4_set_blend ( int blend )

static

Definition at line 434 of file n_allegro_4.c.

References _a4_blend_alpha(), _a4_blend_copy(), A4_BLEND_ALPHA, and A4_BLEND_FADE.

Referenced by _a4_flush(), and _a4_prim_color().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_soundfont()

const char * _a4_soundfont ( void )

static

Definition at line 1786 of file n_allegro_4.c.

Referenced by _a4_midi_init().

Here is the caller graph for this function:

◆ _a4_source()

ALLEGRO_BITMAP * _a4_source	(	BITMAP *	b,
		int	masked )

static

Definition at line 380 of file n_allegro_4.c.

References _a4_flush(), _a4_unlock(), A4P, A4_BMP::bmp, BITMAP::h, A4_BMP::masked, A4_BMP::masked_dirty, BITMAP::priv, and BITMAP::w.

Referenced by _a4_draw_region(), _a4_highlight(), _a4_present(), _a4_rotated(), draw_trans_sprite(), and lexMenuRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _a4_sprite()

void _a4_sprite	(	BITMAP *	bmp,
		BITMAP *	sprite,
		int	x,
		int	y,
		int	flags )

static

Definition at line 1070 of file n_allegro_4.c.

References _a4_draw_region(), BITMAP::h, and BITMAP::w.

Referenced by draw_sprite(), draw_sprite_h_flip(), draw_sprite_v_flip(), and draw_sprite_vh_flip().

Here is the call graph for this function:

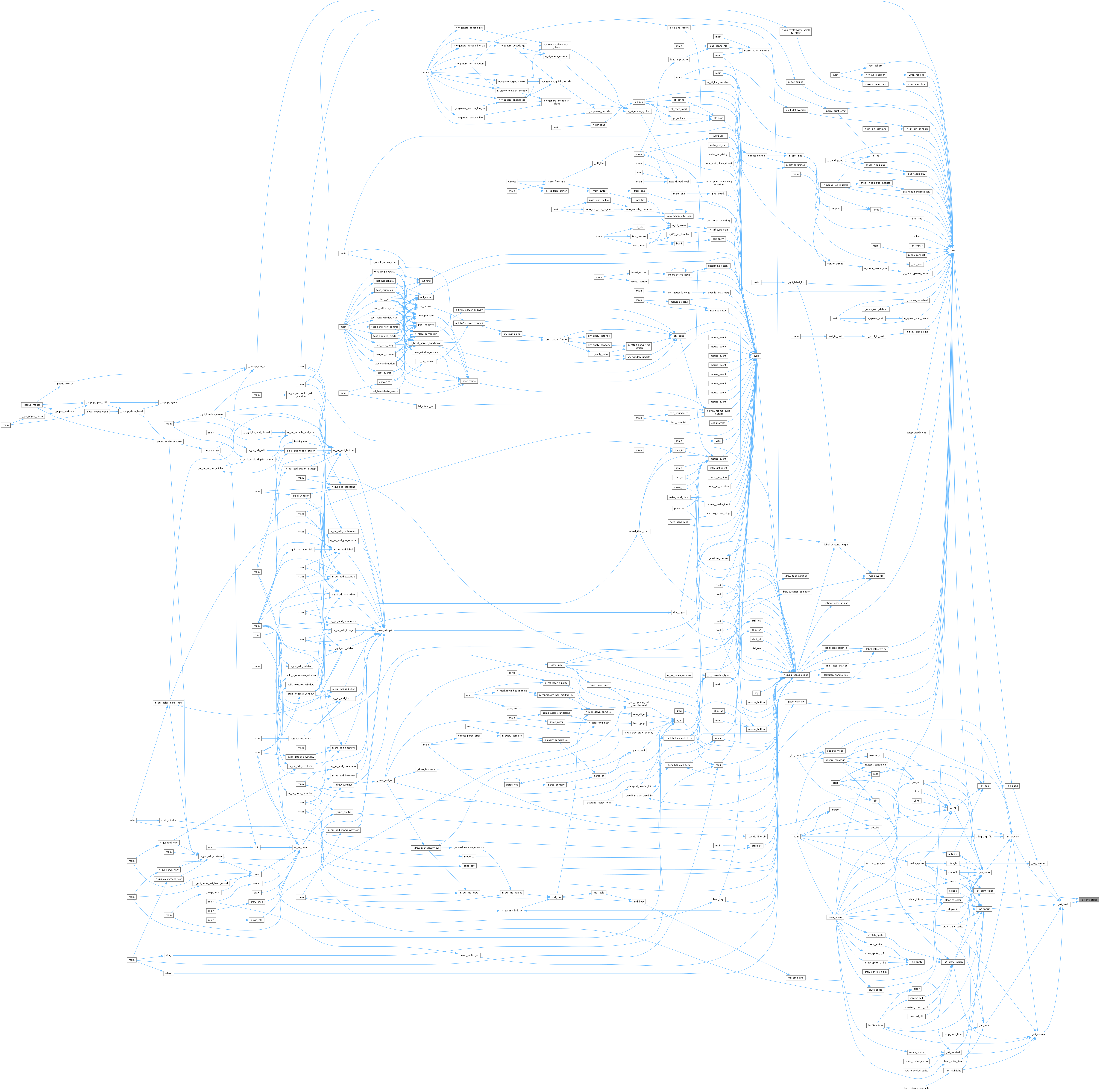

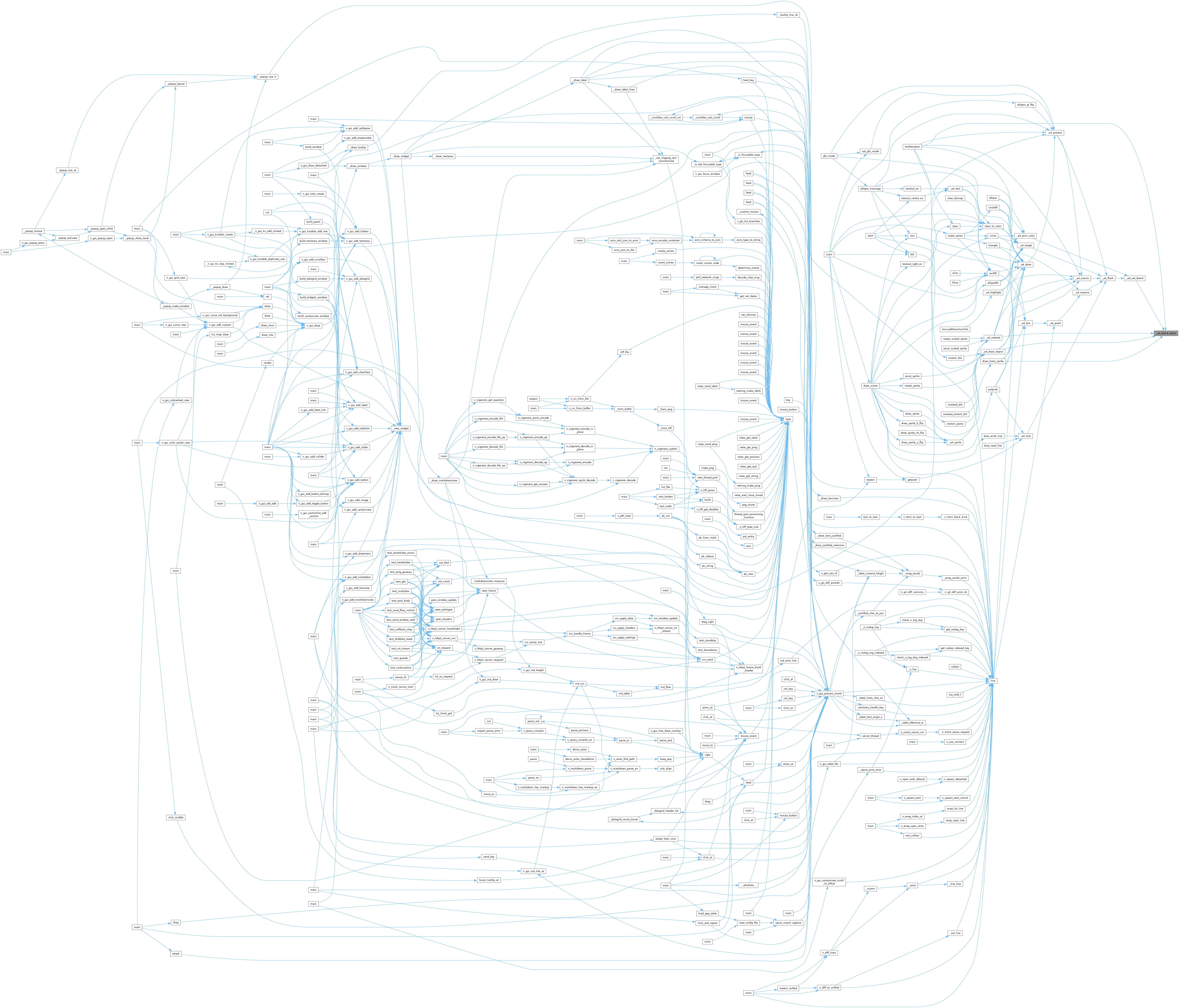

Here is the caller graph for this function:

◆ _a4_strndup()

char * _a4_strndup	(	const char *	s,
		size_t	n )

static

Definition at line 248 of file n_allegro_4.c.

Referenced by allegro_message().

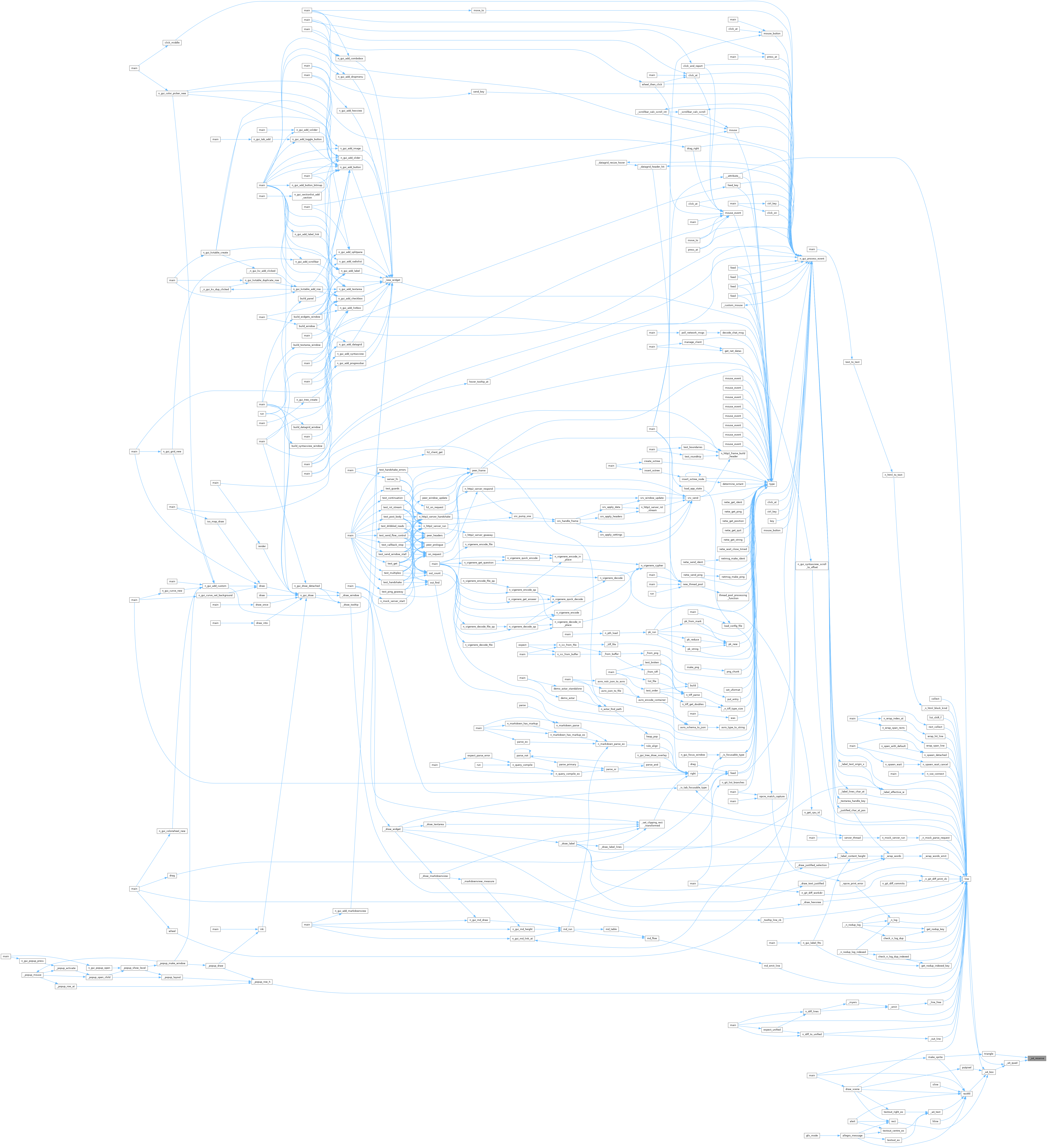

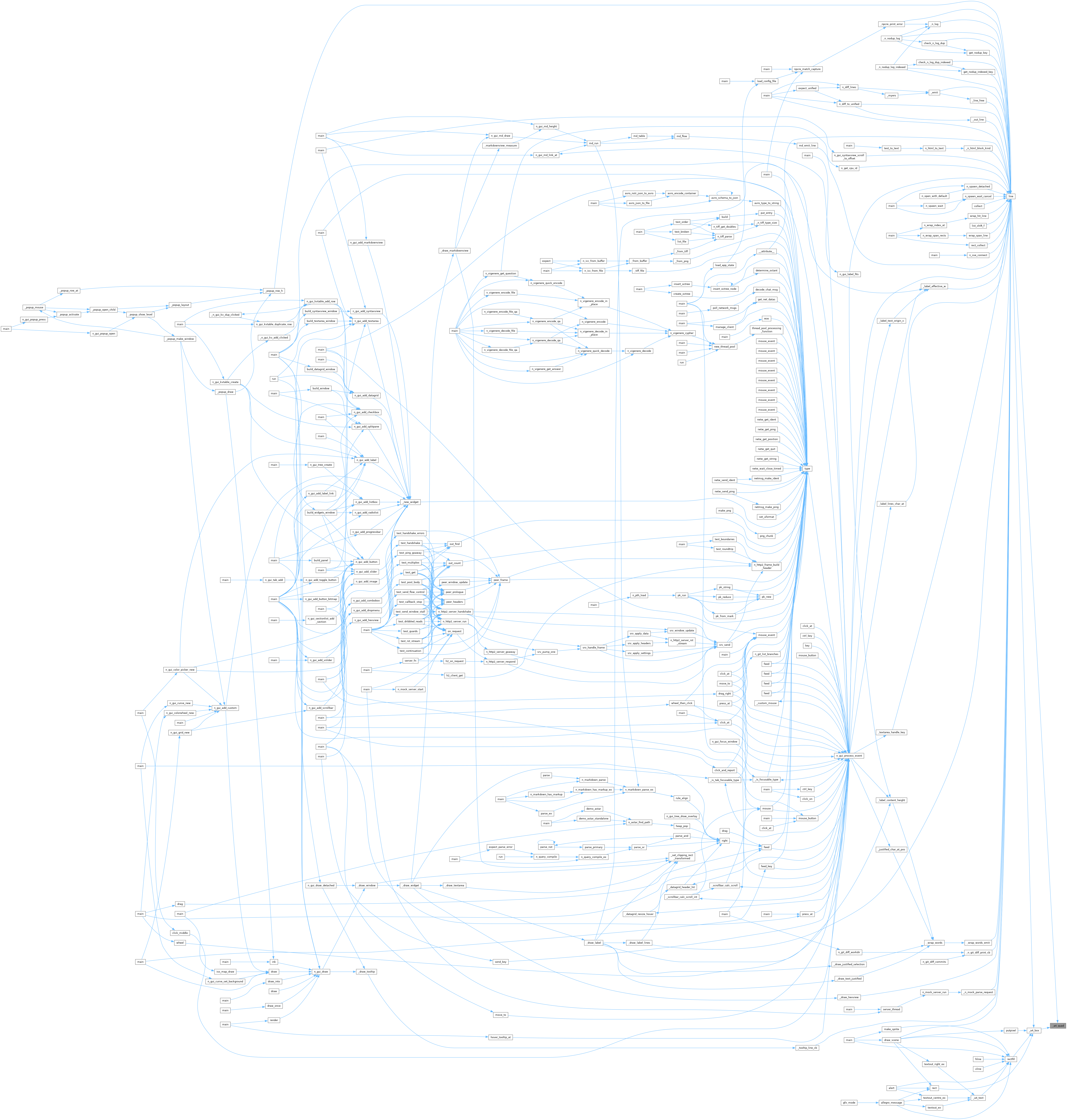

Here is the caller graph for this function:

◆ _a4_take_click()

int _a4_take_click	(	int *	x,
		int *	y )

static

Definition at line 801 of file n_allegro_4.c.

References a4_click_pending, a4_click_x, a4_click_y, and a4_input_mutex.

Referenced by alert(), allegro_message(), and lexMenuRun().

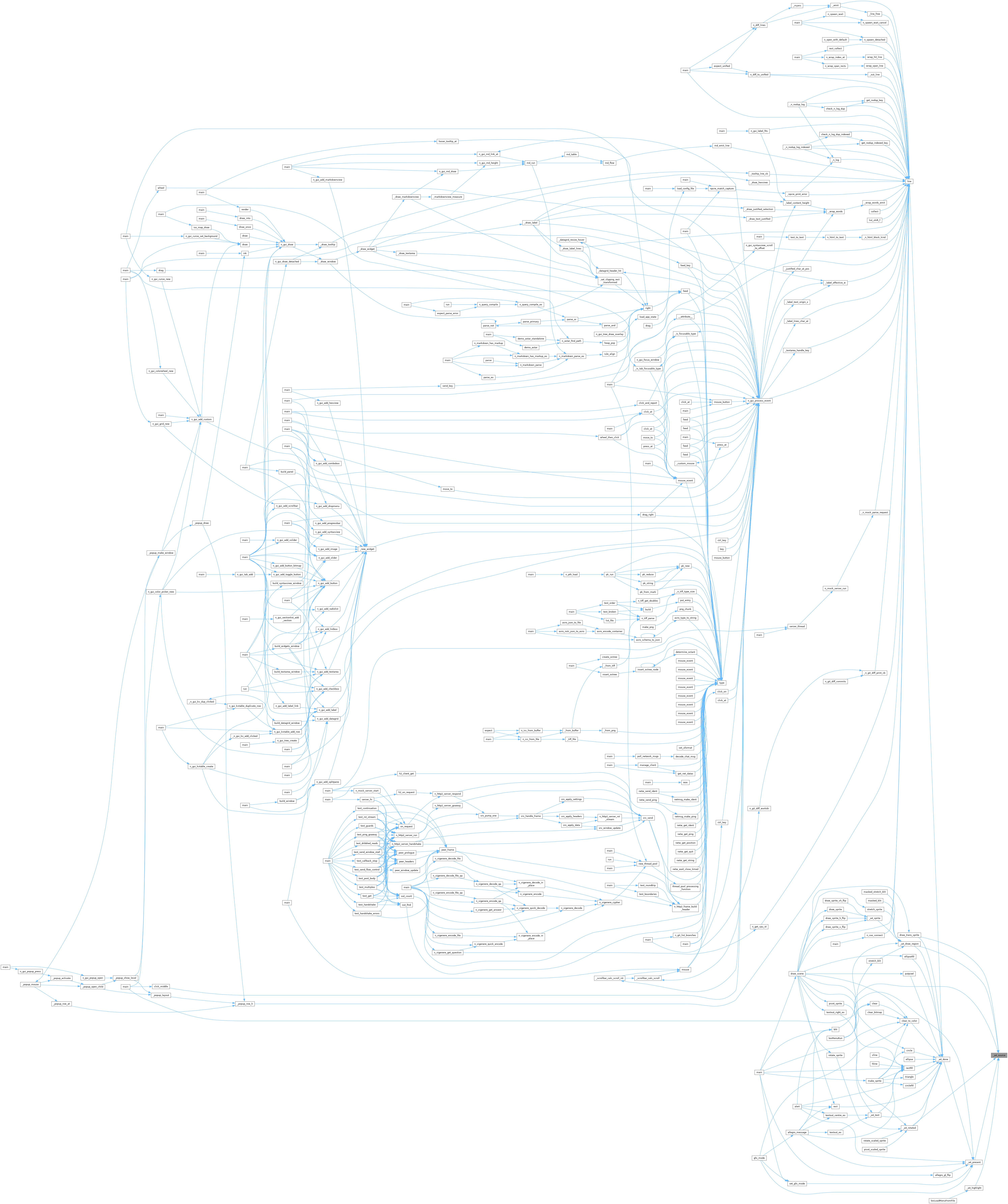

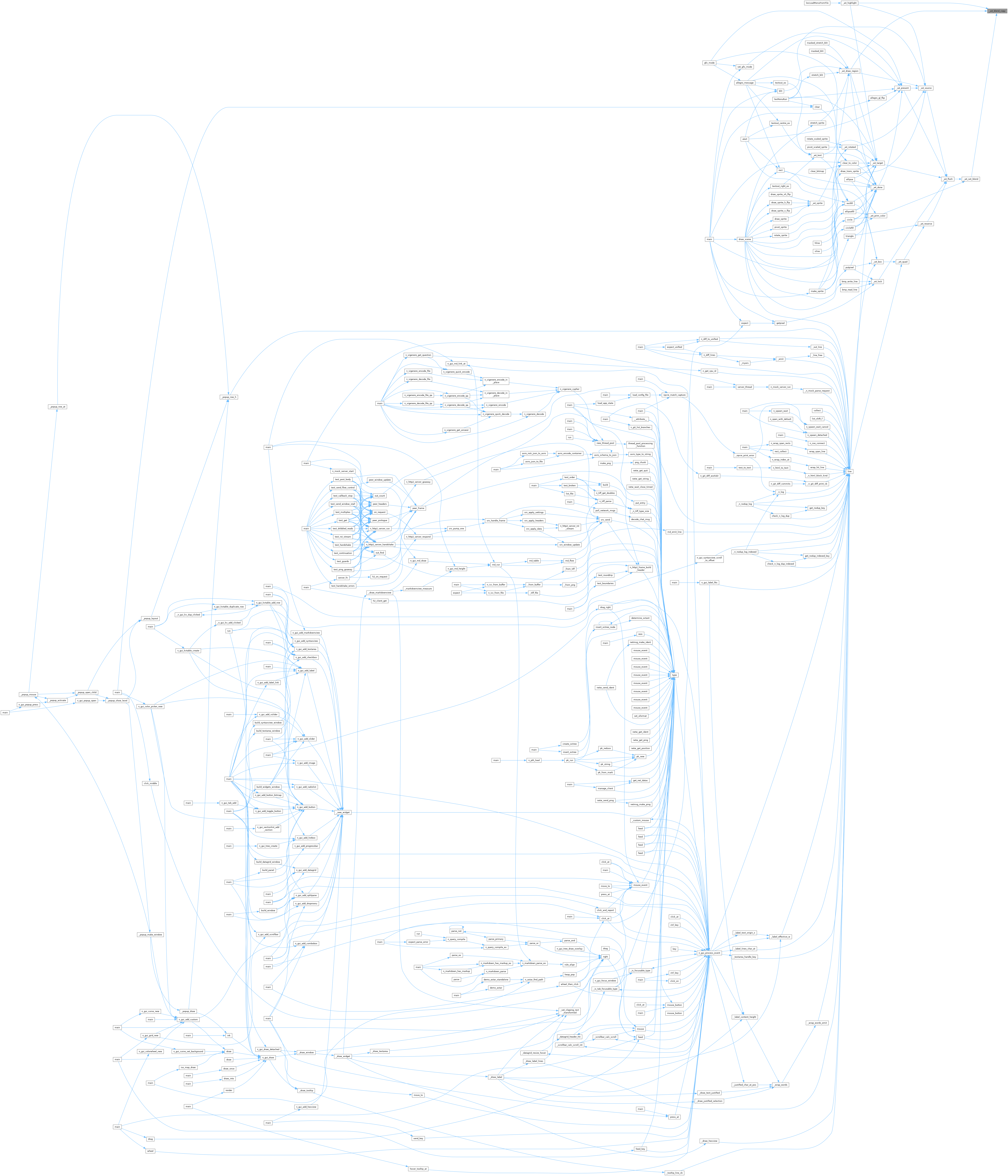

Here is the caller graph for this function:

◆ _a4_target()

int _a4_target ( BITMAP * b )

static

Definition at line 363 of file n_allegro_4.c.

References _a4_flush(), _a4_unlock(), a4_screen_dirty, A4P, A4_BMP::bmp, A4_BMP::is_screen, A4_BMP::masked_dirty, and BITMAP::priv.

Referenced by _a4_draw_region(), _a4_highlight(), _a4_rotated(), _a4_text(), circle(), circlefill(), clear_to_color(), draw_trans_sprite(), ellipse(), ellipsefill(), and lexMenuRun().

Here is the call graph for this function:

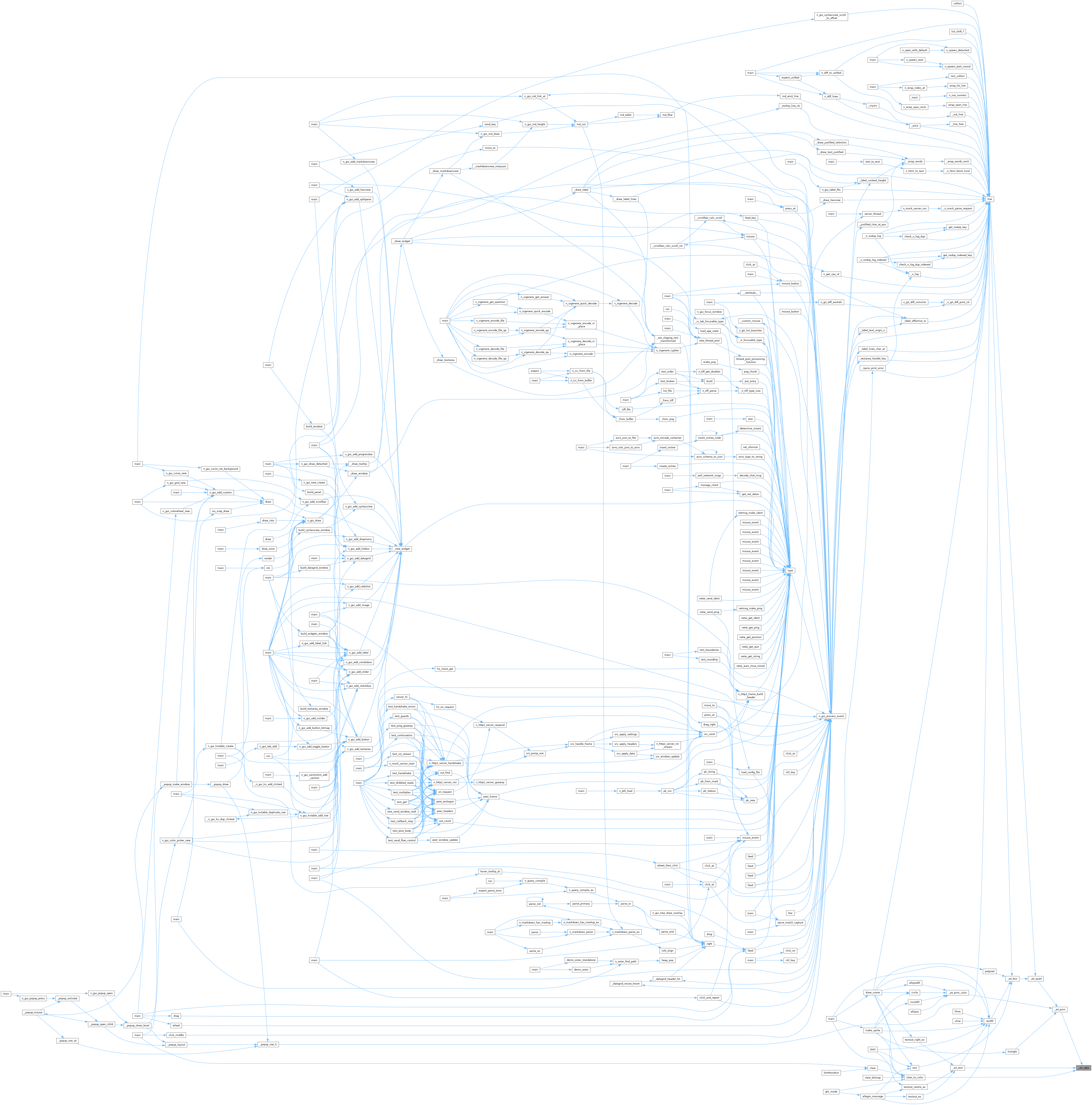

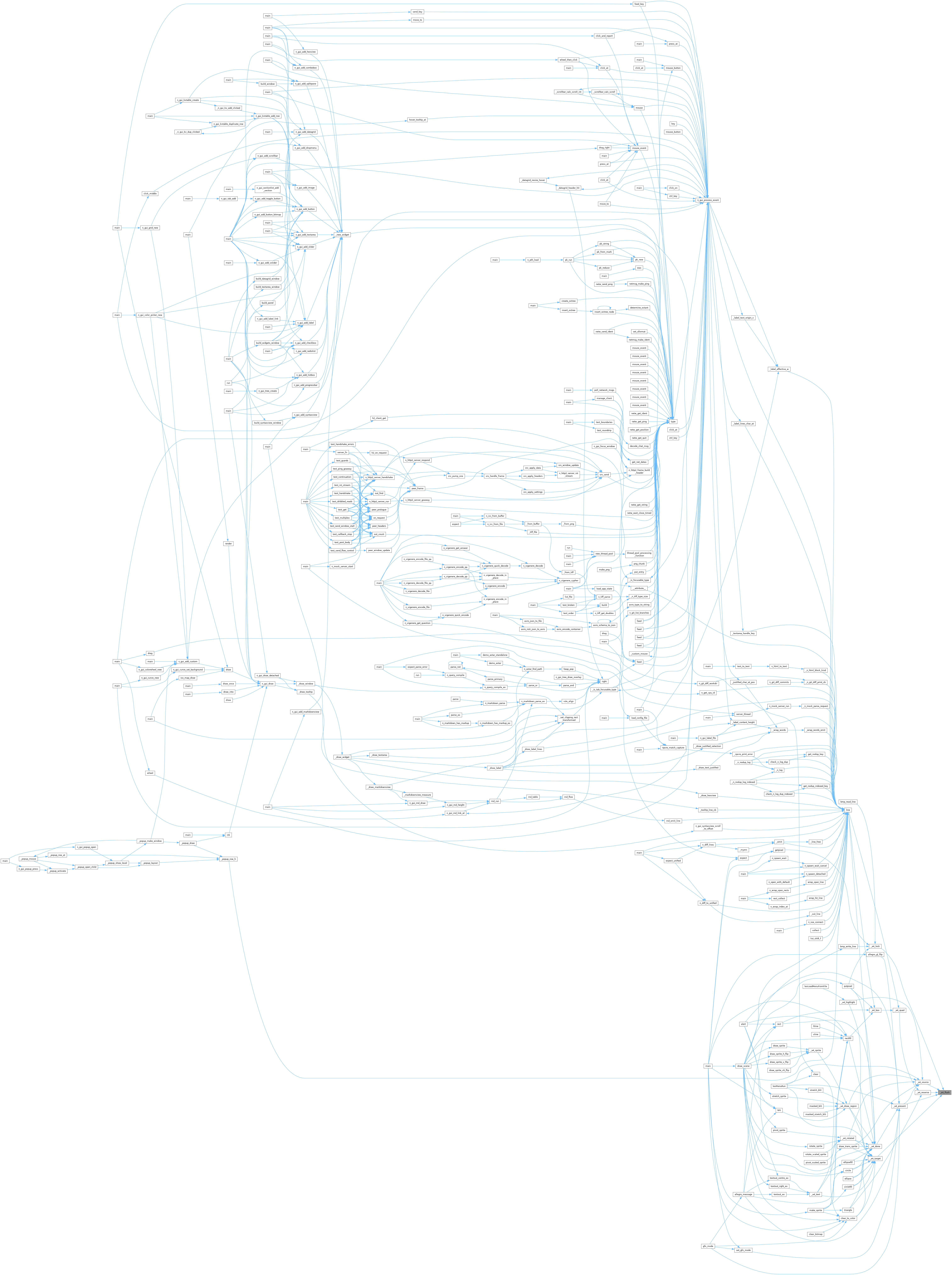

Here is the caller graph for this function:

◆ _a4_text()

void _a4_text	(	BITMAP *	bmp,
		const FONT *	f,
		const char *	s,
		int	x,
		int	y,
		int	color,
		int	bg,
		int	align )

static

Definition at line 1334 of file n_allegro_4.c.

References _a4_done(), _a4_font(), _a4_rgba(), _a4_target(), a4_draw_mode, DRAW_MODE_SOLID, mode, and rectfill().

Referenced by textout_centre_ex(), textout_ex(), and textout_right_ex().

Here is the call graph for this function:

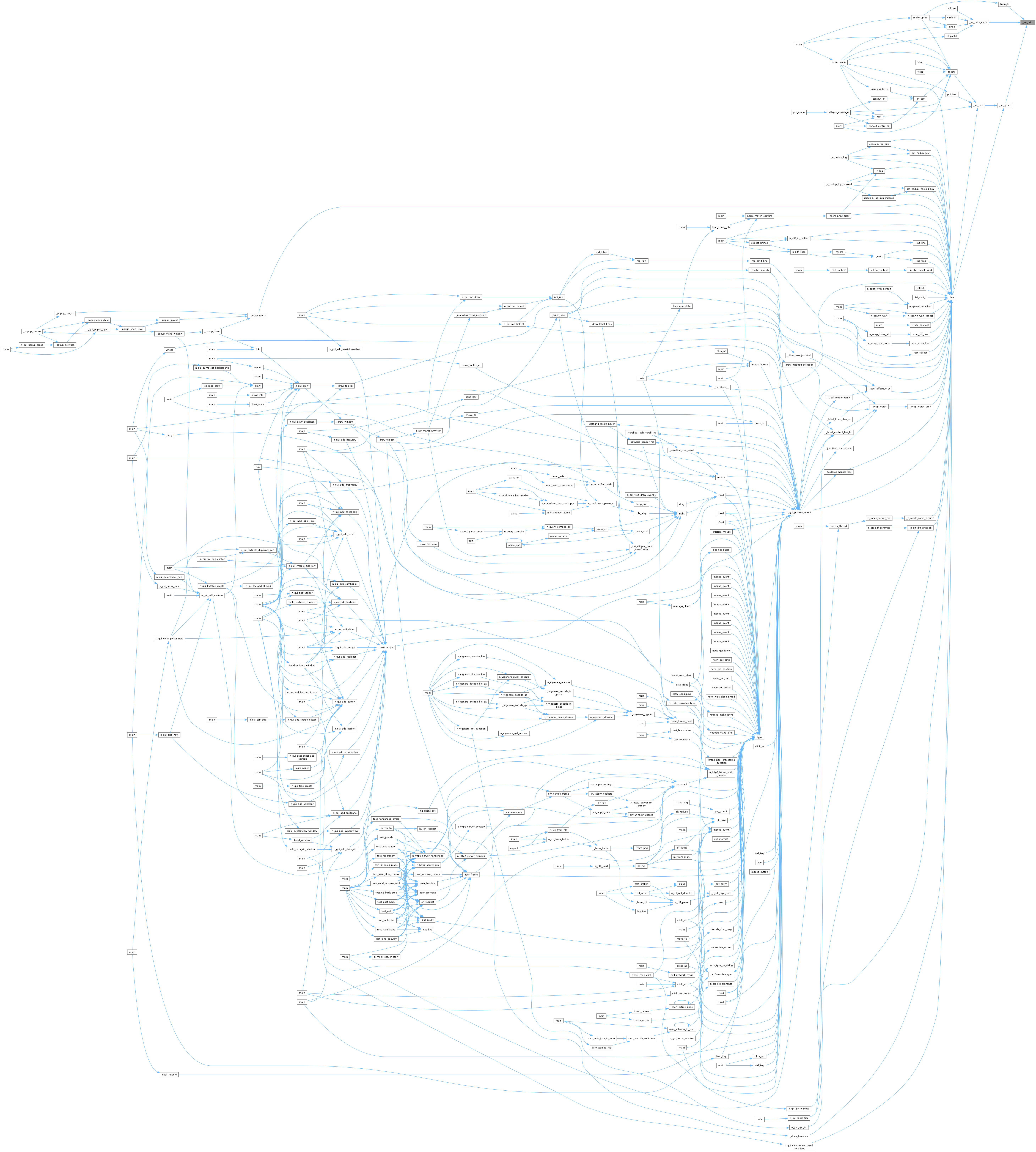

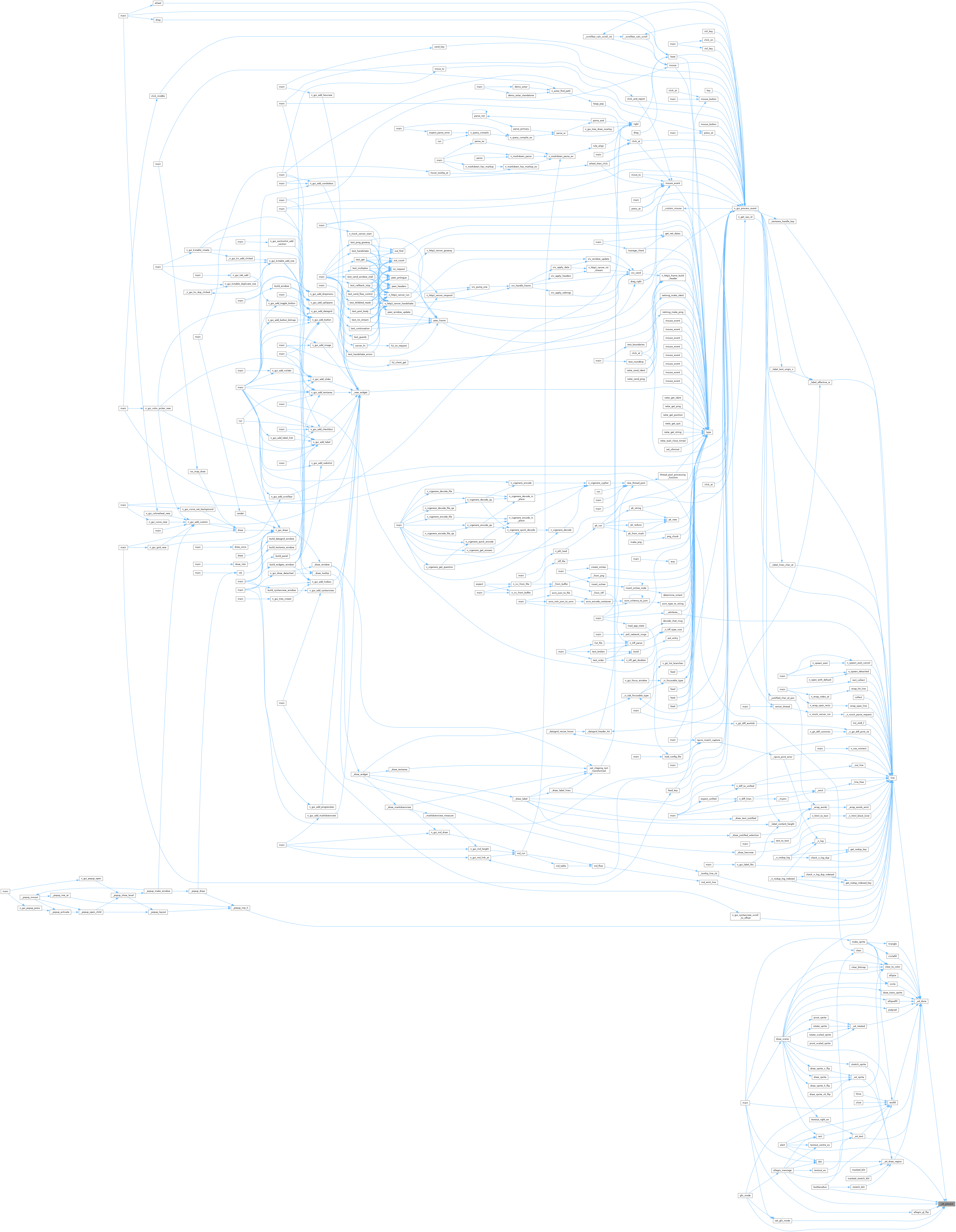

Here is the caller graph for this function:

◆ _a4_timer_proc()

void * _a4_timer_proc	(	ALLEGRO_THREAD *	thr,
		void *	arg )

static

Definition at line 585 of file n_allegro_4.c.

References A4_MAX_TIMERS, a4_timer_mutex, and a4_timers.

Referenced by allegro_init().

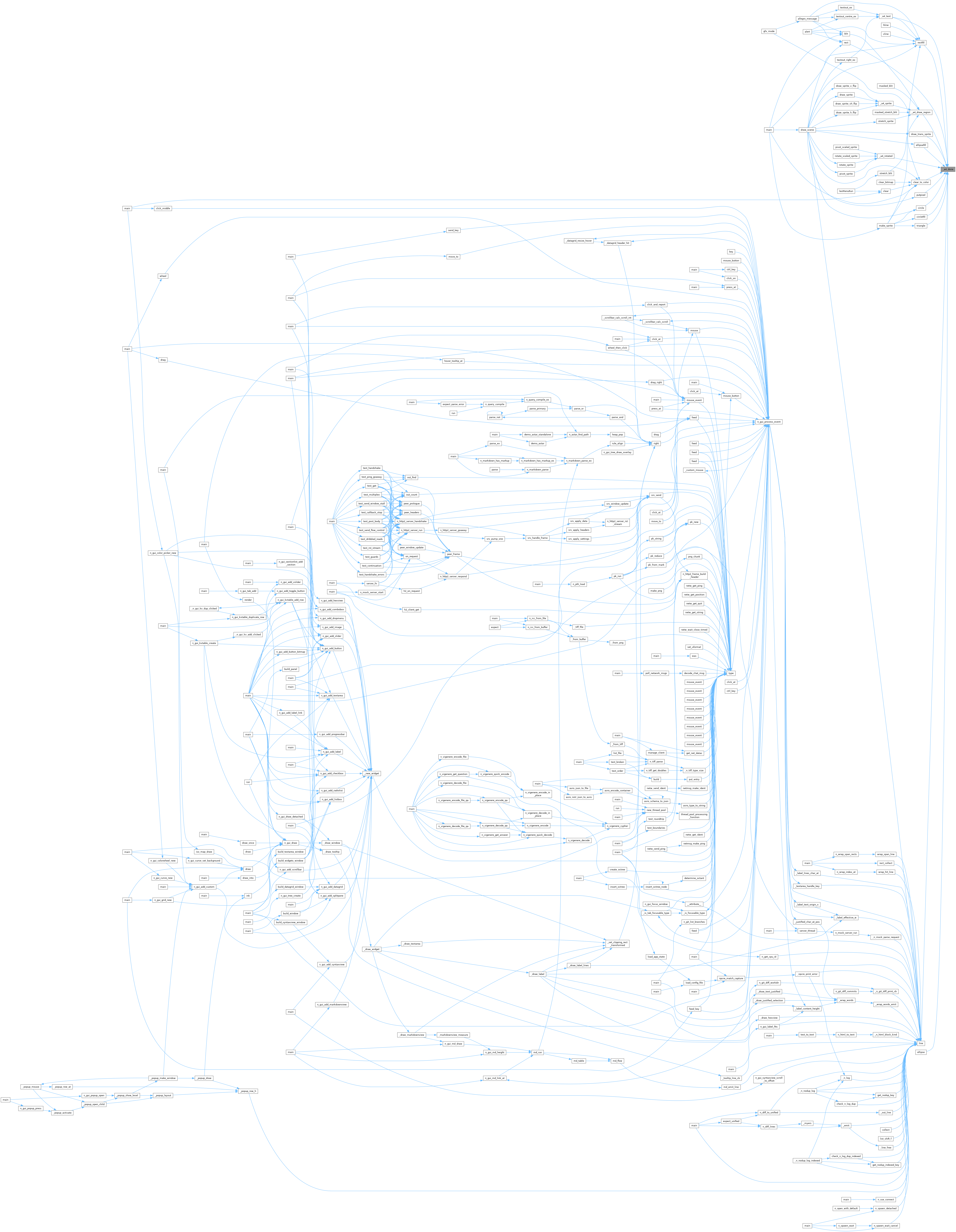

Here is the caller graph for this function:

◆ _a4_unlock()

void _a4_unlock ( BITMAP * b )

static

Definition at line 344 of file n_allegro_4.c.

References A4P, A4_BMP::bmp, A4_BMP::lock, and BITMAP::priv.

Referenced by _a4_reserve(), _a4_source(), _a4_target(), destroy_bitmap(), and save_bitmap().

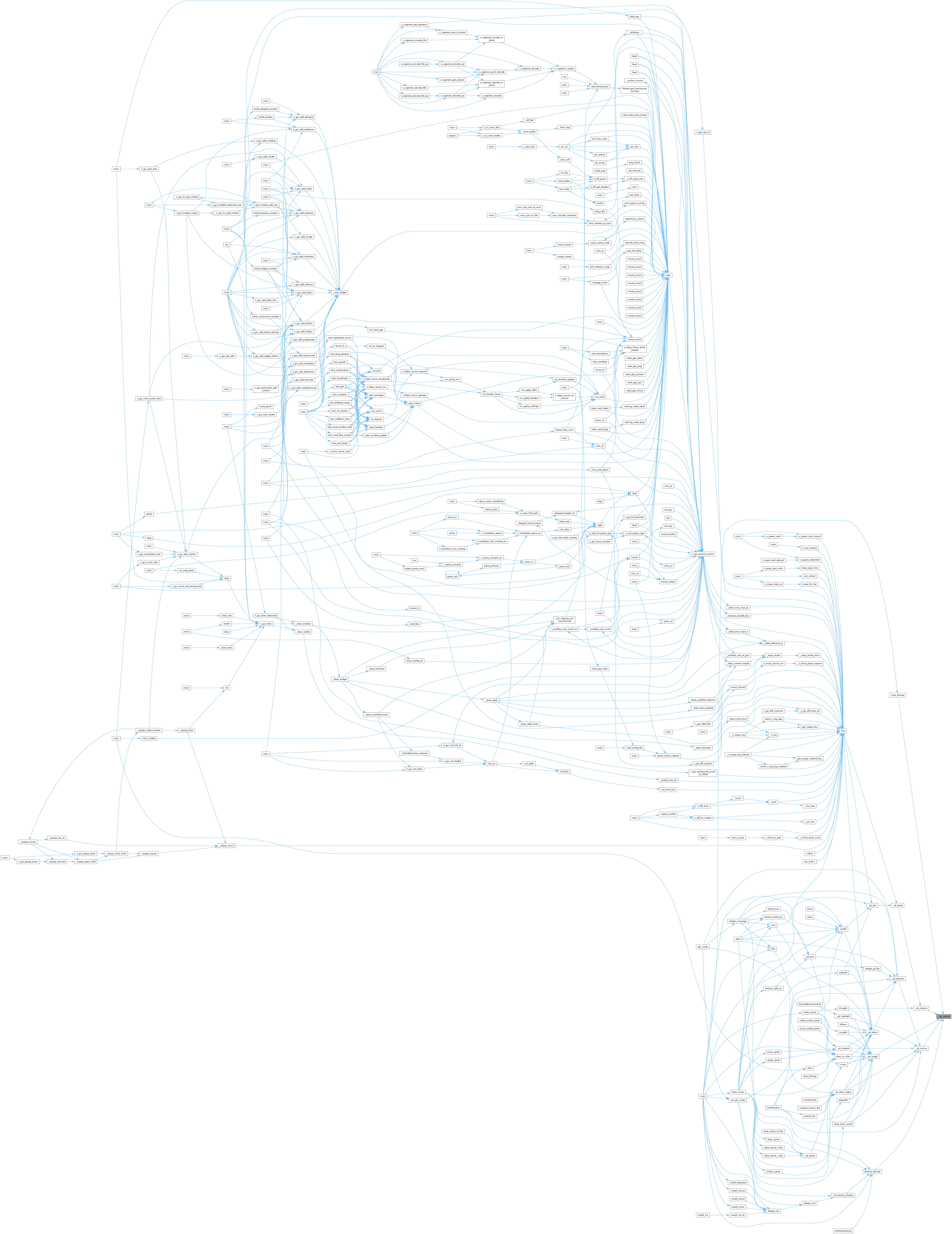

Here is the caller graph for this function:

◆ _a4_vertex()

void _a4_vertex	(	ALLEGRO_VERTEX *	v,
		float	x,
		float	y,
		ALLEGRO_COLOR	c )

static

Definition at line 492 of file n_allegro_4.c.

Referenced by _a4_quad(), and triangle().

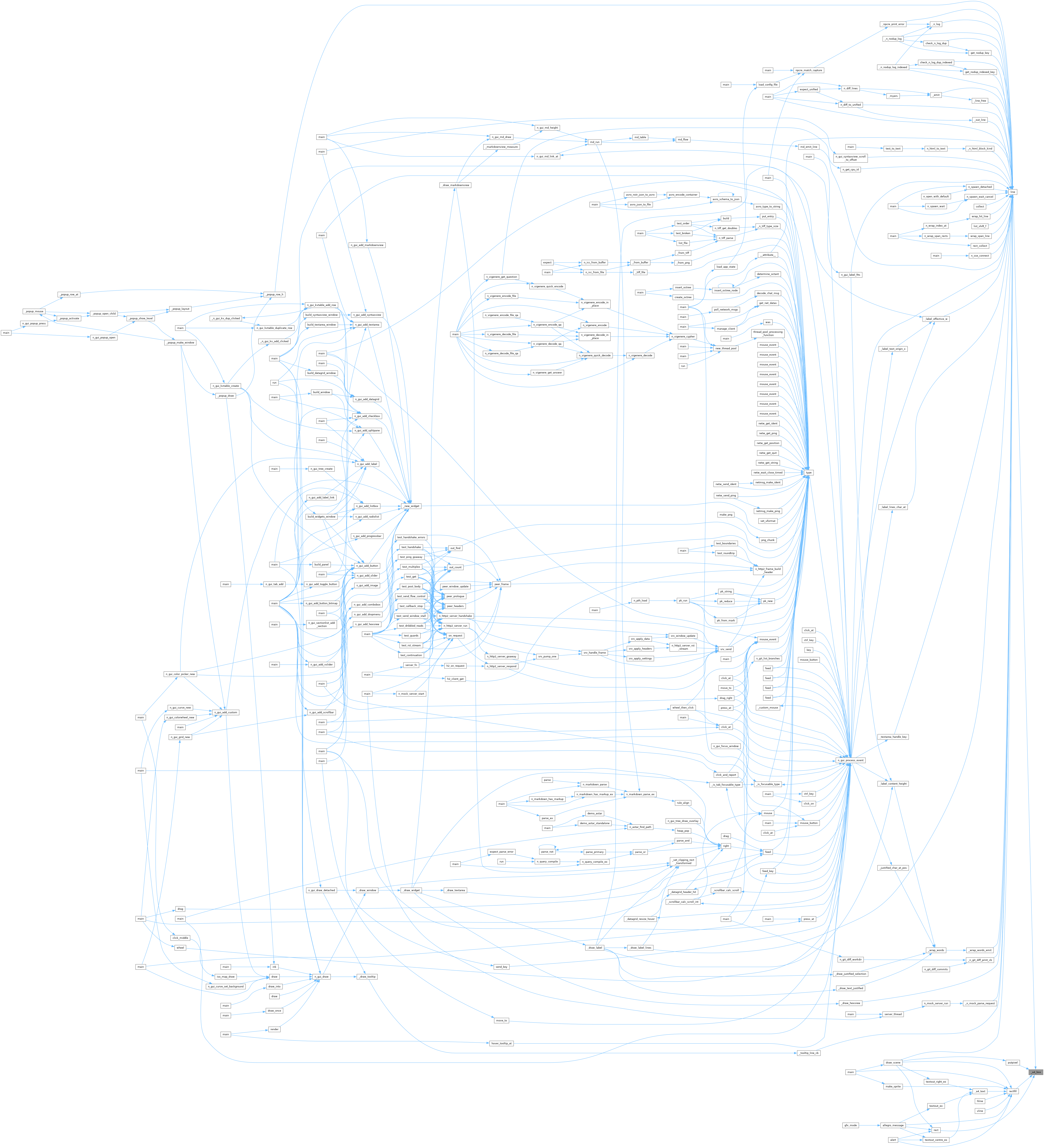

Here is the caller graph for this function:

◆ _a4_wrap()

BITMAP * _a4_wrap ( ALLEGRO_BITMAP * abmp )

static

Definition at line 403 of file n_allegro_4.c.

References A4_BMP::bmp, Free, BITMAP::h, BITMAP::line, Malloc, A4_BMP::masked_dirty, BITMAP::priv, and BITMAP::w.

Referenced by create_bitmap(), and load_bitmap().

Here is the caller graph for this function:

Variable Documentation

◆ a4_alpha_blender

int a4_alpha_blender = 0

static

Definition at line 140 of file n_allegro_4.c.

Referenced by _a4_prim(), draw_trans_sprite(), set_alpha_blender(), and set_trans_blender().

◆ a4_batch

ALLEGRO_VERTEX a4_batch[6144]

static

Definition at line 460 of file n_allegro_4.c.

Referenced by _a4_flush(), and _a4_reserve().

◆ a4_batch_blend

int a4_batch_blend = 0

static

Definition at line 463 of file n_allegro_4.c.

Referenced by _a4_flush(), and _a4_reserve().

◆ a4_batch_n

int a4_batch_n = 0

static

Definition at line 461 of file n_allegro_4.c.

Referenced by _a4_flush(), _a4_reserve(), and destroy_bitmap().

◆ a4_batch_target

BITMAP* a4_batch_target = NULL

static

Definition at line 462 of file n_allegro_4.c.

Referenced by _a4_flush(), _a4_reserve(), and destroy_bitmap().

◆ a4_click_pending

int a4_click_pending = 0

static

Definition at line 156 of file n_allegro_4.c.

Referenced by _a4_input_handle(), and _a4_take_click().

◆ a4_click_x

int a4_click_x = 0

static

Definition at line 157 of file n_allegro_4.c.

Referenced by _a4_input_handle(), and _a4_take_click().

◆ a4_click_y

int a4_click_y = 0

static

Definition at line 158 of file n_allegro_4.c.

Referenced by _a4_input_handle(), and _a4_take_click().

◆ a4_close_cb

void(* a4_close_cb) (void) ( void ) = NULL

static

Definition at line 133 of file n_allegro_4.c.

Referenced by _a4_input_handle(), and set_close_button_callback().

◆ a4_close_requested

volatile int a4_close_requested = 0

static

Definition at line 153 of file n_allegro_4.c.

Referenced by _a4_input_handle(), alert(), allegro_message(), and lexMenuRun().

◆ a4_cursor_shown

int a4_cursor_shown = 0

static

Definition at line 132 of file n_allegro_4.c.

Referenced by alert(), lexMenuRun(), set_gfx_mode(), and show_mouse().

◆ a4_digi_volume

int a4_digi_volume = 255

static

Definition at line 173 of file n_allegro_4.c.

Referenced by _a4_gain(), and set_volume().

◆ a4_display

ALLEGRO_DISPLAY* a4_display = NULL

static

Definition at line 129 of file n_allegro_4.c.

Referenced by _a4_compute_scale(), _a4_destroy_display(), _a4_present(), alert(), allegro_message(), position_mouse(), set_gfx_mode(), set_window_title(), and show_mouse().

◆ a4_draw_mode

int a4_draw_mode = 0

static

Definition at line 139 of file n_allegro_4.c.

Referenced by _a4_prim(), _a4_text(), alert(), allegro_message(), drawing_mode(), putpixel(), and solid_mode().

◆ [struct]

struct { ... } a4_fs

Referenced by _a4_midi_init(), _a4_midi_proc(), _a4_midi_shutdown(), _a4_midi_stop_locked(), destroy_midi(), midi_pause(), midi_resume(), play_midi(), set_volume(), and stop_midi().

◆ a4_gl_mode

int a4_gl_mode = 0

static

Definition at line 130 of file n_allegro_4.c.

Referenced by _a4_done(), alert(), allegro_gl_flip(), allegro_message(), gfx_mode(), gfx_status(), lexMenuRun(), and set_gfx_mode().

◆ a4_inited

int a4_inited = 0

static

Definition at line 128 of file n_allegro_4.c.

Referenced by allegro_exit(), allegro_init(), install_int_ex(), install_keyboard(), install_mouse(), install_sound(), install_timer(), and set_gfx_mode().

◆ a4_input_mutex

ALLEGRO_MUTEX* a4_input_mutex = NULL

static

Definition at line 146 of file n_allegro_4.c.

Referenced by _a4_input_handle(), _a4_take_click(), allegro_exit(), allegro_init(), clear_keybuf(), get_mouse_mickeys(), keypressed(), and readkey().

◆ a4_input_queue

ALLEGRO_EVENT_QUEUE* a4_input_queue = NULL

static

Definition at line 144 of file n_allegro_4.c.

Referenced by _a4_destroy_display(), _a4_input_proc(), allegro_exit(), allegro_init(), install_keyboard(), install_mouse(), and set_gfx_mode().

◆ a4_input_thread

ALLEGRO_THREAD* a4_input_thread = NULL

static

Definition at line 145 of file n_allegro_4.c.

Referenced by allegro_exit(), and allegro_init().

◆ a4_keybuf

int a4_keybuf[64]

static

Definition at line 148 of file n_allegro_4.c.

Referenced by _a4_input_handle(), and readkey().

◆ a4_keybuf_count

int a4_keybuf_count = 0

static

Definition at line 150 of file n_allegro_4.c.

Referenced by _a4_input_handle(), clear_keybuf(), keypressed(), and readkey().

◆ a4_keybuf_start

int a4_keybuf_start = 0

static

Definition at line 149 of file n_allegro_4.c.

Referenced by _a4_input_handle(), clear_keybuf(), and readkey().

◆ a4_mickey_x

int a4_mickey_x = 0

static

Definition at line 151 of file n_allegro_4.c.

Referenced by _a4_input_handle(), and get_mouse_mickeys().

◆ a4_mickey_y

int a4_mickey_y = 0

static

Definition at line 152 of file n_allegro_4.c.

Referenced by _a4_input_handle(), and get_mouse_mickeys().

◆ a4_midi_volume

int a4_midi_volume = 255

static

Definition at line 174 of file n_allegro_4.c.

Referenced by _a4_midi_init(), and set_volume().

◆ a4_off_x

float a4_off_x = 0.0f

static

Definition at line 136 of file n_allegro_4.c.

Referenced by _a4_compute_scale(), _a4_input_handle(), _a4_present(), and position_mouse().

◆ a4_off_y

float a4_off_y = 0.0f

static

Definition at line 137 of file n_allegro_4.c.

Referenced by _a4_compute_scale(), _a4_input_handle(), _a4_present(), and position_mouse().

◆ a4_scale

float a4_scale = 1.0f

static

Definition at line 135 of file n_allegro_4.c.

Referenced by _a4_compute_scale(), _a4_input_handle(), _a4_present(), and position_mouse().

◆ a4_screen_dirty

int a4_screen_dirty = 0

static

Definition at line 131 of file n_allegro_4.c.

Referenced by _a4_present(), _a4_reserve(), _a4_target(), allegro_gl_flip(), bmp_write_line(), and putpixel().

◆ a4_sound_ok

int a4_sound_ok = 0

static

Definition at line 172 of file n_allegro_4.c.

Referenced by _a4_midi_init(), adjust_sample(), install_sound(), load_sample(), play_sample(), remove_sound(), and stop_sample().

◆ a4_timer_mutex

ALLEGRO_MUTEX* a4_timer_mutex = NULL

static

Definition at line 169 of file n_allegro_4.c.

Referenced by _a4_timer_proc(), allegro_exit(), allegro_init(), install_int_ex(), and remove_int().

◆ a4_timer_thread

ALLEGRO_THREAD* a4_timer_thread = NULL

static

Definition at line 168 of file n_allegro_4.c.

Referenced by allegro_exit(), and allegro_init().

◆ a4_timers

A4_TIMER a4_timers[16]

static

Definition at line 167 of file n_allegro_4.c.

Referenced by _a4_timer_proc(), allegro_init(), install_int_ex(), and remove_int().

◆ a4_trans_alpha

int a4_trans_alpha = 255

static

Definition at line 141 of file n_allegro_4.c.

Referenced by _a4_prim(), draw_trans_sprite(), and set_trans_blender().

Data Structures

Macros

Typedefs

Functions

Variables

Detailed Description

Data Structure Documentation

◆ A4_BMP

◆ A4_TIMER

◆ FONT

◆ LEX_ITEM

◆ LexMenu

◆ MIDI

◆ SAMPLE

Macro Definition Documentation

◆ A4_BATCH_MAX

◆ A4_BLEND_ALPHA

◆ A4_BLEND_COPY

◆ A4_BLEND_FADE

◆ A4_KEYBUF_SIZE

◆ A4_MASK_COLOR

◆ A4_MAX_TIMERS

◆ A4_MIDI_FRAG

◆ A4_MIDI_RATE

◆ A4_SAMPLE_IDS

◆ A4_SYM

◆ A4_TEXTPRINTF

◆ A4P

◆ ALLEGRO_UNSTABLE

Typedef Documentation

◆ fs_delete_f

◆ fs_new_player_f

◆ fs_new_settings_f

◆ fs_new_synth_f

◆ fs_player_add_f

◆ fs_player_int_f

◆ fs_player_set_loop_f

◆ fs_set_log_function_f

◆ fs_settings_setnum_f

◆ fs_settings_setstr_f

◆ fs_sfload_f

◆ fs_write_float_f

Function Documentation

◆ _a4_align()

◆ _a4_blend_alpha()

◆ _a4_blend_copy()

◆ _a4_box()

◆ _a4_color_from_pixel()

◆ _a4_compute_scale()

◆ _a4_destroy_display()

◆ _a4_done()

◆ _a4_draw_region()

◆ _a4_fluidsynth_open()

◆ _a4_fluidsynth_sym()

◆ _a4_flush()

◆ _a4_font()

◆ _a4_gain()

◆ _a4_highlight()

◆ _a4_input_handle()

◆ _a4_input_proc()

◆ _a4_item_at()

◆ _a4_item_rect()

◆ _a4_lock()

◆ _a4_midi_init()

◆ _a4_midi_proc()

◆ _a4_midi_shutdown()

◆ _a4_midi_stop_locked()

◆ _a4_pan()

◆ _a4_present()

◆ _a4_prim()

◆ _a4_prim_color()

◆ _a4_quad()

◆ _a4_reserve()

◆ _a4_resolve()

◆ _a4_rgba()

◆ _a4_rotated()

◆ _a4_set_blend()

◆ _a4_soundfont()

◆ _a4_source()

◆ _a4_sprite()
