n_gui.c File Reference

GUI system: buttons, sliders, text areas, checkboxes, scrollbars, dropdown menus, windows. More...

#include "nilorea/n_gui.h"
#include "nilorea/n_gui_md.h"
#include "nilorea/n_clipboard.h"
#include "nilorea/n_wrap.h"
#include <limits.h>
#include "cJSON.h"
#include <fcntl.h>
#include <unistd.h>

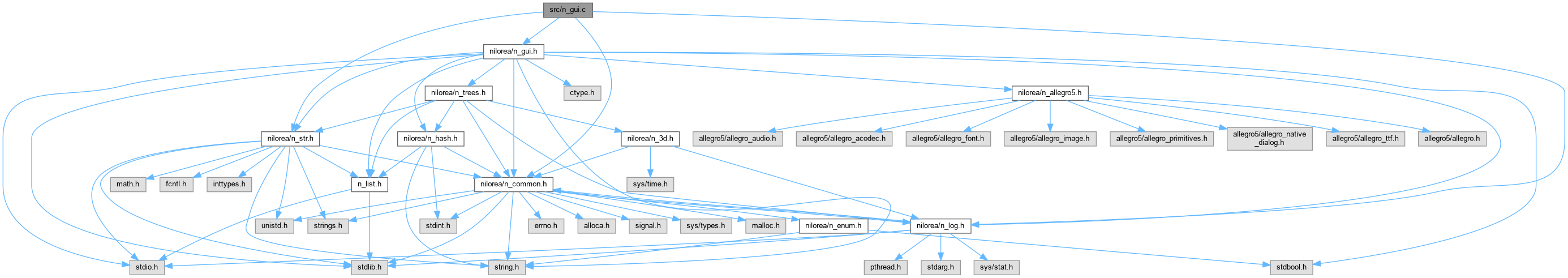

Include dependency graph for n_gui.c:

Go to the source code of this file.

Data Structures

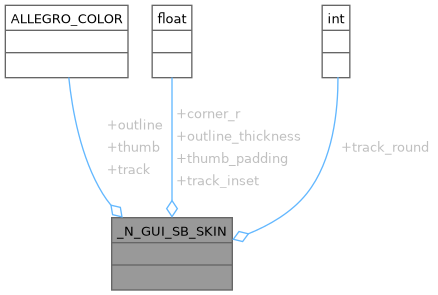

struct	_N_GUI_SB_SKIN
	The look of one scrollbar: the style values a bar's paint reads, gathered so that the painter does not have to know which set of them it was handed. More...
struct	_N_GUI_TA_STEP
	one step of a textarea's per-character wrapped layout More...
struct	_N_GUI_THUMB
	a scrollbar thumb: length along the track, and offset from the track start More...
struct	_N_GUI_WRAP_ACC
	accumulator for _wrap_words: records the first word index of each line, and whether the line ends a paragraph More...
struct	N_GUI_KV_CONTENT

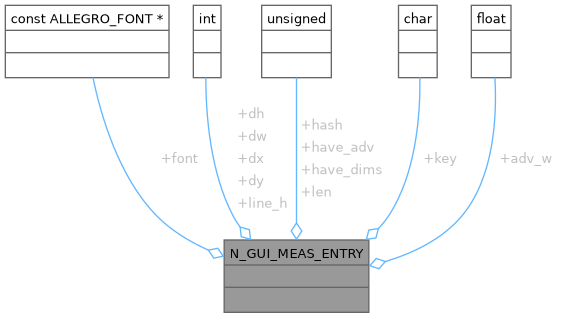

struct	N_GUI_MEAS_ENTRY

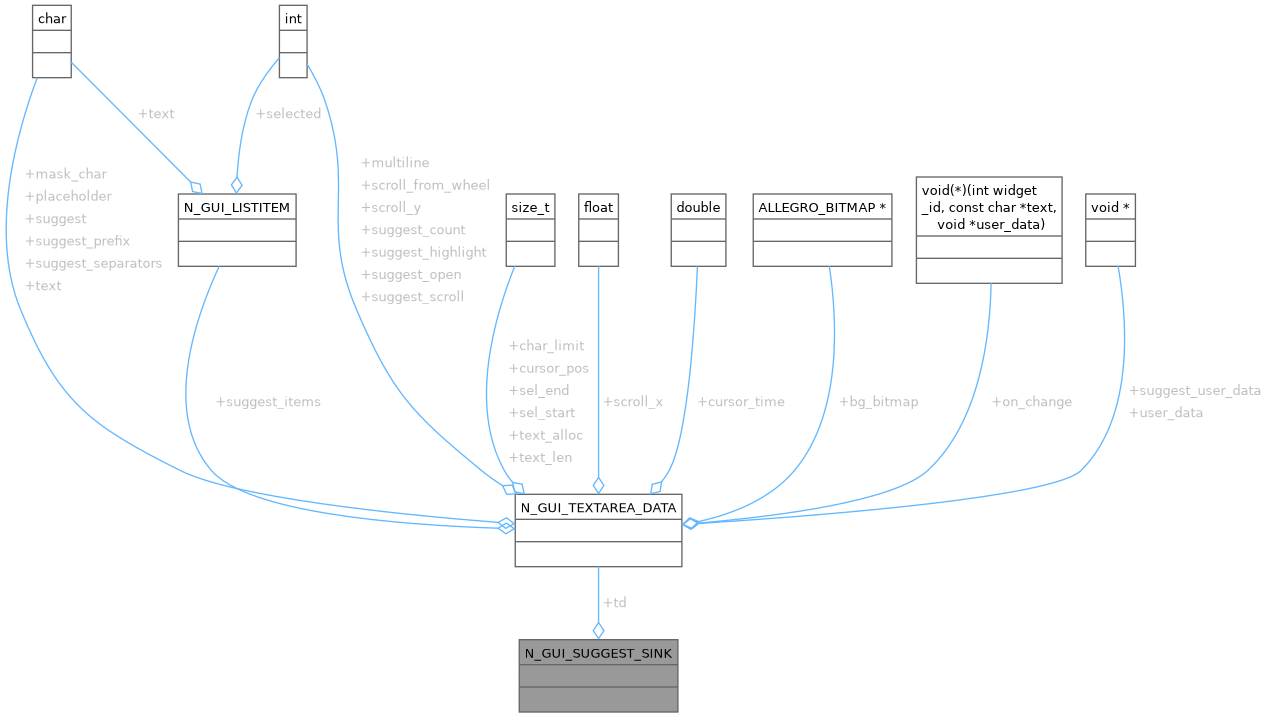

struct	N_GUI_SUGGEST_SINK
	handle textarea key input. More...

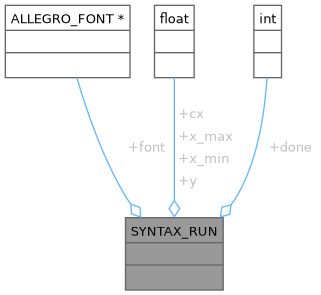

struct	SYNTAX_RUN
	draw a run of text and advance the pen x by its width. More...

Macros
#define	_N_GUI_HELD_ALT   0x10
#define	_N_GUI_HELD_ALTGR   0x20
#define	_N_GUI_HELD_LCTRL   0x01
	bits of N_GUI_CTX::held_modifier_keys, one per modifier key
#define	_N_GUI_HELD_LSHIFT   0x04
#define	_N_GUI_HELD_RCTRL   0x02
#define	_N_GUI_HELD_RSHIFT   0x08
#define	_N_GUI_TREE_DRAG_THRESHOLD_PX   4.0f
	pixels of mouse movement before a press becomes a drag
#define	_N_GUI_WIN_STATE_PERSIST_MASK   (N_GUI_WIN_OPEN | N_GUI_WIN_MINIMISED | N_GUI_WIN_MAXIMISED)
#define	N_GUI_ANIM_TAIL_SEC   0.05
#define	N_GUI_COLRESIZE_GRAB   4.0f
	grab zone, in pixels either side of a column's right border
#define	N_GUI_KEY_PRESS_FLASH_SEC   0.12
#define	N_GUI_MEAS_CACHE_SIZE   1024u /* power of two */
#define	N_GUI_MEAS_KEY_MAX   32 /* strings this long or longer bypass the cache */
#define	N_GUI_WRAP_MAX_ITEMS   (3 * N_GUI_WRAP_MAX_WORDS + 2)
	most layout items one wrap takes: every word, the break between each two, and room for the hard breaks of a text with blank lines in it
#define	N_GUI_WRAP_MAX_WORDS   256
	the most words any justified layout will consider

Functions
static void	_apply_cursor (N_GUI_CTX *ctx, int shape, ALLEGRO_MOUSE_CURSOR *custom)
	helper: show a cursor on the GUI's display, recording it whether or not there is a display, and touching Allegro only when it changes.
static void	_apply_pending_widget (N_GUI_CTX *ctx, const char *title, const N_GUI_WIDGET *wgt)

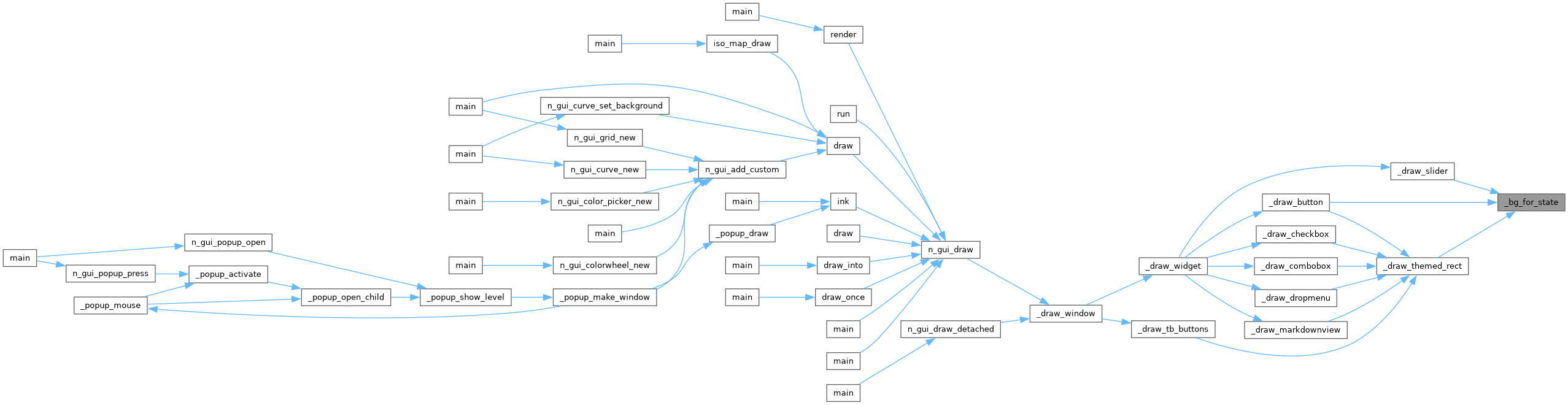

static ALLEGRO_COLOR	_bg_for_state (const N_GUI_THEME *t, int state)
	helper: pick colour based on widget state
static ALLEGRO_COLOR	_border_for_state (const N_GUI_THEME *t, int state)
static void	_button_key_press (N_GUI_CTX *ctx, N_GUI_WIDGET *wgt)
	Press a button from the keyboard, as a click would.

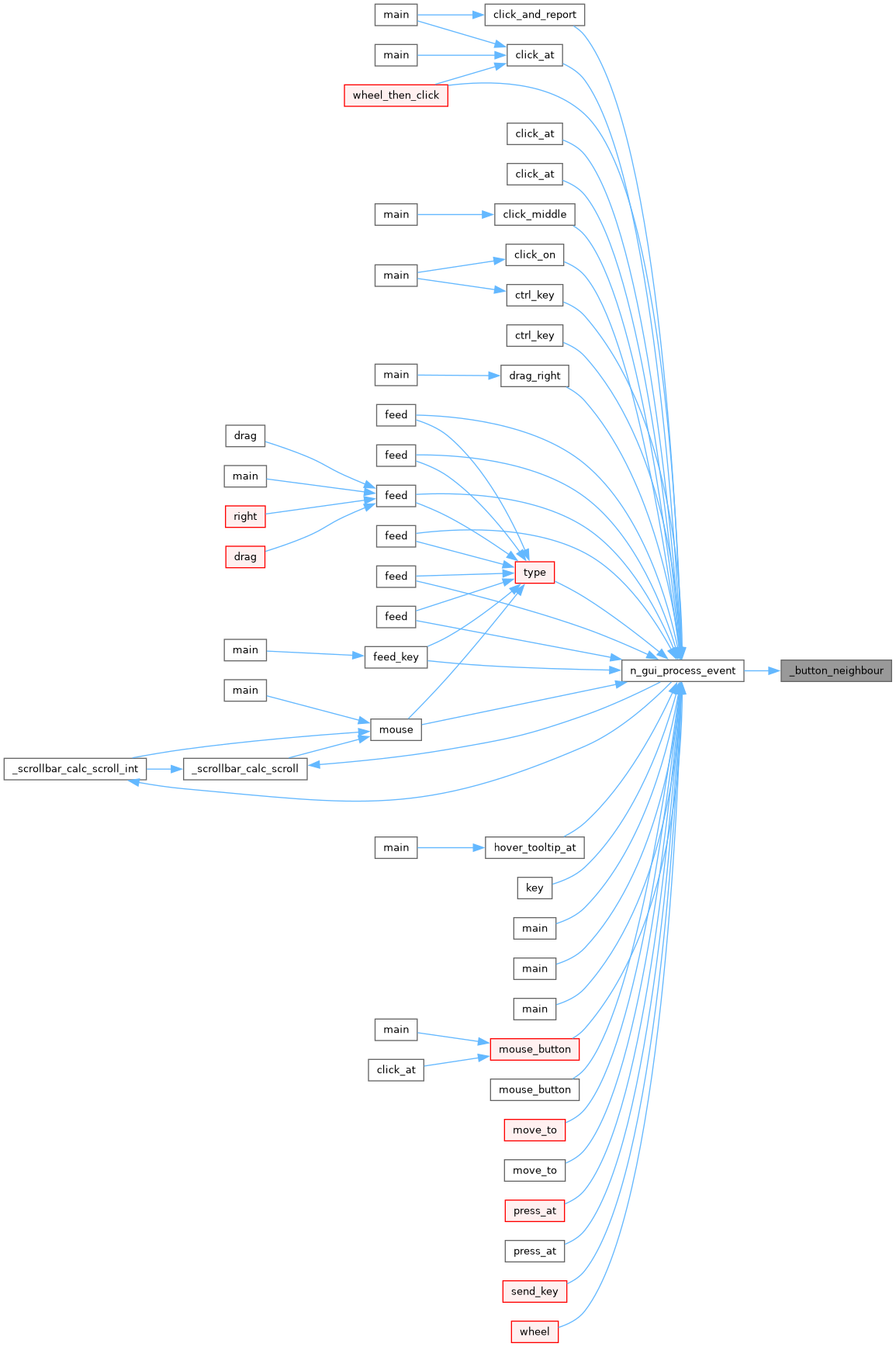

static int	_button_neighbour (N_GUI_CTX *ctx, const N_GUI_WIDGET *from, int forward)
	The button before or after one, in its window, in reading order.
static int	_button_takes_key (int keycode)
	helper: is a key one a focused button does something with: Enter and Space press it, the arrows move to the next button of its window

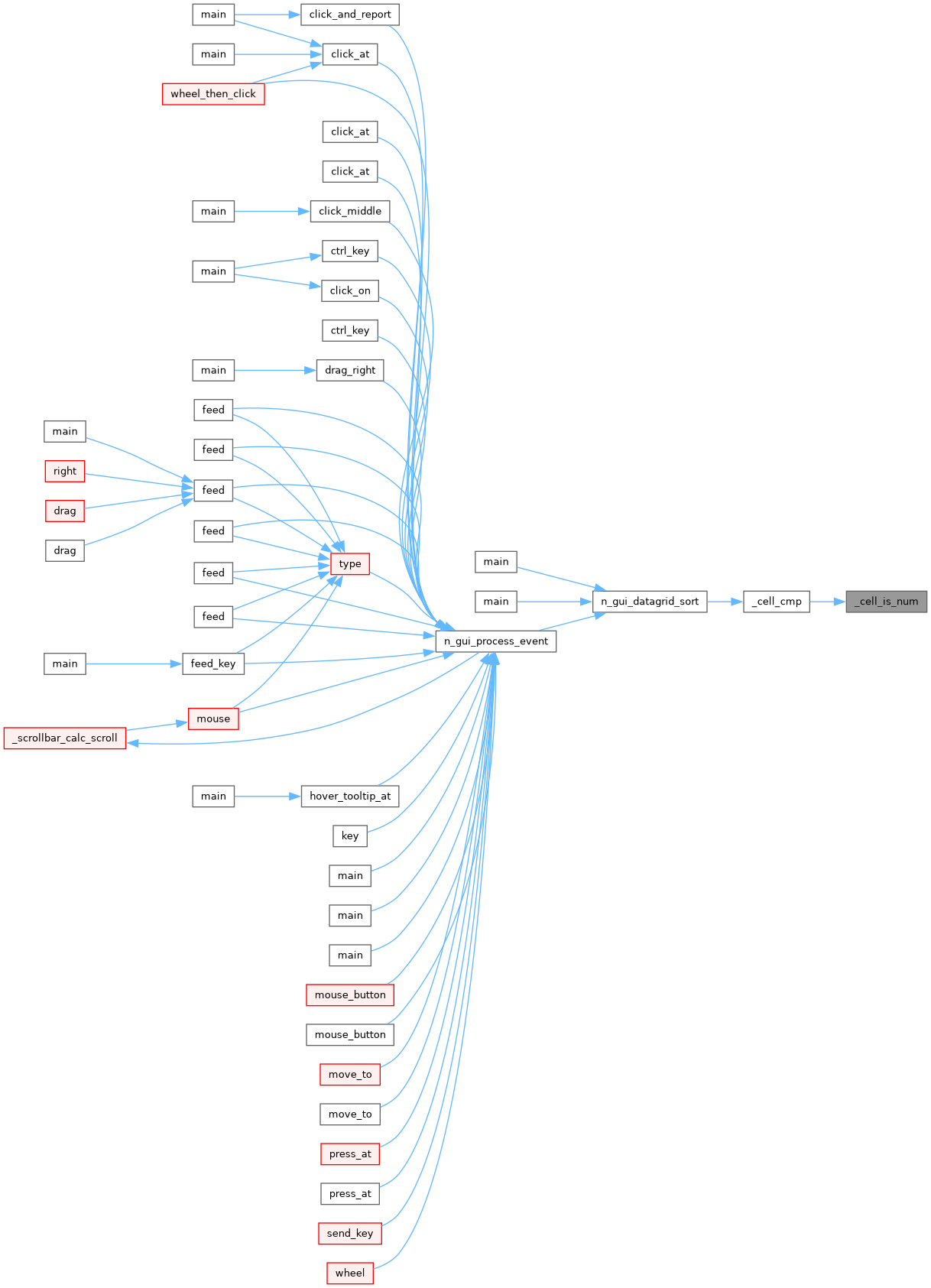

static int	_cell_cmp (const char *a, const char *b)
	compare two cell strings: numerically when both are integers, else case-insensitive
static int	_cell_is_num (const char *s)
	true when every character of a non-empty string is a decimal digit

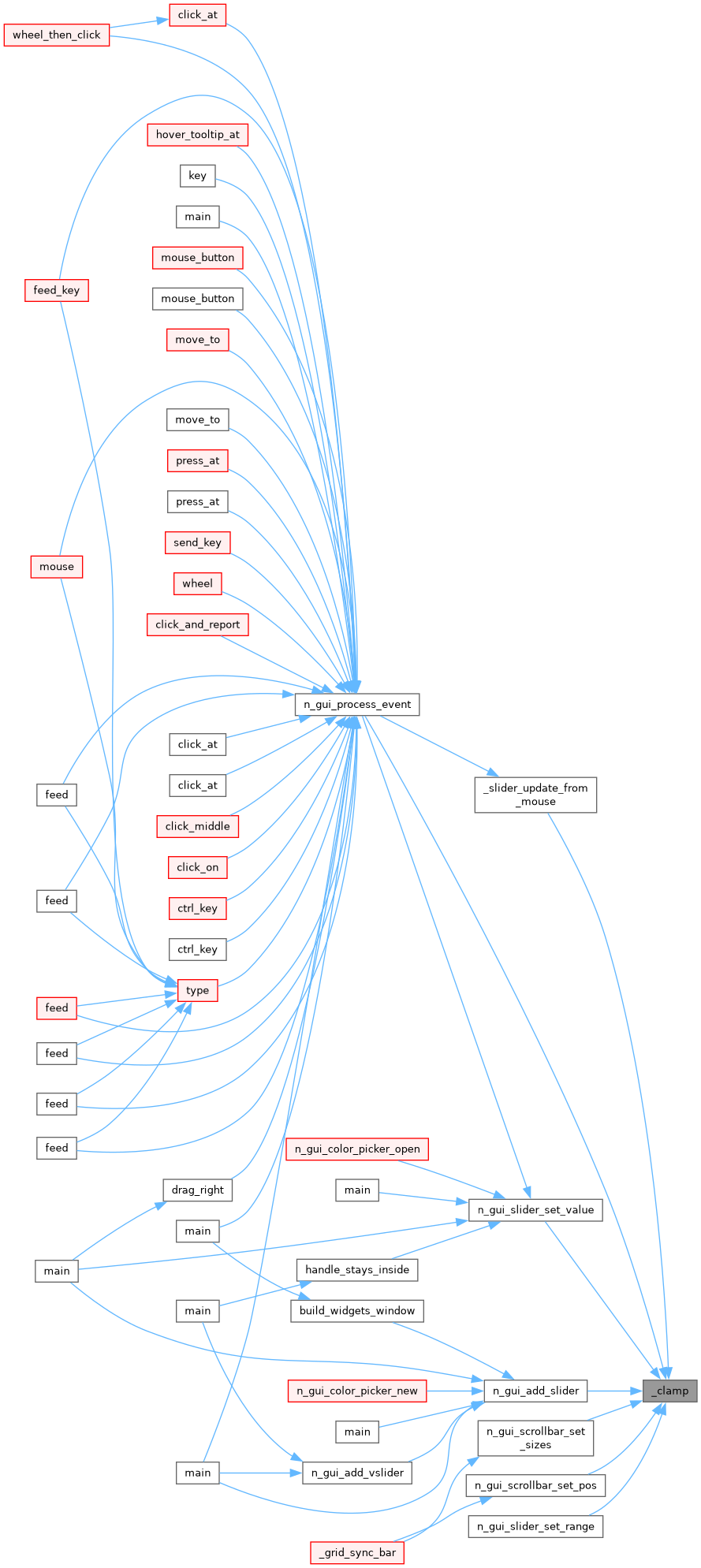

static double	_clamp (double v, double lo, double hi)
	helper: clamp a double between lo and hi

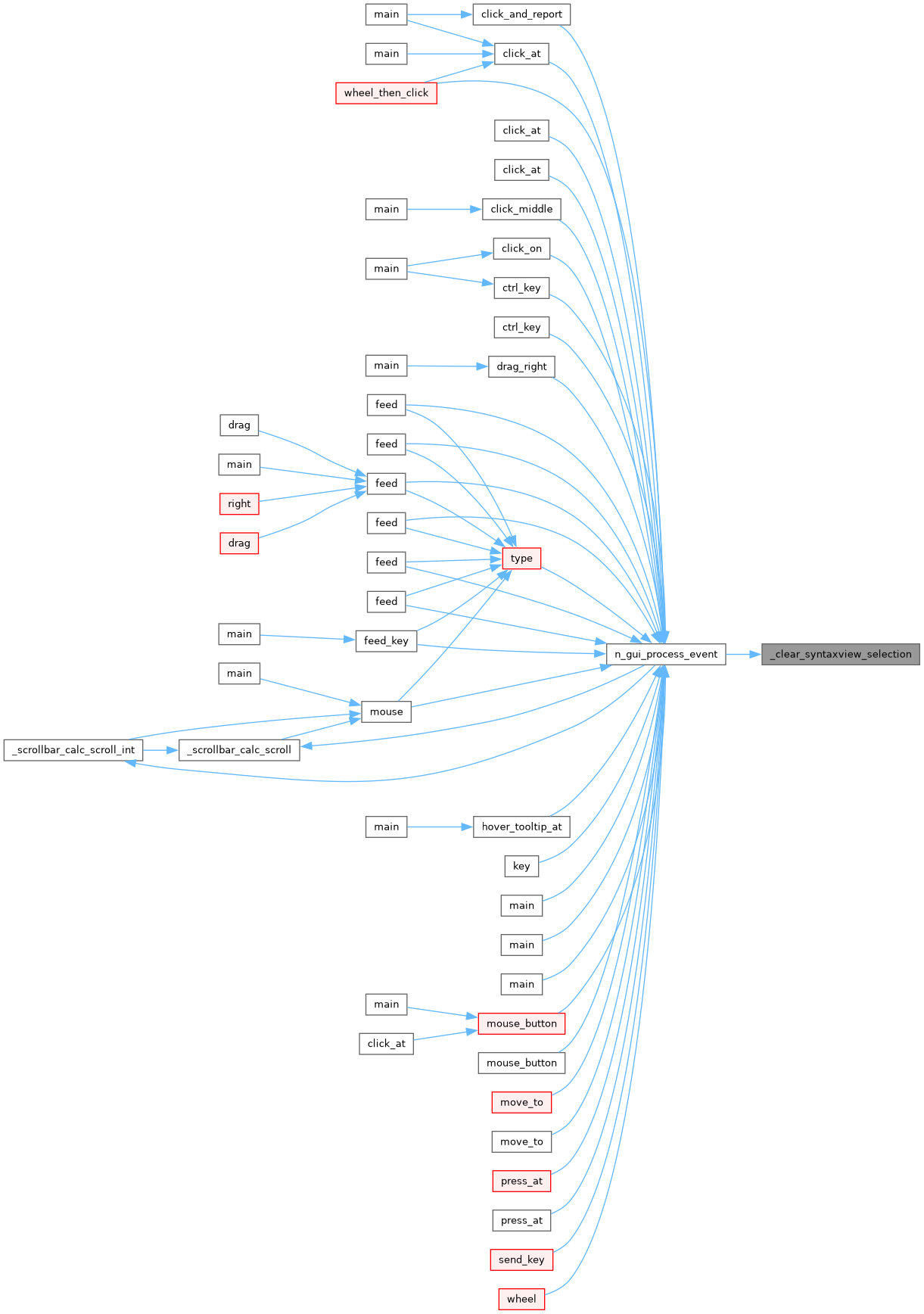

static void	_clear_syntaxview_selection (N_GUI_CTX *ctx)
	drop any active syntax-view text selection (used when focus moves to another selectable widget, so only one selection is live at a time).
static ALLEGRO_COLOR	_color_mix (ALLEGRO_COLOR a, ALLEGRO_COLOR b, float t)
	Helper: mix two colours, t of the way from a to b.
static ALLEGRO_COLOR	_color_with_alpha (ALLEGRO_COLOR c, float a)
	Helper: return a copy of c with the given alpha (0..1).

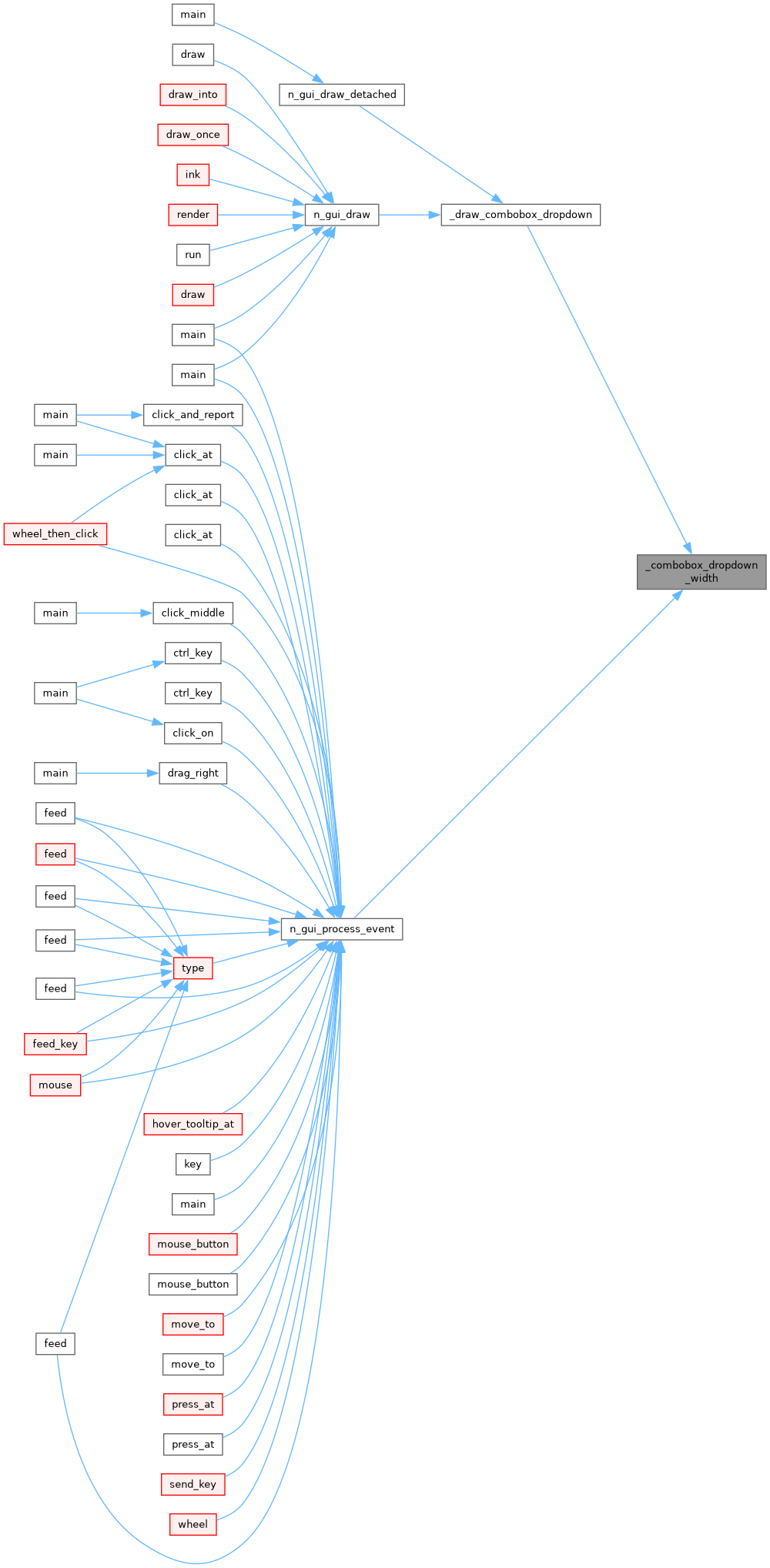

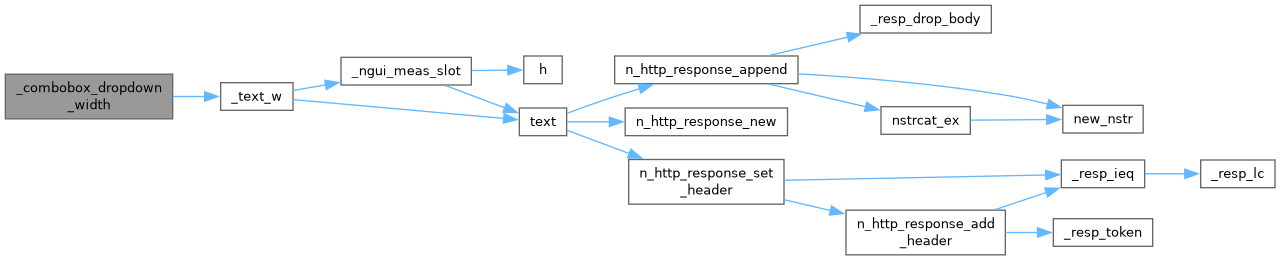

static float	_combobox_dropdown_width (N_GUI_CTX *ctx, const N_GUI_COMBOBOX_DATA *cd, ALLEGRO_FONT *font, float widget_w, float ax, float pad)
	helper: the effective width of an open combobox dropdown panel.
static int	_combobox_index_after_remove (int index, int removed)
	shift an index that pointed into a list one item shorter now

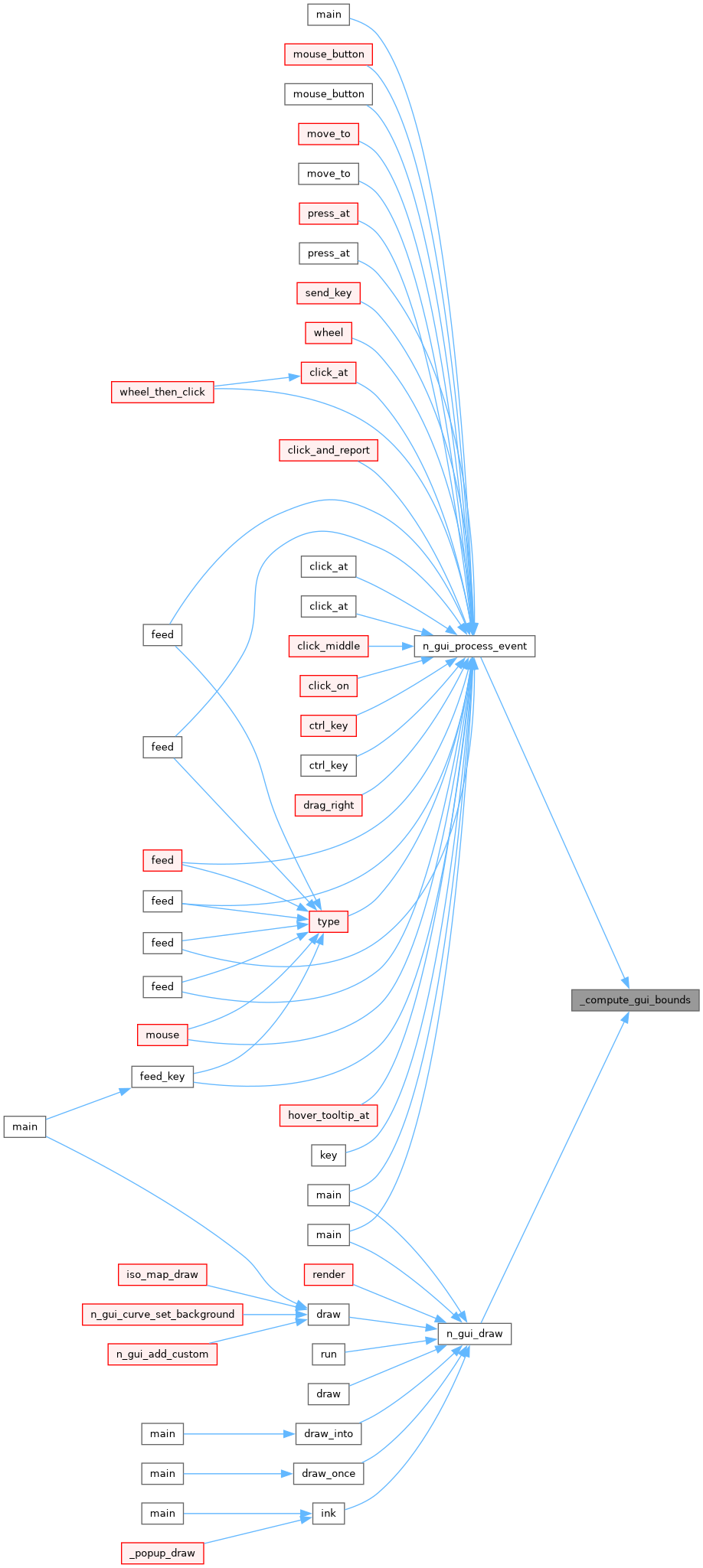

static void	_compute_gui_bounds (N_GUI_CTX *ctx)
	helper: compute the bounding box of all open windows

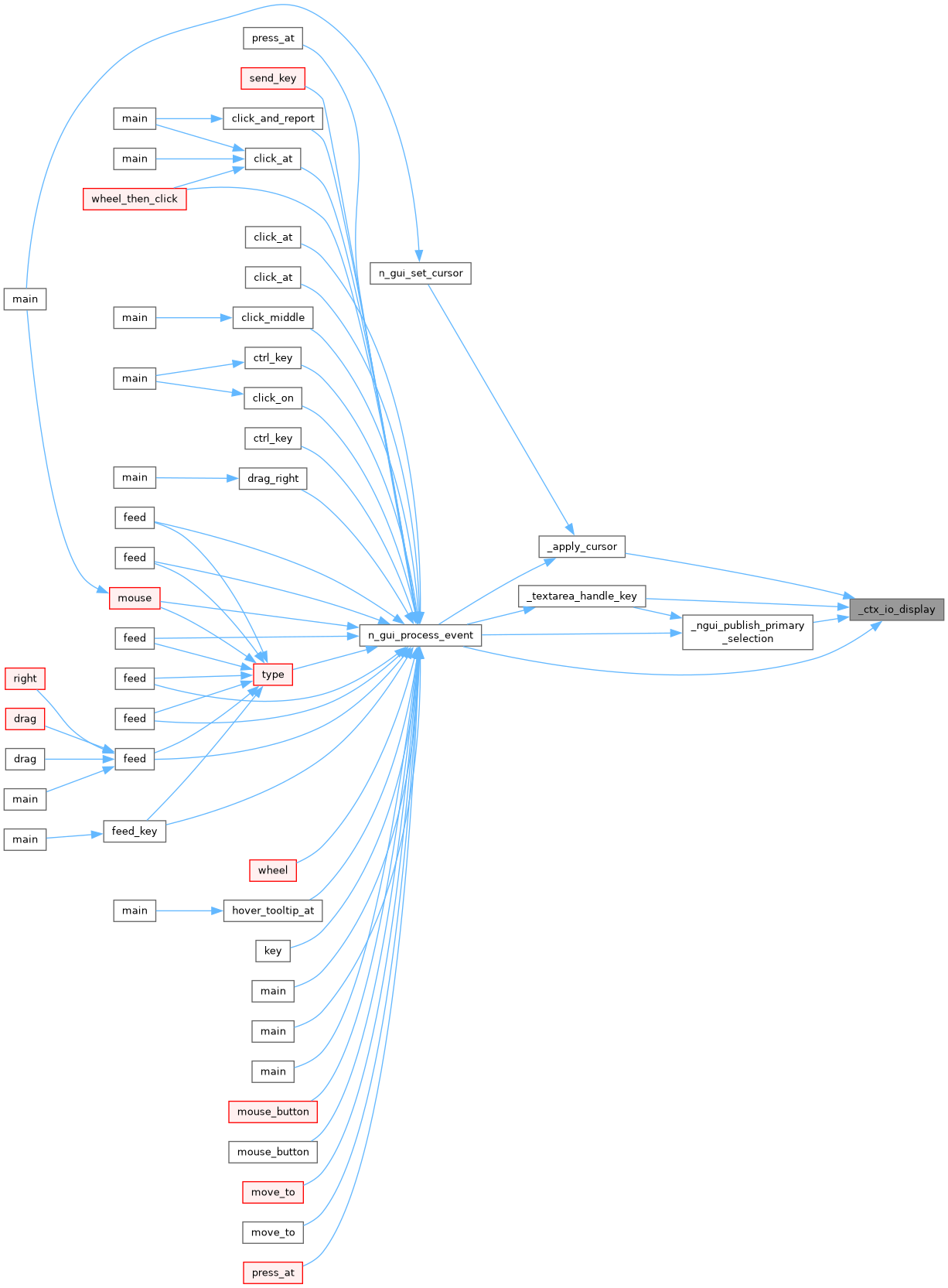

static ALLEGRO_DISPLAY *	_ctx_io_display (const N_GUI_CTX *ctx)
	helper: the display to use for clipboard and mouse-cursor calls.

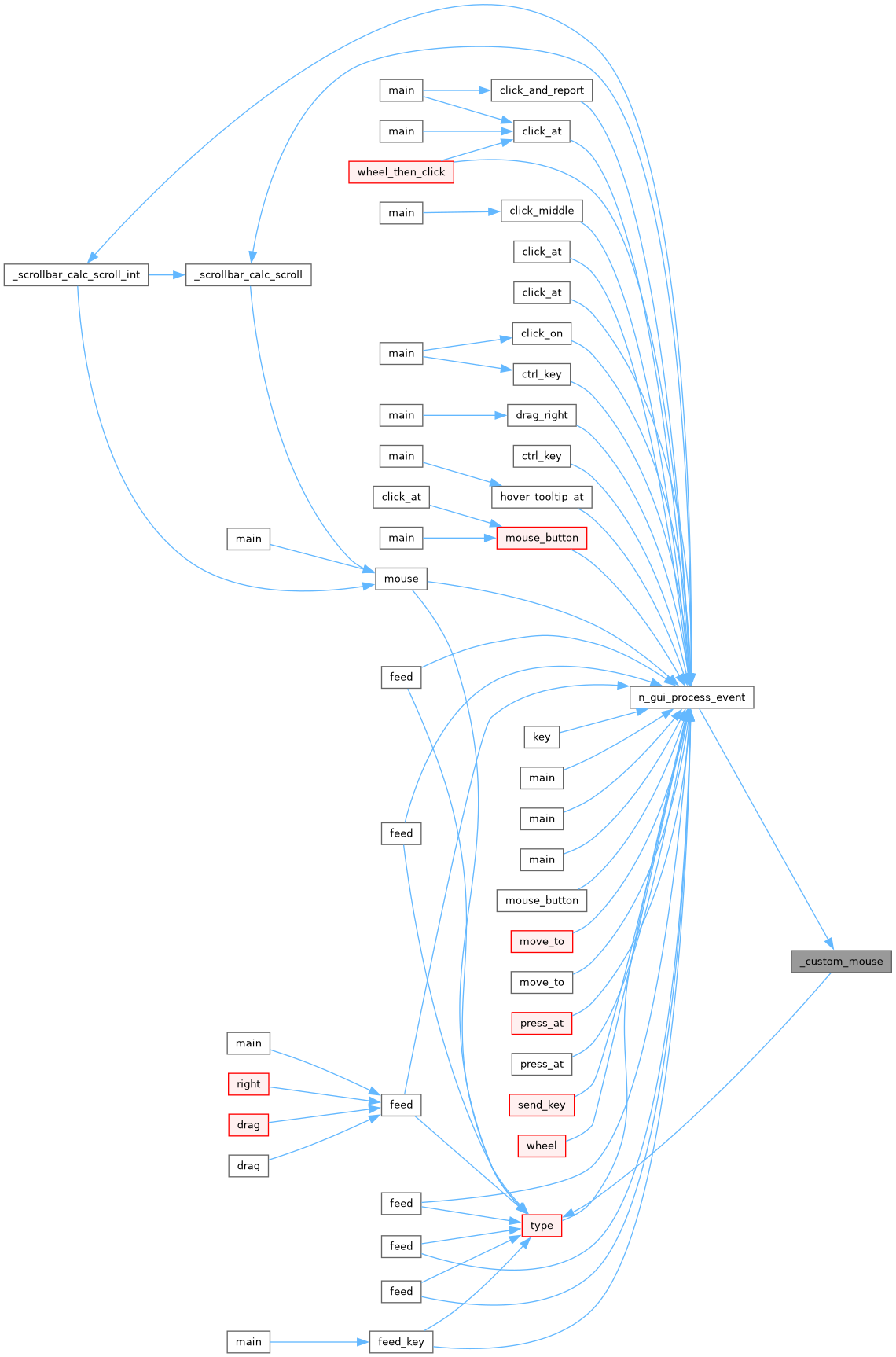

static int	_custom_mouse (const N_GUI_CTX *ctx, N_GUI_WIDGET *wgt, int type, int button, float local_x, float local_y, int dz)
	helper: hand a mouse event to a custom widget that takes them.
static void	_datagrid_apply_columns (N_GUI_CTX *ctx, int widget_id, int ncols, const int *order, const int *visible, const float *width)
static N_GUI_DATAGRID_DATA *	_datagrid_data (N_GUI_CTX *ctx, int widget_id)
	fetch a data grid's column table for an API call, or NULL on a bad id.
static int	_datagrid_ensure_colors (N_GUI_DATAGRID_DATA *gd)
	helper: ensure the per-row tint arrays exist, sized to rows_cap (rows start untinted); returns 1 when both arrays are available

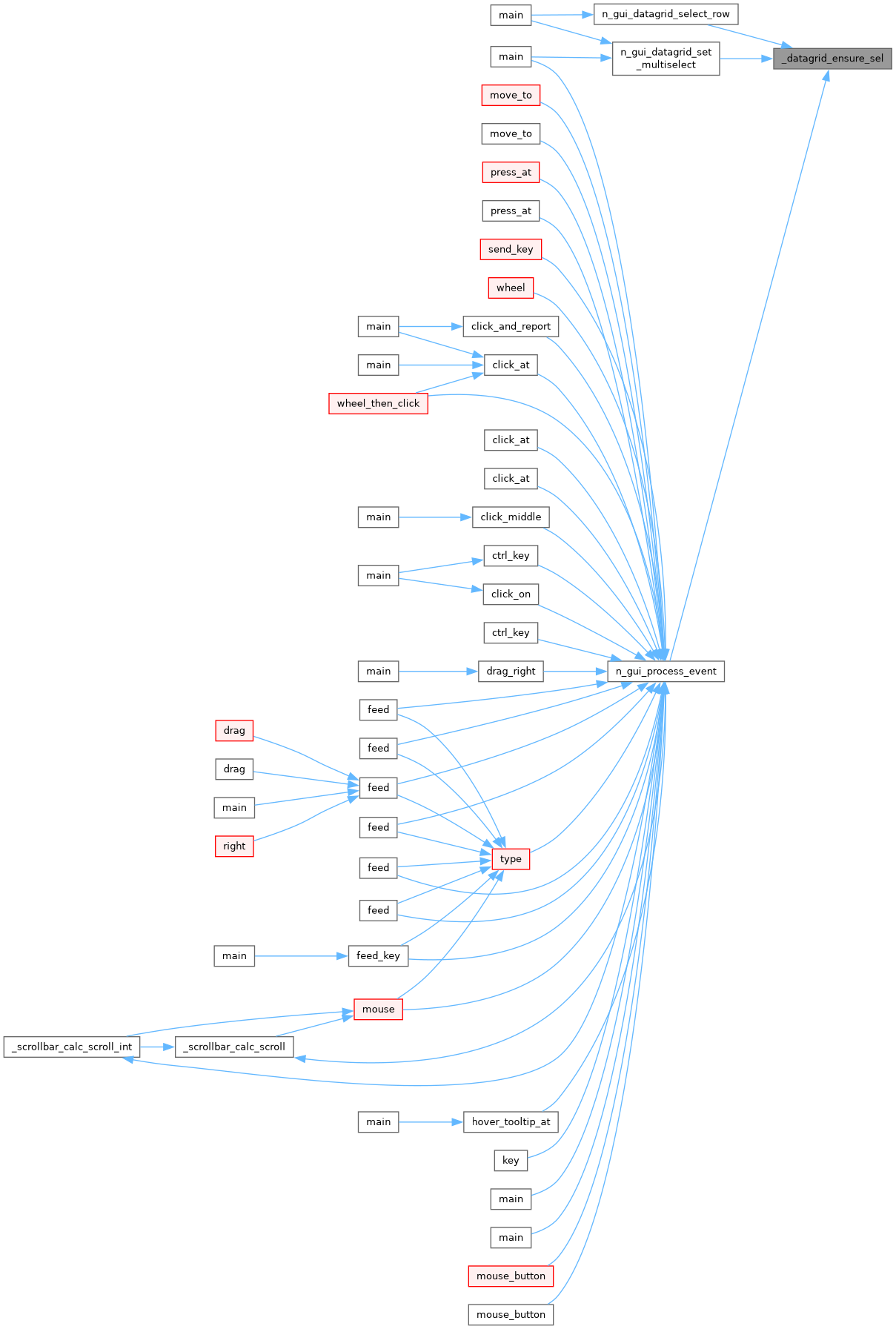

static void	_datagrid_ensure_sel (N_GUI_DATAGRID_DATA *gd)
	helper: ensure the per-row selection array exists, sized to rows_cap

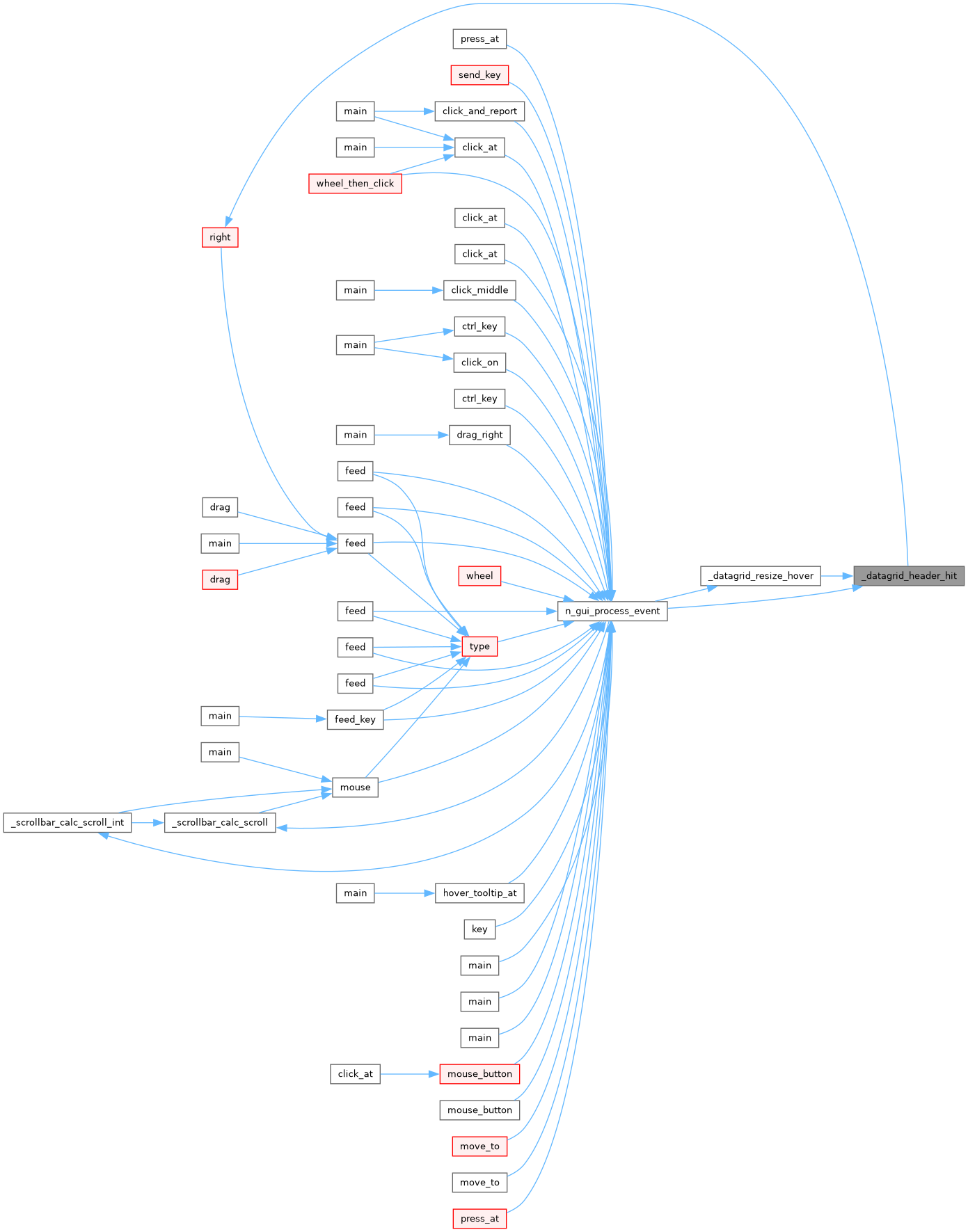

static void	_datagrid_header_hit (const N_GUI_DATAGRID_DATA *gd, float ax, float x, int *border_col, int *cell_col)
	helper: what a datagrid header row is offering at x.

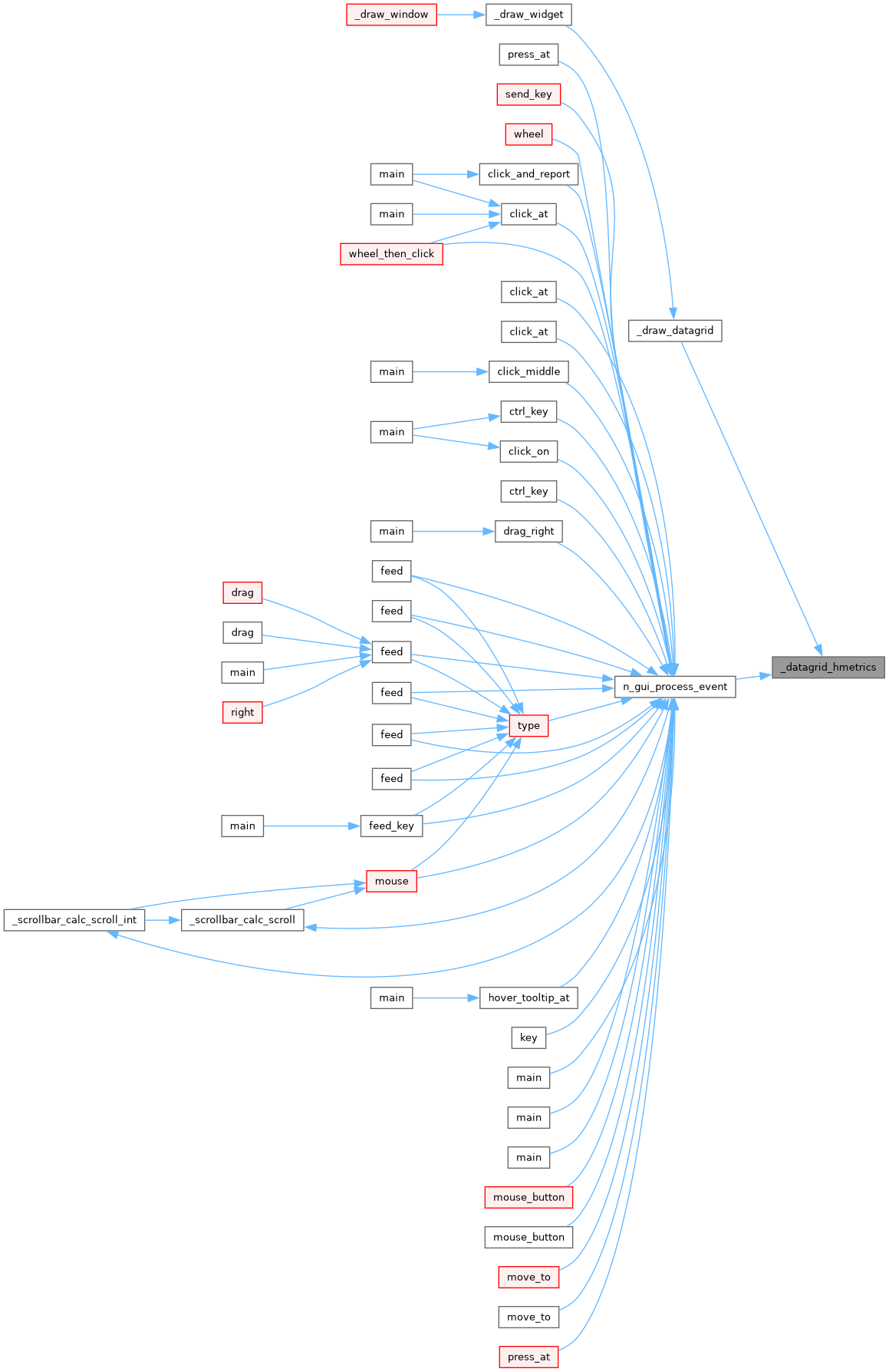

static void	_datagrid_hmetrics (const N_GUI_WIDGET *wgt, const N_GUI_DATAGRID_DATA *gd, ALLEGRO_FONT *font, const N_GUI_STYLE *style, float *content_w, float *pane_w, int *need_hsb)
	Compute the datagrid horizontal-scroll metrics used identically by the draw path and the mouse handlers, so the thumb geometry never drifts between them: content_w = left pad + the total width of the visible columns; pane_w = the viewport width available to the columns (widget width minus a vertical scrollbar when the rows overflow); need_hsb = 1 when the content is wider than the pane.
static size_t	_datagrid_phys (const N_GUI_DATAGRID_DATA *gd, size_t dp)
	physical column index shown at display position dp (identity when no order).
static int	_datagrid_resize_hover (N_GUI_CTX *ctx, float px, float py)
	Whether the pointer at (px,py) rests on a datagrid column-resize border: the header row of a visible datagrid, within a few pixels of a visible column's right edge.
static void	_destroy_widget (void *ptr)

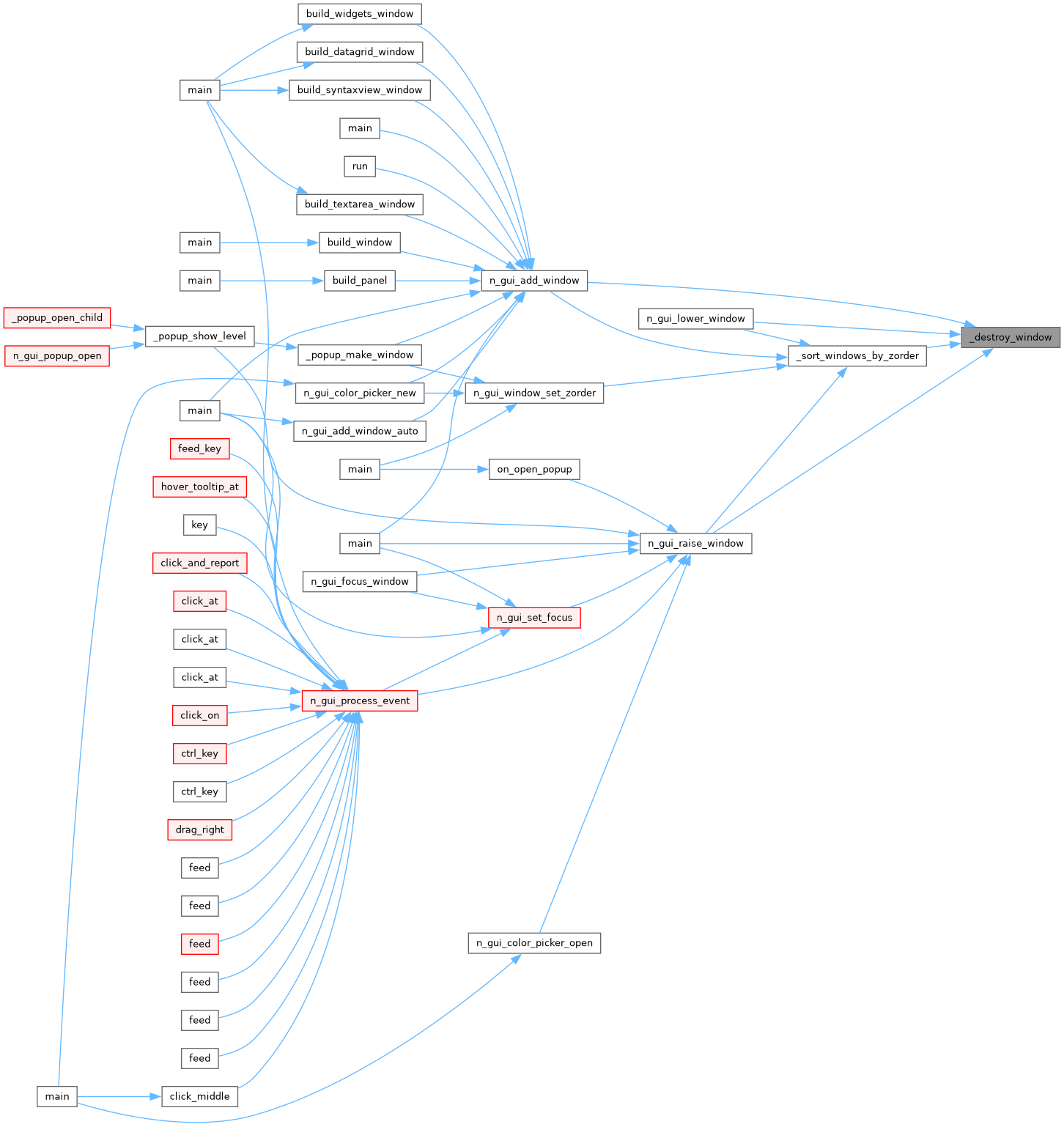

static void	_destroy_window (void *ptr)
	helper: destroy a single window (called by list destructor)
static void	_draw_bitmap_scaled (ALLEGRO_BITMAP *bmp, float dx, float dy, float dw, float dh, int mode)
	helper: draw a bitmap into a rectangle, respecting the given scale mode.
static void	_draw_button (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, const N_GUI_STYLE *style)
static void	_draw_checkbox (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)
	draw a checkbox widget

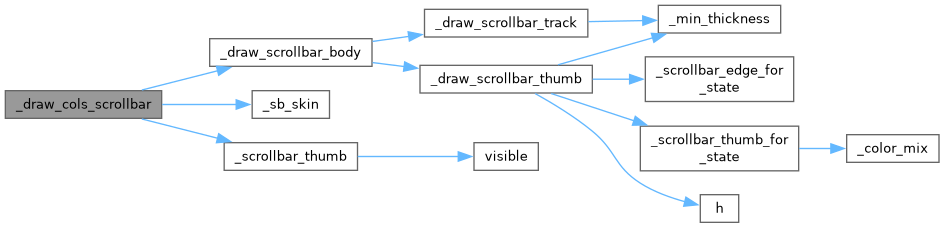

static void	_draw_cols_scrollbar (float ax, float bar_y, float track_w, float content_w, float h_scroll, N_GUI_SB_TRACK *track, const N_GUI_STYLE *style, const N_GUI_THEME *theme)
	draw a horizontal scrollbar along the bottom edge of a widget: track_w is the width of the scrollable pane (from ax), bar_y its top, content_w the total content width, h_scroll the current pixel offset, track the owning widget's N_GUI_SB_TRACK for this bar.

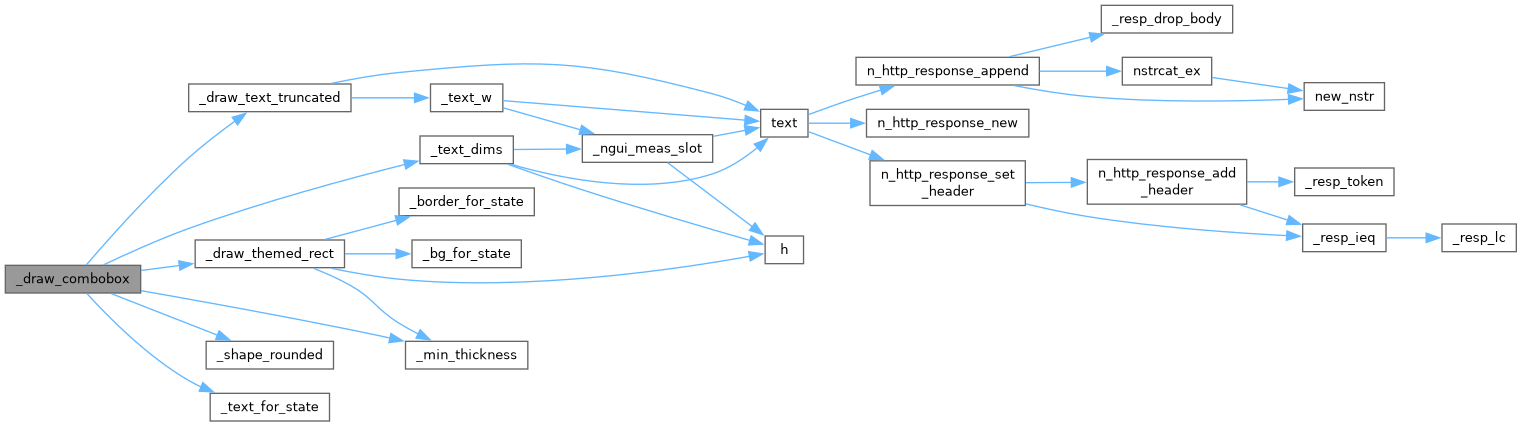

static void	_draw_combobox (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, const N_GUI_STYLE *style)
	draw a combobox widget (closed state)
static void	_draw_combobox_dropdown (N_GUI_CTX *ctx)
static void	_draw_custom (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font)
	draw a single widget.

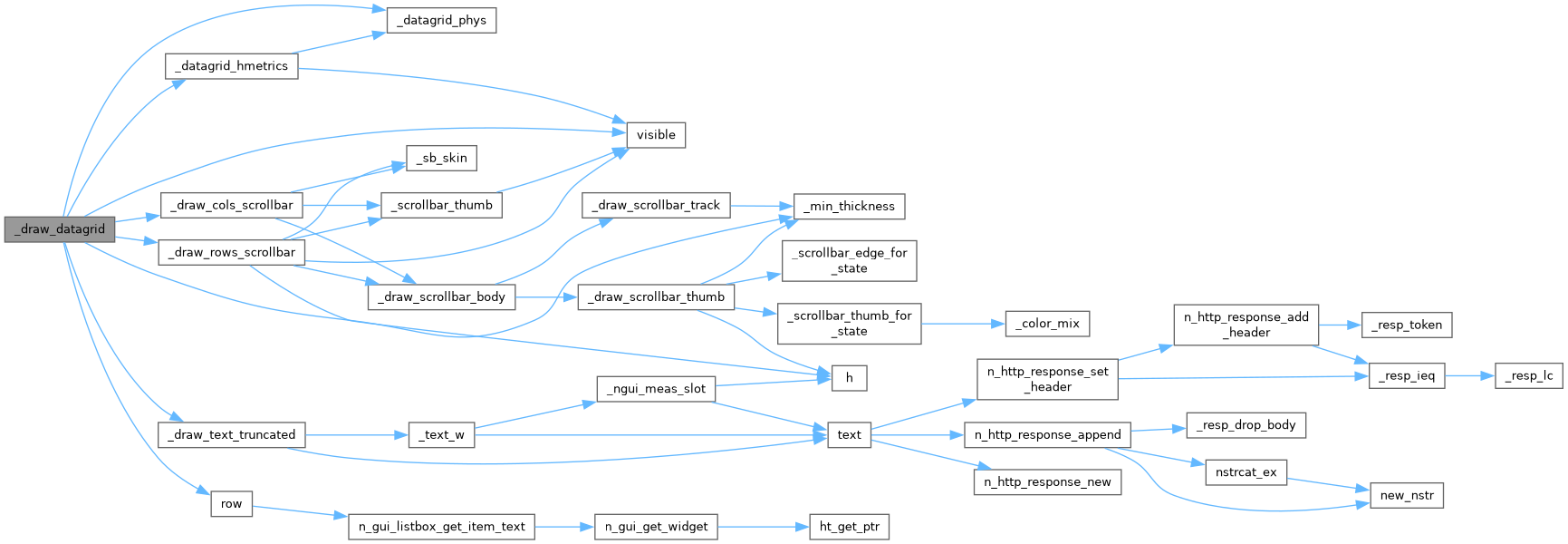

static void	_draw_datagrid (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)

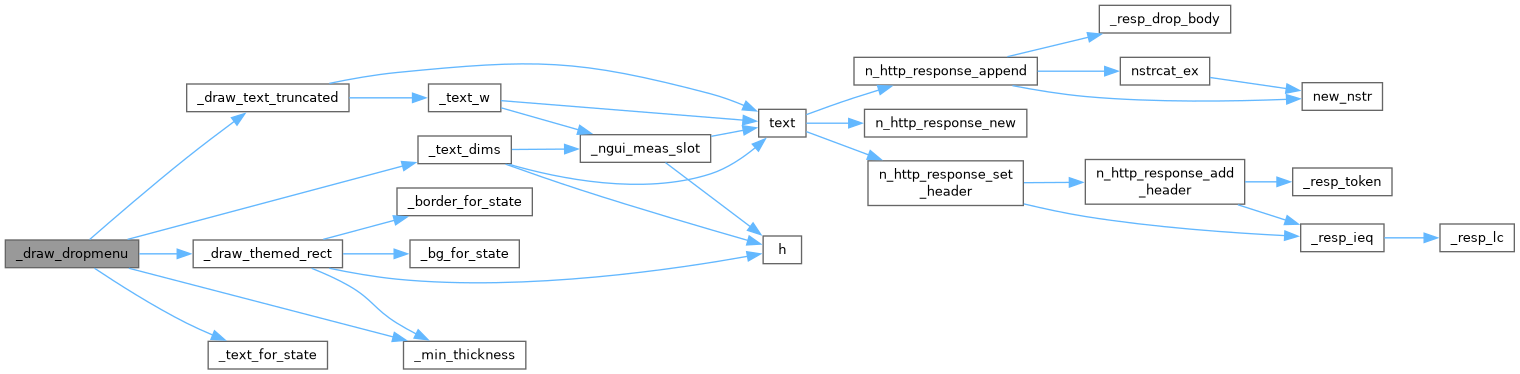

static void	_draw_dropmenu (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, const N_GUI_STYLE *style)
	draw a dropdown menu button (closed state)
static void	_draw_dropmenu_panel (N_GUI_CTX *ctx)
	draw the dropdown menu panel overlay (called after all windows)

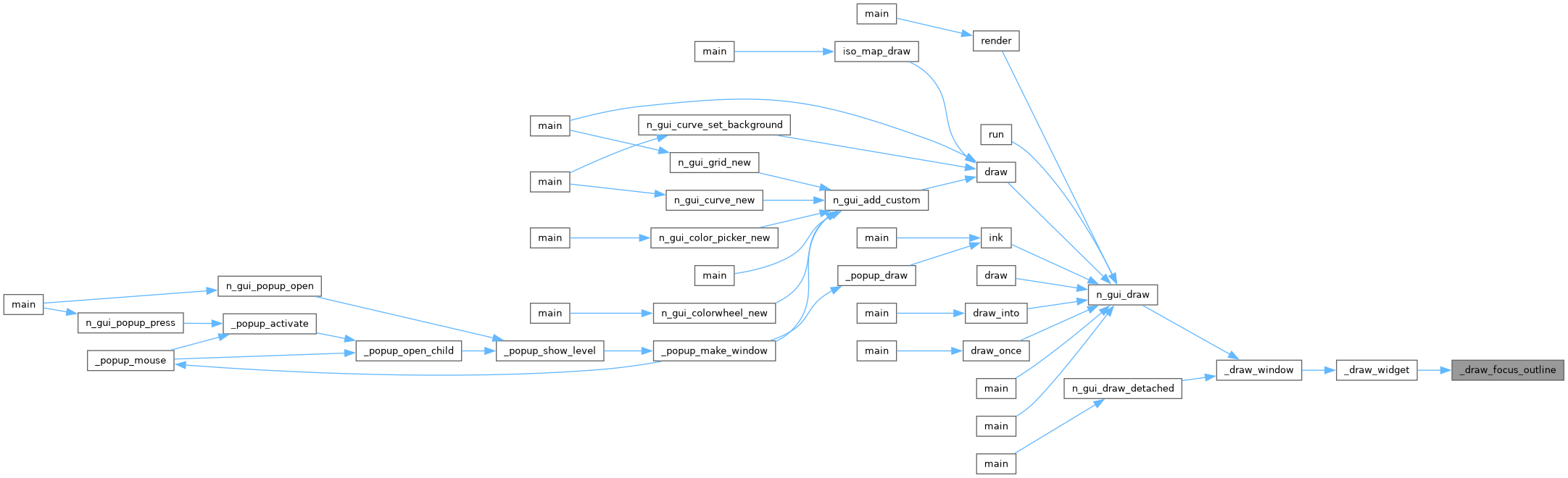

static void	_draw_focus_outline (const N_GUI_WIDGET *wgt, float ox, float oy)
	draw the keyboard focus outline over a widget that has the focus: a line just inside its edge, twice the theme's border and at least 2 pixels, in the theme's active border colour, so it follows the palette.
static void	_draw_glyph (int glyph, float cx, float cy, float s, ALLEGRO_COLOR fg, ALLEGRO_COLOR bg, float thick)
	draw a button widget

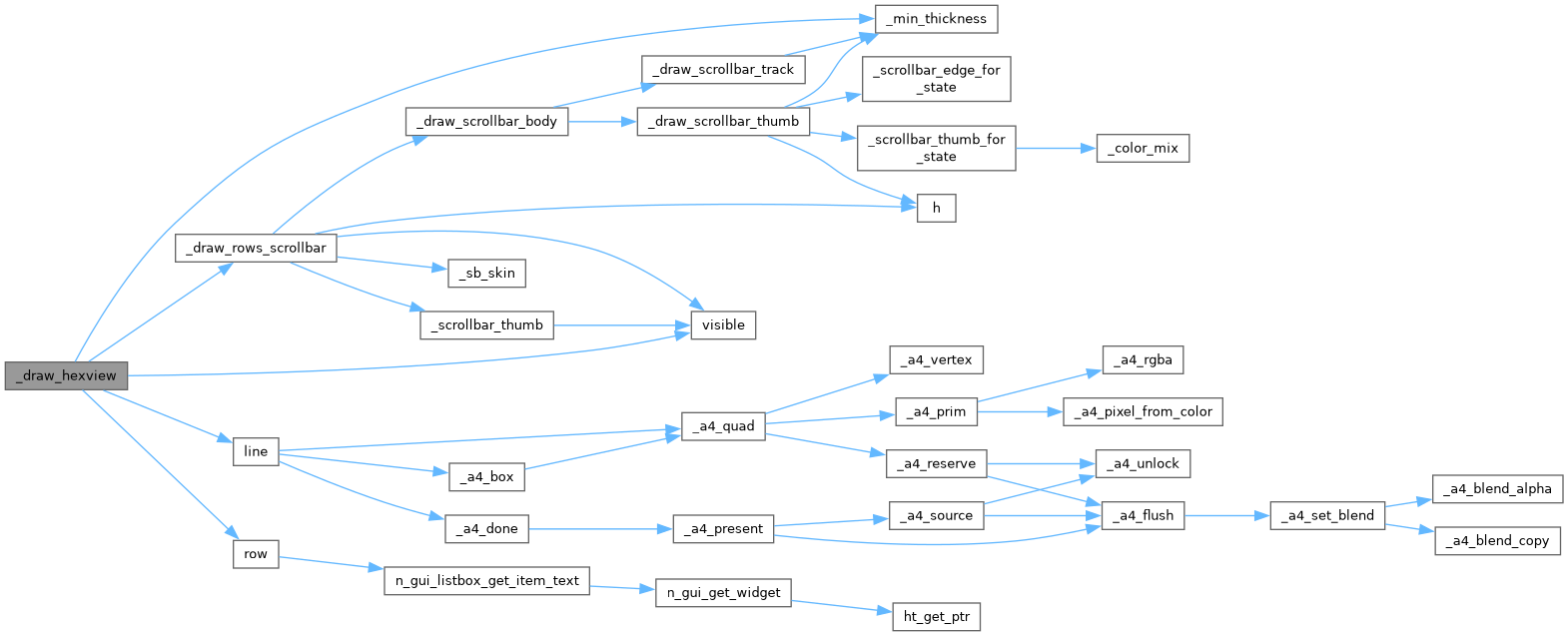

static void	_draw_hexview (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)
	draw a read-only hex viewer: offset, hex bytes, and an ASCII gutter
static void	_draw_image (N_GUI_WIDGET *wgt, float ox, float oy)
	draw an image widget

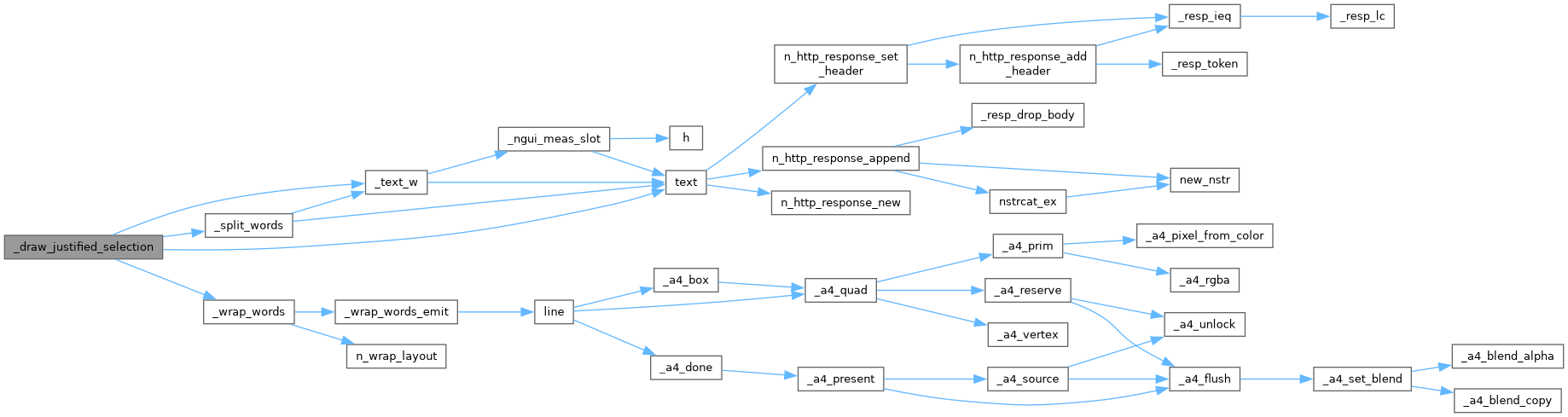

static void	_draw_justified_selection (ALLEGRO_FONT *font, float x, float y, float max_w, float max_h, const char *text, int sel_start, int sel_end, ALLEGRO_COLOR sel_color)
	helper: draw selection highlight rectangles over justified/wrapped text.
static void	_draw_label (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, float win_w, N_GUI_STYLE *style)
static void	_draw_label_lines (ALLEGRO_FONT *font, ALLEGRO_COLOR tc, float ax, float ay, float effective_w, float h, float pad, const N_GUI_LABEL_DATA *lb, ALLEGRO_COLOR sel_color)
	helper: draw a LEFT, CENTER or RIGHT label whose text has line breaks, one line under another, each aligned and shortened on its own, with the selection highlighted line by line.
static void	_draw_label_overflow (ALLEGRO_FONT *font, ALLEGRO_COLOR color, float x, float y, float max_w, const N_GUI_LABEL_DATA *lb, const char *text)
	helper: draw a label's text, or one line of it, that is too wide for it, shortened the way its truncate mode says.

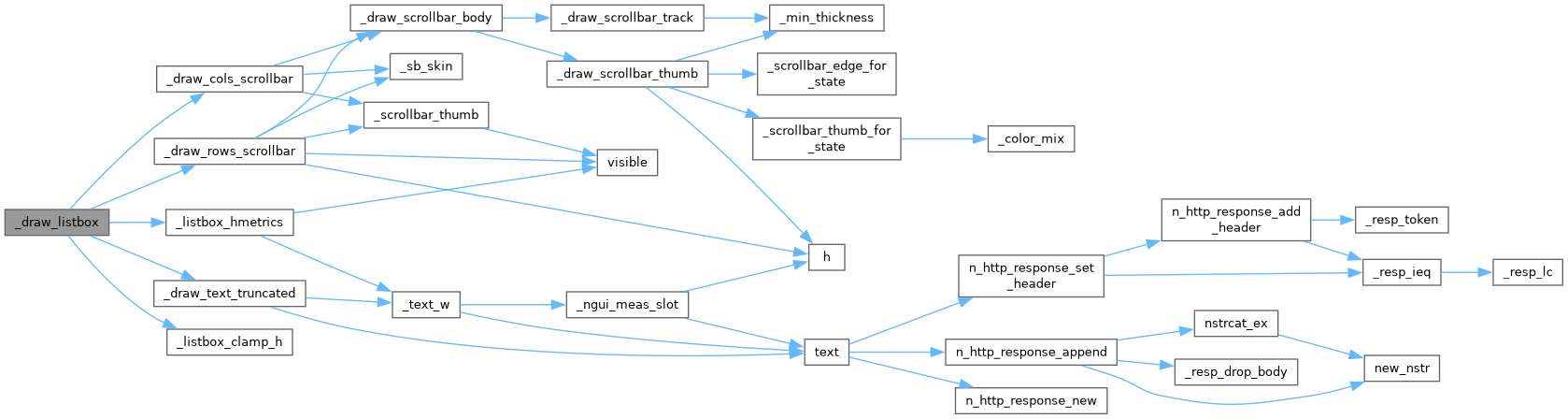

static void	_draw_listbox (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)
	draw a listbox widget
static void	_draw_markdownview (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, const N_GUI_STYLE *style)
	draw a sortable data grid: fixed header row plus scrollable data rows
static void	_draw_progressbar (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)
static void	_draw_radiolist (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, const N_GUI_STYLE *style)
	draw a radiolist widget

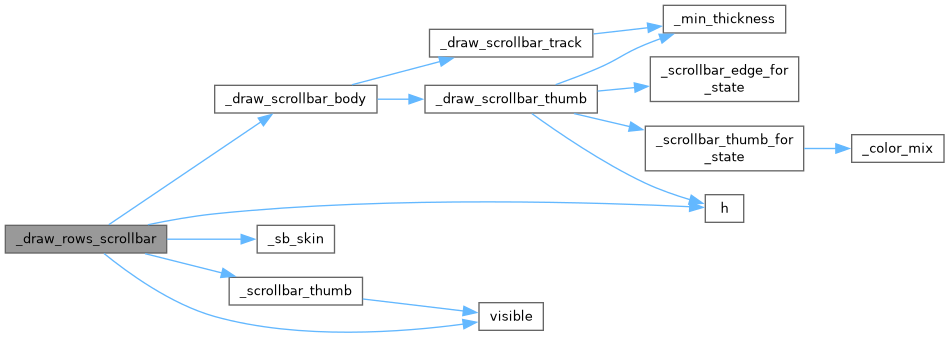

static void	_draw_rows_scrollbar (float ax, float ay, float w, float h, int nb_rows, int visible, int scroll_offset, N_GUI_SB_TRACK *track, const N_GUI_STYLE *style, const N_GUI_THEME *theme)
	draw a row-indexed vertical scrollbar (shared by hexview, syntaxview, datagrid, listbox and radiolist) at the right edge of [ax,ay,w,h].
static void	_draw_scrollbar (N_GUI_WIDGET *wgt, float ox, float oy, const N_GUI_STYLE *style)
	draw a scrollbar widget.

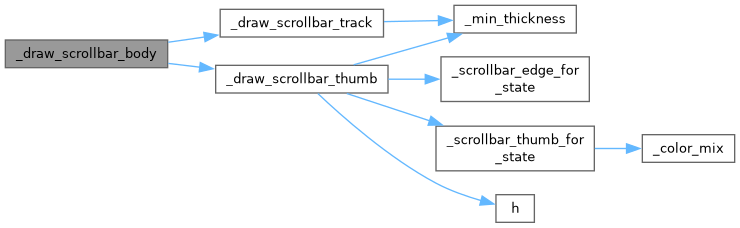

static void	_draw_scrollbar_body (float bar_x, float bar_y, float bar_w, float bar_h, float thumb_off, float thumb_len, int vertical, int state, N_GUI_SB_TRACK *track, const _N_GUI_SB_SKIN *skin, const N_GUI_THEME *theme)
	Draw one whole scrollbar: track, divider and thumb.

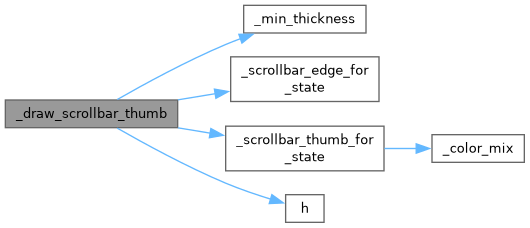

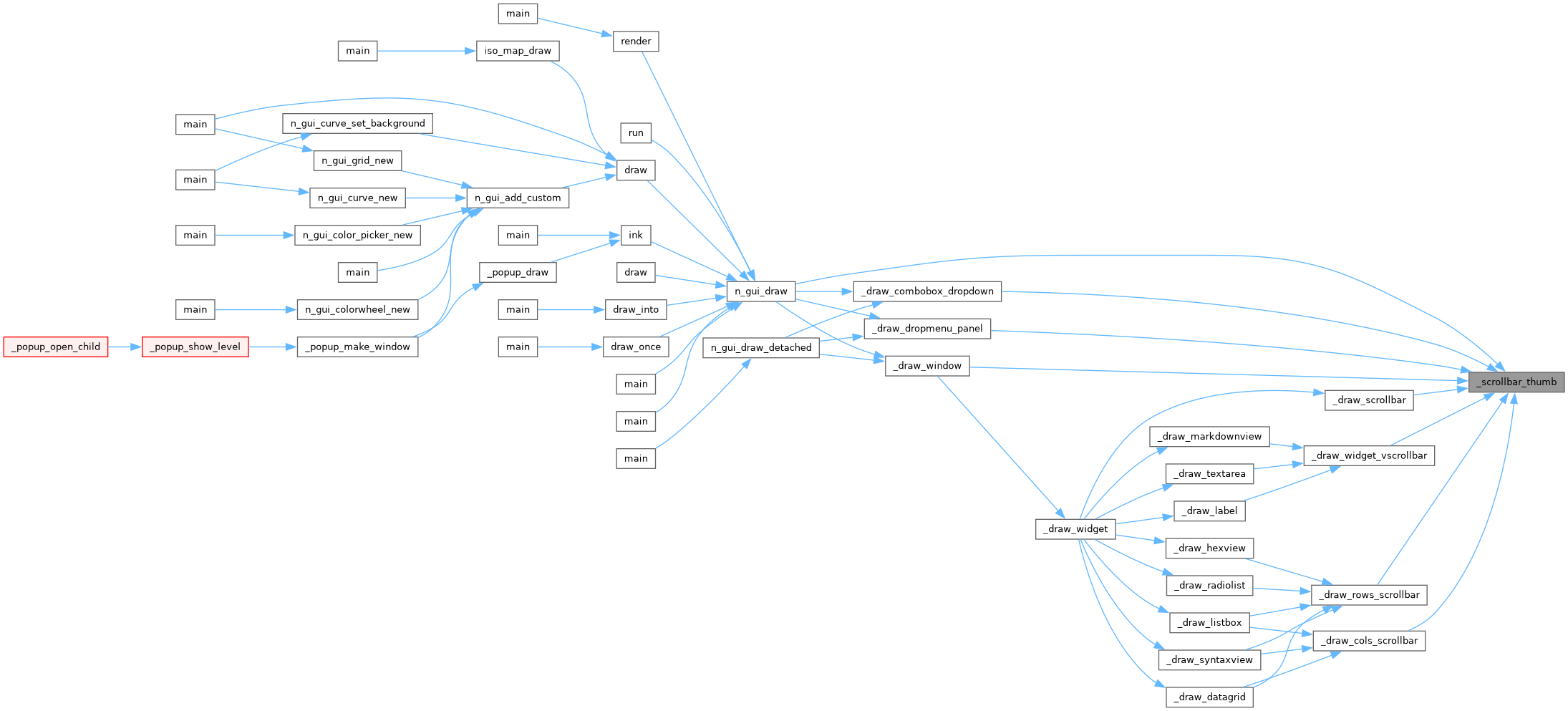

static void	_draw_scrollbar_thumb (float x, float y, float w, float h, int state, const _N_GUI_SB_SKIN *skin, const N_GUI_THEME *theme)
	Draw the thumb of a scrollbar, in the state its owner is in.
static void	_draw_scrollbar_track (float bar_x, float bar_y, float bar_w, float bar_h, int vertical, int state, const _N_GUI_SB_SKIN *skin, const N_GUI_THEME *theme)
	Draw the track of a scrollbar: the one look every bar shares.

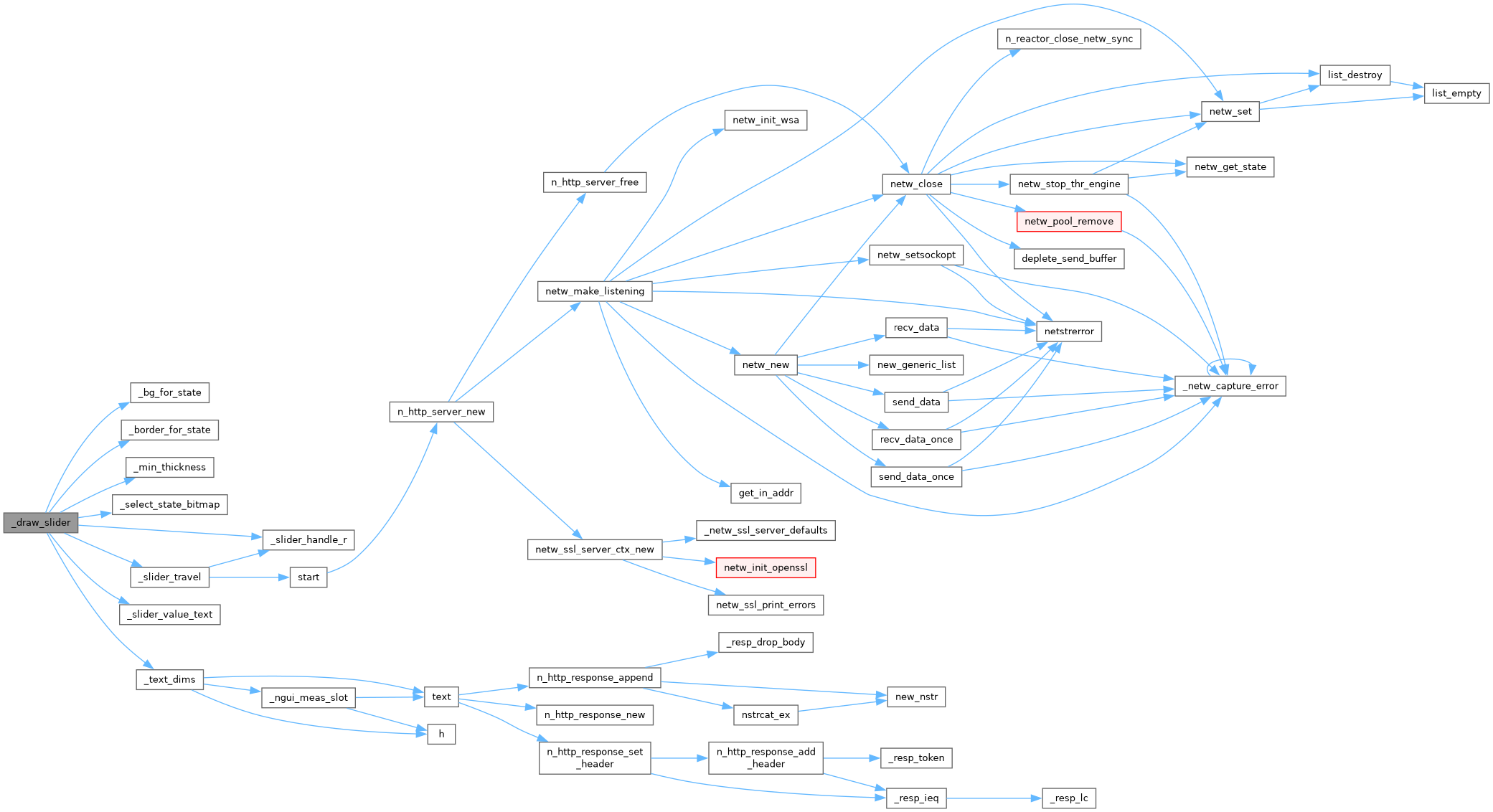

static void	_draw_slider (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)
static void	_draw_splitpane (N_GUI_WIDGET *wgt, float ox, float oy)
	draw a split pane: only the divider bar is painted (the app fills the two regions with its own widgets, positioned from the divider ratio)

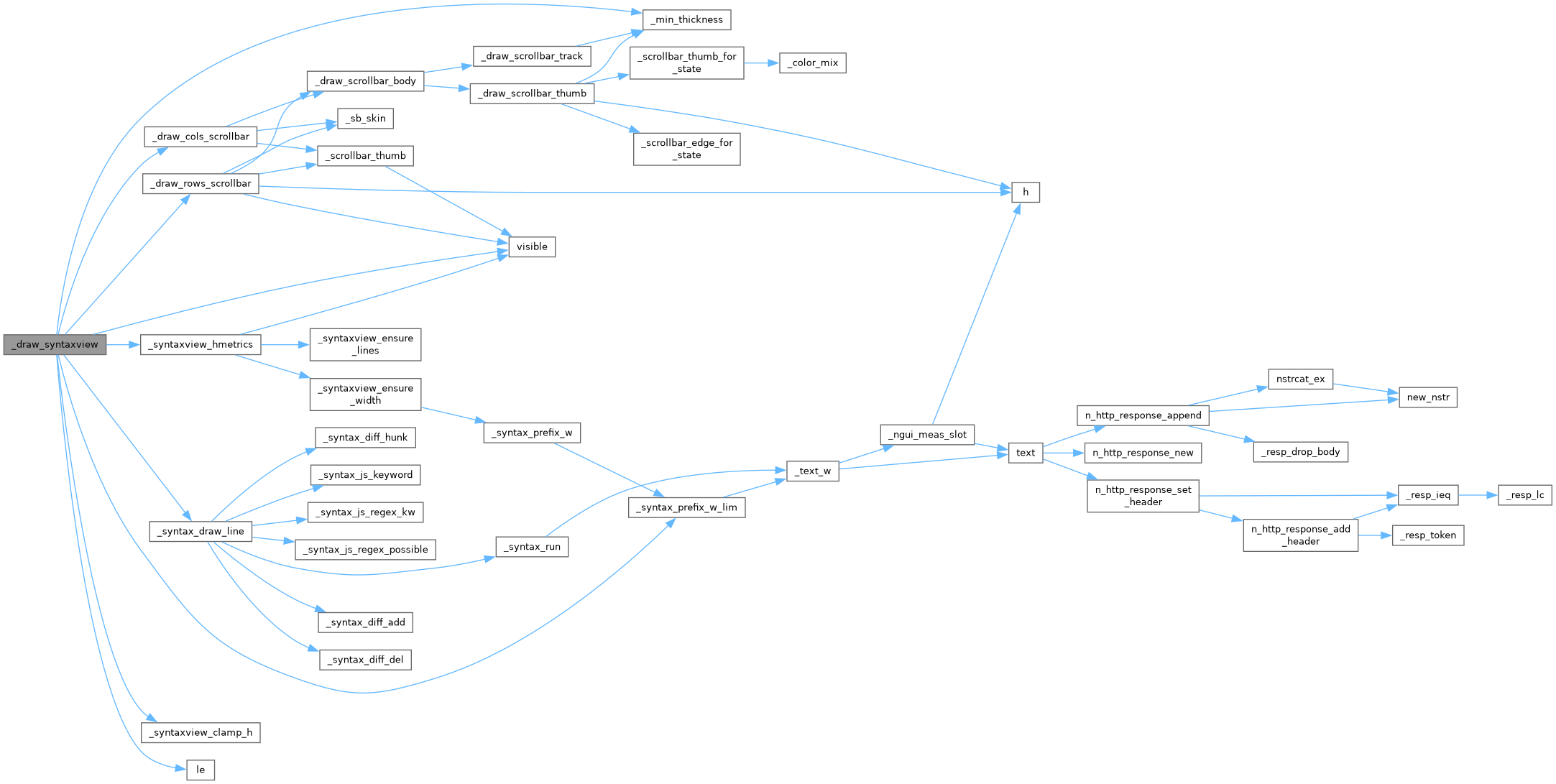

static void	_draw_syntaxview (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)

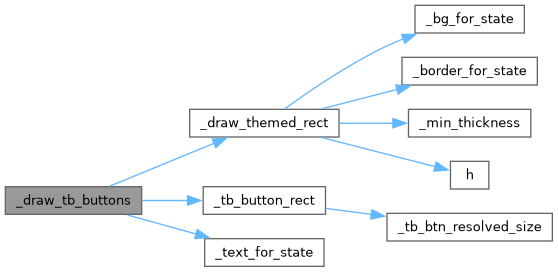

static void	_draw_tb_buttons (N_GUI_WINDOW *win, const N_GUI_STYLE *style)
	draw the titlebar buttons for a window

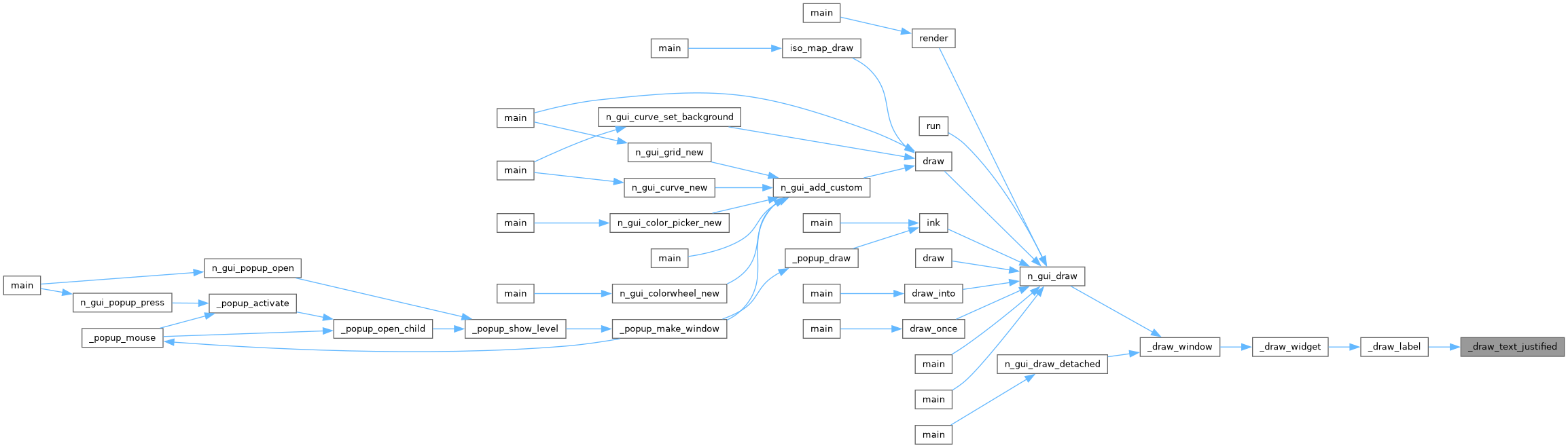

static void	_draw_text_justified (ALLEGRO_FONT *font, ALLEGRO_COLOR color, float x, float y, float max_w, float max_h, const char *text)
	helper: draw justified text within a given width, with multi-line word wrapping.

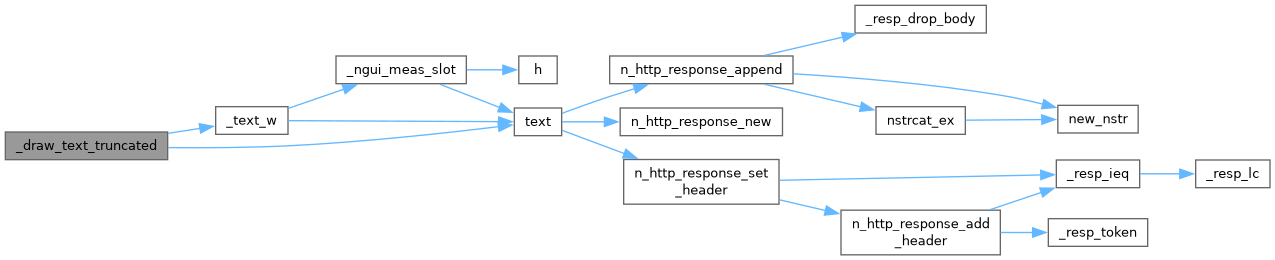

static void	_draw_text_truncated (ALLEGRO_FONT *font, ALLEGRO_COLOR color, float x, float y, float max_w, const char *text)
	helper: draw text truncated to a maximum pixel width.

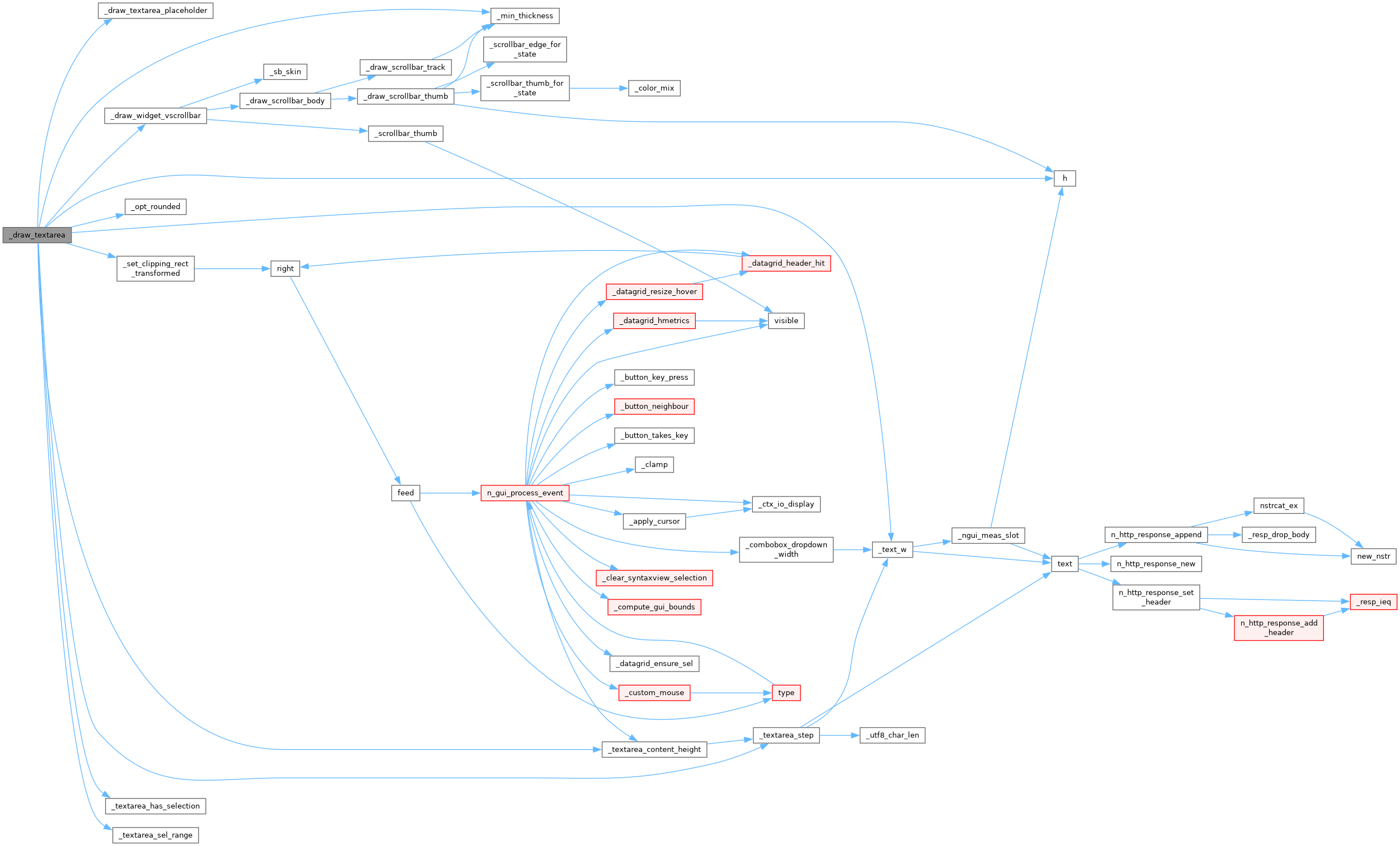

static void	_draw_textarea (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)
	draw a textarea widget
static void	_draw_textarea_placeholder (const N_GUI_TEXTAREA_DATA *td, const N_GUI_WIDGET *wgt, ALLEGRO_FONT *font, float tx, float ty)
	draw a textarea's placeholder/hint at (tx,ty), dimmed, while the field is empty; a no-op once any text has been entered or when no placeholder is set
static void	_draw_textarea_suggest (N_GUI_CTX *ctx)
	draw the open completion panel (called after all windows, with the other floating overlays)

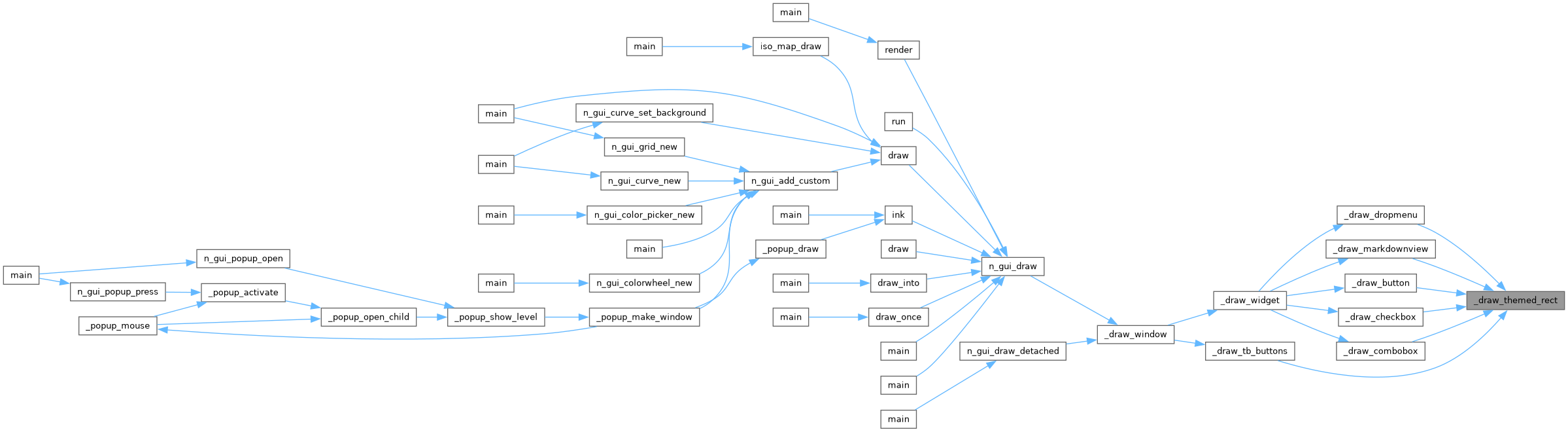

static void	_draw_themed_rect (N_GUI_THEME *t, int state, float x, float y, float w, float h, int rounded)
	draw a themed rectangle or rounded rectangle.

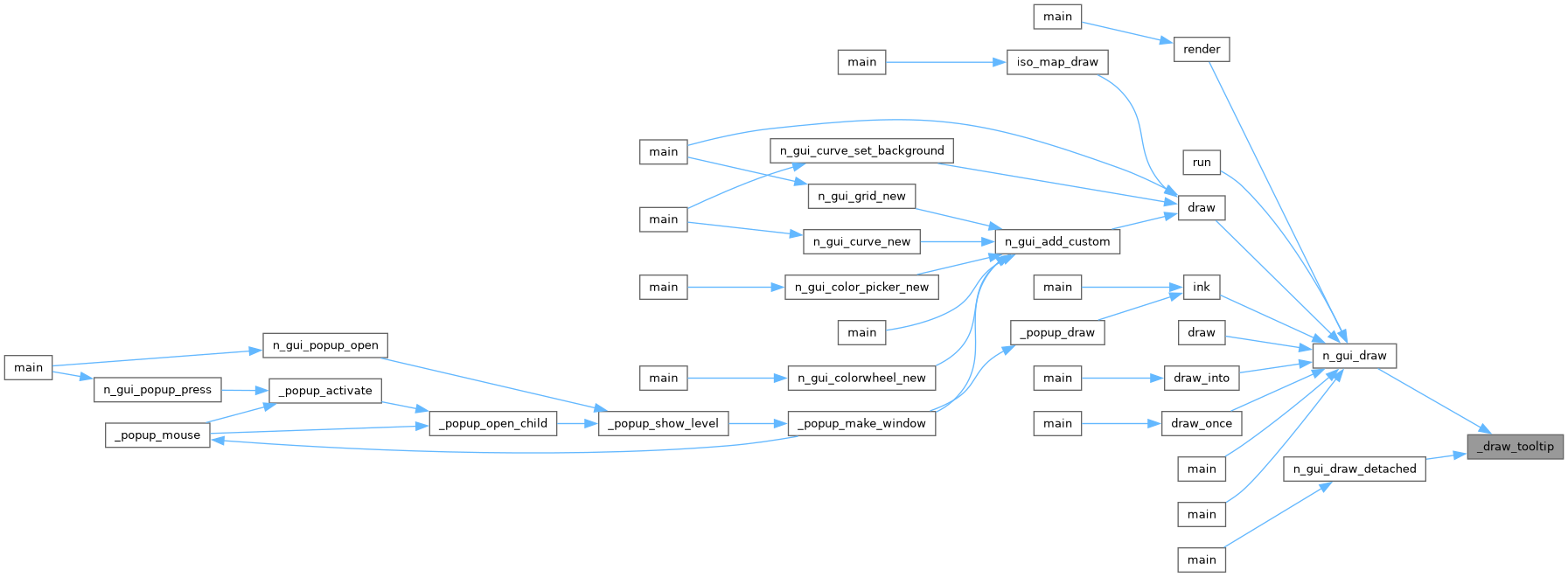

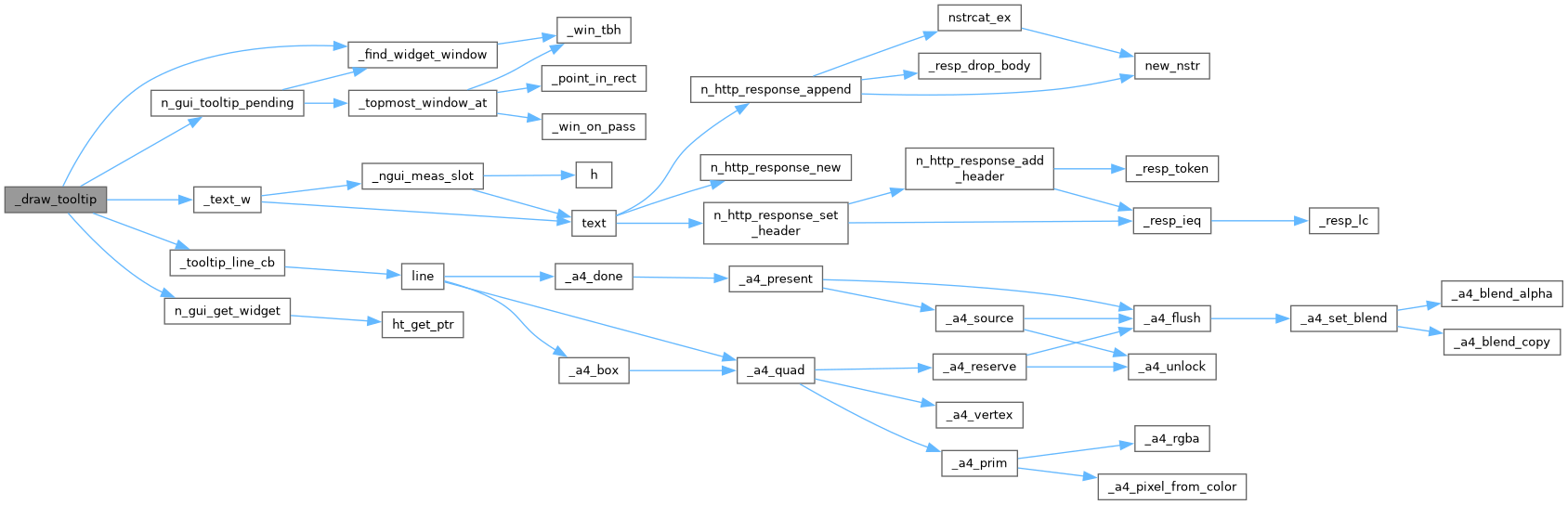

static void	_draw_tooltip (N_GUI_CTX *ctx)
	helper: draw the hover-tooltip bubble for the currently armed tooltip widget, but ONLY in the render pass of the display that owns that widget's window.
static void	_draw_widget (N_GUI_WIDGET *wgt, float ox, float oy, ALLEGRO_FONT *default_font, float win_w, N_GUI_STYLE *style)

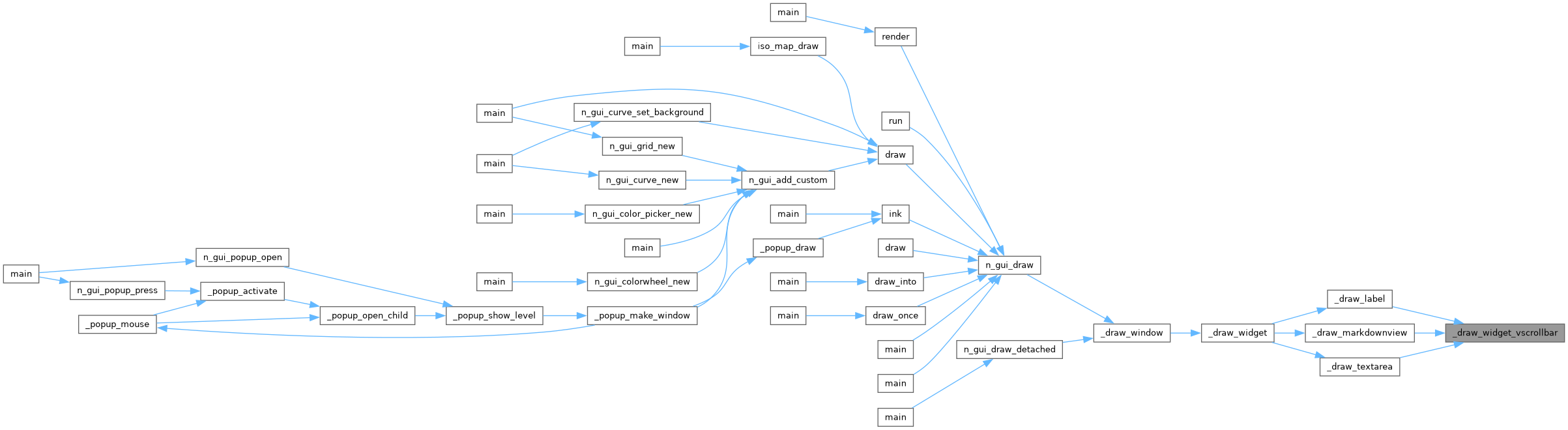

static void	_draw_widget_vscrollbar (float area_x, float area_y, float area_w, float view_h, float content_h, float scroll_y, N_GUI_SB_TRACK *track, const N_GUI_STYLE *style, const N_GUI_THEME *theme)
	helper: draw a mini vertical scrollbar inside a widget, at the right edge of the area [area_x .

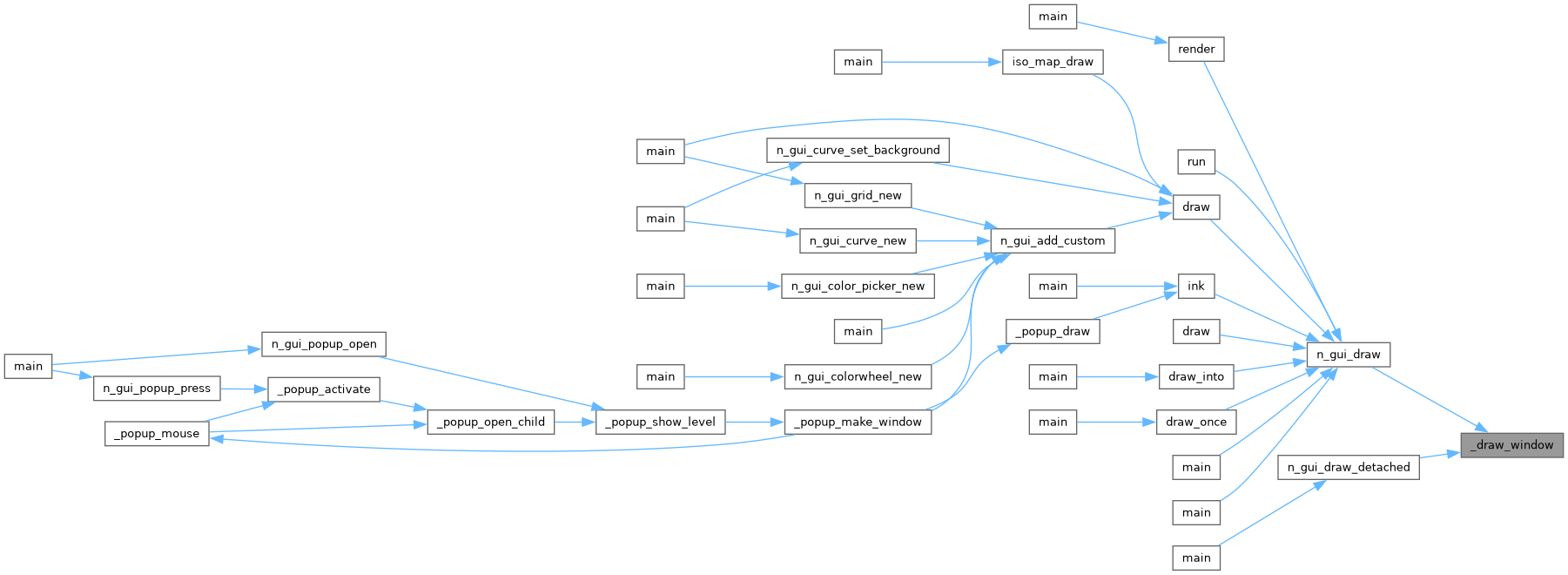

static void	_draw_window (N_GUI_WINDOW *win, ALLEGRO_FONT *default_font, N_GUI_STYLE *style)
	draw a window chrome + its widgets
static float	_dropdown_panel_y (const N_GUI_CTX *ctx, float widget_top, float widget_bottom, float panel_h, int expand_up)
	draw the combobox dropdown overlay (called after all windows)

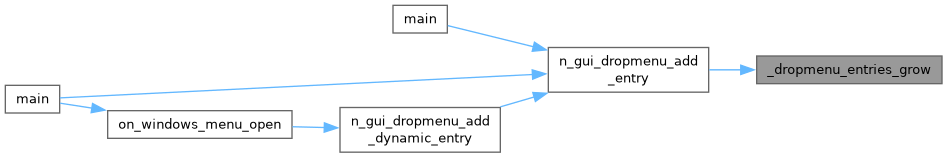

static int	_dropmenu_entries_grow (N_GUI_DROPMENU_ENTRY **entries, const size_t *nb, size_t *cap)
	helper: ensure dropmenu entries array has room for one more
static ALLEGRO_DISPLAY *	_event_display (const ALLEGRO_EVENT *event)
	helper: the display an event originates from, or NULL when the event carries no display (timer, user and joystick events) or the field is unset, as in the headless tests that synthesize events with memset.
static N_GUI_WINDOW *	_find_focused_window (N_GUI_CTX *ctx)
	helper: find the window containing a focused widget
static const N_GUI_WIDGET *	_find_widget_const (const N_GUI_CTX *ctx, int widget_id)
	find a widget without a non-const context, for the queries that only read

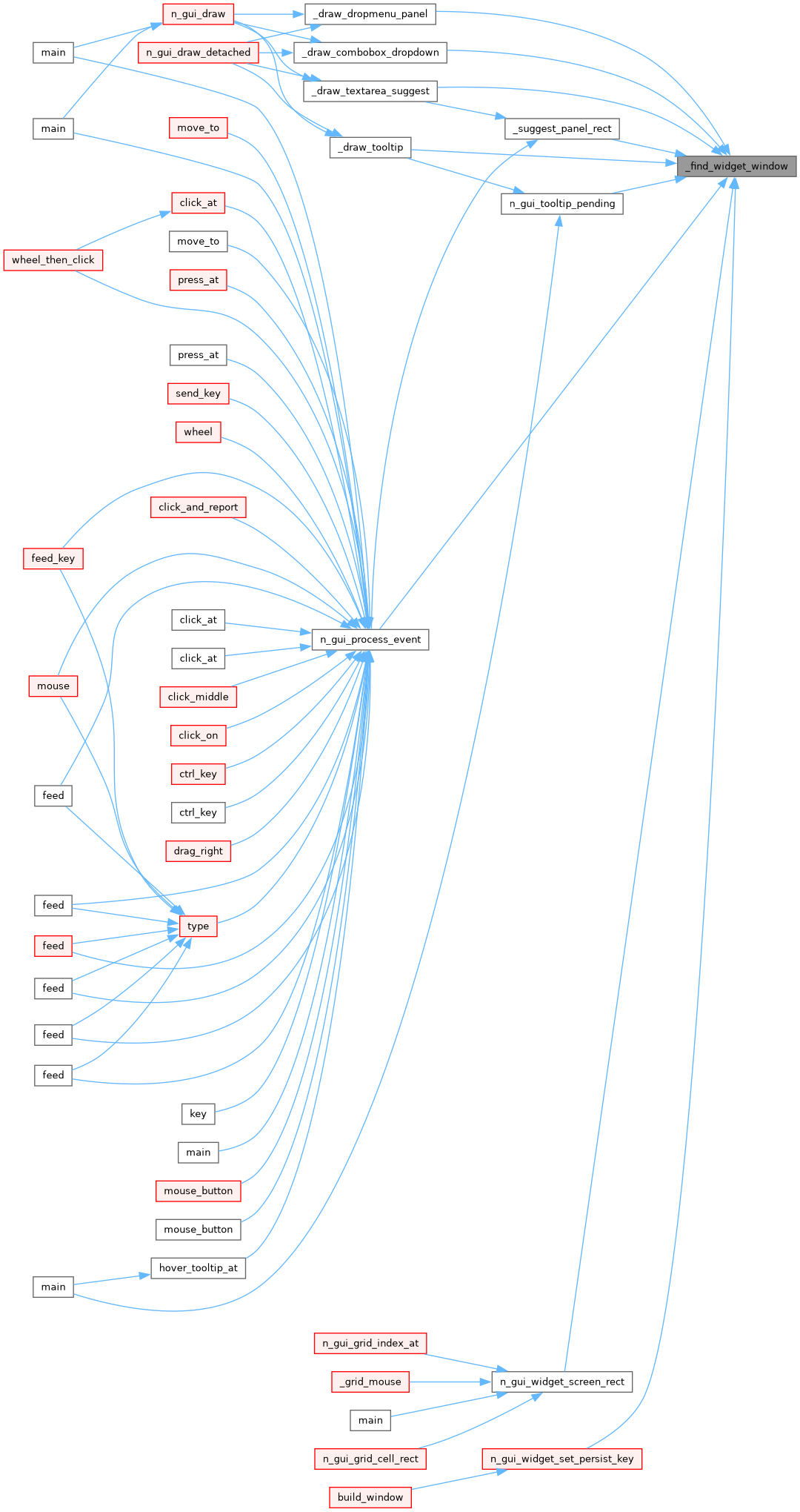

static N_GUI_WINDOW *	_find_widget_window (N_GUI_CTX *ctx, int wgt_id, float *ox, float *oy)
	helper: find the parent window of a widget by id, returning the window's content origin (accounting for scroll offsets).
static LIST_NODE *	_find_window_node (N_GUI_CTX *ctx, int window_id)
	helper: find a window node in the context list by id
static void	_global_scroll_needs (const N_GUI_CTX *ctx, float eff_w, float eff_h, int *need_v, int *need_h)
	helper: which global scrollbars the open windows need in a view of eff_w by eff_h, from the bounds _compute_gui_bounds() left.
static FILE *	_gui_fopen_write (const char *path, const char *mode)
static int	_held_bit (int keycode)
	the held-key bit of a key code, 0 for a key that is not a modifier
static int	_hexview_digit (int keycode, int unichar)
	the value of a hex digit key (0-15), or -1 when the key is not one.
static int	_hexview_erase (N_GUI_HEXVIEW_DATA *hd, size_t at)
	remove the byte at at from an editable hex view.

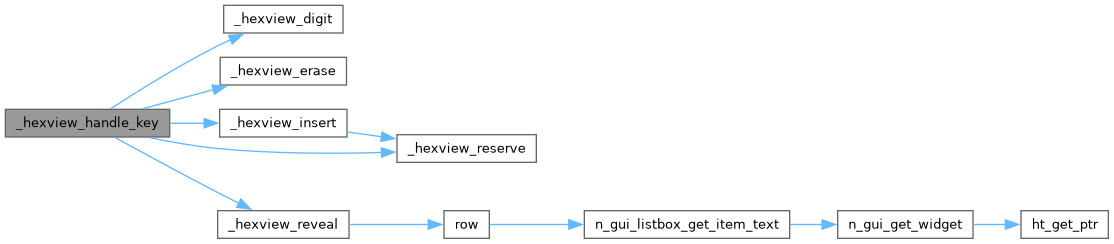

static int	_hexview_handle_key (N_GUI_WIDGET *wgt, const ALLEGRO_EVENT *ev, int visible_rows)
	handle one key for a focused editable hex view.
static int	_hexview_insert (N_GUI_HEXVIEW_DATA *hd)
	insert one zero byte before the cursor of an editable hex view.
static int	_hexview_reserve (N_GUI_HEXVIEW_DATA *hd, size_t need)
	grow an editable hex view's buffer so it can hold at least need bytes.
static void	_hexview_reveal (N_GUI_HEXVIEW_DATA *hd, int visible_rows)
	scroll an editable hex view so its cursor row is visible
static int	_is_focusable_type (int type)
	helper: check if a widget type takes keys once it has focus.
static int	_is_tab_focusable_type (int type)
	helper: check if a widget type is reached by Tab and Shift+Tab: every widget that takes keys, and the buttons, which Enter or Space presses once they have focus.
static int	_items_grow (N_GUI_LISTITEM **items, const size_t *nb, size_t *cap)
	helper: ensure items array has room for one more, returns 1 on success
static void	_json_add_color (cJSON *parent, const char *name, ALLEGRO_COLOR c)
	helper: add an RGBA colour as a JSON array [r,g,b,a] (0-255)
static ALLEGRO_COLOR	_json_get_color (cJSON *parent, const char *name, ALLEGRO_COLOR fallback)
	helper: read an RGBA colour from a JSON array [r,g,b,a]
static float	_json_get_float (cJSON *parent, const char *name, float fallback)
	helper: read a float from JSON, return fallback if missing
static int	_json_get_int (cJSON *parent, const char *name, int fallback)
	helper: read an int from JSON, return fallback if missing
static int	_justified_char_at_pos (const char *text, ALLEGRO_FONT *font, float max_w, float text_x, float text_y, float scroll_y, float click_mx, float click_my)
	helper: find the byte offset in justified text closest to a click position.
static int	_key_navigates (int keycode)
	is this one of the keys that move through a widget rather than type into it: the arrows, the page keys, Home, End and Enter
static int	_label_char_at_x (const N_GUI_LABEL_DATA *lb, ALLEGRO_FONT *font, float click_x)
	draw a label widget.
static float	_label_content_height (const char *text, ALLEGRO_FONT *font, float max_w)
	forward declaration: height the wrapped text of a justified label needs at a given width.
static float	_label_effective_w (const N_GUI_LABEL_DATA *lb, ALLEGRO_FONT *font, float wgt_w, float win_w, float wgt_x, float label_padding)
	helper: the width a LEFT, CENTER or RIGHT label lays its text out in.
static int	_label_line_at (const char *text, int index, char *out, size_t out_len)
	helper: line index of text, copied into out without its break.
static int	_label_line_count (const char *text)
	forward declarations: the lines of a label whose text has line breaks, used by n_gui_label_fits().
static float	_label_line_x (const N_GUI_LABEL_DATA *lb, float line_w, float ax, float effective_w, float pad)
	helper: where a line of a multi-line label starts on screen, by the label's alignment.
static int	_label_lines_char_at (const N_GUI_LABEL_DATA *lb, ALLEGRO_FONT *font, float ax, float ay, float effective_w, float h, float pad, float mx, float my)
	helper: the byte offset in a multi-line label closest to a click.
static float	_label_lines_top (float ay, float h, int lines, float fh)
	helper: the top of a multi-line label's first line: the block of lines centred in the box as a single line is, and never above the box.
static float	_label_text_origin_x (const N_GUI_LABEL_DATA *lb, ALLEGRO_FONT *font, float ax, float wgt_w, float win_w, float wgt_x, float label_padding)
	helper: compute the screen-space x origin where label text starts, accounting for alignment.
static float	_label_wrap_w (const N_GUI_WIDGET *wgt, const N_GUI_STYLE *style)
	forward declaration: the width a justified label wraps its text to.
static void	_list_panel_highlight_step (int *highlight, int *scroll, int nb, int max_visible, int delta, int fallback)
	helper: move an open list panel's highlight cursor (combobox / dropmenu) by delta items and scroll the visible window so the highlighted item stays in view.
static void	_list_panel_wheel (int *highlight, int *scroll, int nb, int max_visible, int notches, int row)
	helper: the mouse wheel over an open list panel (combobox / dropmenu).
static void	_listbox_clamp_h (N_GUI_LISTBOX_DATA *ld, float content_w, float pane_w)
	clamp a listbox's horizontal scroll to the room its content actually needs
static void	_listbox_hmetrics (const N_GUI_WIDGET *wgt, const N_GUI_LISTBOX_DATA *ld, ALLEGRO_FONT *font, const N_GUI_STYLE *style, float *content_w, float *pane_w, int *need_hsb, int *visible)
	Listbox horizontal-scroll metrics, computed identically by the draw path and the mouse handlers so the thumb and the hit test never drift apart.
static void	_markdownview_follow_theme (N_GUI_WIDGET *wgt, N_GUI_MARKDOWNVIEW_DATA *md)
	Re-derive the view's colours from the widget's theme, while the caller has not taken the style over.
static float	_markdownview_measure (const N_GUI_WIDGET *wgt, N_GUI_MARKDOWNVIEW_DATA *md, const N_GUI_STYLE *style)
	Measure the document if anything it depends on has changed, and clamp the scroll to what is left.
static N_GUI_MARKDOWNVIEW_DATA *	_markdownview_of (N_GUI_CTX *ctx, int widget_id)
	The view's data, or NULL when that widget is not one.
static float	_markdownview_text_w (const N_GUI_WIDGET *wgt, const N_GUI_MARKDOWNVIEW_DATA *md, const N_GUI_STYLE *style, int with_bar)
	The width the document is laid out at: the widget less its padding, and less the bar when there is one.
static float	_min_thickness (float requested)
	helper: compute minimum line thickness so it stays >= 1 physical pixel.
static void	_n_gui_apply_display_size (N_GUI_CTX *ctx, float w, float h)
	Draw all visible windows and their widgets.
static int	_n_gui_kv_active_order (const N_GUI_KVTABLE *table, int *out)
static void	_n_gui_kv_add_clicked (int widget_id, void *user_data)
static void	_n_gui_kv_apply_layout (N_GUI_KVTABLE *table)
static void	_n_gui_kv_content_free (N_GUI_KV_CONTENT *c)
static void	_n_gui_kv_content_grab (N_GUI_KVTABLE *table, int idx, N_GUI_KV_CONTENT *out)
static void	_n_gui_kv_content_put (N_GUI_KVTABLE *table, int idx, const N_GUI_KV_CONTENT *in)
static void	_n_gui_kv_down_clicked (int widget_id, void *user_data)
static void	_n_gui_kv_dup_clicked (int widget_id, void *user_data)
static char *	_n_gui_kv_dup_text (N_GUI_CTX *ctx, int widget_id)
static void	_n_gui_kv_refresh_actions (N_GUI_KVTABLE *table)
static void	_n_gui_kv_remove_clicked (int widget_id, void *user_data)
static void	_n_gui_kv_split_a_changed (int widget_id, float ratio, void *user_data)
static void	_n_gui_kv_split_b_changed (int widget_id, float ratio, void *user_data)
static void	_n_gui_kv_up_clicked (int widget_id, void *user_data)
static void	_n_gui_sectionlist_header_clicked (int widget_id, void *user_data)
static void	_n_gui_sectionlist_set_header_label (N_GUI_SECTIONLIST *sl, int idx)
static int	_n_gui_sectionlist_slot (const N_GUI_SECTIONLIST *sl, int section_index, int widget_id)
static void	_n_gui_tab_button_clicked (int widget_id, void *user_data)
static void	_n_gui_tree_emit (N_GUI_TREE *tree, int parent)
	helper: add the children of one node to the listbox, in order, then each expanded child's own children under it.
static int	_n_gui_tree_hit_row (N_GUI_TREE *tree, float mx, float my, int *out_node_idx, int *out_drop_pos)
	Hit-test the mouse against the listbox's visible rows and fill the out params.
static int	_n_gui_tree_listbox_bounds (N_GUI_TREE *tree, float *out_x, float *out_y, float *out_w, float *out_h, float *out_item_area_w, float *out_inset, float *out_item_h, int *out_scroll_off)
	Return the listbox's absolute (screen-space) bounds and geometry via out params.
static void	_n_gui_tree_listbox_selected (int widget_id, int index, int selected, void *user_data)
static int	_n_gui_tree_open (N_GUI_TREE *tree, int node_index)
	helper: open a node, calling the expand callback first when it has not filled this node yet.
static void	_n_gui_widget_capture_normalized (const N_GUI_WINDOW *win, N_GUI_WIDGET *wgt)
	capture normalized coords for a single widget relative to its parent window
static void	_n_gui_window_capture_normalized (const N_GUI_CTX *ctx, N_GUI_WINDOW *win)
	capture normalized coords for a window and its widgets from current absolutes
static void	_native_apply_minimised (N_GUI_WINDOW *win)
	helper: mirror an own-chrome window's minimised state onto its OS window by shrinking the display to the title bar and growing it back.
static void	_native_drag_begin (N_GUI_WINDOW *win)
	helper: anchor an own-chrome window's title bar drag on the desktop cursor.
static int	_native_monitor_info (ALLEGRO_DISPLAY *display, ALLEGRO_MONITOR_INFO *info)
	helper: the monitor rectangle a native window sits on.
static int	_native_own_chrome (const N_GUI_WINDOW *win)
	helper: whether a window is detached AND keeps drawing its own chrome (N_GUI_DETACH_OWN_CHROME).
static N_GUI_WIDGET *	_new_widget (N_GUI_CTX *ctx, int type, float x, float y, float w, float h)
	helper: allocate and initialise a base widget
static char *	_ngui_clip_get (ALLEGRO_DISPLAY *display, int which)
static void	_ngui_clip_set (ALLEGRO_DISPLAY *display, int which, const char *text)
static N_GUI_MEAS_ENTRY *	_ngui_meas_slot (ALLEGRO_FONT *font, const char *text, size_t len)
	find (or claim) the cache slot for (font, text[len]).
static void	_ngui_publish_primary_selection (N_GUI_CTX *ctx)
	publish the active text selection (syntax view, label, or focused textarea) to the X11 PRIMARY selection, implementing select-to-copy: selecting text with the mouse or keyboard makes it available for a middle-click paste, without disturbing CLIPBOARD.
static void	_normalize_crlf (char *s)
	helper: strip CR from a string in-place, normalizing CRLF to LF.
static int	_opt_rounded (const N_GUI_STYLE *style)
	the widget types that have no shape of their own (textarea, checkbox, a frameless window's body, the combobox dropdown) round only when the context ASKS for a round GUI: their square look is every existing program's default, and must not change under it.
static int	_point_in_rect (float px, float py, float rx, float ry, float rw, float rh)
	helper: test if point is inside a rectangle
static int	_pointer_over_window (const N_GUI_CTX *ctx, float px, float py)
	helper: is the pointer over any open window that takes part in the current pass?
static int	_reading_order (const N_GUI_WIDGET *a, const N_GUI_WIDGET *b)
	Which of two widgets comes first in reading order.
static void	_register_widget (N_GUI_CTX *ctx, N_GUI_WIDGET *w)
	helper: register a widget in the hash table
static void	_release_native_window (N_GUI_CTX *ctx, N_GUI_WINDOW *win)
	forward declaration: unregister and destroy a window's native display, leaving the window's geometry untouched (see the native window section)
static _N_GUI_SB_SKIN	_sb_skin (const N_GUI_STYLE *style)
	helper: the skin of a bar belonging to a widget or a window.
static _N_GUI_SB_SKIN	_sb_skin_global (const N_GUI_STYLE *style)
	helper: the skin of one of the display's own bars, which scroll the whole virtual canvas rather than anything inside it.
static int	_sb_track_hit (const N_GUI_SB_TRACK *track, float mx, float my)
	helper: is the pointer inside a bar's last painted rectangle.
static float	_scrollbar_calc_scroll (float mouse, float track_start, float track_length, float viewport, float content, float thumb_min)
	helper: compute scroll position from mouse coordinate using thumb-aware math.
static int	_scrollbar_calc_scroll_int (float mouse, float track_start, float track_length, int visible_items, int total_items, float thumb_min)
	helper: integer variant of _scrollbar_calc_scroll for item-based widgets.
static ALLEGRO_COLOR	_scrollbar_edge_for_state (const N_GUI_THEME *t, int state)
	helper: the colour of the outline round a scrollbar's thumb, for the state of the bar.
static _N_GUI_THUMB	_scrollbar_thumb (float track_len, float visible, float content, float offset, float min_len)
	helper: where a scrollbar thumb sits and how long it is.
static ALLEGRO_COLOR	_scrollbar_thumb_for_state (ALLEGRO_COLOR at_rest, const N_GUI_THEME *t, int state)
	helper: the fill of a scrollbar thumb, for the state of the bar.
static void	_scrollbar_update_from_mouse (N_GUI_WIDGET *wgt, float mx, float my, float win_x, float win_content_y, const N_GUI_STYLE *style)
	handle scrollbar drag
static int	_scrollbar_wheel (N_GUI_WIDGET *wgt, int dz)
	helper: turn the wheel over a scrollbar: its wheel step per notch, a twentieth of its range when it has none, clamped, its on_scroll called.
static ALLEGRO_BITMAP *	_select_state_bitmap (int state, ALLEGRO_BITMAP *normal_bmp, ALLEGRO_BITMAP *hover_bmp, ALLEGRO_BITMAP *active_bmp)
	helper: select per-state bitmap with fallback chain.
static void	_set_clipping_rect_transformed (int wx, int wy, int ww, int wh)
	helper: set clipping rectangle in world space, transforming to screen space.
static int	_shape_rounded (const N_GUI_STYLE *style, int widget_shape)
	resolve whether a shape-aware widget draws rounded: the global shape_mode override (style->shape_mode) wins when set to ROUNDED or RECT, otherwise the widget's own shape decides.
static int	_shorten_start (ALLEGRO_FONT *font, const char *text, float max_w, char *out, size_t out_len)
	helper: "..." followed by the shortest tail of text, cut between UTF-8 sequences, that fits max_w.
static float	_slider_handle_r (const N_GUI_WIDGET *wgt, const N_GUI_STYLE *style)
	Radius of a slider's handle, from the widget's short side.
static double	_slider_key_step (const N_GUI_SLIDER_DATA *sd)
	how far one arrow key press or one wheel notch moves a slider
static double	_slider_snap_value (double val, double min_val, double max_val, double step)
	helper: snap a slider value to the nearest valid step from min_val.
static void	_slider_travel (const N_GUI_WIDGET *wgt, const N_GUI_STYLE *style, float *start, float *length)
	The strip a slider's handle centre travels along, inset by its radius at each end.
static void	_slider_update_from_mouse (N_GUI_WIDGET *wgt, float mx, float my, float win_x, float win_content_y, const N_GUI_STYLE *style)
	handle slider drag (horizontal or vertical)
static void	_slider_value_text (const N_GUI_SLIDER_DATA *sd, double value, char *out, size_t out_len)
	draw a slider widget (horizontal or vertical)
static void	_sort_windows_by_zorder (N_GUI_CTX *ctx)
	Sort windows list by z-order: ALWAYS_BEHIND first, then FIXED (by z_value), then NORMAL, then ALWAYS_ON_TOP, then POPUP.
static int	_split_words (const char *text, ALLEGRO_FONT *font, int *starts, int *lens, float *widths, int max_words, int *nl_before)
	helper: split text into whitespace-separated words, recording each word's byte offset in text, its byte length and its pixel width.
static int	_splitpane_cursor_hover (N_GUI_CTX *ctx, float px, float py)
	report the split-pane divider under a point, for the mouse cursor shape: 0 = none, 1 = vertical divider (drags left/right), 2 = horizontal divider (drags up/down).
static int	_splitpane_hit (N_GUI_CTX *ctx, float px, float py)
	report the split pane whose divider band is under a point, or -1.
static int	_splitpane_on_divider (const N_GUI_WIDGET *wgt, float px, float py, float ax, float ay)
	forward declaration: test whether a point falls on a split pane's draggable divider band.
static void	_suggest_accept (N_GUI_CTX *ctx, N_GUI_WIDGET *wgt)
	put the highlighted completion in place of the word under the cursor
static void	_suggest_close (N_GUI_CTX *ctx, N_GUI_WIDGET *wgt)
	put the panel away, and forget which word it answered
static int	_suggest_handle_key (N_GUI_CTX *ctx, N_GUI_WIDGET *wgt, ALLEGRO_EVENT *ev)
	the keys a completion panel takes before the textarea sees them.
static int	_suggest_is_sep (const N_GUI_TEXTAREA_DATA *td, char c)
	is c one of the characters that end a word in this field
static int	_suggest_panel_rect (N_GUI_CTX *ctx, N_GUI_WIDGET *wgt, float *out_x, float *out_y, float *out_w, float *out_h, float *out_ih, int *out_vis)
	the geometry of an open completion panel, so the draw and the pointer agree about where its rows are.
static void	_suggest_refresh (N_GUI_CTX *ctx, N_GUI_WIDGET *wgt, int force)
	ask the provider about the word under the cursor, and open or close the panel by what it answers.
static void	_suggest_word (const N_GUI_TEXTAREA_DATA *td, size_t *start, size_t *end)
	the word the cursor is in.
static ALLEGRO_COLOR	_syntax_diff_add (void)
	unified diff line colours.
static ALLEGRO_COLOR	_syntax_diff_del (void)
	see _syntax_diff_add: colour of a removed line
static ALLEGRO_COLOR	_syntax_diff_hunk (void)
	see _syntax_diff_add: colour of a hunk header line
static void	_syntax_draw_line (ALLEGRO_FONT *font, N_GUI_THEME *th, float x, float y, const char *s, int n, int mode, int line_idx, int in_headers, float x_min, float x_max)
	draw one text line with mode-specific highlighting starting at (x,y), inside the horizontal window [x_min,x_max] (see SYNTAX_RUN)
static int	_syntax_js_keyword (const char *s, int n)
	whether the n bytes at s form a JavaScript keyword or literal name
static int	_syntax_js_regex_kw (const char *s, int n)
	whether the n bytes at s are a keyword after which an expression (and therefore a regex literal) can start, e.g.
static int	_syntax_js_regex_possible (char c)
	whether a '/' may start a regex literal after last significant char c (start of line, after an operator, an opener, or a separator)
static float	_syntax_prefix_w (ALLEGRO_FONT *font, const char *s, int n)
	forward declaration: pixel width of the first n bytes of a line.
static float	_syntax_prefix_w_lim (ALLEGRO_FONT *font, const char *s, int n, float limit)
	pixel width of the first n bytes of s in font, of any length: the measurement needs a NUL-terminated copy, so it accumulates over chunks of the same size _syntax_run draws in, which keeps the two in step.
static void	_syntax_run (SYNTAX_RUN *r, ALLEGRO_COLOR col, const char *s, int len)
	draw one coloured run of a syntax line and advance the pen past it.
static void	_syntaxview_clamp_h (N_GUI_SYNTAXVIEW_DATA *yd, float content_w, float pane_w)
	forward declaration: clamp a syntaxview's horizontal scroll to its content.
static void	_syntaxview_ensure_lines (N_GUI_SYNTAXVIEW_DATA *yd)
	forward declaration: (re)build a syntaxview's cached line count and headers-end index when stale.
static void	_syntaxview_ensure_width (N_GUI_SYNTAXVIEW_DATA *yd, ALLEGRO_FONT *font, const N_GUI_STYLE *style)
	forward declaration: (re)build a syntaxview's cached content width when stale.
static void	_syntaxview_hmetrics (const N_GUI_WIDGET *wgt, N_GUI_SYNTAXVIEW_DATA *yd, ALLEGRO_FONT *font, const N_GUI_STYLE *style, float *content_w, float *pane_w, int *need_hsb, int *visible)
	forward declaration: syntaxview horizontal-scroll metrics, shared by the draw path and every mouse handler.
static int	_syntaxview_offset_from_mouse (const N_GUI_SYNTAXVIEW_DATA *yd, ALLEGRO_FONT *font, float mx, float my, float ax, float ay, float pad)
	Map a mouse position over a syntax view to a byte offset into its text.
static float	_tb_btn_resolved_size (const N_GUI_WINDOW *win, const N_GUI_STYLE *style)
	return the effective titlebar button size (0 = auto from titlebar_h)
static void	_tb_button_action (N_GUI_CTX *ctx, N_GUI_WINDOW *win, int btn_type)
	Dispatch a titlebar button action, invoke the user callback if set, otherwise fall back to the built-in minimize / maximize / close behaviour.
static int	_tb_button_rect (const N_GUI_WINDOW *win, const N_GUI_STYLE *style, int btn_type, float *out_x, float *out_y, float *out_w, float *out_h)
	compute the absolute rect for a titlebar button.
static float	_tb_buttons_area_width (const N_GUI_WINDOW *win, const N_GUI_STYLE *style)
	compute the total width consumed by enabled titlebar buttons (0 if none/frameless)
static void	_text_dims (ALLEGRO_FONT *font, const char *text, int *x, int *y, int *w, int *h)
	helper: memoized al_get_text_dimensions (bounding box x/y/w/h).
static ALLEGRO_COLOR	_text_for_state (const N_GUI_THEME *t, int state)
static int	_text_line_count (const char *s)
	helper: destroy a single widget (called by list destructor)
static float	_text_w (ALLEGRO_FONT *font, const char *text)
	helper: get the advance width of text.
static void	_textarea_clear_selection (N_GUI_TEXTAREA_DATA *td)
	clear the selection (set both anchors to cursor_pos)
static float	_textarea_content_height (const N_GUI_TEXTAREA_DATA *td, ALLEGRO_FONT *font, float widget_w, float pad)
	helper: compute the total content height of multiline textarea text (with line-wrap), in pixels.
static int	_textarea_copy_to_clipboard (const N_GUI_TEXTAREA_DATA *td, ALLEGRO_DISPLAY *display)
	copy selected text to clipboard.
static void	_textarea_delete_selection (N_GUI_WIDGET *wgt)
	delete the currently selected text, move cursor to selection start
static int	_textarea_handle_key (N_GUI_WIDGET *wgt, ALLEGRO_EVENT *ev, ALLEGRO_FONT *font, float pad, float sb_size, N_GUI_CTX *ctx)
static int	_textarea_has_selection (const N_GUI_TEXTAREA_DATA *td)
	forward declaration: whether a text area has a non empty selection.
static void	_textarea_paste_clip (N_GUI_WIDGET *wgt, N_GUI_TEXTAREA_DATA *td, const char *clip)
	insert clipboard text at the cursor, replacing any selection.
static size_t	_textarea_pos_from_mouse (const N_GUI_TEXTAREA_DATA *td, ALLEGRO_FONT *font, float mx, float my, float ax, float ay, float widget_w, float widget_h, float pad, float scrollbar_size)
	helper: find the byte position in a textarea closest to the given mouse coordinates (mx, my in screen space).
static void	_textarea_sel_range (const N_GUI_TEXTAREA_DATA *td, size_t *lo, size_t *hi)
	get the ordered selection range (lo, hi)
static _N_GUI_TA_STEP	_textarea_step (const char *text, size_t len, size_t i, ALLEGRO_FONT *font, float cx, float wrap_limit, float line_x0)
	helper: decode, measure and wrap-test one character of textarea text.
static bool	_tooltip_line_cb (int line_num, const char *line, int size, void *extra)
	helper: al_do_multiline_text callback that just counts the wrapped lines.
static int	_tooltip_widget_at (N_GUI_CTX *ctx, float px, float py)
	helper: top-most visible tooltip-bearing widget under a gui-space point (-1 = none).
static N_GUI_WINDOW *	_topmost_window_at (const N_GUI_CTX *ctx, float px, float py)
	helper: the top-most open window of the current pass under a point, or NULL.
static void	_track_modifiers (N_GUI_CTX *ctx, const ALLEGRO_EVENT *event)
	follow the modifier keys through one event
static int	_utf8_char_len (unsigned char c)
	return the byte length of a UTF-8 character from its lead byte
static int	_utf8_encode (int cp, char *out)
	encode a Unicode code point into UTF-8, return the number of bytes written (0 on error)
static size_t	_utf8_step (unsigned char lead)
	helper: the length in bytes of the UTF-8 sequence led by lead, 1 for a byte that does not lead one.
static int	_widget_took_press (const N_GUI_WIDGET *wgt)
	helper: did the press just handled by wgt belong to it?
static void	_win_auto_sb_rects (N_GUI_WINDOW *win, ALLEGRO_FONT *font, float size, float v[4], float h[4])
	helper: where a window's automatic scrollbars are, in display coordinates.
static int	_win_on_pass (const N_GUI_CTX *ctx, const N_GUI_WINDOW *win)
	helper: whether a window takes part in the pass currently being processed or drawn.
static float	_win_tbh (const N_GUI_WINDOW *win)
	helper: effective title bar height (0 for frameless windows)
static void	_window_update_content_size (N_GUI_WINDOW *win, ALLEGRO_FONT *default_font)
	helper: recompute content extents for a window (for scrollbar support)
static void	_word_text (const char *text, int start, int len, char *out)
	helper: copy one word out of text into out (bounded by N_GUI_TEXT_MAX, which is also the widget text cap) and NUL-terminate it.
static int	_wrap_words (const float *word_widths, const int *nl_before, int nwords, float space_w, float max_w, int *line_first, unsigned char *para_end, int max_lines)
	helper: pack word widths into justified lines.
static void	_wrap_words_emit (size_t first, size_t last, size_t line, double width, void *user)
static int	_zorder_group (const N_GUI_WINDOW *w)
int	n_gui_add_button (N_GUI_CTX *ctx, int window_id, const char *label, float x, float y, float w, float h, int shape, void(*on_click)(int, void *), void *user_data)
	Add a button widget to a window.
int	n_gui_add_button_bitmap (N_GUI_CTX *ctx, int window_id, const char *label, float x, float y, float w, float h, ALLEGRO_BITMAP *normal, ALLEGRO_BITMAP *hover, ALLEGRO_BITMAP *active, void(*on_click)(int, void *), void *user_data)
	Add a bitmap-based button.
int	n_gui_add_checkbox (N_GUI_CTX *ctx, int window_id, const char *label, float x, float y, float w, float h, int initial_checked, void(*on_toggle)(int, int, void *), void *user_data)
	Add a checkbox widget.
int	n_gui_add_combobox (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, void(*on_select)(int, int, void *), void *user_data)
	Add a combo box widget (dropdown selector).
int	n_gui_add_custom (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, N_GUI_CUSTOM_DRAW draw, void *user_data)
	add an owner-draw custom widget; returns the widget id or -1
int	n_gui_add_datagrid (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, void(*on_select)(int, int, void *), void *user_data)
	Add a sortable data grid widget.
int	n_gui_add_dropmenu (N_GUI_CTX *ctx, int window_id, const char *label, float x, float y, float w, float h, void(*on_open)(int, void *), void *on_open_user_data)
	Add a dropdown menu widget.
int	n_gui_add_hexview (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h)
	Add a read-only hexadecimal byte viewer.
int	n_gui_add_image (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, ALLEGRO_BITMAP *bitmap, int scale_mode)
	Add an image display widget.
int	n_gui_add_label (N_GUI_CTX *ctx, int window_id, const char *text, float x, float y, float w, float h, int align)
	Add a static text label.
int	n_gui_add_label_link (N_GUI_CTX *ctx, int window_id, const char *text, const char *link, float x, float y, float w, float h, int align, void(*on_link_click)(int, const char *, void *), void *user_data)
	Add a static text label with hyperlink.
int	n_gui_add_listbox (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, int selection_mode, void(*on_select)(int, int, int, void *), void *user_data)
	Add a listbox widget.
int	n_gui_add_markdownview (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, const N_GUI_MD_FONTS *fonts)
	add a read-only scrolling Markdown view.
int	n_gui_add_progressbar (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h)
	add a horizontal progress bar (display only); returns the widget id or -1
int	n_gui_add_radiolist (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, void(*on_select)(int, int, void *), void *user_data)
	Add a radio list widget (single selection with radio bullets).
int	n_gui_add_scrollbar (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, int orientation, int shape, double content_size, double viewport_size, void(*on_scroll)(int, double, void *), void *user_data)
	Add a scrollbar widget.
int	n_gui_add_slider (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, double min_val, double max_val, double initial, int mode, void(*on_change)(int, double, void *), void *user_data)
	Add a slider widget.
int	n_gui_add_splitpane (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, int orientation, float ratio, void(*on_change)(int, float, void *), void *user_data)
	Add a split pane widget: a draggable divider between two regions.
int	n_gui_add_syntaxview (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, int mode)
	Add a read-only syntax-highlighted text view.
int	n_gui_add_textarea (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, int multiline, size_t char_limit, void(*on_change)(int, const char *, void *), void *user_data)
	Add a text area widget.
int	n_gui_add_toggle_button (N_GUI_CTX *ctx, int window_id, const char *label, float x, float y, float w, float h, int shape, int initial_state, void(*on_click)(int, void *), void *user_data)
	Add a toggle button widget (stays clicked/unclicked on single click).
int	n_gui_add_vslider (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, double min_val, double max_val, double initial, int mode, void(*on_change)(int, double, void *), void *user_data)
	Add a vertical slider widget.
int	n_gui_add_window (N_GUI_CTX *ctx, const char *title, float x, float y, float w, float h)
	Add a new pseudo-window to the context.
int	n_gui_add_window_auto (N_GUI_CTX *ctx, const char *title, float x, float y)
	Add a window with automatic sizing (use n_gui_window_autosize after adding widgets).
void	n_gui_apply_adaptive_resize (N_GUI_CTX *ctx, float new_w, float new_h)
	Apply adaptive resize: reposition/resize all windows according to their policies for the new display dimensions.
int	n_gui_button_get_glyph (N_GUI_CTX *ctx, int widget_id)
	Get the glyph currently drawn on a button.
const char *	n_gui_button_get_label (N_GUI_CTX *ctx, int widget_id)
	What a button says.
int	n_gui_button_is_toggled (N_GUI_CTX *ctx, int widget_id)
	Check if a toggle button is currently in the "on" state.
void	n_gui_button_set_glyph (N_GUI_CTX *ctx, int widget_id, int glyph)
	Draw a glyph on a button instead of its text label.
void	n_gui_button_set_keycode (N_GUI_CTX *ctx, int widget_id, int keycode, int modifiers)
	Bind a keyboard key with optional modifier requirements to a button.
void	n_gui_button_set_keycode_focused (N_GUI_CTX *ctx, int widget_id, int keycode, int modifiers, const int *sources, int source_count)
	Set a focused key binding on a button.
void	n_gui_button_set_label (N_GUI_CTX *ctx, int widget_id, const char *label)
	Replace the label text drawn on a button.
void	n_gui_button_set_state_bitmaps (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *normal, ALLEGRO_BITMAP *hover, ALLEGRO_BITMAP *active)
	Skin a button (or toggle button) with per-state bitmaps.
void	n_gui_button_set_toggle_mode (N_GUI_CTX *ctx, int widget_id, int toggle_mode)
	Enable or disable toggle mode on a button.
void	n_gui_button_set_toggled (N_GUI_CTX *ctx, int widget_id, int toggled)
	Set the toggle state of a button.
const char *	n_gui_checkbox_get_label (N_GUI_CTX *ctx, int widget_id)
	What a checkbox says.
int	n_gui_checkbox_is_checked (N_GUI_CTX *ctx, int widget_id)
	check if a checkbox widget is checked
void	n_gui_checkbox_set_bitmaps (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *box, ALLEGRO_BITMAP *box_checked, ALLEGRO_BITMAP *box_hover)
	Set optional bitmap overlays on a checkbox widget.
void	n_gui_checkbox_set_checked (N_GUI_CTX *ctx, int widget_id, int checked)
	set the checked state of a checkbox widget
void	n_gui_checkbox_set_label (N_GUI_CTX *ctx, int widget_id, const char *label)
	Replace the text drawn beside a checkbox.
void	n_gui_close_menus (N_GUI_CTX *ctx)
	Put away any open combo box list or drop menu panel.
void	n_gui_close_window (N_GUI_CTX *ctx, int window_id)
	Close (hide) a window.
int	n_gui_combobox_add_item (N_GUI_CTX *ctx, int widget_id, const char *text)
	add an item to a combo box
void	n_gui_combobox_clear (N_GUI_CTX *ctx, int widget_id)
	remove all items from a combobox widget
int	n_gui_combobox_get_count (N_GUI_CTX *ctx, int widget_id)
	get the number of items in a combobox widget
const char *	n_gui_combobox_get_item_text (N_GUI_CTX *ctx, int widget_id, int index)
	get the text of the combobox item at index ("" if out of range / not a combobox)
int	n_gui_combobox_get_selected (N_GUI_CTX *ctx, int widget_id)
	get the selected item index in a combobox widget
int	n_gui_combobox_remove_item (N_GUI_CTX *ctx, int widget_id, int index)
	remove an item from a combobox widget
void	n_gui_combobox_set_bitmaps (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *bg, ALLEGRO_BITMAP *item_bg, ALLEGRO_BITMAP *item_selected)
	Set optional bitmap overlays on a combobox widget.
void	n_gui_combobox_set_flags (N_GUI_CTX *ctx, int widget_id, int flags)
	Set combobox feature flags.
void	n_gui_combobox_set_selected (N_GUI_CTX *ctx, int widget_id, int index)
	set the selected item in a combobox widget
int	n_gui_count_detached (N_GUI_CTX *ctx)
	Count the windows currently detached into native OS windows.
void	n_gui_custom_set_destroy (N_GUI_CTX *ctx, int widget_id, void(*destroy)(void *user_data))
	hand a custom widget's paint user pointer to the widget
void	n_gui_custom_set_mouse (N_GUI_CTX *ctx, int widget_id, N_GUI_CUSTOM_MOUSE on_mouse, void *user_data)
	give a custom widget mouse input
int	n_gui_datagrid_add_column (N_GUI_CTX *ctx, int widget_id, const char *title, float width)
	append a column with a header title and pixel width; returns the column index or -1
int	n_gui_datagrid_add_row (N_GUI_CTX *ctx, int widget_id, const char **values)
	append a row of cell strings (values must have one entry per column); returns the row index or -1
void	n_gui_datagrid_clear_row_color (N_GUI_CTX *ctx, int widget_id, int row)
	remove the background tint of data row row (it draws untinted again)
void	n_gui_datagrid_clear_row_colors (N_GUI_CTX *ctx, int widget_id)
	remove every row background tint (the rows and cells are kept)
void	n_gui_datagrid_clear_rows (N_GUI_CTX *ctx, int widget_id)
	remove all rows from a data grid (columns are kept)
void	n_gui_datagrid_clear_selection (N_GUI_CTX *ctx, int widget_id)
	clear the entire selection (no row selected)
float	n_gui_datagrid_columns_width (N_GUI_CTX *ctx, int widget_id)
	horizontal scroll offset in pixels (how far the columns are scrolled left when their total width exceeds the widget's pane), or 0.
int	n_gui_datagrid_display_to_physical (N_GUI_CTX *ctx, int widget_id, int display_pos)
	physical column shown at display position display_pos, or -1 if out of range
const char *	n_gui_datagrid_get_cell (N_GUI_CTX *ctx, int widget_id, int row, int col)
	get a cell string by row and column, or NULL if out of range
size_t	n_gui_datagrid_get_column_count (N_GUI_CTX *ctx, int widget_id)
	number of columns in a data grid (physical), or 0
const char *	n_gui_datagrid_get_column_title (N_GUI_CTX *ctx, int widget_id, int col)
	header title of physical column col, or "" if out of range
int	n_gui_datagrid_get_column_visible (N_GUI_CTX *ctx, int widget_id, int col)
	whether physical column col is visible (1) or hidden (0); 0 if out of range
float	n_gui_datagrid_get_column_width (N_GUI_CTX *ctx, int widget_id, int col)
	current pixel width of physical column col, or 0 if out of range
float	n_gui_datagrid_get_h_scroll (N_GUI_CTX *ctx, int widget_id)
int	n_gui_datagrid_get_row_color (N_GUI_CTX *ctx, int widget_id, int row, ALLEGRO_COLOR *out)
	report whether data row row carries a background tint (1) or not (0), and copy the tint into out when it does.
int	n_gui_datagrid_get_row_count (N_GUI_CTX *ctx, int widget_id)
	get the number of rows in a data grid
int	n_gui_datagrid_get_scroll_offset (N_GUI_CTX *ctx, int widget_id)
	first visible data row (the vertical scroll position), or 0.
int	n_gui_datagrid_get_selected (N_GUI_CTX *ctx, int widget_id)
	get the selected row index, or -1 if none
size_t	n_gui_datagrid_get_selected_rows (N_GUI_CTX *ctx, int widget_id, int *out, size_t max)
	fill out with the indices of the selected rows (ascending), up to max, and return the total number of selected rows.
int	n_gui_datagrid_get_sort (N_GUI_CTX *ctx, int widget_id, int *col, int *dir)
	read back the sort a datagrid is currently showing.
int	n_gui_datagrid_is_row_selected (N_GUI_CTX *ctx, int widget_id, int row)
	report whether a given data row is selected (1) or not (0)
void	n_gui_datagrid_move_column (N_GUI_CTX *ctx, int widget_id, int from, int to)
	move the column at display position from to display position to, shifting the columns in between (reorders how columns are laid out; the cells and physical indices are unchanged)
void	n_gui_datagrid_select_row (N_GUI_CTX *ctx, int widget_id, int row, int selected)
	select (1) or deselect (0) a single row in a multi-select grid programmatically (e.g.
void	n_gui_datagrid_set_column_visible (N_GUI_CTX *ctx, int widget_id, int col, int visible)
	show (1) or hide (0) physical column col; hidden columns keep their cells but are skipped in the header and rows and closed up so no gap remains
void	n_gui_datagrid_set_column_width (N_GUI_CTX *ctx, int widget_id, int col, float width)
	set the pixel width of physical column col (clamped to a small minimum)
void	n_gui_datagrid_set_h_scroll (N_GUI_CTX *ctx, int widget_id, float px)
	set the horizontal scroll offset in pixels (clamped to >= 0; the draw path re-clamps to the live content width each frame, so a stale value after a rebuild is harmless).
void	n_gui_datagrid_set_multiselect (N_GUI_CTX *ctx, int widget_id, int enabled)
	enable (1) or disable (0) multi-row selection.
void	n_gui_datagrid_set_on_columns_changed (N_GUI_CTX *ctx, int widget_id, void(*cb)(int, void *))
	set the callback fired after the user drags a column border to resize it, so the host can persist the layout.
void	n_gui_datagrid_set_on_context (N_GUI_CTX *ctx, int widget_id, void(*on_context)(int, int, int, int, void *))
	set the right-click context callback; fired (with the cursor x/y in GUI coordinates) when a data row is right-clicked, after selecting that row.
void	n_gui_datagrid_set_row_color (N_GUI_CTX *ctx, int widget_id, int row, ALLEGRO_COLOR color)
	paint data row row with a background tint (a per-row highlight, e.g.
void	n_gui_datagrid_set_scroll_offset (N_GUI_CTX *ctx, int widget_id, int offset)
	set the first visible data row (clamped to the row count); the draw path re-clamps to the live viewport each frame, so a stale offset after a rebuild is harmless.
void	n_gui_datagrid_set_selected (N_GUI_CTX *ctx, int widget_id, int row)
	set the selected row index (fires the on_select callback).
void	n_gui_datagrid_sort (N_GUI_CTX *ctx, int widget_id, int col, int dir)
	sort the rows by a column (dir 1 ascending, -1 descending)
N_GUI_STYLE	n_gui_default_style (void)
	Build sensible default style (all configurable sizes, colours, paddings).
N_GUI_THEME	n_gui_default_tb_btn_theme (void)
	Build a default theme for titlebar minimize/maximize buttons.
N_GUI_THEME	n_gui_default_tb_close_theme (void)
	Build a default theme for the titlebar close button.
N_GUI_THEME	n_gui_default_theme (void)
	Build a sensible default colour theme.
void	n_gui_destroy_ctx (N_GUI_CTX **ctx)
	Destroy a GUI context and all its windows/widgets.
float	n_gui_detect_dpi_scale (N_GUI_CTX *ctx, ALLEGRO_DISPLAY *display)
	Detect and apply DPI scale from an Allegro display.
int	n_gui_double_clicked_widget (const N_GUI_CTX *ctx)
	id of the widget the primary press just processed double clicked
void	n_gui_draw (N_GUI_CTX *ctx)
	draw all visible GUI windows and widgets
void	n_gui_draw_detached (N_GUI_CTX *ctx)
	Render and flip every detached window, and release the ones whose native window was closed.
int	n_gui_dropmenu_add_dynamic_entry (N_GUI_CTX *ctx, int widget_id, const char *text, int tag, void(*on_click)(int, int, int, void *), void *user_data)
	Add a dynamic entry (rebuilt each time menu opens).
int	n_gui_dropmenu_add_entry (N_GUI_CTX *ctx, int widget_id, const char *text, int tag, void(*on_click)(int, int, int, void *), void *user_data)
	Add a static entry to a dropdown menu.
void	n_gui_dropmenu_clear (N_GUI_CTX *ctx, int widget_id)
	Remove all entries from a dropdown menu.
void	n_gui_dropmenu_clear_dynamic (N_GUI_CTX *ctx, int widget_id)
	Remove all dynamic entries (keep static ones).
int	n_gui_dropmenu_get_count (N_GUI_CTX *ctx, int widget_id)
	Get number of entries in a dropdown menu.
int	n_gui_dropmenu_is_open (N_GUI_CTX *ctx, int widget_id)
	Is a dropdown menu's panel showing.
float	n_gui_dropmenu_panel_width (N_GUI_CTX *ctx, int widget_id)
	Width the open drop-down panel needs to show its entries.
void	n_gui_dropmenu_set_bitmaps (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *panel, ALLEGRO_BITMAP *item_hover)
	Set optional bitmap overlays on a dropmenu widget.
void	n_gui_dropmenu_set_entry_text (N_GUI_CTX *ctx, int widget_id, int index, const char *text)
	Update text of an existing entry.
void	n_gui_dropmenu_set_flags (N_GUI_CTX *ctx, int widget_id, int flags)
	Set dropmenu feature flags (bitmask of N_GUI_DROPMENU_* values).
void	n_gui_dropmenu_set_label (N_GUI_CTX *ctx, int widget_id, const char *label)
	Replace the button label shown on a dropmenu.
int	n_gui_dropmenu_set_open (N_GUI_CTX *ctx, int widget_id, int open)
	Open or close a dropdown menu without a click on its button.
int	n_gui_focus_takes_key (const N_GUI_CTX *ctx, int keycode)
	Would the focused widget do something with this particular key.
void	n_gui_focus_window (N_GUI_CTX *ctx, int window_id)
	Give a window keyboard focus and bring it to the front.
int	n_gui_get_cursor (N_GUI_CTX *ctx, ALLEGRO_MOUSE_CURSOR **custom)
	The cursor the GUI last applied to the display.
float	n_gui_get_dpi_scale (const N_GUI_CTX *ctx)
	Get current DPI scale factor.
ALLEGRO_EVENT_QUEUE *	n_gui_get_event_queue (N_GUI_CTX *ctx)
	Get the event queue previously given to n_gui_set_event_queue.
int	n_gui_get_focus (const N_GUI_CTX *ctx)
	Which widget has the keyboard, or -1 when none has.
int	n_gui_get_key_modifiers (const N_GUI_CTX *ctx)
	the modifier keys held down now, as the GUI has seen them
int	n_gui_get_resize_mode (N_GUI_CTX *ctx)
	Get current resize mode.
int	n_gui_get_shape_mode (N_GUI_CTX *ctx)
	Get the global widget shape.
N_GUI_TEXT_DIMS	n_gui_get_text_dims (ALLEGRO_FONT *font, const char *text)
	get the bounding box dimensions of text rendered with the given font.
int	n_gui_get_topmost_open_window (const N_GUI_CTX *ctx)
	Get the id of the frontmost open, non-minimized window.
N_GUI_WIDGET *	n_gui_get_widget (N_GUI_CTX *ctx, int widget_id)
	Get a widget pointer by id.
N_GUI_WINDOW *	n_gui_get_window (N_GUI_CTX *ctx, int window_id)
	Get a window pointer by id.
size_t	n_gui_hexview_get_cursor (N_GUI_CTX *ctx, int widget_id)
	the byte offset the edit cursor sits on
const unsigned char *	n_gui_hexview_get_data (N_GUI_CTX *ctx, int widget_id, size_t *len)
	borrow the bytes a hex view holds
size_t	n_gui_hexview_get_length (N_GUI_CTX *ctx, int widget_id)
	get the number of bytes currently held by a hex viewer
void	n_gui_hexview_set_cursor (N_GUI_CTX *ctx, int widget_id, size_t offset)
	move the edit cursor to a byte offset
void	n_gui_hexview_set_data (N_GUI_CTX *ctx, int widget_id, const unsigned char *data, size_t len)
	set (copy) the bytes shown by a hex viewer
void	n_gui_hexview_set_editable (N_GUI_CTX *ctx, int widget_id, int editable)
	make a hex view editable, or read-only again
void	n_gui_hexview_set_on_change (N_GUI_CTX *ctx, int widget_id, void(*on_change)(int, const unsigned char *, size_t, void *), void *user_data)
	set the callback fired after each edit
int	n_gui_hovered_widget (const N_GUI_CTX *ctx)
	Id of the widget currently under the mouse pointer, or -1.
void	n_gui_image_set_bitmap (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *bitmap)
	set the bitmap of an image widget
int	n_gui_is_widget_enabled (N_GUI_CTX *ctx, int widget_id)
	Check if a widget is enabled.
int	n_gui_kvtable_add_row (N_GUI_KVTABLE *table, const char *key, const char *value, const char *description, int enabled)
	add a row to the KV table
void	n_gui_kvtable_clear (N_GUI_KVTABLE *table)
	remove every row at once.
N_GUI_KVTABLE *	n_gui_kvtable_create (N_GUI_CTX *ctx, int window_id, float row_height, float padding, void(*on_remove)(int, void *), void *user_data)
	create a KV table in an existing window
int	n_gui_kvtable_duplicate_row (N_GUI_KVTABLE *table, int row_index)
	Insert a copy of a row directly after it.
void	n_gui_kvtable_free (N_GUI_KVTABLE **table)
	free a KV table (does not destroy the N_GUI widgets)
int	n_gui_kvtable_get_count (const N_GUI_KVTABLE *table)
	get the number of active rows
int	n_gui_kvtable_move_row (N_GUI_KVTABLE *table, int row_index, int direction)
	Move a row one position up or down among the active rows.
void	n_gui_kvtable_relayout (N_GUI_KVTABLE *table)
	re-apply layout to all KV table widgets (positions, sizes, normalized coords).
void	n_gui_kvtable_remove_row (N_GUI_KVTABLE *table, int row_index)
	remove a row by index (hides widgets, marks inactive)
void	n_gui_kvtable_set_columns (N_GUI_KVTABLE *table, int show_value, int show_desc, int show_enabled)
	choose which optional columns are shown: Value, Description, and the enabled checkbox.
void	n_gui_kvtable_set_placeholders (N_GUI_KVTABLE *table, const char *key_hint, const char *value_hint)
	set the placeholder/hint text shown in each row's key (and value) textarea while it is empty.
void	n_gui_kvtable_set_row_actions (N_GUI_KVTABLE *table, int enabled)
	Show or hide the per-row move-up / move-down / duplicate buttons.
void	n_gui_kvtable_set_top_offset (N_GUI_KVTABLE *table, float top_offset)
	reserve top_offset unscaled pixels above the header row so other widgets (a toolbar, a heading) can share the table's window without overlapping it.
int	n_gui_label_fits (N_GUI_CTX *ctx, int widget_id, float *needed_w, float *needed_h)
	Report whether a label's text is drawn in full inside its own widget box.
const char *	n_gui_label_get_text (N_GUI_CTX *ctx, int widget_id)
	What a label says now.
int	n_gui_label_get_truncate (N_GUI_CTX *ctx, int widget_id)
	a label's truncate mode
void	n_gui_label_set_bitmap (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *bg)
	Set optional background bitmap on a label widget.
void	n_gui_label_set_link (N_GUI_CTX *ctx, int widget_id, const char *link)
	set the link URL of a label widget
void	n_gui_label_set_text (N_GUI_CTX *ctx, int widget_id, const char *text)
	set label text content
void	n_gui_label_set_truncate (N_GUI_CTX *ctx, int widget_id, int mode)
	set the text of a label widget
int	n_gui_listbox_add_item (N_GUI_CTX *ctx, int widget_id, const char *text)
	add an item to a listbox widget
void	n_gui_listbox_clear (N_GUI_CTX *ctx, int widget_id)
	remove all items from a listbox widget
float	n_gui_listbox_content_width (N_GUI_CTX *ctx, int widget_id)
	width the widest item of a listbox needs to be drawn in full
int	n_gui_listbox_get_count (N_GUI_CTX *ctx, int widget_id)
	get the number of items in a listbox widget
float	n_gui_listbox_get_h_scroll (N_GUI_CTX *ctx, int widget_id)
	get a listbox's horizontal scroll offset in pixels (0 = leftmost)
const char *	n_gui_listbox_get_item_text (N_GUI_CTX *ctx, int widget_id, int index)
	get the text of a listbox item
int	n_gui_listbox_get_scroll_offset (N_GUI_CTX *ctx, int widget_id)
	get the current scroll offset (in items)
int	n_gui_listbox_get_selected (N_GUI_CTX *ctx, int widget_id)
	get the index of the first selected item in a listbox
int	n_gui_listbox_is_selected (N_GUI_CTX *ctx, int widget_id, int index)
	check if a listbox item is selected
int	n_gui_listbox_remove_item (N_GUI_CTX *ctx, int widget_id, int index)
	remove an item from a listbox widget
void	n_gui_listbox_set_bitmaps (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *bg, ALLEGRO_BITMAP *item_bg, ALLEGRO_BITMAP *item_selected)
	Set optional bitmap overlays on a listbox widget.
void	n_gui_listbox_set_h_scroll (N_GUI_CTX *ctx, int widget_id, float px)
	set a listbox's horizontal scroll offset in pixels
void	n_gui_listbox_set_scroll_offset (N_GUI_CTX *ctx, int widget_id, int offset)
	set the scroll offset (in items), clamps to valid range
void	n_gui_listbox_set_selected (N_GUI_CTX *ctx, int widget_id, int index, int selected)
	set the selection state of a listbox item
int	n_gui_load_layout_json (N_GUI_CTX *ctx, const char *filepath)
	load a JSON window layout file and apply it to matching windows
int	n_gui_load_theme_json (N_GUI_CTX *ctx, const char *filepath)
	load a theme and style from a JSON file
void	n_gui_lower_window (N_GUI_CTX *ctx, int window_id)
	Lower a window to the bottom of the draw order.
N_GUI_THEME	n_gui_make_theme (ALLEGRO_COLOR bg, ALLEGRO_COLOR bg_hover, ALLEGRO_COLOR bg_active, ALLEGRO_COLOR border, ALLEGRO_COLOR border_hover, ALLEGRO_COLOR border_active, ALLEGRO_COLOR text, ALLEGRO_COLOR text_hover, ALLEGRO_COLOR text_active, float border_thickness, float corner_rx, float corner_ry)
	Create a custom theme with explicit colours.
void	n_gui_mark_dirty (N_GUI_CTX *ctx)
	Mark the GUI as needing a redraw.
float	n_gui_markdownview_content_height (N_GUI_CTX *ctx, int widget_id)
	the height of the whole document at the width it was last drawn at, or 0 before the first draw
float	n_gui_markdownview_get_scroll (N_GUI_CTX *ctx, int widget_id)
	how far down the content the view is, in pixels
const char *	n_gui_markdownview_get_text (N_GUI_CTX *ctx, int widget_id)
	the Markdown source, owned by the widget, or NULL
void	n_gui_markdownview_scroll_to (N_GUI_CTX *ctx, int widget_id, float y)
	scroll to y pixels down the content, clamped to what there is
void	n_gui_markdownview_set_fonts (N_GUI_CTX *ctx, int widget_id, const N_GUI_MD_FONTS *fonts)
	replace the faces; the new ones are borrowed on the same terms
void	n_gui_markdownview_set_on_link (N_GUI_CTX *ctx, int widget_id, void(*on_link)(int widget_id, const char *url, void *user_data), void *user_data)
	call on_link when a link in the view is clicked (NULL to stop).
void	n_gui_markdownview_set_text (N_GUI_CTX *ctx, int widget_id, const char *text)
	set the Markdown source (copied; NULL clears it).
N_GUI_MD_STYLE *	n_gui_markdownview_style (N_GUI_CTX *ctx, int widget_id)
	the view's style, to read or to change in place, or NULL if there is no such widget.
void	n_gui_maximize_window (N_GUI_CTX *ctx, int window_id)
	Toggle maximised state (full display or restore to previous size).
int	n_gui_menu_is_open (const N_GUI_CTX *ctx)
	Is a combo box's list or a drop menu's panel currently open.
void	n_gui_minimize_window (N_GUI_CTX *ctx, int window_id)
	Minimise a window (show title bar only).
int	n_gui_needs_redraw (N_GUI_CTX *ctx)
	Return non-zero if the GUI must be redrawn this frame, i.e.
N_GUI_CTX *	n_gui_new_ctx (ALLEGRO_FONT *default_font)
	Create a new GUI context.
void	n_gui_open_window (N_GUI_CTX *ctx, int window_id)
	Open (show) a window.
int	n_gui_process_event (N_GUI_CTX *ctx, ALLEGRO_EVENT event)
	Process an allegro event through the GUI system.
float	n_gui_progressbar_get_value (N_GUI_CTX *ctx, int widget_id)
	get the current progress fraction (0.0 on an invalid widget)
void	n_gui_progressbar_set_text (N_GUI_CTX *ctx, int widget_id, const char *text)
	set the centered overlay text (NULL or "" clears it)
void	n_gui_progressbar_set_value (N_GUI_CTX *ctx, int widget_id, float value)
	set the progress fraction (clamped to 0.0 .
int	n_gui_radiolist_add_item (N_GUI_CTX *ctx, int widget_id, const char *text)
	add an item to a radiolist widget
void	n_gui_radiolist_clear (N_GUI_CTX *ctx, int widget_id)
	remove all items from a radiolist widget
int	n_gui_radiolist_get_selected (N_GUI_CTX *ctx, int widget_id)
	get the selected item index in a radiolist widget
void	n_gui_radiolist_set_bitmaps (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *bg, ALLEGRO_BITMAP *item_bg, ALLEGRO_BITMAP *item_selected)
	Set optional bitmap overlays on a radiolist widget.
void	n_gui_radiolist_set_selected (N_GUI_CTX *ctx, int widget_id, int index)
	set the selected item in a radiolist widget
void	n_gui_raise_window (N_GUI_CTX *ctx, int window_id)
	Bring a window to the front (top of draw order).
void	n_gui_reset_all_widget_themes (N_GUI_CTX *ctx)
	Reset all widget and window themes to ctx->default_theme.
void	n_gui_restore_window (N_GUI_CTX *ctx, int window_id)
	Restore a minimised window to its full size.
int	n_gui_save_layout_json (N_GUI_CTX *ctx, const char *filepath)
	save the geometry + persistent state of every window to a JSON file
int	n_gui_save_theme_json (N_GUI_CTX *ctx, const char *filepath)
	save the current theme and style to a JSON file
void	n_gui_screen_to_virtual (const N_GUI_CTX *ctx, float sx, float sy, float *vx, float *vy)
	Convert physical screen coordinates to virtual canvas coordinates.
double	n_gui_scrollbar_get_pos (N_GUI_CTX *ctx, int widget_id)
	get the current scroll position of a scrollbar widget
void	n_gui_scrollbar_set_bitmaps (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *track, ALLEGRO_BITMAP *thumb, ALLEGRO_BITMAP *thumb_hover, ALLEGRO_BITMAP *thumb_active)
	Set optional bitmap overlays on a scrollbar widget.
void	n_gui_scrollbar_set_pos (N_GUI_CTX *ctx, int widget_id, double pos)
	set the scroll position of a scrollbar widget
void	n_gui_scrollbar_set_sizes (N_GUI_CTX *ctx, int widget_id, double content_size, double viewport_size)
	set the content and viewport sizes of a scrollbar widget
void	n_gui_scrollbar_set_wheel_step (N_GUI_CTX *ctx, int widget_id, double step)
	set how far one wheel notch moves a scrollbar
int	n_gui_sectionlist_add_section (N_GUI_SECTIONLIST *sl, const char *title, float header_y, int folded)
	add a section with a header button at header_y (members added next are captured relative to it); returns the section index or -1
int	n_gui_sectionlist_add_widget (N_GUI_SECTIONLIST *sl, int section_index, int widget_id)
	register an existing widget as a member of a section (captures its current y as the fold offset).
float	n_gui_sectionlist_content_height (const N_GUI_SECTIONLIST *sl)
	total content height in pixels under the current fold state, for sizing/scrolling the host window
N_GUI_SECTIONLIST *	n_gui_sectionlist_create (N_GUI_CTX *ctx, int window_id, float x, float y0, float width, float header_h, float gap, void(*on_toggle)(int, int, void *), void *user_data)
	create an empty section list anchored at (x,y0) in window_id; sections stack downward from y0
void	n_gui_sectionlist_free (N_GUI_SECTIONLIST **sl)
	free the section list (does not destroy the N_GUI widgets or window)
int	n_gui_sectionlist_get_count (const N_GUI_SECTIONLIST *sl)
	number of sections in the list
int	n_gui_sectionlist_get_order (const N_GUI_SECTIONLIST *sl, int position)
	The section stacked at a position.
int	n_gui_sectionlist_is_folded (const N_GUI_SECTIONLIST *sl, int section_index)
	query a section's folded state (1 = folded, 0 = expanded)
int	n_gui_sectionlist_is_section_hidden (const N_GUI_SECTIONLIST *sl, int section_index)
	Is a section left out of the stack.
void	n_gui_sectionlist_relayout (N_GUI_SECTIONLIST *sl)
	re-stack all sections from y0 by current fold state: hide folded members, show and reposition expanded ones
void	n_gui_sectionlist_set_first_inset (N_GUI_SECTIONLIST *sl, float inset)
	set a left inset applied to the FIRST section's header only, so a caller can place a button before it on the same row; relayout re-applies it
void	n_gui_sectionlist_set_folded (N_GUI_SECTIONLIST *sl, int section_index, int folded)
	set a section's folded state and relayout; does NOT fire on_toggle (for programmatic restore)
void	n_gui_sectionlist_set_geometry (N_GUI_SECTIONLIST *sl, float x, float y0, float width, float header_h, float gap)
	restate where the list stacks from, how wide its headers are and the two heights it stacks with, for a caller whose window is resized or whose interface scale changes after the list was made.
void	n_gui_sectionlist_set_order (N_GUI_SECTIONLIST *sl, const int *order, int count)
	Stack the sections in another order.
void	n_gui_sectionlist_set_section_hidden (N_GUI_SECTIONLIST *sl, int section_index, int hidden)
	Leave a whole section out of the stack, header and members, or put it back.
void	n_gui_sectionlist_set_widget_hidden (N_GUI_SECTIONLIST *sl, int section_index, int widget_id, int hidden)
	keep a member hidden whatever the fold state, and leave it out of the section's height.
void	n_gui_sectionlist_set_widget_offset (N_GUI_SECTIONLIST *sl, int section_index, int widget_id, float dy)
	state a member's y offset from the section's content top, for a caller that computes its own layout and recomputes it when the window is resized.
void	n_gui_set_cursor (N_GUI_CTX *ctx, int system_shape, ALLEGRO_MOUSE_CURSOR *custom)
	Say which mouse cursor the application wants.
int	n_gui_set_default_font (N_GUI_CTX *ctx, ALLEGRO_FONT *font)
	Replace the context's default font, keeping every widget and its state.
void	n_gui_set_default_theme (N_GUI_CTX *ctx, N_GUI_THEME theme)
	Set the default theme on a context and sync scrollbar style colors.
void	n_gui_set_display (N_GUI_CTX *ctx, ALLEGRO_DISPLAY *display)
	Set the display pointer for clipboard operations (copy/paste).
void	n_gui_set_display_size (N_GUI_CTX *ctx, float w, float h)
	set the display (viewport) size so global scrollbars can be computed.
void	n_gui_set_double_click_radius (N_GUI_CTX *ctx, int pixels)
	set how far the pointer may move between the two presses
void	n_gui_set_double_click_time (N_GUI_CTX *ctx, double seconds)
	set how long after a press a second one still counts as a double click
void	n_gui_set_dpi_scale (N_GUI_CTX *ctx, float scale)
	Set DPI scale factor manually (default 1.0).
void	n_gui_set_event_queue (N_GUI_CTX *ctx, ALLEGRO_EVENT_QUEUE *queue)
	Set the event queue used to register native window event sources.
void	n_gui_set_focus (N_GUI_CTX *ctx, int widget_id)
	Set keyboard focus to a specific widget.
void	n_gui_set_resize_mode (N_GUI_CTX *ctx, int mode)
	Set context-level resize mode: N_GUI_RESIZE_VIRTUAL (default) or N_GUI_RESIZE_ADAPTIVE.
void	n_gui_set_shape_mode (N_GUI_CTX *ctx, int shape_mode)
	Set the global widget shape (round or square GUI).
void	n_gui_set_virtual_size (N_GUI_CTX *ctx, float w, float h)
	Set the virtual canvas size for resolution-independent scaling.
void	n_gui_set_widget_enabled (N_GUI_CTX *ctx, int widget_id, int enabled)
	Enable or disable a widget.
void	n_gui_set_widget_theme (N_GUI_CTX *ctx, int widget_id, N_GUI_THEME theme)
	Override the theme of a specific widget.
void	n_gui_set_widget_tooltip (N_GUI_CTX *ctx, int widget_id, const char *text)
	Set (or clear) the tooltip text of any widget.
void	n_gui_set_widget_visible (N_GUI_CTX *ctx, int widget_id, int visible)
	Show or hide a widget.
int	n_gui_slider_get_default (N_GUI_CTX *ctx, int widget_id, double *value)
	read a slider's default
double	n_gui_slider_get_key_step (N_GUI_CTX *ctx, int widget_id)
	get the arrow key and wheel increment a slider actually uses
double	n_gui_slider_get_value (N_GUI_CTX *ctx, int widget_id)
	get the current value of a slider widget
int	n_gui_slider_handle_pos (N_GUI_CTX *ctx, int widget_id, float *pos, float *radius)
	Where a slider's handle is drawn and how big it is.
void	n_gui_slider_set_bitmaps (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *track, ALLEGRO_BITMAP *fill, ALLEGRO_BITMAP *handle, ALLEGRO_BITMAP *handle_hover, ALLEGRO_BITMAP *handle_active)
	Set optional bitmap overlays on a slider widget.
void	n_gui_slider_set_default (N_GUI_CTX *ctx, int widget_id, double value)
	give a slider the value a double click on it puts back
void	n_gui_slider_set_key_step (N_GUI_CTX *ctx, int widget_id, double step)
	set how far one arrow key press or wheel notch moves a slider
void	n_gui_slider_set_range (N_GUI_CTX *ctx, int widget_id, double min_val, double max_val)
	set slider min/max range, clamping the current value if needed
void	n_gui_slider_set_step (N_GUI_CTX *ctx, int widget_id, double step)
	set slider step increment.
void	n_gui_slider_set_value (N_GUI_CTX *ctx, int widget_id, double value)
	set the value of a slider widget
void	n_gui_slider_set_value_format (N_GUI_CTX *ctx, int widget_id, const char *fmt)
	Override the built-in value readout's printf format string.
void	n_gui_slider_set_value_visible (N_GUI_CTX *ctx, int widget_id, int visible)
	Toggle the built-in value label.
float	n_gui_slider_value_width (N_GUI_CTX *ctx, int widget_id)
	width in pixels a slider's built-in readout needs beside it, the gap between track and text included.
int	n_gui_splitpane_at (N_GUI_CTX *ctx, float x, float y)
	report the split pane whose divider band is under a point, or -1.
float	n_gui_splitpane_band (N_GUI_CTX *ctx, int widget_id)
	How far either side of a split pane's divider a press still counts as the divider's.
float	n_gui_splitpane_get_ratio (N_GUI_CTX *ctx, int widget_id)
	get the current divider ratio of a split pane
void	n_gui_splitpane_set_limits (N_GUI_CTX *ctx, int widget_id, float min_ratio, float max_ratio)
	set the minimum and maximum allowed divider ratio of a split pane
void	n_gui_splitpane_set_ratio (N_GUI_CTX *ctx, int widget_id, float ratio)
	set the divider ratio of a split pane (clamped to its min/max)
int	n_gui_suggest_add (N_GUI_SUGGEST_SINK *sink, const char *text)
	add one completion to a suggestion sink
float	n_gui_syntaxview_content_width (N_GUI_CTX *ctx, int widget_id)
	pixel width the widest line of a syntax view needs, padding included
float	n_gui_syntaxview_get_h_scroll (N_GUI_CTX *ctx, int widget_id)
	get the horizontal scroll offset of a syntax view
int	n_gui_syntaxview_get_line_count (N_GUI_CTX *ctx, int widget_id)
	get the number of text lines in a syntax view
char *	n_gui_syntaxview_get_selected_text (N_GUI_CTX *ctx, int widget_id)
	get a copy of the currently selected text in a syntax view
const char *	n_gui_syntaxview_get_text (N_GUI_CTX *ctx, int widget_id)
	get the text currently shown by a syntax view
void	n_gui_syntaxview_scroll_to_offset (N_GUI_CTX *ctx, int widget_id, int byte_offset)
	scroll a syntax view so the line holding a byte offset is vertically centered, and horizontally so the offset itself is inside the visible width
void	n_gui_syntaxview_select_all (N_GUI_CTX *ctx, int widget_id)
	select the entire text of a syntax view
void	n_gui_syntaxview_set_h_scroll (N_GUI_CTX *ctx, int widget_id, float px)
	set the horizontal scroll offset of a syntax view
void	n_gui_syntaxview_set_mode (N_GUI_CTX *ctx, int widget_id, int mode)
	set the highlighting mode of a syntax view
void	n_gui_syntaxview_set_selection (N_GUI_CTX *ctx, int widget_id, int start, int end)
	set the selection range of a syntax view (byte offsets into the text)
void	n_gui_syntaxview_set_text (N_GUI_CTX *ctx, int widget_id, const char *text)
	set (copy) the text shown by a syntax view
int	n_gui_tab_add (N_GUI_TAB_PANEL *panel, const char *label)
	add a tab to the panel, returns tab index
N_GUI_TAB_PANEL *	n_gui_tab_create (N_GUI_CTX *ctx, int window_id, float x, float y, float button_w, float button_h, void(*on_tab_change)(int, void *), void *user_data)
	create a tab panel in an existing window
void	n_gui_tab_free (N_GUI_TAB_PANEL **panel)
	free a tab panel (does not destroy the N_GUI widgets)
int	n_gui_tab_get_active (const N_GUI_TAB_PANEL *panel)
	get the active tab index
void	n_gui_tab_relayout (N_GUI_TAB_PANEL *panel, float x, float y, float button_w, float button_h)
	Move/resize a tab panel's button row after creation.
void	n_gui_tab_set_active (N_GUI_TAB_PANEL *panel, int index)
	set the active tab (toggles buttons, opens/closes content windows)
void	n_gui_tab_set_content_window (N_GUI_TAB_PANEL *panel, int tab_index, int window_id)
	associate a content window with a tab
int	n_gui_text_shorten (ALLEGRO_FONT *font, const char *text, float max_w, int mode, char *out, size_t out_len)
	shorten text to fit max_w pixels in font, the way a label with truncate mode mode shows it: unchanged when it fits, otherwise with "..." at the end, at the start, or in place of whole leading path components (N_GUI_TRUNCATE_END, _START, _PATH).
const char *	n_gui_textarea_get_text (N_GUI_CTX *ctx, int widget_id)
	get the text content of a textarea widget
size_t	n_gui_textarea_get_text_length (N_GUI_CTX *ctx, int widget_id)
	return the current text length in bytes
int	n_gui_textarea_has_selection (N_GUI_CTX *ctx, int widget_id)
	is any text selected in a text area
void	n_gui_textarea_scroll_to_bottom (N_GUI_CTX *ctx, int widget_id)
	scroll a multiline textarea to the bottom
void	n_gui_textarea_scroll_to_offset (N_GUI_CTX *ctx, int widget_id, size_t byte_offset)
	scroll a multiline textarea so that the given byte offset is vertically centered
void	n_gui_textarea_set_bitmap (N_GUI_CTX *ctx, int widget_id, ALLEGRO_BITMAP *bg)
	Set optional background bitmap on a textarea widget.
void	n_gui_textarea_set_mask_char (N_GUI_CTX *ctx, int widget_id, char mask)
	Set a mask character for password-style input.
void	n_gui_textarea_set_placeholder (N_GUI_CTX *ctx, int widget_id, const char *text)
	Set placeholder/hint text shown dimmed while a textarea is empty.
void	n_gui_textarea_set_selection (N_GUI_CTX *ctx, int widget_id, size_t start, size_t end)
	set the text selection range (byte offsets into text content)
void	n_gui_textarea_set_suggest (N_GUI_CTX *ctx, int widget_id, N_GUI_SUGGEST_FN fn, const char *separators, void *user_data)
	offer completions in a textarea
void	n_gui_textarea_set_text (N_GUI_CTX *ctx, int widget_id, const char *text)
	set the text content of a textarea widget
void	n_gui_textarea_suggest_close (N_GUI_CTX *ctx, int widget_id)
	put a textarea's completion panel away
int	n_gui_textarea_suggest_is_open (N_GUI_CTX *ctx, int widget_id)
	is a textarea's completion panel up
void	n_gui_toggle_window (N_GUI_CTX *ctx, int window_id)
	Toggle window visibility (show if hidden, hide if shown).
int	n_gui_tooltip_pending (N_GUI_CTX *ctx)
	Report the tooltip phase.
int	n_gui_tree_add_node (N_GUI_TREE *tree, const char *label, int parent_index, void *user_data)
	add a node to the tree
void	n_gui_tree_clear (N_GUI_TREE *tree)
	remove all nodes and clear the backing listbox; tree object remains valid
N_GUI_TREE *	n_gui_tree_create (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, void(*on_select)(int, void *), void *user_data)
	create a tree view in an existing window
void	n_gui_tree_draw_overlay (N_GUI_TREE *tree)
	per-frame overlay drawing: draws the active drop-indicator on top of the listbox.
void	n_gui_tree_expand (N_GUI_TREE *tree, int node_index)
	open a node, filling it first through the expand callback if it has not been; a node already open stays open.
int	n_gui_tree_find_by_path (const N_GUI_TREE *tree, const char *path)
	index of the first node with the given path, or -1.
int	n_gui_tree_find_by_user_data (const N_GUI_TREE *tree, const void *ptr)
	find the first node whose user_data pointer equals ptr, or -1.
void	n_gui_tree_free (N_GUI_TREE **tree)
	free a tree view (does not destroy the N_GUI listbox)
int	n_gui_tree_get_selection (N_GUI_TREE *tree)
	get the index of the currently selected node, or -1 when nothing is selected or the selection points at a hidden row
int	n_gui_tree_node_path (const N_GUI_TREE *tree, int node_index, char *buf, size_t bufsz)
	Write the path of a node into a buffer.
void	n_gui_tree_rebuild (N_GUI_TREE *tree)
	rebuild the listbox to reflect current tree state
void	n_gui_tree_remove_node (N_GUI_TREE *tree, int node_index)
	remove a node and its entire subtree; remaining node indices are compacted (callers holding indices across the call must discard or re-resolve them)
void	n_gui_tree_set_expand_callback (N_GUI_TREE *tree, void(*on_expand)(int node_index, void *user_data), void *user_data)
	set the callback that fills a node the first time it is opened, for a tree too large to build before it is shown: a folder tree reads a directory only when somebody opens it.
void	n_gui_tree_set_expandable (N_GUI_TREE *tree, int node_index, int expandable)
	mark a node as openable before it has children, so it shows an expander and the expand callback fills it when it is opened
void	n_gui_tree_set_label (N_GUI_TREE *tree, int node_index, const char *new_label)
	change the display label of a node
void	n_gui_tree_set_on_drop (N_GUI_TREE *tree, n_gui_tree_on_drop_t on_drop, void *user_data)
	install (or clear, with NULL) a drag-reorder drop callback.
void	n_gui_tree_set_selection (N_GUI_TREE *tree, int node_index)
	programmatically select a node; ancestors are expanded so the node is visible, and the listbox scrolls to reveal it.
void	n_gui_tree_state_apply (N_GUI_TREE *tree, const N_GUI_TREE_STATE *state)
	re-expand, re-select and re-scroll a rebuilt tree from a saved state.
void	n_gui_tree_state_free (N_GUI_TREE_STATE *state)
	release the strings owned by a saved state (safe on a zeroed struct)
int	n_gui_tree_state_save (const N_GUI_TREE *tree, N_GUI_TREE_STATE *out)
	capture which nodes are expanded, which one is selected, and where the view is scrolled, all by path.
void	n_gui_tree_tick (N_GUI_TREE *tree)
	per-frame poll: reads ctx->mouse_* to track drag state and fires the on_drop callback on release.
void	n_gui_tree_toggle_expand (N_GUI_TREE *tree, int node_index)
	toggle expand/collapse of a node.
void	n_gui_update_transform (N_GUI_CTX *ctx)
	Recalculate scale and offset from virtual canvas to physical display.
int	n_gui_wants_mouse (N_GUI_CTX *ctx)
	Check if the mouse is currently over any open GUI window.
int	n_gui_was_double_click (const N_GUI_CTX *ctx, int widget_id)
	whether the press just processed double clicked this widget
const char *	n_gui_widget_get_persist_key (N_GUI_CTX *ctx, int widget_id)
	Get a widget's persist key ("" when unset), or NULL when the widget is invalid.
int	n_gui_widget_is_visible (N_GUI_CTX *ctx, int widget_id)
	Is a widget currently shown.
int	n_gui_widget_screen_rect (N_GUI_CTX *ctx, int widget_id, float *x, float *y, float *w, float *h)
	Where a widget is on screen, rather than inside its window.
void	n_gui_widget_set_persist_key (N_GUI_CTX *ctx, int widget_id, const char *key)
	Give a widget a stable key so its user-adjustable state (a splitpane's divider ratio, or a datagrid's column order/visibility/width) is persisted by n_gui_save_layout_json and restored by n_gui_load_layout_json.
void	n_gui_widget_set_rect (N_GUI_CTX *ctx, int widget_id, float x, float y, float w, float h)
	Move and resize a widget after creation.
void	n_gui_window_apply_autofit (N_GUI_CTX *ctx, int window_id)
	Trigger auto-fit recalculation for a window.
int	n_gui_window_attach (N_GUI_CTX *ctx, int window_id)
	Return a detached window to being an in-display pop-up.
void	n_gui_window_autosize (N_GUI_CTX *ctx, int window_id)
	Recompute and apply minimum-fit size for a window based on its current widgets.
int	n_gui_window_button_rect (N_GUI_CTX *ctx, int window_id, int btn_type, float *x, float *y, float *w, float *h)
	Where one of a window's title bar buttons is, on screen.
int	n_gui_window_detach (N_GUI_CTX *ctx, int window_id, int detach_flags)
	Promote a pop-up window to a native OS window.
int	n_gui_window_find_button (N_GUI_CTX *ctx, int window_id, const char *label)
	Find the button in a window whose label is exactly this.
int	n_gui_window_from_display (N_GUI_CTX *ctx, ALLEGRO_DISPLAY *display)
	Find the window detached into a given display.
ALLEGRO_DISPLAY *	n_gui_window_get_display (N_GUI_CTX *ctx, int window_id)
	Get the native display backing a window, or NULL when it is a pop-up.
int	n_gui_window_get_flags (N_GUI_CTX *ctx, int window_id)
	Get feature flags of a window.
int	n_gui_window_get_resize_policy (N_GUI_CTX *ctx, int window_id)
	Get per-window resize policy.
int	n_gui_window_get_zorder (N_GUI_CTX *ctx, int window_id)
	Get window z-order mode.
int	n_gui_window_get_zvalue (N_GUI_CTX *ctx, int window_id)
	Get window z-value (for N_GUI_ZORDER_FIXED mode).
int	n_gui_window_is_detached (N_GUI_CTX *ctx, int window_id)
	Check whether a window currently lives in a native OS window.
int	n_gui_window_is_maximised (N_GUI_CTX *ctx, int window_id)
	Check if a window is currently maximised.
int	n_gui_window_is_minimised (N_GUI_CTX *ctx, int window_id)
	Check if a window is currently minimised.
int	n_gui_window_is_open (N_GUI_CTX *ctx, int window_id)
	Check if a window is currently visible.
int	n_gui_window_native_is_hidden (N_GUI_CTX *ctx, int window_id)
	Check whether a detached window is currently not drawable.
void	n_gui_window_set_autofit (N_GUI_CTX *ctx, int window_id, int autofit_flags, float border)
	Configure auto-fit behavior for a dialog window.
void	n_gui_window_set_bitmaps (N_GUI_CTX *ctx, int window_id, ALLEGRO_BITMAP *bg, ALLEGRO_BITMAP *titlebar, int bg_scale_mode)
	Set optional bitmap overlays on a window's body and titlebar.
void	n_gui_window_set_caption (N_GUI_CTX *ctx, int window_id, const char *caption)
	Show a caption in a window's title bar in place of its title.
void	n_gui_window_set_close_callback (N_GUI_CTX *ctx, int window_id, void(*on_close)(int, void *), void *user_data)
	Set the close button callback for a window.
void	n_gui_window_set_content_draw_callback (N_GUI_CTX *ctx, int window_id, void(*on_content_draw)(int, void *), void *user_data)
	Set the content-draw callback for a window.
void	n_gui_window_set_flags (N_GUI_CTX *ctx, int window_id, int flags)
	Set feature flags on a window.
void	n_gui_window_set_maximize_callback (N_GUI_CTX *ctx, int window_id, void(*on_maximize)(int, void *), void *user_data)
	Set the maximize button callback for a window.
void	n_gui_window_set_minimize_callback (N_GUI_CTX *ctx, int window_id, void(*on_minimize)(int, void *), void *user_data)
	Set the minimize button callback for a window.
int	n_gui_window_set_native_icons (N_GUI_CTX *ctx, int window_id, ALLEGRO_BITMAP **icons, int num_icons)
	Give a detached window's OS window a taskbar / title bar icon.
void	n_gui_window_set_rect (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h)
	Move and resize a window at runtime, reflowing its widgets.
void	n_gui_window_set_rect_axes (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, int scale_x, int scale_y)
	n_gui_window_set_rect with per-axis control over the widget reflow.
void	n_gui_window_set_resize_policy (N_GUI_CTX *ctx, int window_id, int policy)
	Set per-window resize policy (N_GUI_WIN_RESIZE_NONE / _MOVE / _SCALE).
void	n_gui_window_set_tb_btn_theme (N_GUI_CTX *ctx, int window_id, N_GUI_THEME theme)
	Set the theme for titlebar minimize/maximize buttons on a specific window.
void	n_gui_window_set_tb_button_bitmaps (N_GUI_CTX *ctx, int window_id, int btn_type, ALLEGRO_BITMAP *normal, ALLEGRO_BITMAP *hover, ALLEGRO_BITMAP *active)
	Set optional bitmap overlays on a titlebar button.
void	n_gui_window_set_tb_close_theme (N_GUI_CTX *ctx, int window_id, N_GUI_THEME theme)
	Set the theme for the titlebar close button on a specific window.
void	n_gui_window_set_wheel_scrollbar (N_GUI_CTX *ctx, int window_id, int scrollbar_id)
	Make the wheel anywhere over a window move one of its scrollbars.
void	n_gui_window_set_zorder (N_GUI_CTX *ctx, int window_id, int z_mode, int z_value)
	Set window z-order mode and value.
void	n_gui_window_update_normalized (N_GUI_CTX *ctx, int window_id)
	Recapture normalized coordinates for a window from its current absolute position/size.

Variables
static N_GUI_MEAS_ENTRY	_ngui_meas_cache [1024u]

Detailed Description

GUI system: buttons, sliders, text areas, checkboxes, scrollbars, dropdown menus, windows.

Author

Castagnier Mickael

Version

3.0

Date

02/03/2026

Definition in file n_gui.c.

---

Data Structure Documentation

_N_GUI_SB_SKIN

struct _N_GUI_SB_SKIN

The look of one scrollbar: the style values a bar's paint reads, gathered so that the painter does not have to know which set of them it was handed.

The toolkit has two sets - the scrollbar_* values every widget's bar uses, and the global_scrollbar_* ones the display's own bars use - and had two copies of the drawing to go with them.

Definition at line 7749 of file n_gui.c.

Collaboration diagram for _N_GUI_SB_SKIN:

Data Fields
float	corner_r	thumb corner radius; zero draws square corners
ALLEGRO_COLOR	outline	outline drawn round the thumb in every state, on top of which the state outline still applies. The display's own bars float over an application's canvas rather than sitting against a panel, and have always had one of these; a widget's bar has not.
float	outline_thickness	thickness of that outline; zero for none
ALLEGRO_COLOR	thumb	thumb fill at rest, before any state lift
float	thumb_padding	inset of the thumb across the bar
ALLEGRO_COLOR	track	track fill
float	track_inset	see track_round
int	track_round	draw the track as a pill, inset by track_inset at both ends and with no divider: what a frameless window in a round GUI asks for, whose square track ran through the window's rounded corners. Purely visual: the thumb geometry and the hit area are the bar's, unchanged.

_N_GUI_TA_STEP

struct _N_GUI_TA_STEP

one step of a textarea's per-character wrapped layout

Definition at line 7214 of file n_gui.c.

Collaboration diagram for _N_GUI_TA_STEP:

Data Fields
char	ch[5]	the decoded character, NUL-terminated, for a caller that draws it
int	clen	bytes consumed by this character (1 for a newline)
float	cw	its pixel width (0 for a newline)
int	newline	the character is ' '
int	wrapped	it does not fit: start a new line before placing it

_N_GUI_THUMB

struct _N_GUI_THUMB

a scrollbar thumb: length along the track, and offset from the track start

Definition at line 7632 of file n_gui.c.

Collaboration diagram for _N_GUI_THUMB:

Data Fields
float	len
float	off

_N_GUI_WRAP_ACC

struct _N_GUI_WRAP_ACC

accumulator for _wrap_words: records the first word index of each line, and whether the line ends a paragraph

Definition at line 7034 of file n_gui.c.

Collaboration diagram for _N_GUI_WRAP_ACC:

Data Fields
int	cap
size_t	count
int *	first
const int *	item_word
const n_wrap_item *	items
int	n
int	nwords
unsigned char *	para_end

N_GUI_KV_CONTENT

struct N_GUI_KV_CONTENT

Definition at line 18314 of file n_gui.c.

Collaboration diagram for N_GUI_KV_CONTENT:

Data Fields
char *	desc	owned copy of the description text
int	enabled	enabled checkbox state
char *	key	owned copy of the key text
char *	value	owned copy of the value text

N_GUI_MEAS_ENTRY

struct N_GUI_MEAS_ENTRY

Definition at line 201 of file n_gui.c.

Collaboration diagram for N_GUI_MEAS_ENTRY:

Data Fields
float	adv_w
int	dh
int	dw
int	dx
int	dy
const ALLEGRO_FONT *	font
unsigned int	hash
unsigned char	have_adv
unsigned char	have_dims
char	key[32]
unsigned short	len
int	line_h

N_GUI_SUGGEST_SINK

struct N_GUI_SUGGEST_SINK

handle textarea key input.

what a suggestion provider writes its answers into.

Returns 1 if the event was consumed, 0 if it should be passed through (e.g. ENTER in single-line mode falls through to button keybinds).

what n_gui_suggest_add() writes through. The widget's own data, behind a handle, so a provider can add entries and can do nothing else.

Opaque on purpose: the widget owns the storage, decides how much of it there is, and stops taking entries when it is full, so a provider cannot overrun anything by answering generously.

Examples

ex_gui_suggest.c.

Definition at line 12700 of file n_gui.c.

Collaboration diagram for N_GUI_SUGGEST_SINK:

Data Fields
N_GUI_TEXTAREA_DATA *	td	the field being completed

SYNTAX_RUN

struct SYNTAX_RUN

draw a run of text and advance the pen x by its width.

Runs longer than the stack buffer are drawn in successive chunks rather than cut short, which a whole-line mode (plain text, a diff line) would otherwise do to any long line. Chunks never split a UTF-8 sequence.

the horizontal window one syntax line is drawn into, plus the pen carried between its coloured runs. A run that ends left of x_min is measured but not drawn, and the run that takes the pen past x_max ends the line. Without that a single very long line costs one al_draw_text plus one uncached measurement per 511 bytes on every frame, nearly all of it off screen: measured on a 1 MB line, 151 ms per frame before, 0.5 ms after.

Definition at line 9009 of file n_gui.c.

Collaboration diagram for SYNTAX_RUN:

Data Fields
float	cx	pen x, advanced by the width of each run
int	done	1 once the pen passed x_max, so the tokenizer stops walking the line
ALLEGRO_FONT *	font	font every run of the line is drawn with
float	x_max	right edge of the visible area
float	x_min	left edge of the visible area
float	y	pen y, constant for the whole line

Macro Definition Documentation

_N_GUI_HELD_ALT

#define _N_GUI_HELD_ALT   0x10

Definition at line 13205 of file n_gui.c.

Referenced by _held_bit(), _track_modifiers(), and n_gui_get_key_modifiers().

_N_GUI_HELD_ALTGR

#define _N_GUI_HELD_ALTGR   0x20

Definition at line 13206 of file n_gui.c.

Referenced by _held_bit(), _track_modifiers(), and n_gui_get_key_modifiers().

_N_GUI_HELD_LCTRL

#define _N_GUI_HELD_LCTRL   0x01

bits of N_GUI_CTX::held_modifier_keys, one per modifier key

Definition at line 13201 of file n_gui.c.

Referenced by _held_bit(), _track_modifiers(), and n_gui_get_key_modifiers().

_N_GUI_HELD_LSHIFT

#define _N_GUI_HELD_LSHIFT   0x04

Definition at line 13203 of file n_gui.c.

Referenced by _held_bit(), _track_modifiers(), and n_gui_get_key_modifiers().

_N_GUI_HELD_RCTRL

#define _N_GUI_HELD_RCTRL   0x02

Definition at line 13202 of file n_gui.c.

Referenced by _held_bit(), _track_modifiers(), and n_gui_get_key_modifiers().

_N_GUI_HELD_RSHIFT

#define _N_GUI_HELD_RSHIFT   0x08

Definition at line 13204 of file n_gui.c.

Referenced by _held_bit(), _track_modifiers(), and n_gui_get_key_modifiers().

_N_GUI_TREE_DRAG_THRESHOLD_PX

#define _N_GUI_TREE_DRAG_THRESHOLD_PX   4.0f

pixels of mouse movement before a press becomes a drag

Definition at line 18036 of file n_gui.c.

Referenced by n_gui_tree_tick().

_N_GUI_WIN_STATE_PERSIST_MASK

#define _N_GUI_WIN_STATE_PERSIST_MASK   (N_GUI_WIN_OPEN | N_GUI_WIN_MINIMISED | N_GUI_WIN_MAXIMISED)

Definition at line 16942 of file n_gui.c.

Referenced by n_gui_load_layout_json(), and n_gui_save_layout_json().

N_GUI_ANIM_TAIL_SEC

#define N_GUI_ANIM_TAIL_SEC   0.05

Definition at line 81 of file n_gui.c.

Referenced by _button_key_press(), and n_gui_process_event().

N_GUI_COLRESIZE_GRAB

#define N_GUI_COLRESIZE_GRAB   4.0f

grab zone, in pixels either side of a column's right border

Definition at line 13445 of file n_gui.c.

Referenced by _datagrid_header_hit().

N_GUI_KEY_PRESS_FLASH_SEC

#define N_GUI_KEY_PRESS_FLASH_SEC   0.12

Definition at line 74 of file n_gui.c.

Referenced by _button_key_press(), and n_gui_process_event().

N_GUI_MEAS_CACHE_SIZE

#define N_GUI_MEAS_CACHE_SIZE   1024u /* power of two */

Definition at line 198 of file n_gui.c.

Referenced by _ngui_meas_slot().

N_GUI_MEAS_KEY_MAX

#define N_GUI_MEAS_KEY_MAX   32 /* strings this long or longer bypass the cache */

Definition at line 199 of file n_gui.c.

Referenced by _text_dims(), and _text_w().

N_GUI_WRAP_MAX_ITEMS

#define N_GUI_WRAP_MAX_ITEMS   (3 * N_GUI_WRAP_MAX_WORDS + 2)

most layout items one wrap takes: every word, the break between each two, and room for the hard breaks of a text with blank lines in it

Definition at line 7030 of file n_gui.c.

Referenced by _wrap_words().

N_GUI_WRAP_MAX_WORDS

#define N_GUI_WRAP_MAX_WORDS   256

the most words any justified layout will consider

Definition at line 6983 of file n_gui.c.

Referenced by _draw_justified_selection(), _draw_text_justified(), _justified_char_at_pos(), _label_content_height(), and _wrap_words().

Function Documentation

_apply_cursor()

void _apply_cursor ( N_GUI_CTX * ctx, int shape, ALLEGRO_MOUSE_CURSOR * custom )

static

helper: show a cursor on the GUI's display, recording it whether or not there is a display, and touching Allegro only when it changes.

Parameters

ctx	the GUI context
shape	an ALLEGRO_SYSTEM_MOUSE_CURSOR_* value, used when custom is NULL
custom	a custom cursor, or NULL

Definition at line 465 of file n_gui.c.

References _ctx_io_display(), N_GUI_CTX::cursor_custom, N_GUI_CTX::cursor_shape, and display.

Referenced by n_gui_process_event(), and n_gui_set_cursor().

Here is the call graph for this function:

Here is the caller graph for this function:

_apply_pending_widget()

void _apply_pending_widget ( N_GUI_CTX * ctx, const char * title, const N_GUI_WIDGET * wgt )

static

Definition at line 2911 of file n_gui.c.

References _datagrid_apply_columns(), N_GUI_PENDING_WIDGET::consumed, N_GUI_WIDGET::id, N_GUI_PENDING_WIDGET::key, N_GUI_PENDING_WIDGET::kind, n_gui_datagrid_get_column_count(), N_GUI_ID_MAX, n_gui_splitpane_set_ratio(), N_GUI_TYPE_DATAGRID, N_GUI_TYPE_SPLITPANE, N_GUI_PENDING_WIDGET::ncols, N_GUI_PENDING_WIDGET::order, N_GUI_CTX::pending_widgets, N_GUI_CTX::pending_widgets_count, N_GUI_WIDGET::persist_key, N_GUI_PENDING_WIDGET::ratio, N_GUI_PENDING_WIDGET::title, N_GUI_WIDGET::type, N_GUI_PENDING_WIDGET::visible, and N_GUI_PENDING_WIDGET::width.

Referenced by n_gui_widget_set_persist_key().

Here is the call graph for this function:

Here is the caller graph for this function:

_bg_for_state()

ALLEGRO_COLOR _bg_for_state ( const N_GUI_THEME * t, int state )

static

helper: pick colour based on widget state

Definition at line 7681 of file n_gui.c.

References N_GUI_THEME::bg_active, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_STATE_ACTIVE, and N_GUI_STATE_HOVER.

Referenced by _draw_button(), _draw_slider(), and _draw_themed_rect().

Here is the caller graph for this function:

_border_for_state()

ALLEGRO_COLOR _border_for_state ( const N_GUI_THEME * t, int state )

static

Definition at line 7687 of file n_gui.c.

References N_GUI_THEME::border_active, N_GUI_THEME::border_hover, N_GUI_THEME::border_normal, N_GUI_STATE_ACTIVE, and N_GUI_STATE_HOVER.

Referenced by _draw_slider(), and _draw_themed_rect().

Here is the caller graph for this function:

_button_key_press()

void _button_key_press ( N_GUI_CTX * ctx, N_GUI_WIDGET * wgt )

static

Press a button from the keyboard, as a click would.

Toggles a toggle button, flashes the pressed look for as long as a key binding's press does, and calls on_click. The callback may close the window or free widgets, so nothing is read from the button after it.

Parameters

ctx	The context.
wgt	The focused button.

Definition at line 2203 of file n_gui.c.

References N_GUI_CTX::anim_until, N_GUI_WIDGET::data, N_GUI_WIDGET::id, N_GUI_BUTTON_DATA::key_press_until, N_GUI_ANIM_TAIL_SEC, N_GUI_KEY_PRESS_FLASH_SEC, N_GUI_BUTTON_DATA::on_click, N_GUI_BUTTON_DATA::toggle_mode, N_GUI_BUTTON_DATA::toggled, and N_GUI_BUTTON_DATA::user_data.

Referenced by n_gui_process_event().

Here is the caller graph for this function:

_button_neighbour()

int _button_neighbour ( N_GUI_CTX * ctx, const N_GUI_WIDGET * from, int forward )

static

The button before or after one, in its window, in reading order.

Only visible, enabled buttons count. The order goes round, so the arrows cycle through a dialog's buttons as Tab cycles through its widgets.

Parameters

ctx	The context.
from	The focused button.
forward	1 for the next, 0 for the previous.

Returns

The button's id, or -1 when it is the only one.

Definition at line 2245 of file n_gui.c.

References _reading_order(), N_GUI_WIDGET::enabled, N_GUI_WIDGET::id, list_foreach, N_GUI_TYPE_BUTTON, N_GUI_WIDGET::type, N_GUI_WIDGET::visible, N_GUI_WINDOW::widgets, and N_GUI_CTX::windows.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_button_takes_key()

int _button_takes_key ( int keycode )

static

helper: is a key one a focused button does something with: Enter and Space press it, the arrows move to the next button of its window

Definition at line 138 of file n_gui.c.

Referenced by n_gui_focus_takes_key(), and n_gui_process_event().

Here is the caller graph for this function:

_cell_cmp()

int _cell_cmp ( const char * a, const char * b )

static

compare two cell strings: numerically when both are integers, else case-insensitive

Definition at line 5142 of file n_gui.c.

References _cell_is_num().

Referenced by n_gui_datagrid_sort().

Here is the call graph for this function:

Here is the caller graph for this function:

_cell_is_num()

int _cell_is_num ( const char * s )

static

true when every character of a non-empty string is a decimal digit

Definition at line 5132 of file n_gui.c.

Referenced by _cell_cmp().

Here is the caller graph for this function:

_clamp()

double _clamp ( double v, double lo, double hi )

static

helper: clamp a double between lo and hi

Definition at line 86 of file n_gui.c.

Referenced by _slider_update_from_mouse(), n_gui_add_slider(), n_gui_process_event(), n_gui_scrollbar_set_pos(), n_gui_scrollbar_set_sizes(), n_gui_slider_set_range(), and n_gui_slider_set_value().

Here is the caller graph for this function:

_clear_syntaxview_selection()

void _clear_syntaxview_selection ( N_GUI_CTX * ctx )

static

drop any active syntax-view text selection (used when focus moves to another selectable widget, so only one selection is live at a time).

Definition at line 9471 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SYNTAXVIEW, N_GUI_SYNTAXVIEW_DATA::sel_dragging, N_GUI_SYNTAXVIEW_DATA::sel_end, N_GUI_SYNTAXVIEW_DATA::sel_start, N_GUI_CTX::selected_syntaxview_id, and N_GUI_WIDGET::type.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_color_mix()

ALLEGRO_COLOR _color_mix ( ALLEGRO_COLOR a, ALLEGRO_COLOR b, float t )

static

Helper: mix two colours, t of the way from a to b.

All four channels are interpolated, alpha included. Allegro's default blender treats a colour as premultiplied, and premultiplied colours mix linearly, so this is the mix that lands on screen as well as the mix of the numbers. t outside 0..1 is clamped rather than extrapolated: a caller asking for more than the whole way wants the endpoint, not a colour off the end of the ramp with channels out of range.

Definition at line 873 of file n_gui.c.

Referenced by _scrollbar_thumb_for_state().

Here is the caller graph for this function:

_color_with_alpha()

ALLEGRO_COLOR _color_with_alpha ( ALLEGRO_COLOR c, float a )

static

Helper: return a copy of c with the given alpha (0..1).

Definition at line 858 of file n_gui.c.

Referenced by n_gui_set_default_theme().

Here is the caller graph for this function:

_combobox_dropdown_width()

float _combobox_dropdown_width ( N_GUI_CTX * ctx, const N_GUI_COMBOBOX_DATA * cd, ALLEGRO_FONT * font, float widget_w, float ax, float pad )

static

helper: the effective width of an open combobox dropdown panel.

The draw path and the mouse handler both need it, and both used to compute it – the same auto-width scan, cap and display-edge clamp, once with cb_ prefixed locals and a comment saying it mirrored the other. When those two disagree the panel is drawn at one width and clicked at another, so an item near the edge selects nothing.

font may be NULL, in which case the widget width is used unchanged – which is what the mouse handler's && cb_font guard already did.

Definition at line 10422 of file n_gui.c.

References _text_w(), N_GUI_STYLE::combobox_max_dropdown_width, N_GUI_CTX::display_w, N_GUI_COMBOBOX_DATA::flags, font, N_GUI_COMBOBOX_DATA::items, N_GUI_COMBOBOX_AUTO_WIDTH, N_GUI_COMBOBOX_DATA::nb_items, N_GUI_CTX::style, and N_GUI_LISTITEM::text.

Referenced by _draw_combobox_dropdown(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_combobox_index_after_remove()

int _combobox_index_after_remove ( int index, int removed )

static

shift an index that pointed into a list one item shorter now

Parameters

index	the index, -1 for none
removed	the item that was removed

Returns

the index of the same item after the removal, or -1 when it was the removed one

Definition at line 6074 of file n_gui.c.

Referenced by n_gui_combobox_remove_item().

Here is the caller graph for this function:

_compute_gui_bounds()

void _compute_gui_bounds ( N_GUI_CTX * ctx )

static

helper: compute the bounding box of all open windows

Definition at line 11577 of file n_gui.c.

References _win_on_pass(), N_GUI_CTX::gui_bounds_h, N_GUI_CTX::gui_bounds_w, N_GUI_WINDOW::h, list_foreach, N_GUI_WIN_OPEN, N_GUI_WINDOW::state, N_GUI_WINDOW::w, N_GUI_CTX::windows, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by n_gui_draw(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_ctx_io_display()

ALLEGRO_DISPLAY * _ctx_io_display ( const N_GUI_CTX * ctx )

static

helper: the display to use for clipboard and mouse-cursor calls.

Follows the display that last received input, so a copy/paste or a cursor change inside a detached window addresses that window rather than the host's main display. Falls back to the display given to n_gui_set_display.

Definition at line 456 of file n_gui.c.

References N_GUI_CTX::active_display, and N_GUI_CTX::display.

Referenced by _apply_cursor(), _ngui_publish_primary_selection(), _textarea_handle_key(), and n_gui_process_event().

Here is the caller graph for this function:

_custom_mouse()

int _custom_mouse ( const N_GUI_CTX * ctx, N_GUI_WIDGET * wgt, int type, int button, float local_x, float local_y, int dz )

static

helper: hand a mouse event to a custom widget that takes them.

Returns the callback's answer, or 0 when the widget takes no mouse input.

Definition at line 13586 of file n_gui.c.

References N_GUI_MOUSE_EVENT::button, N_GUI_WIDGET::data, N_GUI_MOUSE_EVENT::dz, N_GUI_WIDGET::id, N_GUI_MOUSE_EVENT::modifiers, N_GUI_CUSTOM_DATA::mouse_user_data, n_gui_get_key_modifiers(), N_GUI_TYPE_CUSTOM, N_GUI_CUSTOM_DATA::on_mouse, N_GUI_MOUSE_EVENT::type, N_GUI_WIDGET::type, type(), N_GUI_MOUSE_EVENT::x, and N_GUI_MOUSE_EVENT::y.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_datagrid_apply_columns()

void _datagrid_apply_columns ( N_GUI_CTX * ctx, int widget_id, int ncols, const int * order, const int * visible, const float * width )

static

Definition at line 2891 of file n_gui.c.

References n_gui_datagrid_display_to_physical(), n_gui_datagrid_move_column(), n_gui_datagrid_set_column_visible(), n_gui_datagrid_set_column_width(), and visible().

Referenced by _apply_pending_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_datagrid_data()

N_GUI_DATAGRID_DATA * _datagrid_data ( N_GUI_CTX * ctx, int widget_id )

static

fetch a data grid's column table for an API call, or NULL on a bad id.

Definition at line 5475 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, and N_GUI_WIDGET::type.

Referenced by n_gui_datagrid_display_to_physical(), n_gui_datagrid_get_column_count(), n_gui_datagrid_get_column_title(), n_gui_datagrid_get_column_visible(), n_gui_datagrid_get_column_width(), n_gui_datagrid_move_column(), n_gui_datagrid_set_column_visible(), n_gui_datagrid_set_column_width(), and n_gui_datagrid_set_on_columns_changed().

Here is the call graph for this function:

Here is the caller graph for this function:

_datagrid_ensure_colors()

int _datagrid_ensure_colors ( N_GUI_DATAGRID_DATA * gd )

static

helper: ensure the per-row tint arrays exist, sized to rows_cap (rows start untinted); returns 1 when both arrays are available

Definition at line 5200 of file n_gui.c.

References Malloc, N_GUI_DATAGRID_DATA::row_color, N_GUI_DATAGRID_DATA::row_has_color, and N_GUI_DATAGRID_DATA::rows_cap.

Referenced by n_gui_datagrid_set_row_color().

Here is the caller graph for this function:

_datagrid_ensure_sel()

void _datagrid_ensure_sel ( N_GUI_DATAGRID_DATA * gd )

static

helper: ensure the per-row selection array exists, sized to rows_cap

Definition at line 5192 of file n_gui.c.

References Malloc, N_GUI_DATAGRID_DATA::row_sel, and N_GUI_DATAGRID_DATA::rows_cap.

Referenced by n_gui_datagrid_select_row(), n_gui_datagrid_set_multiselect(), and n_gui_process_event().

Here is the caller graph for this function:

_datagrid_header_hit()

void _datagrid_header_hit ( const N_GUI_DATAGRID_DATA * gd, float ax, float x, int * border_col, int * cell_col )

static

helper: what a datagrid header row is offering at x.

Walks the visible columns left to right from ax minus the horizontal scroll and answers both questions the header asks: which column's RIGHT BORDER x is within the grab zone of (a resize drag), and failing that which column x is INSIDE (a sort click). Border wins, and the walk stops at the first answer – the order the mouse handler has always used.

Both the mouse-down handler and the hover test that shows the resize cursor call this. They used to walk separately, and a hover that disagrees with the handler is a cursor promising a drag that does nothing. Either out may be NULL; both are set to -1 when nothing matches.

Definition at line 13459 of file n_gui.c.

References _datagrid_phys(), N_GUI_DATAGRID_DATA::cols, N_GUI_DATAGRID_DATA::h_scroll, N_GUI_COLRESIZE_GRAB, N_GUI_DATAGRID_DATA::nb_cols, right(), N_GUI_DATAGRID_COL::visible, and N_GUI_DATAGRID_COL::width.

Referenced by _datagrid_resize_hover(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_datagrid_hmetrics()

void _datagrid_hmetrics ( const N_GUI_WIDGET * wgt, const N_GUI_DATAGRID_DATA * gd, ALLEGRO_FONT * font, const N_GUI_STYLE * style, float * content_w, float * pane_w, int * need_hsb )

static

Compute the datagrid horizontal-scroll metrics used identically by the draw path and the mouse handlers, so the thumb geometry never drifts between them: content_w = left pad + the total width of the visible columns; pane_w = the viewport width available to the columns (widget width minus a vertical scrollbar when the rows overflow); need_hsb = 1 when the content is wider than the pane.

Any output pointer may be NULL.

Definition at line 8902 of file n_gui.c.

References _datagrid_phys(), N_GUI_DATAGRID_DATA::cols, font, N_GUI_WIDGET::h, N_GUI_STYLE::item_height_pad, N_GUI_STYLE::item_text_padding, N_GUI_DATAGRID_DATA::nb_cols, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_STYLE::scrollbar_size, N_GUI_DATAGRID_COL::visible, visible(), N_GUI_WIDGET::w, and N_GUI_DATAGRID_COL::width.

Referenced by _draw_datagrid(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_datagrid_phys()

size_t _datagrid_phys ( const N_GUI_DATAGRID_DATA * gd, size_t dp )

static

physical column index shown at display position dp (identity when no order).

Definition at line 5187 of file n_gui.c.

References N_GUI_DATAGRID_DATA::col_order.

Referenced by _datagrid_header_hit(), _datagrid_hmetrics(), _draw_datagrid(), n_gui_datagrid_columns_width(), and n_gui_datagrid_display_to_physical().

Here is the caller graph for this function:

_datagrid_resize_hover()

int _datagrid_resize_hover ( N_GUI_CTX * ctx, float px, float py )

static

Whether the pointer at (px,py) rests on a datagrid column-resize border: the header row of a visible datagrid, within a few pixels of a visible column's right edge.

Mirrors the hit test that starts a resize drag on mouse-down, so the caller can show a horizontal-resize cursor there for discoverability. The topmost datagrid under the point wins (windows are ordered back to front).

Definition at line 13487 of file n_gui.c.

References _datagrid_header_hit(), _point_in_rect(), _win_on_pass(), _win_tbh(), N_GUI_WIDGET::data, N_GUI_CTX::default_font, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_STYLE::item_height_pad, list_foreach, N_GUI_TYPE_DATAGRID, N_GUI_WIN_OPEN, N_GUI_WINDOW::scroll_x, N_GUI_WINDOW::scroll_y, N_GUI_WINDOW::state, N_GUI_CTX::style, N_GUI_WIDGET::type, N_GUI_WIDGET::visible, N_GUI_WIDGET::w, N_GUI_WINDOW::widgets, N_GUI_CTX::windows, N_GUI_WIDGET::x, N_GUI_WINDOW::x, N_GUI_WIDGET::y, and N_GUI_WINDOW::y.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_destroy_widget()

void _destroy_widget ( void * ptr )

static

Definition at line 659 of file n_gui.c.

References N_GUI_DATAGRID_DATA::cells, N_GUI_DATAGRID_DATA::col_order, N_GUI_DATAGRID_DATA::cols, N_GUI_HEXVIEW_DATA::data, N_GUI_WIDGET::data, N_GUI_CUSTOM_DATA::destroy, N_GUI_DROPMENU_DATA::entries, FreeNoLog, N_GUI_COMBOBOX_DATA::items, N_GUI_LISTBOX_DATA::items, N_GUI_RADIOLIST_DATA::items, N_GUI_TYPE_COMBOBOX, N_GUI_TYPE_CUSTOM, N_GUI_TYPE_DATAGRID, N_GUI_TYPE_DROPMENU, N_GUI_TYPE_HEXVIEW, N_GUI_TYPE_LISTBOX, N_GUI_TYPE_MARKDOWNVIEW, N_GUI_TYPE_RADIOLIST, N_GUI_TYPE_SYNTAXVIEW, N_GUI_TYPE_TEXTAREA, N_GUI_DATAGRID_DATA::nb_cols, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_TEXTAREA_DATA::placeholder, N_GUI_DATAGRID_DATA::row_color, N_GUI_DATAGRID_DATA::row_has_color, N_GUI_DATAGRID_DATA::row_sel, N_GUI_TEXTAREA_DATA::suggest_items, N_GUI_MARKDOWNVIEW_DATA::text, N_GUI_SYNTAXVIEW_DATA::text, N_GUI_TEXTAREA_DATA::text, N_GUI_WIDGET::tooltip, N_GUI_WIDGET::type, and N_GUI_CUSTOM_DATA::user_data.

Referenced by n_gui_add_button(), n_gui_add_checkbox(), n_gui_add_combobox(), n_gui_add_custom(), n_gui_add_datagrid(), n_gui_add_dropmenu(), n_gui_add_hexview(), n_gui_add_image(), n_gui_add_label(), n_gui_add_listbox(), n_gui_add_markdownview(), n_gui_add_progressbar(), n_gui_add_radiolist(), n_gui_add_scrollbar(), n_gui_add_slider(), n_gui_add_splitpane(), n_gui_add_syntaxview(), and n_gui_add_textarea().

Here is the caller graph for this function:

_destroy_window()

void _destroy_window ( void * ptr )

static

helper: destroy a single window (called by list destructor)

Definition at line 715 of file n_gui.c.

References FreeNoLog, list_destroy(), and N_GUI_WINDOW::widgets.

Referenced by _sort_windows_by_zorder(), n_gui_add_window(), n_gui_lower_window(), and n_gui_raise_window().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_bitmap_scaled()

void _draw_bitmap_scaled ( ALLEGRO_BITMAP * bmp, float dx, float dy, float dw, float dh, int mode )

static

helper: draw a bitmap into a rectangle, respecting the given scale mode.

mode: N_GUI_IMAGE_FIT, N_GUI_IMAGE_STRETCH, or N_GUI_IMAGE_CENTER.

Definition at line 6776 of file n_gui.c.

References mode, N_GUI_IMAGE_CENTER, and N_GUI_IMAGE_STRETCH.

Referenced by _draw_window().

Here is the caller graph for this function:

_draw_button()

void _draw_button ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, const N_GUI_STYLE * style )

static

Definition at line 8057 of file n_gui.c.

References _bg_for_state(), _draw_glyph(), _draw_text_truncated(), _draw_themed_rect(), _min_thickness(), _shape_rounded(), _text_dims(), _text_for_state(), N_GUI_BUTTON_DATA::bitmap, N_GUI_BUTTON_DATA::bitmap_active, N_GUI_BUTTON_DATA::bitmap_hover, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, N_GUI_BUTTON_DATA::glyph, N_GUI_WIDGET::h, N_GUI_BUTTON_DATA::key_press_until, N_GUI_BUTTON_DATA::label, N_GUI_STYLE::label_padding, N_GUI_GLYPH_NONE, N_GUI_SHAPE_BITMAP, N_GUI_STATE_ACTIVE, N_GUI_STATE_HOVER, N_GUI_BUTTON_DATA::shape, N_GUI_WIDGET::state, N_GUI_STYLE::tb_btn_glyph_thickness, N_GUI_WIDGET::theme, N_GUI_BUTTON_DATA::toggle_mode, N_GUI_BUTTON_DATA::toggled, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_checkbox()

void _draw_checkbox ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

draw a checkbox widget

Definition at line 8749 of file n_gui.c.

References _draw_text_truncated(), _draw_themed_rect(), _min_thickness(), _opt_rounded(), _text_dims(), _text_for_state(), N_GUI_CHECKBOX_DATA::box_bitmap, N_GUI_CHECKBOX_DATA::box_checked_bitmap, N_GUI_CHECKBOX_DATA::box_hover_bitmap, N_GUI_STYLE::checkbox_label_gap, N_GUI_STYLE::checkbox_label_offset, N_GUI_STYLE::checkbox_mark_margin, N_GUI_STYLE::checkbox_mark_thickness, N_GUI_STYLE::checkbox_max_size, N_GUI_CHECKBOX_DATA::checked, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_CHECKBOX_DATA::label, N_GUI_STATE_HOVER, N_GUI_WIDGET::state, N_GUI_THEME::text_active, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_cols_scrollbar()

void _draw_cols_scrollbar ( float ax, float bar_y, float track_w, float content_w, float h_scroll, N_GUI_SB_TRACK * track, const N_GUI_STYLE * style, const N_GUI_THEME * theme )

static

draw a horizontal scrollbar along the bottom edge of a widget: track_w is the width of the scrollable pane (from ax), bar_y its top, content_w the total content width, h_scroll the current pixel offset, track the owning widget's N_GUI_SB_TRACK for this bar.

The vertical twin is _draw_rows_scrollbar.

Definition at line 8889 of file n_gui.c.

References _draw_scrollbar_body(), _sb_skin(), _scrollbar_thumb(), _N_GUI_THUMB::len, N_GUI_STATE_IDLE, _N_GUI_THUMB::off, N_GUI_STYLE::scrollbar_size, and N_GUI_STYLE::scrollbar_thumb_min.

Referenced by _draw_datagrid(), _draw_listbox(), and _draw_syntaxview().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_combobox()

void _draw_combobox ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, const N_GUI_STYLE * style )

static

draw a combobox widget (closed state)

Definition at line 10236 of file n_gui.c.

References _draw_text_truncated(), _draw_themed_rect(), _min_thickness(), _shape_rounded(), _text_dims(), _text_for_state(), N_GUI_COMBOBOX_DATA::bg_bitmap, N_GUI_WIDGET::data, N_GUI_STYLE::dropdown_arrow_half_h, N_GUI_STYLE::dropdown_arrow_half_w, N_GUI_STYLE::dropdown_arrow_reserve, N_GUI_STYLE::dropdown_arrow_thickness, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_STYLE::item_text_padding, N_GUI_COMBOBOX_DATA::items, N_GUI_SHAPE_RECT, N_GUI_COMBOBOX_DATA::nb_items, N_GUI_COMBOBOX_DATA::selected_index, N_GUI_WIDGET::state, N_GUI_LISTITEM::text, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_combobox_dropdown()

void _draw_combobox_dropdown ( N_GUI_CTX * ctx )

static

Definition at line 10446 of file n_gui.c.

References _combobox_dropdown_width(), _draw_scrollbar_body(), _draw_text_truncated(), _dropdown_panel_y(), _find_widget_window(), _min_thickness(), _opt_rounded(), _sb_skin(), _scrollbar_thumb(), _win_on_pass(), N_GUI_THEME::bg_active, N_GUI_COMBOBOX_DATA::bg_bitmap, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_WIDGET::data, N_GUI_CTX::default_font, N_GUI_STYLE::dropdown_border_thickness, N_GUI_COMBOBOX_DATA::flags, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_COMBOBOX_DATA::highlight_index, N_GUI_WIDGET::id, N_GUI_COMBOBOX_DATA::is_open, N_GUI_COMBOBOX_DATA::item_bg_bitmap, N_GUI_COMBOBOX_DATA::item_height, N_GUI_STYLE::item_height_pad, N_GUI_COMBOBOX_DATA::item_selected_bitmap, N_GUI_STYLE::item_selection_inset, N_GUI_STYLE::item_text_padding, N_GUI_COMBOBOX_DATA::items, _N_GUI_THUMB::len, N_GUI_COMBOBOX_DATA::max_visible, N_GUI_COMBOBOX_EXPAND_UP, n_gui_get_widget(), N_GUI_STATE_SCROLLBAR_DRAG, N_GUI_COMBOBOX_DATA::nb_items, _N_GUI_THUMB::off, N_GUI_CTX::open_combobox_id, N_GUI_COMBOBOX_DATA::scroll_offset, N_GUI_STYLE::scrollbar_size, N_GUI_STYLE::scrollbar_thumb_min, N_GUI_COMBOBOX_DATA::selected_index, N_GUI_WIDGET::state, N_GUI_CTX::style, N_GUI_LISTITEM::text, N_GUI_THEME::text_active, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by n_gui_draw(), and n_gui_draw_detached().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_custom()

void _draw_custom ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font )

static

draw a single widget.

win_w is the parent window width (>0 for resizable windows, 0 otherwise) so that labels can expand to fill available space.

Definition at line 11130 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_CUSTOM_DATA::draw, N_GUI_WIDGET::font, N_GUI_CUSTOM_DATA::user_data, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the caller graph for this function:

_draw_datagrid()

void _draw_datagrid ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

Definition at line 9776 of file n_gui.c.

References _datagrid_hmetrics(), _datagrid_phys(), _draw_cols_scrollbar(), _draw_rows_scrollbar(), _draw_text_truncated(), _min_thickness(), N_GUI_THEME::bg_active, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_DATAGRID_DATA::cells, N_GUI_DATAGRID_DATA::cols, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_DATAGRID_DATA::h_scroll, N_GUI_STYLE::item_height_pad, N_GUI_STYLE::item_text_padding, N_GUI_DATAGRID_DATA::multiselect, N_GUI_ID_MAX, N_GUI_STATE_FOCUSED, N_GUI_DATAGRID_DATA::nb_cols, N_GUI_DATAGRID_DATA::nb_rows, row(), N_GUI_DATAGRID_DATA::row_color, N_GUI_DATAGRID_DATA::row_has_color, N_GUI_DATAGRID_DATA::row_sel, N_GUI_WIDGET::sb_h, N_GUI_WIDGET::sb_v, N_GUI_DATAGRID_DATA::scroll_offset, N_GUI_STYLE::scrollbar_size, N_GUI_DATAGRID_DATA::selected_row, N_GUI_DATAGRID_DATA::sort_col, N_GUI_DATAGRID_DATA::sort_dir, N_GUI_WIDGET::state, N_GUI_THEME::text_active, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_DATAGRID_COL::title, N_GUI_DATAGRID_COL::visible, visible(), N_GUI_WIDGET::w, N_GUI_DATAGRID_COL::width, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_dropmenu()

void _draw_dropmenu ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, const N_GUI_STYLE * style )

static

draw a dropdown menu button (closed state)

Definition at line 10568 of file n_gui.c.

References _draw_text_truncated(), _draw_themed_rect(), _min_thickness(), _text_dims(), _text_for_state(), N_GUI_WIDGET::data, N_GUI_STYLE::dropdown_arrow_half_h, N_GUI_STYLE::dropdown_arrow_half_w, N_GUI_STYLE::dropdown_arrow_reserve, N_GUI_STYLE::dropdown_arrow_thickness, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_DROPMENU_DATA::is_open, N_GUI_STYLE::item_text_padding, N_GUI_DROPMENU_DATA::label, N_GUI_SHAPE_RECT, N_GUI_STATE_ACTIVE, N_GUI_STYLE::shape_mode, N_GUI_WIDGET::state, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_dropmenu_panel()

void _draw_dropmenu_panel ( N_GUI_CTX * ctx )

static

draw the dropdown menu panel overlay (called after all windows)

Definition at line 10601 of file n_gui.c.

References _draw_scrollbar_body(), _draw_text_truncated(), _dropdown_panel_y(), _find_widget_window(), _min_thickness(), _sb_skin(), _scrollbar_thumb(), _win_on_pass(), N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_WIDGET::data, N_GUI_CTX::default_font, N_GUI_STYLE::dropdown_border_thickness, N_GUI_DROPMENU_DATA::entries, N_GUI_DROPMENU_DATA::flags, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_DROPMENU_DATA::highlight_index, N_GUI_WIDGET::id, N_GUI_DROPMENU_DATA::is_open, N_GUI_DROPMENU_DATA::item_height, N_GUI_STYLE::item_height_pad, N_GUI_DROPMENU_DATA::item_hover_bitmap, N_GUI_STYLE::item_selection_inset, N_GUI_STYLE::item_text_padding, _N_GUI_THUMB::len, N_GUI_DROPMENU_DATA::max_visible, N_GUI_DROPMENU_EXPAND_UP, n_gui_dropmenu_panel_width(), n_gui_get_widget(), N_GUI_SHAPE_RECT, N_GUI_STATE_SCROLLBAR_DRAG, N_GUI_DROPMENU_DATA::nb_entries, _N_GUI_THUMB::off, N_GUI_CTX::open_dropmenu_id, N_GUI_DROPMENU_DATA::panel_bitmap, N_GUI_DROPMENU_DATA::scroll_offset, N_GUI_STYLE::scrollbar_size, N_GUI_STYLE::scrollbar_thumb_min, N_GUI_STYLE::shape_mode, N_GUI_WIDGET::state, N_GUI_CTX::style, N_GUI_DROPMENU_ENTRY::text, N_GUI_THEME::text_hover, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by n_gui_draw(), and n_gui_draw_detached().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_focus_outline()

void _draw_focus_outline ( const N_GUI_WIDGET * wgt, float ox, float oy )

static

draw the keyboard focus outline over a widget that has the focus: a line just inside its edge, twice the theme's border and at least 2 pixels, in the theme's active border colour, so it follows the palette.

One outline for every widget Tab reaches, so what the keyboard is on reads the same whatever it is. A text area is left out: its caret and border already say so.

Definition at line 11142 of file n_gui.c.

References _min_thickness(), N_GUI_THEME::border_active, N_GUI_THEME::border_thickness, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_WIDGET::h, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_glyph()

void _draw_glyph ( int glyph, float cx, float cy, float s, ALLEGRO_COLOR fg, ALLEGRO_COLOR bg, float thick )

static

draw a button widget

draw an N_GUI_GLYPH_* icon centred on (cx, cy), sized to a half-extent of s. fg is the button's text colour and bg its current background, so a glyph built from overlapping shapes (COPY) can mask what it covers.

Definition at line 8010 of file n_gui.c.

References N_GUI_GLYPH_ARROW_DOWN, N_GUI_GLYPH_ARROW_LEFT, N_GUI_GLYPH_ARROW_RIGHT, N_GUI_GLYPH_ARROW_UP, N_GUI_GLYPH_COPY, N_GUI_GLYPH_CROSS, N_GUI_GLYPH_MINUS, and N_GUI_GLYPH_PLUS.

Referenced by _draw_button().

Here is the caller graph for this function:

_draw_hexview()

void _draw_hexview ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

draw a read-only hex viewer: offset, hex bytes, and an ASCII gutter

Definition at line 8924 of file n_gui.c.

References _draw_rows_scrollbar(), _min_thickness(), N_GUI_THEME::bg_normal, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_HEXVIEW_DATA::bytes_per_row, N_GUI_HEXVIEW_DATA::cursor, N_GUI_HEXVIEW_DATA::data, N_GUI_WIDGET::data, N_GUI_HEXVIEW_DATA::editable, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_HEXVIEW_DATA::len, line(), N_GUI_HEXVIEW_DATA::nibble, row(), N_GUI_WIDGET::sb_v, N_GUI_HEXVIEW_DATA::scroll_offset, N_GUI_STYLE::scrollbar_size, N_GUI_THEME::text_normal, N_GUI_STYLE::textarea_padding, N_GUI_WIDGET::theme, visible(), N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_image()

void _draw_image ( N_GUI_WIDGET * wgt, float ox, float oy )

static

draw an image widget

Definition at line 10701 of file n_gui.c.

References N_GUI_IMAGE_DATA::bitmap, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_WIDGET::data, N_GUI_WIDGET::h, N_GUI_IMAGE_CENTER, N_GUI_IMAGE_STRETCH, N_GUI_IMAGE_DATA::scale_mode, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the caller graph for this function:

_draw_justified_selection()

void _draw_justified_selection ( ALLEGRO_FONT * font, float x, float y, float max_w, float max_h, const char * text, int sel_start, int sel_end, ALLEGRO_COLOR sel_color )

static

helper: draw selection highlight rectangles over justified/wrapped text.

Shares _split_words + _wrap_words with the draw, so the rectangles cannot land on a different line than the text they highlight.

Definition at line 7516 of file n_gui.c.

References _split_words(), _text_w(), _wrap_words(), font, N_GUI_TEXT_MAX, N_GUI_WRAP_MAX_WORDS, and text().

Referenced by _draw_label().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_label()

void _draw_label ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, float win_w, N_GUI_STYLE * style )

static

Definition at line 10977 of file n_gui.c.

References _draw_justified_selection(), _draw_label_lines(), _draw_label_overflow(), _draw_text_justified(), _draw_widget_vscrollbar(), _label_content_height(), _label_effective_w(), _label_wrap_w(), _min_thickness(), _set_clipping_rect_transformed(), _text_dims(), _text_for_state(), _text_w(), N_GUI_LABEL_DATA::align, N_GUI_LABEL_DATA::bg_bitmap, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_STYLE::label_padding, N_GUI_LABEL_DATA::link, N_GUI_STYLE::link_color_hover, N_GUI_STYLE::link_color_normal, N_GUI_STYLE::link_underline_thickness, N_GUI_ALIGN_CENTER, N_GUI_ALIGN_JUSTIFIED, N_GUI_ALIGN_RIGHT, N_GUI_STATE_HOVER, N_GUI_TEXT_MAX, N_GUI_WIDGET::sb_v, N_GUI_LABEL_DATA::scroll_y, N_GUI_STYLE::scrollbar_size, N_GUI_LABEL_DATA::sel_end, N_GUI_LABEL_DATA::sel_start, N_GUI_THEME::selection_color, N_GUI_WIDGET::state, N_GUI_LABEL_DATA::text, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_label_lines()

void _draw_label_lines ( ALLEGRO_FONT * font, ALLEGRO_COLOR tc, float ax, float ay, float effective_w, float h, float pad, const N_GUI_LABEL_DATA * lb, ALLEGRO_COLOR sel_color )

static

helper: draw a LEFT, CENTER or RIGHT label whose text has line breaks, one line under another, each aligned and shortened on its own, with the selection highlighted line by line.

Definition at line 10884 of file n_gui.c.

References _draw_label_overflow(), _label_line_at(), _label_line_count(), _label_line_x(), _label_lines_top(), _set_clipping_rect_transformed(), _text_w(), font, h(), line(), N_GUI_TEXT_MAX, N_GUI_LABEL_DATA::sel_end, N_GUI_LABEL_DATA::sel_start, start(), and N_GUI_LABEL_DATA::text.

Referenced by _draw_label().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_label_overflow()

void _draw_label_overflow ( ALLEGRO_FONT * font, ALLEGRO_COLOR color, float x, float y, float max_w, const N_GUI_LABEL_DATA * lb, const char * text )

static

helper: draw a label's text, or one line of it, that is too wide for it, shortened the way its truncate mode says.

Definition at line 10819 of file n_gui.c.

References _draw_text_truncated(), font, N_GUI_TEXT_MAX, n_gui_text_shorten(), N_GUI_TRUNCATE_END, text(), and N_GUI_LABEL_DATA::truncate.

Referenced by _draw_label(), and _draw_label_lines().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_listbox()

void _draw_listbox ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

draw a listbox widget

Definition at line 10020 of file n_gui.c.

References _draw_cols_scrollbar(), _draw_rows_scrollbar(), _draw_text_truncated(), _listbox_clamp_h(), _listbox_hmetrics(), N_GUI_THEME::bg_active, N_GUI_LISTBOX_DATA::bg_bitmap, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_LISTBOX_DATA::h_scroll, N_GUI_LISTBOX_DATA::hover_row, N_GUI_LISTBOX_DATA::item_bg_bitmap, N_GUI_LISTBOX_DATA::item_height, N_GUI_STYLE::item_height_pad, N_GUI_LISTBOX_DATA::item_selected_bitmap, N_GUI_STYLE::item_selection_inset, N_GUI_STYLE::item_text_padding, N_GUI_LISTBOX_DATA::items, N_GUI_LISTBOX_DATA::nb_items, N_GUI_WIDGET::sb_h, N_GUI_WIDGET::sb_v, N_GUI_LISTBOX_DATA::scroll_offset, N_GUI_STYLE::scrollbar_size, N_GUI_LISTITEM::selected, N_GUI_THEME::text_active, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_markdownview()

void _draw_markdownview ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, const N_GUI_STYLE * style )

static

draw a sortable data grid: fixed header row plus scrollable data rows

draw a markdown view: the panel, the rendered document clipped to it, and the vertical bar when there is more document than pane.

The document is laid out by n_gui_md, which measures and draws in one walk, so the height the bar is sized from is the height that was painted.

Definition at line 9709 of file n_gui.c.

References _draw_themed_rect(), _draw_widget_vscrollbar(), _markdownview_follow_theme(), _markdownview_measure(), _markdownview_text_w(), _set_clipping_rect_transformed(), _shape_rounded(), N_GUI_MARKDOWNVIEW_DATA::content_h, N_GUI_WIDGET::data, N_GUI_MARKDOWNVIEW_DATA::fonts, N_GUI_WIDGET::h, n_gui_md_draw(), N_GUI_SHAPE_RECT, N_GUI_STATE_IDLE, N_GUI_MD_FONTS::regular, N_GUI_WIDGET::sb_v, N_GUI_MARKDOWNVIEW_DATA::scroll_y, N_GUI_MARKDOWNVIEW_DATA::style, N_GUI_MARKDOWNVIEW_DATA::text, N_GUI_STYLE::textarea_padding, N_GUI_WIDGET::theme, N_GUI_SB_TRACK::w, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_progressbar()

void _draw_progressbar ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

Definition at line 9748 of file n_gui.c.

References N_GUI_THEME::bg_active, N_GUI_THEME::bg_normal, N_GUI_THEME::border_normal, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_PROGRESSBAR_DATA::text, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_PROGRESSBAR_DATA::value, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the caller graph for this function:

_draw_radiolist()

void _draw_radiolist ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, const N_GUI_STYLE * style )

static

draw a radiolist widget

Definition at line 10152 of file n_gui.c.

References _draw_rows_scrollbar(), _min_thickness(), N_GUI_RADIOLIST_DATA::bg_bitmap, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_hover, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_RADIOLIST_DATA::item_bg_bitmap, N_GUI_RADIOLIST_DATA::item_height, N_GUI_STYLE::item_height_pad, N_GUI_RADIOLIST_DATA::item_selected_bitmap, N_GUI_RADIOLIST_DATA::items, N_GUI_STATE_HOVER, N_GUI_RADIOLIST_DATA::nb_items, N_GUI_STYLE::radio_circle_border_thickness, N_GUI_STYLE::radio_circle_min_r, N_GUI_STYLE::radio_inner_offset, N_GUI_STYLE::radio_label_gap, N_GUI_WIDGET::sb_v, N_GUI_RADIOLIST_DATA::scroll_offset, N_GUI_RADIOLIST_DATA::selected_index, N_GUI_WIDGET::state, N_GUI_LISTITEM::text, N_GUI_THEME::text_active, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_rows_scrollbar()

void _draw_rows_scrollbar ( float ax, float ay, float w, float h, int nb_rows, int visible, int scroll_offset, N_GUI_SB_TRACK * track, const N_GUI_STYLE * style, const N_GUI_THEME * theme )

static

draw a row-indexed vertical scrollbar (shared by hexview, syntaxview, datagrid, listbox and radiolist) at the right edge of [ax,ay,w,h].

nb_rows total, visible per page, scroll_offset is the first visible row, track the owning widget's N_GUI_SB_TRACK for this bar, which the paint records into and reads the pointer's answer back out of.

Definition at line 8876 of file n_gui.c.

References _draw_scrollbar_body(), _sb_skin(), _scrollbar_thumb(), h(), _N_GUI_THUMB::len, N_GUI_STATE_IDLE, _N_GUI_THUMB::off, N_GUI_STYLE::scrollbar_size, N_GUI_STYLE::scrollbar_thumb_min, and visible().

Referenced by _draw_datagrid(), _draw_hexview(), _draw_listbox(), _draw_radiolist(), and _draw_syntaxview().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_scrollbar()

void _draw_scrollbar ( N_GUI_WIDGET * wgt, float ox, float oy, const N_GUI_STYLE * style )

static

draw a scrollbar widget.

A scrollbar on its own is drawn exactly like the bars a list or a text box draws inside itself, through the same two helpers: a flat track, the divider, and a rounded thumb that lifts towards the accent when the bar is hovered, dragged or holding the keyboard. It used to draw a themed box with an outlined block for a thumb instead, which made a pane scrolled by a scrollbar widget look like a different program from the pane next to it.

The widget rectangle IS the bar here, so the widget's own state is the bar's state – hover included, unlike an inner bar.

A caller that supplied bitmaps still gets them: each part that has one is drawn from the bitmap, each part that has none is painted.

Definition at line 8819 of file n_gui.c.

References _draw_scrollbar_thumb(), _draw_scrollbar_track(), _sb_skin(), _scrollbar_thumb(), _select_state_bitmap(), _shape_rounded(), N_GUI_SCROLLBAR_DATA::content_size, _N_GUI_SB_SKIN::corner_r, N_GUI_WIDGET::data, N_GUI_WIDGET::h, _N_GUI_THUMB::len, N_GUI_SCROLLBAR_V, _N_GUI_THUMB::off, N_GUI_SCROLLBAR_DATA::orientation, N_GUI_SCROLLBAR_DATA::scroll_pos, N_GUI_STYLE::scrollbar_thumb_min, N_GUI_STYLE::scrollbar_thumb_padding, N_GUI_SCROLLBAR_DATA::shape, N_GUI_WIDGET::state, N_GUI_WIDGET::theme, N_GUI_SCROLLBAR_DATA::thumb_active_bitmap, N_GUI_SCROLLBAR_DATA::thumb_bitmap, N_GUI_SCROLLBAR_DATA::thumb_hover_bitmap, N_GUI_SCROLLBAR_DATA::track_bitmap, N_GUI_SCROLLBAR_DATA::viewport_size, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_scrollbar_body()

void _draw_scrollbar_body ( float bar_x, float bar_y, float bar_w, float bar_h, float thumb_off, float thumb_len, int vertical, int state, N_GUI_SB_TRACK * track, const _N_GUI_SB_SKIN * skin, const N_GUI_THEME * theme )

static

Draw one whole scrollbar: track, divider and thumb.

The convenience over calling the two halves. Every bar in the toolkit comes through this pair – the scrollbar widget, the bars a list, a grid or a text box draws inside itself, a combo box or drop menu panel's, a window's own, and the display's – so they cannot drift apart the way they had: the scrollbar widget drew a themed box with a hollow outlined block for a thumb while everything else drew a track and a pill, and each of the last four carried its own copy of the arithmetic.

Nothing is allocated and nothing is kept; the caller owns the geometry.

Parameters

bar_x	Left edge of the strip the bar occupies.
bar_y	Top edge of that strip.
bar_w	Width of the strip.
bar_h	Height of the strip.
thumb_off	Thumb offset from the start of the track along the scrolling axis, in pixels, as _scrollbar_thumb() gives it.
thumb_len	Thumb length along that axis, in pixels, likewise.
vertical	Non-zero for a bar that scrolls up and down.
state	N_GUI_STATE_* flags the caller can vouch for itself.
track	The owning widget's record for this bar, recorded into and read for the pointer's position. NULL for a bar no widget owns, which then relies on state alone.
skin	Colours and metrics, from _sb_skin() or _sb_skin_global(). Must not be NULL.
theme	Theme the divider and the thumb follow. Must not be NULL.

Definition at line 7929 of file n_gui.c.

References _draw_scrollbar_thumb(), _draw_scrollbar_track(), N_GUI_SB_TRACK::h, N_GUI_SB_TRACK::hovered, N_GUI_STATE_HOVER, _N_GUI_SB_SKIN::thumb_padding, N_GUI_SB_TRACK::w, N_GUI_SB_TRACK::x, and N_GUI_SB_TRACK::y.

Referenced by _draw_cols_scrollbar(), _draw_combobox_dropdown(), _draw_dropmenu_panel(), _draw_rows_scrollbar(), _draw_widget_vscrollbar(), _draw_window(), and n_gui_draw().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_scrollbar_thumb()

void _draw_scrollbar_thumb ( float x, float y, float w, float h, int state, const _N_GUI_SB_SKIN * skin, const N_GUI_THEME * theme )

static

Draw the thumb of a scrollbar, in the state its owner is in.

The fill is the skin's thumb colour, lifted towards the theme's accent once the bar is hovered, pressed or holding the keyboard; a bar in any of those states is outlined in that colour as well, which is what says "this one has the focus" on a track too narrow for anything subtler to read. A skin that asks for an outline of its own gets it in every state, under the state one.

Parameters

x	Left edge of the thumb.
y	Top edge of the thumb.
w	Thumb width. A width or height below zero draws nothing.
h	Thumb height.
state	N_GUI_STATE_* flags of whatever owns the bar. Only the flags the bar itself can vouch for should be passed; see _inner_scrollbar_state().
skin	Colours and metrics, from _sb_skin() or _sb_skin_global(). Must not be NULL.
theme	Theme the lift and the state outline follow. Must not be NULL.

Definition at line 7871 of file n_gui.c.

References _min_thickness(), _scrollbar_edge_for_state(), _scrollbar_thumb_for_state(), N_GUI_THEME::border_thickness, _N_GUI_SB_SKIN::corner_r, h(), N_GUI_STATE_ACTIVE, N_GUI_STATE_FOCUSED, N_GUI_STATE_HOVER, N_GUI_STATE_SCROLLBAR_DRAG, _N_GUI_SB_SKIN::outline, _N_GUI_SB_SKIN::outline_thickness, and _N_GUI_SB_SKIN::thumb.

Referenced by _draw_scrollbar(), and _draw_scrollbar_body().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_scrollbar_track()

void _draw_scrollbar_track ( float bar_x, float bar_y, float bar_w, float bar_h, int vertical, int state, const _N_GUI_SB_SKIN * skin, const N_GUI_THEME * theme )

static

Draw the track of a scrollbar: the one look every bar shares.

A flat rectangle in the skin's track colour, and the hairline that divides the bar from the content it scrolls – on the left of a vertical bar, along the top of a horizontal one, because that is the side the content is on. Without the line a dark track on a dark panel has no edge at all. The line does not react to state; only the thumb does. See the body.

Parameters

bar_x	Left edge of the strip the bar occupies.
bar_y	Top edge of that strip.
bar_w	Width of the strip.
bar_h	Height of the strip.
vertical	Non-zero for a bar that scrolls up and down.
state	N_GUI_STATE_* flags of whatever owns the bar.
skin	Colours and metrics, from _sb_skin() or _sb_skin_global(). Must not be NULL.
theme	Theme the divider follows. Must not be NULL.

Definition at line 7822 of file n_gui.c.

References _min_thickness(), N_GUI_THEME::border_normal, _N_GUI_SB_SKIN::track, _N_GUI_SB_SKIN::track_inset, and _N_GUI_SB_SKIN::track_round.

Referenced by _draw_scrollbar(), and _draw_scrollbar_body().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_slider()

void _draw_slider ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

Definition at line 8186 of file n_gui.c.

References _bg_for_state(), _border_for_state(), _min_thickness(), _select_state_bitmap(), _slider_handle_r(), _slider_travel(), _slider_value_text(), _text_dims(), N_GUI_THEME::bg_active, N_GUI_THEME::bg_normal, N_GUI_THEME::border_normal, N_GUI_WIDGET::data, N_GUI_SLIDER_DATA::fill_bitmap, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_SLIDER_DATA::handle_active_bitmap, N_GUI_SLIDER_DATA::handle_bitmap, N_GUI_SLIDER_DATA::handle_hover_bitmap, N_GUI_SLIDER_DATA::max_val, N_GUI_SLIDER_DATA::min_val, N_GUI_SLIDER_V, N_GUI_SLIDER_DATA::orientation, N_GUI_STYLE::slider_handle_border_thickness, N_GUI_STYLE::slider_track_border_thickness, N_GUI_STYLE::slider_track_corner_r, N_GUI_STYLE::slider_track_size, N_GUI_STYLE::slider_value_label_offset, N_GUI_WIDGET::state, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, N_GUI_SLIDER_DATA::track_bitmap, N_GUI_SLIDER_DATA::value, N_GUI_SLIDER_DATA::value_visible, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_splitpane()

void _draw_splitpane ( N_GUI_WIDGET * wgt, float ox, float oy )

static

draw a split pane: only the divider bar is painted (the app fills the two regions with its own widgets, positioned from the divider ratio)

Definition at line 9948 of file n_gui.c.

References N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::border_normal, N_GUI_WIDGET::data, N_GUI_SPLITPANE_DATA::divider, N_GUI_WIDGET::h, N_GUI_SPLIT_VERTICAL, N_GUI_STATE_ACTIVE, N_GUI_STATE_HOVER, N_GUI_SPLITPANE_DATA::orientation, N_GUI_SPLITPANE_DATA::ratio, N_GUI_WIDGET::state, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the caller graph for this function:

_draw_syntaxview()

void _draw_syntaxview ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

Definition at line 9593 of file n_gui.c.

References _draw_cols_scrollbar(), _draw_rows_scrollbar(), _min_thickness(), _syntax_draw_line(), _syntax_prefix_w_lim(), _syntaxview_clamp_h(), _syntaxview_hmetrics(), N_GUI_THEME::bg_normal, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_SYNTAXVIEW_DATA::cached_headers_end, N_GUI_SYNTAXVIEW_DATA::cached_nb_lines, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_SYNTAXVIEW_DATA::h_scroll, le(), N_GUI_SYNTAXVIEW_DATA::len, N_GUI_SYNTAXVIEW_DATA::mode, N_GUI_WIDGET::sb_h, N_GUI_WIDGET::sb_v, N_GUI_SYNTAXVIEW_DATA::scroll_offset, N_GUI_STYLE::scrollbar_size, N_GUI_SYNTAXVIEW_DATA::sel_end, N_GUI_SYNTAXVIEW_DATA::sel_start, N_GUI_THEME::selection_color, N_GUI_SYNTAXVIEW_DATA::text, N_GUI_STYLE::textarea_padding, N_GUI_WIDGET::theme, visible(), N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_tb_buttons()

void _draw_tb_buttons ( N_GUI_WINDOW * win, const N_GUI_STYLE * style )

static

draw the titlebar buttons for a window

Definition at line 11300 of file n_gui.c.

References _draw_themed_rect(), _tb_button_rect(), _text_for_state(), N_GUI_TB_BUTTONS::btn_theme, N_GUI_TB_BUTTONS::close_active_bitmap, N_GUI_TB_BUTTONS::close_bitmap, N_GUI_TB_BUTTONS::close_hover_bitmap, N_GUI_TB_BUTTONS::close_theme, N_GUI_TB_BUTTONS::hovered, N_GUI_TB_BUTTONS::maximize_active_bitmap, N_GUI_TB_BUTTONS::maximize_bitmap, N_GUI_TB_BUTTONS::maximize_hover_bitmap, N_GUI_TB_BUTTONS::minimize_active_bitmap, N_GUI_TB_BUTTONS::minimize_bitmap, N_GUI_TB_BUTTONS::minimize_hover_bitmap, N_GUI_STATE_ACTIVE, N_GUI_STATE_HOVER, N_GUI_STATE_IDLE, N_GUI_TB_BTN_CLOSE, N_GUI_TB_BTN_MAXIMIZE, N_GUI_TB_BTN_MINIMIZE, N_GUI_WIN_MAXIMISED, N_GUI_TB_BUTTONS::pressed, N_GUI_WINDOW::state, N_GUI_STYLE::tb_btn_glyph_thickness, and N_GUI_WINDOW::tb_buttons.

Referenced by _draw_window().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_text_justified()

void _draw_text_justified ( ALLEGRO_FONT * font, ALLEGRO_COLOR color, float x, float y, float max_w, float max_h, const char * text )

static

helper: draw justified text within a given width, with multi-line word wrapping.

Words are packed into lines using minimum spacing; full lines are justified (gaps spread evenly), the last line is left-aligned. Only shows "..." when a single word is wider than max_w.

Definition at line 7137 of file n_gui.c.

References _draw_text_truncated(), _split_words(), _text_w(), _word_text(), _wrap_words(), font, N_GUI_TEXT_MAX, N_GUI_WRAP_MAX_WORDS, and text().

Referenced by _draw_label().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_text_truncated()

void _draw_text_truncated ( ALLEGRO_FONT * font, ALLEGRO_COLOR color, float x, float y, float max_w, const char * text )

static

helper: draw text truncated to a maximum pixel width.

If the text is wider than max_w, it is clipped and "..." is appended.

Definition at line 6942 of file n_gui.c.

References _text_w(), font, N_GUI_TEXT_MAX, and text().

Referenced by _draw_button(), _draw_checkbox(), _draw_combobox(), _draw_combobox_dropdown(), _draw_datagrid(), _draw_dropmenu(), _draw_dropmenu_panel(), _draw_label_overflow(), _draw_listbox(), _draw_text_justified(), _draw_textarea_suggest(), and _draw_window().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_textarea()

void _draw_textarea ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

draw a textarea widget

Definition at line 8445 of file n_gui.c.

References _draw_textarea_placeholder(), _draw_widget_vscrollbar(), _min_thickness(), _opt_rounded(), _set_clipping_rect_transformed(), _text_w(), _textarea_content_height(), _textarea_has_selection(), _textarea_sel_range(), _textarea_step(), N_GUI_THEME::bg_active, N_GUI_TEXTAREA_DATA::bg_bitmap, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::border_hover, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, _N_GUI_TA_STEP::ch, _N_GUI_TA_STEP::clen, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_TEXTAREA_DATA::cursor_time, _N_GUI_TA_STEP::cw, N_GUI_WIDGET::data, font, N_GUI_WIDGET::font, h(), N_GUI_WIDGET::h, N_GUI_TEXTAREA_DATA::mask_char, N_GUI_TEXTAREA_DATA::multiline, N_GUI_STATE_FOCUSED, N_GUI_STATE_HOVER, N_GUI_TEXT_MAX, _N_GUI_TA_STEP::newline, run, N_GUI_WIDGET::sb_v, N_GUI_TEXTAREA_DATA::scroll_from_wheel, N_GUI_TEXTAREA_DATA::scroll_x, N_GUI_TEXTAREA_DATA::scroll_y, N_GUI_STYLE::scrollbar_size, N_GUI_THEME::selection_color, N_GUI_WIDGET::state, N_GUI_TEXTAREA_DATA::text, N_GUI_THEME::text_active, N_GUI_TEXTAREA_DATA::text_len, N_GUI_THEME::text_normal, N_GUI_STYLE::textarea_cursor_blink_period, N_GUI_STYLE::textarea_cursor_width, N_GUI_STYLE::textarea_padding, N_GUI_WIDGET::theme, N_GUI_WIDGET::w, _N_GUI_TA_STEP::wrapped, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_widget().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_textarea_placeholder()

void _draw_textarea_placeholder ( const N_GUI_TEXTAREA_DATA * td, const N_GUI_WIDGET * wgt, ALLEGRO_FONT * font, float tx, float ty )

static

draw a textarea's placeholder/hint at (tx,ty), dimmed, while the field is empty; a no-op once any text has been entered or when no placeholder is set

Definition at line 8433 of file n_gui.c.

References N_GUI_THEME::bg_normal, font, N_GUI_TEXTAREA_DATA::placeholder, N_GUI_TEXTAREA_DATA::text_len, N_GUI_THEME::text_normal, and N_GUI_WIDGET::theme.

Referenced by _draw_textarea().

Here is the caller graph for this function:

_draw_textarea_suggest()

void _draw_textarea_suggest ( N_GUI_CTX * ctx )

static

draw the open completion panel (called after all windows, with the other floating overlays)

Definition at line 10346 of file n_gui.c.

References _draw_text_truncated(), _find_widget_window(), _min_thickness(), _suggest_close(), _suggest_panel_rect(), _win_on_pass(), N_GUI_THEME::bg_active, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_WIDGET::data, N_GUI_CTX::default_font, N_GUI_STYLE::dropdown_border_thickness, N_GUI_WIDGET::enabled, font, N_GUI_WIDGET::font, N_GUI_WIDGET::id, N_GUI_STYLE::item_selection_inset, N_GUI_STYLE::item_text_padding, n_gui_get_widget(), N_GUI_STATE_FOCUSED, N_GUI_CTX::open_suggest_id, N_GUI_WIDGET::state, N_GUI_CTX::style, N_GUI_TEXTAREA_DATA::suggest_count, N_GUI_TEXTAREA_DATA::suggest_highlight, N_GUI_TEXTAREA_DATA::suggest_items, N_GUI_TEXTAREA_DATA::suggest_scroll, N_GUI_LISTITEM::text, N_GUI_THEME::text_active, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, and N_GUI_WIDGET::visible.

Referenced by n_gui_draw(), and n_gui_draw_detached().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_themed_rect()

void _draw_themed_rect ( N_GUI_THEME * t, int state, float x, float y, float w, float h, int rounded )

static

draw a themed rectangle or rounded rectangle.

For thin outlines, inset the border by half the thickness so that all four corners render symmetrically (avoids Allegro pixel-alignment artifact on the bottom-right corner).

Definition at line 7975 of file n_gui.c.

References _bg_for_state(), _border_for_state(), _min_thickness(), N_GUI_THEME::border_thickness, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, and h().

Referenced by _draw_button(), _draw_checkbox(), _draw_combobox(), _draw_dropmenu(), _draw_markdownview(), and _draw_tb_buttons().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_tooltip()

void _draw_tooltip ( N_GUI_CTX * ctx )

static

helper: draw the hover-tooltip bubble for the currently armed tooltip widget, but ONLY in the render pass of the display that owns that widget's window.

A detached (native) window is a separate Allegro display, so a tooltip for a widget on it must be drawn into that display with that window's local mouse coordinates, exactly like the combobox/dropmenu overlays; drawing it once in the main pass (as before) put the bubble under the native window and it did not follow the window. Called from both the main pass and each detached pass; the pass_display guard makes it draw exactly once, on the right display.

The bubble is kept ENTIRELY inside a clamp rectangle: a tooltip wider than that rectangle is WORD-WRAPPED to it and the bubble is shifted left/up (flipping above the cursor) so the full text always shows and nothing is clipped at the edge - unless the rectangle is genuinely too small to hold even the wrapped text, in which case it is best-effort clamped.

The clamp rectangle is the DISPLAY, narrowed to the widget's window only when that window owns a display, i.e. is detached. An in-app window clips nothing (the bubble is drawn over the whole display after every window has been painted), so narrowing to it would squeeze a sentence to a few characters per line on a small panel and push the resulting tall bubble off that panel. Independently of the clamp, style.tooltip_max_w caps the text width so a long tooltip does not stretch into one unreadable line the width of a wide display; 0 disables the cap.

Definition at line 11647 of file n_gui.c.

References _find_widget_window(), _text_w(), _tooltip_line_cb(), N_GUI_CTX::default_font, N_GUI_CTX::display_h, N_GUI_CTX::display_w, N_GUI_WINDOW::h, N_GUI_CTX::mouse_x, N_GUI_CTX::mouse_y, n_gui_get_widget(), n_gui_tooltip_pending(), N_GUI_WINDOW::native, N_GUI_CTX::pass_display, N_GUI_CTX::style, N_GUI_WIDGET::tooltip, N_GUI_STYLE::tooltip_bg, N_GUI_STYLE::tooltip_border, N_GUI_STYLE::tooltip_fg, N_GUI_STYLE::tooltip_max_w, N_GUI_CTX::tooltip_widget_id, N_GUI_WIDGET::visible, N_GUI_WINDOW::w, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by n_gui_draw(), and n_gui_draw_detached().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_widget()

void _draw_widget ( N_GUI_WIDGET * wgt, float ox, float oy, ALLEGRO_FONT * default_font, float win_w, N_GUI_STYLE * style )

static

Definition at line 11158 of file n_gui.c.

References _draw_button(), _draw_checkbox(), _draw_combobox(), _draw_custom(), _draw_datagrid(), _draw_dropmenu(), _draw_focus_outline(), _draw_hexview(), _draw_image(), _draw_label(), _draw_listbox(), _draw_markdownview(), _draw_progressbar(), _draw_radiolist(), _draw_scrollbar(), _draw_slider(), _draw_splitpane(), _draw_syntaxview(), _draw_textarea(), _is_tab_focusable_type(), N_GUI_WIDGET::enabled, N_GUI_WIDGET::h, N_GUI_STATE_FOCUSED, N_GUI_STATE_IDLE, N_GUI_TYPE_BUTTON, N_GUI_TYPE_CHECKBOX, N_GUI_TYPE_COMBOBOX, N_GUI_TYPE_CUSTOM, N_GUI_TYPE_DATAGRID, N_GUI_TYPE_DROPMENU, N_GUI_TYPE_HEXVIEW, N_GUI_TYPE_IMAGE, N_GUI_TYPE_LABEL, N_GUI_TYPE_LISTBOX, N_GUI_TYPE_MARKDOWNVIEW, N_GUI_TYPE_PROGRESSBAR, N_GUI_TYPE_RADIOLIST, N_GUI_TYPE_SCROLLBAR, N_GUI_TYPE_SLIDER, N_GUI_TYPE_SPLITPANE, N_GUI_TYPE_SYNTAXVIEW, N_GUI_TYPE_TEXTAREA, N_GUI_WIDGET::state, N_GUI_WIDGET::type, N_GUI_WIDGET::visible, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_window().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_widget_vscrollbar()

void _draw_widget_vscrollbar ( float area_x, float area_y, float area_w, float view_h, float content_h, float scroll_y, N_GUI_SB_TRACK * track, const N_GUI_STYLE * style, const N_GUI_THEME * theme )

static

helper: draw a mini vertical scrollbar inside a widget, at the right edge of the area [area_x .

. area_x+area_w], [area_y .. area_y+view_h]. content_h = total content height, view_h = visible area height, scroll_y = current scroll offset, track = the owning widget's N_GUI_SB_TRACK for this bar.

Definition at line 7962 of file n_gui.c.

References _draw_scrollbar_body(), _sb_skin(), _scrollbar_thumb(), _N_GUI_THUMB::len, N_GUI_STATE_IDLE, _N_GUI_THUMB::off, N_GUI_STYLE::scrollbar_size, and N_GUI_STYLE::scrollbar_thumb_min.

Referenced by _draw_label(), _draw_markdownview(), and _draw_textarea().

Here is the call graph for this function:

Here is the caller graph for this function:

_draw_window()

void _draw_window ( N_GUI_WINDOW * win, ALLEGRO_FONT * default_font, N_GUI_STYLE * style )

static

draw a window chrome + its widgets

Definition at line 11379 of file n_gui.c.

References _draw_bitmap_scaled(), _draw_scrollbar_body(), _draw_tb_buttons(), _draw_text_truncated(), _draw_widget(), _min_thickness(), _opt_rounded(), _sb_skin(), _scrollbar_thumb(), _set_clipping_rect_transformed(), _tb_buttons_area_width(), _text_dims(), _window_update_content_size(), N_GUI_THEME::bg_active, N_GUI_WINDOW::bg_bitmap, N_GUI_THEME::bg_normal, N_GUI_WINDOW::bg_scale_mode, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_WINDOW::caption, N_GUI_WINDOW::content_h, N_GUI_WINDOW::content_w, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_WINDOW::flags, font, N_GUI_WINDOW::font, N_GUI_STYLE::grip_color, N_GUI_STYLE::grip_line_thickness, N_GUI_STYLE::grip_size, N_GUI_WINDOW::h, N_GUI_STYLE::label_padding, _N_GUI_THUMB::len, list_foreach, N_GUI_STATE_HOVER, N_GUI_STATE_IDLE, N_GUI_STATE_SCROLLBAR_DRAG, N_GUI_WIN_AUTO_SCROLLBAR, N_GUI_WIN_FRAMELESS, N_GUI_WIN_HSCROLL_DRAG, N_GUI_WIN_HSCROLL_HOVER, N_GUI_WIN_MINIMISED, N_GUI_WIN_NO_HSCROLL, N_GUI_WIN_OPEN, N_GUI_WIN_RESIZABLE, N_GUI_WIN_VSCROLL_DRAG, N_GUI_WIN_VSCROLL_HOVER, _N_GUI_THUMB::off, N_GUI_WINDOW::scroll_x, N_GUI_WINDOW::scroll_y, N_GUI_STYLE::scrollbar_size, N_GUI_STYLE::scrollbar_thumb_min, N_GUI_STYLE::scrollbar_thumb_padding, N_GUI_WINDOW::state, N_GUI_THEME::text_active, N_GUI_WINDOW::theme, N_GUI_WINDOW::title, N_GUI_STYLE::title_max_w_reserve, N_GUI_STYLE::title_padding, N_GUI_WINDOW::titlebar_bitmap, N_GUI_WINDOW::titlebar_h, _N_GUI_SB_SKIN::track_inset, _N_GUI_SB_SKIN::track_round, N_GUI_WINDOW::w, N_GUI_WINDOW::widgets, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by n_gui_draw(), and n_gui_draw_detached().

Here is the call graph for this function:

Here is the caller graph for this function:

_dropdown_panel_y()

float _dropdown_panel_y ( const N_GUI_CTX * ctx, float widget_top, float widget_bottom, float panel_h, int expand_up )

static

draw the combobox dropdown overlay (called after all windows)

Definition at line 10285 of file n_gui.c.

References N_GUI_CTX::display_h.

Referenced by _draw_combobox_dropdown(), _draw_dropmenu_panel(), _suggest_panel_rect(), and n_gui_process_event().

Here is the caller graph for this function:

_dropmenu_entries_grow()

int _dropmenu_entries_grow ( N_GUI_DROPMENU_ENTRY ** entries, const size_t * nb, size_t * cap )

static

helper: ensure dropmenu entries array has room for one more

Definition at line 6276 of file n_gui.c.

References FreeNoLog, and Malloc.

Referenced by n_gui_dropmenu_add_entry().

Here is the caller graph for this function:

_event_display()

ALLEGRO_DISPLAY * _event_display ( const ALLEGRO_EVENT * event )

static

helper: the display an event originates from, or NULL when the event carries no display (timer, user and joystick events) or the field is unset, as in the headless tests that synthesize events with memset.

Definition at line 412 of file n_gui.c.

Referenced by n_gui_process_event().

Here is the caller graph for this function:

_find_focused_window()

N_GUI_WINDOW * _find_focused_window ( N_GUI_CTX * ctx )

static

helper: find the window containing a focused widget

Definition at line 154 of file n_gui.c.

References N_GUI_CTX::focused_widget_id, N_GUI_WIDGET::id, list_foreach, N_GUI_WIN_OPEN, N_GUI_WINDOW::state, N_GUI_WINDOW::widgets, and N_GUI_CTX::windows.

Referenced by n_gui_process_event().

Here is the caller graph for this function:

_find_widget_const()

const N_GUI_WIDGET * _find_widget_const ( const N_GUI_CTX * ctx, int widget_id )

static

find a widget without a non-const context, for the queries that only read

Definition at line 2150 of file n_gui.c.

References N_GUI_WIDGET::id, list_foreach, N_GUI_WINDOW::widgets, and N_GUI_CTX::windows.

Referenced by n_gui_focus_takes_key().

Here is the caller graph for this function:

_find_widget_window()

N_GUI_WINDOW * _find_widget_window ( N_GUI_CTX * ctx, int wgt_id, float * ox, float * oy )

static

helper: find the parent window of a widget by id, returning the window's content origin (accounting for scroll offsets).

Parameters

ctx	GUI context
wgt_id	widget id to search for
ox	[out] content origin X
oy	[out] content origin Y

Returns

pointer to the parent window, or NULL if not found

Definition at line 606 of file n_gui.c.

References _win_tbh(), list_foreach, N_GUI_WIN_OPEN, N_GUI_WINDOW::scroll_x, N_GUI_WINDOW::scroll_y, N_GUI_WINDOW::state, N_GUI_WINDOW::widgets, N_GUI_CTX::windows, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by _draw_combobox_dropdown(), _draw_dropmenu_panel(), _draw_textarea_suggest(), _draw_tooltip(), _suggest_panel_rect(), n_gui_process_event(), n_gui_tooltip_pending(), n_gui_widget_screen_rect(), and n_gui_widget_set_persist_key().

Here is the call graph for this function:

Here is the caller graph for this function:

_find_window_node()

LIST_NODE * _find_window_node ( N_GUI_CTX * ctx, int window_id )

static

helper: find a window node in the context list by id

Definition at line 725 of file n_gui.c.

References __n_assert, N_GUI_WINDOW::id, list_foreach, and N_GUI_CTX::windows.

Referenced by n_gui_get_window(), n_gui_lower_window(), and n_gui_raise_window().

Here is the caller graph for this function:

_global_scroll_needs()

void _global_scroll_needs ( const N_GUI_CTX * ctx, float eff_w, float eff_h, int * need_v, int * need_h )

static

helper: which global scrollbars the open windows need in a view of eff_w by eff_h, from the bounds _compute_gui_bounds() left.

Less than N_GUI_GLOBAL_SCROLL_SLACK over is a rounding error of a layout computed in floats, 1920.000122 for 1920: nothing of it is hidden, yet one bar would appear and take room enough to bring the other. One rule for the drawing, the clicks, the drags and the wheel, so they agree on what is shown.

Definition at line 11600 of file n_gui.c.

References N_GUI_STYLE::global_scrollbar_size, N_GUI_CTX::gui_bounds_h, N_GUI_CTX::gui_bounds_w, h(), N_GUI_GLOBAL_SCROLL_SLACK, and N_GUI_CTX::style.

Referenced by n_gui_draw(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_gui_fopen_write()

FILE * _gui_fopen_write ( const char * path, const char * mode )

static

Definition at line 16611 of file n_gui.c.

References mode.

Referenced by n_gui_save_layout_json(), and n_gui_save_theme_json().

Here is the caller graph for this function:

_held_bit()

int _held_bit ( int keycode )

static

the held-key bit of a key code, 0 for a key that is not a modifier

Parameters

keycode

an ALLEGRO_KEY_* code

Returns

one N_GUI_HELD* bit, or 0

Definition at line 13213 of file n_gui.c.

References _N_GUI_HELD_ALT, _N_GUI_HELD_ALTGR, _N_GUI_HELD_LCTRL, _N_GUI_HELD_LSHIFT, _N_GUI_HELD_RCTRL, and _N_GUI_HELD_RSHIFT.

Referenced by _track_modifiers().

Here is the caller graph for this function:

_hexview_digit()

int _hexview_digit ( int keycode, int unichar )

static

the value of a hex digit key (0-15), or -1 when the key is not one.

Both the main row and the numeric keypad count, since a hex editor is a numeric tool.

Definition at line 4671 of file n_gui.c.

Referenced by _hexview_handle_key().

Here is the caller graph for this function:

_hexview_erase()

int _hexview_erase ( N_GUI_HEXVIEW_DATA * hd, size_t at )

static

remove the byte at at from an editable hex view.

Returns 1 when one was removed, 0 when the offset is past the end.

Definition at line 4660 of file n_gui.c.

References N_GUI_HEXVIEW_DATA::cursor, N_GUI_HEXVIEW_DATA::data, N_GUI_HEXVIEW_DATA::len, and N_GUI_HEXVIEW_DATA::nibble.

Referenced by _hexview_handle_key().

Here is the caller graph for this function:

_hexview_handle_key()

int _hexview_handle_key ( N_GUI_WIDGET * wgt, const ALLEGRO_EVENT * ev, int visible_rows )

static

handle one key for a focused editable hex view.

Returns 1 when the key was consumed. visible_rows is how many rows the widget shows, for paging.

Definition at line 4691 of file n_gui.c.

References _hexview_digit(), _hexview_erase(), _hexview_insert(), _hexview_reserve(), _hexview_reveal(), N_GUI_HEXVIEW_DATA::bytes_per_row, changed, N_GUI_HEXVIEW_DATA::cursor, N_GUI_HEXVIEW_DATA::data, N_GUI_WIDGET::data, N_GUI_HEXVIEW_DATA::editable, N_GUI_WIDGET::id, N_GUI_HEXVIEW_DATA::len, N_GUI_HEXVIEW_DATA::nibble, N_GUI_HEXVIEW_DATA::on_change, and N_GUI_HEXVIEW_DATA::user_data.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_hexview_insert()

int _hexview_insert ( N_GUI_HEXVIEW_DATA * hd )

static

insert one zero byte before the cursor of an editable hex view.

Returns 1 on success, 0 when the allocation failed.

Definition at line 4648 of file n_gui.c.

References _hexview_reserve(), N_GUI_HEXVIEW_DATA::cursor, N_GUI_HEXVIEW_DATA::data, N_GUI_HEXVIEW_DATA::len, and N_GUI_HEXVIEW_DATA::nibble.

Referenced by _hexview_handle_key().

Here is the call graph for this function:

Here is the caller graph for this function:

_hexview_reserve()

int _hexview_reserve ( N_GUI_HEXVIEW_DATA * hd, size_t need )

static

grow an editable hex view's buffer so it can hold at least need bytes.

Returns 1 on success, 0 when the allocation failed (the data is left intact).

Definition at line 4633 of file n_gui.c.

References N_GUI_HEXVIEW_DATA::cap, and N_GUI_HEXVIEW_DATA::data.

Referenced by _hexview_handle_key(), and _hexview_insert().

Here is the caller graph for this function:

_hexview_reveal()

void _hexview_reveal ( N_GUI_HEXVIEW_DATA * hd, int visible_rows )

static

scroll an editable hex view so its cursor row is visible

Definition at line 4680 of file n_gui.c.

References N_GUI_HEXVIEW_DATA::bytes_per_row, N_GUI_HEXVIEW_DATA::cursor, row(), and N_GUI_HEXVIEW_DATA::scroll_offset.

Referenced by _hexview_handle_key().

Here is the call graph for this function:

Here is the caller graph for this function:

_is_focusable_type()

int _is_focusable_type ( int type )

static

helper: check if a widget type takes keys once it has focus.

A button is not one of them: it has the keyboard only through Tab or an arrow, see _is_tab_focusable_type(), and keys it does nothing with pass on.

Definition at line 115 of file n_gui.c.

References N_GUI_TYPE_CHECKBOX, N_GUI_TYPE_COMBOBOX, N_GUI_TYPE_DATAGRID, N_GUI_TYPE_DROPMENU, N_GUI_TYPE_LISTBOX, N_GUI_TYPE_MARKDOWNVIEW, N_GUI_TYPE_RADIOLIST, N_GUI_TYPE_SCROLLBAR, N_GUI_TYPE_SLIDER, N_GUI_TYPE_TEXTAREA, and type().

Referenced by _is_tab_focusable_type(), n_gui_focus_window(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_is_tab_focusable_type()

int _is_tab_focusable_type ( int type )

static

helper: check if a widget type is reached by Tab and Shift+Tab: every widget that takes keys, and the buttons, which Enter or Space presses once they have focus.

A mouse press still never focuses a button, so a click leaves the keyboard where it was.

Definition at line 132 of file n_gui.c.

References _is_focusable_type(), N_GUI_TYPE_BUTTON, and type().

Referenced by _draw_widget(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_items_grow()

int _items_grow ( N_GUI_LISTITEM ** items, const size_t * nb, size_t * cap )

static

helper: ensure items array has room for one more, returns 1 on success

Definition at line 746 of file n_gui.c.

References FreeNoLog, and Malloc.

Referenced by n_gui_combobox_add_item(), n_gui_listbox_add_item(), and n_gui_radiolist_add_item().

Here is the caller graph for this function:

_json_add_color()

void _json_add_color ( cJSON * parent, const char * name, ALLEGRO_COLOR c )

static

helper: add an RGBA colour as a JSON array [r,g,b,a] (0-255)

Definition at line 16625 of file n_gui.c.

Referenced by n_gui_save_theme_json().

Here is the caller graph for this function:

_json_get_color()

ALLEGRO_COLOR _json_get_color ( cJSON * parent, const char * name, ALLEGRO_COLOR fallback )

static

helper: read an RGBA colour from a JSON array [r,g,b,a]

Definition at line 16637 of file n_gui.c.

Referenced by n_gui_load_theme_json().

Here is the caller graph for this function:

_json_get_float()

float _json_get_float ( cJSON * parent, const char * name, float fallback )

static

helper: read a float from JSON, return fallback if missing

Definition at line 16648 of file n_gui.c.

Referenced by n_gui_load_layout_json(), and n_gui_load_theme_json().

Here is the caller graph for this function:

_json_get_int()

int _json_get_int ( cJSON * parent, const char * name, int fallback )

static

helper: read an int from JSON, return fallback if missing

Definition at line 16655 of file n_gui.c.

Referenced by n_gui_load_layout_json(), and n_gui_load_theme_json().

Here is the caller graph for this function:

_justified_char_at_pos()

int _justified_char_at_pos ( const char * text, ALLEGRO_FONT * font, float max_w, float text_x, float text_y, float scroll_y, float click_mx, float click_my )

static

helper: find the byte offset in justified text closest to a click position.

text_x, text_y = top-left of the text area. Returns -1 on error.

Definition at line 7418 of file n_gui.c.

References _split_words(), _text_w(), _utf8_char_len(), _wrap_words(), font, N_GUI_WRAP_MAX_WORDS, and text().

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_key_navigates()

int _key_navigates ( int keycode )

static

is this one of the keys that move through a widget rather than type into it: the arrows, the page keys, Home, End and Enter

Definition at line 2175 of file n_gui.c.

Referenced by n_gui_focus_takes_key().

Here is the caller graph for this function:

_label_char_at_x()

int _label_char_at_x ( const N_GUI_LABEL_DATA * lb, ALLEGRO_FONT * font, float click_x )

static

draw a label widget.

win_w > 0 means the parent window is resizable and the label may expand horizontally to fill the available window width.

helper: find the byte offset in a label's text closest to a given pixel x position. Returns -1 if the label has no text or font.

Definition at line 10737 of file n_gui.c.

References _text_w(), _utf8_char_len(), font, N_GUI_TEXT_MAX, and N_GUI_LABEL_DATA::text.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_label_content_height()

float _label_content_height ( const char * text, ALLEGRO_FONT * font, float max_w )

static

forward declaration: height the wrapped text of a justified label needs at a given width.

helper: compute the total content height of justified/wrapped label text, in pixels.

Defined near the label draw code.

Counts the lines _wrap_words gives the draw, so a scrollbar can never disagree with what is rendered.

Definition at line 7613 of file n_gui.c.

References _split_words(), _text_w(), _wrap_words(), font, N_GUI_WRAP_MAX_WORDS, and text().

Referenced by _draw_label(), n_gui_label_fits(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_label_effective_w()

float _label_effective_w ( const N_GUI_LABEL_DATA * lb, ALLEGRO_FONT * font, float wgt_w, float win_w, float wgt_x, float label_padding )

static

helper: the width a LEFT, CENTER or RIGHT label lays its text out in.

In a resizable or auto-scrollbar window (win_w > 0) a label may reach past its own box to the window's right edge, so its text is not cut. A left aligned label always does: its text starts at the same place either way. A centred or right aligned one does so only when its widest line does not fit its own box: stretched while it fits, it was centred on the gap between its box and the window edge rather than on the box, which put a label meant to sit over one of two columns off to one side.

Definition at line 10771 of file n_gui.c.

References _label_line_at(), _label_line_count(), _text_w(), N_GUI_LABEL_DATA::align, font, line(), N_GUI_ALIGN_CENTER, N_GUI_ALIGN_RIGHT, N_GUI_TEXT_MAX, and N_GUI_LABEL_DATA::text.

Referenced by _draw_label(), _label_text_origin_x(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_label_line_at()

int _label_line_at ( const char * text, int index, char * out, size_t out_len )

static

helper: line index of text, copied into out without its break.

Returns the byte offset of the line's start in text, or -1 past the last line.

Definition at line 10842 of file n_gui.c.

References start(), and text().

Referenced by _draw_label_lines(), _label_effective_w(), _label_lines_char_at(), and n_gui_label_fits().

Here is the call graph for this function:

Here is the caller graph for this function:

_label_line_count()

int _label_line_count ( const char * text )

static

forward declarations: the lines of a label whose text has line breaks, used by n_gui_label_fits().

helper: the number of lines a label's text has, one more than its line breaks

Defined near the label draw code.

Definition at line 10832 of file n_gui.c.

References text().

Referenced by _draw_label_lines(), _label_effective_w(), _label_lines_char_at(), and n_gui_label_fits().

Here is the call graph for this function:

Here is the caller graph for this function:

_label_line_x()

float _label_line_x ( const N_GUI_LABEL_DATA * lb, float line_w, float ax, float effective_w, float pad )

static

helper: where a line of a multi-line label starts on screen, by the label's alignment.

A line too wide for the box starts at the padding.

Definition at line 10865 of file n_gui.c.

References N_GUI_LABEL_DATA::align, N_GUI_ALIGN_CENTER, and N_GUI_ALIGN_RIGHT.

Referenced by _draw_label_lines(), and _label_lines_char_at().

Here is the caller graph for this function:

_label_lines_char_at()

int _label_lines_char_at ( const N_GUI_LABEL_DATA * lb, ALLEGRO_FONT * font, float ax, float ay, float effective_w, float h, float pad, float mx, float my )

static

helper: the byte offset in a multi-line label closest to a click.

Definition at line 10939 of file n_gui.c.

References _label_line_at(), _label_line_count(), _label_line_x(), _label_lines_top(), _text_w(), _utf8_char_len(), font, h(), line(), N_GUI_TEXT_MAX, start(), and N_GUI_LABEL_DATA::text.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_label_lines_top()

float _label_lines_top ( float ay, float h, int lines, float fh )

static

helper: the top of a multi-line label's first line: the block of lines centred in the box as a single line is, and never above the box.

Definition at line 10876 of file n_gui.c.

References h().

Referenced by _draw_label_lines(), and _label_lines_char_at().

Here is the call graph for this function:

Here is the caller graph for this function:

_label_text_origin_x()

float _label_text_origin_x ( const N_GUI_LABEL_DATA * lb, ALLEGRO_FONT * font, float ax, float wgt_w, float win_w, float wgt_x, float label_padding )

static

helper: compute the screen-space x origin where label text starts, accounting for alignment.

ax is the widget's screen-space left edge. win_w is the label_win_w hint (0 for fixed windows).

Definition at line 10799 of file n_gui.c.

References _label_effective_w(), _text_dims(), N_GUI_LABEL_DATA::align, font, N_GUI_ALIGN_CENTER, N_GUI_ALIGN_RIGHT, and N_GUI_LABEL_DATA::text.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_label_wrap_w()

float _label_wrap_w ( const N_GUI_WIDGET * wgt, const N_GUI_STYLE * style )

static

forward declaration: the width a justified label wraps its text to.

helper: the width a JUSTIFIED label wraps its text to.

Defined near the label draw code.

A wrapped label is drawn clipped to its own box, so wrapping it to anything wider (the window-expanded width a single-line label may grow into) lays out text that is then cut away unseen: the reader loses the end of every line and nothing says so. The box is what the reader sees, so the box is what the text wraps to.

Definition at line 7605 of file n_gui.c.

References N_GUI_STYLE::label_padding, and N_GUI_WIDGET::w.

Referenced by _draw_label(), n_gui_label_fits(), and n_gui_process_event().

Here is the caller graph for this function:

_list_panel_highlight_step()

void _list_panel_highlight_step ( int * highlight, int * scroll, int nb, int max_visible, int delta, int fallback )

static

helper: move an open list panel's highlight cursor (combobox / dropmenu) by delta items and scroll the visible window so the highlighted item stays in view.

Shared by the wheel and the Up/Down keys so both drive the same cursor.

Parameters

highlight	in/out highlight index (-1 = none; seeded from fallback)
scroll	in/out first-visible-item offset
nb	total item count
max_visible	number of items the panel shows at once
delta	signed step (negative = up, positive = down)
fallback	index to start from when highlight is -1 (e.g. the selected item, or the first visible item)

Definition at line 13340 of file n_gui.c.

Referenced by _suggest_handle_key(), and n_gui_process_event().

Here is the caller graph for this function:

_list_panel_wheel()

void _list_panel_wheel ( int * highlight, int * scroll, int nb, int max_visible, int notches, int row )

static

helper: the mouse wheel over an open list panel (combobox / dropmenu).

Scrolls the list by one item a notch, as every desktop toolkit does, and puts the highlight on whatever item is now under the pointer. It used to step the highlight instead and scroll only once the highlight reached an edge, and the next pointer move put the highlight back under the pointer, so the wheel ran over the visible items and the rest stayed out of reach (examples/ex_gui_combobox_wheel.c). The Up/Down keys still step the highlight through _list_panel_highlight_step().

Parameters

highlight	in/out highlight index
scroll	in/out first-visible-item offset
nb	total item count
max_visible	number of items the panel shows at once
notches	wheel notches, positive down the list (-event.mouse.dz)
row	the panel row under the pointer, or -1 to leave the highlight alone. Only called with the pointer over the panel: away from it the wheel steps the highlight, as the arrow keys do (ex_gui_dropmenu.c)

Definition at line 13386 of file n_gui.c.

References row().

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_listbox_clamp_h()

void _listbox_clamp_h ( N_GUI_LISTBOX_DATA * ld, float content_w, float pane_w )

static

clamp a listbox's horizontal scroll to the room its content actually needs

Definition at line 10012 of file n_gui.c.

References N_GUI_LISTBOX_DATA::h_scroll.

Referenced by _draw_listbox(), and n_gui_process_event().

Here is the caller graph for this function:

_listbox_hmetrics()

void _listbox_hmetrics ( const N_GUI_WIDGET * wgt, const N_GUI_LISTBOX_DATA * ld, ALLEGRO_FONT * font, const N_GUI_STYLE * style, float * content_w, float * pane_w, int * need_hsb, int * visible )

static

Listbox horizontal-scroll metrics, computed identically by the draw path and the mouse handlers so the thumb and the hit test never drift apart.

content_w is the width the widest item needs (text padding included), pane_w the room left for the items (widget width minus a vertical scrollbar), need_hsb whether the content overflows that room, and visible the number of rows that fit above the horizontal scrollbar. Any output pointer may be NULL.

Definition at line 9975 of file n_gui.c.

References _text_w(), font, N_GUI_WIDGET::h, N_GUI_LISTBOX_DATA::item_height, N_GUI_STYLE::item_height_pad, N_GUI_STYLE::item_text_padding, N_GUI_LISTBOX_DATA::items, N_GUI_LISTBOX_DATA::nb_items, N_GUI_STYLE::scrollbar_size, N_GUI_LISTITEM::text, visible(), and N_GUI_WIDGET::w.

Referenced by _draw_listbox(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_markdownview_follow_theme()

void _markdownview_follow_theme ( N_GUI_WIDGET * wgt, N_GUI_MARKDOWNVIEW_DATA * md )

static

Re-derive the view's colours from the widget's theme, while the caller has not taken the style over.

What a palette change needs, and it costs one call a frame rather than a hook into every theme setter.

Definition at line 5757 of file n_gui.c.

References N_GUI_THEME::bg_normal, N_GUI_MARKDOWNVIEW_DATA::dirty, N_GUI_MARKDOWNVIEW_DATA::fonts, n_gui_md_style_default(), N_GUI_MD_FONTS::regular, N_GUI_MARKDOWNVIEW_DATA::style, N_GUI_THEME::text_normal, N_GUI_WIDGET::theme, and N_GUI_MARKDOWNVIEW_DATA::theme_derived.

Referenced by _draw_markdownview(), and n_gui_add_markdownview().

Here is the call graph for this function:

Here is the caller graph for this function:

_markdownview_measure()

float _markdownview_measure ( const N_GUI_WIDGET * wgt, N_GUI_MARKDOWNVIEW_DATA * md, const N_GUI_STYLE * style )

static

Measure the document if anything it depends on has changed, and clamp the scroll to what is left.

Returns the height of the view's inside.

Definition at line 5783 of file n_gui.c.

References _markdownview_text_w(), N_GUI_MARKDOWNVIEW_DATA::content_h, N_GUI_MARKDOWNVIEW_DATA::dirty, N_GUI_MARKDOWNVIEW_DATA::fonts, N_GUI_WIDGET::h, N_GUI_MARKDOWNVIEW_DATA::measured_w, n_gui_md_height(), N_GUI_MARKDOWNVIEW_DATA::scroll_y, N_GUI_MARKDOWNVIEW_DATA::style, N_GUI_MARKDOWNVIEW_DATA::text, and N_GUI_STYLE::textarea_padding.

Referenced by _draw_markdownview().

Here is the call graph for this function:

Here is the caller graph for this function:

_markdownview_of()

N_GUI_MARKDOWNVIEW_DATA * _markdownview_of ( N_GUI_CTX * ctx, int widget_id )

static

The view's data, or NULL when that widget is not one.

Definition at line 5845 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_MARKDOWNVIEW, and N_GUI_WIDGET::type.

Referenced by n_gui_markdownview_content_height(), n_gui_markdownview_get_scroll(), n_gui_markdownview_get_text(), n_gui_markdownview_scroll_to(), n_gui_markdownview_set_fonts(), n_gui_markdownview_set_on_link(), n_gui_markdownview_set_text(), and n_gui_markdownview_style().

Here is the call graph for this function:

Here is the caller graph for this function:

_markdownview_text_w()

float _markdownview_text_w ( const N_GUI_WIDGET * wgt, const N_GUI_MARKDOWNVIEW_DATA * md, const N_GUI_STYLE * style, int with_bar )

static

The width the document is laid out at: the widget less its padding, and less the bar when there is one.

Asked by the draw and by the event paths, which have to agree or a click lands on a different line from the one it looks like it is on.

Definition at line 5770 of file n_gui.c.

References N_GUI_STYLE::scrollbar_size, N_GUI_STYLE::textarea_padding, and N_GUI_WIDGET::w.

Referenced by _draw_markdownview(), _markdownview_measure(), and n_gui_process_event().

Here is the caller graph for this function:

_min_thickness()

float _min_thickness ( float requested )

static

helper: compute minimum line thickness so it stays >= 1 physical pixel.

Extracts the scale factor from the current Allegro transform using the lengths of the basis vectors so that rotation and non-uniform scaling are handled correctly (m[0][0] alone can be near 0 for a 90-degree rotation).

Definition at line 7667 of file n_gui.c.

Referenced by _draw_button(), _draw_checkbox(), _draw_combobox(), _draw_combobox_dropdown(), _draw_datagrid(), _draw_dropmenu(), _draw_dropmenu_panel(), _draw_focus_outline(), _draw_hexview(), _draw_label(), _draw_radiolist(), _draw_scrollbar_thumb(), _draw_scrollbar_track(), _draw_slider(), _draw_syntaxview(), _draw_textarea(), _draw_textarea_suggest(), _draw_themed_rect(), and _draw_window().

Here is the caller graph for this function:

_n_gui_apply_display_size()

void _n_gui_apply_display_size ( N_GUI_CTX * ctx, float w, float h )

static

Draw all visible windows and their widgets.

Set the display (viewport) size for global scrollbar computation.

When a display size has been set (via n_gui_set_display_size) and the total GUI bounding box exceeds it, global scrollbars are drawn at the edges of the display and all windows are offset by the global scroll position.

Parameters

ctx	the GUI context

Call on startup and whenever ALLEGRO_EVENT_DISPLAY_RESIZE is received. When virtual canvas is enabled, also recalculates the virtual-to-display transform.

Apply a display size: store it and redo what depends on it.

The body of n_gui_set_display_size(), shared with the fallback in n_gui_draw() that takes the size from the target bitmap when the caller never set one.

Parameters

ctx	GUI context. Must not be NULL.
w	Width in pixels.
h	Height in pixels.

Definition at line 12336 of file n_gui.c.

References N_GUI_CTX::display_h, N_GUI_CTX::display_w, h(), n_gui_apply_adaptive_resize(), N_GUI_RESIZE_ADAPTIVE, n_gui_update_transform(), N_GUI_CTX::resize_mode, N_GUI_CTX::virtual_h, and N_GUI_CTX::virtual_w.

Referenced by n_gui_draw(), and n_gui_set_display_size().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_active_order()

int _n_gui_kv_active_order ( const N_GUI_KVTABLE * table, int * out )

static

Definition at line 18349 of file n_gui.c.

References N_GUI_KV_ROW::active, N_GUI_KVTABLE::nb_rows, and N_GUI_KVTABLE::rows.

Referenced by _n_gui_kv_refresh_actions(), n_gui_kvtable_duplicate_row(), and n_gui_kvtable_move_row().

Here is the caller graph for this function:

_n_gui_kv_add_clicked()

void _n_gui_kv_add_clicked ( int widget_id, void * user_data )

static

Definition at line 18260 of file n_gui.c.

References n_gui_kvtable_add_row().

Referenced by n_gui_kvtable_create().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_apply_layout()

void _n_gui_kv_apply_layout ( N_GUI_KVTABLE * table )

static

Definition at line 18399 of file n_gui.c.

References _n_gui_widget_capture_normalized(), N_GUI_KV_ROW::active, N_GUI_KVTABLE::btn_add, N_GUI_KVTABLE::col_frac, N_GUI_KVTABLE::ctx, N_GUI_WINDOW::detach_flags, N_GUI_KVTABLE::frac_cols, N_GUI_WIDGET::h, N_GUI_WINDOW::h, N_GUI_KVTABLE::header_height, N_GUI_KVTABLE::init_win_h, N_GUI_KVTABLE::init_win_w, N_GUI_KVTABLE::lbl_desc, N_GUI_KVTABLE::lbl_enabled, N_GUI_KVTABLE::lbl_key, N_GUI_KVTABLE::lbl_value, N_GUI_DETACH_SCALE_CONTENT, n_gui_get_widget(), n_gui_get_window(), n_gui_set_widget_visible(), n_gui_splitpane_set_limits(), n_gui_splitpane_set_ratio(), N_GUI_WIN_RESIZE_SCALE, N_GUI_WINDOW::native, N_GUI_KVTABLE::nb_rows, N_GUI_KVTABLE::padding, N_GUI_WINDOW::resize_policy, row(), N_GUI_KVTABLE::row_height, N_GUI_KVTABLE::rows, N_GUI_KVTABLE::show_actions, N_GUI_KVTABLE::show_desc, N_GUI_KVTABLE::show_enabled, N_GUI_KVTABLE::show_value, N_GUI_KVTABLE::split_a, N_GUI_KVTABLE::split_b, N_GUI_KVTABLE::top_offset, N_GUI_WIDGET::w, N_GUI_WINDOW::w, N_GUI_KVTABLE::window_id, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _n_gui_kv_split_a_changed(), _n_gui_kv_split_b_changed(), n_gui_kvtable_add_row(), n_gui_kvtable_clear(), n_gui_kvtable_create(), n_gui_kvtable_relayout(), n_gui_kvtable_remove_row(), n_gui_kvtable_set_columns(), n_gui_kvtable_set_row_actions(), and n_gui_kvtable_set_top_offset().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_content_free()

void _n_gui_kv_content_free ( N_GUI_KV_CONTENT * c )

static

Definition at line 18342 of file n_gui.c.

References N_GUI_KV_CONTENT::desc, FreeNoLog, N_GUI_KV_CONTENT::key, and N_GUI_KV_CONTENT::value.

Referenced by n_gui_kvtable_duplicate_row(), and n_gui_kvtable_move_row().

Here is the caller graph for this function:

_n_gui_kv_content_grab()

void _n_gui_kv_content_grab ( N_GUI_KVTABLE * table, int idx, N_GUI_KV_CONTENT * out )

static

Definition at line 18326 of file n_gui.c.

References _n_gui_kv_dup_text(), N_GUI_KVTABLE::ctx, N_GUI_KV_CONTENT::desc, N_GUI_KV_CONTENT::enabled, N_GUI_KV_CONTENT::key, n_gui_checkbox_is_checked(), row(), N_GUI_KVTABLE::rows, and N_GUI_KV_CONTENT::value.

Referenced by n_gui_kvtable_duplicate_row(), and n_gui_kvtable_move_row().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_content_put()

void _n_gui_kv_content_put ( N_GUI_KVTABLE * table, int idx, const N_GUI_KV_CONTENT * in )

static

Definition at line 18334 of file n_gui.c.

References N_GUI_KVTABLE::ctx, N_GUI_KV_CONTENT::desc, N_GUI_KV_CONTENT::enabled, N_GUI_KV_CONTENT::key, n_gui_checkbox_set_checked(), n_gui_textarea_set_text(), row(), N_GUI_KVTABLE::rows, and N_GUI_KV_CONTENT::value.

Referenced by n_gui_kvtable_duplicate_row(), and n_gui_kvtable_move_row().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_down_clicked()

void _n_gui_kv_down_clicked ( int widget_id, void * user_data )

static

Definition at line 18290 of file n_gui.c.

References N_GUI_KV_ROW::active, N_GUI_KV_ROW::down_id, n_gui_kvtable_move_row(), N_GUI_KVTABLE::nb_rows, and N_GUI_KVTABLE::rows.

Referenced by n_gui_kvtable_add_row().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_dup_clicked()

void _n_gui_kv_dup_clicked ( int widget_id, void * user_data )

static

Definition at line 18301 of file n_gui.c.

References N_GUI_KV_ROW::active, N_GUI_KV_ROW::dup_id, n_gui_kvtable_duplicate_row(), N_GUI_KVTABLE::nb_rows, and N_GUI_KVTABLE::rows.

Referenced by n_gui_kvtable_add_row().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_dup_text()

char * _n_gui_kv_dup_text ( N_GUI_CTX * ctx, int widget_id )

static

Definition at line 18321 of file n_gui.c.

References n_gui_textarea_get_text().

Referenced by _n_gui_kv_content_grab().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_refresh_actions()

void _n_gui_kv_refresh_actions ( N_GUI_KVTABLE * table )

static

Definition at line 18359 of file n_gui.c.

References _n_gui_kv_active_order(), N_GUI_KVTABLE::ctx, N_GUI_KV_MAX, n_gui_set_widget_enabled(), row(), and N_GUI_KVTABLE::rows.

Referenced by n_gui_kvtable_add_row(), n_gui_kvtable_duplicate_row(), n_gui_kvtable_move_row(), n_gui_kvtable_remove_row(), and n_gui_kvtable_set_row_actions().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_remove_clicked()

void _n_gui_kv_remove_clicked ( int widget_id, void * user_data )

static

Definition at line 18267 of file n_gui.c.

References N_GUI_KV_ROW::active, n_gui_kvtable_remove_row(), N_GUI_KVTABLE::nb_rows, N_GUI_KVTABLE::on_remove, N_GUI_KV_ROW::remove_id, N_GUI_KVTABLE::rows, and N_GUI_KVTABLE::user_data.

Referenced by n_gui_kvtable_add_row().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_split_a_changed()

void _n_gui_kv_split_a_changed ( int widget_id, float ratio, void * user_data )

static

Definition at line 18373 of file n_gui.c.

References _n_gui_kv_apply_layout(), N_GUI_KVTABLE::col_frac, and N_GUI_KVTABLE::frac_cols.

Referenced by n_gui_kvtable_create().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_split_b_changed()

void _n_gui_kv_split_b_changed ( int widget_id, float ratio, void * user_data )

static

Definition at line 18384 of file n_gui.c.

References _n_gui_kv_apply_layout(), N_GUI_KVTABLE::col_frac, and N_GUI_KVTABLE::frac_cols.

Referenced by n_gui_kvtable_create().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_kv_up_clicked()

void _n_gui_kv_up_clicked ( int widget_id, void * user_data )

static

Definition at line 18279 of file n_gui.c.

References N_GUI_KV_ROW::active, n_gui_kvtable_move_row(), N_GUI_KVTABLE::nb_rows, N_GUI_KVTABLE::rows, and N_GUI_KV_ROW::up_id.

Referenced by n_gui_kvtable_add_row().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_sectionlist_header_clicked()

void _n_gui_sectionlist_header_clicked ( int widget_id, void * user_data )

static

Definition at line 19068 of file n_gui.c.

References N_GUI_SECTION::folded, N_GUI_SECTION::header_id, n_gui_sectionlist_relayout(), N_GUI_SECTIONLIST::nb_sections, N_GUI_SECTIONLIST::on_toggle, N_GUI_SECTIONLIST::sections, and N_GUI_SECTIONLIST::user_data.

Referenced by n_gui_sectionlist_add_section().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_sectionlist_set_header_label()

void _n_gui_sectionlist_set_header_label ( N_GUI_SECTIONLIST * sl, int idx )

static

Definition at line 19059 of file n_gui.c.

References N_GUI_SECTIONLIST::ctx, N_GUI_SECTION::folded, N_GUI_SECTION::header_id, n_gui_button_set_label(), N_GUI_SECTIONLIST::sections, and N_GUI_SECTION::title.

Referenced by n_gui_sectionlist_relayout().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_sectionlist_slot()

int _n_gui_sectionlist_slot ( const N_GUI_SECTIONLIST * sl, int section_index, int widget_id )

static

Definition at line 19145 of file n_gui.c.

References N_GUI_SECTIONLIST::nb_sections, N_GUI_SECTION::nb_widgets, N_GUI_SECTIONLIST::sections, and N_GUI_SECTION::widget_ids.

Referenced by n_gui_sectionlist_set_widget_hidden(), and n_gui_sectionlist_set_widget_offset().

Here is the caller graph for this function:

_n_gui_tab_button_clicked()

void _n_gui_tab_button_clicked ( int widget_id, void * user_data )

static

Definition at line 17485 of file n_gui.c.

References N_GUI_TAB_PANEL::button_ids, n_gui_tab_set_active(), N_GUI_TAB_PANEL::nb_tabs, N_GUI_TAB_PANEL::on_tab_change, and N_GUI_TAB_PANEL::user_data.

Referenced by n_gui_tab_add().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_tree_emit()

void _n_gui_tree_emit ( N_GUI_TREE * tree, int parent )

static

helper: add the children of one node to the listbox, in order, then each expanded child's own children under it.

The nodes array is append only, so a child added while its parent was being expanded sits at the end of it, nowhere near the parent. Walking the parent links rather than the array is what draws it under its parent; the array walk this replaced drew every lazily filled branch at the bottom of the tree, with the right indent and the wrong place, which is what a file browser filling a folder on demand looks like. Siblings keep their array order, which is the order they were added in and the order a drag-reorder rearranges.

Definition at line 17656 of file n_gui.c.

References _n_gui_tree_emit(), N_GUI_TREE::ctx, N_GUI_TREE_NODE::depth, display, N_GUI_TREE_NODE::expandable, N_GUI_TREE_NODE::expanded, N_GUI_TREE_NODE::has_children, N_GUI_TREE_NODE::label, N_GUI_TREE::listbox_id, n_gui_listbox_add_item(), N_GUI_TREE_MAX, N_GUI_TREE::nb_nodes, N_GUI_TREE::nb_visible, N_GUI_TREE::nodes, N_GUI_TREE_NODE::parent_index, and N_GUI_TREE::visible_map.

Referenced by _n_gui_tree_emit(), and n_gui_tree_rebuild().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_tree_hit_row()

int _n_gui_tree_hit_row ( N_GUI_TREE * tree, float mx, float my, int * out_node_idx, int * out_drop_pos )

static

Hit-test the mouse against the listbox's visible rows and fill the out params.

Returns 1 if the mouse is over a valid row, 0 otherwise. Points inside the scrollbar column are excluded so the user cannot start a drag by grabbing the scrollbar.

Definition at line 18097 of file n_gui.c.

References _n_gui_tree_listbox_bounds(), N_GUI_DROP_AFTER, N_GUI_DROP_BEFORE, N_GUI_DROP_INTO, N_GUI_TREE::nb_nodes, N_GUI_TREE::nb_visible, and N_GUI_TREE::visible_map.

Referenced by n_gui_tree_tick().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_tree_listbox_bounds()

int _n_gui_tree_listbox_bounds ( N_GUI_TREE * tree, float * out_x, float * out_y, float * out_w, float * out_h, float * out_item_area_w, float * out_inset, float * out_item_h, int * out_scroll_off )

static

Return the listbox's absolute (screen-space) bounds and geometry via out params.

out_item_area_w is the row content width (total width minus the scrollbar column, when one is needed) and matches where the selection / hover highlight actually paints. out_inset is the horizontal padding applied to row highlights, kept in sync with _draw_listbox so DnD indicators line up exactly. Returns 1 on success, 0 on failure.

Definition at line 18057 of file n_gui.c.

References N_GUI_TREE::ctx, N_GUI_WIDGET::data, N_GUI_WIDGET::h, N_GUI_LISTBOX_DATA::item_height, N_GUI_STYLE::item_selection_inset, N_GUI_TREE::listbox_id, n_gui_get_widget(), n_gui_get_window(), N_GUI_TYPE_LISTBOX, N_GUI_LISTBOX_DATA::nb_items, N_GUI_LISTBOX_DATA::scroll_offset, N_GUI_STYLE::scrollbar_size, N_GUI_CTX::style, N_GUI_WINDOW::titlebar_h, N_GUI_WIDGET::type, N_GUI_WIDGET::w, N_GUI_TREE::window_id, N_GUI_WIDGET::x, N_GUI_WINDOW::x, N_GUI_WIDGET::y, and N_GUI_WINDOW::y.

Referenced by _n_gui_tree_hit_row(), and n_gui_tree_draw_overlay().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_tree_listbox_selected()

void _n_gui_tree_listbox_selected ( int widget_id, int index, int selected, void * user_data )

static

Definition at line 17603 of file n_gui.c.

References N_GUI_TREE_NODE::expandable, N_GUI_TREE_NODE::has_children, n_gui_tree_toggle_expand(), N_GUI_TREE::nb_nodes, N_GUI_TREE::nb_visible, N_GUI_TREE::nodes, N_GUI_TREE::on_select, N_GUI_TREE::user_data, and N_GUI_TREE::visible_map.

Referenced by n_gui_tree_create().

Here is the call graph for this function:

Here is the caller graph for this function:

_n_gui_tree_open()

int _n_gui_tree_open ( N_GUI_TREE * tree, int node_index )

static

helper: open a node, calling the expand callback first when it has not filled this node yet.

A node the callback leaves empty loses its expander and stays shut. Does not rebuild. Returns 1 when the node is now open.

Definition at line 17815 of file n_gui.c.

References N_GUI_TREE::expand_user_data, N_GUI_TREE_NODE::expandable, N_GUI_TREE_NODE::expanded, N_GUI_TREE_NODE::filled, N_GUI_TREE_NODE::has_children, N_GUI_TREE::nodes, and N_GUI_TREE::on_expand.

Referenced by n_gui_tree_expand(), n_gui_tree_state_apply(), and n_gui_tree_toggle_expand().

Here is the caller graph for this function:

_n_gui_widget_capture_normalized()

void _n_gui_widget_capture_normalized ( const N_GUI_WINDOW * win, N_GUI_WIDGET * wgt )

static

capture normalized coords for a single widget relative to its parent window

Definition at line 1260 of file n_gui.c.

References N_GUI_WIDGET::h, N_GUI_WINDOW::h, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, N_GUI_WIDGET::w, N_GUI_WINDOW::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _n_gui_kv_apply_layout(), n_gui_add_button(), n_gui_add_checkbox(), n_gui_add_combobox(), n_gui_add_custom(), n_gui_add_datagrid(), n_gui_add_dropmenu(), n_gui_add_hexview(), n_gui_add_image(), n_gui_add_label(), n_gui_add_listbox(), n_gui_add_markdownview(), n_gui_add_progressbar(), n_gui_add_radiolist(), n_gui_add_scrollbar(), n_gui_add_slider(), n_gui_add_splitpane(), n_gui_add_syntaxview(), n_gui_add_textarea(), n_gui_sectionlist_relayout(), n_gui_tab_relayout(), n_gui_widget_set_rect(), n_gui_window_attach(), and n_gui_window_detach().

Here is the caller graph for this function:

_n_gui_window_capture_normalized()

void _n_gui_window_capture_normalized ( const N_GUI_CTX * ctx, N_GUI_WINDOW * win )

static

capture normalized coords for a window and its widgets from current absolutes

Definition at line 1235 of file n_gui.c.

References N_GUI_CTX::display_h, N_GUI_CTX::display_w, N_GUI_WIDGET::h, N_GUI_WINDOW::h, list_foreach, N_GUI_WIN_RESIZE_SCALE, N_GUI_WIDGET::norm_h, N_GUI_WINDOW::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WINDOW::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WINDOW::norm_x, N_GUI_WIDGET::norm_y, N_GUI_WINDOW::norm_y, N_GUI_CTX::ref_display_h, N_GUI_CTX::ref_display_w, N_GUI_WINDOW::resize_policy, N_GUI_WIDGET::w, N_GUI_WINDOW::w, N_GUI_WINDOW::widgets, N_GUI_WIDGET::x, N_GUI_WINDOW::x, N_GUI_WIDGET::y, and N_GUI_WINDOW::y.

Referenced by n_gui_add_window(), n_gui_maximize_window(), n_gui_process_event(), n_gui_set_resize_mode(), n_gui_window_set_resize_policy(), and n_gui_window_update_normalized().

Here is the caller graph for this function:

_native_apply_minimised()

void _native_apply_minimised ( N_GUI_WINDOW * win )

static

helper: mirror an own-chrome window's minimised state onto its OS window by shrinking the display to the title bar and growing it back.

Allegro's ALLEGRO_MINIMIZED is documented read-only (and "very platform-dependent"), so there is no portable iconify call to use. Shrinking is the honest mapping anyway: N_GUI minimised means "title bar only", which is exactly what the user then sees on the desktop.

win->h keeps the full height throughout, it is what the window grows back to and what the layout persists. The DISPLAY_RESIZE handler skips its geometry update while the window is minimised for the same reason.

Definition at line 349 of file n_gui.c.

References _native_own_chrome(), _win_tbh(), N_GUI_WINDOW::h, N_GUI_WINDOW::min_h, N_GUI_WINDOW::min_w, N_GUI_WIN_MINIMISED, N_GUI_WINDOW::native, N_GUI_WINDOW::state, and N_GUI_WINDOW::w.

Referenced by n_gui_maximize_window(), n_gui_minimize_window(), and n_gui_restore_window().

Here is the call graph for this function:

Here is the caller graph for this function:

_native_drag_begin()

void _native_drag_begin ( N_GUI_WINDOW * win )

static

helper: anchor an own-chrome window's title bar drag on the desktop cursor.

Mouse coordinates in an Allegro event are relative to the display the event came from, so moving the OS window changes the coordinate system the NEXT events are expressed in. Deriving each move from those coordinates therefore feeds every move back into the following one: the events already queued when al_set_window_position runs were generated against the OLD position, and each of them re-applies the travel the previous one already applied. Draining a burst of three motion events moves the window three times as far as the pointer went, then the correction events send it back, which is the jitter and the run-away seen when dragging a detached window around the desktop.

al_get_mouse_cursor_position reports the pointer in desktop coordinates, which no window move can alter. Capturing it once with the window position at the grab turns the drag into an absolute mapping (window = grab position + cursor travel), so a stale event carries no state and a backlog simply converges on the current pointer instead of compounding.

Definition at line 324 of file n_gui.c.

References _native_own_chrome(), N_GUI_WINDOW::native, N_GUI_WINDOW::native_drag_anchored, N_GUI_WINDOW::native_drag_cx, N_GUI_WINDOW::native_drag_cy, N_GUI_WINDOW::native_drag_wx, and N_GUI_WINDOW::native_drag_wy.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_native_monitor_info()

int _native_monitor_info ( ALLEGRO_DISPLAY * display, ALLEGRO_MONITOR_INFO * info )

static

helper: the monitor rectangle a native window sits on.

al_get_display_adapter answers this in one call but it only exists from Allegro 5.2.10 on, and builds still target 5.2.6 (Debian 11). The window position is enough to derive it: pick the monitor whose rectangle contains the window origin, and fall back to the first adapter when the origin sits outside every reported monitor (window manager has not placed the window yet, or an adapter reports no info). Returns 1 when info was filled.

Definition at line 393 of file n_gui.c.

References display.

Referenced by n_gui_maximize_window().

Here is the caller graph for this function:

_native_own_chrome()

int _native_own_chrome ( const N_GUI_WINDOW * win )

static

helper: whether a window is detached AND keeps drawing its own chrome (N_GUI_DETACH_OWN_CHROME).

Such a window fills a frameless native window title bar included, so the title bar drag, the resize grip and the three title bar buttons have to act on the OS window instead of on x/y/w/h.

Definition at line 303 of file n_gui.c.

References N_GUI_WINDOW::detach_flags, N_GUI_DETACH_OWN_CHROME, and N_GUI_WINDOW::native.

Referenced by _native_apply_minimised(), _native_drag_begin(), _tb_button_action(), n_gui_maximize_window(), and n_gui_process_event().

Here is the caller graph for this function:

_new_widget()

N_GUI_WIDGET * _new_widget ( N_GUI_CTX * ctx, int type, float x, float y, float w, float h )

static

helper: allocate and initialise a base widget

Definition at line 764 of file n_gui.c.

References __n_assert, N_GUI_WIDGET::data, N_GUI_CTX::default_theme, N_GUI_WIDGET::enabled, N_GUI_WIDGET::font, h(), N_GUI_WIDGET::h, N_GUI_WIDGET::id, Malloc, N_GUI_STATE_IDLE, N_GUI_CTX::next_widget_id, N_GUI_WIDGET::state, N_GUI_WIDGET::theme, N_GUI_WIDGET::tooltip, N_GUI_WIDGET::type, type(), N_GUI_WIDGET::visible, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by n_gui_add_button(), n_gui_add_checkbox(), n_gui_add_combobox(), n_gui_add_custom(), n_gui_add_datagrid(), n_gui_add_dropmenu(), n_gui_add_hexview(), n_gui_add_image(), n_gui_add_label(), n_gui_add_listbox(), n_gui_add_markdownview(), n_gui_add_progressbar(), n_gui_add_radiolist(), n_gui_add_scrollbar(), n_gui_add_slider(), n_gui_add_splitpane(), n_gui_add_syntaxview(), and n_gui_add_textarea().

Here is the call graph for this function:

Here is the caller graph for this function:

_ngui_clip_get()

char * _ngui_clip_get ( ALLEGRO_DISPLAY * display, int which )

static

Definition at line 56 of file n_gui.c.

References display, n_clipboard_available(), N_CLIPBOARD_CLIPBOARD, and n_clipboard_get().

Referenced by _textarea_handle_key(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_ngui_clip_set()

void _ngui_clip_set ( ALLEGRO_DISPLAY * display, int which, const char * text )

static

Definition at line 44 of file n_gui.c.

References display, n_clipboard_available(), N_CLIPBOARD_CLIPBOARD, n_clipboard_set(), and text().

Referenced by _ngui_publish_primary_selection(), _textarea_copy_to_clipboard(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_ngui_meas_slot()

N_GUI_MEAS_ENTRY * _ngui_meas_slot ( ALLEGRO_FONT * font, const char * text, size_t len )

static

find (or claim) the cache slot for (font, text[len]).

On a slot miss the entry is reset to this key with both metrics marked absent. Callers must have ruled out len >= N_GUI_MEAS_KEY_MAX.

Definition at line 218 of file n_gui.c.

References _ngui_meas_cache, font, N_GUI_MEAS_ENTRY::font, h(), N_GUI_MEAS_ENTRY::hash, N_GUI_MEAS_ENTRY::have_adv, N_GUI_MEAS_ENTRY::have_dims, N_GUI_MEAS_ENTRY::key, N_GUI_MEAS_ENTRY::len, N_GUI_MEAS_ENTRY::line_h, N_GUI_MEAS_CACHE_SIZE, and text().

Referenced by _text_dims(), and _text_w().

Here is the call graph for this function:

Here is the caller graph for this function:

_ngui_publish_primary_selection()

void _ngui_publish_primary_selection ( N_GUI_CTX * ctx )

static

publish the active text selection (syntax view, label, or focused textarea) to the X11 PRIMARY selection, implementing select-to-copy: selecting text with the mouse or keyboard makes it available for a middle-click paste, without disturbing CLIPBOARD.

No-op when no X11 clipboard backend is present (so the CLIPBOARD fallback is never clobbered by a selection).

Definition at line 12638 of file n_gui.c.

References _ctx_io_display(), _ngui_clip_set(), _textarea_has_selection(), _textarea_sel_range(), N_GUI_WIDGET::data, N_GUI_CTX::focused_widget_id, Free, Malloc, n_clipboard_available(), N_CLIPBOARD_PRIMARY, n_gui_get_widget(), n_gui_syntaxview_get_selected_text(), N_GUI_TYPE_LABEL, N_GUI_TYPE_TEXTAREA, N_GUI_LABEL_DATA::sel_end, N_GUI_LABEL_DATA::sel_start, N_GUI_CTX::selected_label_id, N_GUI_CTX::selected_syntaxview_id, N_GUI_LABEL_DATA::text, N_GUI_TEXTAREA_DATA::text, and N_GUI_WIDGET::type.

Referenced by _textarea_handle_key(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_normalize_crlf()

void _normalize_crlf ( char * s )

static

helper: strip CR from a string in-place, normalizing CRLF to LF.

Used at text entry points so all rendering code only needs to handle LF.

Definition at line 169 of file n_gui.c.

Referenced by n_gui_add_label(), n_gui_label_set_text(), and n_gui_textarea_set_text().

Here is the caller graph for this function:

_opt_rounded()

int _opt_rounded ( const N_GUI_STYLE * style )

static

the widget types that have no shape of their own (textarea, checkbox, a frameless window's body, the combobox dropdown) round only when the context ASKS for a round GUI: their square look is every existing program's default, and must not change under it.

Definition at line 8002 of file n_gui.c.

References N_GUI_SHAPE_ROUNDED, and N_GUI_STYLE::shape_mode.

Referenced by _draw_checkbox(), _draw_combobox_dropdown(), _draw_textarea(), and _draw_window().

Here is the caller graph for this function:

_point_in_rect()

int _point_in_rect ( float px, float py, float rx, float ry, float rw, float rh )

static

helper: test if point is inside a rectangle

Definition at line 497 of file n_gui.c.

Referenced by _datagrid_resize_hover(), _pointer_over_window(), _sb_track_hit(), _splitpane_hit(), _tooltip_widget_at(), _topmost_window_at(), n_gui_process_event(), and n_gui_wants_mouse().

Here is the caller graph for this function:

_pointer_over_window()

int _pointer_over_window ( const N_GUI_CTX * ctx, float px, float py )

static

helper: is the pointer over any open window that takes part in the current pass?

O(windows) and used to short-circuit the per-widget tooltip and datagrid-cursor scans on motion events when the pointer is over empty background (the common case when the GUI is composited over a game). Both of those scans only ever match widgets that live inside a window, so skipping them off-window yields the same "nothing under the pointer" result.

Definition at line 526 of file n_gui.c.

References _point_in_rect(), _win_on_pass(), _win_tbh(), N_GUI_WINDOW::h, list_foreach, N_GUI_WIN_MINIMISED, N_GUI_WIN_OPEN, N_GUI_WINDOW::state, N_GUI_WINDOW::w, N_GUI_CTX::windows, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_reading_order()

int _reading_order ( const N_GUI_WIDGET * a, const N_GUI_WIDGET * b )

static

Which of two widgets comes first in reading order.

By row, then across: two widgets are on one row when their tops are less than half the shorter one's height apart, so buttons a pixel or two out of line still read left to right. The id breaks a tie.

Parameters

a	One widget.
b	The other.

Returns

Negative when a comes first, positive when b does.

Definition at line 2225 of file n_gui.c.

References N_GUI_WIDGET::h, N_GUI_WIDGET::id, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _button_neighbour().

Here is the caller graph for this function:

_register_widget()

void _register_widget ( N_GUI_CTX * ctx, N_GUI_WIDGET * w )

static

helper: register a widget in the hash table

Definition at line 736 of file n_gui.c.

References __n_assert, N_GUI_CTX::dirty, ht_put_ptr(), N_GUI_WIDGET::id, key, and N_GUI_CTX::widgets_by_id.

Referenced by n_gui_add_button(), n_gui_add_checkbox(), n_gui_add_combobox(), n_gui_add_custom(), n_gui_add_datagrid(), n_gui_add_dropmenu(), n_gui_add_hexview(), n_gui_add_image(), n_gui_add_label(), n_gui_add_listbox(), n_gui_add_markdownview(), n_gui_add_progressbar(), n_gui_add_radiolist(), n_gui_add_scrollbar(), n_gui_add_slider(), n_gui_add_splitpane(), n_gui_add_syntaxview(), and n_gui_add_textarea().

Here is the call graph for this function:

Here is the caller graph for this function:

_release_native_window()

void _release_native_window ( N_GUI_CTX * ctx, N_GUI_WINDOW * win )

static

forward declaration: unregister and destroy a window's native display, leaving the window's geometry untouched (see the native window section)

helper: unregister and destroy a window's native display.

The window's geometry and flags are left alone, the callers decide whether the window goes back to being a pop-up (n_gui_window_attach) or simply disappears with the context (n_gui_destroy_ctx).

Definition at line 1604 of file n_gui.c.

References N_GUI_CTX::active_display, N_GUI_CTX::display, N_GUI_CTX::event_queue, N_GUI_WINDOW::native, N_GUI_WINDOW::native_close_pending, N_GUI_WINDOW::native_h, N_GUI_WINDOW::native_pos_x, N_GUI_WINDOW::native_pos_y, N_GUI_WINDOW::native_w, and N_GUI_CTX::pass_display.

Referenced by n_gui_destroy_ctx(), n_gui_draw_detached(), and n_gui_window_attach().

Here is the caller graph for this function:

_sb_skin()

_N_GUI_SB_SKIN _sb_skin ( const N_GUI_STYLE * style )

static

helper: the skin of a bar belonging to a widget or a window.

Definition at line 7775 of file n_gui.c.

References _N_GUI_SB_SKIN::corner_r, _N_GUI_SB_SKIN::outline, _N_GUI_SB_SKIN::outline_thickness, N_GUI_STYLE::scrollbar_thumb_color, N_GUI_STYLE::scrollbar_thumb_corner_r, N_GUI_STYLE::scrollbar_thumb_padding, N_GUI_STYLE::scrollbar_track_color, _N_GUI_SB_SKIN::thumb, _N_GUI_SB_SKIN::thumb_padding, _N_GUI_SB_SKIN::track, _N_GUI_SB_SKIN::track_inset, and _N_GUI_SB_SKIN::track_round.

Referenced by _draw_cols_scrollbar(), _draw_combobox_dropdown(), _draw_dropmenu_panel(), _draw_rows_scrollbar(), _draw_scrollbar(), _draw_widget_vscrollbar(), and _draw_window().

Here is the caller graph for this function:

_sb_skin_global()

_N_GUI_SB_SKIN _sb_skin_global ( const N_GUI_STYLE * style )

static

helper: the skin of one of the display's own bars, which scroll the whole virtual canvas rather than anything inside it.

Definition at line 7790 of file n_gui.c.

References _N_GUI_SB_SKIN::corner_r, N_GUI_STYLE::global_scrollbar_border_thickness, N_GUI_STYLE::global_scrollbar_thumb_border_color, N_GUI_STYLE::global_scrollbar_thumb_color, N_GUI_STYLE::global_scrollbar_thumb_corner_r, N_GUI_STYLE::global_scrollbar_thumb_padding, N_GUI_STYLE::global_scrollbar_track_color, _N_GUI_SB_SKIN::outline, _N_GUI_SB_SKIN::outline_thickness, _N_GUI_SB_SKIN::thumb, _N_GUI_SB_SKIN::thumb_padding, _N_GUI_SB_SKIN::track, _N_GUI_SB_SKIN::track_inset, and _N_GUI_SB_SKIN::track_round.

Referenced by n_gui_draw().

Here is the caller graph for this function:

_sb_track_hit()

int _sb_track_hit ( const N_GUI_SB_TRACK * track, float mx, float my )

static

helper: is the pointer inside a bar's last painted rectangle.

A bar that was not painted has a zero width or height and can never be hit.

Definition at line 7739 of file n_gui.c.

References _point_in_rect(), N_GUI_SB_TRACK::h, N_GUI_SB_TRACK::w, N_GUI_SB_TRACK::x, and N_GUI_SB_TRACK::y.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_scrollbar_calc_scroll()

float _scrollbar_calc_scroll ( float mouse, float track_start, float track_length, float viewport, float content, float thumb_min )

static

helper: compute scroll position from mouse coordinate using thumb-aware math.

This is the formula used by the window auto-scrollbar, it maps the mouse to where the center of the thumb should be, giving smooth proportional feel.

Parameters

mouse	current mouse coordinate (x or y)
track_start	pixel start of the scrollbar track
track_length	pixel length of the scrollbar track
viewport	visible portion size
content	total content size
thumb_min	minimum thumb size in pixels

Returns

scroll position in [0, content - viewport]

Definition at line 564 of file n_gui.c.

References mouse().

Referenced by _scrollbar_calc_scroll_int(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_scrollbar_calc_scroll_int()

int _scrollbar_calc_scroll_int ( float mouse, float track_start, float track_length, int visible_items, int total_items, float thumb_min )

static

helper: integer variant of _scrollbar_calc_scroll for item-based widgets.

Parameters

mouse	current mouse coordinate
track_start	pixel start of the scrollbar track
track_length	pixel length of the scrollbar track
visible_items	number of visible items
total_items	total number of items
thumb_min	minimum thumb size in pixels

Returns

scroll offset in [0, total_items - visible_items]

Definition at line 587 of file n_gui.c.

References _scrollbar_calc_scroll(), and mouse().

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_scrollbar_edge_for_state()

ALLEGRO_COLOR _scrollbar_edge_for_state ( const N_GUI_THEME * t, int state )

static

helper: the colour of the outline round a scrollbar's thumb, for the state of the bar.

A press or a drag reads as border_active and the pointer merely being on the bar as border_hover, the mapping _draw_textarea uses for those two. The bar's divider does not use this; it is border_normal always, because a line running the length of the bar is not a way of pointing at it.

Keyboard focus is deliberately NOT one of them, though it was to begin with. A widget has one focus and can have two bars, so focus lit both of them at once, and it lit them on a click anywhere in the widget: clicking a row of a tree made both of its bars glow and nothing about that said what the arrow keys would move. The pointer is the only thing that names one bar out of two, so the highlight follows the pointer.

Definition at line 7713 of file n_gui.c.

References N_GUI_THEME::border_active, N_GUI_THEME::border_hover, N_GUI_THEME::border_normal, N_GUI_STATE_ACTIVE, N_GUI_STATE_HOVER, and N_GUI_STATE_SCROLLBAR_DRAG.

Referenced by _draw_scrollbar_thumb().

Here is the caller graph for this function:

_scrollbar_thumb()

_N_GUI_THUMB _scrollbar_thumb ( float track_len, float visible, float content, float offset, float min_len )

static

helper: where a scrollbar thumb sits and how long it is.

The same five lines used to appear in all three scrollbar drawers – the widget vertical bar, the row-based one and the pixel-based horizontal one – differing only in axis and units, with one of them commented as mirroring another. A thumb that disagrees with the scroll it represents is the kind of bug you feel rather than see, so it is computed once here.

visible, content and offset are in the CALLER's units (rows for the row bar, pixels for the others); track_len and the result are pixels. A zero content yields a full-length thumb rather than a division by zero, which is what the row and column bars already did explicitly.

Definition at line 7649 of file n_gui.c.

References _N_GUI_THUMB::len, _N_GUI_THUMB::off, and visible().

Referenced by _draw_cols_scrollbar(), _draw_combobox_dropdown(), _draw_dropmenu_panel(), _draw_rows_scrollbar(), _draw_scrollbar(), _draw_widget_vscrollbar(), _draw_window(), and n_gui_draw().

Here is the call graph for this function:

Here is the caller graph for this function:

_scrollbar_thumb_for_state()

ALLEGRO_COLOR _scrollbar_thumb_for_state ( ALLEGRO_COLOR at_rest, const N_GUI_THEME * t, int state )

static

helper: the fill of a scrollbar thumb, for the state of the bar.

at_rest is the skin's own thumb colour, which is deliberately not derived from the widget theme so that a bar stays legible over any background. A live bar is that colour lifted part of the way towards the theme's accent rather than replaced by it: enough to see which bar the pointer is on, not enough to turn a scrollbar into the brightest thing on screen. A drag lifts further than a hover, because it is doing something. Focus is not read here; see _scrollbar_edge_for_state.

Definition at line 7729 of file n_gui.c.

References _color_mix(), N_GUI_THEME::border_active, N_GUI_THEME::border_hover, N_GUI_STATE_ACTIVE, N_GUI_STATE_HOVER, and N_GUI_STATE_SCROLLBAR_DRAG.

Referenced by _draw_scrollbar_thumb().

Here is the call graph for this function:

Here is the caller graph for this function:

_scrollbar_update_from_mouse()

void _scrollbar_update_from_mouse ( N_GUI_WIDGET * wgt, float mx, float my, float win_x, float win_content_y, const N_GUI_STYLE * style )

static

handle scrollbar drag

Definition at line 12502 of file n_gui.c.

References N_GUI_SCROLLBAR_DATA::content_size, N_GUI_WIDGET::data, N_GUI_WIDGET::h, N_GUI_WIDGET::id, N_GUI_SCROLLBAR_V, N_GUI_SCROLLBAR_DATA::on_scroll, N_GUI_SCROLLBAR_DATA::orientation, N_GUI_SCROLLBAR_DATA::scroll_pos, N_GUI_STYLE::scrollbar_thumb_min, N_GUI_SCROLLBAR_DATA::user_data, N_GUI_SCROLLBAR_DATA::viewport_size, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by n_gui_process_event().

Here is the caller graph for this function:

_scrollbar_wheel()

int _scrollbar_wheel ( N_GUI_WIDGET * wgt, int dz )

static

helper: turn the wheel over a scrollbar: its wheel step per notch, a twentieth of its range when it has none, clamped, its on_scroll called.

Returns 1 when it could move (its content is longer than its viewport), 0 otherwise.

Definition at line 2421 of file n_gui.c.

References N_GUI_SCROLLBAR_DATA::content_size, N_GUI_WIDGET::data, N_GUI_WIDGET::id, N_GUI_SCROLLBAR_DATA::on_scroll, N_GUI_SCROLLBAR_DATA::scroll_pos, N_GUI_SCROLLBAR_DATA::user_data, N_GUI_SCROLLBAR_DATA::viewport_size, and N_GUI_SCROLLBAR_DATA::wheel_step.

Referenced by n_gui_process_event().

Here is the caller graph for this function:

_select_state_bitmap()

ALLEGRO_BITMAP * _select_state_bitmap ( int state, ALLEGRO_BITMAP * normal_bmp, ALLEGRO_BITMAP * hover_bmp, ALLEGRO_BITMAP * active_bmp )

static

helper: select per-state bitmap with fallback chain.

Returns the appropriate bitmap for the given state, falling back to normal_bmp. Returns NULL if all pointers are NULL.

Definition at line 6797 of file n_gui.c.

References N_GUI_STATE_ACTIVE, and N_GUI_STATE_HOVER.

Referenced by _draw_scrollbar(), and _draw_slider().

Here is the caller graph for this function:

_set_clipping_rect_transformed()

void _set_clipping_rect_transformed ( int wx, int wy, int ww, int wh )

static

helper: set clipping rectangle in world space, transforming to screen space.

This accounts for the current Allegro transform (e.g. global scroll) so that clipping works correctly even when a translation transform is active. The resulting clip rect is also intersected with the current (parent) clip to avoid drawing outside the parent's visible area.

Definition at line 6809 of file n_gui.c.

References right().

Referenced by _draw_label(), _draw_label_lines(), _draw_markdownview(), _draw_textarea(), and _draw_window().

Here is the call graph for this function:

Here is the caller graph for this function:

_shape_rounded()

int _shape_rounded ( const N_GUI_STYLE * style, int widget_shape )

static

resolve whether a shape-aware widget draws rounded: the global shape_mode override (style->shape_mode) wins when set to ROUNDED or RECT, otherwise the widget's own shape decides.

Definition at line 7992 of file n_gui.c.

References N_GUI_SHAPE_RECT, N_GUI_SHAPE_ROUNDED, and N_GUI_STYLE::shape_mode.

Referenced by _draw_button(), _draw_combobox(), _draw_markdownview(), and _draw_scrollbar().

Here is the caller graph for this function:

_shorten_start()

int _shorten_start ( ALLEGRO_FONT * font, const char * text, float max_w, char * out, size_t out_len )

static

helper: "..." followed by the shortest tail of text, cut between UTF-8 sequences, that fits max_w.

Returns 1 with out filled, or 0 when not even "..." and one character fit.

Definition at line 6874 of file n_gui.c.

References _text_w(), _utf8_step(), font, and text().

Referenced by n_gui_text_shorten().

Here is the call graph for this function:

Here is the caller graph for this function:

_slider_handle_r()

float _slider_handle_r ( const N_GUI_WIDGET * wgt, const N_GUI_STYLE * style )

static

Radius of a slider's handle, from the widget's short side.

Both the drawing and the hit test need it, and they have to agree or the handle lands somewhere other than where the pointer is.

Definition at line 8140 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_WIDGET::h, N_GUI_SLIDER_V, N_GUI_STYLE::slider_handle_edge_offset, N_GUI_STYLE::slider_handle_min_r, and N_GUI_WIDGET::w.

Referenced by _draw_slider(), _slider_travel(), and n_gui_slider_handle_pos().

Here is the caller graph for this function:

_slider_key_step()

double _slider_key_step ( const N_GUI_SLIDER_DATA * sd )

static

how far one arrow key press or one wheel notch moves a slider

Parameters

sd	slider data, must not be NULL

Returns

the increment, never zero or negative

Definition at line 4030 of file n_gui.c.

References N_GUI_SLIDER_DATA::key_step, N_GUI_SLIDER_DATA::max_val, N_GUI_SLIDER_DATA::min_val, and N_GUI_SLIDER_DATA::step.

Referenced by n_gui_process_event(), and n_gui_slider_get_key_step().

Here is the caller graph for this function:

_slider_snap_value()

double _slider_snap_value ( double val, double min_val, double max_val, double step )

static

helper: snap a slider value to the nearest valid step from min_val.

Uses round() to avoid floating-point drift (e.g. 0.1 steps never produce 0.30000000000000004). Result is clamped to [min_val, max_val]. step <= 0 is treated as 1.

Definition at line 95 of file n_gui.c.

Referenced by _slider_update_from_mouse(), n_gui_process_event(), n_gui_slider_set_range(), n_gui_slider_set_step(), and n_gui_slider_set_value().

Here is the caller graph for this function:

_slider_travel()

void _slider_travel ( const N_GUI_WIDGET * wgt, const N_GUI_STYLE * style, float * start, float * length )

static

The strip a slider's handle centre travels along, inset by its radius at each end.

The handle is a circle centred on the value's position. Letting that centre reach the widget's own edges puts half the circle outside the widget, where the clipping rectangle cuts it off, so a slider at its minimum drew a half moon instead of a handle and one at its maximum did the same on the other side. The centre travels along an inset strip instead, and the same strip is what a press or a drag is measured against so the handle still lands under the pointer.

A widget shorter than two radii has nowhere to travel; the length is then zero and the handle sits in the middle, which is the best a slider that small can do.

Parameters

wgt	the slider
style	the style the radius comes from
start	receives the offset of the first position from the widget's left or top edge
length	receives how far the centre may travel, never negative

Definition at line 8170 of file n_gui.c.

References _slider_handle_r(), N_GUI_WIDGET::data, N_GUI_WIDGET::h, N_GUI_SLIDER_V, start(), and N_GUI_WIDGET::w.

Referenced by _draw_slider(), _slider_update_from_mouse(), and n_gui_slider_handle_pos().

Here is the call graph for this function:

Here is the caller graph for this function:

_slider_update_from_mouse()

void _slider_update_from_mouse ( N_GUI_WIDGET * wgt, float mx, float my, float win_x, float win_content_y, const N_GUI_STYLE * style )

static

handle slider drag (horizontal or vertical)

Definition at line 12462 of file n_gui.c.

References _clamp(), _slider_snap_value(), _slider_travel(), N_GUI_WIDGET::data, N_GUI_WIDGET::h, N_GUI_WIDGET::id, N_GUI_SLIDER_DATA::max_val, N_GUI_SLIDER_DATA::min_val, N_GUI_SLIDER_V, N_GUI_SLIDER_DATA::on_change, N_GUI_SLIDER_DATA::orientation, N_GUI_SLIDER_DATA::step, N_GUI_SLIDER_DATA::user_data, N_GUI_SLIDER_DATA::value, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_slider_value_text()

void _slider_value_text ( const N_GUI_SLIDER_DATA * sd, double value, char * out, size_t out_len )

static

draw a slider widget (horizontal or vertical)

helper: the text a slider's built-in readout shows for one value. The format is the caller's when it set one, a percentage in percent mode, and one decimal otherwise. Shared by the draw and by n_gui_slider_value_width(), so a layout that reserves room for the readout reserves the room the readout actually takes.

Definition at line 8121 of file n_gui.c.

References N_GUI_SLIDER_DATA::mode, N_GUI_SLIDER_PERCENT, and N_GUI_SLIDER_DATA::value_format.

Referenced by _draw_slider(), and n_gui_slider_value_width().

Here is the caller graph for this function:

_sort_windows_by_zorder()

void _sort_windows_by_zorder ( N_GUI_CTX * ctx )

static

Sort windows list by z-order: ALWAYS_BEHIND first, then FIXED (by z_value), then NORMAL, then ALWAYS_ON_TOP, then POPUP.

Within each group, preserve relative order. Uses stable insertion sort since window lists are typically small.

Definition at line 2000 of file n_gui.c.

References _destroy_window(), _zorder_group(), LIST_NODE::destroy_func, Free, list_foreach, list_push(), Malloc, LIST::nb_items, remove_list_node_f(), LIST::start, N_GUI_CTX::windows, and N_GUI_WINDOW::z_value.

Referenced by n_gui_add_window(), n_gui_lower_window(), n_gui_raise_window(), and n_gui_window_set_zorder().

Here is the call graph for this function:

Here is the caller graph for this function:

_split_words()

int _split_words ( const char * text, ALLEGRO_FONT * font, int * starts, int * lens, float * widths, int max_words, int * nl_before )

static

helper: split text into whitespace-separated words, recording each word's byte offset in text, its byte length and its pixel width.

Returns the word count, capped at max_words.

Note the measure buffer is bounded: a word longer than N_GUI_TEXT_MAX used to be memcpy'd whole into a stack array of that size by two of the callers this replaces. The recorded length stays the true one, so byte offsets are unaffected; only the width is that of the measurable prefix.

Definition at line 6993 of file n_gui.c.

References _text_w(), font, N_GUI_TEXT_MAX, and text().

Referenced by _draw_justified_selection(), _draw_text_justified(), _justified_char_at_pos(), and _label_content_height().

Here is the call graph for this function:

Here is the caller graph for this function:

_splitpane_cursor_hover()

int _splitpane_cursor_hover ( N_GUI_CTX * ctx, float px, float py )

static

report the split-pane divider under a point, for the mouse cursor shape: 0 = none, 1 = vertical divider (drags left/right), 2 = horizontal divider (drags up/down).

Definition at line 13561 of file n_gui.c.

References _splitpane_hit(), N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_SPLIT_VERTICAL, N_GUI_TYPE_SPLITPANE, and N_GUI_WIDGET::type.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_splitpane_hit()

int _splitpane_hit ( N_GUI_CTX * ctx, float px, float py )

static

report the split pane whose divider band is under a point, or -1.

Windows are walked back to front and widgets bottom to top, so the topmost claimant wins. A split pane off its band is click-through and therefore does not hide a divider beneath it, while any other widget under the point does take the press and clears the verdict.

Definition at line 13527 of file n_gui.c.

References _point_in_rect(), _splitpane_on_divider(), _win_on_pass(), _win_tbh(), N_GUI_WIDGET::enabled, N_GUI_WIDGET::h, N_GUI_WINDOW::h, N_GUI_WIDGET::id, list_foreach, N_GUI_TYPE_SPLITPANE, N_GUI_WIN_MINIMISED, N_GUI_WIN_OPEN, N_GUI_WINDOW::scroll_x, N_GUI_WINDOW::scroll_y, N_GUI_WINDOW::state, N_GUI_WIDGET::type, N_GUI_WIDGET::visible, N_GUI_WIDGET::w, N_GUI_WINDOW::w, N_GUI_WINDOW::widgets, N_GUI_CTX::windows, N_GUI_WIDGET::x, N_GUI_WINDOW::x, N_GUI_WIDGET::y, and N_GUI_WINDOW::y.

Referenced by _splitpane_cursor_hover(), and n_gui_splitpane_at().

Here is the call graph for this function:

Here is the caller graph for this function:

_splitpane_on_divider()

int _splitpane_on_divider ( const N_GUI_WIDGET * wgt, float px, float py, float ax, float ay )

static

forward declaration: test whether a point falls on a split pane's draggable divider band.

test whether a point falls on a split pane's draggable divider band.

Defined near the split pane draw code.

The widget spans the whole region it splits, so this is what tells a press meant for the divider apart from a press anywhere else over the two panes. ax/ay are the widget's absolute top-left corner.

Definition at line 9930 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_SPLITPANE_DATA::divider, N_GUI_WIDGET::h, N_GUI_SPLIT_VERTICAL, N_GUI_TYPE_SPLITPANE, N_GUI_SPLITPANE_DATA::orientation, N_GUI_SPLITPANE_DATA::ratio, N_GUI_WIDGET::type, and N_GUI_WIDGET::w.

Referenced by _splitpane_hit(), _tooltip_widget_at(), and n_gui_process_event().

Here is the caller graph for this function:

_suggest_accept()

void _suggest_accept ( N_GUI_CTX * ctx, N_GUI_WIDGET * wgt )

static

put the highlighted completion in place of the word under the cursor

Definition at line 12823 of file n_gui.c.

References _suggest_close(), _suggest_word(), N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_WIDGET::data, N_GUI_WIDGET::id, N_GUI_TEXTAREA_DATA::on_change, N_GUI_TEXTAREA_DATA::sel_end, N_GUI_TEXTAREA_DATA::sel_start, start(), N_GUI_TEXTAREA_DATA::suggest_count, N_GUI_TEXTAREA_DATA::suggest_highlight, N_GUI_TEXTAREA_DATA::suggest_items, N_GUI_TEXTAREA_DATA::suggest_open, N_GUI_LISTITEM::text, N_GUI_TEXTAREA_DATA::text, N_GUI_TEXTAREA_DATA::text_alloc, N_GUI_TEXTAREA_DATA::text_len, and N_GUI_TEXTAREA_DATA::user_data.

Referenced by _suggest_handle_key(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_suggest_close()

void _suggest_close ( N_GUI_CTX * ctx, N_GUI_WIDGET * wgt )

static

put the panel away, and forget which word it answered

Definition at line 12757 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_WIDGET::id, N_GUI_CTX::open_suggest_id, N_GUI_TEXTAREA_DATA::suggest_count, N_GUI_TEXTAREA_DATA::suggest_highlight, N_GUI_TEXTAREA_DATA::suggest_open, N_GUI_TEXTAREA_DATA::suggest_prefix, and N_GUI_TEXTAREA_DATA::suggest_scroll.

Referenced by _draw_textarea_suggest(), _suggest_accept(), _suggest_handle_key(), _suggest_refresh(), n_gui_process_event(), n_gui_textarea_set_suggest(), and n_gui_textarea_suggest_close().

Here is the caller graph for this function:

_suggest_handle_key()

int _suggest_handle_key ( N_GUI_CTX * ctx, N_GUI_WIDGET * wgt, ALLEGRO_EVENT * ev )

static

the keys a completion panel takes before the textarea sees them.

Up, Down, ENTER, TAB and ESCAPE mean something else entirely while a panel is up, so they are answered here and the field never hears them. Down with no panel up asks for one, which is how somebody who dismissed it gets it back without retyping the word.

Parameters

ctx	the GUI context
wgt	the focused textarea
ev	the key event

Returns

1 when the key was taken

Definition at line 13411 of file n_gui.c.

References _list_panel_highlight_step(), _suggest_accept(), _suggest_close(), _suggest_refresh(), N_GUI_WIDGET::data, N_GUI_SUGGEST_VISIBLE, N_GUI_TEXTAREA_DATA::suggest, N_GUI_TEXTAREA_DATA::suggest_count, N_GUI_TEXTAREA_DATA::suggest_highlight, N_GUI_TEXTAREA_DATA::suggest_open, and N_GUI_TEXTAREA_DATA::suggest_scroll.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_suggest_is_sep()

int _suggest_is_sep ( const N_GUI_TEXTAREA_DATA * td, char c )

static

is c one of the characters that end a word in this field

Definition at line 12726 of file n_gui.c.

References N_GUI_TEXTAREA_DATA::suggest_separators.

Referenced by _suggest_word().

Here is the caller graph for this function:

_suggest_panel_rect()

int _suggest_panel_rect ( N_GUI_CTX * ctx, N_GUI_WIDGET * wgt, float * out_x, float * out_y, float * out_w, float * out_h, float * out_ih, int * out_vis )

static

the geometry of an open completion panel, so the draw and the pointer agree about where its rows are.

Returns 0 when there is nothing to show, in which case the out parameters are untouched. The width follows the field rather than the longest entry: a completion is a word that is about to go into that field, so a panel wider than the field is a panel promising something the field cannot hold on one line.

Definition at line 10316 of file n_gui.c.

References _dropdown_panel_y(), _find_widget_window(), N_GUI_WIDGET::data, N_GUI_CTX::default_font, font, N_GUI_WIDGET::font, h(), N_GUI_WIDGET::h, N_GUI_WIDGET::id, N_GUI_STYLE::item_height_pad, N_GUI_SUGGEST_VISIBLE, N_GUI_CTX::style, N_GUI_TEXTAREA_DATA::suggest_count, N_GUI_TEXTAREA_DATA::suggest_open, N_GUI_WIDGET::w, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_textarea_suggest(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_suggest_refresh()

void _suggest_refresh ( N_GUI_CTX * ctx, N_GUI_WIDGET * wgt, int force )

static

ask the provider about the word under the cursor, and open or close the panel by what it answers.

The prefix the answers are for is remembered, so a key that leaves the word as it was does not send the provider off again. force asks anyway, which is what the Down key needs when the panel was dismissed over a word that has not changed since.

Definition at line 12776 of file n_gui.c.

References _suggest_close(), _suggest_word(), N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_WIDGET::data, N_GUI_WIDGET::id, Malloc, n_gui_get_widget(), N_GUI_ID_MAX, N_GUI_SUGGEST_MAX, N_GUI_CTX::open_suggest_id, start(), N_GUI_TEXTAREA_DATA::suggest, N_GUI_TEXTAREA_DATA::suggest_count, N_GUI_TEXTAREA_DATA::suggest_highlight, N_GUI_TEXTAREA_DATA::suggest_items, N_GUI_TEXTAREA_DATA::suggest_open, N_GUI_TEXTAREA_DATA::suggest_prefix, N_GUI_TEXTAREA_DATA::suggest_scroll, N_GUI_TEXTAREA_DATA::suggest_user_data, and N_GUI_TEXTAREA_DATA::text.

Referenced by _suggest_handle_key(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_suggest_word()

void _suggest_word ( const N_GUI_TEXTAREA_DATA * td, size_t * start, size_t * end )

static

the word the cursor is in.

start receives where it begins and end where it ends, both byte offsets into the text. Leading blanks are left out of the word, so that "sunset, be" completes "be" and not " be" and the replacement does not eat the space after the comma.

Definition at line 12744 of file n_gui.c.

References _suggest_is_sep(), N_GUI_TEXTAREA_DATA::cursor_pos, start(), and N_GUI_TEXTAREA_DATA::text.

Referenced by _suggest_accept(), and _suggest_refresh().

Here is the call graph for this function:

Here is the caller graph for this function:

_syntax_diff_add()

ALLEGRO_COLOR _syntax_diff_add ( void )

static

unified diff line colours.

Added and removed carry meaning the way an HTTP status colour does, so they must not shift with the theme; they are picked mid-range to stay legible on light and dark backgrounds alike.

Definition at line 9091 of file n_gui.c.

Referenced by _syntax_draw_line().

Here is the caller graph for this function:

_syntax_diff_del()

ALLEGRO_COLOR _syntax_diff_del ( void )

static

see _syntax_diff_add: colour of a removed line

Definition at line 9095 of file n_gui.c.

Referenced by _syntax_draw_line().

Here is the caller graph for this function:

_syntax_diff_hunk()

ALLEGRO_COLOR _syntax_diff_hunk ( void )

static

see _syntax_diff_add: colour of a hunk header line

Definition at line 9099 of file n_gui.c.

Referenced by _syntax_draw_line().

Here is the caller graph for this function:

_syntax_draw_line()

void _syntax_draw_line ( ALLEGRO_FONT * font, N_GUI_THEME * th, float x, float y, const char * s, int n, int mode, int line_idx, int in_headers, float x_min, float x_max )

static

draw one text line with mode-specific highlighting starting at (x,y), inside the horizontal window [x_min,x_max] (see SYNTAX_RUN)

Definition at line 9105 of file n_gui.c.

References _syntax_diff_add(), _syntax_diff_del(), _syntax_diff_hunk(), _syntax_js_keyword(), _syntax_js_regex_kw(), _syntax_js_regex_possible(), _syntax_run(), N_GUI_THEME::border_active, N_GUI_THEME::border_hover, SYNTAX_RUN::cx, SYNTAX_RUN::done, font, SYNTAX_RUN::font, mode, N_GUI_SYNTAX_DIFF, N_GUI_SYNTAX_HTTP, N_GUI_SYNTAX_JS, N_GUI_SYNTAX_JSON, N_GUI_SYNTAX_XML, N_GUI_SYNTAX_YAML, N_GUI_THEME::text_active, N_GUI_THEME::text_normal, SYNTAX_RUN::x_max, SYNTAX_RUN::x_min, and SYNTAX_RUN::y.

Referenced by _draw_syntaxview().

Here is the call graph for this function:

Here is the caller graph for this function:

_syntax_js_keyword()

int _syntax_js_keyword ( const char * s, int n )

static

whether the n bytes at s form a JavaScript keyword or literal name

Definition at line 9074 of file n_gui.c.

Referenced by _syntax_draw_line().

Here is the caller graph for this function:

_syntax_js_regex_kw()

int _syntax_js_regex_kw ( const char * s, int n )

static

whether the n bytes at s are a keyword after which an expression (and therefore a regex literal) can start, e.g.

return /re/

Definition at line 9056 of file n_gui.c.

Referenced by _syntax_draw_line().

Here is the caller graph for this function:

_syntax_js_regex_possible()

int _syntax_js_regex_possible ( char c )

static

whether a '/' may start a regex literal after last significant char c (start of line, after an operator, an opener, or a separator)

Definition at line 9068 of file n_gui.c.

Referenced by _syntax_draw_line().

Here is the caller graph for this function:

_syntax_prefix_w()

float _syntax_prefix_w ( ALLEGRO_FONT * font, const char * s, int n )

static

forward declaration: pixel width of the first n bytes of a line.

exact pixel width of the first n bytes of s, see _syntax_prefix_w_lim

Defined near the syntaxview draw code.

Definition at line 9407 of file n_gui.c.

References _syntax_prefix_w_lim(), and font.

Referenced by _syntaxview_ensure_width(), _syntaxview_offset_from_mouse(), and n_gui_syntaxview_scroll_to_offset().

Here is the call graph for this function:

Here is the caller graph for this function:

_syntax_prefix_w_lim()

float _syntax_prefix_w_lim ( ALLEGRO_FONT * font, const char * s, int n, float limit )

static

pixel width of the first n bytes of s in font, of any length: the measurement needs a NUL-terminated copy, so it accumulates over chunks of the same size _syntax_run draws in, which keeps the two in step.

A single fixed buffer instead would silently stop measuring at its end, and put a selection highlight or a click far from the glyphs it belongs to on a long line. limit stops the walk once the width passes it, for callers that only need to know where something lands on screen (anything past the right edge is clipped to the same pixel); pass 0 or less to measure the whole prefix.

Definition at line 9384 of file n_gui.c.

References _text_w(), and font.

Referenced by _draw_syntaxview(), and _syntax_prefix_w().

Here is the call graph for this function:

Here is the caller graph for this function:

_syntax_run()

void _syntax_run ( SYNTAX_RUN * r, ALLEGRO_COLOR col, const char * s, int len )

static

draw one coloured run of a syntax line and advance the pen past it.

Runs outside the window are measured but not drawn (the pen still has to land in the right place), and the run that crosses the right edge sets done.

Definition at line 9027 of file n_gui.c.

References _text_w(), SYNTAX_RUN::cx, SYNTAX_RUN::done, SYNTAX_RUN::font, SYNTAX_RUN::x_max, SYNTAX_RUN::x_min, and SYNTAX_RUN::y.

Referenced by _syntax_draw_line().

Here is the call graph for this function:

Here is the caller graph for this function:

_syntaxview_clamp_h()

void _syntaxview_clamp_h ( N_GUI_SYNTAXVIEW_DATA * yd, float content_w, float pane_w )

static

forward declaration: clamp a syntaxview's horizontal scroll to its content.

clamp a syntax view's horizontal scroll to the room its content actually needs

Defined near the syntaxview draw code.

Definition at line 9586 of file n_gui.c.

References N_GUI_SYNTAXVIEW_DATA::h_scroll.

Referenced by _draw_syntaxview(), n_gui_process_event(), and n_gui_syntaxview_scroll_to_offset().

Here is the caller graph for this function:

_syntaxview_ensure_lines()

void _syntaxview_ensure_lines ( N_GUI_SYNTAXVIEW_DATA * yd )

static

forward declaration: (re)build a syntaxview's cached line count and headers-end index when stale.

draw a read-only syntax-highlighted text view

Defined near the syntaxview draw code.

(re)build a syntaxview's cached line count and first-blank-line index. Both are pure functions of the text, so they are computed once per text change instead of scanning the whole buffer twice on every frame (and on every scroll/click event). Invalidated by clearing lines_valid in n_gui_syntaxview_set_text.

Definition at line 9489 of file n_gui.c.

References N_GUI_SYNTAXVIEW_DATA::cached_headers_end, N_GUI_SYNTAXVIEW_DATA::cached_nb_lines, N_GUI_SYNTAXVIEW_DATA::lines_valid, and N_GUI_SYNTAXVIEW_DATA::text.

Referenced by _syntaxview_hmetrics().

Here is the caller graph for this function:

_syntaxview_ensure_width()

void _syntaxview_ensure_width ( N_GUI_SYNTAXVIEW_DATA * yd, ALLEGRO_FONT * font, const N_GUI_STYLE * style )

static

forward declaration: (re)build a syntaxview's cached content width when stale.

(re)build a syntax view's cached content width: the pixel width of its widest line, plus the padding on both sides.

Defined near the syntaxview draw code.

Measured once per text (and once per font change), not once per frame the way the listbox can afford to: a reformatted document runs to tens of thousands of lines.

Definition at line 9523 of file n_gui.c.

References _syntax_prefix_w(), N_GUI_SYNTAXVIEW_DATA::cached_content_w, font, N_GUI_SYNTAXVIEW_DATA::metrics_font, N_GUI_SYNTAXVIEW_DATA::text, N_GUI_STYLE::textarea_padding, and N_GUI_SYNTAXVIEW_DATA::width_valid.

Referenced by _syntaxview_hmetrics(), and n_gui_syntaxview_content_width().

Here is the call graph for this function:

Here is the caller graph for this function:

_syntaxview_hmetrics()

void _syntaxview_hmetrics ( const N_GUI_WIDGET * wgt, N_GUI_SYNTAXVIEW_DATA * yd, ALLEGRO_FONT * font, const N_GUI_STYLE * style, float * content_w, float * pane_w, int * need_hsb, int * visible )

static

forward declaration: syntaxview horizontal-scroll metrics, shared by the draw path and every mouse handler.

Syntax view horizontal-scroll metrics, computed identically by the draw path and the mouse handlers so the thumb and the hit test never drift apart.

Defined near the syntaxview draw code.

content_w is the width the widest line needs, pane_w the room left for the text (widget width minus a vertical scrollbar), need_hsb whether the content overflows that room, and visible the number of lines that fit above the horizontal scrollbar. Any output pointer may be NULL.

Definition at line 9550 of file n_gui.c.

References _syntaxview_ensure_lines(), _syntaxview_ensure_width(), N_GUI_SYNTAXVIEW_DATA::cached_content_w, N_GUI_SYNTAXVIEW_DATA::cached_nb_lines, font, N_GUI_WIDGET::h, N_GUI_STYLE::scrollbar_size, N_GUI_STYLE::textarea_padding, visible(), and N_GUI_WIDGET::w.

Referenced by _draw_syntaxview(), n_gui_process_event(), and n_gui_syntaxview_scroll_to_offset().

Here is the call graph for this function:

Here is the caller graph for this function:

_syntaxview_offset_from_mouse()

int _syntaxview_offset_from_mouse ( const N_GUI_SYNTAXVIEW_DATA * yd, ALLEGRO_FONT * font, float mx, float my, float ax, float ay, float pad )

static

Map a mouse position over a syntax view to a byte offset into its text.

The view does not wrap, so one source line maps to one display row; the row is chosen from the y position (plus the scroll offset) and the column from the x position by measuring incremental prefix widths of that line. The offset returned indexes the real text buffer (a trailing CR is treated as the end of the visible line).

Definition at line 9416 of file n_gui.c.

References _syntax_prefix_w(), font, N_GUI_SYNTAXVIEW_DATA::h_scroll, row(), N_GUI_SYNTAXVIEW_DATA::scroll_offset, and N_GUI_SYNTAXVIEW_DATA::text.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_tb_btn_resolved_size()

float _tb_btn_resolved_size ( const N_GUI_WINDOW * win, const N_GUI_STYLE * style )

static

return the effective titlebar button size (0 = auto from titlebar_h)

Definition at line 11246 of file n_gui.c.

References N_GUI_STYLE::tb_btn_size, and N_GUI_WINDOW::titlebar_h.

Referenced by _tb_button_rect(), and _tb_buttons_area_width().

Here is the caller graph for this function:

_tb_button_action()

void _tb_button_action ( N_GUI_CTX * ctx, N_GUI_WINDOW * win, int btn_type )

static

Dispatch a titlebar button action, invoke the user callback if set, otherwise fall back to the built-in minimize / maximize / close behaviour.

Parameters

ctx	the GUI context (used for the default close/min/max paths)
win	the target window
btn_type	one of N_GUI_TB_BTN_MINIMIZE, _MAXIMIZE, _CLOSE

Definition at line 13300 of file n_gui.c.

References _native_own_chrome(), N_GUI_WINDOW::id, n_gui_close_window(), n_gui_maximize_window(), n_gui_minimize_window(), N_GUI_TB_BTN_CLOSE, N_GUI_TB_BTN_MAXIMIZE, N_GUI_TB_BTN_MINIMIZE, N_GUI_WIN_OPEN, N_GUI_WINDOW::native, N_GUI_WINDOW::native_close_pending, N_GUI_TB_BUTTONS::on_close, N_GUI_TB_BUTTONS::on_close_user_data, N_GUI_TB_BUTTONS::on_maximize, N_GUI_TB_BUTTONS::on_maximize_user_data, N_GUI_TB_BUTTONS::on_minimize, N_GUI_TB_BUTTONS::on_minimize_user_data, N_GUI_WINDOW::state, and N_GUI_WINDOW::tb_buttons.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_tb_button_rect()

int _tb_button_rect ( const N_GUI_WINDOW * win, const N_GUI_STYLE * style, int btn_type, float * out_x, float * out_y, float * out_w, float * out_h )

static

compute the absolute rect for a titlebar button.

Layout right-to-left: close rightmost, maximize next, minimize leftmost. Returns 1 if the button is enabled, 0 if not.

Definition at line 11266 of file n_gui.c.

References _tb_btn_resolved_size(), N_GUI_WINDOW::flags, N_GUI_TB_BTN_CLOSE, N_GUI_TB_BTN_MAXIMIZE, N_GUI_TB_BTN_MINIMIZE, N_GUI_WIN_BTN_CLOSE, N_GUI_WIN_BTN_MAXIMIZE, N_GUI_WIN_BTN_MINIMIZE, N_GUI_WIN_FRAMELESS, N_GUI_STYLE::tb_btn_right_margin, N_GUI_STYLE::tb_btn_spacing, N_GUI_WINDOW::titlebar_h, N_GUI_WINDOW::w, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by _draw_tb_buttons(), n_gui_process_event(), and n_gui_window_button_rect().

Here is the call graph for this function:

Here is the caller graph for this function:

_tb_buttons_area_width()

float _tb_buttons_area_width ( const N_GUI_WINDOW * win, const N_GUI_STYLE * style )

static

compute the total width consumed by enabled titlebar buttons (0 if none/frameless)

Definition at line 11252 of file n_gui.c.

References _tb_btn_resolved_size(), N_GUI_WINDOW::flags, N_GUI_WIN_BTN_CLOSE, N_GUI_WIN_BTN_MAXIMIZE, N_GUI_WIN_BTN_MINIMIZE, N_GUI_WIN_FRAMELESS, N_GUI_STYLE::tb_btn_right_margin, and N_GUI_STYLE::tb_btn_spacing.

Referenced by _draw_window().

Here is the call graph for this function:

Here is the caller graph for this function:

_text_dims()

void _text_dims ( ALLEGRO_FONT * font, const char * text, int * x, int * y, int * w, int * h )

static

helper: memoized al_get_text_dimensions (bounding box x/y/w/h).

Same result as calling al_get_text_dimensions directly; used by the per-widget label centring paths that re-measure unchanging text every frame.

Definition at line 261 of file n_gui.c.

References _ngui_meas_slot(), N_GUI_MEAS_ENTRY::dh, N_GUI_MEAS_ENTRY::dw, N_GUI_MEAS_ENTRY::dx, N_GUI_MEAS_ENTRY::dy, font, h(), N_GUI_MEAS_ENTRY::have_dims, N_GUI_MEAS_KEY_MAX, and text().

Referenced by _draw_button(), _draw_checkbox(), _draw_combobox(), _draw_dropmenu(), _draw_label(), _draw_slider(), _draw_window(), and _label_text_origin_x().

Here is the call graph for this function:

Here is the caller graph for this function:

_text_for_state()

ALLEGRO_COLOR _text_for_state ( const N_GUI_THEME * t, int state )

static

Definition at line 7693 of file n_gui.c.

References N_GUI_STATE_ACTIVE, N_GUI_STATE_HOVER, N_GUI_THEME::text_active, N_GUI_THEME::text_hover, and N_GUI_THEME::text_normal.

Referenced by _draw_button(), _draw_checkbox(), _draw_combobox(), _draw_dropmenu(), _draw_label(), and _draw_tb_buttons().

Here is the caller graph for this function:

_text_line_count()

int _text_line_count ( const char * s )

static

helper: destroy a single widget (called by list destructor)

count the lines in a NUL-terminated text (0 for empty)

forward declaration: count the lines in a NUL-terminated text

Definition at line 8988 of file n_gui.c.

Referenced by n_gui_syntaxview_get_line_count().

Here is the caller graph for this function:

_text_w()

float _text_w ( ALLEGRO_FONT * font, const char * text )

static

helper: get the advance width of text.

Uses al_get_text_width which returns the advance width (includes space characters), unlike al_get_text_dimensions which returns the bounding box (zero width for spaces since they have no visible pixels). Memoized.

Definition at line 246 of file n_gui.c.

References _ngui_meas_slot(), N_GUI_MEAS_ENTRY::adv_w, font, N_GUI_MEAS_ENTRY::have_adv, N_GUI_MEAS_KEY_MAX, and text().

Referenced by _combobox_dropdown_width(), _draw_justified_selection(), _draw_label(), _draw_label_lines(), _draw_text_justified(), _draw_text_truncated(), _draw_textarea(), _draw_tooltip(), _justified_char_at_pos(), _label_char_at_x(), _label_content_height(), _label_effective_w(), _label_lines_char_at(), _listbox_hmetrics(), _shorten_start(), _split_words(), _syntax_prefix_w_lim(), _syntax_run(), _textarea_pos_from_mouse(), _textarea_step(), _window_update_content_size(), n_gui_dropmenu_panel_width(), n_gui_label_fits(), n_gui_listbox_content_width(), and n_gui_text_shorten().

Here is the call graph for this function:

Here is the caller graph for this function:

_textarea_clear_selection()

void _textarea_clear_selection ( N_GUI_TEXTAREA_DATA * td )

static

clear the selection (set both anchors to cursor_pos)

Definition at line 12562 of file n_gui.c.

References N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_TEXTAREA_DATA::sel_end, and N_GUI_TEXTAREA_DATA::sel_start.

Referenced by _textarea_delete_selection(), _textarea_handle_key(), and _textarea_paste_clip().

Here is the caller graph for this function:

_textarea_content_height()

float _textarea_content_height ( const N_GUI_TEXTAREA_DATA * td, ALLEGRO_FONT * font, float widget_w, float pad )

static

helper: compute the total content height of multiline textarea text (with line-wrap), in pixels.

Uses the shared _textarea_step.

Definition at line 7266 of file n_gui.c.

References _textarea_step(), _N_GUI_TA_STEP::clen, _N_GUI_TA_STEP::cw, font, _N_GUI_TA_STEP::newline, N_GUI_TEXTAREA_DATA::text, N_GUI_TEXTAREA_DATA::text_len, and _N_GUI_TA_STEP::wrapped.

Referenced by _draw_textarea(), _textarea_handle_key(), _textarea_pos_from_mouse(), n_gui_process_event(), n_gui_textarea_scroll_to_bottom(), and n_gui_textarea_scroll_to_offset().

Here is the call graph for this function:

Here is the caller graph for this function:

_textarea_copy_to_clipboard()

int _textarea_copy_to_clipboard ( const N_GUI_TEXTAREA_DATA * td, ALLEGRO_DISPLAY * display )

static

copy selected text to clipboard.

Returns 1 on success.

Definition at line 12582 of file n_gui.c.

References _ngui_clip_set(), _textarea_has_selection(), _textarea_sel_range(), display, FreeNoLog, Malloc, N_CLIPBOARD_CLIPBOARD, and N_GUI_TEXTAREA_DATA::text.

Referenced by _textarea_handle_key().

Here is the call graph for this function:

Here is the caller graph for this function:

_textarea_delete_selection()

void _textarea_delete_selection ( N_GUI_WIDGET * wgt )

static

delete the currently selected text, move cursor to selection start

Definition at line 12568 of file n_gui.c.

References _textarea_clear_selection(), _textarea_has_selection(), _textarea_sel_range(), N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_WIDGET::data, N_GUI_WIDGET::id, N_GUI_TEXTAREA_DATA::on_change, N_GUI_TEXTAREA_DATA::text, N_GUI_TEXTAREA_DATA::text_len, and N_GUI_TEXTAREA_DATA::user_data.

Referenced by _textarea_handle_key(), and _textarea_paste_clip().

Here is the call graph for this function:

Here is the caller graph for this function:

_textarea_handle_key()

int _textarea_handle_key ( N_GUI_WIDGET * wgt, ALLEGRO_EVENT * ev, ALLEGRO_FONT * font, float pad, float sb_size, N_GUI_CTX * ctx )

static

Definition at line 12885 of file n_gui.c.

References _ctx_io_display(), _ngui_clip_get(), _ngui_publish_primary_selection(), _textarea_clear_selection(), _textarea_content_height(), _textarea_copy_to_clipboard(), _textarea_delete_selection(), _textarea_has_selection(), _textarea_paste_clip(), _textarea_sel_range(), _textarea_step(), _utf8_char_len(), _utf8_encode(), N_GUI_TEXTAREA_DATA::char_limit, _N_GUI_TA_STEP::clen, N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_TEXTAREA_DATA::cursor_time, _N_GUI_TA_STEP::cw, N_GUI_WIDGET::data, font, N_GUI_WIDGET::h, N_GUI_WIDGET::id, line(), N_GUI_TEXTAREA_DATA::multiline, N_CLIPBOARD_CLIPBOARD, N_GUI_TEXTAREA_DATA::on_change, N_GUI_TEXTAREA_DATA::scroll_from_wheel, N_GUI_TEXTAREA_DATA::sel_end, N_GUI_TEXTAREA_DATA::sel_start, N_GUI_TEXTAREA_DATA::text, N_GUI_TEXTAREA_DATA::text_len, N_GUI_TEXTAREA_DATA::user_data, N_GUI_WIDGET::w, and _N_GUI_TA_STEP::wrapped.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_textarea_has_selection()

int _textarea_has_selection ( const N_GUI_TEXTAREA_DATA * td )

static

forward declaration: whether a text area has a non empty selection.

return 1 if the textarea has an active selection

Defined near the text area editing code.

Definition at line 8416 of file n_gui.c.

References N_GUI_TEXTAREA_DATA::sel_end, and N_GUI_TEXTAREA_DATA::sel_start.

Referenced by _draw_textarea(), _ngui_publish_primary_selection(), _textarea_copy_to_clipboard(), _textarea_delete_selection(), _textarea_handle_key(), _textarea_paste_clip(), and n_gui_textarea_has_selection().

Here is the caller graph for this function:

_textarea_paste_clip()

void _textarea_paste_clip ( N_GUI_WIDGET * wgt, N_GUI_TEXTAREA_DATA * td, const char * clip )

static

insert clipboard text at the cursor, replacing any selection.

Shared by Ctrl+V and middle-click paste. clip is NUL-terminated; CR is stripped and, in single-line mode, newlines are dropped. Respects the char limit and fires on_change.

Definition at line 12600 of file n_gui.c.

References _textarea_clear_selection(), _textarea_delete_selection(), _textarea_has_selection(), N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_WIDGET::id, N_GUI_TEXTAREA_DATA::multiline, N_GUI_TEXT_MAX, N_GUI_TEXTAREA_DATA::on_change, N_GUI_TEXTAREA_DATA::text, N_GUI_TEXTAREA_DATA::text_len, and N_GUI_TEXTAREA_DATA::user_data.

Referenced by _textarea_handle_key(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_textarea_pos_from_mouse()

size_t _textarea_pos_from_mouse ( const N_GUI_TEXTAREA_DATA * td, ALLEGRO_FONT * font, float mx, float my, float ax, float ay, float widget_w, float widget_h, float pad, float scrollbar_size )

static

helper: find the byte position in a textarea closest to the given mouse coordinates (mx, my in screen space).

ax, ay are the widget's screen-space top-left corner. Returns the byte offset into td->text.

Definition at line 8311 of file n_gui.c.

References _text_w(), _textarea_content_height(), _utf8_char_len(), display, font, N_GUI_TEXTAREA_DATA::mask_char, N_GUI_TEXTAREA_DATA::multiline, N_GUI_TEXT_MAX, N_GUI_TEXTAREA_DATA::scroll_x, N_GUI_TEXTAREA_DATA::scroll_y, N_GUI_TEXTAREA_DATA::text, and N_GUI_TEXTAREA_DATA::text_len.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_textarea_sel_range()

void _textarea_sel_range ( const N_GUI_TEXTAREA_DATA * td, size_t * lo, size_t * hi )

static

get the ordered selection range (lo, hi)

Definition at line 8421 of file n_gui.c.

References N_GUI_TEXTAREA_DATA::sel_end, and N_GUI_TEXTAREA_DATA::sel_start.

Referenced by _draw_textarea(), _ngui_publish_primary_selection(), _textarea_copy_to_clipboard(), _textarea_delete_selection(), and _textarea_handle_key().

Here is the caller graph for this function:

_textarea_step()

_N_GUI_TA_STEP _textarea_step ( const char * text, size_t len, size_t i, ALLEGRO_FONT * font, float cx, float wrap_limit, float line_x0 )

static

helper: decode, measure and wrap-test one character of textarea text.

This is the mechanical half of the per-character layout – the UTF-8 decode with its end-of-buffer clamp, the width measure, and the cx + cw > limit wrap rule – which used to be written out at FIVE sites: the content height, scroll-to-offset, the draw, and both passes of the click hit test. Each was commented as mirroring the drawing logic, and a wrap rule that exists five times is a wrap rule that eventually disagrees with itself, which shows up as a caret landing where the text is not.

What a caller does AT a wrap, at a newline and at each character stays at the call site, because those genuinely differ (one draws, one tracks a cursor, one measures a distance). cx and wrap_limit only have to be in the same coordinate space: the draw passes absolute x, the others relative.

Definition at line 7237 of file n_gui.c.

References _text_w(), _utf8_char_len(), _N_GUI_TA_STEP::ch, _N_GUI_TA_STEP::clen, _N_GUI_TA_STEP::cw, font, _N_GUI_TA_STEP::newline, text(), and _N_GUI_TA_STEP::wrapped.

Referenced by _draw_textarea(), _textarea_content_height(), _textarea_handle_key(), and n_gui_textarea_scroll_to_offset().

Here is the call graph for this function:

Here is the caller graph for this function:

_tooltip_line_cb()

bool _tooltip_line_cb ( int line_num, const char * line, int size, void * extra )

static

helper: al_do_multiline_text callback that just counts the wrapped lines.

Definition at line 11617 of file n_gui.c.

References line().

Referenced by _draw_tooltip().

Here is the call graph for this function:

Here is the caller graph for this function:

_tooltip_widget_at()

int _tooltip_widget_at ( N_GUI_CTX * ctx, float px, float py )

static

helper: top-most visible tooltip-bearing widget under a gui-space point (-1 = none).

A split pane spans the whole region it divides, so only its divider band counts as a hit: a tooltip on one describes the divider, and taking the whole region would answer for every widget-free pixel of both panes (and hide the tooltip of anything created before it). Same rule as the mouse-down scan.

Definition at line 2991 of file n_gui.c.

References _point_in_rect(), _splitpane_on_divider(), _win_on_pass(), _win_tbh(), N_GUI_WIDGET::h, N_GUI_WIDGET::id, list_foreach, N_GUI_TYPE_SPLITPANE, N_GUI_WIN_OPEN, N_GUI_WINDOW::scroll_x, N_GUI_WINDOW::scroll_y, N_GUI_WINDOW::state, N_GUI_WIDGET::tooltip, N_GUI_WIDGET::type, N_GUI_WIDGET::visible, N_GUI_WIDGET::w, N_GUI_WINDOW::widgets, N_GUI_CTX::windows, N_GUI_WIDGET::x, N_GUI_WINDOW::x, N_GUI_WIDGET::y, and N_GUI_WINDOW::y.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_topmost_window_at()

N_GUI_WINDOW * _topmost_window_at ( const N_GUI_CTX * ctx, float px, float py )

static

helper: the top-most open window of the current pass under a point, or NULL.

ctx->windows is kept sorted back to front by _sort_windows_by_zorder(), so the last window that contains the point is the one drawn over the rest – the same rule _tooltip_widget_at() and the mouse-down scan follow.

Definition at line 541 of file n_gui.c.

References _point_in_rect(), _win_on_pass(), _win_tbh(), N_GUI_WINDOW::h, list_foreach, N_GUI_WIN_MINIMISED, N_GUI_WIN_OPEN, N_GUI_WINDOW::state, N_GUI_WINDOW::w, N_GUI_CTX::windows, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by n_gui_tooltip_pending().

Here is the call graph for this function:

Here is the caller graph for this function:

_track_modifiers()

void _track_modifiers ( N_GUI_CTX * ctx, const ALLEGRO_EVENT * event )

static

follow the modifier keys through one event

KEY_DOWN and KEY_UP of a modifier set and clear its bit. KEY_CHAR carries the modifiers Allegro knows of, so it corrects a bit whose KEY_UP was not seen: a modifier it says is up is cleared, one it says is down and was not seen going down is set on its left key. Losing the focus clears them all.

Parameters

ctx	the GUI context
event	the event

Definition at line 13242 of file n_gui.c.

References _held_bit(), _N_GUI_HELD_ALT, _N_GUI_HELD_ALTGR, _N_GUI_HELD_LCTRL, _N_GUI_HELD_LSHIFT, _N_GUI_HELD_RCTRL, _N_GUI_HELD_RSHIFT, and N_GUI_CTX::held_modifier_keys.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_utf8_char_len()

int _utf8_char_len ( unsigned char c )

static

return the byte length of a UTF-8 character from its lead byte

Definition at line 7205 of file n_gui.c.

Referenced by _justified_char_at_pos(), _label_char_at_x(), _label_lines_char_at(), _textarea_handle_key(), _textarea_pos_from_mouse(), and _textarea_step().

Here is the caller graph for this function:

_utf8_encode()

int _utf8_encode ( int cp, char * out )

static

encode a Unicode code point into UTF-8, return the number of bytes written (0 on error)

Definition at line 12535 of file n_gui.c.

Referenced by _textarea_handle_key().

Here is the caller graph for this function:

_utf8_step()

size_t _utf8_step ( unsigned char lead )

static

helper: the length in bytes of the UTF-8 sequence led by lead, 1 for a byte that does not lead one.

Definition at line 6864 of file n_gui.c.

Referenced by _shorten_start(), and n_gui_text_shorten().

Here is the caller graph for this function:

_widget_took_press()

int _widget_took_press ( const N_GUI_WIDGET * wgt )

static

helper: did the press just handled by wgt belong to it?

Called after the press handler has run, so a label can answer by whether the press started a text selection. A press a widget took is not also a window drag: in a draggable frameless window the drag moves the window under the pointer, so a slider, a scrollbar or a selection would see the pointer standing still and never follow it. An image, a progress bar, and a label pressed beside its text do nothing with a press, and those stay a handle for the window.

Definition at line 508 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_TYPE_IMAGE, N_GUI_TYPE_LABEL, N_GUI_TYPE_PROGRESSBAR, and N_GUI_WIDGET::type.

Referenced by n_gui_process_event().

Here is the caller graph for this function:

_win_auto_sb_rects()

void _win_auto_sb_rects ( N_GUI_WINDOW * win, ALLEGRO_FONT * font, float size, float v[4], float h[4] )

static

helper: where a window's automatic scrollbars are, in display coordinates.

The same geometry _draw_window() paints the bars on: the vertical bar takes the right strip of the body, the horizontal one the bottom strip, each shortened by the resize corner when the other is absent, and no horizontal bar at all under N_GUI_WIN_NO_HSCROLL. A bar that is not shown gets a zero size, so a point test against it always fails. Refreshes the window's content extents on the way, which is what decides whether a bar is shown.

Parameters

win	window to measure. Must not be NULL.
font	default font, for the content extents.
size	thickness of a bar (style scrollbar_size).
v	receives x, y, w, h of the vertical bar.
h	receives x, y, w, h of the horizontal bar.

Definition at line 2679 of file n_gui.c.

References _win_tbh(), _window_update_content_size(), N_GUI_WINDOW::content_h, N_GUI_WINDOW::content_w, N_GUI_WINDOW::flags, font, h(), N_GUI_WINDOW::h, N_GUI_WIN_AUTO_SCROLLBAR, N_GUI_WIN_MINIMISED, N_GUI_WIN_NO_HSCROLL, N_GUI_WIN_RESIZABLE, N_GUI_WINDOW::state, N_GUI_WINDOW::w, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

_win_on_pass()

int _win_on_pass ( const N_GUI_CTX * ctx, const N_GUI_WINDOW * win )

static

helper: whether a window takes part in the pass currently being processed or drawn.

Pop-up windows (native == NULL) belong to the main display's pass, detached ones only to their own display's pass. With no window detached ctx->pass_display stays NULL and this is always true, so the single-display path behaves exactly as it did before display routing existed.

Definition at line 295 of file n_gui.c.

References N_GUI_WINDOW::native, and N_GUI_CTX::pass_display.

Referenced by _compute_gui_bounds(), _datagrid_resize_hover(), _draw_combobox_dropdown(), _draw_dropmenu_panel(), _draw_textarea_suggest(), _pointer_over_window(), _splitpane_hit(), _tooltip_widget_at(), _topmost_window_at(), n_gui_draw(), and n_gui_process_event().

Here is the caller graph for this function:

_win_tbh()

float _win_tbh ( const N_GUI_WINDOW * win )

static

helper: effective title bar height (0 for frameless windows)

Definition at line 286 of file n_gui.c.

References N_GUI_WINDOW::flags, N_GUI_WIN_FRAMELESS, and N_GUI_WINDOW::titlebar_h.

Referenced by _datagrid_resize_hover(), _find_widget_window(), _native_apply_minimised(), _pointer_over_window(), _splitpane_hit(), _tooltip_widget_at(), _topmost_window_at(), _win_auto_sb_rects(), n_gui_process_event(), n_gui_wants_mouse(), n_gui_window_apply_autofit(), n_gui_window_autosize(), and n_gui_window_detach().

Here is the caller graph for this function:

_window_update_content_size()

void _window_update_content_size ( N_GUI_WINDOW * win, ALLEGRO_FONT * default_font )

static

helper: recompute content extents for a window (for scrollbar support)

Definition at line 2636 of file n_gui.c.

References _text_w(), N_GUI_LABEL_DATA::align, N_GUI_WINDOW::content_h, N_GUI_WINDOW::content_w, N_GUI_WIDGET::data, N_GUI_WINDOW::flags, font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, list_foreach, N_GUI_ALIGN_JUSTIFIED, N_GUI_TYPE_LABEL, N_GUI_WIN_AUTO_SCROLLBAR, N_GUI_LABEL_DATA::text, N_GUI_WIDGET::type, N_GUI_WIDGET::visible, N_GUI_WIDGET::w, N_GUI_WINDOW::widgets, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by _draw_window(), _win_auto_sb_rects(), n_gui_process_event(), and n_gui_set_default_font().

Here is the call graph for this function:

Here is the caller graph for this function:

_word_text()

void _word_text ( const char * text, int start, int len, char * out )

static

helper: copy one word out of text into out (bounded by N_GUI_TEXT_MAX, which is also the widget text cap) and NUL-terminate it.

Definition at line 7126 of file n_gui.c.

References N_GUI_TEXT_MAX, start(), and text().

Referenced by _draw_text_justified().

Here is the call graph for this function:

Here is the caller graph for this function:

_wrap_words()

int _wrap_words ( const float * word_widths, const int * nl_before, int nwords, float space_w, float max_w, int * line_first, unsigned char * para_end, int max_lines )

static

helper: pack word widths into justified lines.

Fills line_first with the first word index of each line PLUS a sentinel line_first[lines] == nwords, so a caller iterates [line_first[l], line_first[l + 1]). line_first must hold max_lines + 1 entries. Returns the line count.

The loop this replaces existed FOUR times in this file – the draw, the selection rectangles, the click hit test and the content height – each commented as mirroring the others, which is precisely how they drift apart. It is nilorea's own n_wrap now: a word is an item, the single space between two words is a break-point item, and the lines break in exactly the same places (differential-checked against the previous loop over 200k random width sets before the swap).

Definition at line 7076 of file n_gui.c.

References _wrap_words_emit(), _N_GUI_WRAP_ACC::cap, _N_GUI_WRAP_ACC::count, _N_GUI_WRAP_ACC::first, n_wrap_item::flags, _N_GUI_WRAP_ACC::item_word, _N_GUI_WRAP_ACC::items, _N_GUI_WRAP_ACC::n, N_GUI_WRAP_MAX_ITEMS, N_GUI_WRAP_MAX_WORDS, n_wrap_layout(), N_WRAP_NEWLINE, N_WRAP_SPACE, _N_GUI_WRAP_ACC::nwords, _N_GUI_WRAP_ACC::para_end, and n_wrap_item::width.

Referenced by _draw_justified_selection(), _draw_text_justified(), _justified_char_at_pos(), and _label_content_height().

Here is the call graph for this function:

Here is the caller graph for this function:

_wrap_words_emit()

void _wrap_words_emit ( size_t first, size_t last, size_t line, double width, void * user )

static

Definition at line 7045 of file n_gui.c.

References _N_GUI_WRAP_ACC::cap, _N_GUI_WRAP_ACC::count, _N_GUI_WRAP_ACC::first, n_wrap_item::flags, _N_GUI_WRAP_ACC::item_word, _N_GUI_WRAP_ACC::items, last, line(), _N_GUI_WRAP_ACC::n, N_WRAP_NEWLINE, _N_GUI_WRAP_ACC::nwords, and _N_GUI_WRAP_ACC::para_end.

Referenced by _wrap_words().

Here is the call graph for this function:

Here is the caller graph for this function:

_zorder_group()

int _zorder_group ( const N_GUI_WINDOW * w )

static

Definition at line 1979 of file n_gui.c.

References N_GUI_ZORDER_ALWAYS_BEHIND, N_GUI_ZORDER_ALWAYS_ON_TOP, N_GUI_ZORDER_FIXED, N_GUI_ZORDER_POPUP, and N_GUI_WINDOW::z_order.

Referenced by _sort_windows_by_zorder().

Here is the caller graph for this function:

Variable Documentation

_ngui_meas_cache

N_GUI_MEAS_ENTRY _ngui_meas_cache[1024u]

static

Definition at line 213 of file n_gui.c.

Referenced by _ngui_meas_slot().
