n_http_router.c File Reference

HTTP router (see n_http_router.h). More...

#include "nilorea/n_http_router.h"
#include "nilorea/n_common.h"
#include "nilorea/n_log.h"
#include "nilorea/n_str.h"
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

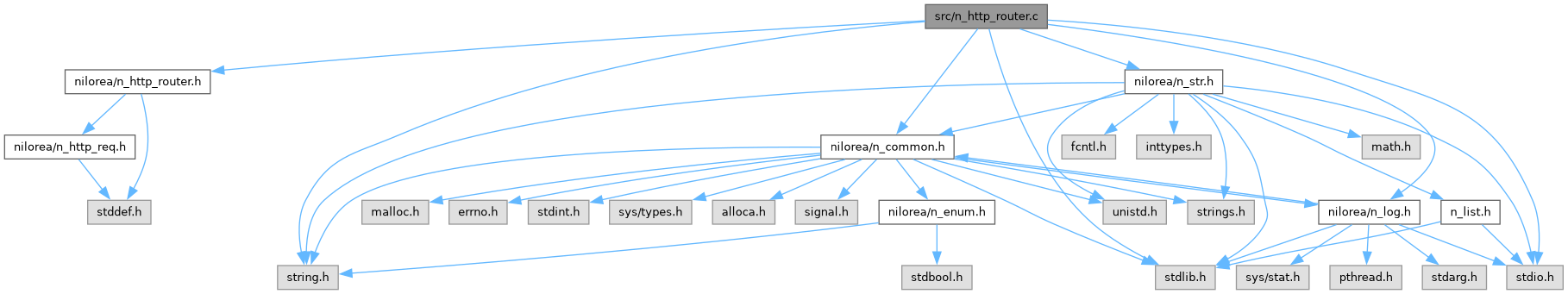

Include dependency graph for n_http_router.c:

Go to the source code of this file.

Data Structures
struct	_compiled
struct	_seg
struct	N_ROUTER
	a compiled router (opaque) More...

Macros
#define	N_ROUTER_SEGS_MAX   32

Enumerations
enum	_seg_rank {   _SEG_LITERAL = 0 , _SEG_DIGITS = 1 , _SEG_HEX = 1 , _SEG_INT = 2 ,   _SEG_SLUG = 3 , _SEG_ANY = 4 , _SEG_REST = 5 }
enum	_seg_type {   _T_LITERAL , _T_DIGITS , _T_HEX , _T_INT ,   _T_SLUG , _T_ANY , _T_REST }

Functions
static int	_compile (const N_ROUTE *route, _compiled *c, const char **why)
static size_t	_decode (const char *s, size_t n, char *dst)
static int	_hexval (char c)
static int	_literal_byte_ok (unsigned char c)
static unsigned	_methods (unsigned m)
static int	_more_specific (const _compiled *a, const _compiled *b)
static int	_parse_n (const char *s, size_t len, size_t lo, size_t hi, size_t *n)
static int	_rank (_seg_type t)
static int	_route_fits (const _compiled *c, const char **seg, const size_t *seglen, int nseg, int trailing)
static int	_seg_fits (const _seg *g, const char *s, size_t n)
static int	_split (const char *path, size_t len, const char **seg, size_t *seglen, int *trailing)
static int	_types_overlap (const _seg *a, const _seg *b)
const char *	n_route_param (const N_ROUTE_MATCH *m, const char *name, size_t *len)
	decoded value of a placeholder
int	n_router_add (N_ROUTER *r, const N_ROUTE *routes, size_t count)
	compile and add a route table; nothing is added when a route is refused
int	n_router_allow_header (unsigned allowed, char *out, size_t size)
	write an Allow header value for a method mask (GET implies HEAD)
int	n_router_check (const N_ROUTER *r, char *err, size_t errsz)
	refuse two routes sharing a method that can match the same path with the same specificity
size_t	n_router_count (const N_ROUTER *r)
	number of routes added
void	n_router_free (N_ROUTER **r)
	free a router and set *r to NULL (the route tables are not touched)
N_ROUTER_RESULT	n_router_match (const N_ROUTER *r, n_http_req_method method, const char *path, size_t len, N_ROUTE_MATCH *match, unsigned *allowed)
	find the route for a method and a path
N_ROUTER *	n_router_new (void)
	new, empty router
const N_ROUTE *	n_router_route (const N_ROUTER *r, size_t i)
	the i-th route added

Detailed Description

HTTP router (see n_http_router.h).

Author

Castagnier Mickael

Version

1.0

Date

2026

Definition in file n_http_router.c.

---

Data Structure Documentation

_compiled

struct _compiled

Definition at line 70 of file n_http_router.c.

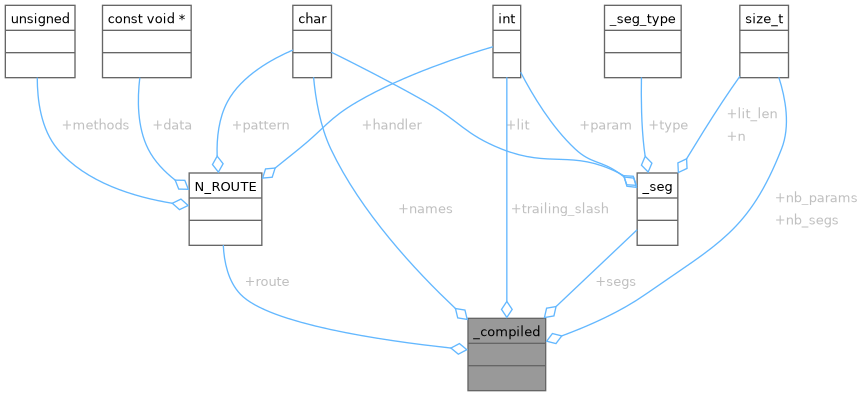

Collaboration diagram for _compiled:

Data Fields
char	names[8][31+1]
size_t	nb_params
size_t	nb_segs
const N_ROUTE *	route
_seg	segs[32]
int	trailing_slash

_seg

struct _seg

Definition at line 62 of file n_http_router.c.

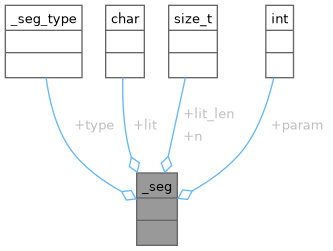

Collaboration diagram for _seg:

Data Fields
const char *	lit
size_t	lit_len
size_t	n
int	param
_seg_type	type

N_ROUTER

struct N_ROUTER

a compiled router (opaque)

Examples

ex_http_router.c.

Definition at line 79 of file n_http_router.c.

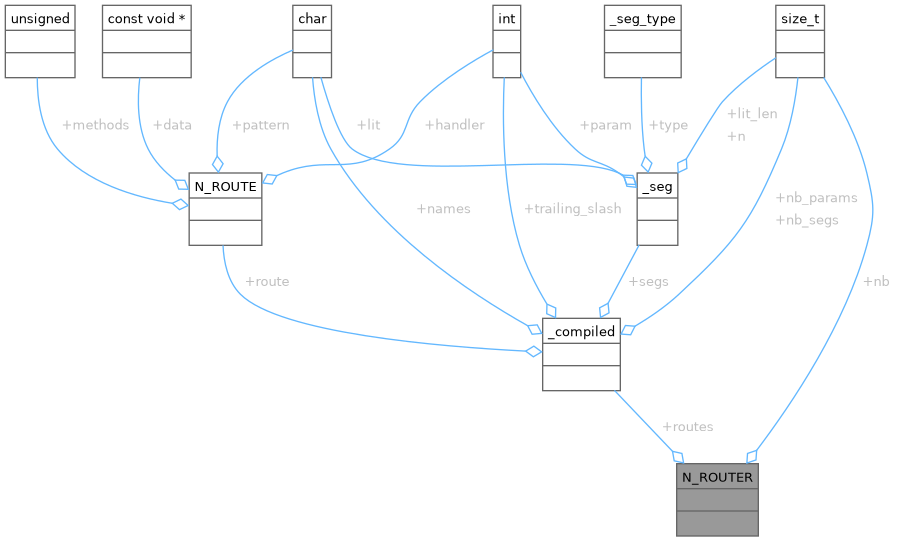

Collaboration diagram for N_ROUTER:

Data Fields
size_t	nb
_compiled *	routes

Macro Definition Documentation

N_ROUTER_SEGS_MAX

#define N_ROUTER_SEGS_MAX   32

Definition at line 39 of file n_http_router.c.

Referenced by _compile(), _split(), and n_router_match().

Enumeration Type Documentation

_seg_rank

enum _seg_rank

Enumerator
_SEG_LITERAL
_SEG_DIGITS
_SEG_HEX
_SEG_INT
_SEG_SLUG
_SEG_ANY
_SEG_REST

Definition at line 42 of file n_http_router.c.

_seg_type

enum _seg_type

Enumerator
_T_LITERAL
_T_DIGITS
_T_HEX
_T_INT
_T_SLUG
_T_ANY
_T_REST

Definition at line 52 of file n_http_router.c.

Function Documentation

_compile()

int _compile ( const N_ROUTE * route, _compiled * c, const char ** why )

static

Definition at line 143 of file n_http_router.c.

References _literal_byte_ok(), _parse_n(), _T_ANY, _T_DIGITS, _T_HEX, _T_INT, _T_LITERAL, _T_REST, _T_SLUG, N_ROUTE::handler, _seg::lit, _seg::lit_len, N_ROUTE::methods, _seg::n, N_HTTP_REQ_PATH_MAX, N_ROUTE_GET, N_ROUTE_HEAD, N_ROUTE_NAME_MAX, N_ROUTE_PARAMS_MAX, N_ROUTE_POST, N_ROUTER_SEGS_MAX, _compiled::names, _compiled::nb_params, _compiled::nb_segs, _seg::param, N_ROUTE::pattern, _compiled::route, _compiled::segs, _compiled::trailing_slash, and _seg::type.

Referenced by n_router_add().

Here is the call graph for this function:

Here is the caller graph for this function:

_decode()

size_t _decode ( const char * s, size_t n, char * dst )

static

Definition at line 422 of file n_http_router.c.

References _hexval(), and n_str_utf8_valid().

Referenced by n_router_match().

Here is the call graph for this function:

Here is the caller graph for this function:

_hexval()

int _hexval ( char c )

static

Definition at line 410 of file n_http_router.c.

Referenced by _decode().

Here is the caller graph for this function:

_literal_byte_ok()

int _literal_byte_ok ( unsigned char c )

static

Definition at line 138 of file n_http_router.c.

Referenced by _compile().

Here is the caller graph for this function:

_methods()

unsigned _methods ( unsigned m )

static

Definition at line 319 of file n_http_router.c.

References N_ROUTE_GET, and N_ROUTE_HEAD.

Referenced by n_router_allow_header(), n_router_check(), and n_router_match().

Here is the caller graph for this function:

_more_specific()

int _more_specific ( const _compiled * a, const _compiled * b )

static

Definition at line 444 of file n_http_router.c.

References _rank(), _compiled::nb_segs, _compiled::segs, and _seg::type.

Referenced by n_router_match().

Here is the call graph for this function:

Here is the caller graph for this function:

_parse_n()

int _parse_n ( const char * s, size_t len, size_t lo, size_t hi, size_t * n )

static

Definition at line 125 of file n_http_router.c.

Referenced by _compile().

Here is the caller graph for this function:

_rank()

int _rank ( _seg_type t )

static

Definition at line 84 of file n_http_router.c.

References _SEG_ANY, _SEG_DIGITS, _SEG_HEX, _SEG_INT, _SEG_LITERAL, _SEG_REST, _SEG_SLUG, _T_ANY, _T_DIGITS, _T_HEX, _T_INT, _T_LITERAL, and _T_SLUG.

Referenced by _more_specific(), _types_overlap(), and n_router_check().

Here is the caller graph for this function:

_route_fits()

int _route_fits ( const _compiled * c, const char ** seg, const size_t * seglen, int nseg, int trailing )

static

Definition at line 480 of file n_http_router.c.

References _seg_fits(), _T_REST, _compiled::nb_segs, _compiled::segs, _compiled::trailing_slash, and _seg::type.

Referenced by n_router_match().

Here is the call graph for this function:

Here is the caller graph for this function:

_seg_fits()

int _seg_fits ( const _seg * g, const char * s, size_t n )

static

Definition at line 376 of file n_http_router.c.

References _T_ANY, _T_DIGITS, _T_HEX, _T_INT, _T_LITERAL, _T_SLUG, _seg::lit, _seg::lit_len, _seg::n, and _seg::type.

Referenced by _route_fits().

Here is the caller graph for this function:

_split()

int _split ( const char * path, size_t len, const char ** seg, size_t * seglen, int * trailing )

static

Definition at line 455 of file n_http_router.c.

References N_ROUTER_SEGS_MAX.

Referenced by n_router_match().

Here is the caller graph for this function:

_types_overlap()

int _types_overlap ( const _seg * a, const _seg * b )

static

Definition at line 326 of file n_http_router.c.

References _rank(), _SEG_DIGITS, _seg::n, and _seg::type.

Referenced by n_router_check().

Here is the call graph for this function:

Here is the caller graph for this function:
