Isometric/axonometric tile engine with height maps, terrain transitions, and A* pathfinding integration. More...

#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#include "nilorea/n_astar.h"
#include "nilorea/n_iso_engine.h"
#include <fcntl.h>
#include <unistd.h>
#include <allegro5/allegro.h>
#include <allegro5/allegro_primitives.h>

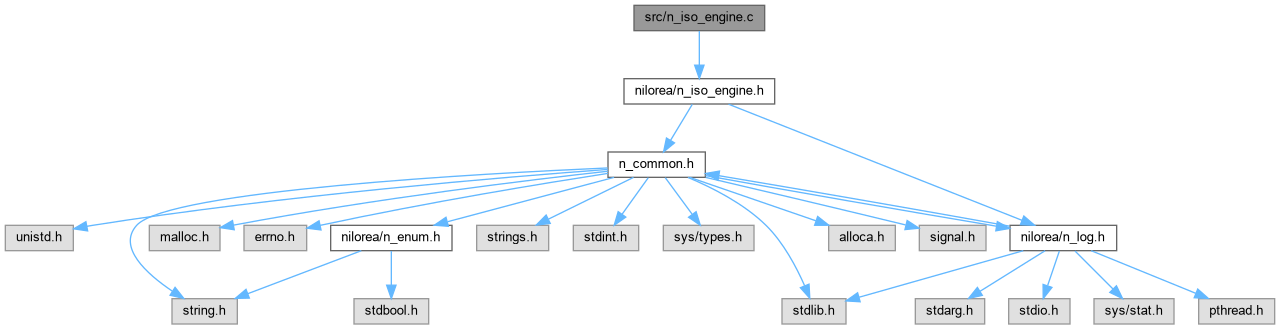

Include dependency graph for n_iso_engine.c:

Functions
static int	_cmp_draw_entry (const void a, const void b)
static ALLEGRO_COLOR	_compute_tile_tint (int seg_top, int max_height, float intensity, float ambient_r, float ambient_g, float ambient_b, float dyn_r, float dyn_g, float dyn_b)
static void	_draw_height_borders (const ISO_MAP *map, int mx, int my, int seg_idx, int seg_bottom, int seg_top, int has_underside_face, const float vx[4], const float vy[4], float lift)
	Draw black border outlines on the diamond edges of an elevated tile.
static void	_draw_segment_sides (const ISO_MAP *map, float east_x, float east_y, float south_x, float south_y, float west_x, float west_y, int mx, int my, int seg_bottom, int seg_top, float lift, float height_brightness, int wall_terrain_override)
	Draw cliff side faces for a single segment {seg_bottom..seg_top}.
static void	_draw_segment_underside (ALLEGRO_BITMAP *bmp, float base_dx, float base_dy, float phw, float phh, float tile_draw_w, float tile_draw_h, int tile_w, int tile_h)
	Draw the underside face of a floating segment at 65% brightness.
static void	_draw_tile_warped (ALLEGRO_BITMAP *bmp, const float vx[4], const float vy[4], int tile_w, int tile_h, ALLEGRO_COLOR tint)
	Draw a tile bitmap warped to 4 pre-computed screen vertices.
static void	_iso_corner_to_screen (float hw, float hh, float tl, int cx, int cy, float fh, float cam_px, float cam_py, float zoom, float sx, float sy)
	Project a tile corner to screen coordinates (canonical formula).
static FILE *	_iso_fopen_write (const char path, const char mode)
static int	_iso_object_check_occlusion (const ISO_MAP map, float obj_fx, float obj_fy, float obj_fz, float obj_sx, float obj_sy, float sprite_h, float sprite_half_w, float cam_px, float cam_py, float zoom, float out_clip_y)
	Check if an object is occluded by tiles drawn in front of it.
static float	_iso_preset_angle (int preset)
	Get the angle in degrees for a projection preset.
static int	_neighbor_height_at (const ISO_MAP *map, int mx, int my)
static int	_neighbor_should_transition (const ISO_MAP *map, int mx1, int my1, int mx2, int my2)
static int	_neighbor_terrain_at (const ISO_MAP *map, int mx, int my)
	Edge-aware terrain lookup for chunked rendering.
static float	_smooth_neighbor_h (const ISO_MAP *map, float h_self, int nx, int ny)
	Helper: clamp neighbor height for smooth slope rendering.
static int	_tile_covers_height (const ISO_MAP *map, int mx, int my, int z)
	Check if a tile has geometry covering height level z.
void	iso_apply_line_jitter_compensation (float out_dx, float out_dy)
ALLEGRO_COLOR	iso_apply_primitive_color_filter (ALLEGRO_COLOR c)
void	iso_corner_to_screen (const ISO_MAP map, int cx, int cy, float fh, float cam_px, float cam_py, float zoom, float sx, float *sy)
	Project a tile corner to screen coordinates (canonical formula).
float	iso_diamond_dist (int px, int py, int tile_w, int tile_h)
	Distance from pixel to the diamond edge.
void	iso_generate_transition_masks (ALLEGRO_BITMAP **masks, int tile_w, int tile_h)
	Generate the 32 procedural transition alpha masks (16 edge + 16 corner).
void	iso_generate_transition_tiles (ALLEGRO_BITMAP *tiles, ALLEGRO_BITMAP masks, ALLEGRO_BITMAP **tile_bitmaps, int num_terrains, int tile_w, int tile_h)
	Pre-composite transition tiles (terrain texture * alpha mask).
int	iso_is_in_diamond (int px, int py, int tile_w, int tile_h)
	Test if pixel (px,py) is inside the isometric diamond.
int	iso_map_build_draw_order (const ISO_MAP map, ISO_DRAW_ENTRY out, int max_entries)
	Build the draw order for segment-sorted rendering.
void	iso_map_calc_transitions (const ISO_MAP map, int mx, int my, int edge_bits, int *corner_bits)
	Compute terrain transition bitmasks for a cell (Article 934).
void	iso_map_calc_transitions_full (const ISO_MAP map, int mx, int my, int edge_bits, int *corner_bits)
	Compute per-terrain transition bitmasks with height filtering.
void	iso_map_corner_heights (const ISO_MAP map, int mx, int my, float h_n, float h_e, float h_s, float *h_w)
	Compute average corner heights for smooth tile rendering (Article 2026).
void	iso_map_draw (const ISO_MAP map, ALLEGRO_BITMAP tile_bitmaps, ALLEGRO_BITMAP transition_tiles, int num_masks, ALLEGRO_BITMAP overlay_bitmaps, int num_overlay_tiles, float cam_px, float cam_py, float zoom, int screen_w, int screen_h, int player_mode, N_ISO_OBJECT *objects, int num_objects)
	Draw the full ISO_MAP with segment-sorted rendering.
void	iso_map_free (ISO_MAP **map_ptr)
	Free an ISO_MAP and set the pointer to NULL.
int	iso_map_get_ability (const ISO_MAP *map, int mx, int my)
	Get the ability at a cell.
int	iso_map_get_height (const ISO_MAP *map, int mx, int my)
	Get the height at a cell.
const ISO_TILE_SEGMENTS *	iso_map_get_segments (const ISO_MAP *map, int mx, int my)
	get per-tile segments.
int	iso_map_get_terrain (const ISO_MAP *map, int mx, int my)
	Get the terrain type at a cell.
ISO_VISIBLE_EDGES	iso_map_get_visible_edges (const ISO_MAP *map, int mx, int my)
	Compute which diamond edges of tile (mx,my) need a height border.
ISO_VISIBLE_EDGES	iso_map_get_visible_edges_segment (const ISO_MAP *map, int mx, int my, int seg_idx)
	Per-segment edge visibility with adjacency + occlusion.
float	iso_map_interpolate_height (const ISO_MAP *map, float fx, float fy)
	Bilinear height interpolation at fractional map coordinates.
void	iso_map_lerp_projection (ISO_MAP *map, float dt)
	Smoothly interpolate the projection angle toward the target.
ISO_MAP *	iso_map_load (const char *filename)
	Load ISO_MAP from a binary file.
ISO_MAP *	iso_map_new (int width, int height, int num_terrains, int max_height)
	Create a new height-aware isometric map.
void	iso_map_randomize (ISO_MAP *map)
	Randomize terrain and height for testing/demo purposes.
int	iso_map_save (const ISO_MAP map, const char filename)
	Save ISO_MAP to a binary file.
void	iso_map_set_ability (ISO_MAP *map, int mx, int my, int ab)
	Set the ability at a cell.
void	iso_map_set_height (ISO_MAP *map, int mx, int my, int h)
	Set the height at a cell (clamped to [0, max_height]).
void	iso_map_set_projection (ISO_MAP *map, int preset, float tile_width)
	Set projection parameters from a preset and tile width.
void	iso_map_set_projection_custom (ISO_MAP *map, float half_w, float half_h, float tile_lift)
	Set custom projection parameters directly.
void	iso_map_set_projection_target (ISO_MAP *map, int preset)
	Set the target projection for smooth interpolation.
int	iso_map_set_segments (ISO_MAP map, int mx, int my, const ISO_TILE_SEGMENT segs, int count)
	set per-tile segments on an ISO_MAP.
void	iso_map_set_terrain (ISO_MAP *map, int mx, int my, int terrain)
	Set the terrain type at a cell.
int	iso_map_should_transition (const ISO_MAP *map, int mx1, int my1, int mx2, int my2)
	Check if terrain blending should occur between two adjacent cells.
int	iso_map_should_transition_smooth (const ISO_MAP *map, int mx1, int my1, int mx2, int my2)
	Check if terrain transition should render between two cells (height-aware).
void	iso_map_smooth_corner_heights (const ISO_MAP map, int mx, int my, float h_n, float h_e, float h_s, float *h_w)
	Compute smooth corner heights with slope clamping.
void	iso_map_to_screen (const ISO_MAP map, int mx, int my, int h, float screen_x, float *screen_y)
	Convert map tile coordinates to screen pixel coordinates.
void	iso_map_to_screen_f (const ISO_MAP map, float fmx, float fmy, float h, float screen_x, float *screen_y)
	Convert map coordinates to screen coordinates (float version).
void	iso_mask_tile_to_diamond (ALLEGRO_BITMAP *bmp, int tile_w, int tile_h)
	Mask a tile bitmap to the isometric diamond shape.
const char *	iso_projection_name (int preset)
	Get the display name for a projection preset.
void	iso_screen_to_map (const ISO_MAP map, float screen_x, float screen_y, int mx, int *my)
	Convert screen pixel coordinates to map tile coordinates.
void	iso_screen_to_map_height (const ISO_MAP map, float screen_x, float screen_y, int tile_w, int tile_h, int mx, int *my)
	Height-aware screen-to-map conversion with diamond hit testing.
void	iso_screen_to_map_height_f (const ISO_MAP map, float screen_x, float screen_y, int tile_w, int tile_h, int mx, int my, float out_fx, float *out_fy)
	Height-aware screen-to-map conversion returning fractional tile coordinates.
void	iso_set_line_jitter_compensation (IsoLineJitterCompensationFn fn)
void	iso_set_primitive_color_filter (IsoPrimitiveColorFilter fn)
void	n_iso_camera_center_on (N_ISO_CAMERA *cam, float world_x, float world_y, int screen_w, int screen_h)
	Center the camera so that a world point is at screen center.
void	n_iso_camera_follow (N_ISO_CAMERA *cam, float target_x, float target_y, int screen_w, int screen_h, float smoothing, float dt)
	Smoothly follow a world-space target.
void	n_iso_camera_free (N_ISO_CAMERA **cam)
	Free a camera and set the pointer to NULL.
N_ISO_CAMERA *	n_iso_camera_new (float zoom_min, float zoom_max)
	Create a new 2D isometric camera.
void	n_iso_camera_screen_to_world (const N_ISO_CAMERA cam, float sx, float sy, float wx, float *wy)
	Convert screen pixel coordinates to world coordinates.
void	n_iso_camera_scroll (N_ISO_CAMERA *cam, float dx, float dy)
	Scroll the camera by (dx, dy) world units.
void	n_iso_camera_world_to_screen (const N_ISO_CAMERA cam, float wx, float wy, float sx, float *sy)
	Convert world coordinates to screen pixel coordinates.
void	n_iso_camera_zoom (N_ISO_CAMERA *cam, float dz, float mouse_x, float mouse_y)
	Zoom the camera toward a screen-space point.

Variables
static IsoLineJitterCompensationFn	g_iso_line_jitter_fn = NULL
static IsoPrimitiveColorFilter	g_iso_primitive_color_filter = NULL
double	n_iso_pass1_us = 0.0
	Per-pass timing accumulators populated by iso_map_draw.
double	n_iso_pass2_us = 0.0
double	n_iso_pass3_us = 0.0
double	n_iso_setup_us = 0.0

Detailed Description

Isometric/axonometric tile engine with height maps, terrain transitions, and A* pathfinding integration.

Author: Castagnier Mickael

Version: 2.0

Date: 01/03/2026

Definition in file n_iso_engine.c.

Function Documentation

◆ _cmp_draw_entry()

int _cmp_draw_entry	(	const void *	a,
		const void *	b )

static

Definition at line 1025 of file n_iso_engine.c.

References ISO_DRAW_ENTRY::bottom, ISO_DRAW_ENTRY::mx, and ISO_DRAW_ENTRY::my.

Referenced by iso_map_build_draw_order().

Here is the caller graph for this function:

◆ _compute_tile_tint()

ALLEGRO_COLOR _compute_tile_tint	(	int	seg_top,
		int	max_height,
		float	intensity,
		float	ambient_r,
		float	ambient_g,
		float	ambient_b,
		float	dyn_r,
		float	dyn_g,
		float	dyn_b )

inlinestatic

Definition at line 1589 of file n_iso_engine.c.

References iso_apply_primitive_color_filter().

Referenced by iso_map_draw().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _draw_height_borders()

void _draw_height_borders	(	const ISO_MAP *	map,
		int	mx,
		int	my,
		int	seg_idx,
		int	seg_bottom,
		int	seg_top,
		int	has_underside_face,
		const float	vx[4],
		const float	vy[4],
		float	lift )

static

Draw black border outlines on the diamond edges of an elevated tile.

Rules:

Only draws edges where height difference > 1 or neighbor missing.
NEVER draws the top vertex (N) where NW and NE edges meet, it is always hidden behind the tile surface itself.
At corners E, S, W where two drawn edges meet, they join naturally.
Occlusion is handled by painter's algorithm: tiles drawn later (closer to camera) paint over borders of earlier tiles.

Diamond vertices: N=vx[0] (top), E=vx[1] (right), S=vx[2] (bottom), W=vx[3] (left)

Definition at line 1956 of file n_iso_engine.c.

References ISO_VISIBLE_EDGES::draw_ne, ISO_VISIBLE_EDGES::draw_nw, ISO_VISIBLE_EDGES::draw_se, ISO_VISIBLE_EDGES::draw_sw, ISO_VISIBLE_EDGES::draw_underside, iso_apply_line_jitter_compensation(), iso_map_get_visible_edges_segment(), ISO_VISIBLE_EDGES::neighbor_top_ne, ISO_VISIBLE_EDGES::neighbor_top_nw, ISO_VISIBLE_EDGES::neighbor_top_se, and ISO_VISIBLE_EDGES::neighbor_top_sw.

Referenced by iso_map_draw().

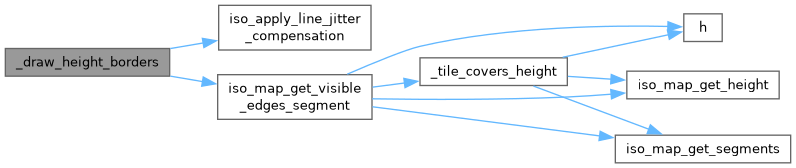

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _draw_segment_sides()

void _draw_segment_sides	(	const ISO_MAP *	map,
		float	east_x,
		float	east_y,
		float	south_x,
		float	south_y,
		float	west_x,
		float	west_y,
		int	mx,
		int	my,
		int	seg_bottom,
		int	seg_top,
		float	lift,
		float	height_brightness,
		int	wall_terrain_override )

static

Draw cliff side faces for a single segment {seg_bottom..seg_top}.

For ground segments (seg_bottom==0) uses neighbor-aware wall height. For floating segments (seg_bottom>0) draws full segment height.

Definition at line 1703 of file n_iso_engine.c.

References iso_apply_line_jitter_compensation(), iso_apply_primitive_color_filter(), iso_map_get_height(), and iso_map_get_terrain().

Referenced by iso_map_draw().

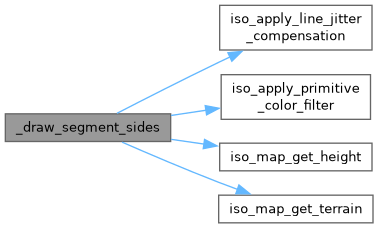

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _draw_segment_underside()

void _draw_segment_underside	(	ALLEGRO_BITMAP *	bmp,
		float	base_dx,
		float	base_dy,
		float	phw,
		float	phh,
		float	tile_draw_w,
		float	tile_draw_h,
		int	tile_w,
		int	tile_h )

static

Draw the underside face of a floating segment at 65% brightness.

The underside is a diamond drawn at the segment's bottom height.

Definition at line 1823 of file n_iso_engine.c.

Referenced by iso_map_draw().

Here is the caller graph for this function:

◆ _draw_tile_warped()

void _draw_tile_warped	(	ALLEGRO_BITMAP *	bmp,
		const float	vx[4],
		const float	vy[4],
		int	tile_w,
		int	tile_h,
		ALLEGRO_COLOR	tint )

static

Draw a tile bitmap warped to 4 pre-computed screen vertices.

Uses two textured triangles mapped to the warped diamond shape. Vertices must come from _iso_corner_to_screen for bit-identical shared edges between adjacent tiles.

Definition at line 1628 of file n_iso_engine.c.

Referenced by iso_map_draw().

Here is the caller graph for this function:

◆ _iso_corner_to_screen()

void _iso_corner_to_screen	(	float	hw,
		float	hh,
		float	tl,
		int	cx,
		int	cy,
		float	fh,
		float	cam_px,
		float	cam_py,
		float	zoom,
		float *	sx,
		float *	sy )

inlinestatic

Project a tile corner to screen coordinates (canonical formula).

Every screen vertex in the renderer must come from this function so that two tiles sharing a corner get bit-identical screen positions regardless of which tile's draw call is computing the vertex.

The camera offset (cam_px, cam_py) must be integer-snapped pixel offsets computed as floor(cam_x * zoom), floor(cam_y * zoom). This ensures the fractional pixel position of each vertex comes only from (wx * zoom), which is constant per vertex, eliminating sub-pixel aliasing shimmer during camera movement.

Parameters

hw	map->proj.half_w (unzoomed)
hh	map->proj.half_h (unzoomed)
tl	map->proj.tile_lift (unzoomed)
cx	corner X in tile grid (e.g. mx+1 for the East corner)
cy	corner Y in tile grid
fh	height (float, supports smooth-height interpolation)
cam_px	integer-snapped camera pixel X: floor(cam_x * zoom)
cam_py	integer-snapped camera pixel Y: floor(cam_y * zoom)
zoom	zoom factor
sx	output screen X
sy	output screen Y

Definition at line 1579 of file n_iso_engine.c.

Referenced by _iso_object_check_occlusion(), and iso_map_draw().

Here is the caller graph for this function:

◆ _iso_fopen_write()

FILE * _iso_fopen_write	(	const char *	path,
		const char *	mode )

static

Definition at line 46 of file n_iso_engine.c.

References mode.

Referenced by iso_map_save().

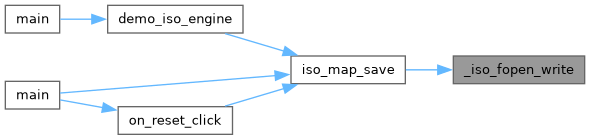

Here is the caller graph for this function:

◆ _iso_object_check_occlusion()

int _iso_object_check_occlusion	(	const ISO_MAP *	map,
		float	obj_fx,
		float	obj_fy,
		float	obj_fz,
		float	obj_sx,
		float	obj_sy,
		float	sprite_h,
		float	sprite_half_w,
		float	cam_px,
		float	cam_py,
		float	zoom,
		float *	out_clip_y )

static

Check if an object is occluded by tiles drawn in front of it.

Tests tiles at higher depth (mx+my) in a forward cone to see if any elevated tile's screen area overlaps the object's screen position.

Parameters

map	the map
obj_fx	object fractional map X
obj_fy	object fractional map Y
obj_fz	object height
obj_sx	object screen X (camera-transformed)
obj_sy	object screen Y (camera-transformed)
sprite_h	sprite height used for occlusion bounding
sprite_half_w	half-width of the sprite footprint (occlusion bbox)
cam_px	camera X offset in pixels
cam_py	camera Y offset in pixels
zoom	current zoom
out_clip_y	optional out-pointer: when non-NULL and a partial overlap is detected, receives the screen-Y above which the sprite should be clipped (for soft-fade rendering). May be NULL.

Returns: 1 if occluded, 0 if visible

Definition at line 1862 of file n_iso_engine.c.

References _iso_corner_to_screen(), ISO_PROJECTION::half_h, ISO_PROJECTION::half_w, ISO_MAP::height, iso_map_get_height(), ISO_MAP::max_height, ISO_MAP::proj, ISO_PROJECTION::tile_lift, and ISO_MAP::width.

Referenced by iso_map_draw().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _iso_preset_angle()

float _iso_preset_angle ( int preset )

static

Get the angle in degrees for a projection preset.

Parameters

preset one of ISO_PROJ_CLASSIC, ISO_PROJ_ISOMETRIC, ISO_PROJ_STAGGERED, ISO_PROJ_MILITARY

Returns: angle in degrees

Definition at line 214 of file n_iso_engine.c.

References ISO_PROJ_CLASSIC, ISO_PROJ_ISOMETRIC, ISO_PROJ_MILITARY, and ISO_PROJ_STAGGERED.

Referenced by iso_map_set_projection(), and iso_map_set_projection_target().

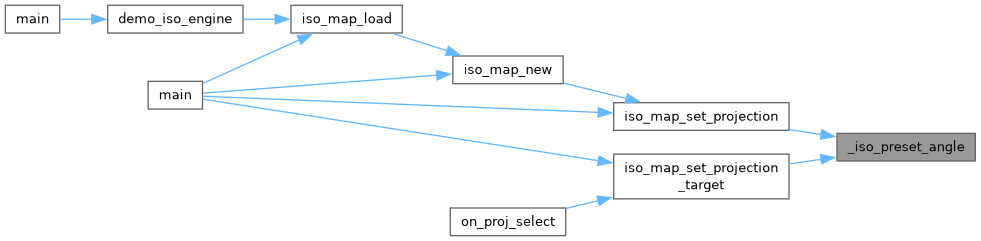

Here is the caller graph for this function:

◆ _neighbor_height_at()

int _neighbor_height_at	(	const ISO_MAP *	map,
		int	mx,
		int	my )

static

Definition at line 1125 of file n_iso_engine.c.

References ISO_MAP::height, iso_map_get_height(), ISO_MAP::neighbor_heights_east, ISO_MAP::neighbor_heights_north, ISO_MAP::neighbor_heights_south, ISO_MAP::neighbor_heights_west, and ISO_MAP::width.

Referenced by _neighbor_should_transition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _neighbor_should_transition()

int _neighbor_should_transition	(	const ISO_MAP *	map,
		int	mx1,
		int	my1,
		int	mx2,
		int	my2 )

static

Definition at line 1141 of file n_iso_engine.c.

References _neighbor_height_at(), ISO_MAP::smooth_height, and ISO_MAP::smooth_slope_max.

Referenced by iso_map_calc_transitions_full().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _neighbor_terrain_at()

int _neighbor_terrain_at	(	const ISO_MAP *	map,
		int	mx,
		int	my )

static

Edge-aware terrain lookup for chunked rendering.

When (mx,my) falls just outside the chunk on a cardinal edge and the caller has wired up the neighbor_terrains_* arrays, consult them so transition masks can cross chunk seams. Out-of-range without a neighbor array falls back to the standard 0-out-of-bounds semantics. Diagonal neighbors (corners of the 8-neighborhood that fall outside the chunk's own bounds) are not covered, a fully correct diagonal fix would need 4 extra corner-cell fields.

Parameters

map	the map
mx	tile X (may be just outside [0, width))
my	tile Y (may be just outside [0, height))

Returns: terrain index at (mx,my), or 0 if both in-chunk and neighbor lookups fail

Definition at line 1109 of file n_iso_engine.c.

References ISO_MAP::height, iso_map_get_terrain(), ISO_MAP::neighbor_terrains_east, ISO_MAP::neighbor_terrains_north, ISO_MAP::neighbor_terrains_south, ISO_MAP::neighbor_terrains_west, and ISO_MAP::width.

Referenced by iso_map_calc_transitions_full().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _smooth_neighbor_h()

float _smooth_neighbor_h	(	const ISO_MAP *	map,
		float	h_self,
		int	nx,
		int	ny )

inlinestatic

Helper: clamp neighbor height for smooth slope rendering.

If the height difference exceeds smooth_slope_max, return self height (creating a cliff instead of a slope).

Definition at line 945 of file n_iso_engine.c.

References iso_map_get_height(), and ISO_MAP::smooth_slope_max.

Referenced by iso_map_smooth_corner_heights().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _tile_covers_height()

int _tile_covers_height	(	const ISO_MAP *	map,
		int	mx,
		int	my,
		int	z )

static

Check if a tile has geometry covering height level z.

Returns 1 if any segment of (mx,my) has bottom <= z AND top > z, meaning the tile's wall/surface extends strictly above z. Used for occlusion: a tile drawn later in painter order covers edges of earlier tiles when its wall passes above the edge height.

Requires the occluding tile to be at least 2 height units taller (top > z + 1) so that single-step stairs (+1 per tile) do not suppress the NW/NE borders, the step only partially covers the edge, and painter order handles the overlap visually.

Definition at line 1401 of file n_iso_engine.c.

References ISO_TILE_SEGMENT::bottom, ISO_TILE_SEGMENTS::count, h(), ISO_MAP::height, iso_map_get_height(), iso_map_get_segments(), ISO_TILE_SEGMENTS::segs, ISO_TILE_SEGMENT::top, and ISO_MAP::width.

Referenced by iso_map_get_visible_edges_segment().

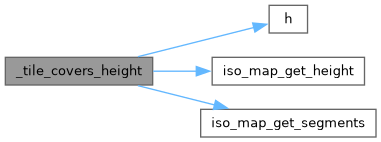

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ g_iso_line_jitter_fn

IsoLineJitterCompensationFn g_iso_line_jitter_fn = NULL

static

Definition at line 84 of file n_iso_engine.c.

Referenced by iso_apply_line_jitter_compensation(), and iso_set_line_jitter_compensation().

◆ g_iso_primitive_color_filter

IsoPrimitiveColorFilter g_iso_primitive_color_filter = NULL

static

Definition at line 72 of file n_iso_engine.c.

Referenced by iso_apply_primitive_color_filter(), and iso_set_primitive_color_filter().

Functions

Variables

Detailed Description

Function Documentation

◆ _cmp_draw_entry()

◆ _compute_tile_tint()

◆ _draw_height_borders()

◆ _draw_segment_sides()

◆ _draw_segment_underside()

◆ _draw_tile_warped()

◆ _iso_corner_to_screen()

◆ _iso_fopen_write()

◆ _iso_object_check_occlusion()

◆ _iso_preset_angle()

◆ _neighbor_height_at()

◆ _neighbor_should_transition()

◆ _neighbor_terrain_at()

◆ _smooth_neighbor_h()

◆ _tile_covers_height()

Variable Documentation

◆ g_iso_line_jitter_fn

◆ g_iso_primitive_color_filter
