n_thread_pool.c File Reference

Thread pool functions. More...

#include <unistd.h>
#include "nilorea/n_common.h"
#include "nilorea/n_log.h"
#include "nilorea/n_thread_pool.h"
#include "nilorea/n_time.h"
#include <pthread.h>
#include <string.h>
#include <errno.h>

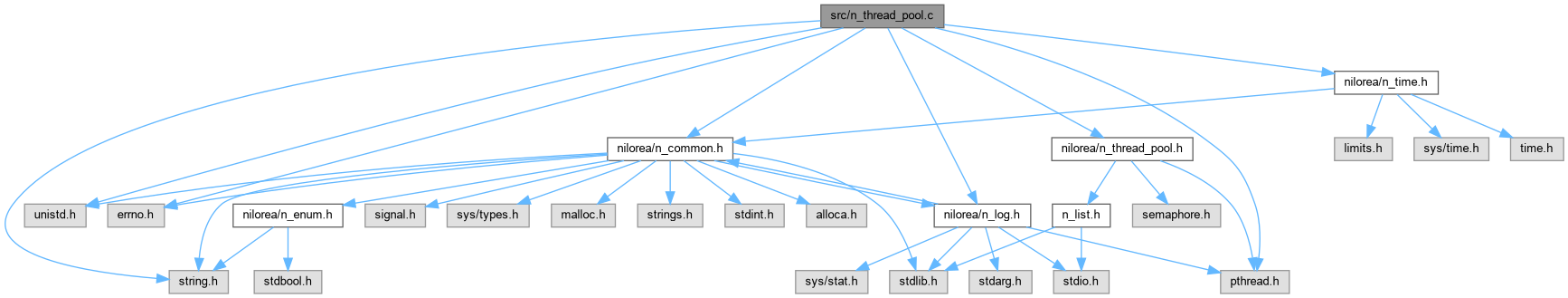

Include dependency graph for n_thread_pool.c:

Go to the source code of this file.

Data Structures
struct	N_PARALLEL_SLICE
	One slice of a parallel loop, as handed to its thread. More...

Functions
int	add_threaded_process (THREAD_POOL *thread_pool, void *(*func_ptr)(void *param), void *param, int mode)
	add a function and params to a thread pool
int	destroy_threaded_pool (THREAD_POOL **pool, unsigned int delay)
	Stop every thread of a pool and free it.
long int	get_nb_cpu_cores ()
	get number of core of current system
int	n_parallel_for (size_t begin, size_t end, size_t grain, N_PARALLEL_FN fn, void *user)
	Run a loop over a range on several cores, and return when all of it is done.
static void *	n_parallel_slice (void *arg)
	Thread entry of one slice of a parallel loop.
THREAD_POOL *	new_thread_pool (size_t nbmaxthr, size_t nb_max_waiting)
	Create a new pool of nbmaxthr threads.
int	refresh_thread_pool (THREAD_POOL *thread_pool)
	try to add some waiting DIRECT_PROCs on some free thread slots, else do nothing
int	set_thread_pool_discard (THREAD_POOL *thread_pool, void(*discard)(void *param))
	Set what destroy_threaded_pool() does with the param of a queued job it discards.
int	start_threaded_pool (THREAD_POOL *thread_pool)
	Launch the process waiting for execution in the thread pool.
void *	thread_pool_processing_function (void *param)
	Internal thread pool processing function.
int	wait_for_synced_threaded_pool (THREAD_POOL *thread_pool)
	wait for all the launched process, blocking but light on the CPU as there is no polling
int	wait_for_threaded_pool (THREAD_POOL *thread_pool)
	Wait for the thread pool to become idle (no active threads, empty waiting list), blocking without polling.

Variables
static long	parallel_budget = -1
	get number of core of current system
static pthread_mutex_t	parallel_lock = PTHREAD_MUTEX_INITIALIZER
	Guards parallel_budget.

Detailed Description

Thread pool functions.

Author

Castagnier Mickael

Version

1.0

Date

30/04/2014

Definition in file n_thread_pool.c.

---

Data Structure Documentation

N_PARALLEL_SLICE

struct N_PARALLEL_SLICE

One slice of a parallel loop, as handed to its thread.

Definition at line 53 of file n_thread_pool.c.

Collaboration diagram for N_PARALLEL_SLICE:

Data Fields
size_t	begin	first index of the slice
size_t	end	one past its last
N_PARALLEL_FN	fn	the work
void *	user	passed to the work

Function Documentation

n_parallel_slice()

void * n_parallel_slice ( void * arg )

static

Thread entry of one slice of a parallel loop.

Parameters

arg	the N_PARALLEL_SLICE

Returns

NULL

Definition at line 69 of file n_thread_pool.c.

References N_PARALLEL_SLICE::begin, N_PARALLEL_SLICE::end, N_PARALLEL_SLICE::fn, and N_PARALLEL_SLICE::user.

Referenced by n_parallel_for().

Here is the caller graph for this function:

thread_pool_processing_function()

void * thread_pool_processing_function

(

void *

param

)

Internal thread pool processing function.

Parameters

param

params of a threaded process

Returns

NULL when exiting

Definition at line 156 of file n_thread_pool.c.

References EXITED_THREAD, EXITING_THREAD, THREAD_POOL_NODE::func, IDLE_PROC, THREAD_POOL_NODE::lock, LOG_DEBUG, LOG_ERR, n_log, THREAD_POOL_NODE::param, refresh_thread_pool(), RUNNING_PROC, RUNNING_THREAD, THREAD_POOL_NODE::state, SYNCED_PROC, THREAD_POOL_NODE::th_end, THREAD_POOL_NODE::th_start, THREAD_POOL_NODE::thr, THREAD_POOL_NODE::thread_pool, THREAD_POOL_NODE::thread_state, THREAD_POOL_NODE::type, and type().

Referenced by new_thread_pool().

Here is the call graph for this function:

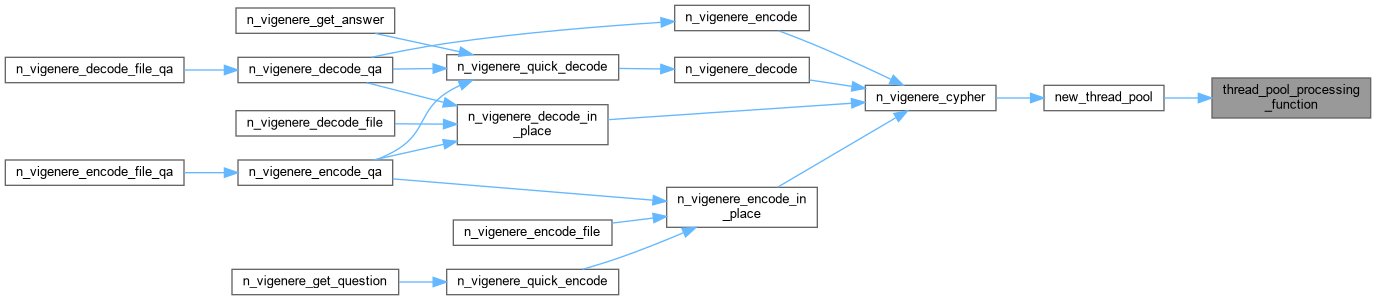

Here is the caller graph for this function:

Variable Documentation

parallel_budget

long parallel_budget = -1

static

get number of core of current system

Returns

The number of cores or 0 if the system command is not supported

Extra threads n_parallel_for() may have running at once, across every caller; -1 until the first call sizes it from the core count.

Definition at line 47 of file n_thread_pool.c.

Referenced by n_parallel_for().

parallel_lock

pthread_mutex_t parallel_lock = PTHREAD_MUTEX_INITIALIZER

static

Guards parallel_budget.

Definition at line 50 of file n_thread_pool.c.

Referenced by n_parallel_for().
