ex_network_ssl_hostname.c File Reference

#include "nilorea/n_log.h"
#include "nilorea/n_network.h"
#include "nilorea/n_str.h"
#include "nilorea/n_x509.h"
#include <pthread.h>
#include <stdio.h>
#include <string.h>

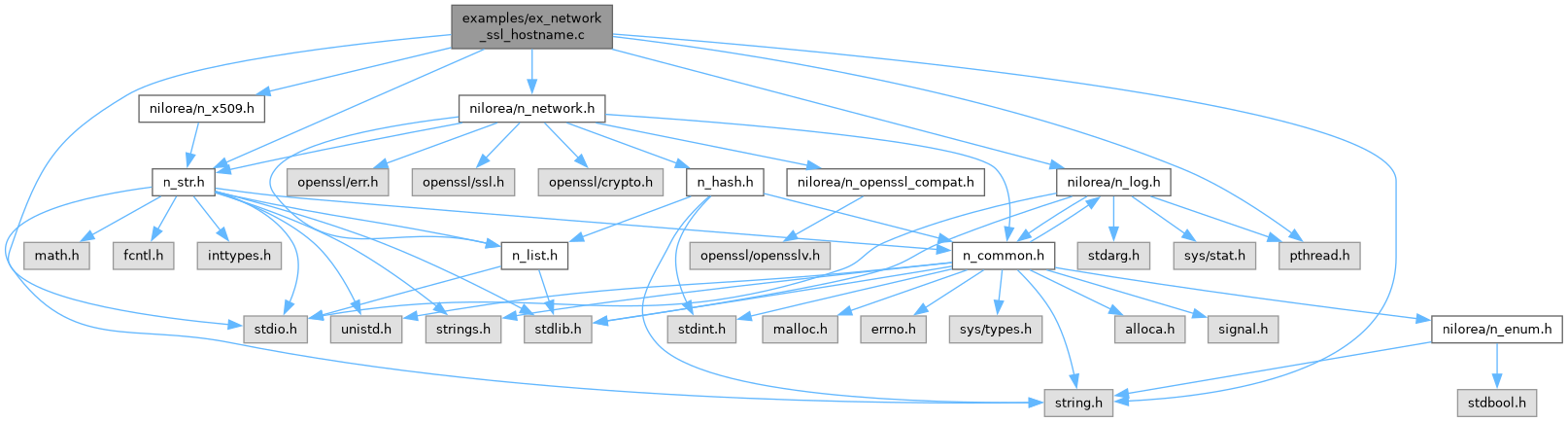

Include dependency graph for ex_network_ssl_hostname.c:

Go to the source code of this file.

Data Structures
struct	SRV_ARG
	Carries the served leaf certificate to the SNI pick callback. More...

Macros
#define	SSL_HOSTNAME_PORT   "27433"
	Port the local TLS listener binds for this test.
#define	SSL_HOSTNAME_RIGHT   "right.test"
	Name the served leaf certificate is actually issued for.
#define	SSL_HOSTNAME_WRONG   "wrong.test"
	Name that certificate does NOT carry.

Functions
int	main (void)
static int	pick_cert (const char *sni, N_STR **cert_pem, N_STR **key_pem, void *user_data)
	SNI pick callback: always serve the one leaf this test minted.
static void *	server_thread (void *a)
	Accept TLS connections until asked to stop, serving the same leaf to all.
static int	try_connect (const char *ask, const char *ca_path, int verify, int *out_verify_ok)
	Connect asking for ask and report what verification concluded.

---

Data Structure Documentation

SRV_ARG

struct SRV_ARG

Carries the served leaf certificate to the SNI pick callback.

Examples

ex_network_ssl_hostname.c.

Definition at line 58 of file ex_network_ssl_hostname.c.

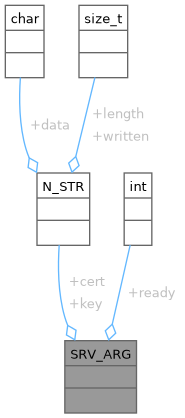

Collaboration diagram for SRV_ARG:

Data Fields
N_STR *	cert
N_STR *	key
int	ready

Macro Definition Documentation

SSL_HOSTNAME_PORT

#define SSL_HOSTNAME_PORT   "27433"

Port the local TLS listener binds for this test.

Examples

ex_network_ssl_hostname.c.

Definition at line 51 of file ex_network_ssl_hostname.c.

Referenced by main(), server_thread(), and try_connect().

SSL_HOSTNAME_RIGHT

#define SSL_HOSTNAME_RIGHT   "right.test"

Name the served leaf certificate is actually issued for.

Examples

ex_network_ssl_hostname.c.

Definition at line 53 of file ex_network_ssl_hostname.c.

Referenced by main().

SSL_HOSTNAME_WRONG

#define SSL_HOSTNAME_WRONG   "wrong.test"

Name that certificate does NOT carry.

Examples

ex_network_ssl_hostname.c.

Definition at line 55 of file ex_network_ssl_hostname.c.

Referenced by main().

Function Documentation

main()

int main

(

void

)

Definition at line 126 of file ex_network_ssl_hostname.c.

References SRV_ARG::cert, N_STR::data, free_nstr, SRV_ARG::key, LOG_ERR, LOG_INFO, n_log, n_x509_generate_ca(), n_x509_mint_host_cert(), netw_close(), netw_connect_to(), netw_unload_openssl(), NETWORK_IPV4, SRV_ARG::ready, server_thread(), set_log_level(), SSL_HOSTNAME_PORT, SSL_HOSTNAME_RIGHT, SSL_HOSTNAME_WRONG, try_connect(), u_sleep(), and N_STR::written.

Here is the call graph for this function:

pick_cert()

int pick_cert ( const char * sni, N_STR ** cert_pem, N_STR ** key_pem, void * user_data )

static

SNI pick callback: always serve the one leaf this test minted.

Parameters

sni	The name the client asked for (ignored: the point is that it may differ).
cert_pem	Receives a copy of the leaf certificate.
key_pem	Receives a copy of its key.
user_data	The SRV_ARG.

Returns

0 to proceed with the handshake.

Examples

ex_network_ssl_hostname.c.

Definition at line 72 of file ex_network_ssl_hostname.c.

References SRV_ARG::cert, SRV_ARG::key, and nstrdup().

Referenced by server_thread().

Here is the call graph for this function:

Here is the caller graph for this function:

server_thread()

void * server_thread ( void * a )

static

Accept TLS connections until asked to stop, serving the same leaf to all.

Parameters

a	The SRV_ARG.

Returns

NULL always.

Definition at line 85 of file ex_network_ssl_hostname.c.

References netw_accept_ssl_with_sni_cb(), netw_close(), netw_make_listening(), NETWORK_IPV4, pick_cert(), SRV_ARG::ready, and SSL_HOSTNAME_PORT.

Here is the call graph for this function:

try_connect()

int try_connect ( const char * ask, const char * ca_path, int verify, int * out_verify_ok )

static

Connect asking for ask and report what verification concluded.

Parameters

ask	Hostname the client asks for (and expects on the certificate).
ca_path	File holding the CA that issued the served leaf.
verify	1 to enable peer verification, 0 to leave it off.
out_verify_ok	Receives 1 when the identity matched, 0 otherwise.

Returns

1 when the handshake completed, 0 when it did not.

Examples

ex_network_ssl_hostname.c.

Definition at line 110 of file ex_network_ssl_hostname.c.

References netw_close(), netw_ssl_connect_client_to(), netw_ssl_do_handshake(), netw_ssl_get_verify_result(), netw_ssl_set_ca(), netw_ssl_set_verify(), NETWORK_IPV4, and SSL_HOSTNAME_PORT.

Referenced by main().

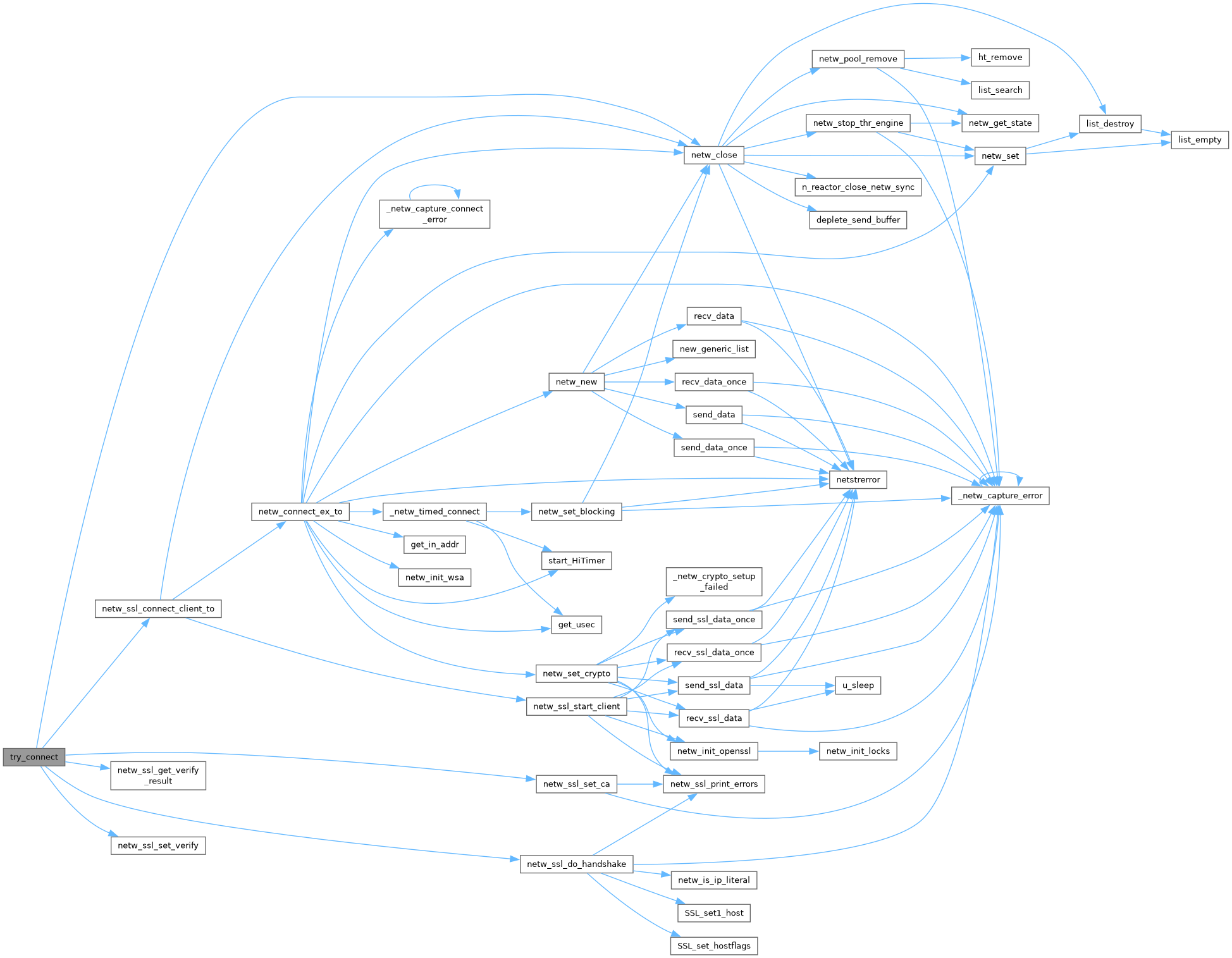

Here is the call graph for this function:

Here is the caller graph for this function:
