Data Structures
struct	N_KAFKA
	structure of a KAFKA consumer or producer handle More...

struct	N_KAFKA_EVENT
	structure of a KAFKA message More...

Macros
#define	N_KAFKA_EVENT_CREATED 5
	state of a freshly created event

#define	N_KAFKA_EVENT_ERROR 2
	state of an errored event

#define	N_KAFKA_EVENT_OK 4
	state of an OK event

#define	N_KAFKA_EVENT_QUEUED 0
	state of a queued event

#define	N_KAFKA_EVENT_WAITING_ACK 1
	state of a sent event waiting for acknowledgement

Functions
int	n_kafka_add_header (N_KAFKA_EVENT event, N_STR key, N_STR *value)
	add a header entry to an event.

int	n_kafka_add_header_ex (N_KAFKA_EVENT event, char key, size_t key_length, char *value, size_t value_length)
	add a header entry to an event.

void	n_kafka_delete (N_KAFKA *kafka)
	delete a N_KAFKA handle

int	n_kafka_dump_unprocessed (N_KAFKA kafka, char directory)
	dump unprocessed/unset events

int	n_kafka_event_destroy (N_KAFKA_EVENT **event)
	destroy a kafka event and set it's pointer to NULL

void	n_kafka_event_destroy_ptr (void *event)
	festroy a kafka event

N_KAFKA_EVENT *	n_kafka_get_event (N_KAFKA *kafka)
	get a received event from the N_KAFKA kafka handle

int32_t	n_kafka_get_schema_from_char (char *string)
	get a schema from the first 4 bytes of a char *string, returning ntohl of the value

int32_t	n_kafka_get_schema_from_nstr (N_STR *string)
	get a schema from the first 4 bytes of a N_STR *string, returning ntohl of the value

int	n_kafka_get_status (N_KAFKA kafka, size_t nb_queued, size_t nb_waiting, size_t nb_error)
	return the queues status

N_KAFKA *	n_kafka_load_config (char *config_file, int mode)
	load a kafka configuration from a file

int	n_kafka_load_unprocessed (N_KAFKA kafka, char directory)
	load unprocessed/unset events

N_KAFKA *	n_kafka_new (int32_t poll_timeout, int32_t poll_interval, size_t errstr_len)
	allocate a new kafka handle

N_KAFKA_EVENT *	n_kafka_new_event (int schema_id)
	create a new empty event

N_KAFKA_EVENT *	n_kafka_new_event_from_char (char *string, size_t written, int schema_id)
	make a new event from a char *string

N_KAFKA_EVENT *	n_kafka_new_event_from_file (char *filename, int schema_id)
	make a new event from a N_STR *string

N_KAFKA_EVENT *	n_kafka_new_event_from_string (N_STR *string, int schema_id)
	make a new event from a N_STR *string

int	n_kafka_new_headers (N_KAFKA_EVENT *event, size_t count)
	allocate a headers array for the event

int	n_kafka_poll (N_KAFKA *kafka)
	Poll kafka handle in producer or consumer mode.

int	n_kafka_produce (N_KAFKA kafka, N_KAFKA_EVENT event)
	put an event in the events_to_send list

int	n_kafka_put_schema_in_char (char *string, int schema_id)
	put a htonl schema id into the first 4 bytes of a char *string

int	n_kafka_put_schema_in_nstr (N_STR *string, int schema_id)
	put a htonl schema id into the first 4 bytes of a N_STR *string

int	n_kafka_start_pooling_thread (N_KAFKA *kafka)
	start the pooling thread of a kafka handle

int	n_kafka_stop_pooling_thread (N_KAFKA *kafka)
	stop the pooling thread of a kafka handle

Detailed Description

Data Structure Documentation

◆ N_KAFKA

struct N_KAFKA

structure of a KAFKA consumer or producer handle

Examples: ex_kafka.c.

Definition at line 68 of file n_kafka.h.

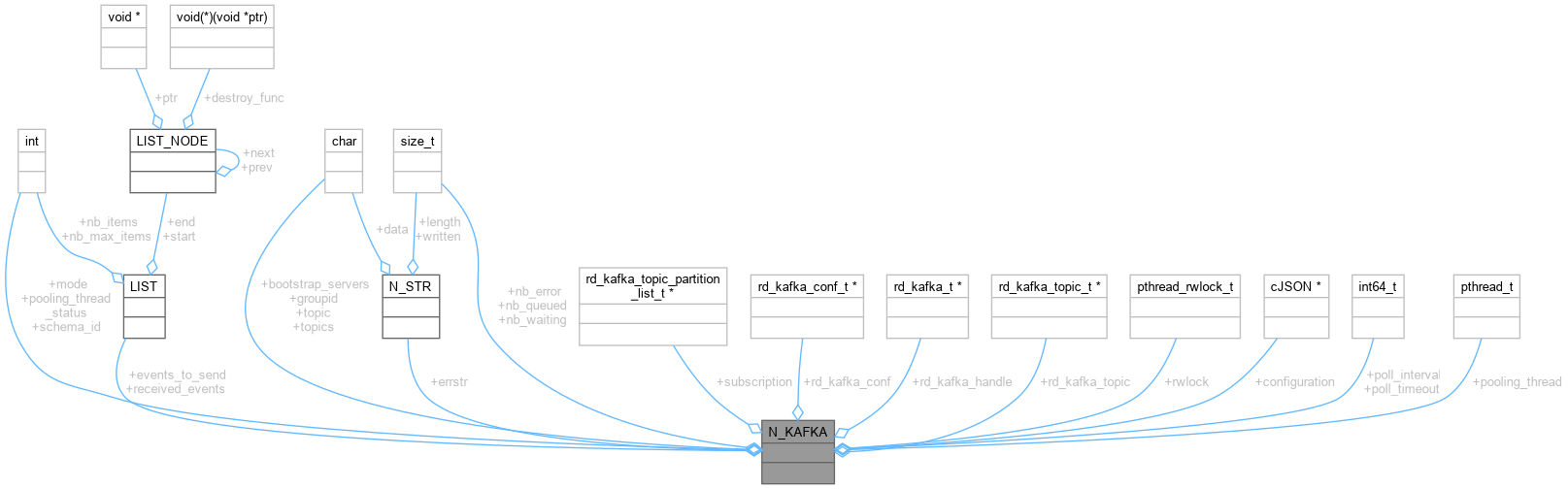

Collaboration diagram for N_KAFKA:

Data Fields
char *	bootstrap_servers	kafka bootstrap servers string
cJSON *	configuration	kafka json configuration holder
N_STR *	errstr	kafka error string holder
LIST *	events_to_send	list of N_KAFKA_EVENT to send
char *	groupid	consumer group id
int	mode	kafka handle mode: RD_KAFKA_CONSUMER or RD_KAFKA_PRODUCER
size_t	nb_error
size_t	nb_queued
size_t	nb_waiting
int32_t	poll_interval	poll interval in usecs
int32_t	poll_timeout	poll timeout in usecs
pthread_t	pooling_thread	pooling thread id
int	pooling_thread_status	pooling thread status, 0 => off , 1 => on , 2 => wants to stop, will be turned out to 0 by exiting pooling thread
rd_kafka_conf_t *	rd_kafka_conf	kafka structure handle
rd_kafka_t *	rd_kafka_handle	kafka handle (producer or consumer)
rd_kafka_topic_t *	rd_kafka_topic	kafka topic handle
LIST *	received_events	list of received N_KAFKA_EVENT
pthread_rwlock_t	rwlock	access lock
int	schema_id	kafka schema id in network order
rd_kafka_topic_partition_list_t *	subscription
char *	topic	kafka topic string
char **	topics

◆ N_KAFKA_EVENT

struct N_KAFKA_EVENT

structure of a KAFKA message

Examples: ex_kafka.c.

Definition at line 48 of file n_kafka.h.

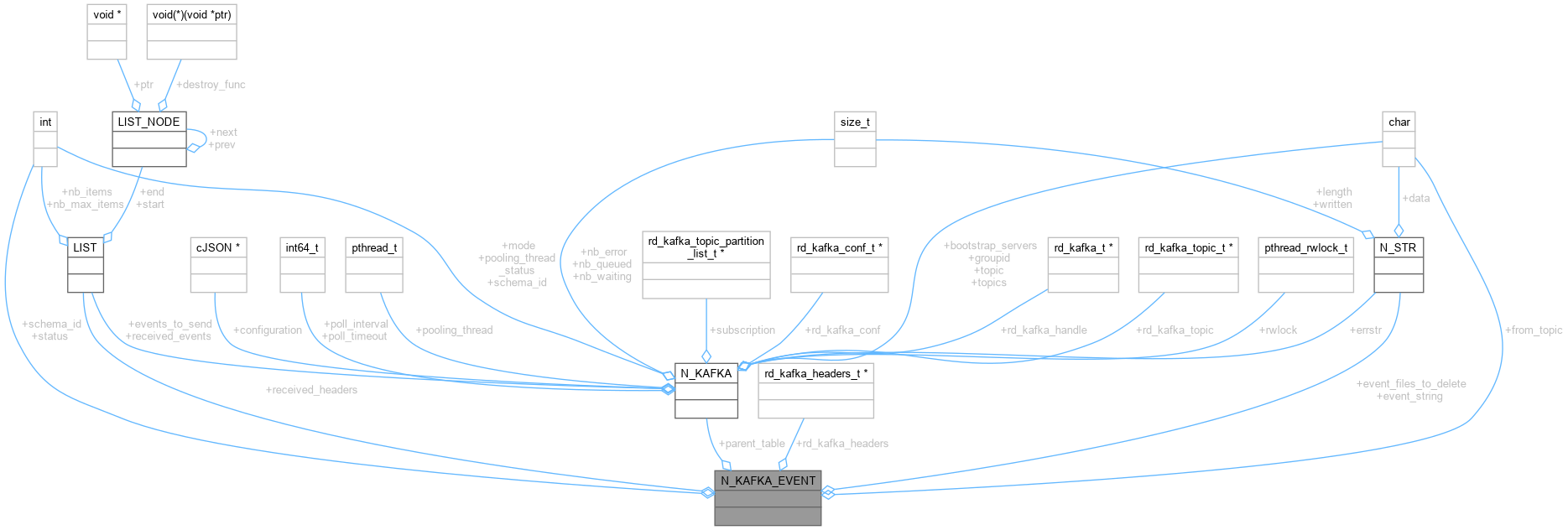

Collaboration diagram for N_KAFKA_EVENT:

Data Fields
N_STR *	event_files_to_delete	string containing the original event source file name if it is to be deleted when event is produced. List separated with ',' else it's NULL
N_STR *	event_string	string containing the topic id + payload
char *	from_topic	in case of received event, else NULL
struct N_KAFKA *	parent_table	access lock
rd_kafka_headers_t *	rd_kafka_headers	kafka produce event headers structure handle
LIST *	received_headers	kafka consume event headers structure handle
int	schema_id	kafka schema_id
unsigned int	status	state of the event: N_KAFKA_EVENT_CREATED ,N_KAFKA_EVENT_QUEUED , N_KAFKA_EVENT_WAITING_ACK , N_KAFKA_EVENT_ERROR , N_KAFKA_EVENT_OK

Macro Definition Documentation

◆ N_KAFKA_EVENT_CREATED

#define N_KAFKA_EVENT_CREATED 5

state of a freshly created event

Definition at line 45 of file n_kafka.h.

◆ N_KAFKA_EVENT_ERROR

#define N_KAFKA_EVENT_ERROR 2

state of an errored event

Definition at line 41 of file n_kafka.h.

◆ N_KAFKA_EVENT_OK

#define N_KAFKA_EVENT_OK 4

state of an OK event

Definition at line 43 of file n_kafka.h.

◆ N_KAFKA_EVENT_QUEUED

#define N_KAFKA_EVENT_QUEUED 0

state of a queued event

Definition at line 37 of file n_kafka.h.

◆ N_KAFKA_EVENT_WAITING_ACK

#define N_KAFKA_EVENT_WAITING_ACK 1

state of a sent event waiting for acknowledgement

Definition at line 39 of file n_kafka.h.

Function Documentation

◆ n_kafka_add_header()

int n_kafka_add_header	(	N_KAFKA_EVENT *	event,
		N_STR *	key,
		N_STR *	value
	)

add a header entry to an event.

headers array must have been allocated before

Parameters

event	target event
key	N_STR *string of the key
value	N_STR *string of the value

Returns: TRUE or FALSE

Definition at line 594 of file n_kafka.c.

References __n_assert, N_STR::data, key, n_kafka_add_header_ex(), and N_STR::written.

Here is the call graph for this function:

◆ n_kafka_add_header_ex()

int n_kafka_add_header_ex	(	N_KAFKA_EVENT *	event,
		char *	key,
		size_t	key_length,
		char *	value,
		size_t	value_length
	)

add a header entry to an event.

headers array must have been allocated before

Parameters

event	target event
key	string of the key
key_length	size of the key string
value	string of the value
value_length	size of the value string

Returns: TRUE or FALSE

Definition at line 560 of file n_kafka.c.

References __n_assert, key, LOG_ERR, n_log, and N_KAFKA_EVENT::rd_kafka_headers.

Referenced by n_kafka_add_header().

Here is the caller graph for this function:

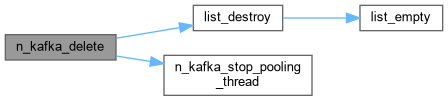

◆ n_kafka_delete()

void n_kafka_delete ( N_KAFKA * kafka )

delete a N_KAFKA handle

Parameters

kafka N_KAFKA handle to delete

Definition at line 160 of file n_kafka.c.

References __n_assert, bootstrap_servers, configuration, errstr, events_to_send, Free, free_nstr, FreeNoLog, groupid, list_destroy(), LOG_DEBUG, mode, n_kafka_stop_pooling_thread(), n_log, poll_timeout, rd_kafka_conf, rd_kafka_handle, rd_kafka_topic, received_events, rw_lock_destroy, rwlock, subscription, topic, and topics.

Referenced by main(), n_kafka_load_config(), and n_kafka_new().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_dump_unprocessed()

int n_kafka_dump_unprocessed	(	N_KAFKA *	kafka,
		char *	directory
	)

dump unprocessed/unset events

Parameters

kafka	kafka handle to use
directory	the directory in which to dump the events

Returns: TRUE or FALSE

Definition at line 1025 of file n_kafka.c.

References __n_assert, _nstr, N_STR::data, events_to_send, free_nstr, N_STR::length, list_foreach, LOG_DEBUG, LOG_ERR, N_KAFKA_EVENT_OK, n_log, nb_error, nb_queued, nb_waiting, new_nstr(), nstr_to_file(), nstrprintf, pooling_thread_status, read_lock, rwlock, topic, unlock, and N_STR::written.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_event_destroy()

int n_kafka_event_destroy ( N_KAFKA_EVENT ** event )

destroy a kafka event and set it's pointer to NULL

Parameters

event event to delete

Returns: TRUE or FALSE

Definition at line 780 of file n_kafka.c.

References __n_assert, and n_kafka_event_destroy_ptr().

Referenced by main(), and n_kafka_poll().

Here is the call graph for this function:

Here is the caller graph for this function:

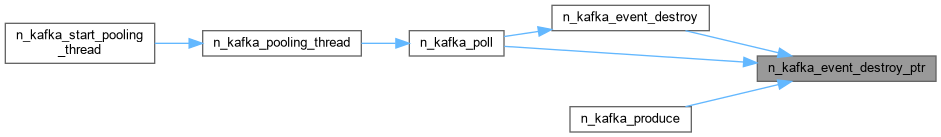

◆ n_kafka_event_destroy_ptr()

void n_kafka_event_destroy_ptr ( void * event_ptr )

festroy a kafka event

Parameters

event_ptr void pointer to target

Definition at line 752 of file n_kafka.c.

References __n_assert, free_nstr, FreeNoLog, and list_destroy().

Referenced by n_kafka_event_destroy(), n_kafka_poll(), and n_kafka_produce().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_get_event()

N_KAFKA_EVENT * n_kafka_get_event ( N_KAFKA * kafka )

get a received event from the N_KAFKA kafka handle

Parameters

kafka kafka handle to use

Returns: a received event ror NULL

Definition at line 1093 of file n_kafka.c.

References __n_assert, received_events, remove_list_node, rwlock, LIST::start, unlock, and write_lock.

Referenced by main().

Here is the caller graph for this function:

◆ n_kafka_get_schema_from_char()

int32_t n_kafka_get_schema_from_char ( char * string )

get a schema from the first 4 bytes of a char *string, returning ntohl of the value

Parameters

string char *source from where to read schema id

Returns: zero or positive number on success, -1 on error

Definition at line 18 of file n_kafka.c.

References __n_assert.

Referenced by n_kafka_get_schema_from_nstr().

Here is the caller graph for this function:

◆ n_kafka_get_schema_from_nstr()

int32_t n_kafka_get_schema_from_nstr ( N_STR * string )

get a schema from the first 4 bytes of a N_STR *string, returning ntohl of the value

Parameters

string N_STR *source from where to read schema id

Returns: zero or positive number on success, -1 on error

Definition at line 32 of file n_kafka.c.

References __n_assert, N_STR::data, n_kafka_get_schema_from_char(), and N_STR::written.

Referenced by n_kafka_poll().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_get_status()

int n_kafka_get_status	(	N_KAFKA *	kafka,
		size_t *	nb_queued,
		size_t *	nb_waiting,
		size_t *	nb_error
	)

return the queues status

Parameters

kafka	handler to use
nb_queued	pointer to queue number holder
nb_waiting	pointer to waiting number holder
nb_error	pointer to error number holder

Returns: TRUE or FALSE

Definition at line 73 of file n_kafka.c.

References __n_assert, nb_error, nb_queued, nb_waiting, pooling_thread_status, read_lock, rwlock, and unlock.

Referenced by main().

Here is the caller graph for this function:

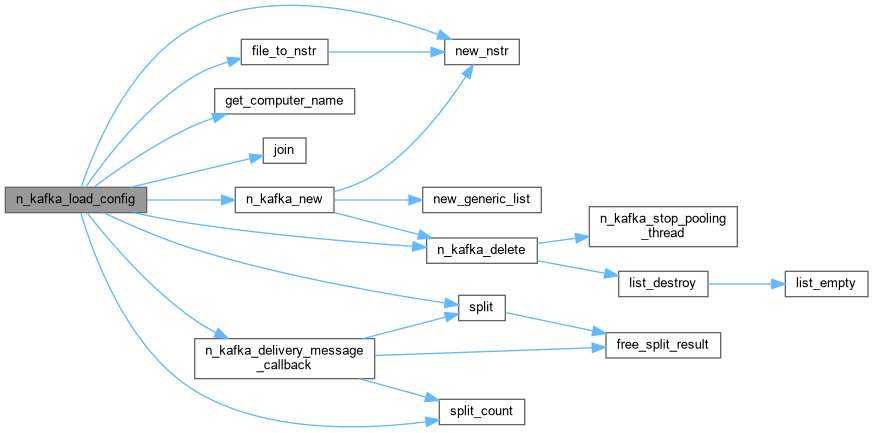

◆ n_kafka_load_config()

N_KAFKA * n_kafka_load_config	(	char *	config_file,
		int	mode
	)

load a kafka configuration from a file

Parameters

config_file	path and filename of the config file
mode	RD_KAFKA_CONSUMER or RD_KAFKA_PRODUCER

Returns: an allocated and configured N_KAFKA *kafka handle or NULL

Definition at line 263 of file n_kafka.c.

References __n_assert, _nstr, _nstrp, _str, bootstrap_servers, config_file, N_STR::data, errstr, file_to_nstr(), free_nstr, get_computer_name(), groupid, join(), N_STR::length, LOG_DEBUG, LOG_ERR, mode, mode, n_kafka_delete(), n_kafka_delivery_message_callback(), n_kafka_new(), n_log, new_nstr(), nstrprintf, poll_interval, poll_timeout, rd_kafka_conf, rd_kafka_handle, rd_kafka_topic, schema_id, split(), split_count(), subscription, topic, and topics.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_load_unprocessed()

int n_kafka_load_unprocessed	(	N_KAFKA *	kafka,
		char *	directory
	)

load unprocessed/unset events

Parameters

kafka	kafka handle to use
directory	the directory from which to load the events

Returns: TRUE or FALSE

Definition at line 1076 of file n_kafka.c.

References __n_assert, rwlock, unlock, and write_lock.

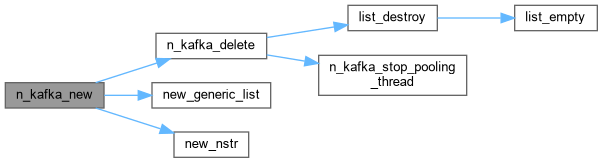

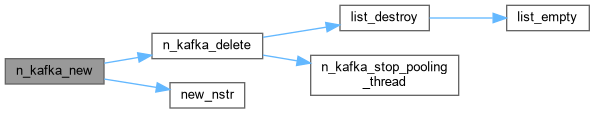

◆ n_kafka_new()

N_KAFKA * n_kafka_new	(	int32_t	poll_interval,
		int32_t	poll_timeout,
		size_t	errstr_len
	)

allocate a new kafka handle

Parameters

poll_interval	set polling interval
poll_timeout	set polling
errstr_len	set the size of the error string buffer

Returns: a new empty N_KAFKA *kafka handle or NULL

Definition at line 215 of file n_kafka.c.

References __n_assert, bootstrap_servers, configuration, errstr, events_to_send, Free, groupid, init_lock, LOG_ERR, Malloc, MAX_LIST_ITEMS, mode, n_kafka_delete(), n_log, nb_error, nb_queued, nb_waiting, new_generic_list(), new_nstr(), poll_interval, poll_timeout, pooling_thread_status, rd_kafka_conf, rd_kafka_handle, received_events, rwlock, schema_id, subscription, topic, and topics.

Referenced by n_kafka_load_config().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_new_event()

N_KAFKA_EVENT * n_kafka_new_event ( int schema_id )

create a new empty event

Parameters

schema_id schema id that the event is using, -1 if not using avro schema_id formatted events

Returns: a new empty N_KAFKA_EVENT *event

Definition at line 512 of file n_kafka.c.

References __n_assert, Malloc, and N_KAFKA_EVENT_CREATED.

Referenced by n_kafka_new_event_from_char().

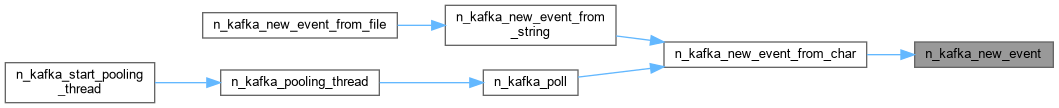

Here is the caller graph for this function:

◆ n_kafka_new_event_from_char()

N_KAFKA_EVENT * n_kafka_new_event_from_char	(	char *	string,
		size_t	written,
		int	schema_id
	)

make a new event from a char *string

Parameters

string	source string
written	lenght of the string
schema_id	the schema id to use. Pass -1 for non avro formatted events

Returns: a new N_KAFKA *event or NULL

Definition at line 686 of file n_kafka.c.

References __n_assert, Malloc, N_KAFKA_EVENT_QUEUED, n_kafka_new_event(), and n_kafka_put_schema_in_nstr().

Referenced by main(), n_kafka_new_event_from_string(), and n_kafka_poll().

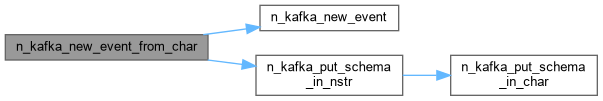

Here is the call graph for this function:

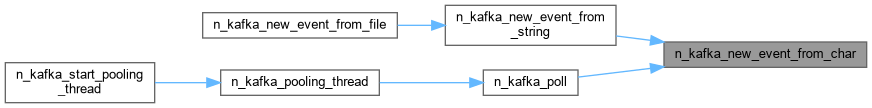

Here is the caller graph for this function:

◆ n_kafka_new_event_from_file()

N_KAFKA_EVENT * n_kafka_new_event_from_file	(	char *	filename,
		int	schema_id
	)

make a new event from a N_STR *string

Parameters

filename	source file path and filename
schema_id	the schema id to use. Pass -1 for non avro formatted events

Returns: a new N_KAFKA *event or NULL

Definition at line 739 of file n_kafka.c.

References __n_assert, file_to_nstr(), and n_kafka_new_event_from_string().

Referenced by main().

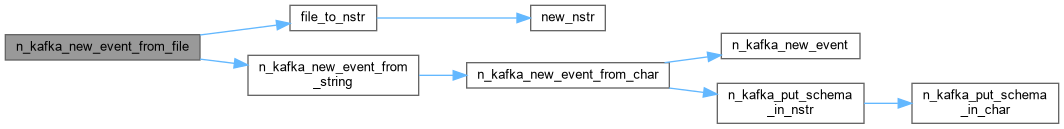

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_new_event_from_string()

N_KAFKA_EVENT * n_kafka_new_event_from_string	(	N_STR *	string,
		int	schema_id
	)

make a new event from a N_STR *string

Parameters

string	source string
schema_id	the schema id to use. Pass -1 for non avro formatted events

Returns: a new N_KAFKA *event or NULL

Definition at line 724 of file n_kafka.c.

References __n_assert, N_STR::data, n_kafka_new_event_from_char(), and N_STR::written.

Referenced by n_kafka_new_event_from_file().

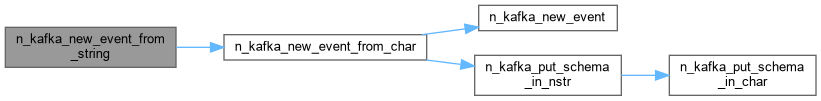

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_new_headers()

int n_kafka_new_headers	(	N_KAFKA_EVENT *	event,
		size_t	count
	)

allocate a headers array for the event

Parameters

event	target event
count	size in elements of the created headers array

Returns: TRUE or FALSE

Definition at line 535 of file n_kafka.c.

References __n_assert, LOG_ERR, n_log, and N_KAFKA_EVENT::rd_kafka_headers.

◆ n_kafka_poll()

int n_kafka_poll ( N_KAFKA * kafka )

Poll kafka handle in producer or consumer mode.

Parameters

kafka kafka handle to use

Returns: TRUE or FALSE

Definition at line 792 of file n_kafka.c.

References __n_assert, _str, events_to_send, free_nstr_ptr(), list_push(), LOG_DEBUG, LOG_ERR, MAX_LIST_ITEMS, mode, n_kafka_event_destroy(), n_kafka_event_destroy_ptr(), N_KAFKA_EVENT_ERROR, N_KAFKA_EVENT_OK, N_KAFKA_EVENT_QUEUED, n_kafka_get_schema_from_nstr(), n_kafka_new_event_from_char(), n_kafka_produce_ex(), n_log, nb_error, nb_queued, nb_waiting, new_generic_list(), LIST_NODE::next, nstrprintf, poll_interval, LIST_NODE::ptr, rd_kafka_handle, received_events, remove_list_node, rwlock, schema_id, LIST::start, unlock, and write_lock.

Referenced by n_kafka_pooling_thread().

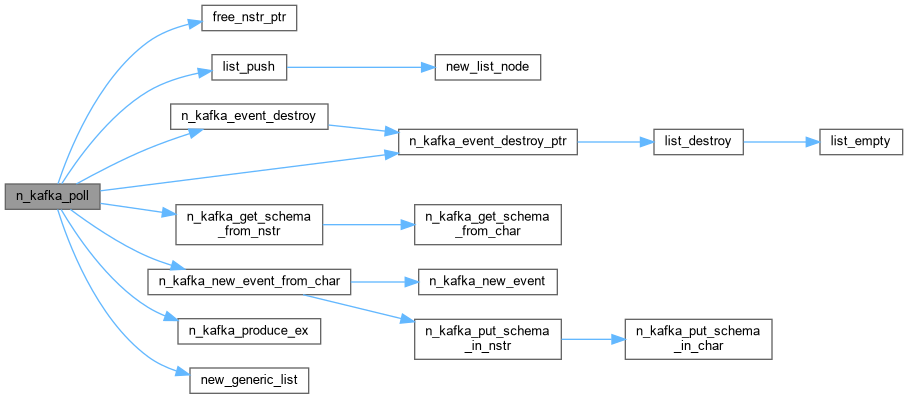

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_produce()

int n_kafka_produce	(	N_KAFKA *	kafka,
		N_KAFKA_EVENT *	event
	)

put an event in the events_to_send list

Parameters

kafka	the producer N_KAFKA handle to use
event	event to send. Will be owned by N_KAFKA *kafka handle once done

Returns: TRUE or FALSE

Definition at line 610 of file n_kafka.c.

References __n_assert, events_to_send, list_push(), LOG_DEBUG, n_kafka_event_destroy_ptr(), n_log, nb_queued, rd_kafka_handle, rwlock, topic, unlock, and write_lock.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_put_schema_in_char()

int n_kafka_put_schema_in_char	(	char *	string,
		int	schema_id
	)

put a htonl schema id into the first 4 bytes of a char *string

Parameters

string	char *destination where to write schema id
schema_id	the schema_id to write

Returns: zero or positive number on success, -1 on error

Definition at line 45 of file n_kafka.c.

References __n_assert.

Referenced by n_kafka_put_schema_in_nstr().

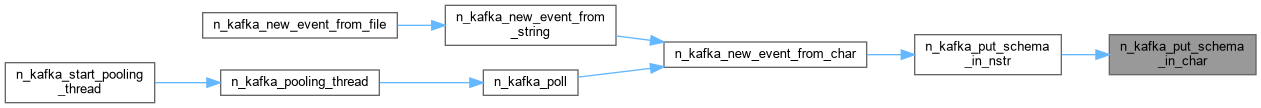

Here is the caller graph for this function:

◆ n_kafka_put_schema_in_nstr()

int n_kafka_put_schema_in_nstr	(	N_STR *	string,
		int	schema_id
	)

put a htonl schema id into the first 4 bytes of a N_STR *string

Parameters

string	N_STR *destination where to write schema id
schema_id	the schema_id to write

Returns: zero or positive number on success, -1 on error

Definition at line 58 of file n_kafka.c.

References __n_assert, N_STR::data, n_kafka_put_schema_in_char(), and N_STR::written.

Referenced by n_kafka_new_event_from_char().

Here is the call graph for this function:

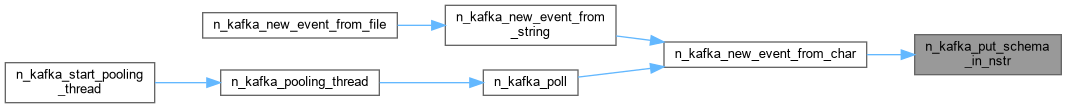

Here is the caller graph for this function:

◆ n_kafka_start_pooling_thread()

int n_kafka_start_pooling_thread ( N_KAFKA * kafka )

start the pooling thread of a kafka handle

Parameters

kafka kafka handle to use

Returns: TRUE or FALSE

Definition at line 962 of file n_kafka.c.

References __n_assert, LOG_DEBUG, LOG_ERR, n_kafka_pooling_thread(), n_log, pooling_thread, pooling_thread_status, rd_kafka_handle, read_lock, rwlock, unlock, and write_lock.

Referenced by main().

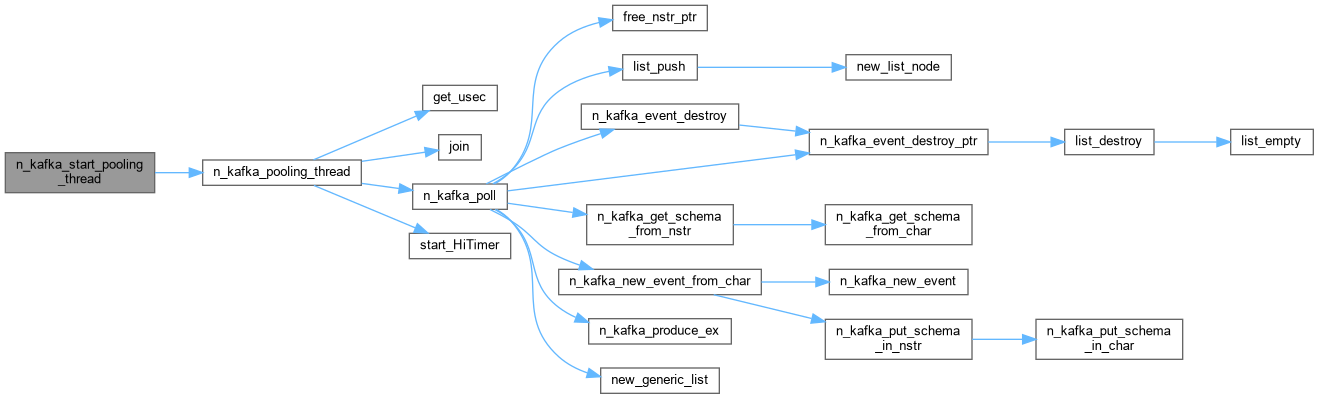

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_kafka_stop_pooling_thread()

int n_kafka_stop_pooling_thread ( N_KAFKA * kafka )

stop the pooling thread of a kafka handle

Parameters

kafka target kafka handle

Returns: TRUE or FALSE

Definition at line 994 of file n_kafka.c.

References __n_assert, LOG_DEBUG, n_log, pooling_thread, pooling_thread_status, read_lock, rwlock, unlock, and write_lock.

Referenced by n_kafka_delete().

Here is the caller graph for this function:

Data Structures

Macros

Functions

Detailed Description

Data Structure Documentation

◆ N_KAFKA

◆ N_KAFKA_EVENT

Macro Definition Documentation

◆ N_KAFKA_EVENT_CREATED

◆ N_KAFKA_EVENT_ERROR

◆ N_KAFKA_EVENT_OK

◆ N_KAFKA_EVENT_QUEUED

◆ N_KAFKA_EVENT_WAITING_ACK

Function Documentation

◆ n_kafka_add_header()

◆ n_kafka_add_header_ex()

◆ n_kafka_delete()

◆ n_kafka_dump_unprocessed()

◆ n_kafka_event_destroy()

◆ n_kafka_event_destroy_ptr()

◆ n_kafka_get_event()

◆ n_kafka_get_schema_from_char()

◆ n_kafka_get_schema_from_nstr()

◆ n_kafka_get_status()

◆ n_kafka_load_config()

◆ n_kafka_load_unprocessed()

◆ n_kafka_new()

◆ n_kafka_new_event()

◆ n_kafka_new_event_from_char()

◆ n_kafka_new_event_from_file()

◆ n_kafka_new_event_from_string()

◆ n_kafka_new_headers()

◆ n_kafka_poll()

◆ n_kafka_produce()

◆ n_kafka_put_schema_in_char()

◆ n_kafka_put_schema_in_nstr()

◆ n_kafka_start_pooling_thread()

◆ n_kafka_stop_pooling_thread()
