A curve editor for N_GUI: control points on a curve over [0,1]. More...

#include "nilorea/n_gui.h"

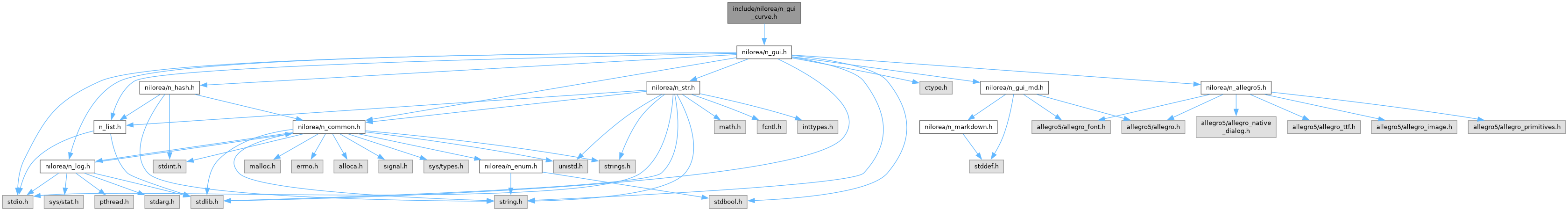

Include dependency graph for n_gui_curve.h:

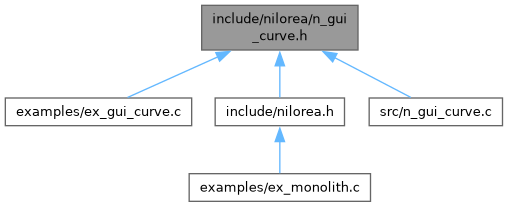

This graph shows which files directly or indirectly include this file:

Typedefs
typedef void(*	N_GUI_CURVE_BACKGROUND) (float x, float y, float w, float h, void *user_data)
	drawn behind the grid and the curve, such as a histogram.
typedef void(*	N_GUI_CURVE_CHANGE) (int widget_id, int dragging, void *user_data)
	called on every change of the points.
typedef float(*	N_GUI_CURVE_EVAL) (const float xs, const float ys, int count, float x, void *user_data)
	the caller's curve through the points, for drawing.

Functions
float	n_gui_curve_eval (N_GUI_CTX *ctx, int widget_id, float x)
	The editor's curve at `x`, as it is drawn.
float	n_gui_curve_eval_points (const float xs, const float ys, int count, float x)
	A monotone cubic Hermite spline through points.
int	n_gui_curve_get_points (N_GUI_CTX ctx, int widget_id, float xs, float *ys, int max)
	Read the points.
int	n_gui_curve_new (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, int max_points, N_GUI_CURVE_CHANGE on_change, void user_data)
	Add a curve editor to a window.
void	n_gui_curve_set_background (N_GUI_CTX ctx, int widget_id, N_GUI_CURVE_BACKGROUND draw, void user_data)
	Draw something behind the grid and the curve.
void	n_gui_curve_set_eval (N_GUI_CTX ctx, int widget_id, N_GUI_CURVE_EVAL eval, void user_data)
	Draw the caller's own curve through the points.
void	n_gui_curve_set_point_radius (N_GUI_CTX *ctx, int widget_id, float radius)
	Size of the drawn points, for a display scale.
int	n_gui_curve_set_points (N_GUI_CTX ctx, int widget_id, const float xs, const float *ys, int count)
	Replace the points.

Detailed Description

A curve editor for N_GUI: control points on a curve over [0,1].

A tone curve, an easing curve, a gain curve: a function from [0,1] to [0,1] shaped by dragging points. The editor is a custom widget (n_gui_add_custom() with n_gui_custom_set_mouse()), so it lives in any window like any other widget and its state is freed with it.

A left press on a point takes it; anywhere else adds a point there and takes that. Dragging moves the taken point: its y anywhere in [0,1], its x between its neighbours, and never the x of the first or the last point, so the curve's domain stays whole.
A right press on a point removes it, unless it is the first or the last.
on_change is called on every change, with dragging set while the change is a step of a drag, so a caller can make one undo step of a whole drag.

The points are the caller's data as much as the widget's: set them from the model, read them back in on_change. What the curve between them is, is the caller's too: n_gui_curve_set_eval() draws the caller's own interpolation, so what is drawn is exactly what the caller computes. By default it is n_gui_curve_eval_points(), a monotone cubic Hermite spline that holds its end values outside the points and never overshoots them.

Colours come from the widget's theme: bg_normal under everything, border_normal for the frame, the quarter grid and the diagonal, text_normal for the curve and the points.

Author: Castagnier Mickael

Version: 1.0

Date: 24/09/2026

Definition in file n_gui_curve.h.
