A virtualised grid of cells for N_GUI, scrolled vertically. More...

#include <stddef.h>
#include "nilorea/n_gui.h"

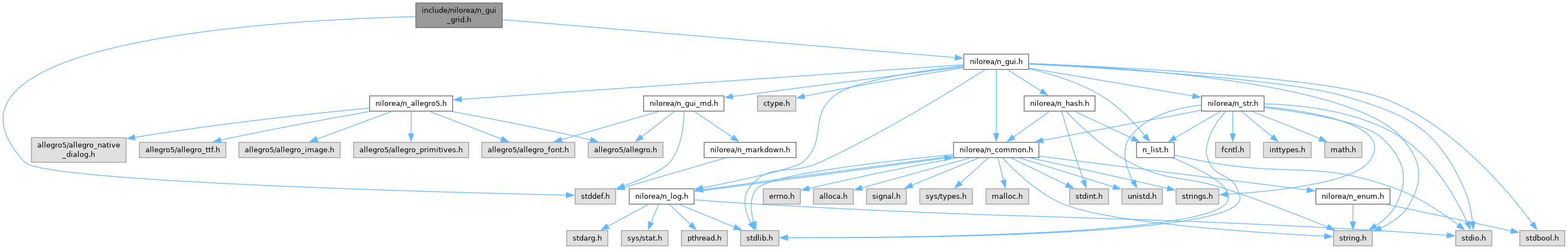

Include dependency graph for n_gui_grid.h:

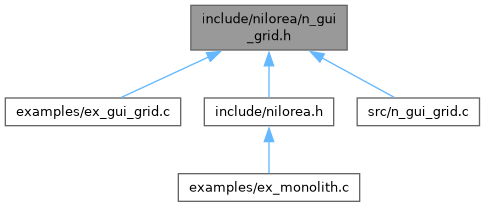

This graph shows which files directly or indirectly include this file:

Data Structures
struct	N_GUI_GRID_CALLBACKS
	What the grid asks of its caller. More...

Functions
int	n_gui_grid_cell_rect (N_GUI_CTX ctx, int widget_id, size_t index, float x, float y, float w, float *h)
	Where a cell is on screen, whether or not it is scrolled into view.
int	n_gui_grid_columns (N_GUI_CTX *ctx, int widget_id)
	How many cells a row holds at the grid's width.
float	n_gui_grid_get_scroll (N_GUI_CTX *ctx, int widget_id)
	The scroll offset, in pixels from the top of the content.
int	n_gui_grid_index_at (N_GUI_CTX ctx, int widget_id, float x, float y, size_t index)
	Which cell is at a point on screen.
int	n_gui_grid_new (N_GUI_CTX ctx, int window_id, const N_GUI_GRID_CALLBACKS callbacks, void *user_data)
	Add a grid, and its scrollbar, to a window.
void	n_gui_grid_scroll_to (N_GUI_CTX *ctx, int widget_id, size_t index)
	Scroll the least that brings a cell's whole row into view.
int	n_gui_grid_scrollbar (N_GUI_CTX *ctx, int widget_id)
	The grid's scrollbar widget.
int	n_gui_grid_scrollbar_showing (N_GUI_CTX *ctx, int widget_id)
	Whether the scrollbar is shown, which is whether the rows overflow.
void	n_gui_grid_set_cell_size (N_GUI_CTX *ctx, int widget_id, float cell_w, float cell_h, float gap)
	Set the size of a cell and the gap around cells.
void	n_gui_grid_set_count (N_GUI_CTX *ctx, int widget_id, size_t count)
	Set how many cells there are.
void	n_gui_grid_set_rect (N_GUI_CTX *ctx, int widget_id, float x, float y, float w, float h, float bar_w)
	Place the grid and its scrollbar in a rectangle of the window.
void	n_gui_grid_set_scroll (N_GUI_CTX *ctx, int widget_id, float scroll)
	Set the scroll offset, clamped to the content.
void	n_gui_grid_set_visible (N_GUI_CTX *ctx, int widget_id, int visible)
	Show or hide the grid and its scrollbar together.

Detailed Description

A virtualised grid of cells for N_GUI, scrolled vertically.

An icon view: a file manager, an asset browser, a sprite picker. Cells of one size are laid out in as many columns as the width holds and as many rows as the count needs, and only the cells on screen are drawn, so ten thousand cells cost what thirty do.

The grid owns the geometry and the scrolling: the columns, the scroll offset (in pixels, so a view can stop anywhere, and clamped so it never shows past the end), the wheel (one row a notch), a vertical scrollbar it places beside itself and shows only when the rows do not fit, "scroll so this cell is visible", and which cell is under a point.

The caller owns everything that is about the content, through callbacks: what a cell looks like, including any cursor or selection it wants to show, what is drawn behind the cells or when there are none, what to prepare when a range becomes visible, and what a press on a cell does. Keys are the caller's too: move a cursor, then n_gui_grid_scroll_to().

Built on a custom widget with n_gui_custom_set_mouse() and n_gui_custom_set_destroy(); the grid's state is the widget's.

Author: Castagnier Mickael

Version: 1.0

Date: 24/09/2026

Definition in file n_gui_grid.h.
