HTTP/2 server connection and stream state machine (see n_http2_server.h). More...

#include "nilorea/n_http2_server.h"
#include "nilorea/n_common.h"
#include "nilorea/n_log.h"
#include <stdlib.h>
#include <string.h>

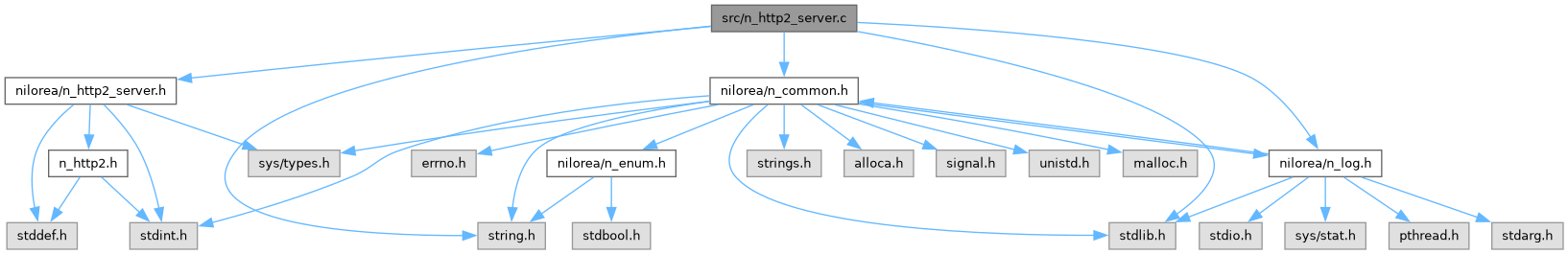

Include dependency graph for n_http2_server.c:

Data Structures
struct	H2_STREAM
	one client-initiated stream More...
struct	H2BUF
	a growable byte buffer for the read stream and the per-stream accumulators More...
struct	N_H2_SERVER
	server connection state More...

Macros
#define	H2_DEFAULT_MAX_FRAME 16384
	the initial SETTINGS_MAX_FRAME_SIZE, fixed by RFC 7540 6.5.2
#define	H2_DEFAULT_WINDOW 65535
	the initial connection flow-control window, fixed by RFC 7540 6.9.2
#define	H2_SRV_RECV_WINDOW H2_WIN_MAX
	the connection and stream receive window we advertise
#define	H2_WIN_MAX 0x7FFFFFFF
	the largest value a flow-control window may hold (RFC 7540 6.9.1)

Functions
static int	h2buf_append (H2BUF b, const unsigned char p, size_t n)
	append n bytes to b, growing it as needed.
static void	h2buf_free (H2BUF *b)
	release a buffer's storage
static void	h2buf_shift (H2BUF *b, size_t n)
	drop the first n bytes of b
const char *	n_http2_server_error (const N_H2_SERVER *s)
	the reason the connection failed, or NULL when none was recorded
void	n_http2_server_free (N_H2_SERVER **srv)
	free a server connection and NULL the caller's pointer
int	n_http2_server_goaway (N_H2_SERVER *s, uint32_t error_code)
	send GOAWAY, naming the last stream we processed
int	n_http2_server_handshake (N_H2_SERVER *s)
	read and validate the client connection preface, then send ours
N_H2_SERVER *	n_http2_server_new (void *io, n_h2_srv_read_fn rd, n_h2_srv_write_fn wr)
	create a server connection over the given I/O callbacks
size_t	n_http2_server_request_count (const N_H2_SERVER *s)
	the number of requests delivered to the callback so far
int	n_http2_server_respond (N_H2_SERVER s, uint32_t stream_id, const N_H2_HEADER headers, size_t nheaders, const unsigned char *body, size_t body_len)
	write a complete response on a stream (HEADERS then DATA, END_STREAM)
int	n_http2_server_rst_stream (N_H2_SERVER *s, uint32_t stream_id, uint32_t error_code)
	abort one stream with RST_STREAM
int	n_http2_server_run (N_H2_SERVER s, n_h2_srv_request_cb cb, void user_data)
	serve the connection until it ends
static int	srv_apply_data (N_H2_SERVER s, const N_H2_FRAME fr)
	take one DATA frame onto its stream and replenish the receive windows
static int	srv_apply_headers (N_H2_SERVER s, const N_H2_FRAME fr)
	take one HEADERS or CONTINUATION frame
static int	srv_apply_settings (N_H2_SERVER s, const N_H2_FRAME fr)
	apply a peer SETTINGS payload to our send-side state
static int	srv_apply_window_update (N_H2_SERVER s, const N_H2_FRAME fr)
	add a WINDOW_UPDATE increment to the matching send window
static int	srv_fill (N_H2_SERVER *s)
	pull one chunk from the peer into the read buffer.
static int	srv_finish_headers (N_H2_SERVER *s)
	HPACK-decode the accumulated header block onto its stream.
static int	srv_handle_frame (N_H2_SERVER s, const N_H2_FRAME fr)
	handle one received frame.
static int	srv_headers_payload (const N_H2_FRAME fr, const unsigned char p_out, size_t len_out)
	strip the pad-length prefix and priority fields of a HEADERS payload.
static int	srv_need (N_H2_SERVER *s, size_t n)
	make sure at least n bytes are buffered.
static int	srv_next_frame (N_H2_SERVER s, N_H2_FRAME fr, size_t *consumed)
	read the next complete frame into fr (aliasing the read buffer).
static H2_STREAM *	srv_next_ready (N_H2_SERVER *s)
	the lowest-numbered stream whose request is complete and undelivered
static int	srv_pump_one (N_H2_SERVER *s)
	read and handle one frame.
static void	srv_put_setting (unsigned char *out, uint16_t id, uint32_t value)
	write one 6-byte SETTINGS entry (identifier then value) into out
static int	srv_send (N_H2_SERVER s, int type, int flags, uint32_t sid, const unsigned char payload, size_t len)
	write one frame (header then payload).
static void	srv_stream_close (H2_STREAM *st)
	release a stream slot and everything it owns
static H2_STREAM *	srv_stream_find (N_H2_SERVER *s, uint32_t id)
	the stream with this id, or NULL
static H2_STREAM *	srv_stream_open (N_H2_SERVER *s, uint32_t id)
	open a stream, or NULL when the table is full
static int	srv_window_update (N_H2_SERVER *s, uint32_t sid, uint32_t inc)
	send a WINDOW_UPDATE for sid with the given increment

Detailed Description

HTTP/2 server connection and stream state machine (see n_http2_server.h).

Author: Castagnier Mickael

Version: 1.0

Date: 2026

Definition in file n_http2_server.c.

Data Structure Documentation

◆ H2_STREAM

struct H2_STREAM

one client-initiated stream

Definition at line 52 of file n_http2_server.c.

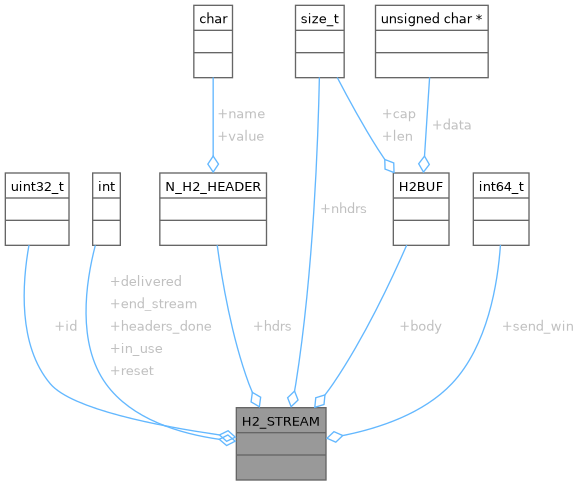

Collaboration diagram for H2_STREAM:

Data Fields
H2BUF	body	accumulated request body
int	delivered	the request was handed to the callback
int	end_stream	END_STREAM seen: the request is complete.
N_H2_HEADER *	hdrs	decoded request headers (owned), or NULL
int	headers_done	END_HEADERS seen: the header block decoded.
uint32_t	id	the stream identifier
int	in_use	1 when the slot holds a stream
size_t	nhdrs	number of decoded headers
int	reset	RST_STREAM received, or the request was refused.
int64_t	send_win	our remaining send window for this stream

◆ H2BUF

struct H2BUF

a growable byte buffer for the read stream and the per-stream accumulators

Definition at line 45 of file n_http2_server.c.

Collaboration diagram for H2BUF:

Data Fields
size_t	cap	bytes allocated
unsigned char *	data	storage, or NULL when empty
size_t	len	bytes held

◆ N_H2_SERVER

struct N_H2_SERVER

server connection state

opaque HTTP/2 server connection state (streams, windows, HPACK contexts)

Examples: ex_http2_server.c, and ex_network_alpn.c.

Definition at line 66 of file n_http2_server.c.

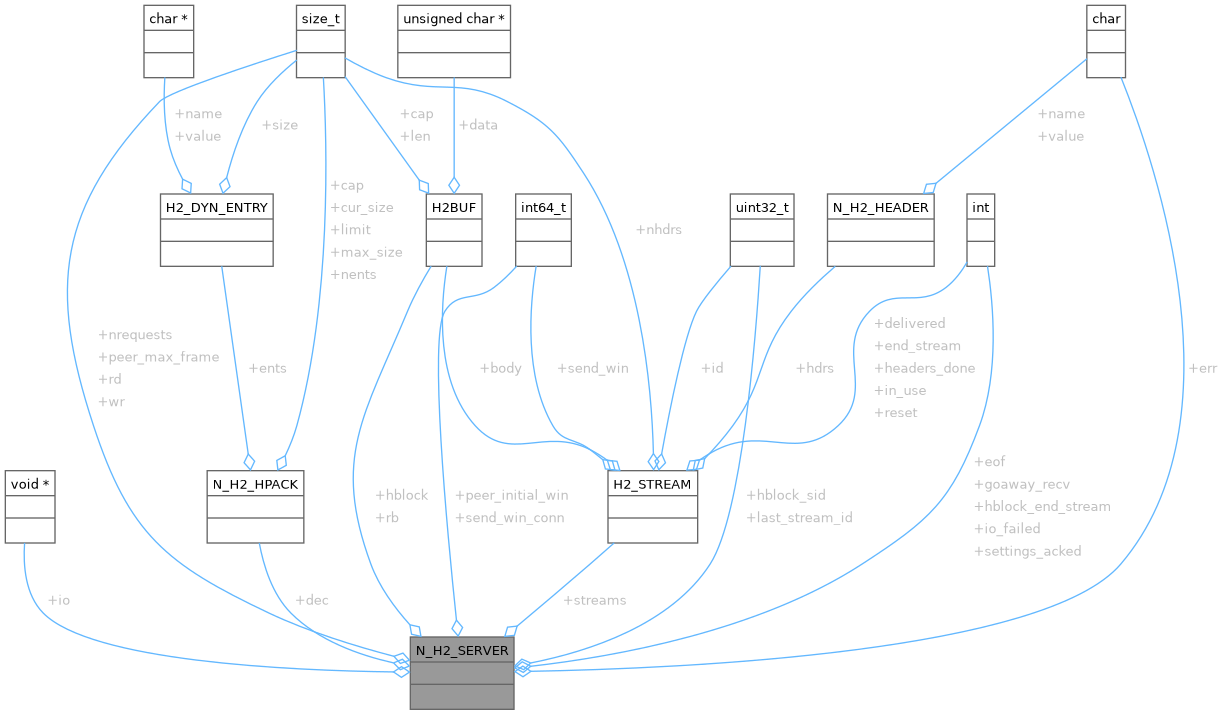

Collaboration diagram for N_H2_SERVER:

Data Fields
N_H2_HPACK *	dec	HPACK decoder for the client-to-server direction.
int	eof	the peer closed the connection
const char *	err	the reason the connection failed, or NULL
int	goaway_recv	the peer sent GOAWAY
H2BUF	hblock	header-block fragment accumulator
int	hblock_end_stream	END_STREAM of the HEADERS that opened the block.
uint32_t	hblock_sid	the stream whose header block is in progress, 0 = none
void *	io	opaque I/O handle for the callbacks
int	io_failed	a read or write callback failed
uint32_t	last_stream_id	the highest client stream id seen
size_t	nrequests	requests delivered to the callback
int64_t	peer_initial_win	the peer's SETTINGS_INITIAL_WINDOW_SIZE
size_t	peer_max_frame	the peer's SETTINGS_MAX_FRAME_SIZE
H2BUF	rb	the wire read buffer
n_h2_srv_read_fn	rd	read callback
int64_t	send_win_conn	our remaining connection send window
int	settings_acked	the peer acknowledged our SETTINGS
H2_STREAM	streams[128]	the stream table
n_h2_srv_write_fn	wr	write callback

Macro Definition Documentation

◆ H2_DEFAULT_MAX_FRAME

#define H2_DEFAULT_MAX_FRAME 16384

the initial SETTINGS_MAX_FRAME_SIZE, fixed by RFC 7540 6.5.2

Definition at line 42 of file n_http2_server.c.

Referenced by n_http2_server_new(), and srv_apply_settings().

◆ H2_DEFAULT_WINDOW

#define H2_DEFAULT_WINDOW 65535

the initial connection flow-control window, fixed by RFC 7540 6.9.2

Definition at line 40 of file n_http2_server.c.

Referenced by n_http2_server_handshake(), and n_http2_server_new().

◆ H2_SRV_RECV_WINDOW

#define H2_SRV_RECV_WINDOW H2_WIN_MAX

the connection and stream receive window we advertise

Definition at line 38 of file n_http2_server.c.

Referenced by n_http2_server_handshake().

◆ H2_WIN_MAX

#define H2_WIN_MAX 0x7FFFFFFF

the largest value a flow-control window may hold (RFC 7540 6.9.1)

Definition at line 36 of file n_http2_server.c.

Referenced by srv_apply_settings(), and srv_apply_window_update().

Function Documentation

◆ h2buf_append()

int h2buf_append	(	H2BUF *	b,
		const unsigned char *	p,
		size_t	n )

static

append n bytes to b, growing it as needed.

Returns 0 on success.

Definition at line 93 of file n_http2_server.c.

References H2BUF::cap, H2BUF::data, and H2BUF::len.

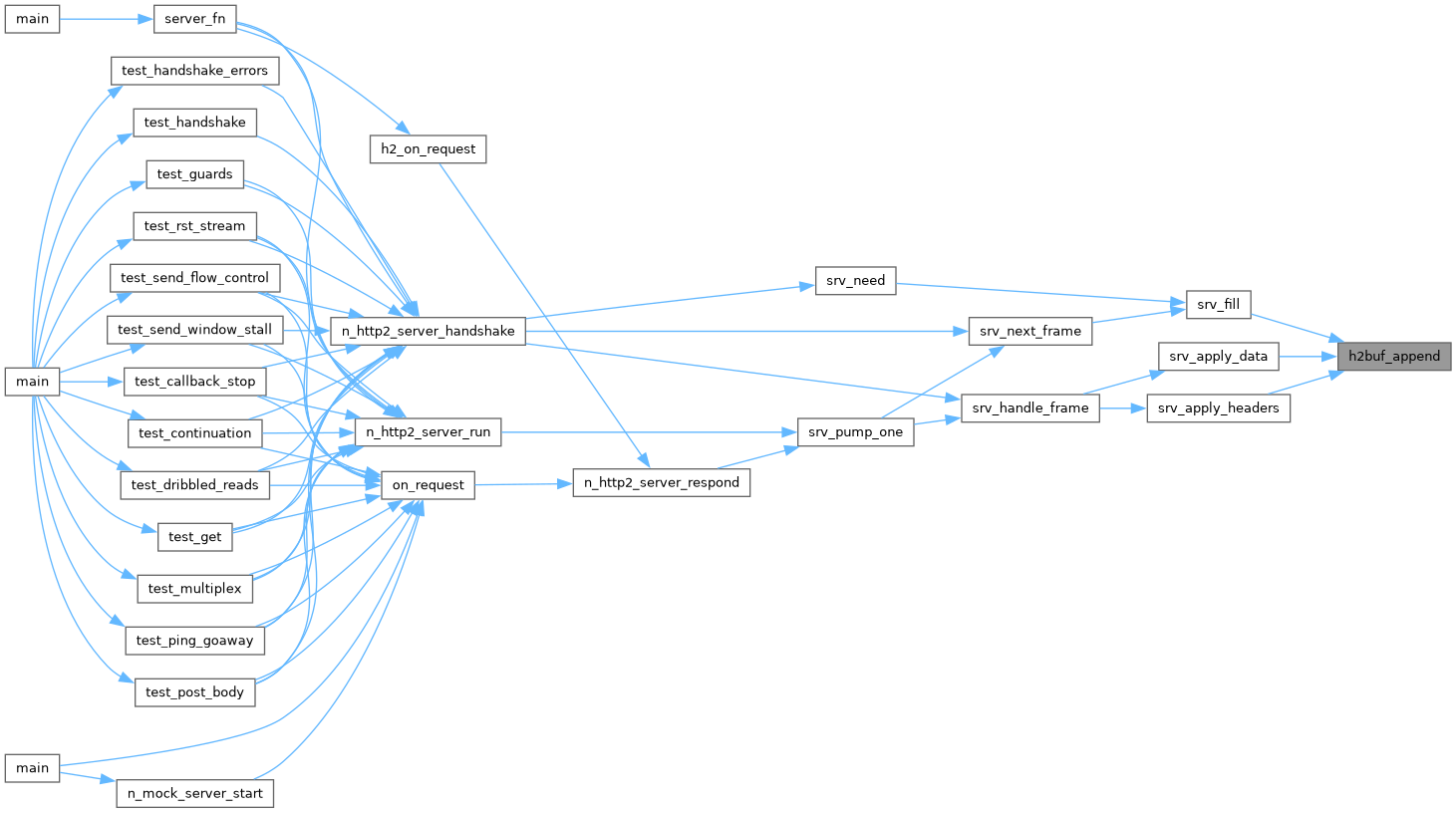

Referenced by srv_apply_data(), srv_apply_headers(), and srv_fill().

Here is the caller graph for this function:

◆ h2buf_free()

void h2buf_free ( H2BUF * b )

static

release a buffer's storage

Definition at line 123 of file n_http2_server.c.

References H2BUF::cap, H2BUF::data, and H2BUF::len.

Referenced by n_http2_server_free(), and srv_stream_close().

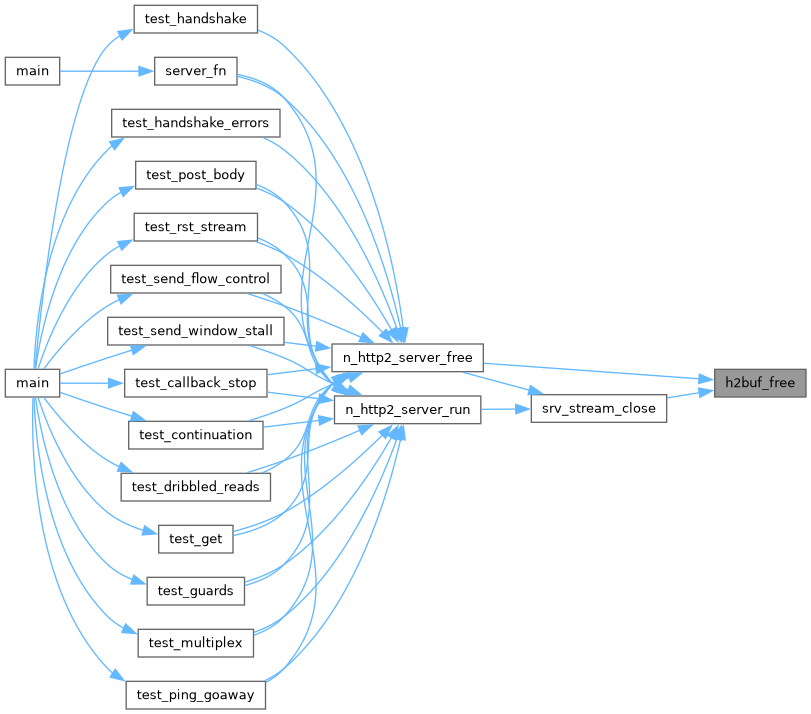

Here is the caller graph for this function:

◆ h2buf_shift()

void h2buf_shift	(	H2BUF *	b,
		size_t	n )

static

drop the first n bytes of b

Definition at line 113 of file n_http2_server.c.

References H2BUF::data, and H2BUF::len.

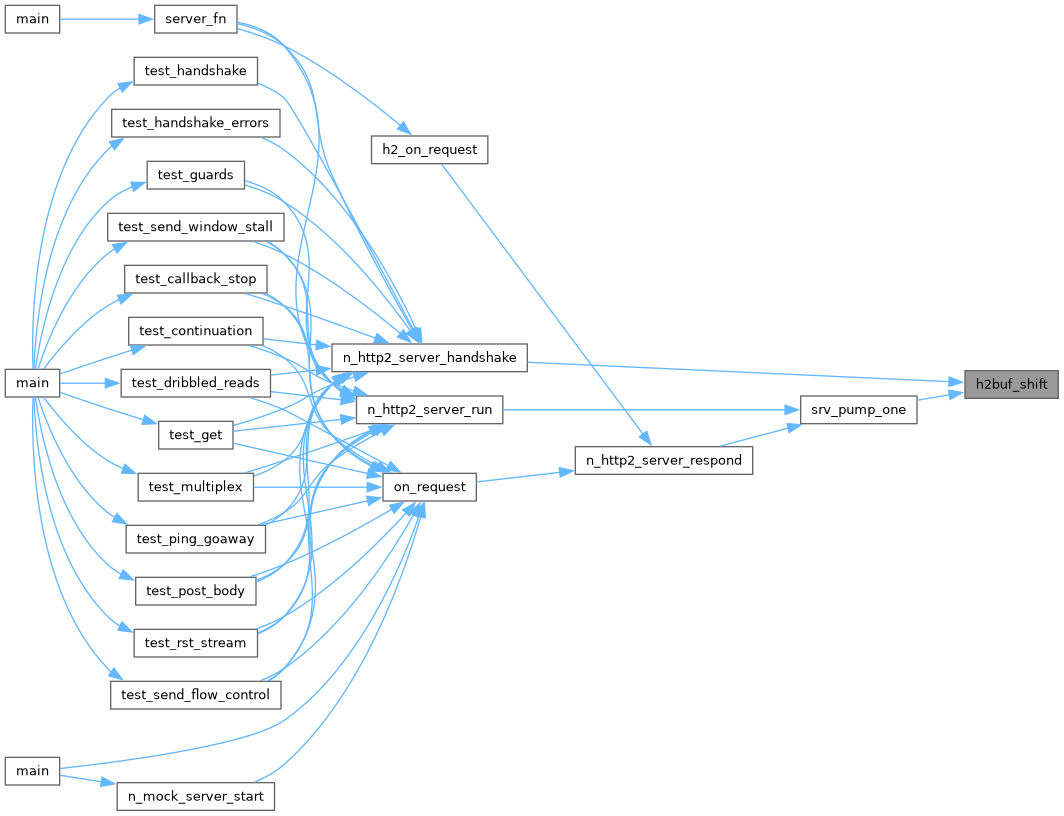

Referenced by n_http2_server_handshake(), and srv_pump_one().

Here is the caller graph for this function:

◆ n_http2_server_error()

const char * n_http2_server_error ( const N_H2_SERVER * s )

the reason the connection failed, or NULL when none was recorded

Examples: ex_http2_server.c, and ex_network_alpn.c.

Definition at line 833 of file n_http2_server.c.

References N_H2_SERVER::err.

Referenced by server_fn(), test_continuation(), test_guards(), test_handshake_errors(), and test_send_window_stall().

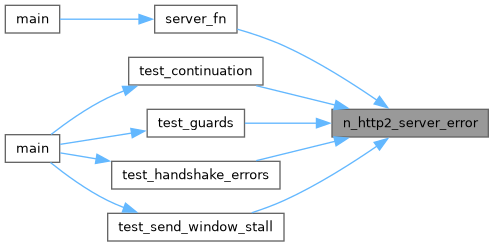

Here is the caller graph for this function:

◆ n_http2_server_free()

void n_http2_server_free ( N_H2_SERVER ** srv )

free a server connection and NULL the caller's pointer

Examples: ex_http2_server.c, and ex_network_alpn.c.

Definition at line 602 of file n_http2_server.c.

References N_H2_SERVER::dec, h2buf_free(), N_H2_SERVER::hblock, N_H2_SRV_MAX_STREAMS, n_http2_hpack_free(), N_H2_SERVER::rb, srv_stream_close(), and N_H2_SERVER::streams.

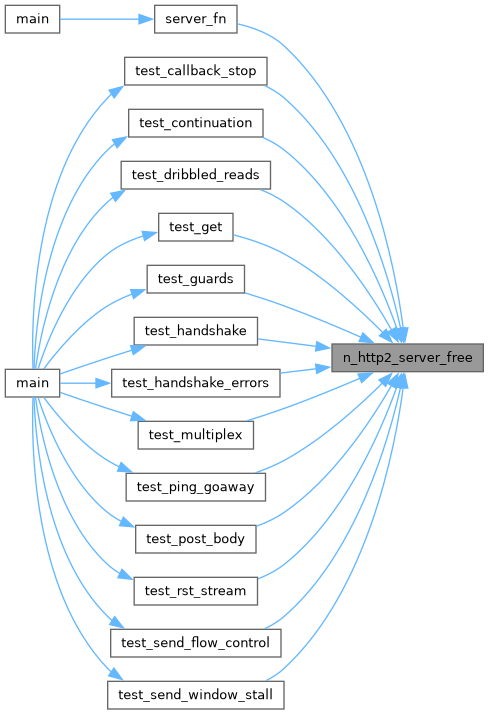

Referenced by server_fn(), test_callback_stop(), test_continuation(), test_dribbled_reads(), test_get(), test_guards(), test_handshake(), test_handshake_errors(), test_multiplex(), test_ping_goaway(), test_post_body(), test_rst_stream(), test_send_flow_control(), and test_send_window_stall().

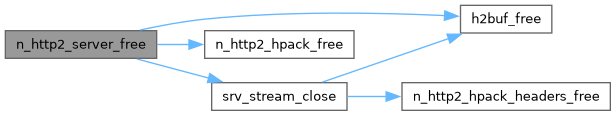

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http2_server_goaway()

int n_http2_server_goaway	(	N_H2_SERVER *	srv,
		uint32_t	error_code )

send GOAWAY, naming the last stream we processed

Parameters

srv	the server connection, not NULL
error_code	an N_H2_ERR_* code

Returns: 0 on success, -1 on error

< GOAWAY

Definition at line 817 of file n_http2_server.c.

References __n_assert, N_H2_SERVER::io_failed, N_H2_SERVER::last_stream_id, N_H2_GOAWAY, and srv_send().

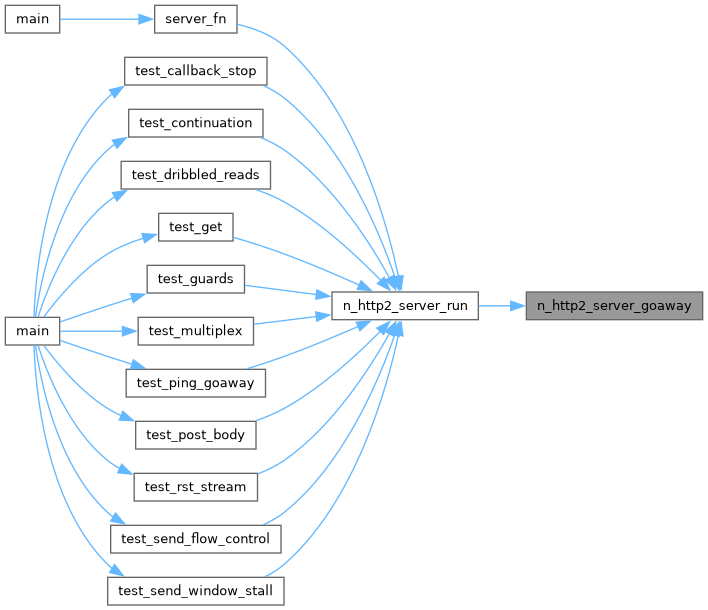

Referenced by n_http2_server_run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http2_server_handshake()

int n_http2_server_handshake ( N_H2_SERVER * srv )

read and validate the client connection preface, then send ours

Reads the 24-byte preface, requires the client's first frame to be SETTINGS (RFC 7540 3.5), acknowledges it, and sends our own SETTINGS plus the connection-level WINDOW_UPDATE that opens our receive window.

Parameters

srv	the server connection, not NULL

Returns: 0 on success, -1 on a bad preface, a protocol error, or an I/O error

< SETTINGS

< SETTINGS/PING: acknowledgement

Examples: ex_http2_server.c, and ex_network_alpn.c.

Definition at line 617 of file n_http2_server.c.

References __n_assert, H2BUF::data, N_H2_SERVER::err, N_H2_FRAME::flags, H2_DEFAULT_WINDOW, H2_SRV_RECV_WINDOW, h2buf_shift(), N_H2_FLAG_ACK, N_H2_PREFACE, N_H2_SETTINGS, N_H2_SETTINGS_ENABLE_PUSH, N_H2_SETTINGS_INITIAL_WINDOW_SIZE, N_H2_SETTINGS_MAX_CONCURRENT_STREAMS, N_H2_SRV_MAX_STREAMS, N_H2_SERVER::rb, srv_handle_frame(), srv_need(), srv_next_frame(), srv_put_setting(), srv_send(), srv_window_update(), N_H2_FRAME::stream_id, and N_H2_FRAME::type.

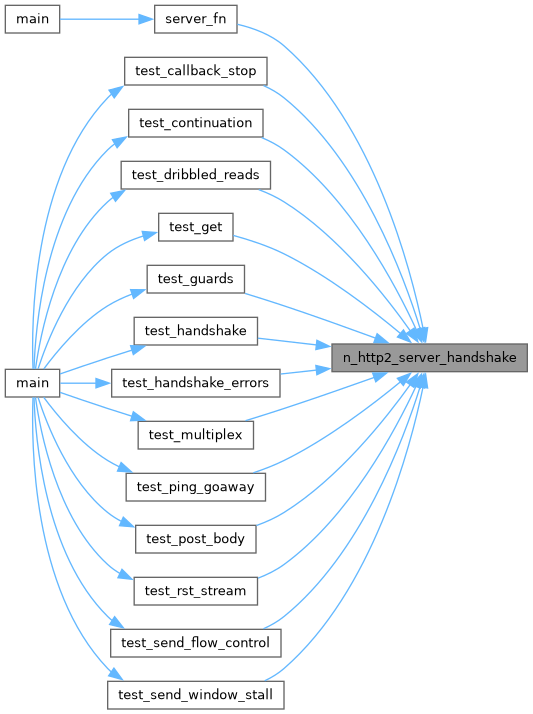

Referenced by server_fn(), test_callback_stop(), test_continuation(), test_dribbled_reads(), test_get(), test_guards(), test_handshake(), test_handshake_errors(), test_multiplex(), test_ping_goaway(), test_post_body(), test_rst_stream(), test_send_flow_control(), and test_send_window_stall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http2_server_new()

N_H2_SERVER * n_http2_server_new	(	void *	io,
		n_h2_srv_read_fn	rd,
		n_h2_srv_write_fn	wr )

create a server connection over the given I/O callbacks

Parameters

io	opaque handle handed to the callbacks
rd	read callback, not NULL
wr	write callback, not NULL

Returns: the new server, or NULL on a bad argument or an allocation failure

Examples: ex_http2_server.c, and ex_network_alpn.c.

Definition at line 579 of file n_http2_server.c.

References __n_assert, N_H2_SERVER::dec, H2_DEFAULT_MAX_FRAME, H2_DEFAULT_WINDOW, N_H2_SERVER::io, LOG_ERR, n_http2_hpack_new(), n_log, N_H2_SERVER::peer_initial_win, N_H2_SERVER::peer_max_frame, N_H2_SERVER::rd, N_H2_SERVER::send_win_conn, and N_H2_SERVER::wr.

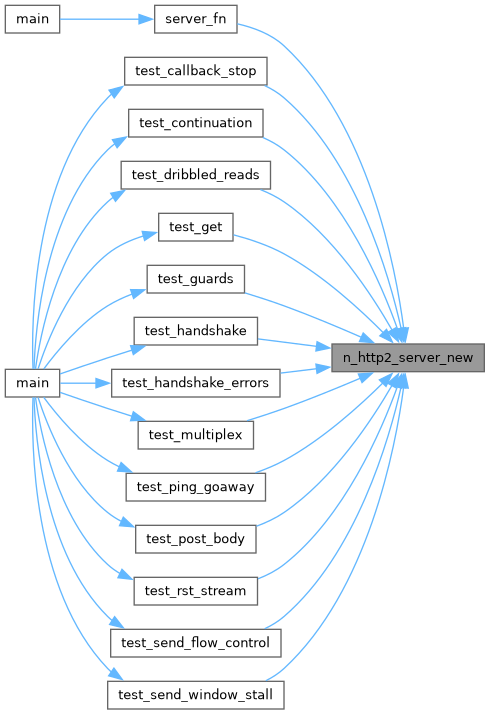

Referenced by server_fn(), test_callback_stop(), test_continuation(), test_dribbled_reads(), test_get(), test_guards(), test_handshake(), test_handshake_errors(), test_multiplex(), test_ping_goaway(), test_post_body(), test_rst_stream(), test_send_flow_control(), and test_send_window_stall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http2_server_request_count()

size_t n_http2_server_request_count ( const N_H2_SERVER * s )

the number of requests delivered to the callback so far

Examples: ex_http2_server.c.

Definition at line 837 of file n_http2_server.c.

References N_H2_SERVER::nrequests.

Referenced by test_get(), and test_guards().

Here is the caller graph for this function:

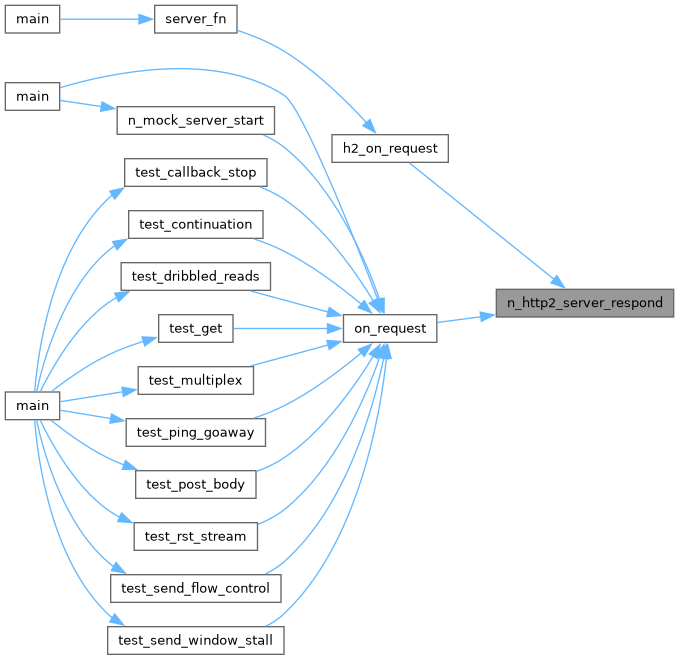

◆ n_http2_server_respond()

int n_http2_server_respond	(	N_H2_SERVER *	srv,
		uint32_t	stream_id,
		const N_H2_HEADER *	headers,
		size_t	nheaders,
		const unsigned char *	body,
		size_t	body_len )

write a complete response on a stream (HEADERS then DATA, END_STREAM)

headers must start with the :status pseudo-header and hold no connection-specific field (RFC 7540 8.1.2.2 forbids them). The body is split into DATA frames at the peer's SETTINGS_MAX_FRAME_SIZE and paced by the stream and connection send windows, pumping incoming frames whenever a window is exhausted.

Parameters

srv	the server connection, not NULL
stream_id	the stream to answer
headers	the response header fields, :status first, not NULL
nheaders	number of header fields
body	the response body, or NULL for none
body_len	the body length

Returns: 0 on success, -1 on a bad argument, a closed stream, or an I/O error

< HEADERS/PUSH_PROMISE/CONTINUATION: header block complete

< DATA/HEADERS: last frame of the stream

< HEADERS

< CONTINUATION

< DATA

< DATA/HEADERS: last frame of the stream

Examples: ex_http2_server.c, and ex_network_alpn.c.

Definition at line 725 of file n_http2_server.c.

References __n_assert, N_H2_SERVER::err, N_H2_CONTINUATION, N_H2_DATA, N_H2_FLAG_END_HEADERS, N_H2_FLAG_END_STREAM, N_H2_HEADERS, n_http2_hpack_encode(), N_H2_SERVER::peer_max_frame, H2_STREAM::reset, H2_STREAM::send_win, N_H2_SERVER::send_win_conn, srv_pump_one(), srv_send(), srv_stream_find(), and N_H2_HEADER::value.

Referenced by h2_on_request(), and on_request().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http2_server_rst_stream()

int n_http2_server_rst_stream	(	N_H2_SERVER *	srv,
		uint32_t	stream_id,
		uint32_t	error_code )

abort one stream with RST_STREAM

Parameters

srv	the server connection, not NULL
stream_id	the stream to reset
error_code	an N_H2_ERR_* code

Returns: 0 on success, -1 on error

< RST_STREAM

Definition at line 807 of file n_http2_server.c.

References __n_assert, N_H2_RST_STREAM, and srv_send().

Referenced by srv_apply_data(), and srv_apply_headers().

Here is the call graph for this function:

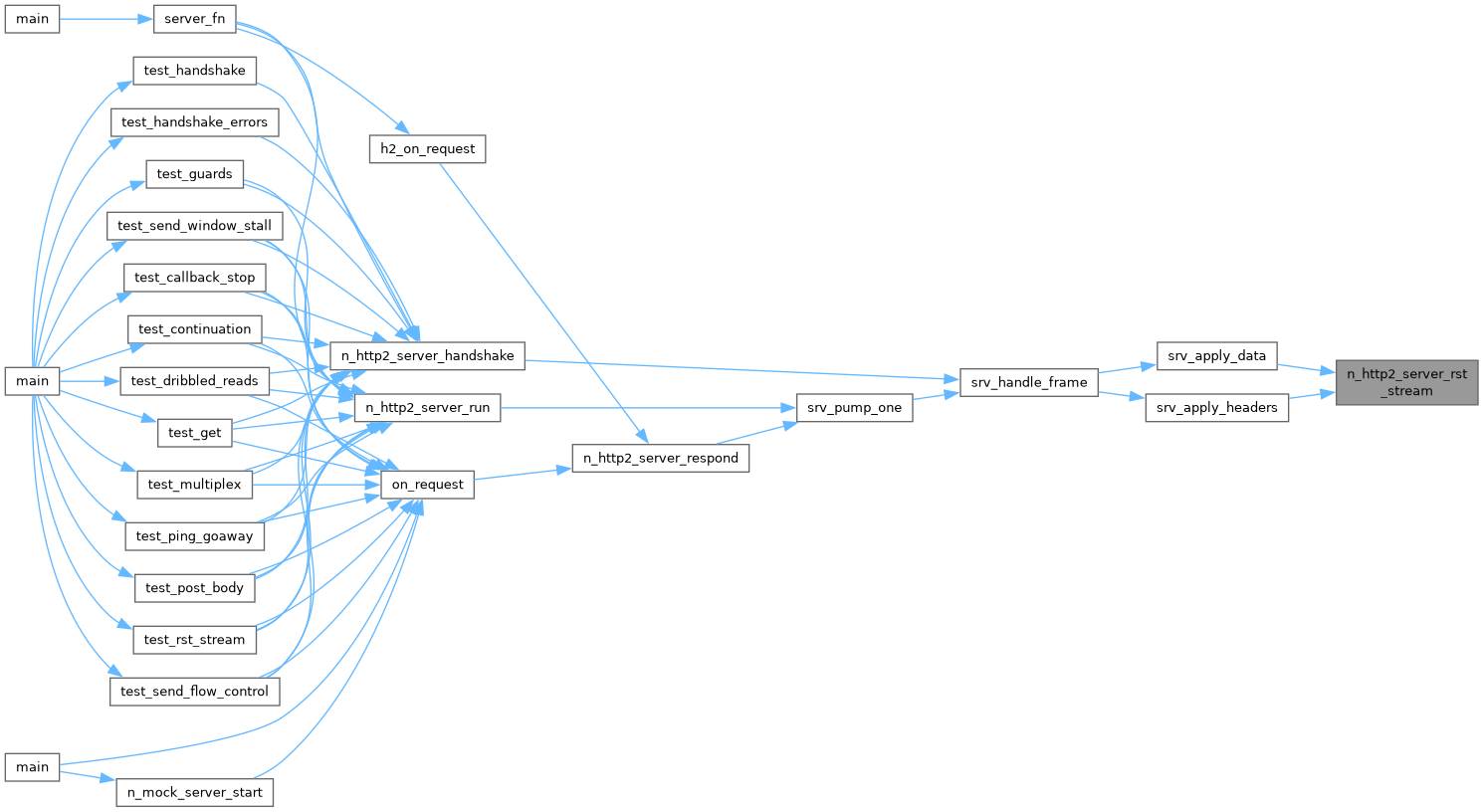

Here is the caller graph for this function:

◆ n_http2_server_run()

int n_http2_server_run	(	N_H2_SERVER *	srv,
		n_h2_srv_request_cb	cb,
		void *	user_data )

serve the connection until it ends

Reads frames, reassembles requests, and calls cb once per complete request. Returns when the peer closes or sends GOAWAY, when the callback returns -1, or on an error.

Parameters

srv	the handshaked server connection, not NULL
cb	the request callback, not NULL
user_data	opaque pointer handed to the callback

Returns: 0 when the connection ended cleanly (peer close, GOAWAY, or a callback stop), -1 on a protocol or I/O error

< graceful shutdown

Examples: ex_http2_server.c, and ex_network_alpn.c.

Definition at line 661 of file n_http2_server.c.

References __n_assert, N_H2_REQUEST::authority, H2_STREAM::body, N_H2_REQUEST::body, N_H2_REQUEST::body_len, H2BUF::data, H2_STREAM::delivered, N_H2_SERVER::eof, N_H2_SERVER::goaway_recv, H2_STREAM::hdrs, N_H2_REQUEST::headers, H2_STREAM::id, H2_STREAM::in_use, N_H2_SERVER::io_failed, H2BUF::len, N_H2_REQUEST::method, N_H2_ERR_NO_ERROR, N_H2_SRV_MAX_STREAMS, n_http2_server_goaway(), N_H2_HEADER::name, H2_STREAM::nhdrs, N_H2_REQUEST::nheaders, N_H2_SERVER::nrequests, N_H2_REQUEST::path, H2_STREAM::reset, N_H2_REQUEST::scheme, srv_next_ready(), srv_pump_one(), srv_stream_close(), srv_stream_find(), stop(), N_H2_REQUEST::stream_id, N_H2_SERVER::streams, and N_H2_HEADER::value.

Referenced by server_fn(), test_callback_stop(), test_continuation(), test_dribbled_reads(), test_get(), test_guards(), test_multiplex(), test_ping_goaway(), test_post_body(), test_rst_stream(), test_send_flow_control(), and test_send_window_stall().

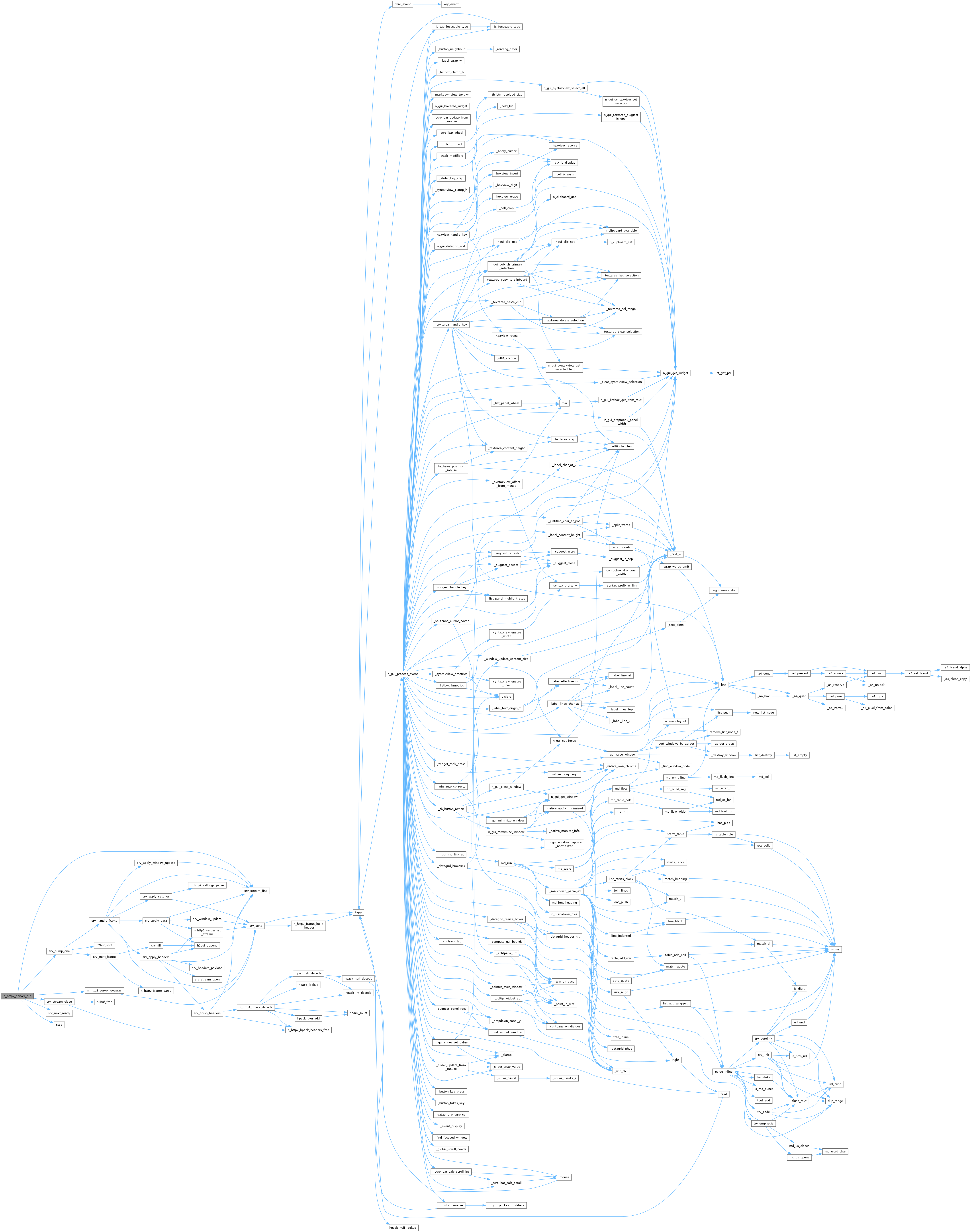

Here is the call graph for this function:

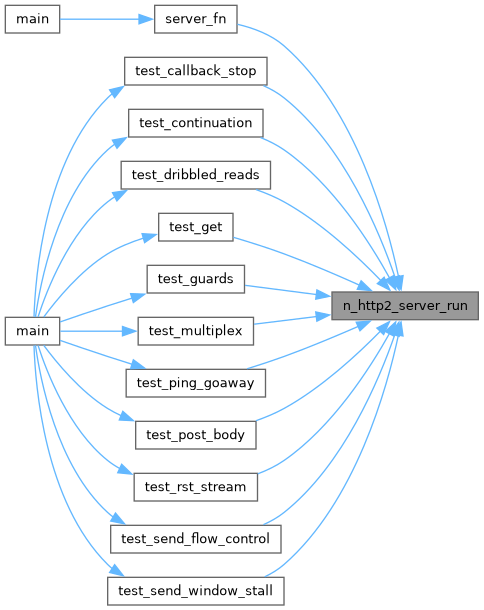

Here is the caller graph for this function:

◆ srv_apply_data()

int srv_apply_data	(	N_H2_SERVER *	s,
		const N_H2_FRAME *	fr )

static

take one DATA frame onto its stream and replenish the receive windows

< DATA/HEADERS/PUSH_PROMISE: a pad-length prefix is present

< processing capacity exceeded

< DATA/HEADERS: last frame of the stream

Definition at line 417 of file n_http2_server.c.

References H2_STREAM::body, H2_STREAM::end_stream, N_H2_SERVER::err, N_H2_FRAME::flags, h2buf_append(), H2_STREAM::id, H2BUF::len, N_H2_FRAME::length, N_H2_ERR_ENHANCE_YOUR_CALM, N_H2_FLAG_END_STREAM, N_H2_FLAG_PADDED, N_H2_SRV_MAX_BODY, n_http2_server_rst_stream(), N_H2_FRAME::payload, H2_STREAM::reset, srv_stream_find(), srv_window_update(), and N_H2_FRAME::stream_id.

Referenced by srv_handle_frame().

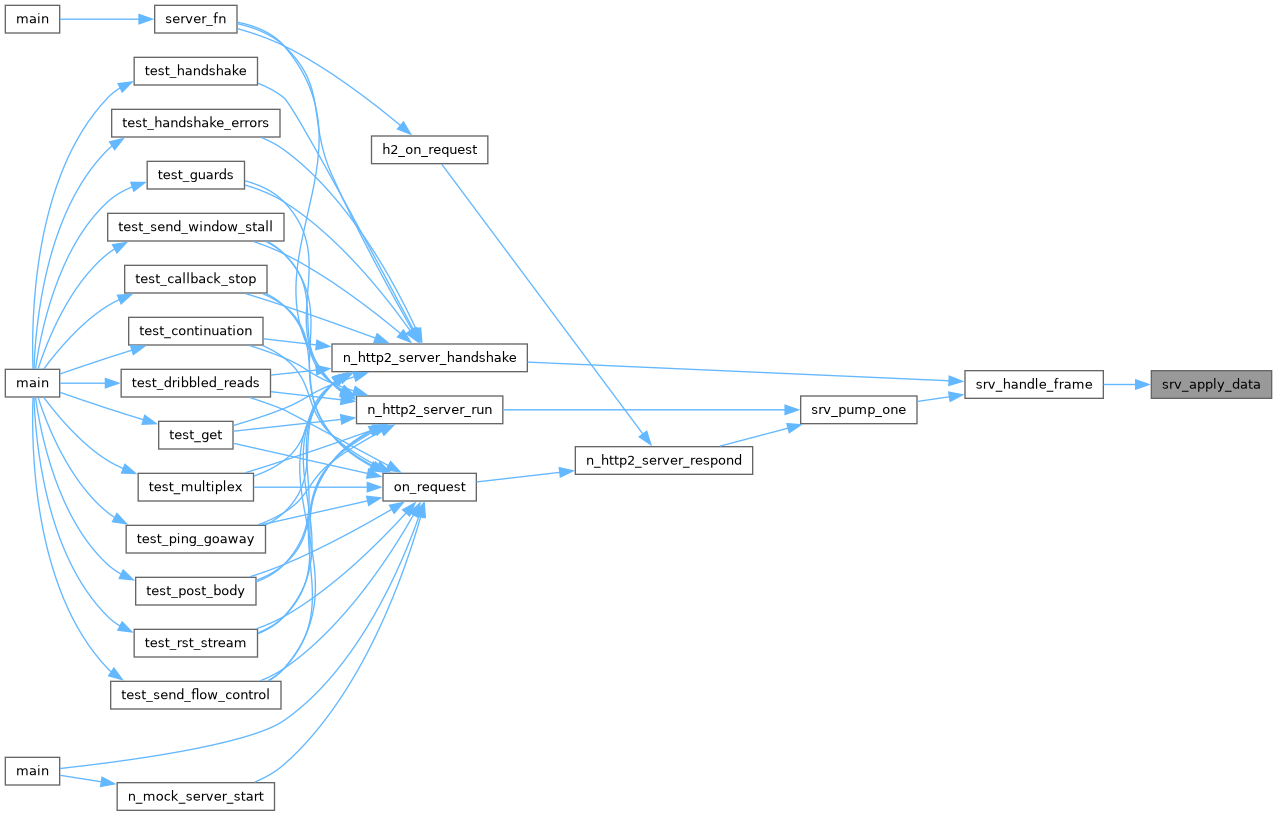

Here is the call graph for this function:

Here is the caller graph for this function:

◆ srv_apply_headers()

int srv_apply_headers	(	N_H2_SERVER *	s,
		const N_H2_FRAME *	fr )

static

take one HEADERS or CONTINUATION frame

< HEADERS

< stream not processed

< DATA/HEADERS: last frame of the stream

< HEADERS/PUSH_PROMISE/CONTINUATION: header block complete

Definition at line 463 of file n_http2_server.c.

References N_H2_SERVER::err, N_H2_FRAME::flags, h2buf_append(), N_H2_SERVER::hblock, N_H2_SERVER::hblock_end_stream, N_H2_SERVER::hblock_sid, N_H2_SERVER::last_stream_id, H2BUF::len, N_H2_FRAME::length, N_H2_ERR_REFUSED_STREAM, N_H2_FLAG_END_HEADERS, N_H2_FLAG_END_STREAM, N_H2_HEADERS, n_http2_server_rst_stream(), N_H2_FRAME::payload, srv_finish_headers(), srv_headers_payload(), srv_stream_find(), srv_stream_open(), N_H2_FRAME::stream_id, and N_H2_FRAME::type.

Referenced by srv_handle_frame().

Here is the call graph for this function:

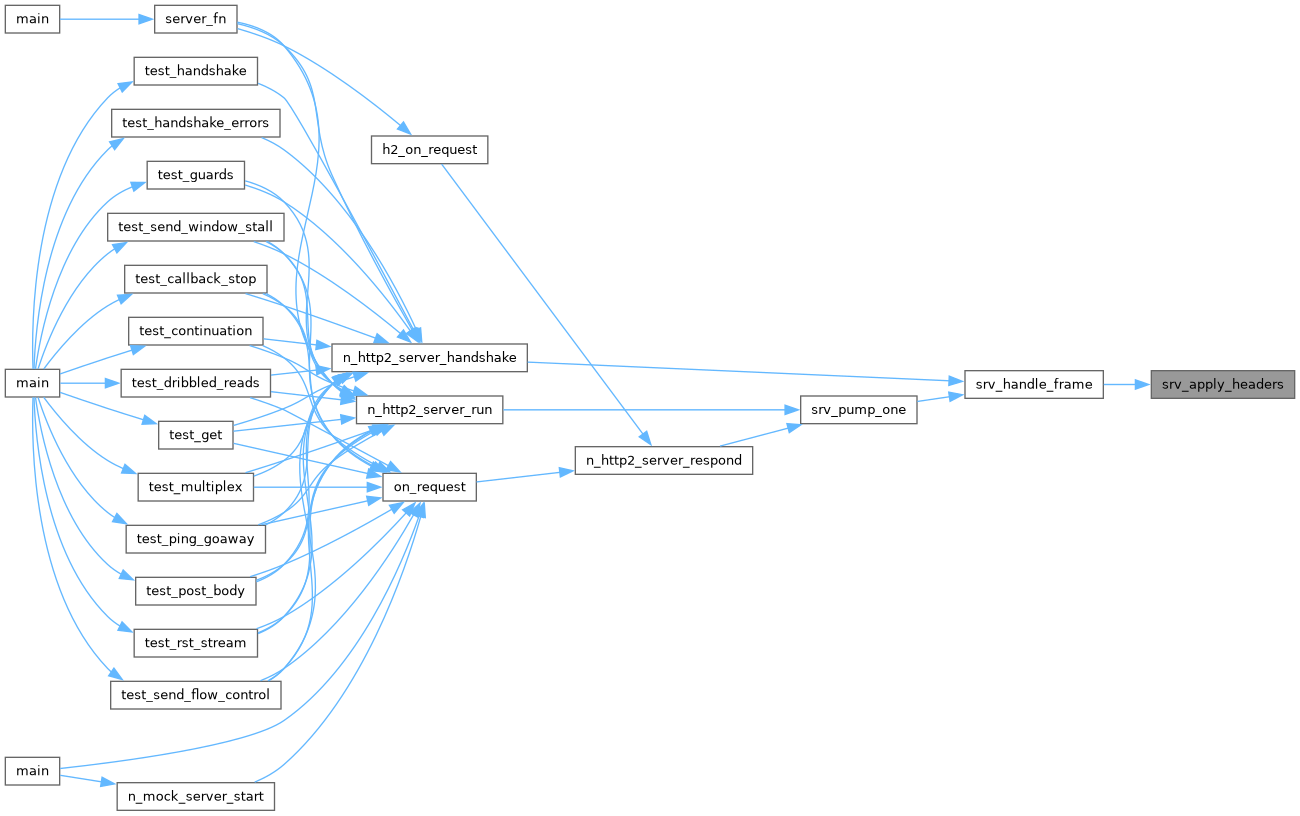

Here is the caller graph for this function:

◆ srv_apply_settings()

int srv_apply_settings	(	N_H2_SERVER *	s,
		const N_H2_FRAME *	fr )

static

apply a peer SETTINGS payload to our send-side state

< SETTINGS

< SETTINGS/PING: acknowledgement

Definition at line 358 of file n_http2_server.c.

References N_H2_SERVER::err, H2_DEFAULT_MAX_FRAME, H2_WIN_MAX, H2_STREAM::in_use, N_H2_FRAME::length, N_H2_FLAG_ACK, N_H2_MAX_FRAME_PAYLOAD, N_H2_SETTINGS, N_H2_SETTINGS_INITIAL_WINDOW_SIZE, N_H2_SETTINGS_MAX_FRAME_SIZE, N_H2_SRV_MAX_STREAMS, n_http2_settings_parse(), N_H2_FRAME::payload, N_H2_SERVER::peer_initial_win, N_H2_SERVER::peer_max_frame, H2_STREAM::send_win, srv_send(), N_H2_SERVER::streams, and N_H2_SETTING::value.

Referenced by srv_handle_frame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ srv_apply_window_update()

int srv_apply_window_update	(	N_H2_SERVER *	s,
		const N_H2_FRAME *	fr )

static

add a WINDOW_UPDATE increment to the matching send window

Definition at line 394 of file n_http2_server.c.

References N_H2_SERVER::err, H2_WIN_MAX, N_H2_FRAME::length, N_H2_FRAME::payload, H2_STREAM::send_win, N_H2_SERVER::send_win_conn, srv_stream_find(), and N_H2_FRAME::stream_id.

Referenced by srv_handle_frame().

Here is the call graph for this function:

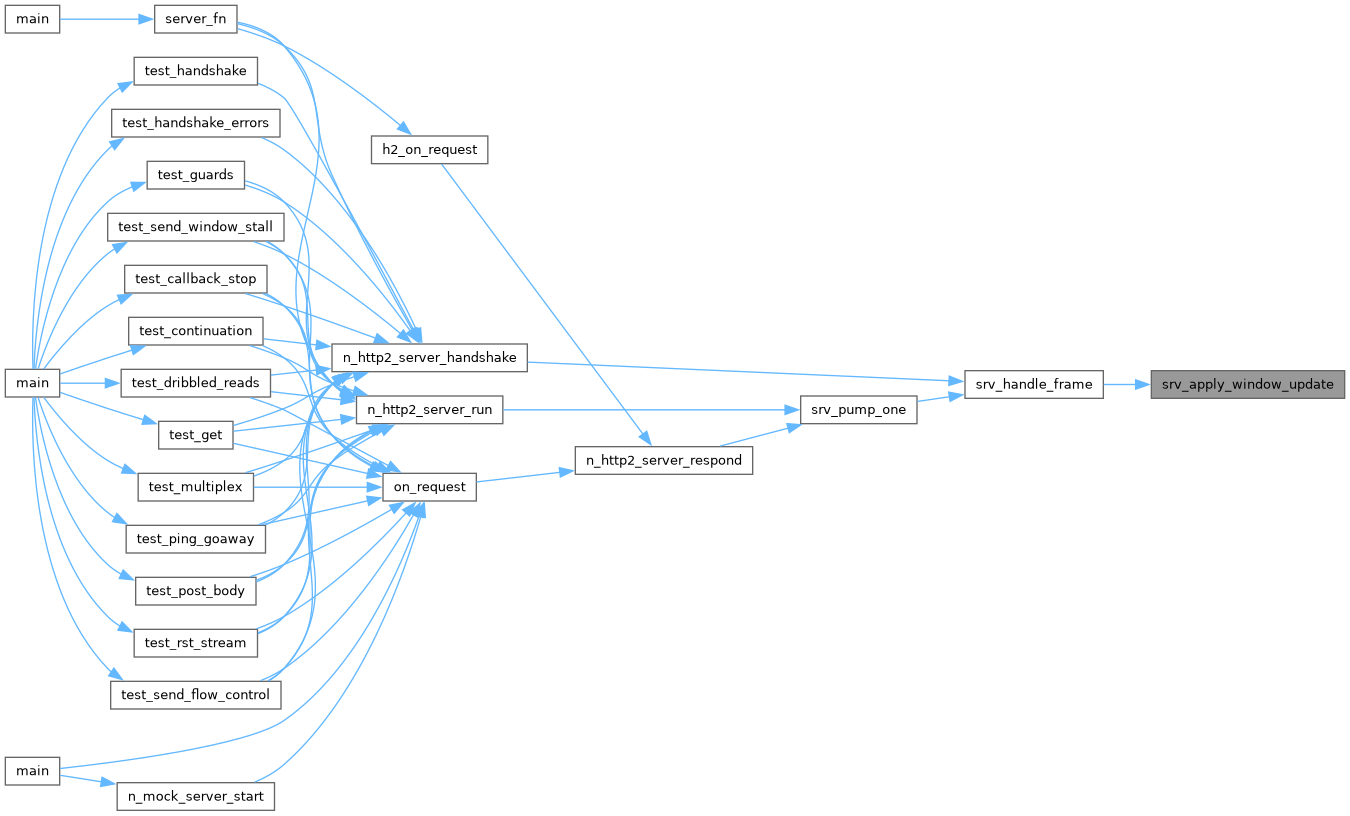

Here is the caller graph for this function:

◆ srv_fill()

int srv_fill ( N_H2_SERVER * s )

static

pull one chunk from the peer into the read buffer.

Returns 1 on bytes read, 0 on a clean end of stream, -1 on an I/O error.

Definition at line 179 of file n_http2_server.c.

References N_H2_SERVER::eof, N_H2_SERVER::err, h2buf_append(), N_H2_SERVER::io, N_H2_SERVER::io_failed, N_H2_SRV_READ_CHUNK, N_H2_SERVER::rb, and N_H2_SERVER::rd.

Referenced by srv_need(), and srv_next_frame().

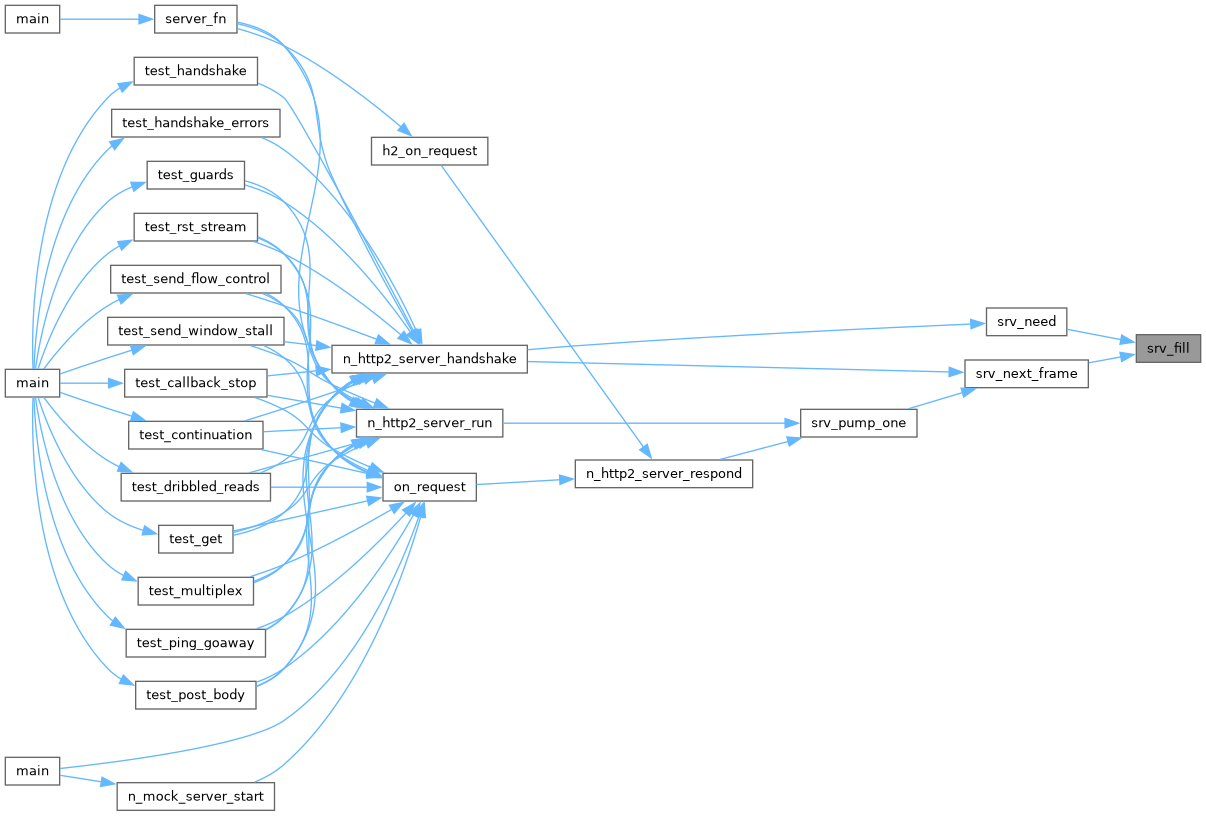

Here is the call graph for this function:

Here is the caller graph for this function:

◆ srv_finish_headers()

int srv_finish_headers ( N_H2_SERVER * s )

static

HPACK-decode the accumulated header block onto its stream.

Returns 0 on success, -1 on a connection error.

Definition at line 287 of file n_http2_server.c.

References H2BUF::data, N_H2_SERVER::dec, H2_STREAM::end_stream, N_H2_SERVER::err, N_H2_SERVER::hblock, N_H2_SERVER::hblock_end_stream, N_H2_SERVER::hblock_sid, H2_STREAM::hdrs, H2_STREAM::headers_done, H2BUF::len, N_H2_SRV_MAX_HEADERS, n_http2_hpack_decode(), n_http2_hpack_headers_free(), H2_STREAM::nhdrs, H2_STREAM::reset, and srv_stream_find().

Referenced by srv_apply_headers().

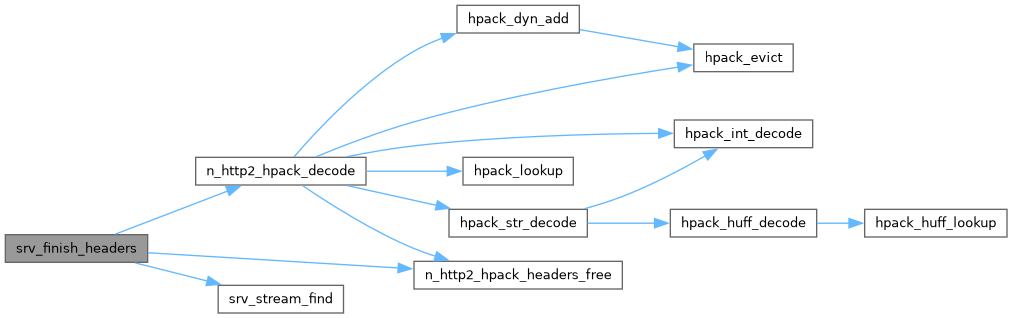

Here is the call graph for this function:

Here is the caller graph for this function:

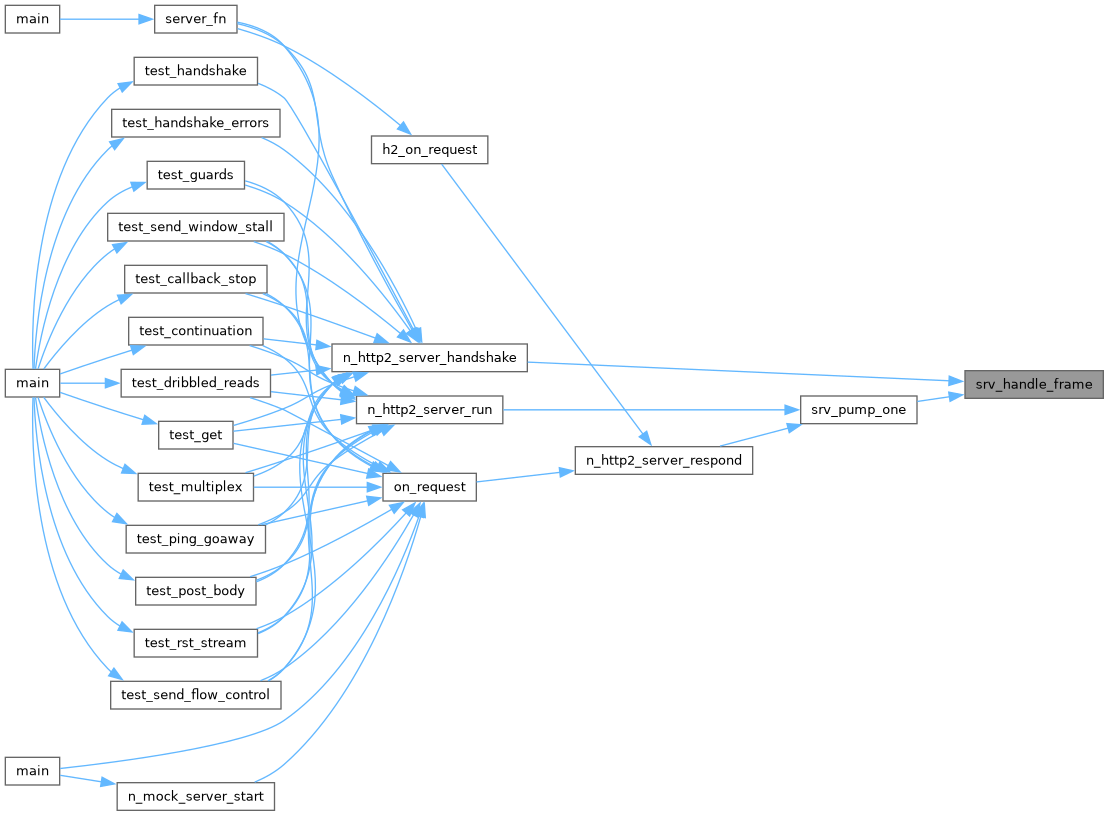

◆ srv_handle_frame()

int srv_handle_frame	(	N_H2_SERVER *	s,
		const N_H2_FRAME *	fr )

static

handle one received frame.

Returns 0 on success, -1 on a connection error (s->err set).

< CONTINUATION

< HEADERS

< CONTINUATION

< DATA

< SETTINGS

< SETTINGS/PING: acknowledgement

< PING

< SETTINGS/PING: acknowledgement

< PING

< SETTINGS/PING: acknowledgement

< WINDOW_UPDATE

< RST_STREAM

< GOAWAY

< PUSH_PROMISE

< PRIORITY

Definition at line 512 of file n_http2_server.c.

References N_H2_SERVER::err, N_H2_FRAME::flags, N_H2_SERVER::goaway_recv, N_H2_SERVER::hblock_sid, N_H2_FRAME::length, LOG_DEBUG, N_H2_CONTINUATION, N_H2_DATA, N_H2_FLAG_ACK, N_H2_GOAWAY, N_H2_HEADERS, N_H2_PING, N_H2_PRIORITY, N_H2_PUSH_PROMISE, N_H2_RST_STREAM, N_H2_SETTINGS, N_H2_WINDOW_UPDATE, n_log, N_H2_FRAME::payload, H2_STREAM::reset, N_H2_SERVER::settings_acked, srv_apply_data(), srv_apply_headers(), srv_apply_settings(), srv_apply_window_update(), srv_send(), srv_stream_find(), N_H2_FRAME::stream_id, and N_H2_FRAME::type.

Referenced by n_http2_server_handshake(), and srv_pump_one().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ srv_headers_payload()

int srv_headers_payload	(	const N_H2_FRAME *	fr,
		const unsigned char **	p_out,
		size_t *	len_out )

static

strip the pad-length prefix and priority fields of a HEADERS payload.

Returns 0 on success, -1 when the framing is inconsistent.

< DATA/HEADERS/PUSH_PROMISE: a pad-length prefix is present

< HEADERS: priority fields are present

Definition at line 328 of file n_http2_server.c.

References N_H2_FRAME::flags, N_H2_FRAME::length, N_H2_FLAG_PADDED, N_H2_FLAG_PRIORITY, and N_H2_FRAME::payload.

Referenced by srv_apply_headers().

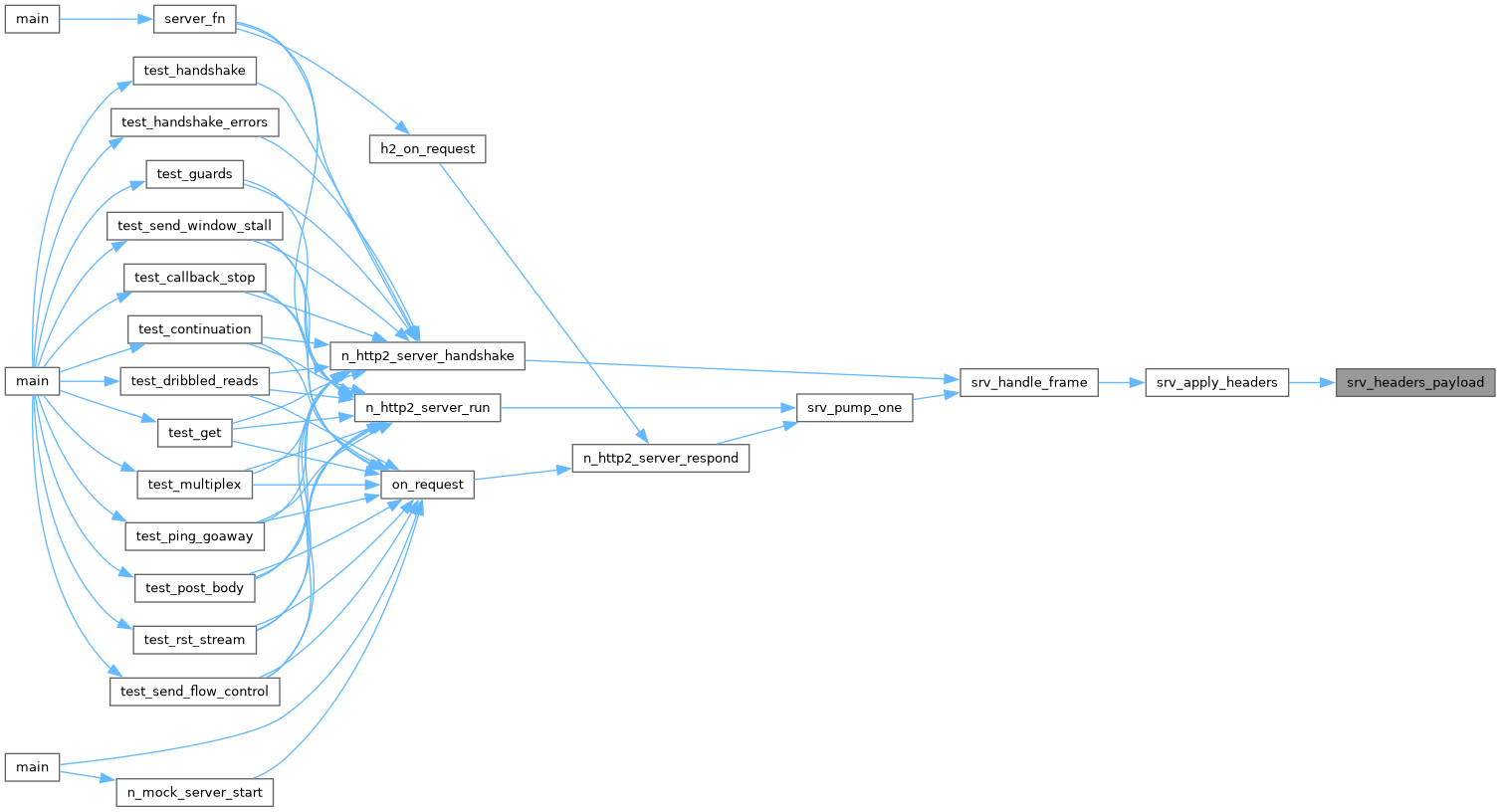

Here is the caller graph for this function:

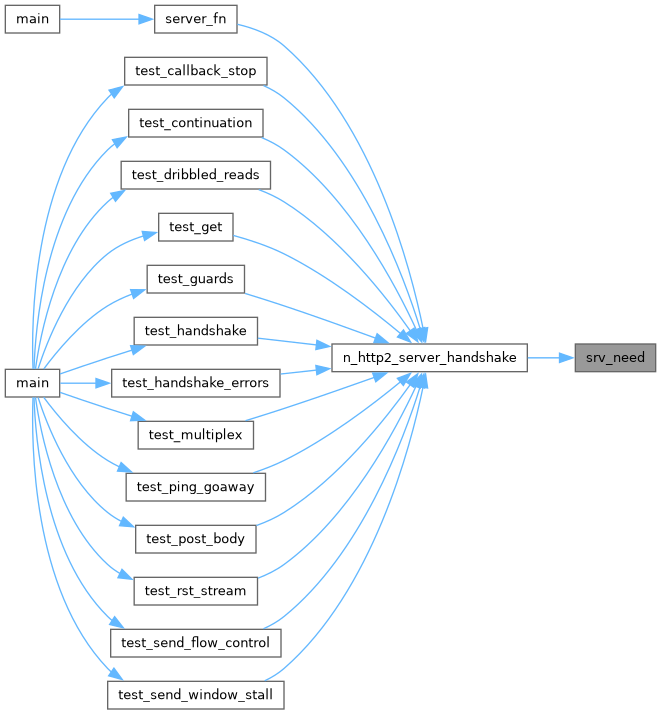

◆ srv_need()

int srv_need	(	N_H2_SERVER *	s,
		size_t	n )

static

make sure at least n bytes are buffered.

Returns 1 on success, 0 on a short read at end of stream, -1 on an I/O error.

Definition at line 200 of file n_http2_server.c.

References H2BUF::len, N_H2_SERVER::rb, and srv_fill().

Referenced by n_http2_server_handshake().

Here is the call graph for this function:

Here is the caller graph for this function:

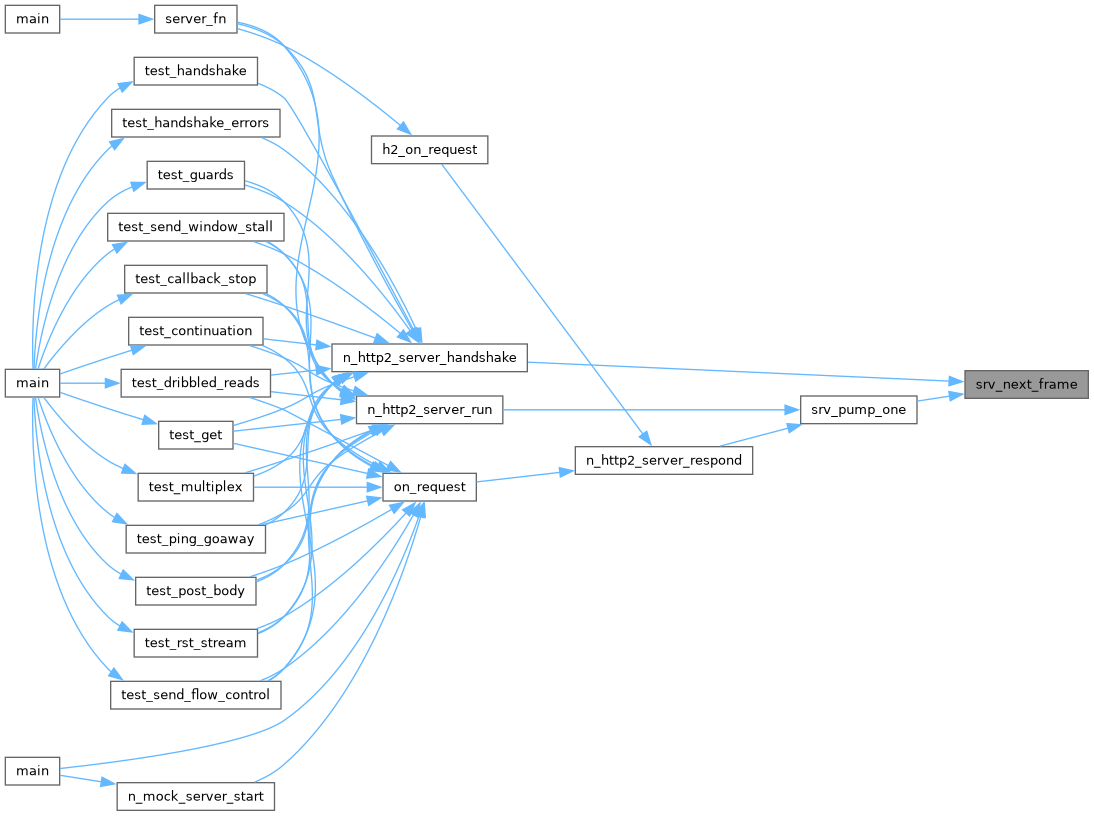

◆ srv_next_frame()

int srv_next_frame	(	N_H2_SERVER *	s,
		N_H2_FRAME *	fr,
		size_t *	consumed )

static

read the next complete frame into fr (aliasing the read buffer).

Returns 1 on a frame, 0 at end of stream, -1 on an error.

Definition at line 211 of file n_http2_server.c.

References H2BUF::data, N_H2_SERVER::err, H2BUF::len, n_http2_frame_parse(), N_H2_SERVER::rb, and srv_fill().

Referenced by n_http2_server_handshake(), and srv_pump_one().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ srv_next_ready()

H2_STREAM * srv_next_ready ( N_H2_SERVER * s )

static

the lowest-numbered stream whose request is complete and undelivered

Definition at line 269 of file n_http2_server.c.

References H2_STREAM::delivered, H2_STREAM::end_stream, H2_STREAM::headers_done, H2_STREAM::id, H2_STREAM::in_use, N_H2_SRV_MAX_STREAMS, H2_STREAM::reset, and N_H2_SERVER::streams.

Referenced by n_http2_server_run().

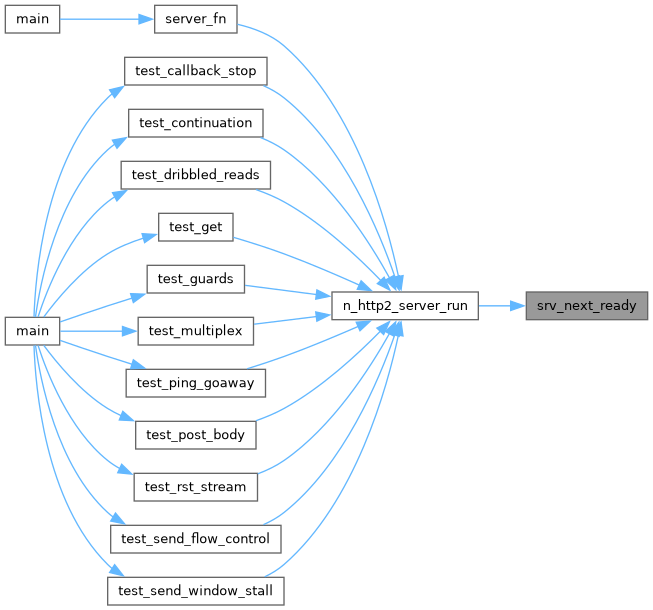

Here is the caller graph for this function:

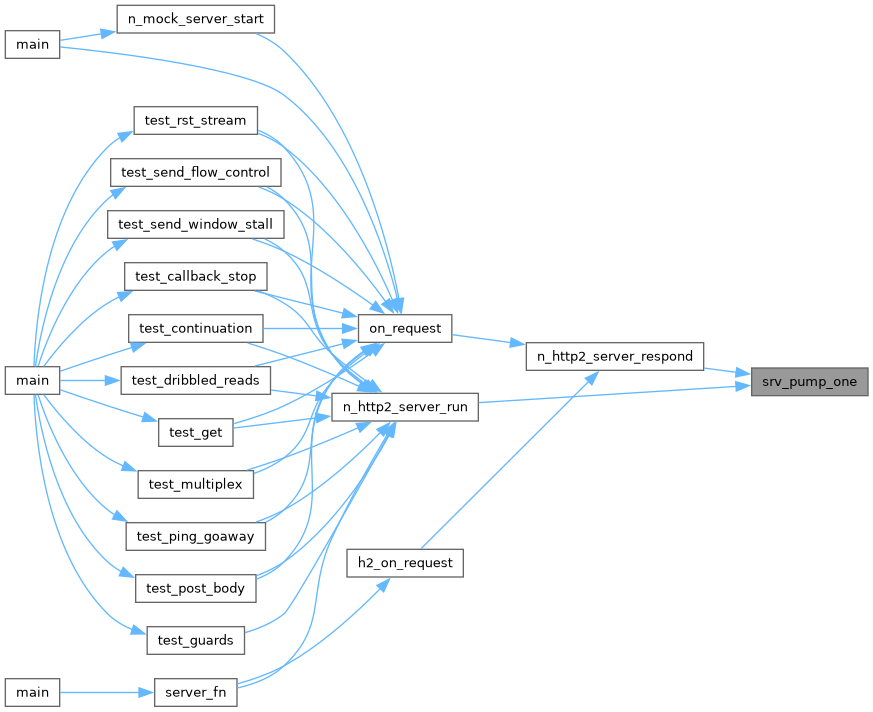

◆ srv_pump_one()

int srv_pump_one ( N_H2_SERVER * s )

static

read and handle one frame.

Returns 1 on a handled frame, 0 at end of stream, -1 on an error.

Definition at line 564 of file n_http2_server.c.

References h2buf_shift(), N_H2_SERVER::rb, srv_handle_frame(), and srv_next_frame().

Referenced by n_http2_server_respond(), and n_http2_server_run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ srv_put_setting()

void srv_put_setting	(	unsigned char *	out,
		uint16_t	id,
		uint32_t	value )

static

write one 6-byte SETTINGS entry (identifier then value) into out

Definition at line 168 of file n_http2_server.c.

Referenced by n_http2_server_handshake().

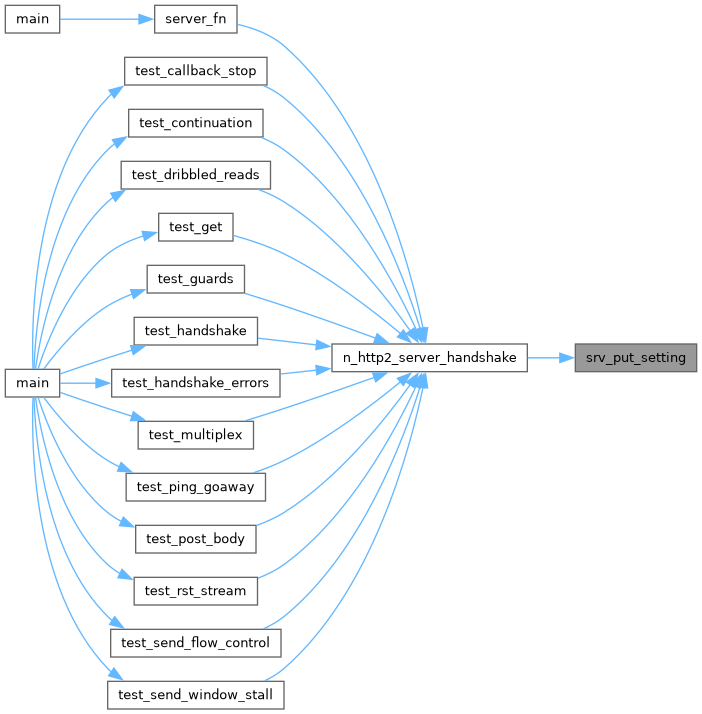

Here is the caller graph for this function:

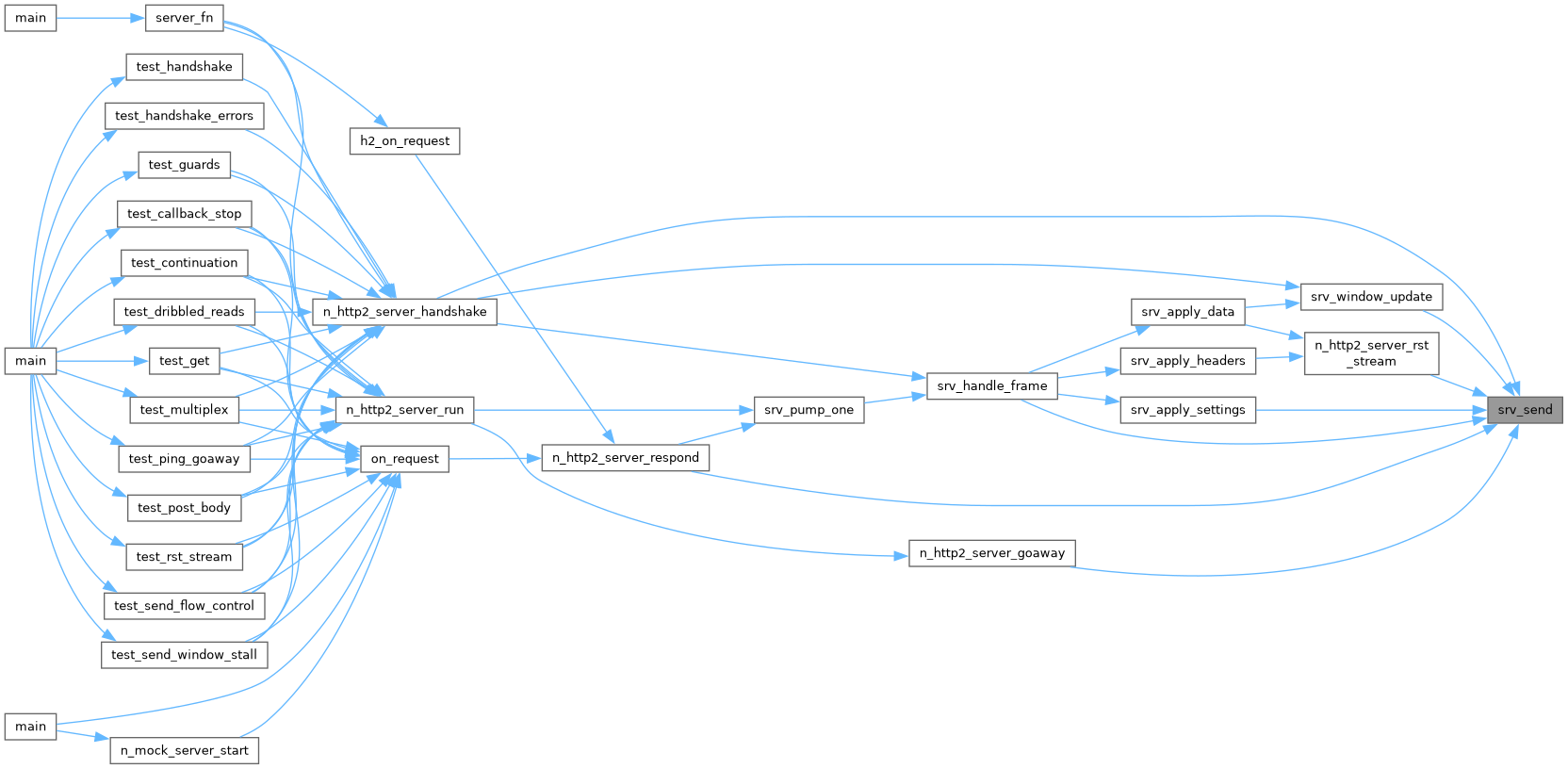

◆ srv_send()

int srv_send	(	N_H2_SERVER *	s,
		int	type,
		int	flags,
		uint32_t	sid,
		const unsigned char *	payload,
		size_t	len )

static

write one frame (header then payload).

Returns 0 on success, -1 on a write failure (which also latches io_failed).

Definition at line 136 of file n_http2_server.c.

References N_H2_SERVER::err, N_H2_SERVER::io, N_H2_SERVER::io_failed, N_H2_FRAME_HEADER_LEN, n_http2_frame_build_header(), type(), and N_H2_SERVER::wr.

Referenced by n_http2_server_goaway(), n_http2_server_handshake(), n_http2_server_respond(), n_http2_server_rst_stream(), srv_apply_settings(), srv_handle_frame(), and srv_window_update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ srv_stream_close()

void srv_stream_close ( H2_STREAM * st )

static

release a stream slot and everything it owns

Definition at line 257 of file n_http2_server.c.

References H2_STREAM::body, h2buf_free(), H2_STREAM::hdrs, H2_STREAM::in_use, n_http2_hpack_headers_free(), and H2_STREAM::nhdrs.

Referenced by n_http2_server_free(), and n_http2_server_run().

Here is the call graph for this function:

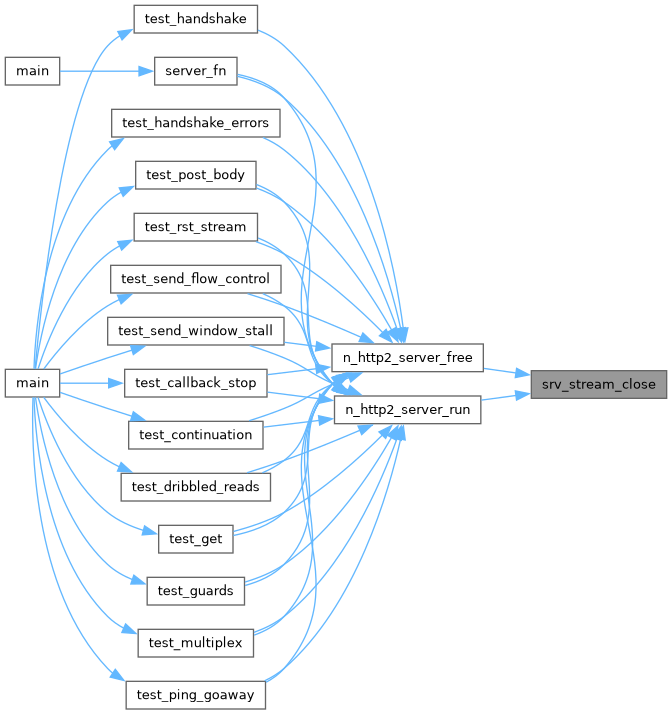

Here is the caller graph for this function:

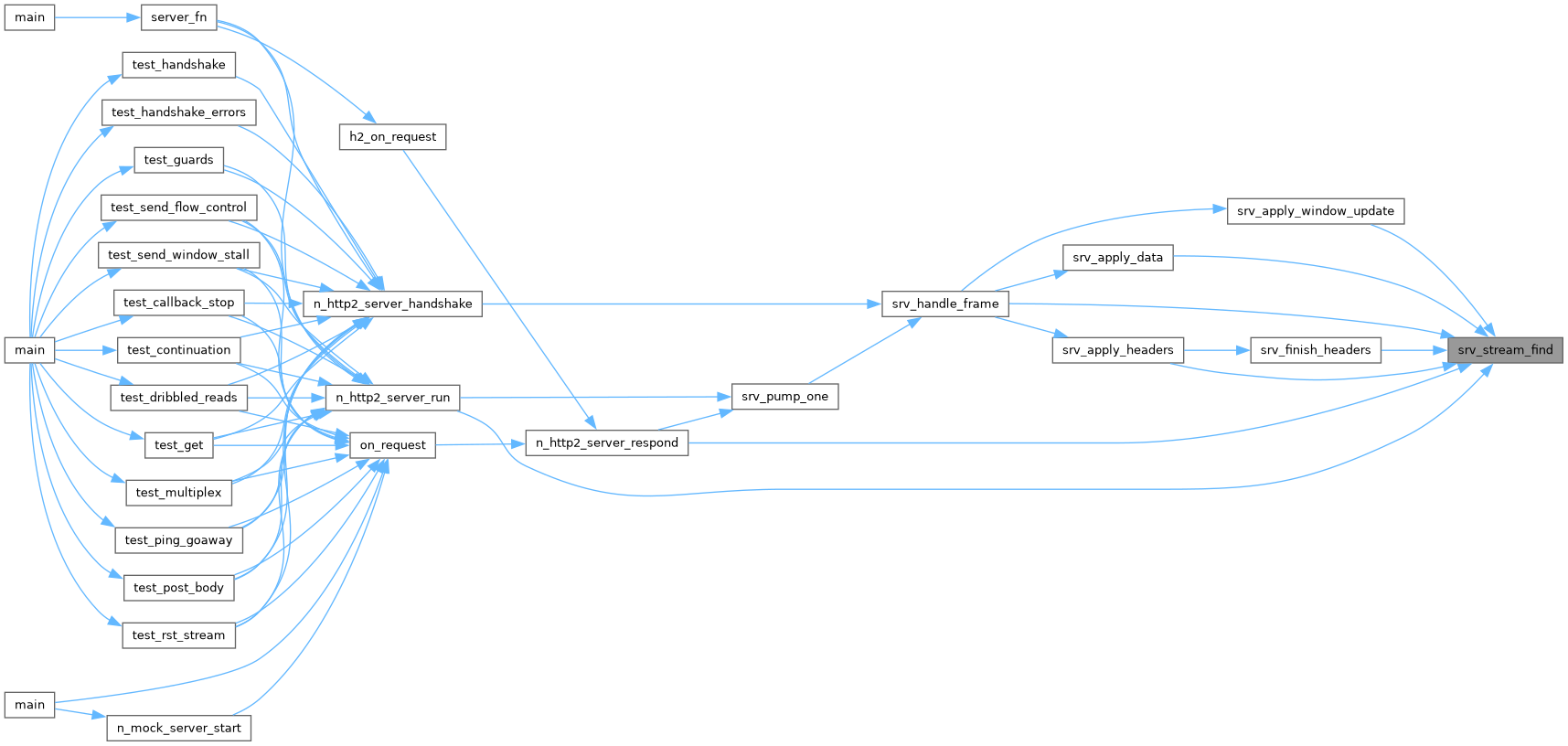

◆ srv_stream_find()

H2_STREAM * srv_stream_find	(	N_H2_SERVER *	s,
		uint32_t	id )

static

the stream with this id, or NULL

Definition at line 232 of file n_http2_server.c.

References H2_STREAM::id, H2_STREAM::in_use, N_H2_SRV_MAX_STREAMS, and N_H2_SERVER::streams.

Referenced by n_http2_server_respond(), n_http2_server_run(), srv_apply_data(), srv_apply_headers(), srv_apply_window_update(), srv_finish_headers(), and srv_handle_frame().

Here is the caller graph for this function:

◆ srv_stream_open()

H2_STREAM * srv_stream_open	(	N_H2_SERVER *	s,
		uint32_t	id )

static

open a stream, or NULL when the table is full

Definition at line 241 of file n_http2_server.c.

References H2_STREAM::id, H2_STREAM::in_use, N_H2_SRV_MAX_STREAMS, N_H2_SERVER::peer_initial_win, H2_STREAM::send_win, and N_H2_SERVER::streams.

Referenced by srv_apply_headers().

Here is the caller graph for this function:

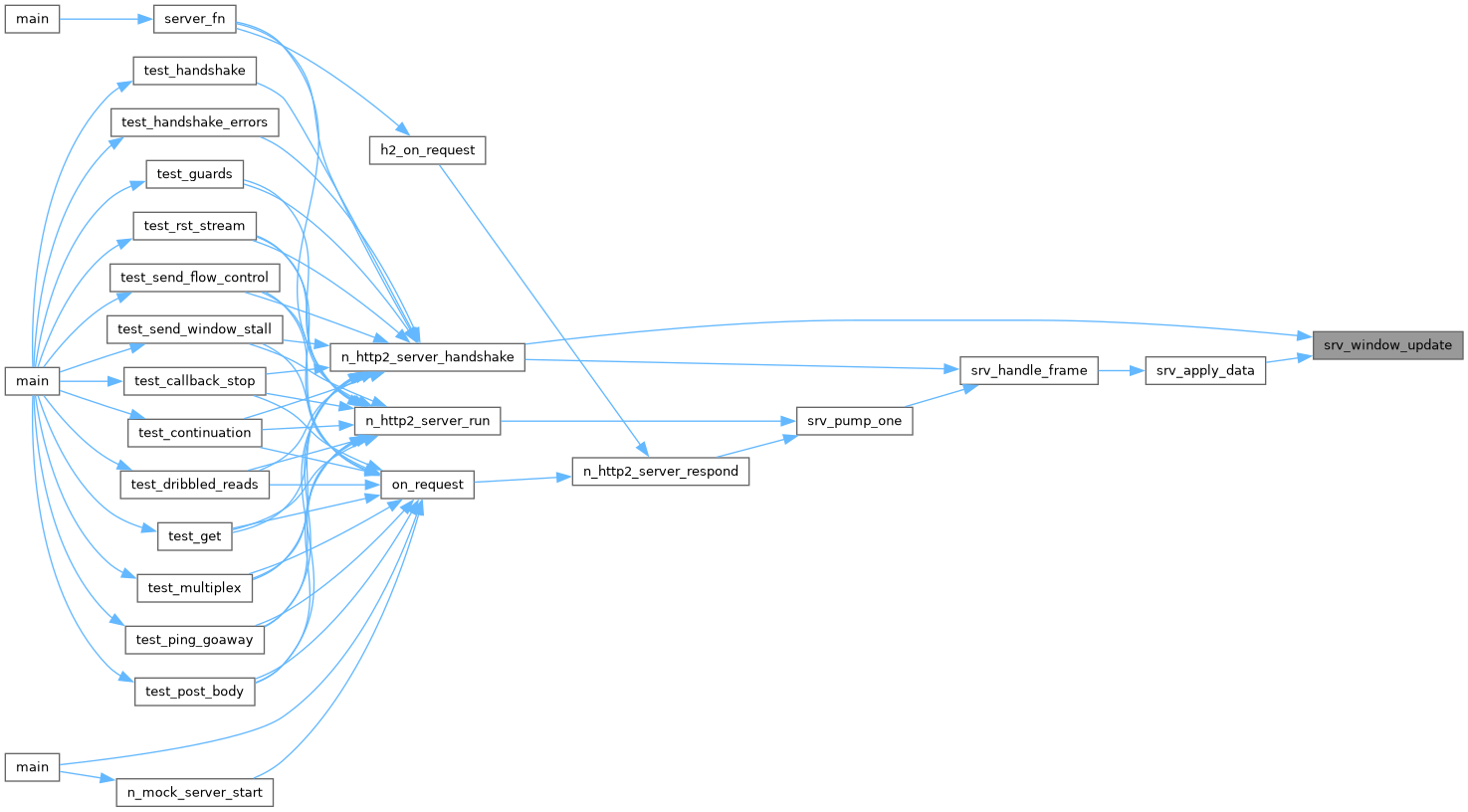

◆ srv_window_update()

int srv_window_update	(	N_H2_SERVER *	s,
		uint32_t	sid,
		uint32_t	inc )

static

send a WINDOW_UPDATE for sid with the given increment

< WINDOW_UPDATE

Definition at line 156 of file n_http2_server.c.

References N_H2_WINDOW_UPDATE, and srv_send().

Referenced by n_http2_server_handshake(), and srv_apply_data().

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Macros

Functions

Detailed Description

Data Structure Documentation

◆ H2_STREAM

◆ H2BUF

◆ N_H2_SERVER

Macro Definition Documentation

◆ H2_DEFAULT_MAX_FRAME

◆ H2_DEFAULT_WINDOW

◆ H2_SRV_RECV_WINDOW

◆ H2_WIN_MAX

Function Documentation

◆ h2buf_append()

◆ h2buf_free()

◆ h2buf_shift()

◆ n_http2_server_error()

◆ n_http2_server_free()

◆ n_http2_server_goaway()

◆ n_http2_server_handshake()

◆ n_http2_server_new()

◆ n_http2_server_request_count()

◆ n_http2_server_respond()

◆ n_http2_server_rst_stream()

◆ n_http2_server_run()

◆ srv_apply_data()

◆ srv_apply_headers()

◆ srv_apply_settings()

◆ srv_apply_window_update()

◆ srv_fill()

◆ srv_finish_headers()

◆ srv_handle_frame()

◆ srv_headers_payload()

◆ srv_need()

◆ srv_next_frame()

◆ srv_next_ready()

◆ srv_pump_one()

◆ srv_put_setting()

◆ srv_send()

◆ srv_stream_close()

◆ srv_stream_find()

◆ srv_stream_open()

◆ srv_window_update()
