HTTP/2 (RFC 7540) server-side connection and stream state machine. More...

#include "n_http2.h"
#include <stddef.h>
#include <stdint.h>
#include <sys/types.h>

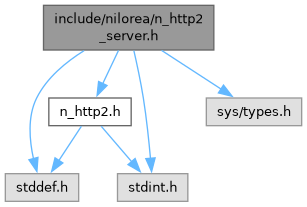

Include dependency graph for n_http2_server.h:

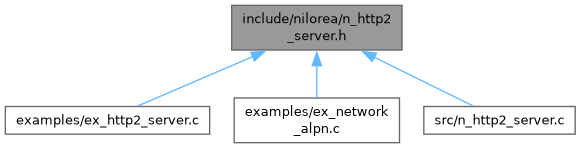

This graph shows which files directly or indirectly include this file:

Data Structures
struct	N_H2_REQUEST
	one complete request received on a stream; every pointer is owned by the server and valid only for the duration of the request callback More...

Macros
#define	N_H2_SRV_MAX_BODY (16 * 1024 * 1024)
	largest request body accumulated for one stream
#define	N_H2_SRV_MAX_HEADERS 128
	largest number of header fields decoded from one request
#define	N_H2_SRV_MAX_STREAMS 128
	largest number of streams tracked at once on one connection
#define	N_H2_SRV_READ_CHUNK 16384
	bytes pulled from the read callback per call
HTTP/2 error codes (RFC 7540 7)
#define	N_H2_ERR_CANCEL 0x8
	stream cancelled
#define	N_H2_ERR_COMPRESSION_ERROR 0x9
	HPACK compression state not updated.
#define	N_H2_ERR_CONNECT_ERROR 0xa
	TCP connection error for CONNECT.
#define	N_H2_ERR_ENHANCE_YOUR_CALM 0xb
	processing capacity exceeded
#define	N_H2_ERR_FLOW_CONTROL_ERROR 0x3
	flow-control limits exceeded
#define	N_H2_ERR_FRAME_SIZE_ERROR 0x6
	frame size incorrect
#define	N_H2_ERR_HTTP_1_1_REQUIRED 0xd
	use HTTP/1.1 for the request
#define	N_H2_ERR_INADEQUATE_SECURITY 0xc
	negotiated TLS parameters not acceptable
#define	N_H2_ERR_INTERNAL_ERROR 0x2
	implementation fault
#define	N_H2_ERR_NO_ERROR 0x0
	graceful shutdown
#define	N_H2_ERR_PROTOCOL_ERROR 0x1
	unspecific protocol error
#define	N_H2_ERR_REFUSED_STREAM 0x7
	stream not processed
#define	N_H2_ERR_SETTINGS_TIMEOUT 0x4
	settings not acknowledged
#define	N_H2_ERR_STREAM_CLOSED 0x5
	frame received for a closed stream

Typedefs
typedef ssize_t(*	n_h2_srv_read_fn) (void io, void buf, size_t len)
	read up to len bytes into buf: returns the bytes read (>0), 0 on a clean end of stream, or -1 on error (a timeout included)
typedef int(*	n_h2_srv_request_cb) (void user_data, N_H2_SERVER srv, const N_H2_REQUEST *req)
	called with each complete request; answer it with n_http2_server_respond() (or n_http2_server_rst_stream()).
typedef ssize_t(*	n_h2_srv_write_fn) (void io, const void buf, size_t len)
	write exactly len bytes from buf: returns len on success, -1 on error

Functions
const char *	n_http2_server_error (const N_H2_SERVER *srv)
	the reason the connection failed, or NULL when none was recorded
void	n_http2_server_free (N_H2_SERVER **srv)
	free a server connection and NULL the caller's pointer
int	n_http2_server_goaway (N_H2_SERVER *srv, uint32_t error_code)
	send GOAWAY, naming the last stream we processed
int	n_http2_server_handshake (N_H2_SERVER *srv)
	read and validate the client connection preface, then send ours
N_H2_SERVER *	n_http2_server_new (void *io, n_h2_srv_read_fn rd, n_h2_srv_write_fn wr)
	create a server connection over the given I/O callbacks
size_t	n_http2_server_request_count (const N_H2_SERVER *srv)
	the number of requests delivered to the callback so far
int	n_http2_server_respond (N_H2_SERVER srv, uint32_t stream_id, const N_H2_HEADER headers, size_t nheaders, const unsigned char *body, size_t body_len)
	write a complete response on a stream (HEADERS then DATA, END_STREAM)
int	n_http2_server_rst_stream (N_H2_SERVER *srv, uint32_t stream_id, uint32_t error_code)
	abort one stream with RST_STREAM
int	n_http2_server_run (N_H2_SERVER srv, n_h2_srv_request_cb cb, void user_data)
	serve the connection until it ends

Detailed Description

HTTP/2 (RFC 7540) server-side connection and stream state machine.

Author: Castagnier Mickael

Version: 1.0

Date: 2026

The server half of HTTP/2, built on the framing and HPACK codec of n_http2.h: it validates the client connection preface, exchanges SETTINGS, reassembles HEADERS plus CONTINUATION per stream, accumulates DATA until END_STREAM, hands each complete request to a callback, and writes responses back as HEADERS plus DATA. It answers PING, honours RST_STREAM, and closes with GOAWAY.

Both directions are flow controlled at the connection AND the stream level: the receive windows are replenished as request bodies are consumed, and a response body is never written past the peer's advertised window (when a window is exhausted the server pumps incoming frames until a WINDOW_UPDATE reopens it). A server that skips this works against small responses and deadlocks against large ones.

Byte I/O goes through injected read/write callbacks rather than a socket, so the same core runs over a plain connection (h2c prior knowledge, and the tests against a scripted peer) or a TLS connection that negotiated ALPN "h2"; the callbacks own the timeouts and the TLS.

Requests are delivered one at a time: the callback for a stream returns before the next stream's request is delivered, so a handler may block. Streams are still multiplexed on the wire (the client may open many at once, and their frames keep being read and buffered), they are simply served in the order they complete.

Definition in file n_http2_server.h.

Data Structure Documentation

◆ N_H2_REQUEST

struct N_H2_REQUEST

one complete request received on a stream; every pointer is owned by the server and valid only for the duration of the request callback

Examples: ex_http2_server.c, and ex_network_alpn.c.

Definition at line 104 of file n_http2_server.h.

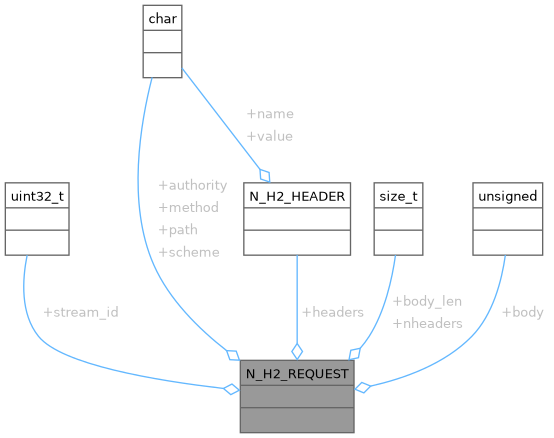

Collaboration diagram for N_H2_REQUEST:

Data Fields
const char *	authority	the :authority pseudo-header, or NULL when absent
const unsigned char *	body	the request body, or NULL when there is none
size_t	body_len	the body length in bytes
N_H2_HEADER *	headers	the decoded header fields, pseudo-headers included
const char *	method	the :method pseudo-header, or NULL when absent
size_t	nheaders	number of header fields
const char *	path	the :path pseudo-header, or NULL when absent
const char *	scheme	the :scheme pseudo-header, or NULL when absent
uint32_t	stream_id	the stream the request arrived on

Macro Definition Documentation

◆ N_H2_ERR_CANCEL

#define N_H2_ERR_CANCEL 0x8

stream cancelled

Examples: ex_http2_server.c.

Definition at line 84 of file n_http2_server.h.

Referenced by test_rst_stream().

◆ N_H2_ERR_COMPRESSION_ERROR

#define N_H2_ERR_COMPRESSION_ERROR 0x9

HPACK compression state not updated.

Definition at line 85 of file n_http2_server.h.

◆ N_H2_ERR_CONNECT_ERROR

#define N_H2_ERR_CONNECT_ERROR 0xa

TCP connection error for CONNECT.

Definition at line 86 of file n_http2_server.h.

◆ N_H2_ERR_ENHANCE_YOUR_CALM

#define N_H2_ERR_ENHANCE_YOUR_CALM 0xb

processing capacity exceeded

Definition at line 87 of file n_http2_server.h.

Referenced by srv_apply_data().

◆ N_H2_ERR_FLOW_CONTROL_ERROR

#define N_H2_ERR_FLOW_CONTROL_ERROR 0x3

flow-control limits exceeded

Definition at line 79 of file n_http2_server.h.

◆ N_H2_ERR_FRAME_SIZE_ERROR

#define N_H2_ERR_FRAME_SIZE_ERROR 0x6

frame size incorrect

Definition at line 82 of file n_http2_server.h.

◆ N_H2_ERR_HTTP_1_1_REQUIRED

#define N_H2_ERR_HTTP_1_1_REQUIRED 0xd

use HTTP/1.1 for the request

Definition at line 89 of file n_http2_server.h.

◆ N_H2_ERR_INADEQUATE_SECURITY

#define N_H2_ERR_INADEQUATE_SECURITY 0xc

negotiated TLS parameters not acceptable

Definition at line 88 of file n_http2_server.h.

◆ N_H2_ERR_INTERNAL_ERROR

#define N_H2_ERR_INTERNAL_ERROR 0x2

implementation fault

Definition at line 78 of file n_http2_server.h.

◆ N_H2_ERR_NO_ERROR

#define N_H2_ERR_NO_ERROR 0x0

graceful shutdown

Definition at line 76 of file n_http2_server.h.

Referenced by n_http2_server_run().

◆ N_H2_ERR_PROTOCOL_ERROR

#define N_H2_ERR_PROTOCOL_ERROR 0x1

unspecific protocol error

Definition at line 77 of file n_http2_server.h.

◆ N_H2_ERR_REFUSED_STREAM

#define N_H2_ERR_REFUSED_STREAM 0x7

stream not processed

Definition at line 83 of file n_http2_server.h.

Referenced by srv_apply_headers().

◆ N_H2_ERR_SETTINGS_TIMEOUT

#define N_H2_ERR_SETTINGS_TIMEOUT 0x4

settings not acknowledged

Definition at line 80 of file n_http2_server.h.

◆ N_H2_ERR_STREAM_CLOSED

#define N_H2_ERR_STREAM_CLOSED 0x5

frame received for a closed stream

Definition at line 81 of file n_http2_server.h.

◆ N_H2_SRV_MAX_BODY

#define N_H2_SRV_MAX_BODY (16 * 1024 * 1024)

largest request body accumulated for one stream

Definition at line 68 of file n_http2_server.h.

Referenced by srv_apply_data().

◆ N_H2_SRV_MAX_HEADERS

#define N_H2_SRV_MAX_HEADERS 128

largest number of header fields decoded from one request

Definition at line 66 of file n_http2_server.h.

Referenced by srv_finish_headers().

◆ N_H2_SRV_MAX_STREAMS

#define N_H2_SRV_MAX_STREAMS 128

largest number of streams tracked at once on one connection

Definition at line 70 of file n_http2_server.h.

Referenced by n_http2_server_free(), n_http2_server_handshake(), n_http2_server_run(), srv_apply_settings(), srv_next_ready(), srv_stream_find(), and srv_stream_open().

◆ N_H2_SRV_READ_CHUNK

#define N_H2_SRV_READ_CHUNK 16384

bytes pulled from the read callback per call

Definition at line 72 of file n_http2_server.h.

Referenced by srv_fill().

Typedef Documentation

◆ n_h2_srv_read_fn

typedef ssize_t(* n_h2_srv_read_fn) (void *io, void *buf, size_t len)

read up to len bytes into buf: returns the bytes read (>0), 0 on a clean end of stream, or -1 on error (a timeout included)

Definition at line 94 of file n_http2_server.h.

◆ n_h2_srv_request_cb

typedef int(* n_h2_srv_request_cb) (void *user_data, N_H2_SERVER *srv, const N_H2_REQUEST *req)

called with each complete request; answer it with n_http2_server_respond() (or n_http2_server_rst_stream()).

Return 0 to keep serving the connection, -1 to stop n_http2_server_run().

Definition at line 119 of file n_http2_server.h.

◆ n_h2_srv_write_fn

typedef ssize_t(* n_h2_srv_write_fn) (void *io, const void *buf, size_t len)

write exactly len bytes from buf: returns len on success, -1 on error

Definition at line 97 of file n_http2_server.h.

Function Documentation

◆ n_http2_server_error()

const char * n_http2_server_error ( const N_H2_SERVER * srv )

the reason the connection failed, or NULL when none was recorded

Definition at line 833 of file n_http2_server.c.

References N_H2_SERVER::err.

Referenced by server_fn(), test_continuation(), test_guards(), test_handshake_errors(), and test_send_window_stall().

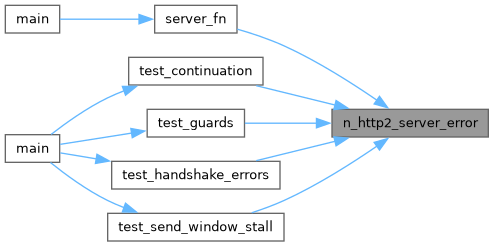

Here is the caller graph for this function:

◆ n_http2_server_free()

void n_http2_server_free ( N_H2_SERVER ** srv )

free a server connection and NULL the caller's pointer

Definition at line 602 of file n_http2_server.c.

References N_H2_SERVER::dec, h2buf_free(), N_H2_SERVER::hblock, N_H2_SRV_MAX_STREAMS, n_http2_hpack_free(), N_H2_SERVER::rb, srv_stream_close(), and N_H2_SERVER::streams.

Referenced by server_fn(), test_callback_stop(), test_continuation(), test_dribbled_reads(), test_get(), test_guards(), test_handshake(), test_handshake_errors(), test_multiplex(), test_ping_goaway(), test_post_body(), test_rst_stream(), test_send_flow_control(), and test_send_window_stall().

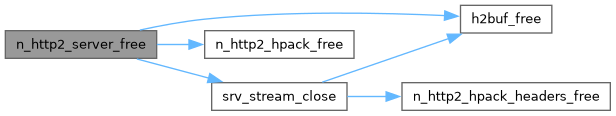

Here is the call graph for this function:

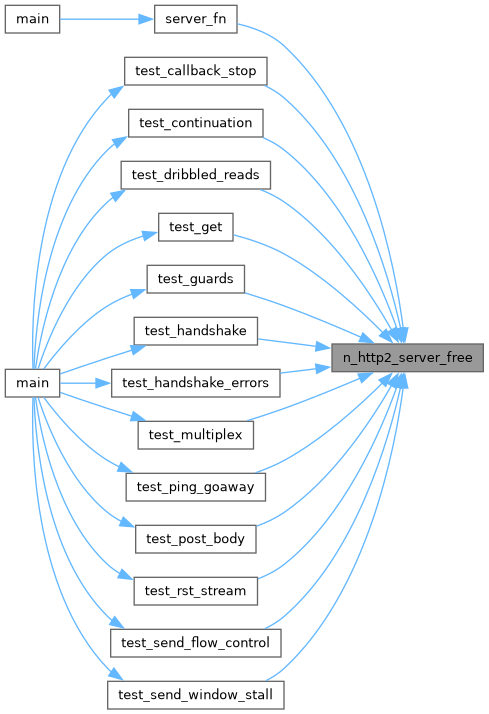

Here is the caller graph for this function:

◆ n_http2_server_goaway()

int n_http2_server_goaway	(	N_H2_SERVER *	srv,
		uint32_t	error_code )

send GOAWAY, naming the last stream we processed

Parameters

srv	the server connection, not NULL
error_code	an N_H2_ERR_* code

Returns: 0 on success, -1 on error

< GOAWAY

Definition at line 817 of file n_http2_server.c.

References __n_assert, N_H2_SERVER::io_failed, N_H2_SERVER::last_stream_id, N_H2_GOAWAY, and srv_send().

Referenced by n_http2_server_run().

Here is the call graph for this function:

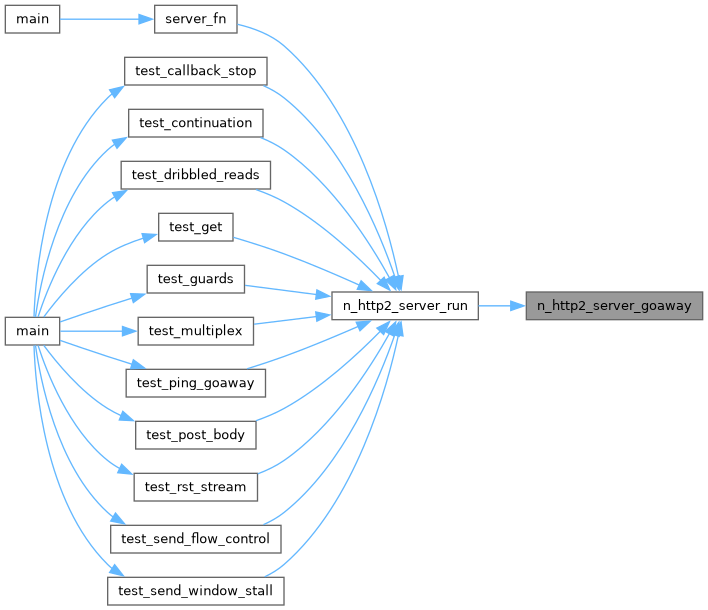

Here is the caller graph for this function:

◆ n_http2_server_handshake()

int n_http2_server_handshake ( N_H2_SERVER * srv )

read and validate the client connection preface, then send ours

Reads the 24-byte preface, requires the client's first frame to be SETTINGS (RFC 7540 3.5), acknowledges it, and sends our own SETTINGS plus the connection-level WINDOW_UPDATE that opens our receive window.

Parameters

srv	the server connection, not NULL

Returns: 0 on success, -1 on a bad preface, a protocol error, or an I/O error

< SETTINGS

< SETTINGS/PING: acknowledgement

Definition at line 617 of file n_http2_server.c.

References __n_assert, H2BUF::data, N_H2_SERVER::err, N_H2_FRAME::flags, H2_DEFAULT_WINDOW, H2_SRV_RECV_WINDOW, h2buf_shift(), N_H2_FLAG_ACK, N_H2_PREFACE, N_H2_SETTINGS, N_H2_SETTINGS_ENABLE_PUSH, N_H2_SETTINGS_INITIAL_WINDOW_SIZE, N_H2_SETTINGS_MAX_CONCURRENT_STREAMS, N_H2_SRV_MAX_STREAMS, N_H2_SERVER::rb, srv_handle_frame(), srv_need(), srv_next_frame(), srv_put_setting(), srv_send(), srv_window_update(), N_H2_FRAME::stream_id, and N_H2_FRAME::type.

Referenced by server_fn(), test_callback_stop(), test_continuation(), test_dribbled_reads(), test_get(), test_guards(), test_handshake(), test_handshake_errors(), test_multiplex(), test_ping_goaway(), test_post_body(), test_rst_stream(), test_send_flow_control(), and test_send_window_stall().

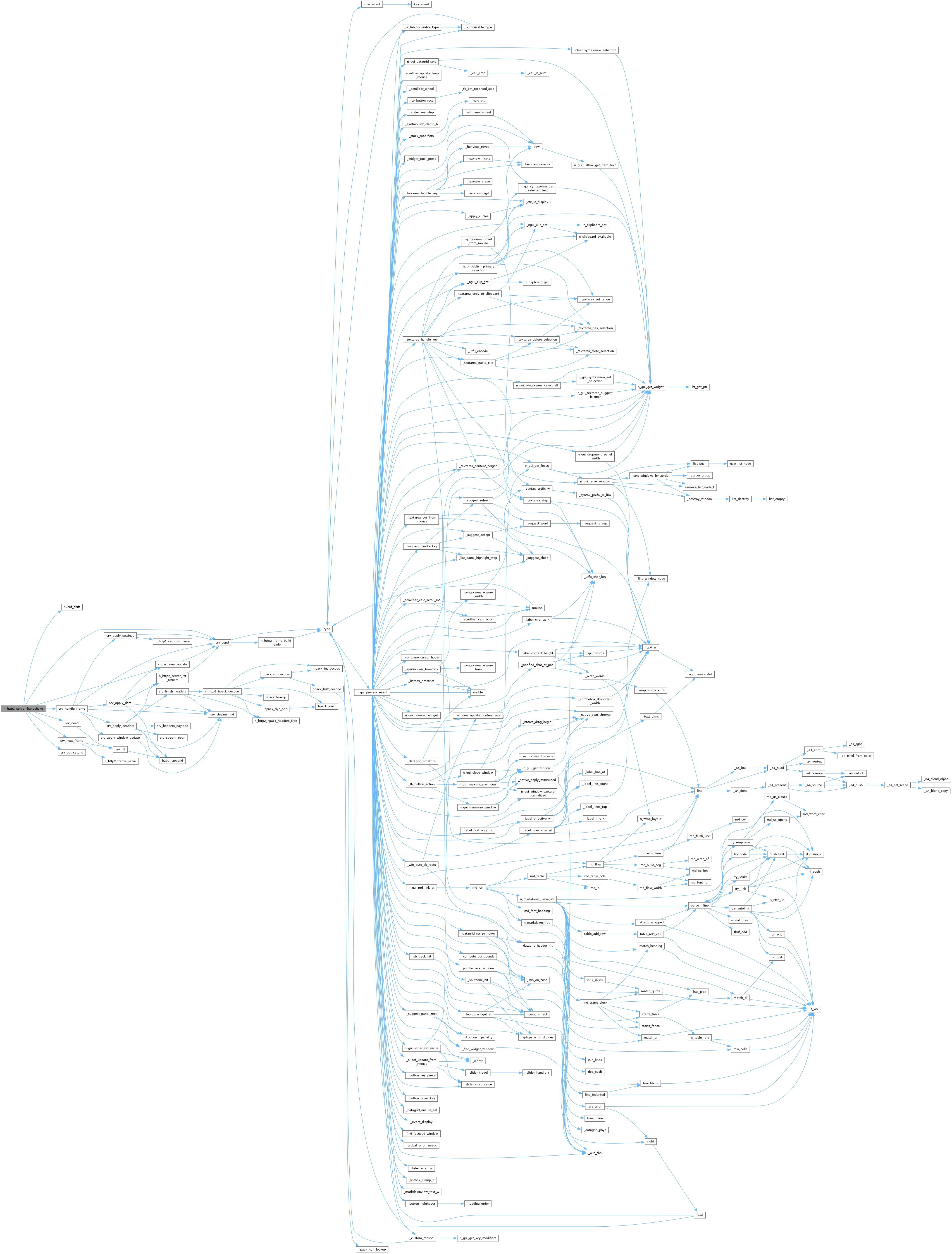

Here is the call graph for this function:

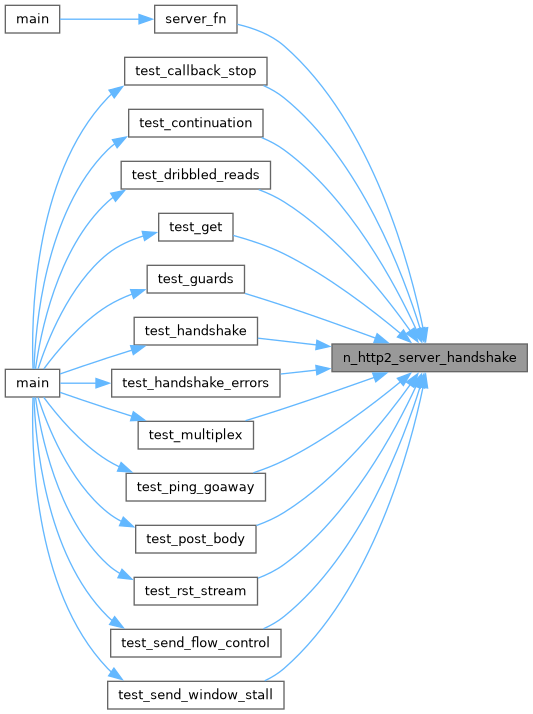

Here is the caller graph for this function:

◆ n_http2_server_new()

N_H2_SERVER * n_http2_server_new	(	void *	io,
		n_h2_srv_read_fn	rd,
		n_h2_srv_write_fn	wr )

create a server connection over the given I/O callbacks

Parameters

io	opaque handle handed to the callbacks
rd	read callback, not NULL
wr	write callback, not NULL

Returns: the new server, or NULL on a bad argument or an allocation failure

Definition at line 579 of file n_http2_server.c.

References __n_assert, N_H2_SERVER::dec, H2_DEFAULT_MAX_FRAME, H2_DEFAULT_WINDOW, N_H2_SERVER::io, LOG_ERR, n_http2_hpack_new(), n_log, N_H2_SERVER::peer_initial_win, N_H2_SERVER::peer_max_frame, N_H2_SERVER::rd, N_H2_SERVER::send_win_conn, and N_H2_SERVER::wr.

Referenced by server_fn(), test_callback_stop(), test_continuation(), test_dribbled_reads(), test_get(), test_guards(), test_handshake(), test_handshake_errors(), test_multiplex(), test_ping_goaway(), test_post_body(), test_rst_stream(), test_send_flow_control(), and test_send_window_stall().

Here is the call graph for this function:

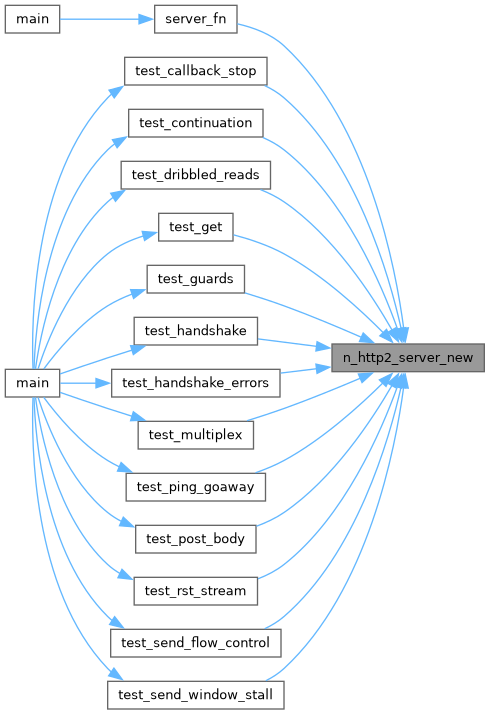

Here is the caller graph for this function:

◆ n_http2_server_request_count()

size_t n_http2_server_request_count ( const N_H2_SERVER * srv )

the number of requests delivered to the callback so far

Definition at line 837 of file n_http2_server.c.

References N_H2_SERVER::nrequests.

Referenced by test_get(), and test_guards().

Here is the caller graph for this function:

◆ n_http2_server_respond()

int n_http2_server_respond	(	N_H2_SERVER *	srv,
		uint32_t	stream_id,
		const N_H2_HEADER *	headers,
		size_t	nheaders,
		const unsigned char *	body,
		size_t	body_len )

write a complete response on a stream (HEADERS then DATA, END_STREAM)

headers must start with the :status pseudo-header and hold no connection-specific field (RFC 7540 8.1.2.2 forbids them). The body is split into DATA frames at the peer's SETTINGS_MAX_FRAME_SIZE and paced by the stream and connection send windows, pumping incoming frames whenever a window is exhausted.

Parameters

srv	the server connection, not NULL
stream_id	the stream to answer
headers	the response header fields, :status first, not NULL
nheaders	number of header fields
body	the response body, or NULL for none
body_len	the body length

Returns: 0 on success, -1 on a bad argument, a closed stream, or an I/O error

< HEADERS/PUSH_PROMISE/CONTINUATION: header block complete

< DATA/HEADERS: last frame of the stream

< HEADERS

< CONTINUATION

< DATA

< DATA/HEADERS: last frame of the stream

Definition at line 725 of file n_http2_server.c.

References __n_assert, N_H2_SERVER::err, N_H2_CONTINUATION, N_H2_DATA, N_H2_FLAG_END_HEADERS, N_H2_FLAG_END_STREAM, N_H2_HEADERS, n_http2_hpack_encode(), N_H2_SERVER::peer_max_frame, H2_STREAM::reset, H2_STREAM::send_win, N_H2_SERVER::send_win_conn, srv_pump_one(), srv_send(), srv_stream_find(), and N_H2_HEADER::value.

Referenced by h2_on_request(), and on_request().

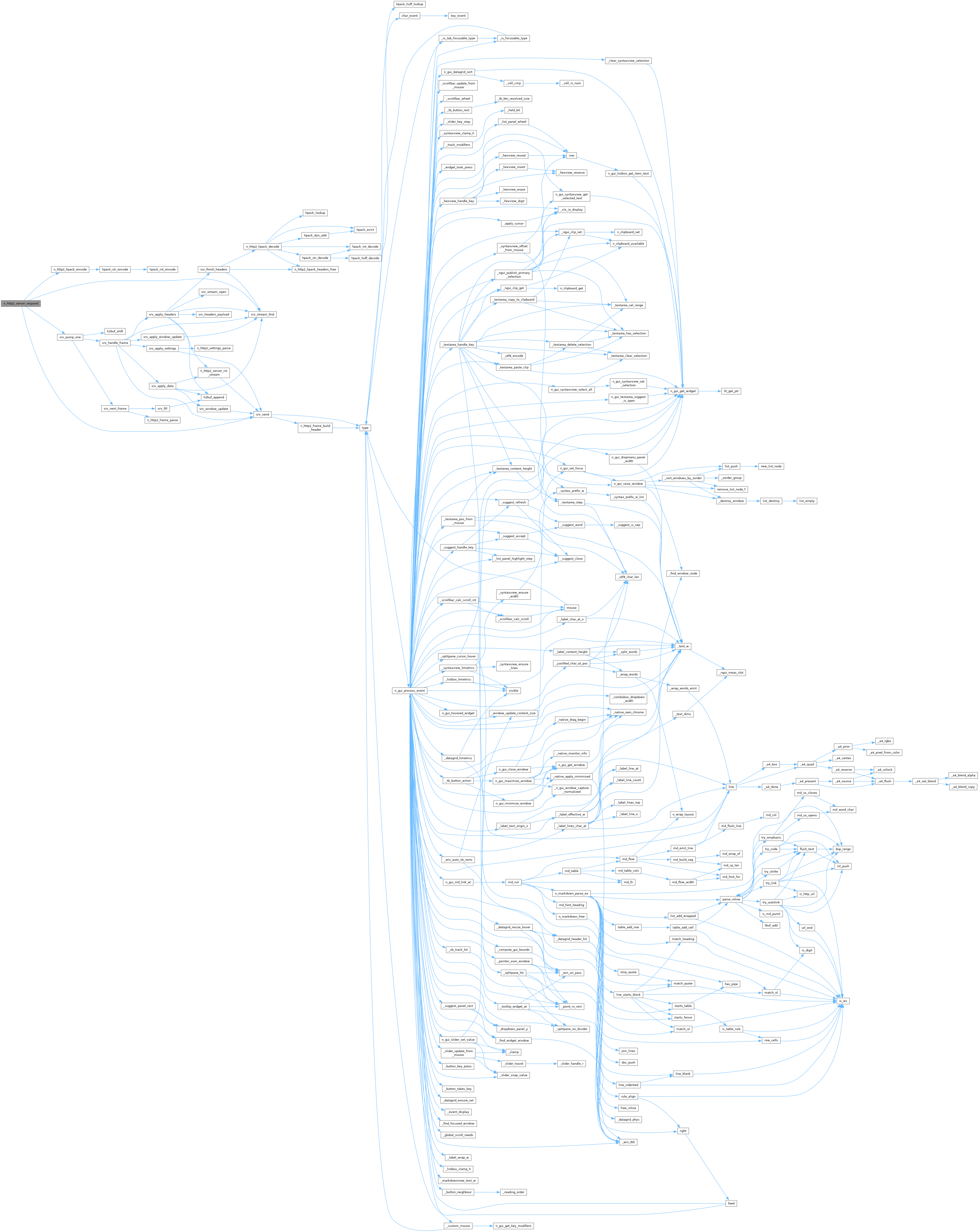

Here is the call graph for this function:

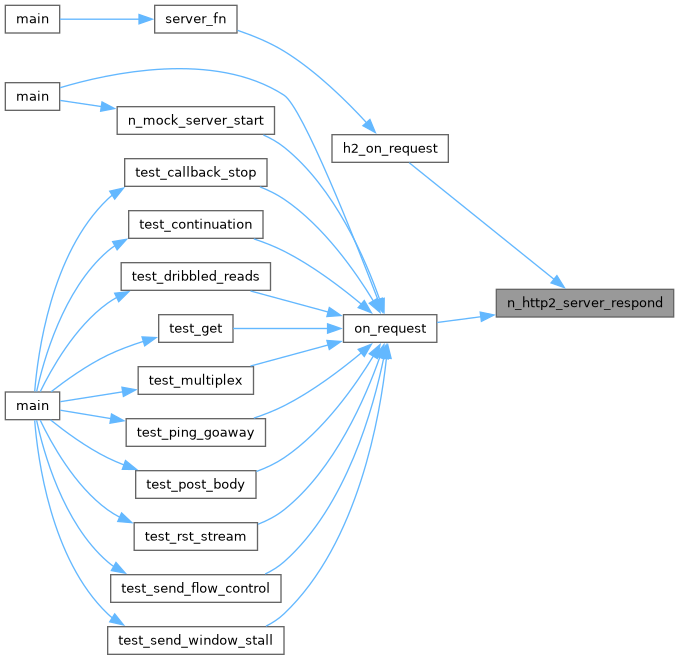

Here is the caller graph for this function:

◆ n_http2_server_rst_stream()

int n_http2_server_rst_stream	(	N_H2_SERVER *	srv,
		uint32_t	stream_id,
		uint32_t	error_code )

abort one stream with RST_STREAM

Parameters

srv	the server connection, not NULL
stream_id	the stream to reset
error_code	an N_H2_ERR_* code

Returns: 0 on success, -1 on error

< RST_STREAM

Definition at line 807 of file n_http2_server.c.

References __n_assert, N_H2_RST_STREAM, and srv_send().

Referenced by srv_apply_data(), and srv_apply_headers().

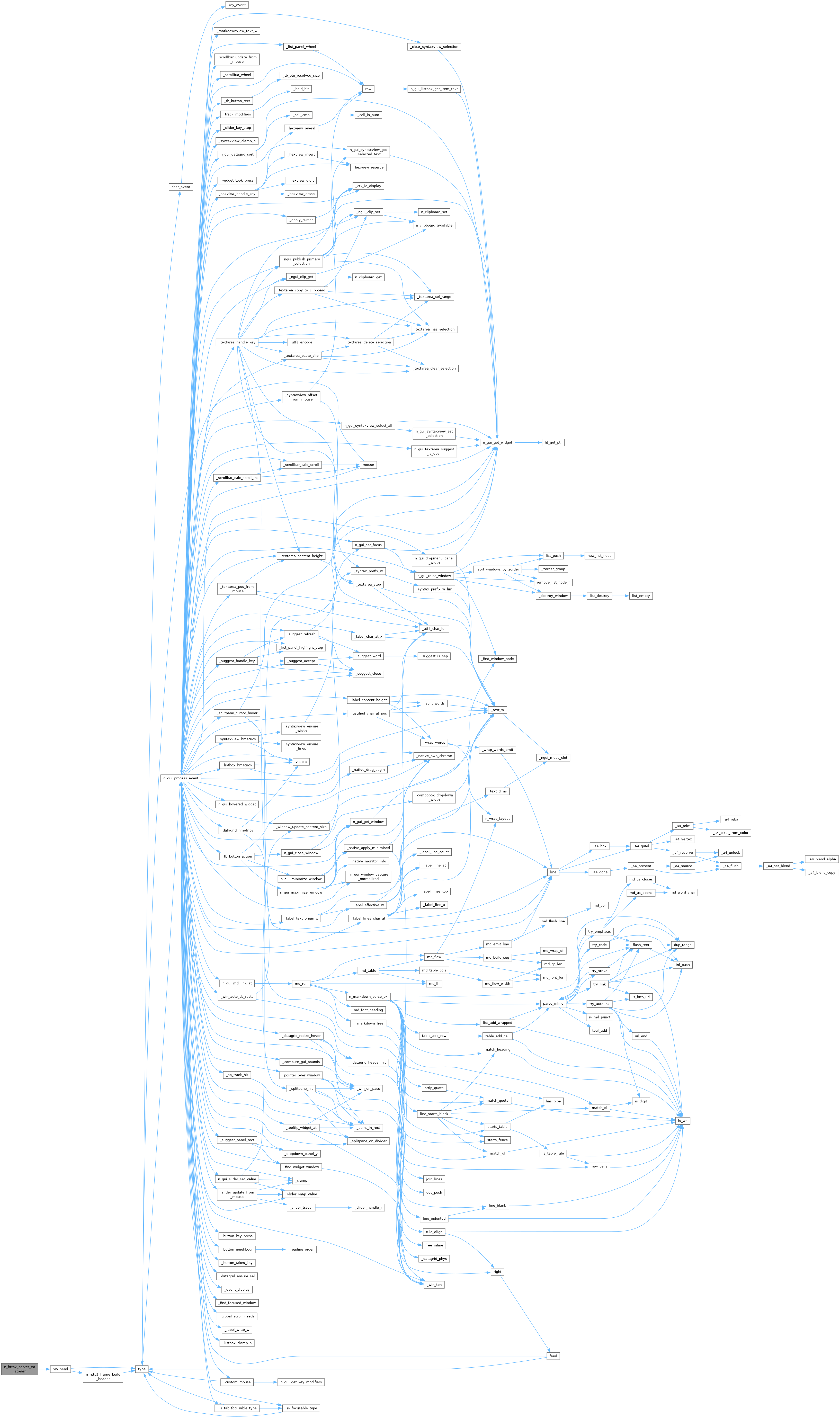

Here is the call graph for this function:

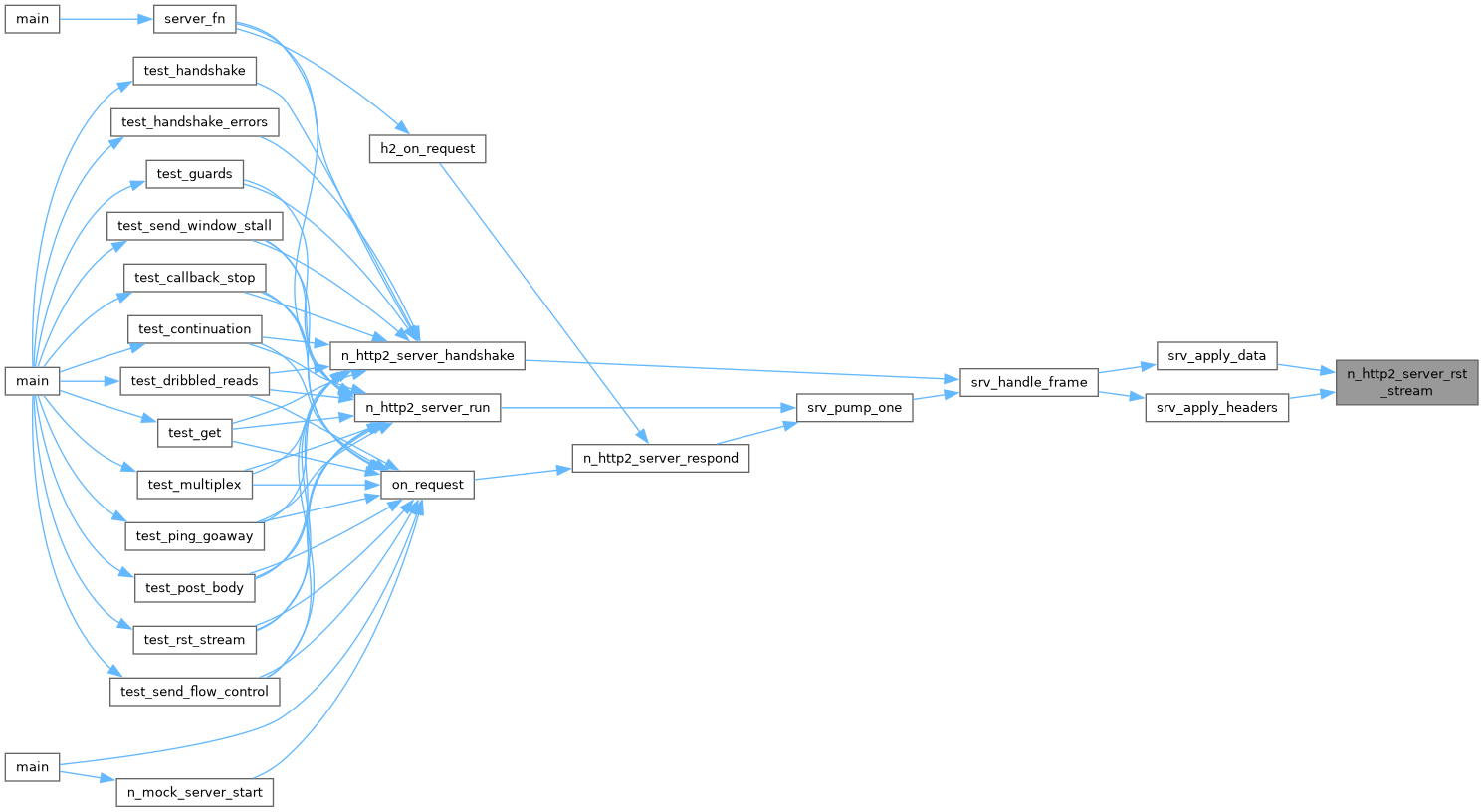

Here is the caller graph for this function:

◆ n_http2_server_run()

int n_http2_server_run	(	N_H2_SERVER *	srv,
		n_h2_srv_request_cb	cb,
		void *	user_data )

serve the connection until it ends

Reads frames, reassembles requests, and calls cb once per complete request. Returns when the peer closes or sends GOAWAY, when the callback returns -1, or on an error.

Parameters

srv	the handshaked server connection, not NULL
cb	the request callback, not NULL
user_data	opaque pointer handed to the callback

Returns: 0 when the connection ended cleanly (peer close, GOAWAY, or a callback stop), -1 on a protocol or I/O error

< graceful shutdown

Definition at line 661 of file n_http2_server.c.

References __n_assert, N_H2_REQUEST::authority, H2_STREAM::body, N_H2_REQUEST::body, N_H2_REQUEST::body_len, H2BUF::data, H2_STREAM::delivered, N_H2_SERVER::eof, N_H2_SERVER::goaway_recv, H2_STREAM::hdrs, N_H2_REQUEST::headers, H2_STREAM::id, H2_STREAM::in_use, N_H2_SERVER::io_failed, H2BUF::len, N_H2_REQUEST::method, N_H2_ERR_NO_ERROR, N_H2_SRV_MAX_STREAMS, n_http2_server_goaway(), N_H2_HEADER::name, H2_STREAM::nhdrs, N_H2_REQUEST::nheaders, N_H2_SERVER::nrequests, N_H2_REQUEST::path, H2_STREAM::reset, N_H2_REQUEST::scheme, srv_next_ready(), srv_pump_one(), srv_stream_close(), srv_stream_find(), stop(), N_H2_REQUEST::stream_id, N_H2_SERVER::streams, and N_H2_HEADER::value.

Referenced by server_fn(), test_callback_stop(), test_continuation(), test_dribbled_reads(), test_get(), test_guards(), test_multiplex(), test_ping_goaway(), test_post_body(), test_rst_stream(), test_send_flow_control(), and test_send_window_stall().

Here is the call graph for this function:

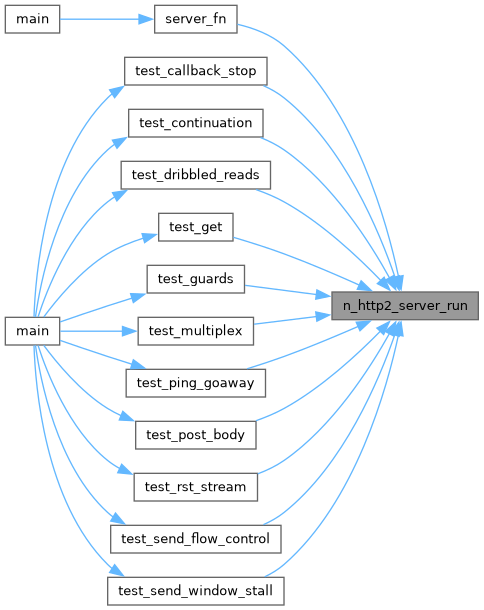

Here is the caller graph for this function:

Data Structures

Macros

Typedefs

Functions

Detailed Description

Data Structure Documentation

◆ N_H2_REQUEST

Macro Definition Documentation

◆ N_H2_ERR_CANCEL

◆ N_H2_ERR_COMPRESSION_ERROR

◆ N_H2_ERR_CONNECT_ERROR

◆ N_H2_ERR_ENHANCE_YOUR_CALM

◆ N_H2_ERR_FLOW_CONTROL_ERROR

◆ N_H2_ERR_FRAME_SIZE_ERROR

◆ N_H2_ERR_HTTP_1_1_REQUIRED

◆ N_H2_ERR_INADEQUATE_SECURITY

◆ N_H2_ERR_INTERNAL_ERROR

◆ N_H2_ERR_NO_ERROR

◆ N_H2_ERR_PROTOCOL_ERROR

◆ N_H2_ERR_REFUSED_STREAM

◆ N_H2_ERR_SETTINGS_TIMEOUT

◆ N_H2_ERR_STREAM_CLOSED

◆ N_H2_SRV_MAX_BODY

◆ N_H2_SRV_MAX_HEADERS

◆ N_H2_SRV_MAX_STREAMS

◆ N_H2_SRV_READ_CHUNK

Typedef Documentation

◆ n_h2_srv_read_fn

◆ n_h2_srv_request_cb

◆ n_h2_srv_write_fn

Function Documentation

◆ n_http2_server_error()

◆ n_http2_server_free()

◆ n_http2_server_goaway()

◆ n_http2_server_handshake()

◆ n_http2_server_new()

◆ n_http2_server_request_count()

◆ n_http2_server_respond()

◆ n_http2_server_rst_stream()

◆ n_http2_server_run()
