n_network.c File Reference

Network Engine. More...

#include <errno.h>
#include <limits.h>
#include <pthread.h>
#include <unistd.h>
#include <string.h>
#include <ctype.h>
#include <sys/types.h>
#include "nilorea/n_network.h"
#include "nilorea/n_network_msg.h"
#include "nilorea/n_log.h"
#include "nilorea/n_hash.h"
#include <sys/wait.h>

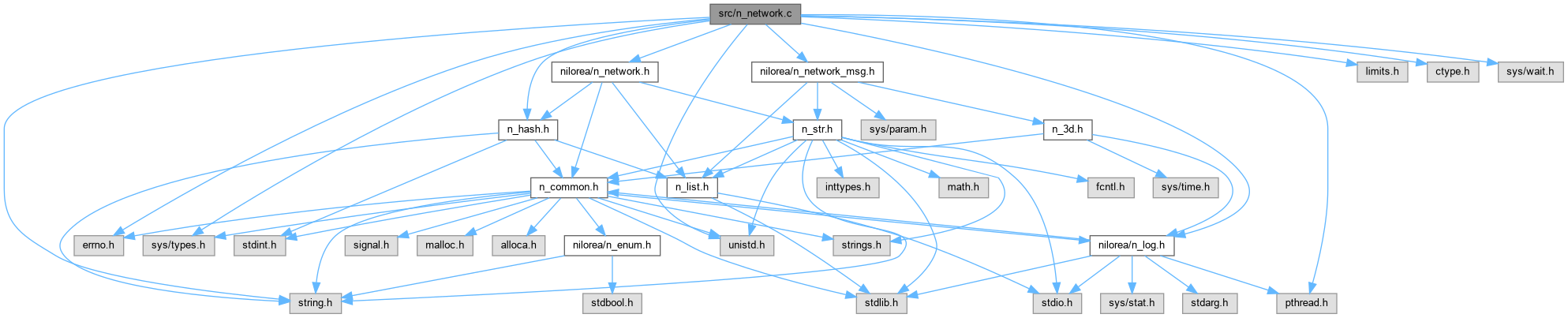

Include dependency graph for n_network.c:

Go to the source code of this file.

Macros
#define	neterrno   errno
	get last socket error code, linux version
#define	netstrerror(code)
	BSD style errno string NO WORKING ON REDHAT.

Functions
int	deplete_send_buffer (int fd, size_t timeout)
	wait until the socket is empty or timeout, checking each 100 msec.
char *	get_in_addr (struct sockaddr *sa)
	get sockaddr, IPv4 or IPv6
NETWORK *	netw_accept_from (NETWORK *from)
	make a normal blocking 'accept' .
NETWORK *	netw_accept_from_ex (NETWORK *from, int send_list_limit, int recv_list_limit, int blocking, int *retval)
	make a normal 'accept' .
NETWORK *	netw_accept_nonblock_from (NETWORK *from, int blocking)
	make a normal blocking 'accept' .
int	netw_add_msg (NETWORK *netw, N_STR *msg)
	Add a message to send in aimed NETWORK.
int	netw_add_msg_ex (NETWORK *netw, char *str, unsigned int length)
	Add a message to send in aimed NETWORK.
int	netw_build_http_response (N_STR **http_response, int status_code, const char *server_name, const char *content_type, char *additional_headers, N_STR *body)
	function to dynamically generate an HTTP response
size_t	netw_calculate_urlencoded_size (const char *str, size_t len)
	function to calculate the required size for the URL-encoded string
int	netw_close (NETWORK **netw)
	Closing a specified Network, destroy queues, free the structure.
int	netw_connect (NETWORK **netw, char *host, char *port, int ip_version)
	Use this to connect a NETWORK to any listening one, unrestricted send/recv lists.
int	netw_connect_ex (NETWORK **netw, char *host, char *port, int send_list_limit, int recv_list_limit, int ip_version, char *ssl_key_file, char *ssl_cert_file)
	Use this to connect a NETWORK to any listening one.
int	netw_destroy_pool (NETWORK_POOL **netw_pool)
	free a NETWORK_POOL *pool
NETWORK_HTTP_INFO	netw_extract_http_info (char *request)
	extract a lot of informations, mostly as pointers, and populate a NETWORK_HTTP_INFO structure
char *	netw_extract_http_request_type (const char *request)
	function to extract the request method from an http request
void	netw_get_http_date (char *buffer, size_t buffer_size)
	helper function to generate the current date in HTTP format
const char *	netw_get_http_status_message (int status_code)
	helper function to convert status code to a human-readable message
N_STR *	netw_get_msg (NETWORK *netw)
	Get a message from aimed NETWORK.
int	netw_get_queue_status (NETWORK *netw, int *nb_to_send, int *nb_to_read)
	retrieve network send queue status
int	netw_get_state (NETWORK *netw, int *state, int *thr_engine_status)
	Get the state of a network.
void	netw_get_url_from_http_request (const char *request, char *url, size_t size)
	Helper function to extract the URL from the HTTP request line.
const char *	netw_guess_http_content_type (const char *url)
	function to guess the content type based on URL extension
int	netw_info_destroy (NETWORK_HTTP_INFO http_request)
	destroy a NETWORK_HTTP_INFO loaded informations
int	netw_init_wsa (int mode, int v1, int v2)
	Do not directly use, internal api.
int	netw_make_listening (NETWORK **netw, char *addr, char *port, int nbpending, int ip_version)
	Make a NETWORK be a Listening network.
NETWORK *	netw_new (int send_list_limit, int recv_list_limit)
	Return an empty allocated network ready to be netw_closed.
NETWORK_POOL *	netw_new_pool (int nb_min_element)
	return a new network pool of nb_min_element
HASH_TABLE *	netw_parse_post_data (const char *post_data)
	Function to parse POST data.
int	netw_pool_add (NETWORK_POOL *netw_pool, NETWORK *netw)
	add a NETWORK *netw to a NETWORK_POOL *pool
int	netw_pool_broadcast (NETWORK_POOL *netw_pool, NETWORK *from, N_STR *net_msg)
	add net_msg to all network in netork pool
int	netw_pool_nbclients (NETWORK_POOL *netw_pool)
	return the number of networks in netw_pool
void	netw_pool_netw_close (void *netw_ptr)
	close a network from a network pool
int	netw_pool_remove (NETWORK_POOL *netw_pool, NETWORK *netw)
	remove a NETWORK *netw to a NETWORK_POOL *pool
void *	netw_recv_func (void *NET)
	To Thread Receiving function.
void *	netw_send_func (void *NET)
	Thread send function.
int	netw_send_ident (NETWORK *netw, int type, int id, N_STR *name, N_STR *passwd)
	Add a formatted NETWMSG_IDENT message to the specified network.
int	netw_send_ping (NETWORK *netw, int type, int id_from, int id_to, int time)
	Add a ping reply to the network.
int	netw_send_position (NETWORK *netw, int id, double X, double Y, double vx, double vy, double acc_x, double acc_y, int time_stamp)
	Add a formatted NETWMSG_IDENT message to the specified network.
int	netw_send_quit (NETWORK *netw)
	Add a formatted NETMSG_QUIT message to the specified network.
int	netw_send_string_to (NETWORK *netw, int id_to, N_STR *name, N_STR *chan, N_STR *txt, int color)
	Add a string to the network, aiming a specific user.
int	netw_send_string_to_all (NETWORK *netw, N_STR *name, N_STR *chan, N_STR *txt, int color)
	Add a string to the network, aiming all server-side users.
int	netw_set (NETWORK *netw, int flag)
	Restart or reset the specified network ability.
int	netw_set_blocking (NETWORK *netw, unsigned long int is_blocking)
	Modify blocking socket mode.
int	netw_set_user_id (NETWORK *netw, int id)
	associate an id and a network
int	netw_setsockopt (NETWORK *netw, int optname, int value)
	Modify common socket options on the given netw.
int	netw_start_thr_engine (NETWORK *netw)
	Start the NETWORK netw Threaded Engine.
int	netw_stop_thr_engine (NETWORK *netw)
	Stop a NETWORK connection sending and receing thread.
char *	netw_urldecode (const char *str)
	Function to decode URL-encoded data.
char *	netw_urlencode (const char *str, size_t len)
	function to perform URL encoding
int	netw_wait_close (NETWORK **netw)
	Wait for peer closing a specified Network, destroy queues, free the structure.
int	netw_wait_close_timed (NETWORK **netw, size_t timeout)
	Wait for peer closing a specified Network, destroy queues, free the structure.
N_STR *	netw_wait_msg (NETWORK *netw, size_t refresh, size_t timeout)
	Wait a message from aimed NETWORK.
int	recv_data (void *netw, char *buf, NSTRBYTE n)
	recv data from the socket
int	recv_php (SOCKET s, int *_code, char **buf)
	recv data from the socket
int	send_data (void *netw, char *buf, NSTRBYTE n)
	send data onto the socket
int	send_php (SOCKET s, int _code, char *buf, int n)
	send data onto the socket

Variables
	N_ENUM_netw_code_type
	network error code

Detailed Description

Network Engine.

Author

Castagnier Mickael

Version

1.0

Date

10/05/2005

Definition in file n_network.c.

Macro Definition Documentation

neterrno

#define neterrno   errno

get last socket error code, linux version

Definition at line 556 of file n_network.c.

netstrerror

#define netstrerror

(

code

)

Value:

        ({ \
        char *errmsg = NULL ; \
        errno = 0 ; \
        errmsg = strdup( strerror( code ) ); \
        if( errno == ENOMEM ) \
        { \
        errmsg = NULL ; \
        } \
        errmsg ; \
        })

BSD style errno string NO WORKING ON REDHAT.

get last socket error code as a string, linux version

Definition at line 571 of file n_network.c.

Function Documentation

deplete_send_buffer()

int deplete_send_buffer	(	int	fd,
		size_t	timeout
	)

wait until the socket is empty or timeout, checking each 100 msec.

Not as reliable as expected.

Parameters

fd	socket descriptor
timeout	timeout value in msec , zero => disabled

Returns

0 or the amount of remaining datas in bytes

Definition at line 1673 of file n_network.c.

Referenced by netw_wait_close_timed().

Here is the caller graph for this function:

get_in_addr()

char * get_in_addr

(

struct sockaddr *

sa

)

get sockaddr, IPv4 or IPv6

Parameters

sa	addrinfo to get

Returns

socket address

Definition at line 703 of file n_network.c.

Referenced by netw_accept_from_ex(), netw_connect_ex(), and netw_make_listening().

Here is the caller graph for this function:

netw_new()

NETWORK * netw_new	(	int	send_list_limit,
		int	recv_list_limit
	)

Return an empty allocated network ready to be netw_closed.

Parameters

send_list_limit	Thread engine number of tosend message limit
recv_list_limit	Thread engine number of received message limit

Returns

NULL or a new empty network

Definition at line 590 of file n_network.c.

References __n_assert, Free, LOG_ERR, Malloc, n_log, netw_close(), new_generic_list(), recv_data(), and send_data().

Referenced by netw_accept_from_ex(), netw_connect_ex(), and netw_make_listening().

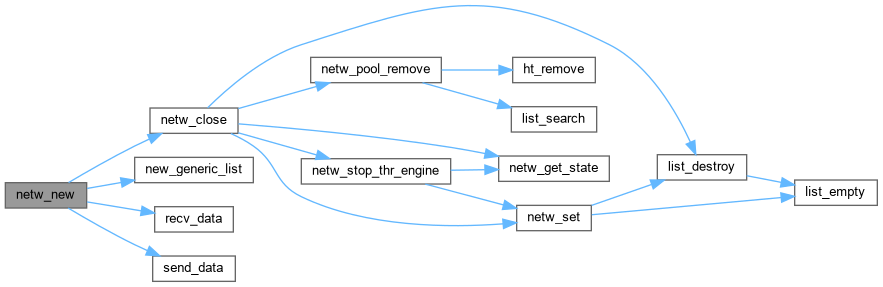

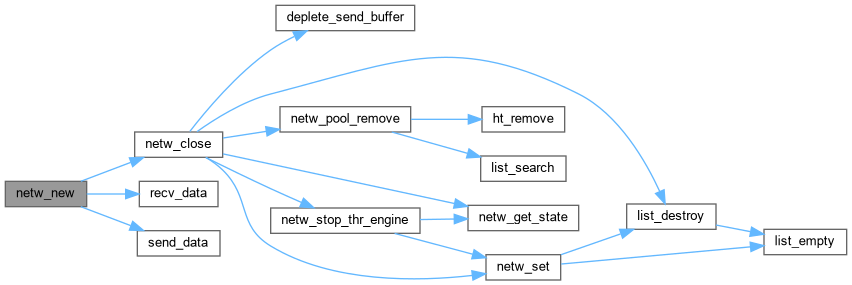

Here is the call graph for this function:

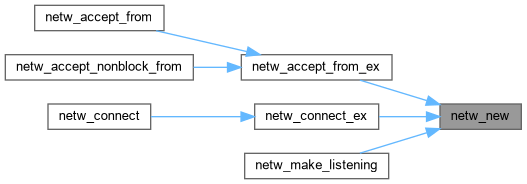

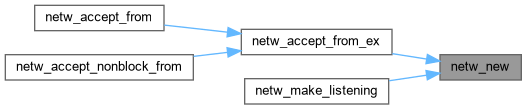

Here is the caller graph for this function:

Variable Documentation

N_ENUM_netw_code_type

N_ENUM_netw_code_type

network error code

Definition at line 23 of file n_network.c.
