n_network.h File Reference

Network Engine. More...

#include "n_common.h"
#include "n_str.h"
#include "n_list.h"
#include "n_hash.h"
#include <openssl/err.h>
#include <openssl/ssl.h>
#include <openssl/crypto.h>

Include dependency graph for n_network.h:

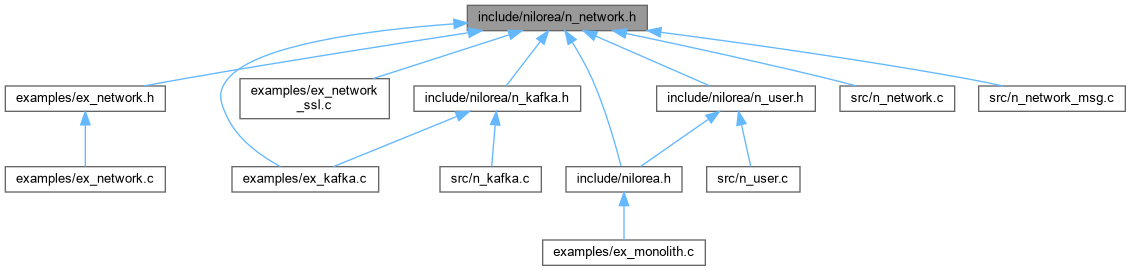

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	N_SOCKET
	Structure of a N_SOCKET. More...
struct	NETWORK
	Structure of a NETWORK. More...
struct	NETWORK_HTTP_INFO
	structure for splitting HTTP requests More...
struct	NETWORK_POOL
	structure of a network pool More...

Macros
#define	_OPEN_SYS_SOCK_IPV6   1
#define	HEAD_CODE   3
	Code of a HEAD message.
#define	HEAD_SIZE   10
	Size of a HEAD message.
#define	N_ENUM_netw_code_type(_)
	Network codes definition.
#define	NETW_MAX_RETRIES   128
	Send or recv max number of retries.
#define	NETW_SOCKET_DISCONNECTED   -2
	Code for a disconnected recv.
#define	NETW_SOCKET_ERROR   -1
	code for a socekt error
#define	NETWORK_CONSECUTIVE_SEND_WAIT   2048
	Flag to set consecutive send waiting timeout
#define	NETWORK_DEPLETE_QUEUES_TIMEOUT   1024
	Flag to set network queues depletion timeout
#define	NETWORK_DEPLETE_SOCKET_TIMEOUT   512
	Flag to set send buffer depletion timeout
#define	NETWORK_IPALL   0
	Flag for auto detection by OS of ip version to use.
#define	NETWORK_IPV4   1
	Flag to force IPV4
#define	NETWORK_IPV6   2
	Flag to force IPV6
#define	NETWORK_WAIT_CLOSE_TIMEOUT   4096
	Flag to set network closing wait timeout.
#define	SOCKET_SIZE_FORMAT   "%d"
	socket associated printf style

Typedefs
typedef ssize_t(*	netw_func) (void *, char *, uint32_t)
	send/recv func ptr type
typedef int	SOCKET
	default socket declaration

Enumerations
enum	__netw_code_type {   NETW_CLIENT = 2 , NETW_SERVER = 4 , NETW_RESTART_TIMER = 8 , NETW_EMPTY_SENDBUF = 16 ,   NETW_EMPTY_RECVBUF = 32 , NETW_RUN = 64 , NETW_EXIT_ASKED = 128 , NETW_EXITED = 256 ,   NETW_ERROR = 512 , NETW_ENCRYPT_NONE = 1024 , NETW_ENCRYPT_OPENSSL = 2048 , NETW_THR_ENGINE_STARTED = 4096 ,   NETW_THR_ENGINE_STOPPED = 8192 , NETW_DESTROY_RECVBUF = 16384 , NETW_DESTROY_SENDBUF = 32768 , ____netw_code_type_UNKNOWN_VALUE__ }
	Network codes declaration. More...

Functions
__netw_code_type	__netw_code_type_fromString (const char *str_value)
__netw_code_type	__netw_code_type_fromStringEx (const char *str_value, int index)
bool	__netw_code_type_isStringValid (const char *str_value)
bool	__netw_code_type_isValid (__netw_code_type value)
	network error code
const char *	__netw_code_type_toString (__netw_code_type value)
int	deplete_send_buffer (int fd, int timeout)
	wait until the socket is empty or timeout, checking each 100 msec.
size_t	htonst (size_t value)
	host to network size_t
NETWORK *	netw_accept_from (NETWORK *from)
	make a normal blocking 'accept' .
NETWORK *	netw_accept_from_ex (NETWORK *from, size_t send_list_limit, size_t recv_list_limit, int blocking, int *retval)
	make a normal 'accept' .
NETWORK *	netw_accept_nonblock_from (NETWORK *from, int blocking)
	make a normal blocking 'accept' .
int	netw_add_msg (NETWORK *netw, N_STR *msg)
	Add a message to send in aimed NETWORK.
int	netw_add_msg_ex (NETWORK *netw, char *str, unsigned int length)
	Add a message to send in aimed NETWORK.
int	netw_build_http_response (N_STR **http_response, int status_code, const char *server_name, const char *content_type, char *additional_headers, N_STR *body)
	function to dynamically generate an HTTP response
size_t	netw_calculate_urlencoded_size (const char *str, size_t len)
	function to calculate the required size for the URL-encoded string
int	netw_close (NETWORK **netw)
	Closing a specified Network, destroy queues, free the structure.
int	netw_connect (NETWORK **netw, char *host, char *port, int ip_version)
	Use this to connect a NETWORK to any listening one, unrestricted send/recv lists.
int	netw_connect_ex (NETWORK **netw, char *host, char *port, size_t send_list_limit, size_t recv_list_limit, int ip_version, char *ssl_key_file, char *ssl_cert_file)
int	netw_destroy_pool (NETWORK_POOL **netw_pool)
	free a NETWORK_POOL *pool
NETWORK_HTTP_INFO	netw_extract_http_info (char *request)
	extract a lot of informations, mostly as pointers, and populate a NETWORK_HTTP_INFO structure
char *	netw_extract_http_request_type (const char *request)
	function to extract the request method from an http request
int	netw_get_http_date (char *buffer, size_t buffer_size)
	helper function to generate the current date in HTTP format
const char *	netw_get_http_status_message (int status_code)
	helper function to convert status code to a human-readable message
N_STR *	netw_get_msg (NETWORK *netw)
	Get a message from aimed NETWORK.
int	netw_get_queue_status (NETWORK *netw, size_t *nb_to_send, size_t *nb_to_read)
	retrieve network send queue status
int	netw_get_state (NETWORK *netw, uint32_t *state, int *thr_engine_status)
	Get the state of a network.
int	netw_get_url_from_http_request (const char *request, char *url, size_t size)
	Helper function to extract the URL from the HTTP request line.
const char *	netw_guess_http_content_type (const char *url)
	function to guess the content type based on URL extension
int	netw_info_destroy (NETWORK_HTTP_INFO http_request)
	destroy a NETWORK_HTTP_INFO loaded informations
int	netw_init_openssl (void)
	Do not directly use, internal api.
int	netw_init_wsa (int mode, int v1, int v2)
	Do not directly use, internal api.
int	netw_make_listening (NETWORK **netw, char *addr, char *port, int nbpending, int ip_version)
	Make a NETWORK be a Listening network.
NETWORK_POOL *	netw_new_pool (size_t nb_min_element)
	return a new network pool of nb_min_element
HASH_TABLE *	netw_parse_post_data (const char *post_data)
	Function to parse POST data.
int	netw_pool_add (NETWORK_POOL *netw_pool, NETWORK *netw)
	add a NETWORK *netw to a NETWORK_POOL *pool
int	netw_pool_broadcast (NETWORK_POOL *netw_pool, NETWORK *from, N_STR *net_msg)
	add net_msg to all network in netork pool
size_t	netw_pool_nbclients (NETWORK_POOL *netw_pool)
	return the number of networks in netw_pool
void	netw_pool_netw_close (void *netw_ptr)
	close a network from a network pool
int	netw_pool_remove (NETWORK_POOL *netw_pool, NETWORK *netw)
	remove a NETWORK *netw to a NETWORK_POOL *pool
void *	netw_recv_func (void *NET)
	To Thread Receiving function.
void *	netw_send_func (void *NET)
	Thread send function.
int	netw_send_ident (NETWORK *netw, int type, int id, N_STR *name, N_STR *passwd)
	Add a formatted NETWMSG_IDENT message to the specified network.
int	netw_send_ping (NETWORK *netw, int type, int id_from, int id_to, int time)
	Add a ping reply to the network.
int	netw_send_position (NETWORK *netw, int id, double X, double Y, double vx, double vy, double acc_x, double acc_y, int time_stamp)
	Add a formatted NETWMSG_IDENT message to the specified network.
int	netw_send_quit (NETWORK *netw)
	Add a formatted NETMSG_QUIT message to the specified network.
int	netw_send_string_to (NETWORK *netw, int id_to, N_STR *name, N_STR *chan, N_STR *txt, int color)
	Add a string to the network, aiming a specific user.
int	netw_send_string_to_all (NETWORK *netw, N_STR *name, N_STR *chan, N_STR *txt, int color)
	Add a string to the network, aiming all server-side users.
int	netw_set (NETWORK *netw, int flag)
	Restart or reset the specified network ability.
int	netw_set_blocking (NETWORK *netw, unsigned long int is_blocking)
	Modify blocking socket mode.
int	netw_set_crypto (NETWORK *netw, char *key, char *certificate)
	activate SSL encryption on selected network, using key and certificate
int	netw_set_user_id (NETWORK *netw, int id)
	associate an id and a network
int	netw_setsockopt (NETWORK *netw, int optname, int value)
	Modify common socket options on the given netw.
int	netw_ssl_connect (NETWORK **netw, char *host, char *port, int ip_version, char *ssl_key_file, char *ssl_cert_file)
	Use this to connect a NETWORK to any listening one, unrestricted send/recv lists.
int	netw_start_thr_engine (NETWORK *netw)
	Start the NETWORK netw Threaded Engine.
int	netw_stop_thr_engine (NETWORK *netw)
	Stop a NETWORK connection sending and receing thread.
int	netw_unload_openssl (void)
	Do not directly use, internal api.
char *	netw_urldecode (const char *str)
	Function to decode URL-encoded data.
char *	netw_urlencode (const char *str, size_t len)
	function to perform URL encoding
int	netw_wait_close (NETWORK **netw)
int	netw_wait_close_timed (NETWORK **netw, size_t timeout)
N_STR *	netw_wait_msg (NETWORK *netw, unsigned int refresh, size_t timeout)
size_t	ntohst (size_t value)
ssize_t	recv_data (void *netw, char *buf, uint32_t n)
	recv data from the socket
ssize_t	recv_php (SOCKET s, int *_code, char **buf)
	recv data from the socket
ssize_t	recv_ssl_data (void *netw, char *buf, uint32_t n)
	recv data from the socket
ssize_t	send_data (void *netw, char *buf, uint32_t n)
	send data onto the socket
ssize_t	send_php (SOCKET s, int _code, char *buf, int n)
	send data onto the socket
ssize_t	send_ssl_data (void *netw, char *buf, uint32_t n)
	send data onto the socket

Detailed Description

Network Engine.

Author

Castagnier Mickael

Version

2.0

Date

11/03/2015

Definition in file n_network.h.
